Category
Grinding Machine
Type
Cylindrical
Made
Model

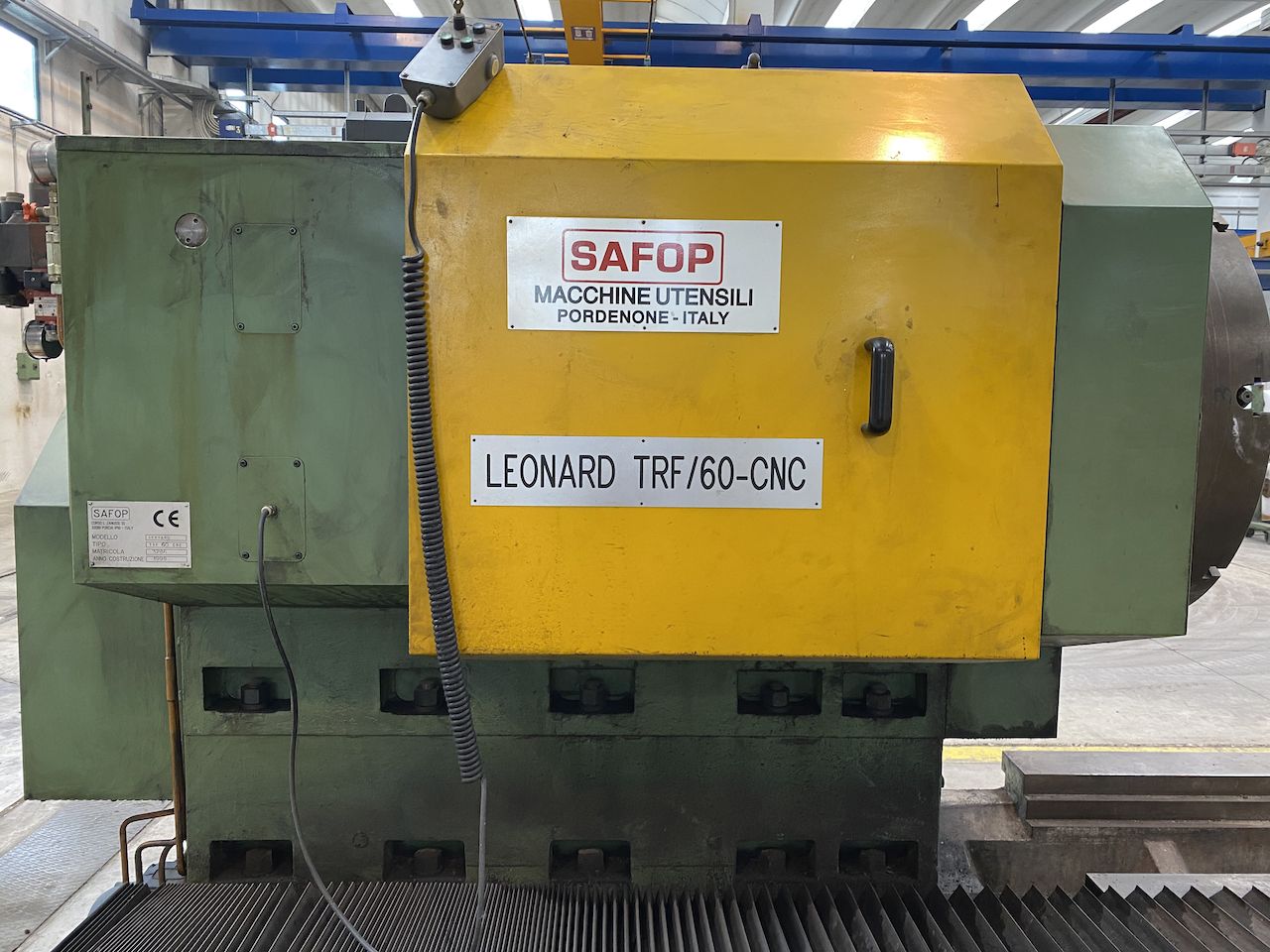

LEONARD TRF60 CNC
Capacity
ø1800(banco) ø1300x10.000 mmø70,87(banco) ø51,18x0,39 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
10.000 mm0,39 in
Centres height
900 mm35,43 in
Longitudinal (Z)
10000 mm393,70 in
Cross (X)
550 mm21,65 in
Max grinding diameter
1300 mm51,18 in
Max grinding lenght
10000 mm393,70 in

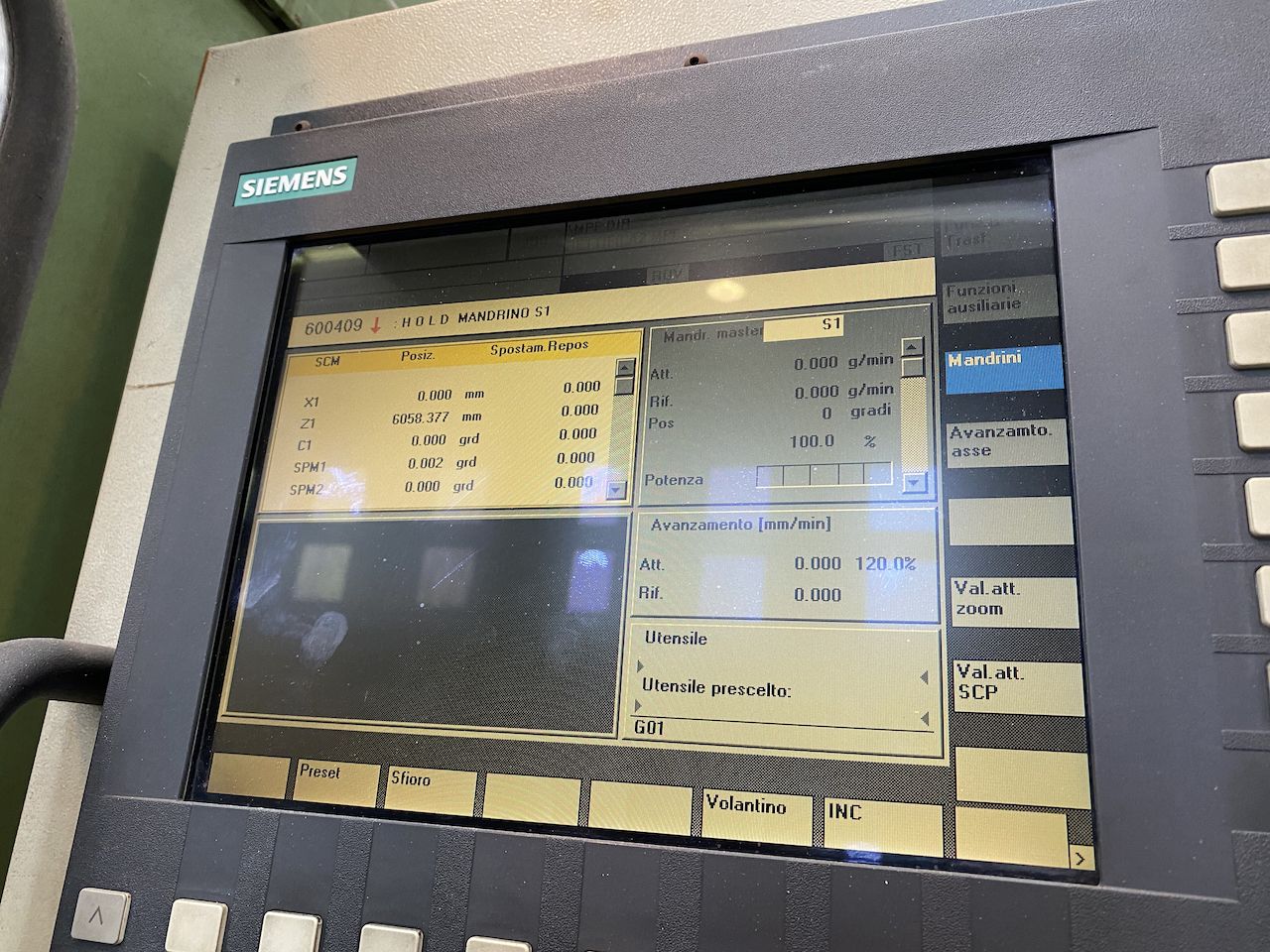

CNC
CNC
Siemens 840D
WORKPIECE HEAD
Rotating speed
(3 gamme) 400 Rpm
Spindle power
60 Kw
C axis
continuo
TAILSTOCK
Quill diameter
230 mm9,06 in
Quill stroke
290 mm11,42 in
Taper
ASA5”

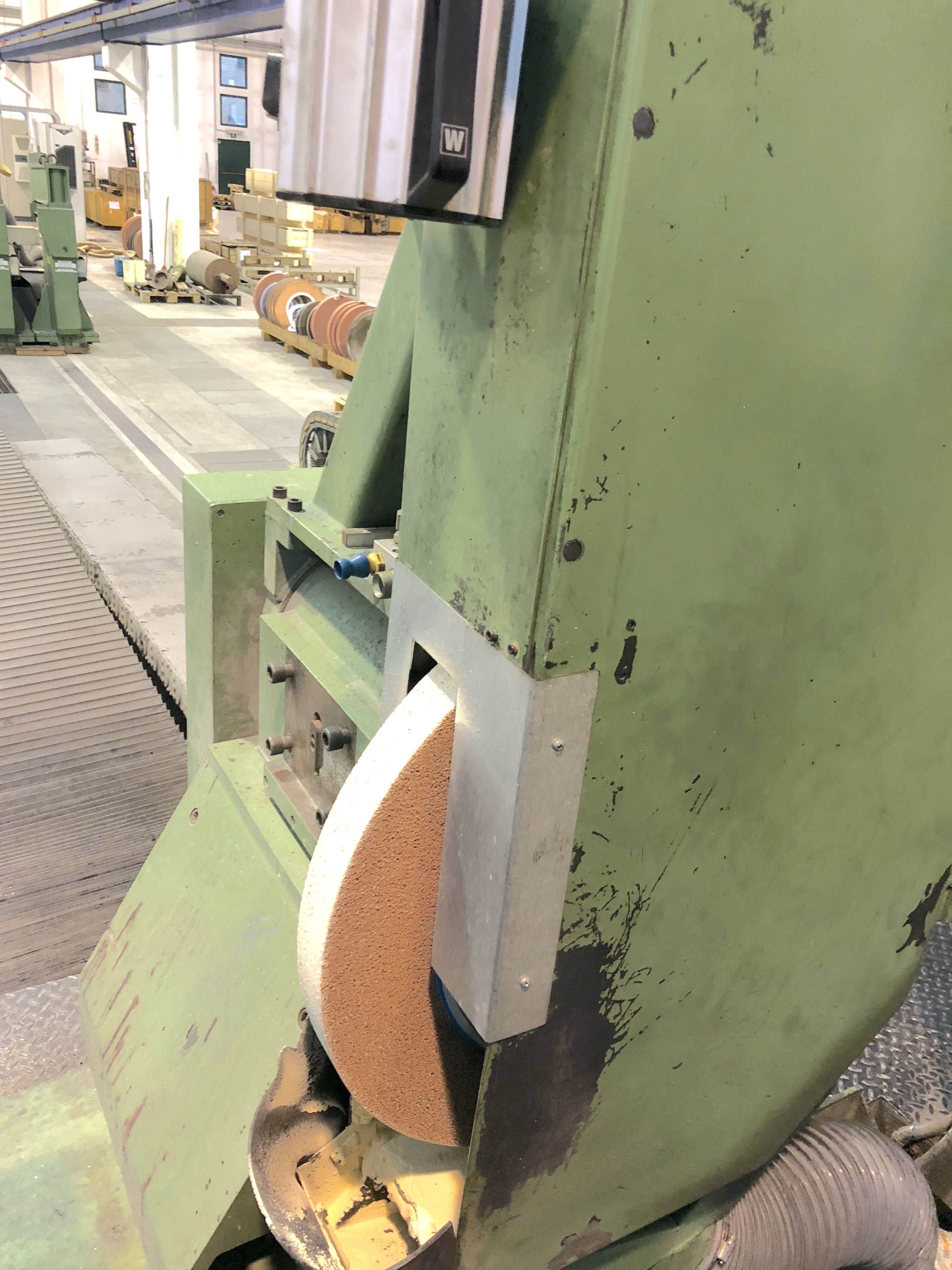

WHEELHEAD
External spindle power
20 Kw
External spindle speed
1200 Rpm
EXTRA
Open steadies
2 lunette a C ø100-500mm
Tooling included
testina foratura radiale 56 testine passo 32mm
