Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
500 mm19,69 in
Vertical (Y)
250 mm9,84 in
Profondità di foratura (V)
600 mm23,62 in
CNC

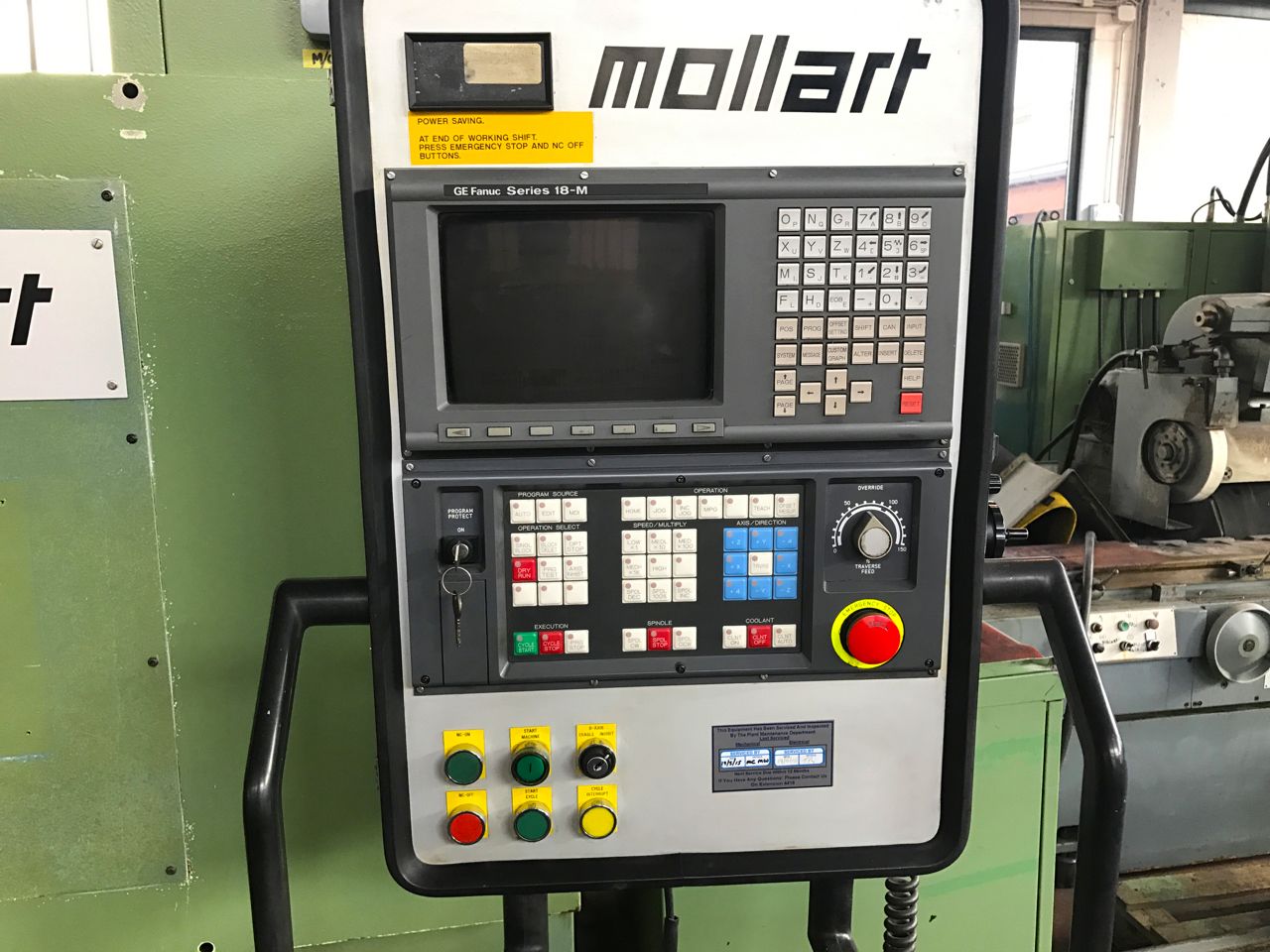

Measuring system
FANUC 18i
UNITà DI FORATURA
Diametro min-max dal pieno
3-30 mm0,12-1,18 in
Spindle power
11/7,5 Kw
Rotating speed
50-4500 Rpm
Tipo foratura
gun drill
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
4 m/min157,48 ipm
Rapid Z
10 m/min393,70 ipm
X
2 m/min78,74 ipm
Y
2 m/min78,74 ipm
Z
2 m/min78,74 ipm

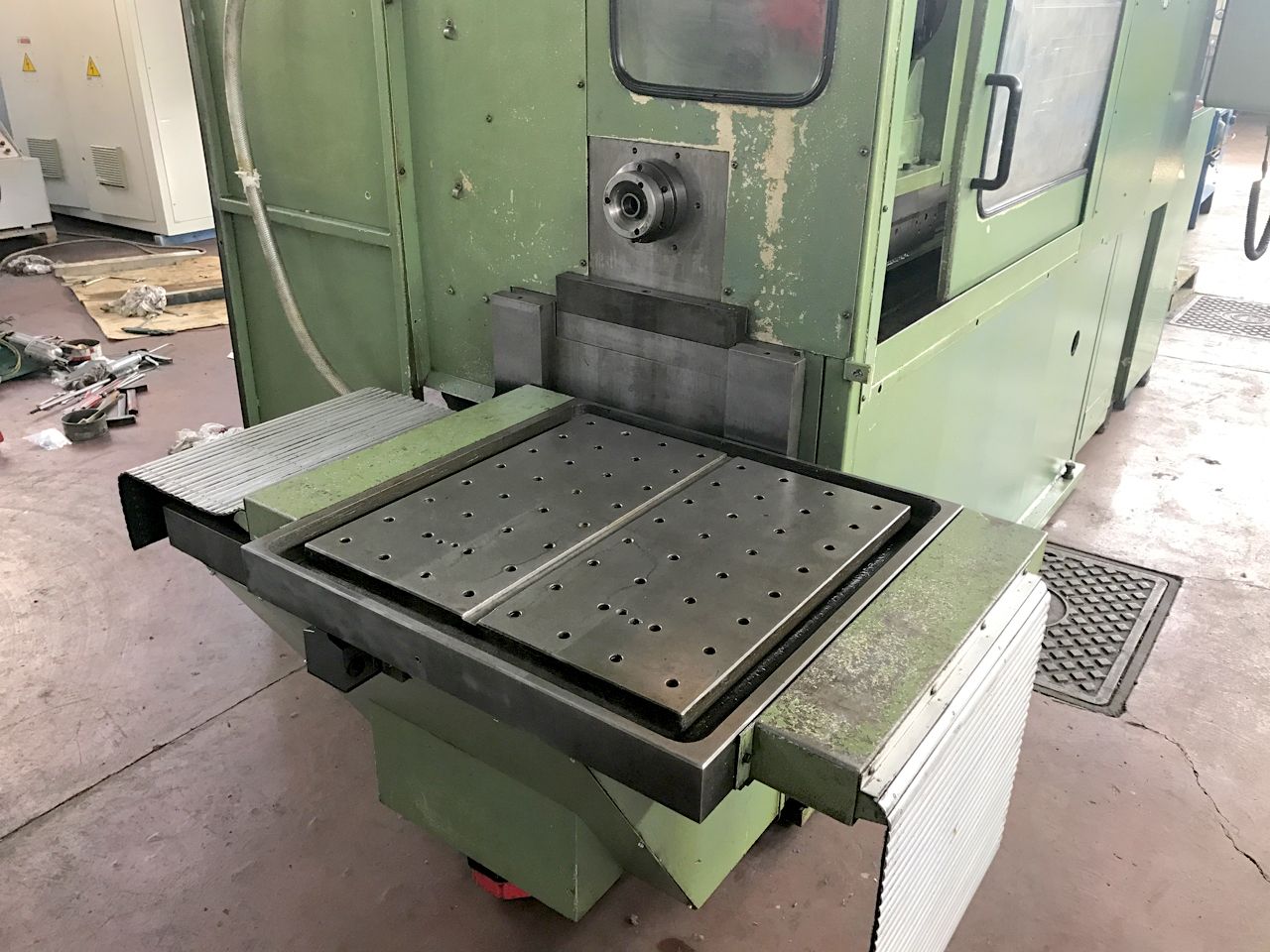

TABLE
Surface
600 x 600 mm23,62 x 23,62 in
Translation
500 mm19,69 in
SISTEMA REFRIGERANTE
Numero pompe
si
Capacità vasca
1200 l
Pressione
100 bar Bar
Capacity
90 l/min
EXTRA
Foratura punta cannone
si
Housing
si
Machine weight
5000 kg
