Category
Drilling machine
Type
for deep holes for moulds
Made
Model

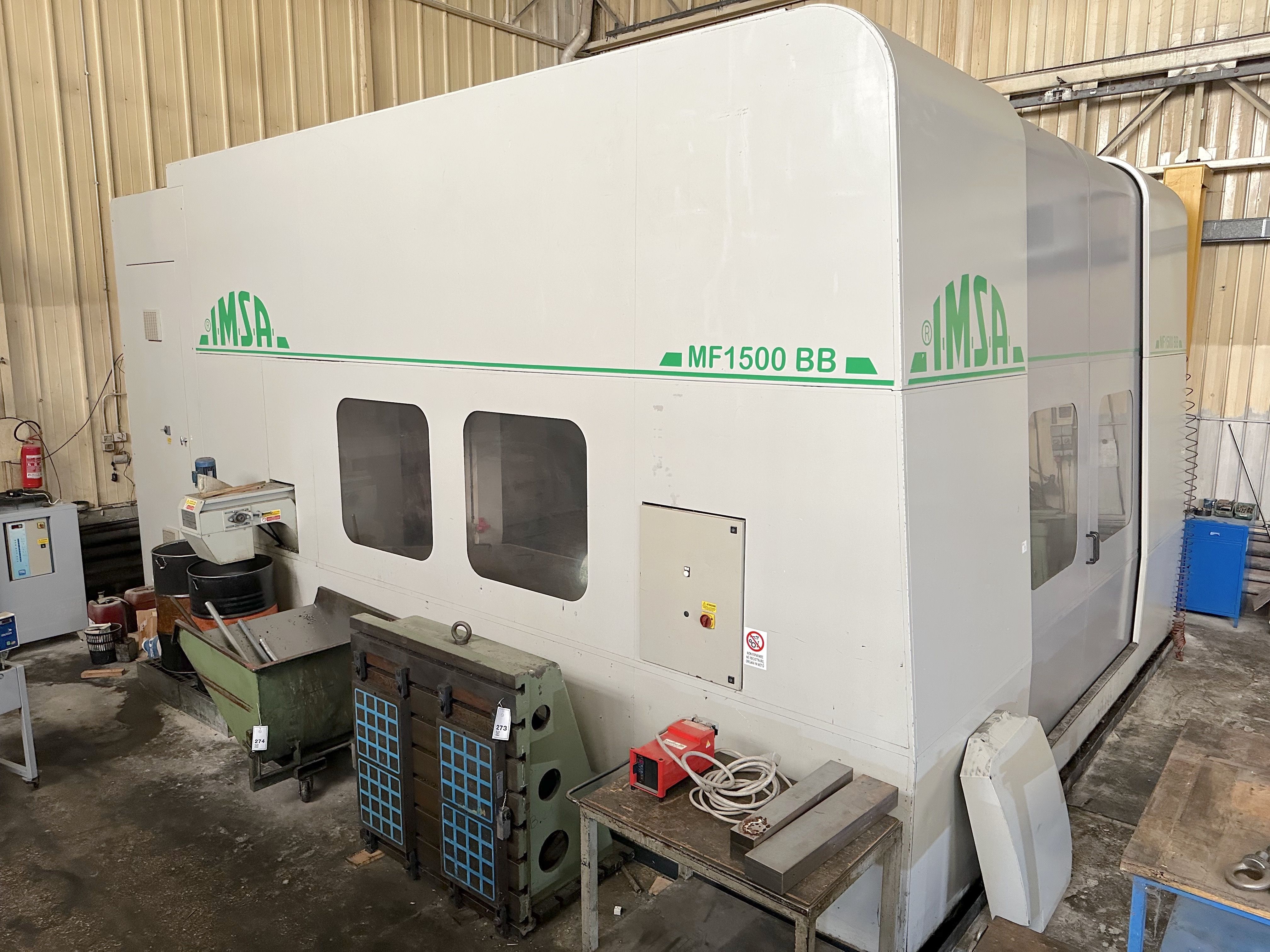

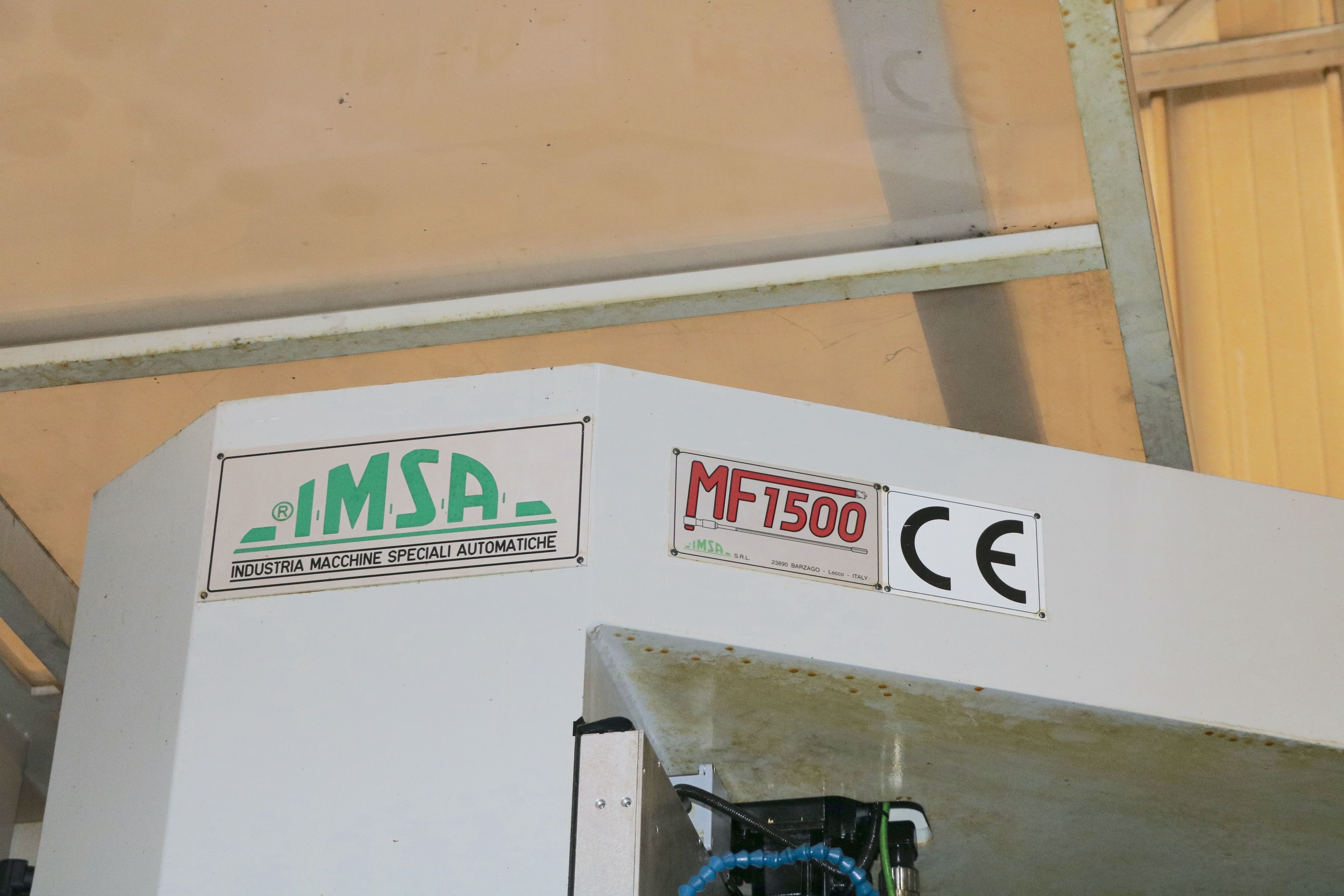

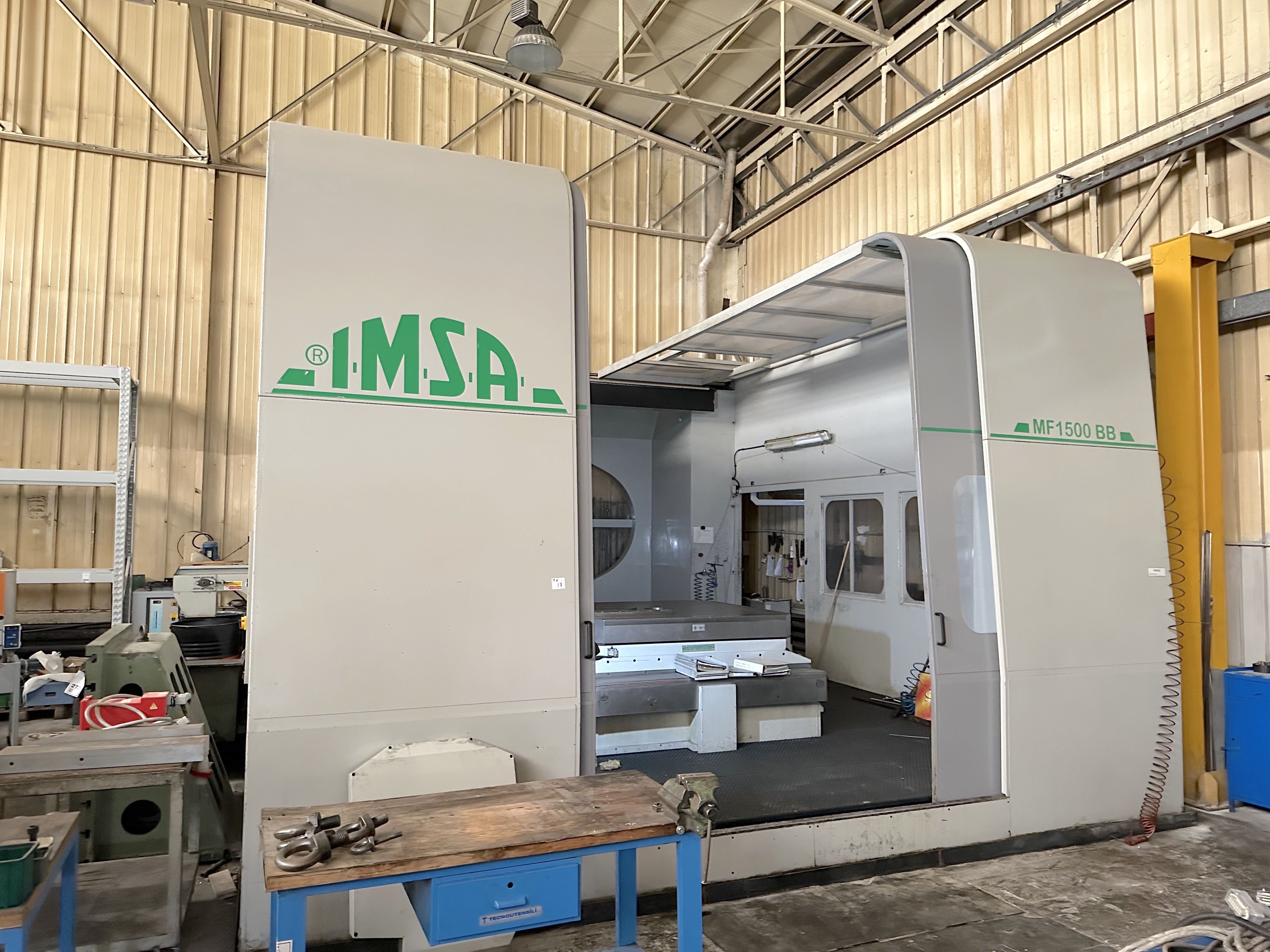

MF1500BB
Capacity
ø5-40mm 3250x1500x500+1500 mmø0,20-1,57mm 127,95x59,06x19,69+59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3250 mm127,95 in
Vertical (Y)
1500 mm59,06 in
Cross (Z)
500 mm19,69 in
Profondità di foratura (V)
1500 mm59,06 in
Piece approchement (W)
500 mm19,69 in
Inclinazione Testa di foratura ( C)
+/-20° °

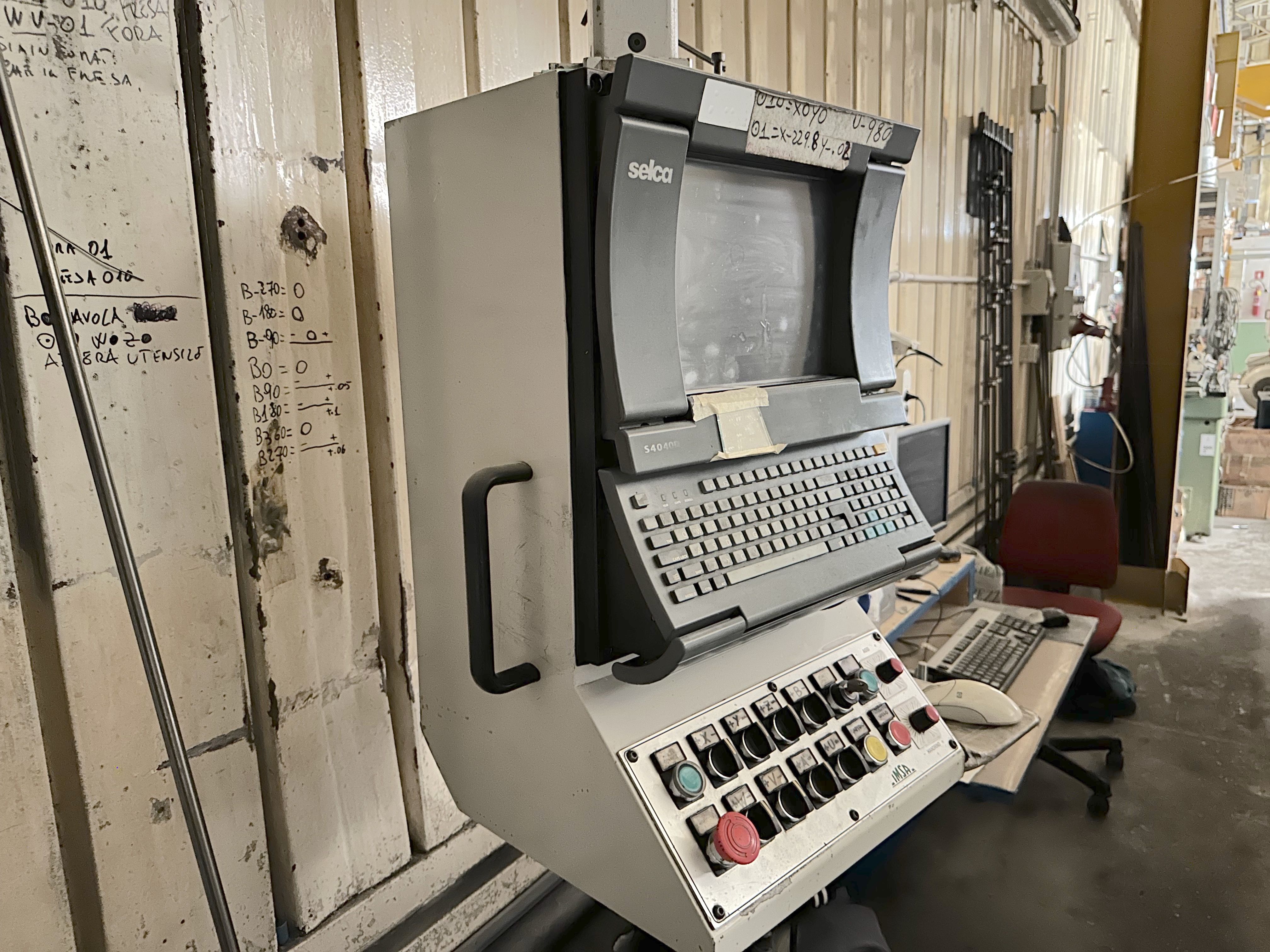

CNC
CNC
Selca S4045

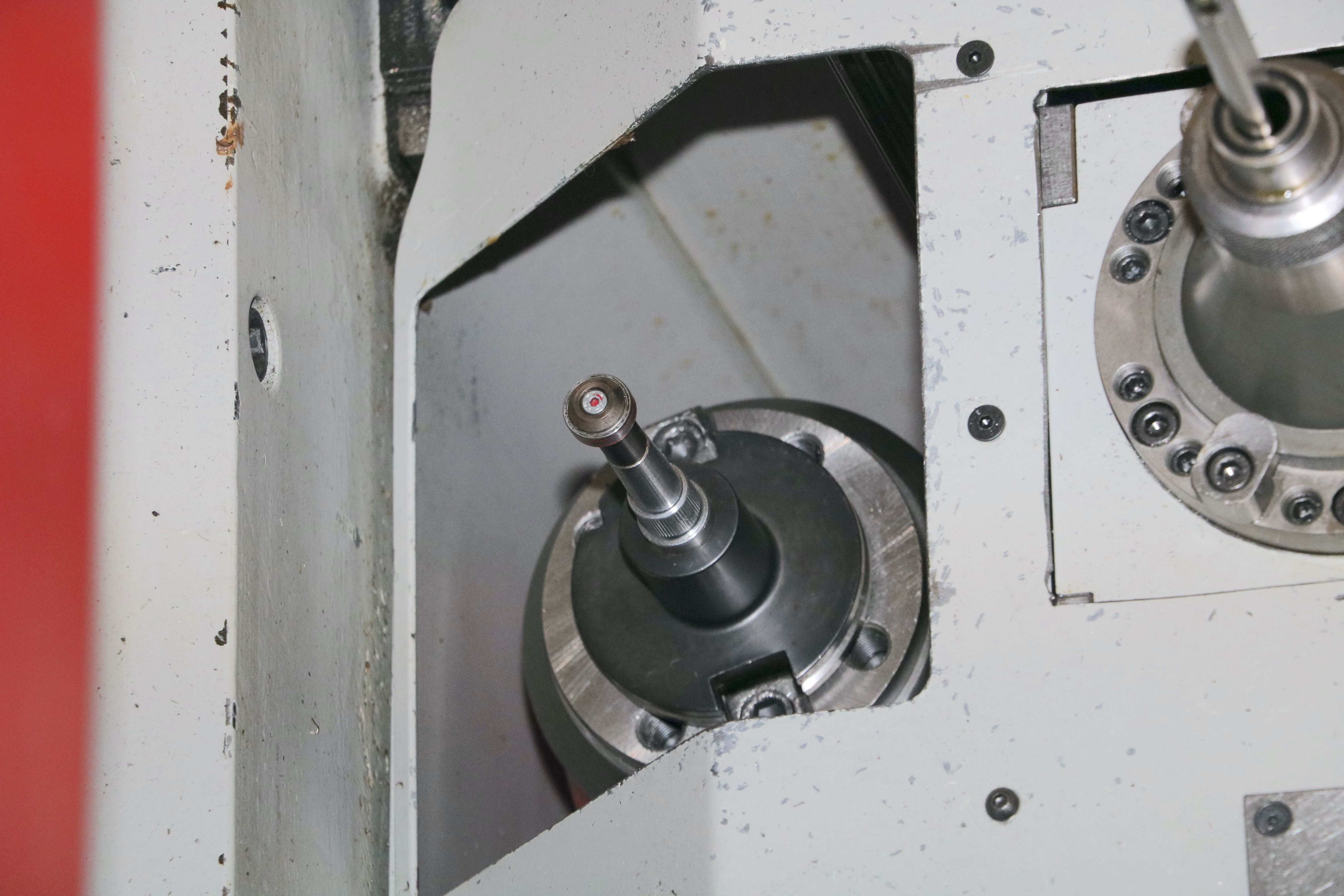

UNITà DI FORATURA
Diametro min-max dal pieno
5-40 mm0,20-1,57 in
Spindle power
15 Kw
Rotating speed
4500 Rpm
Inclinazione Testa di foratura ( C)
+/-20° °
FEEDS
Rapid X
8 m/min314,96 ipm
Rapid Y
8 m/min314,96 ipm
Rapid Z
8 m/min314,96 ipm

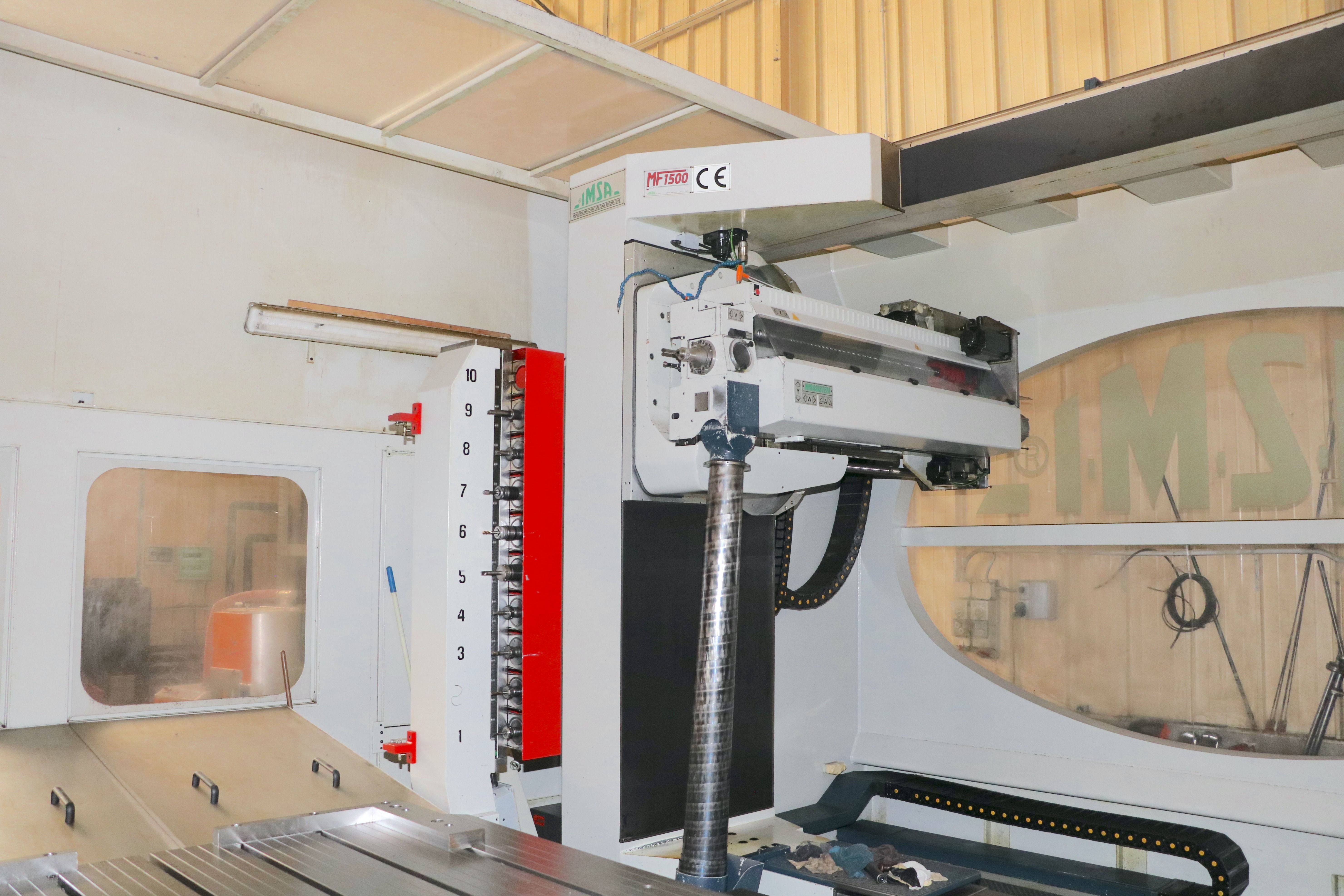

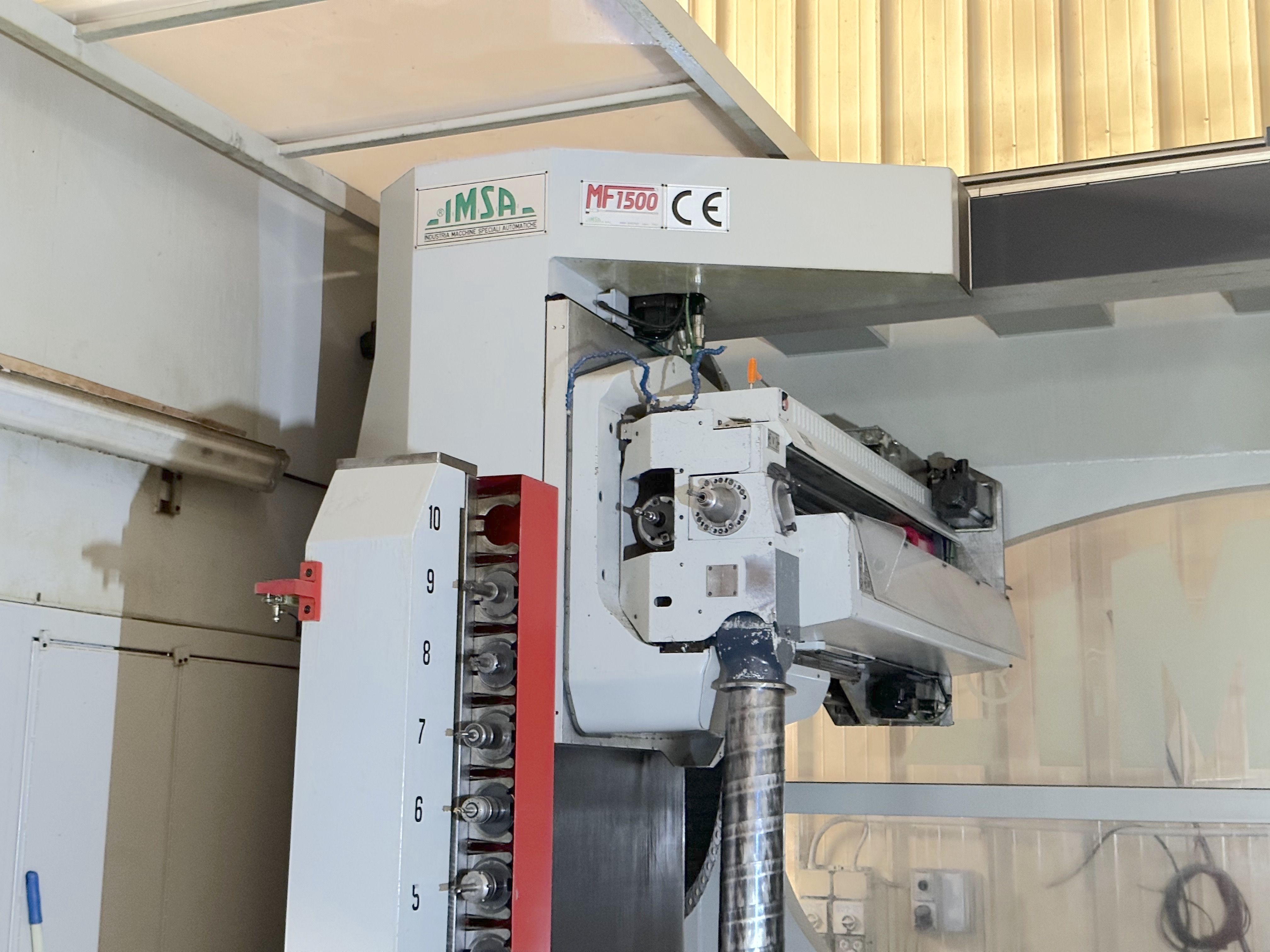

ATC FRESATURA
Positions
10

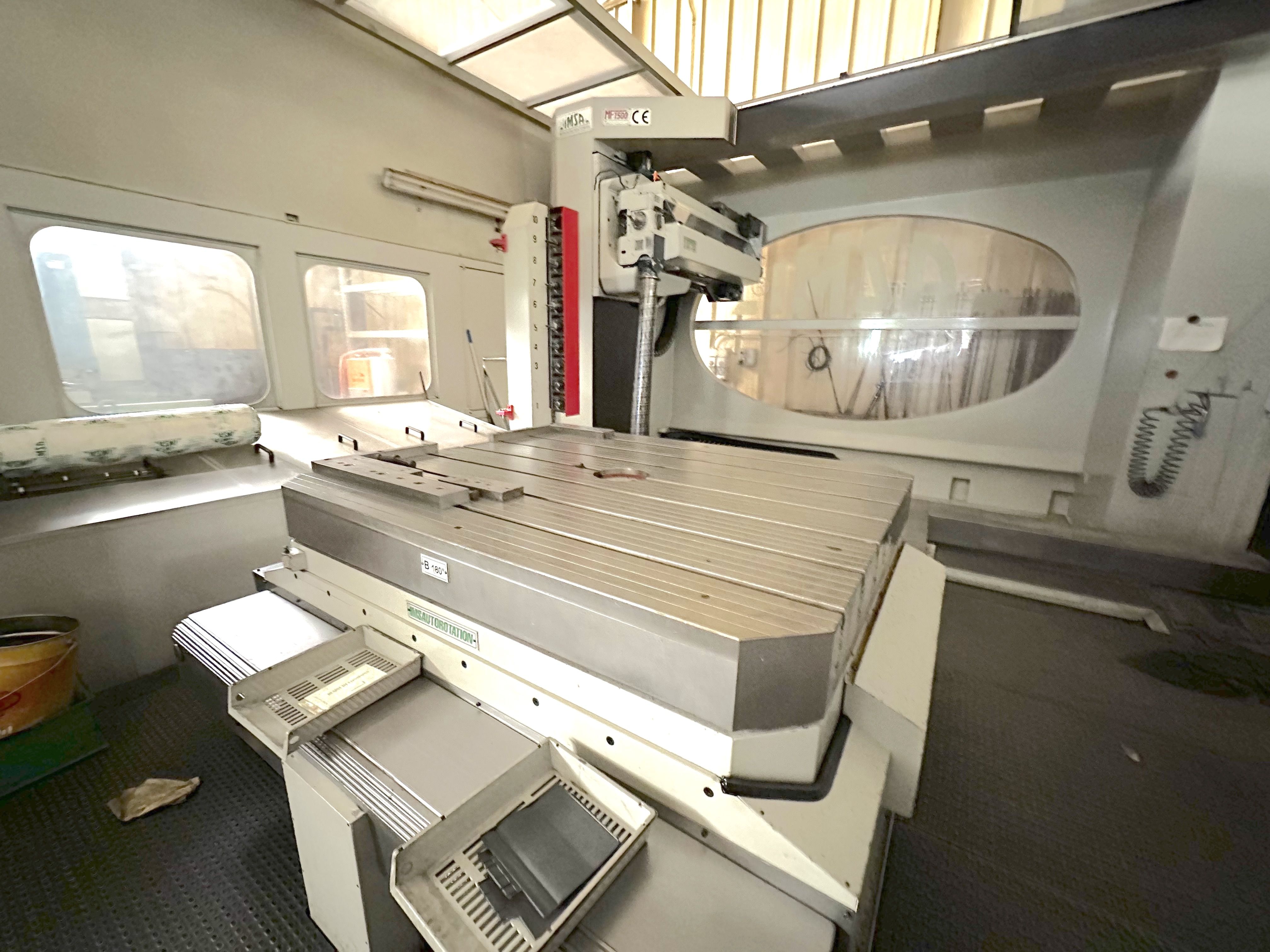

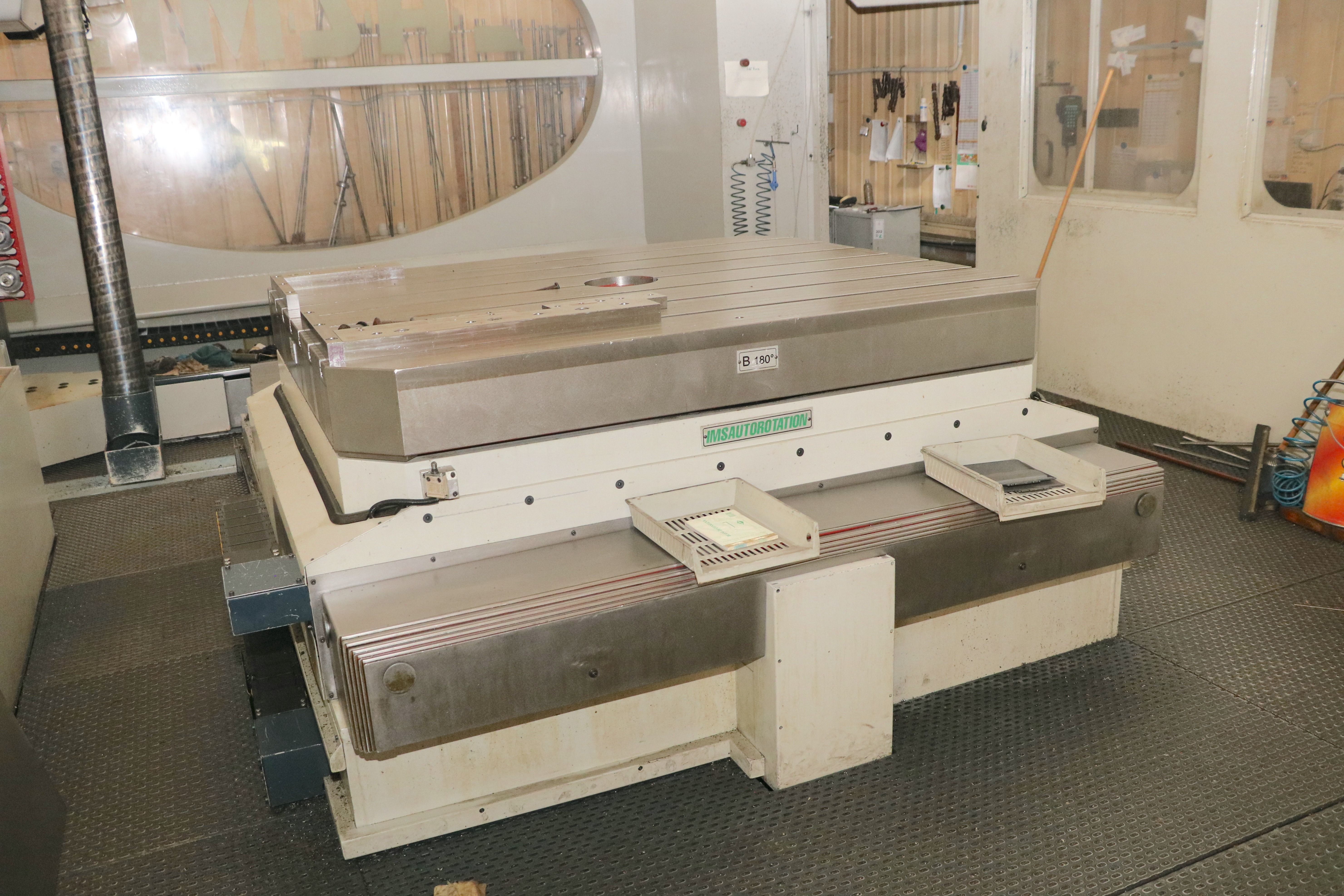

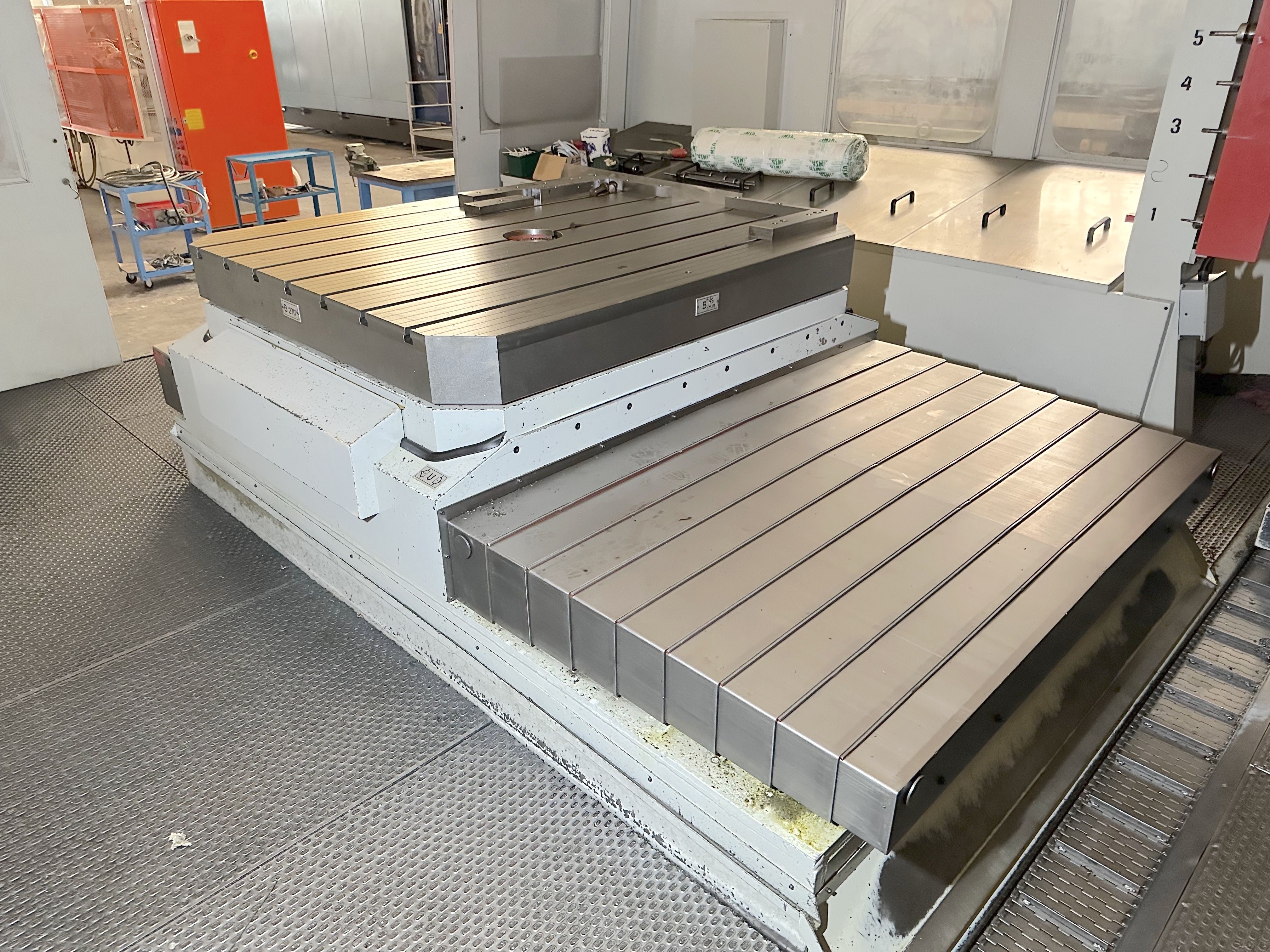

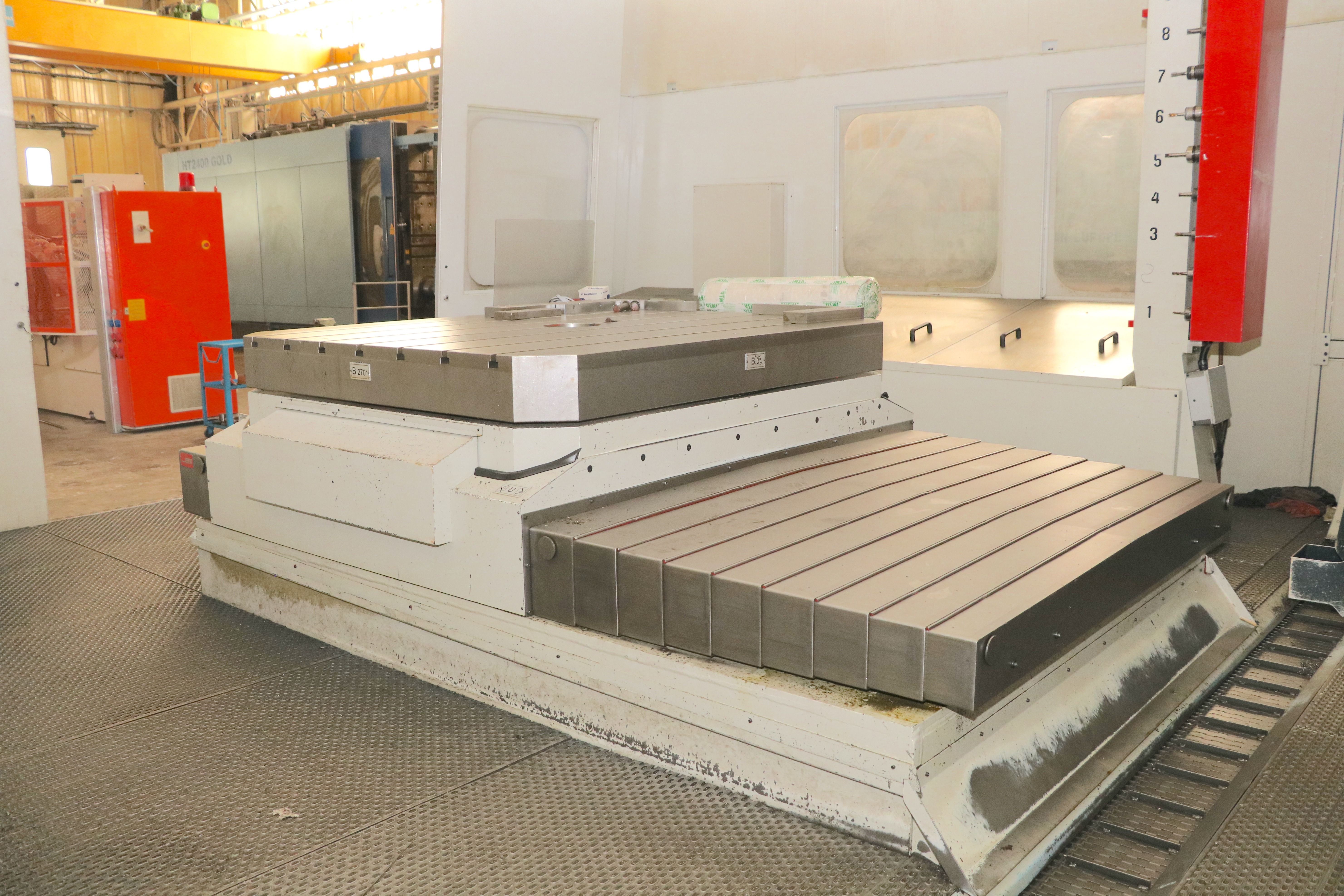

TABLE
Surface
1800x1600 mm70,87x62,99 in
Translation
1000 mm39,37 in
Capacity
(statico) 35.000Kg / (dinamico) 20.000 Kg

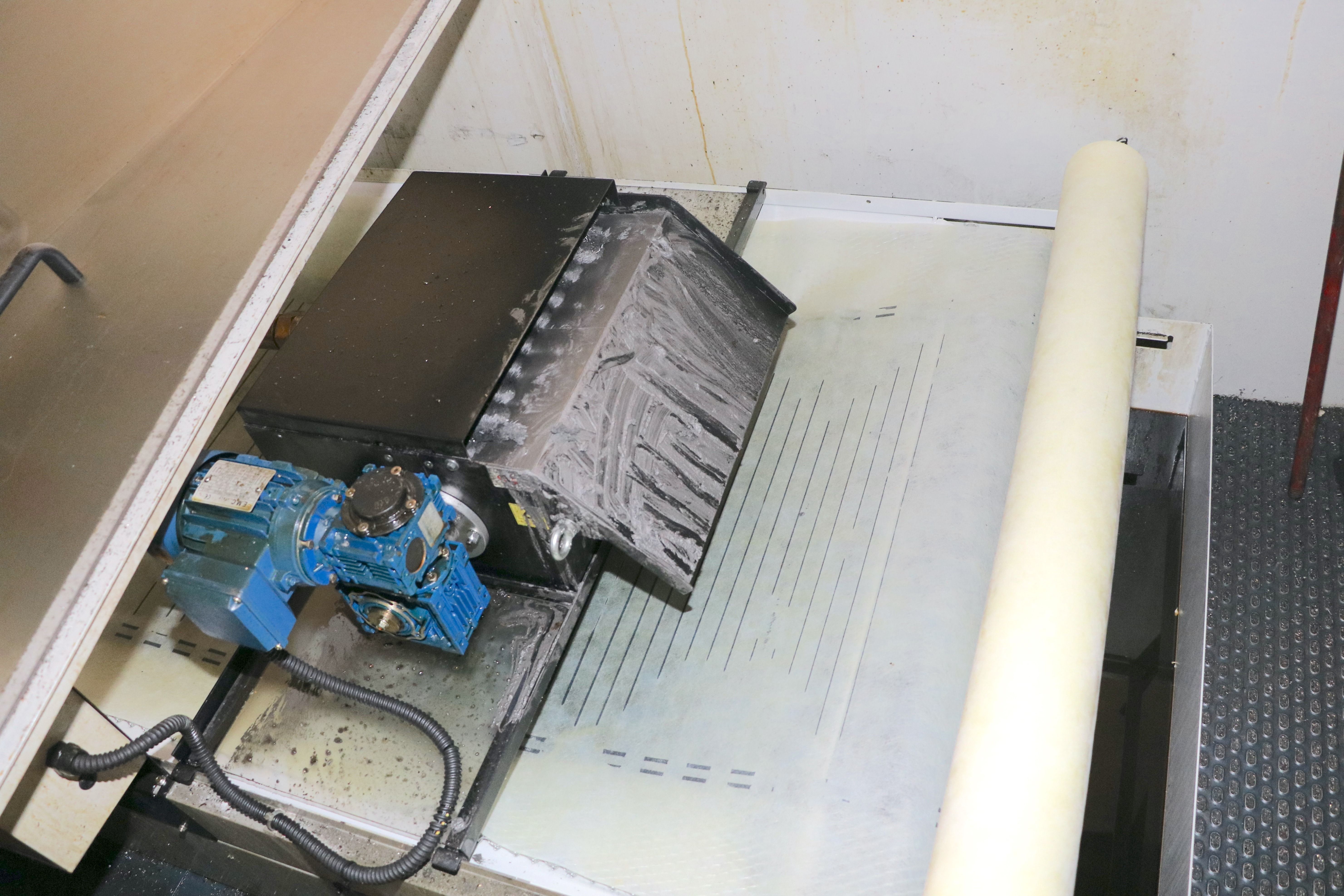

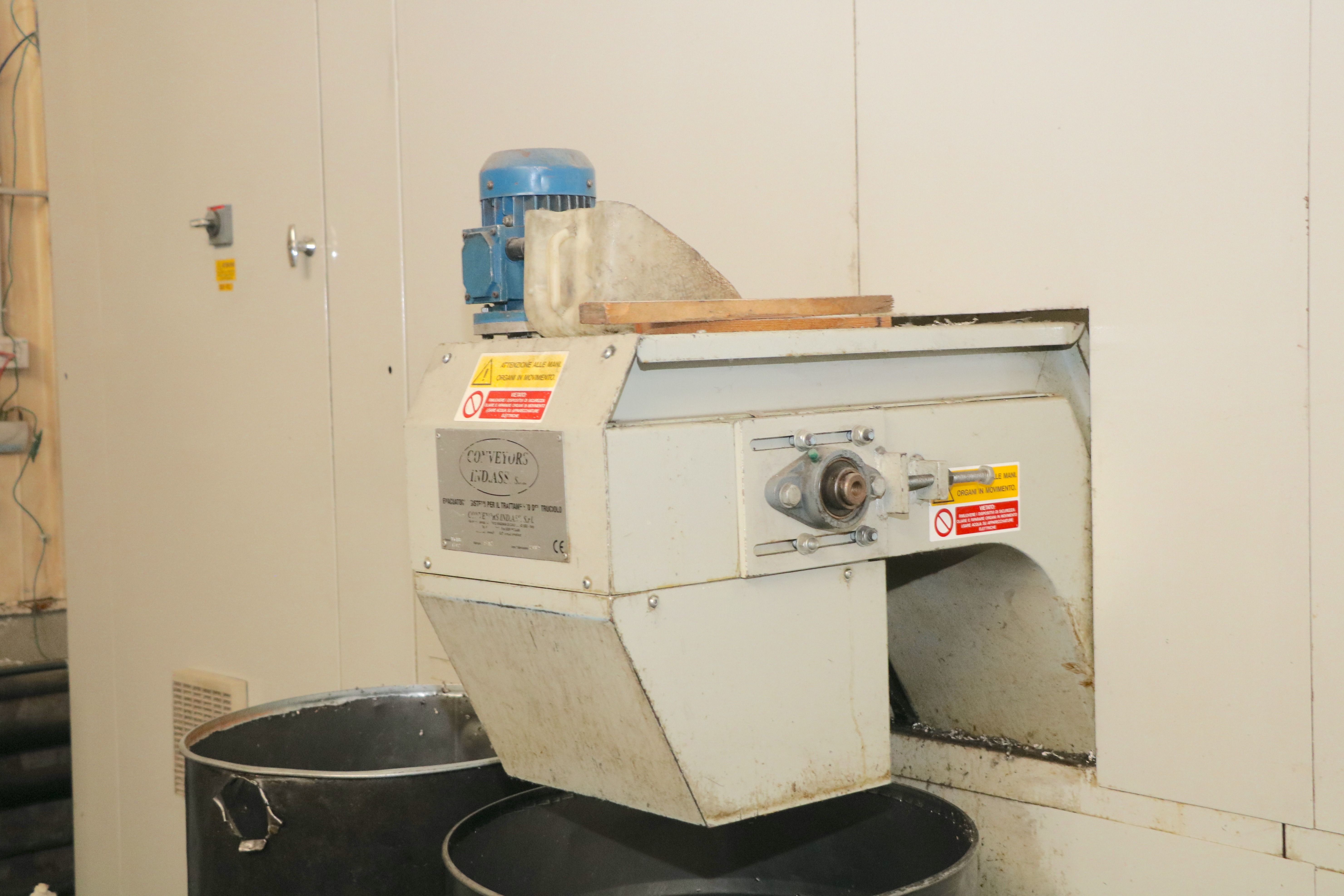

SISTEMA REFRIGERANTE
Capacità vasca
1500 l
EXTRA
Total power supply
45 Kw
Machine weight
45000 kg
Floor space
8000x6000x4300 mm314,96x236,22x169,29 in
