Category
Drilling machine
Type
for deep holes for moulds
Made
Model

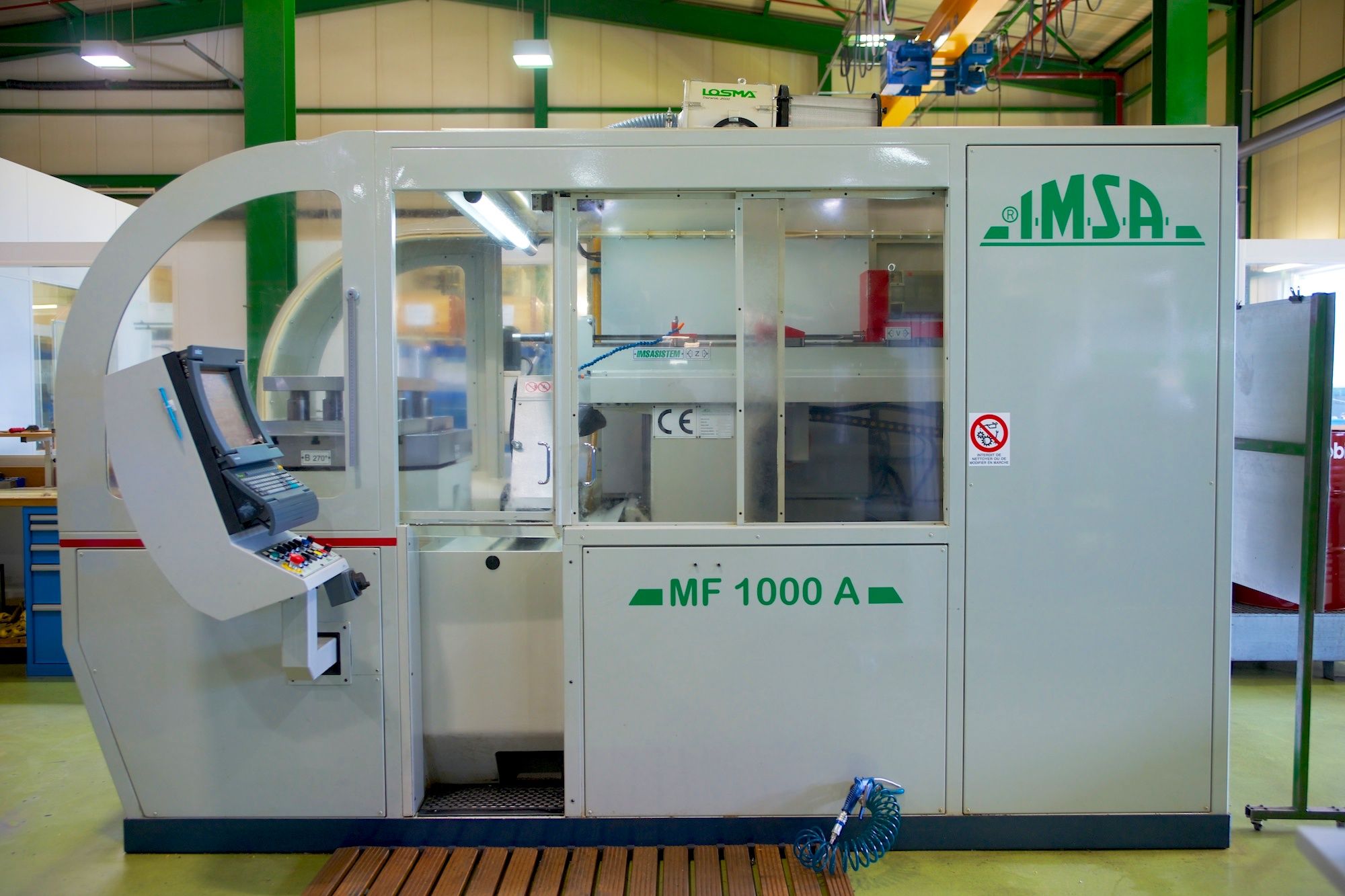

MF1000A
Capacity
1000x1000x400 / ø4-25 mm39,37x39,37x15,75 / ø0,16-0,98 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1000 mm39,37 in
Vertical (Y)
400 mm15,75 in
Cross (Z)
1000 mm39,37 in
Profondità di foratura (V)
1000 mm39,37 in
Table rotation (B)
360/0,5 °
Axes support
guide in acciaio temprato e rettificato, pattini a ricircolo di sfere
Piece approchement (W)
200 mm7,87 in
UNITà DI FORATURA
Diametro min-max dal pieno
senza preforo ideale 4-25 mmsenza preforo ideale 0,16-0,98 in
Spindle power
5,5/8 Kw
Rotating speed
6000 Rpm
Support
2 lunette di guida IMSAUTOFOCUS
Tipo foratura

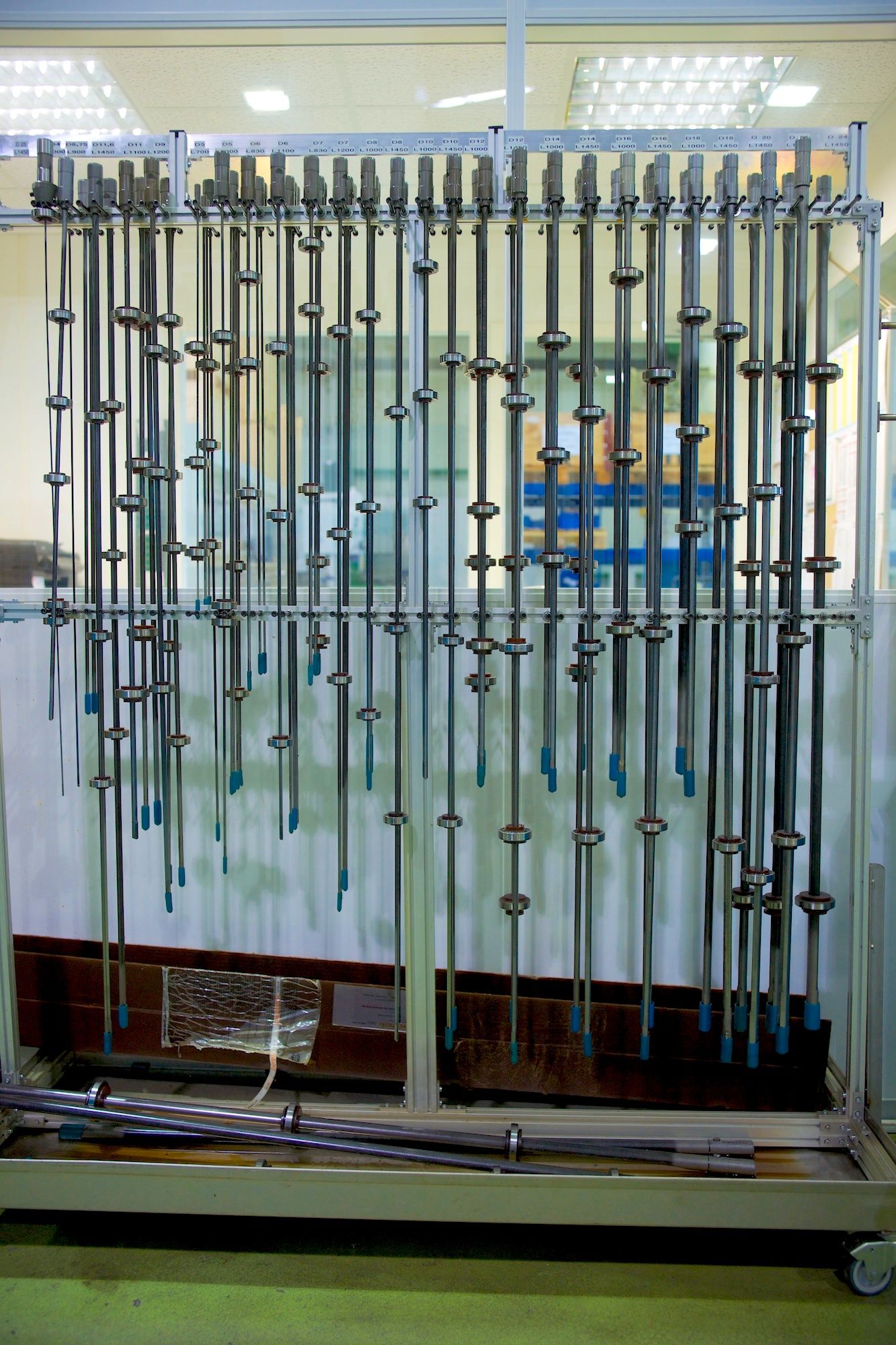

Punta cannone / Gundrill
Maschiatura in acciaio
M20
Spindle power
8 Kw
Rotating speed
6000 Rpm
TABLE
Surface
900x800 mm35,43x31,50 in
Accuracy (B axis)
0,5 °
Capacity
4000 Kg
Notes
T slots 18mm
CNC
CNC

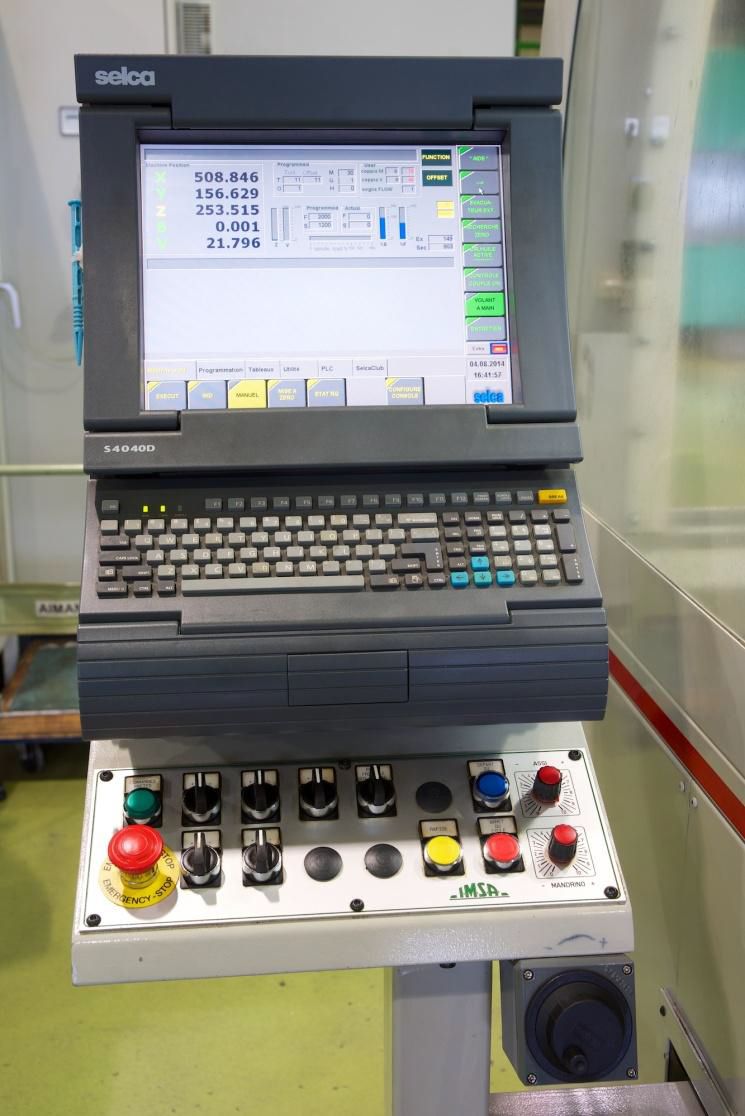

SELCA 4040D
Drives
SIEMENS
FEEDS
Rapid X
8 m/min314,96 ipm
Rapid Z
8 m/min314,96 ipm
Rapid V
8 m/min314,96 ipm
Rapid Y
8 m/min314,96 ipm
SISTEMA REFRIGERANTE
Pressione
120 Bar
Capacity
60 l/min
Capacità vasca
60 l
EXTRA
Chip conveyor
si
Housing
integrale
Total power supply
18 Kw
Machine weight
6800 kg
Floor space
2700x3600x2200 mm106,30x141,73x86,61 in
Lunette
2
Chiller
si
Note
macchina visibile in funzione
