Category
Drilling machine
Type
for deep holes for moulds
Made
Model
MF1000 B2
Capacity
ø4-25x1000 mmø0,16-0,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Piece approchement (W)
430 mm16,93 in
Longitudinal (X)
1000 mm39,37 in
Vertical (Y)
800 (drilling) / 966 (threading) mm31,50 (drilling) / 38,03 (threading) in
Cross (Z)
300 mm11,81 in
Profondità di foratura (V)
1000 mm39,37 in
Table rotation (B)
360.000x0,001 °
UNITà DI FORATURA
Diametro min-max dal pieno
4-25 mm0,16-0,98 in
Spindle power
5,5 Kw
Rotating speed
4200 Rpm
Spindle power
5,5 Kw
Rotating speed
2000 Rpm
Maschiatura in acciaio
M20 (su acciaio C40)
FEEDS
Rapid X
8 m/min314,96 ipm
Rapid Y
8 m/min314,96 ipm
Rapid V
8 m/min314,96 ipm
SISTEMA REFRIGERANTE
Capacità vasca
450 l
CNC
CNC
SELCA 3045D

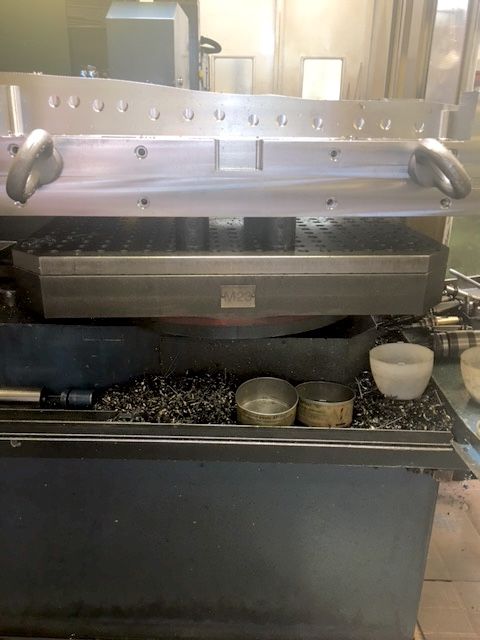

TABLE
Surface
1000x800 mm39,37x31,50 in
Accuracy (B axis)
360.000x0,001 °
Capacity
9500 (static) / 4000 (in rotation) Kg
ATC FRESATURA
Tool taper
ISO40
EXTRA
Total power supply
25 Kw
Machine weight
8800 kg
Floor space
3000x4200x2700 mm118,11x165,35x106,30 in
Foratura punta cannone
si
Tavola 4° asse
si

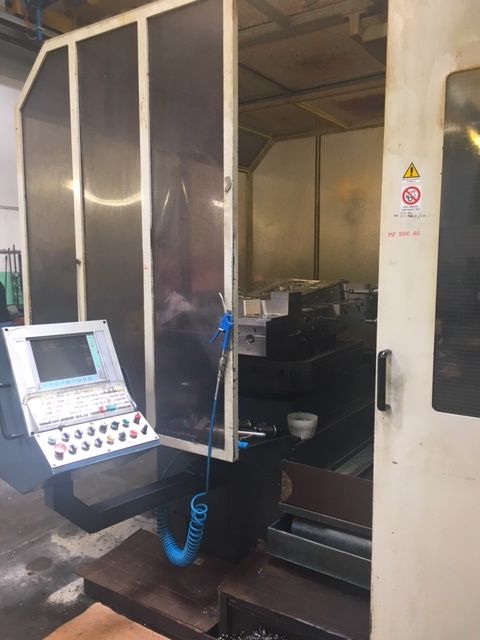

Housing
completa
Chiller
si

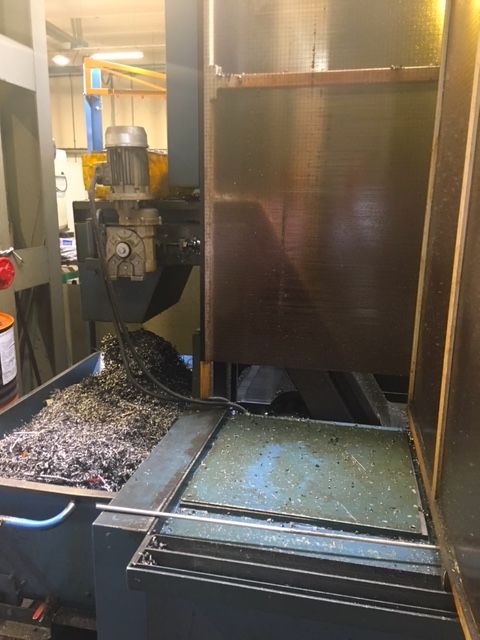

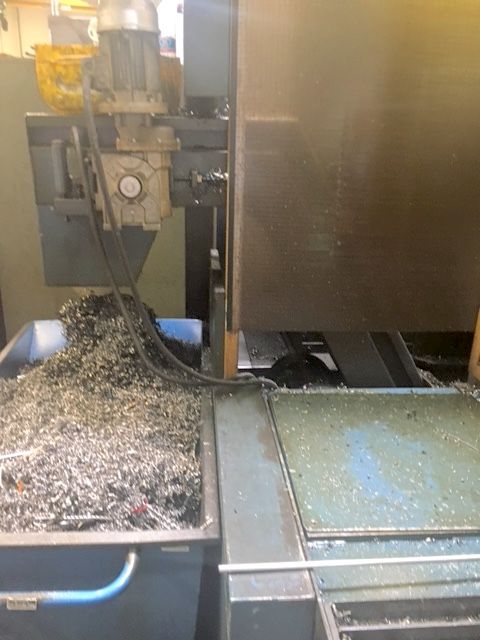

Chip conveyor
si
