Category
Boring Machine
Type
Table Type
Made
Model

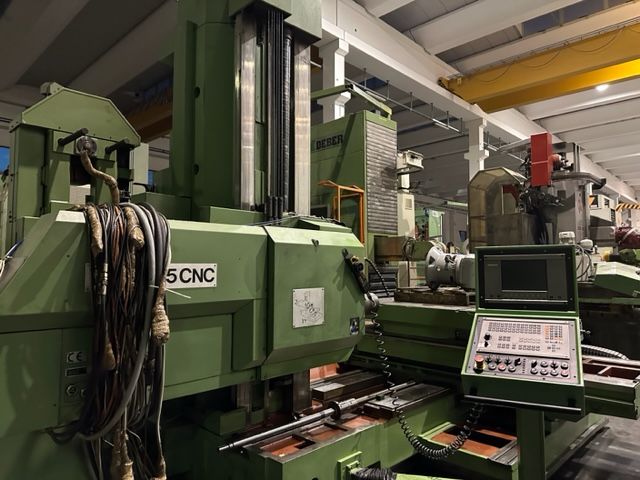

WHQ105 CNC
Capacity
1800x1250x1250+630 mm70,87x49,21x49,21+24,80 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal table (X)
1800 mm70,87 in
Vertical (Y)
1250 mm49,21 in
Cross Table (Z)
1250 mm49,21 in
Quill (W)
630 mm24,80 in
CNC
CNC
Heidenhain TNC430
SPINDLE
Quill diameter
105 mm4,13 in
Spindle power
28/35 Kw
Rotating speed
10-3300 Rpm
Torque
919/1148 Nm
Taper
ISO50
FEEDS
Rapid B
2 Rpm
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm

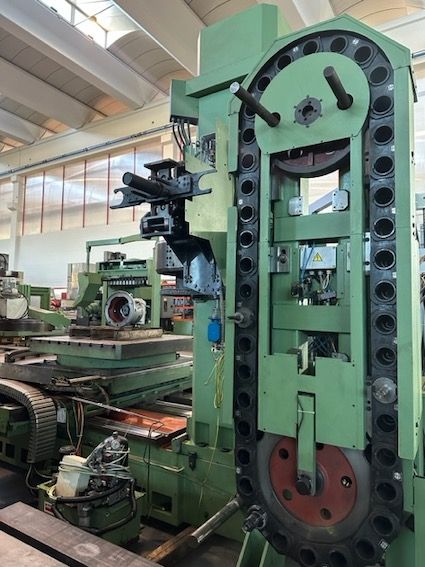

ATC
Positions
40
TABLE 1
Surface
1400x1400 mm55,12x55,12 in
Capacity
5000 Kg
Accuracy (B axis)
360x1 °
Rotating speed
2 Rpm o °/min
HEAD 1
Spindle taper
ISO50
Type
R
Max torque
1149 Nm
Max speed
3300 Rpm
Max power
28/35 Kw
EXTRA
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
