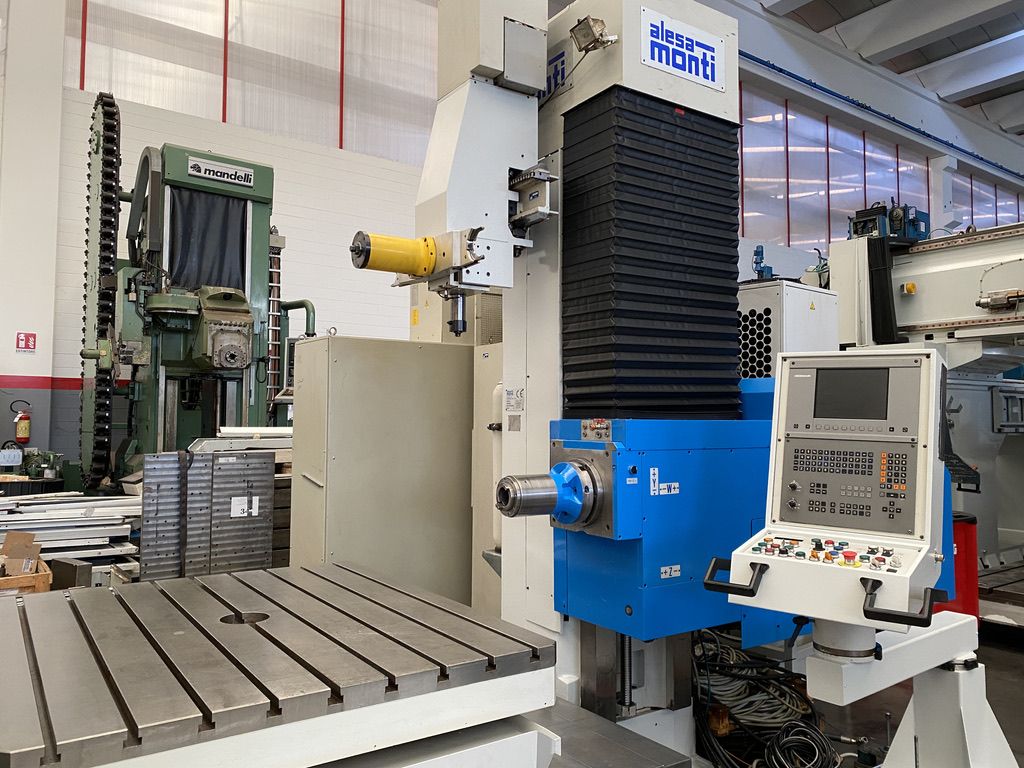

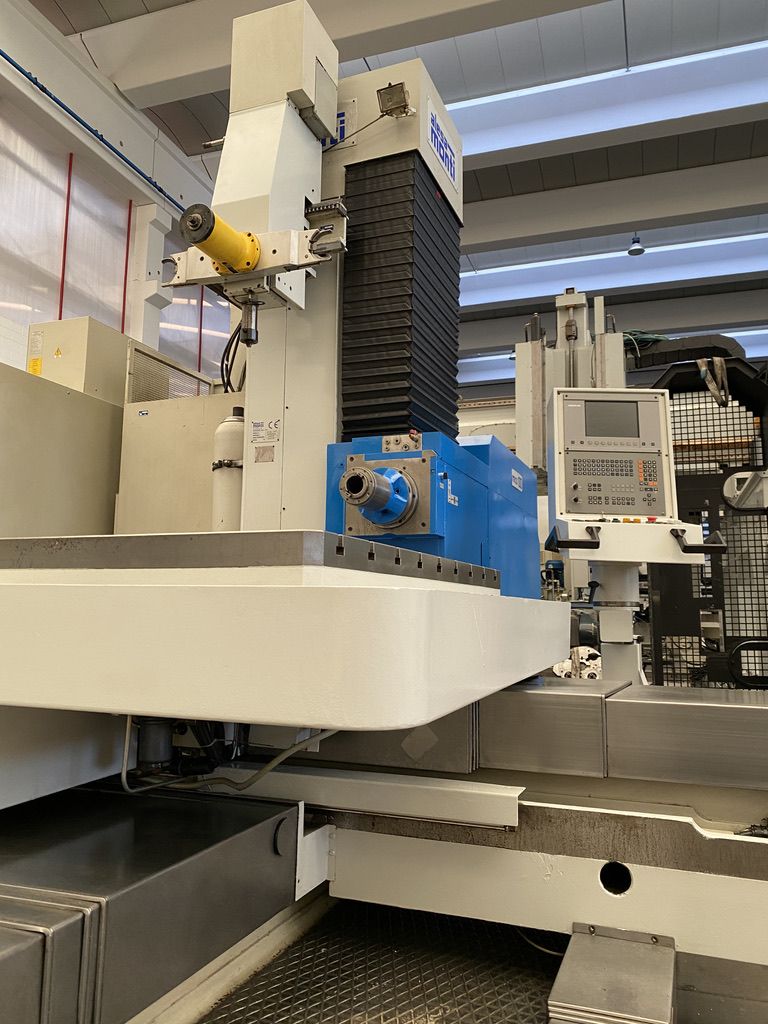

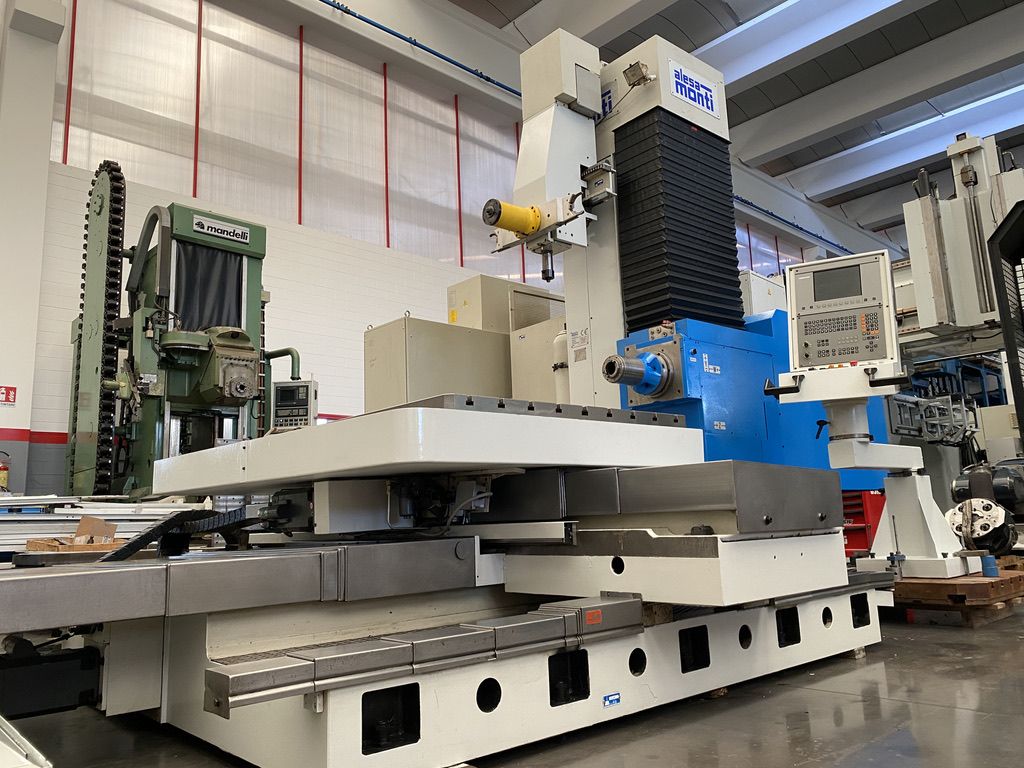

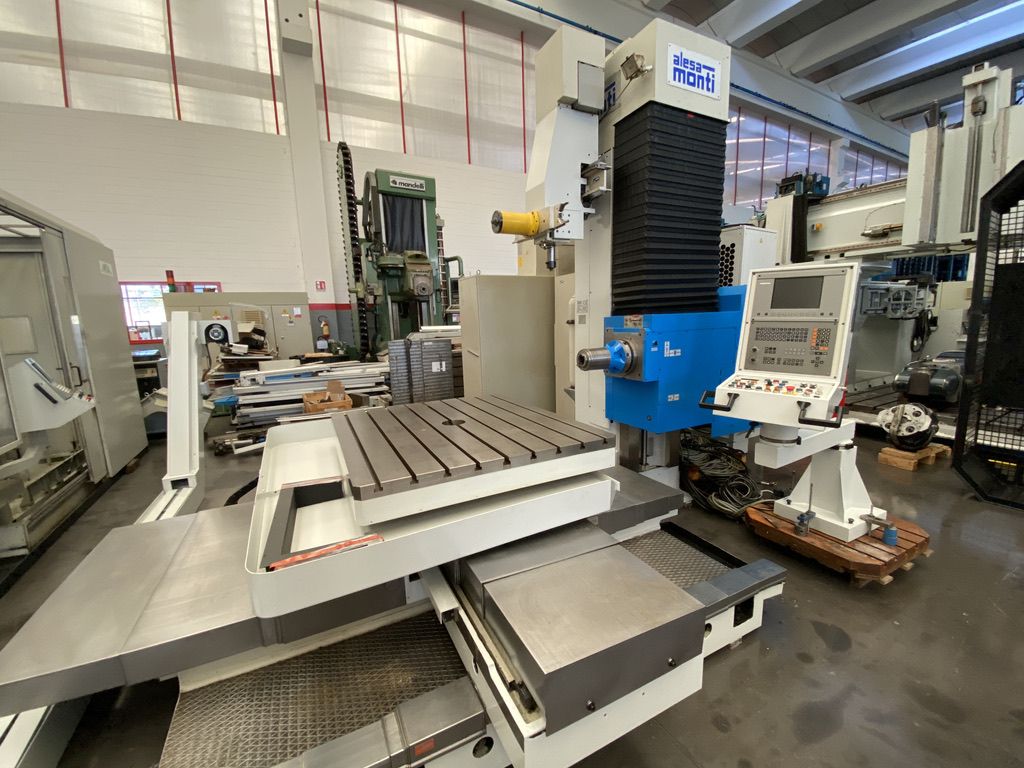

Category
Boring Machine
Type
Table Type
Made
Model
MCS100
Capacity
2000x1500x1500+600 mm78,74x59,06x59,06+23,62 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal table (X)
2000 mm78,74 in
Vertical (Y)
1500 mm59,06 in
Cross Table (Z)
1500 mm59,06 in
Quill (W)
600 mm23,62 in
CNC
CNC
Heidenhain TNC430
SPINDLE
Quill diameter
100 mm3,94 in
Spindle power
22 Kw
Rotating speed
0-3000 Rpm
Taper
ISO50 DIN69871
Notes
CTS 10Bar
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
ATC
Positions
60
Tool taper
ISO50
TABLE 1
Surface
1500x1300 mm59,06x51,18 in
Capacity
4000 Kg
EXTRA
Machine total weight
16000 Kg
High Pressure
10 Bar attraverso il mandrino
Housing
perimetrale
Chip conveyor
si
Electrical drawings
Yes
Maintenance & Use books
Yes
Availability
Pronta
