Category
Boring Machine
Type
Mobile Column
Made
Model

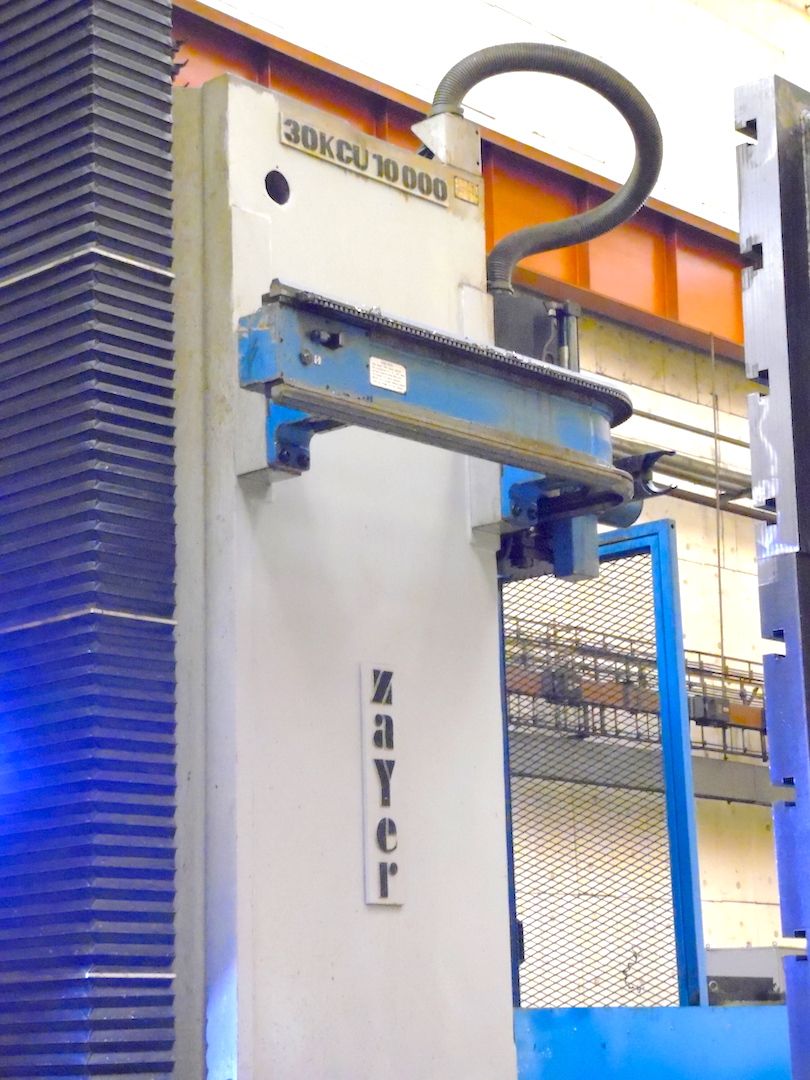

30KCU10000
Capacity
10000x3000x1256+500 mm393,70x118,11x49,45+19,69 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
10000 mm393,70 in
Vertical (Y)
3000 mm118,11 in
Cross RAM (Z)
1250 mm49,21 in
Quill (W)
500 mm19,69 in
Table (V)
1500 mm59,06 in
SPINDLE
Rotating speed
35-3000 Rpm
Spindle power
37 Kw
Taper
ISO50 DIN69871
Gearbox
2 gears
Quill diameter
175 mm6,89 in
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
HEAD 1
Max speed
3000 Rpm
Max power
37 Kw
Spindle taper
ISO50 DIN69871
Type
Birotativa automatica
A axis
144x2,5 °
C axis
360x1 °
CNC
CNC
Heidenhain iTNC530
Drives
SIEMENS
ATC
Positions
40
FIXING TABLE
Quantity
2
Floorspace (LxWxH)
6400x3760+1600x3760 mm251,97x148,03+62,99x148,03 in
TABLE 1
Surface
2000x1600 mm78,74x62,99 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,001 °
Capacity
15.000 Kg
PICK UP STATION FOR HEADS
Positions
2
EXTRA
High Pressure
20 Bar
Chip conveyor
Sì
