Category
Boring Machine
Type
Mobile Column
Made
Model
PRECIRAM 2
Capacity
10500x2600x600+700 mm413,39x102,36x23,62+27,56 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
10500 mm413,39 in
Vertical (Y)
2600 mm102,36 in
Cross RAM (Z)
700 mm27,56 in
Quill (W)
700 mm27,56 in
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
Rapid W
15 m/min590,55 ipm
X
10 m/min393,70 ipm
Y
10 m/min393,70 ipm
Z
10 m/min393,70 ipm
W
10 m/min393,70 ipm
ATC
Tool taper
ISO50
CNC

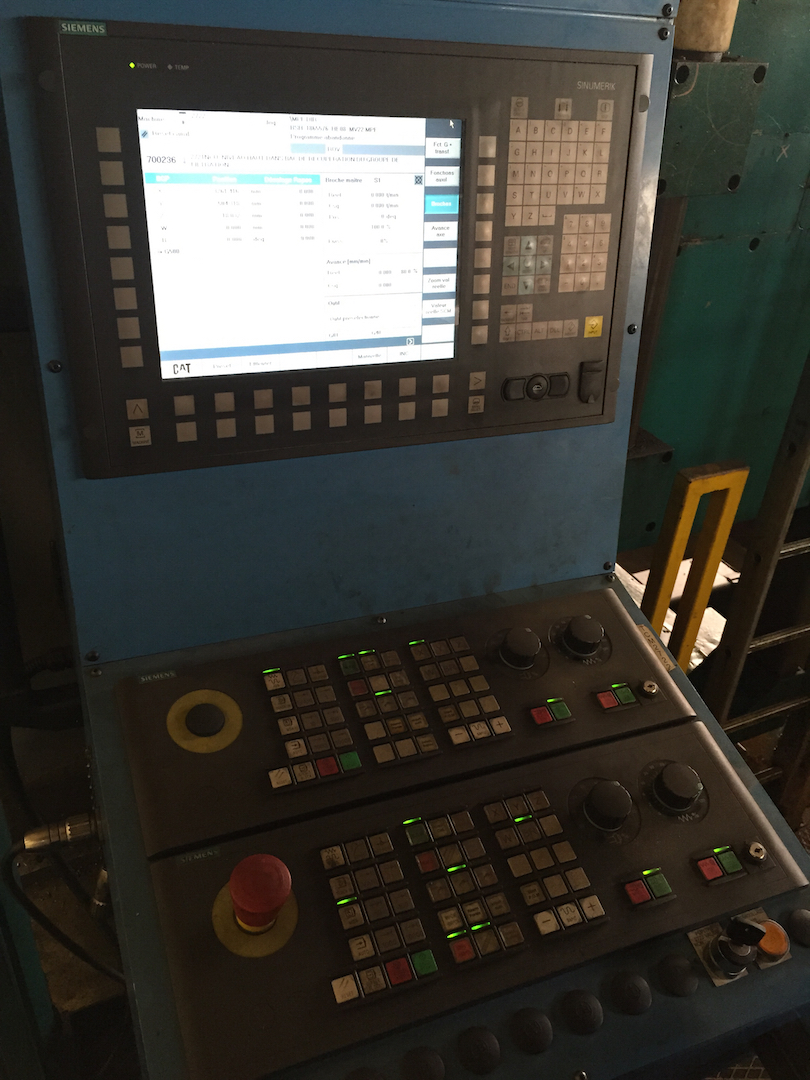

CNC
SIEMENS SINUMERIK 840DSL
SPINDLE
Spindle power
64,5 Kw
Rotating speed
0-1500 Rpm
Taper
ISO50
EXTRA
Chip conveyor
si
Floor space
15500x6500x5500 mm610,24x255,91x216,54 in
Chiller
si

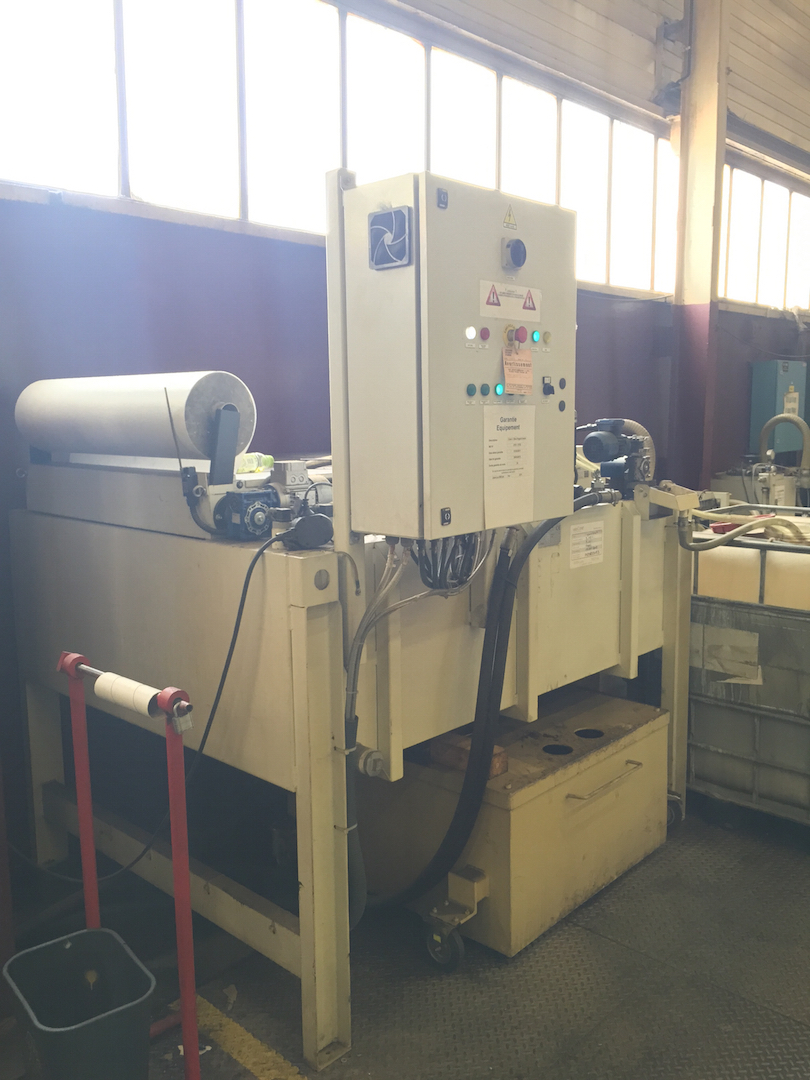

Filtration unit
si
