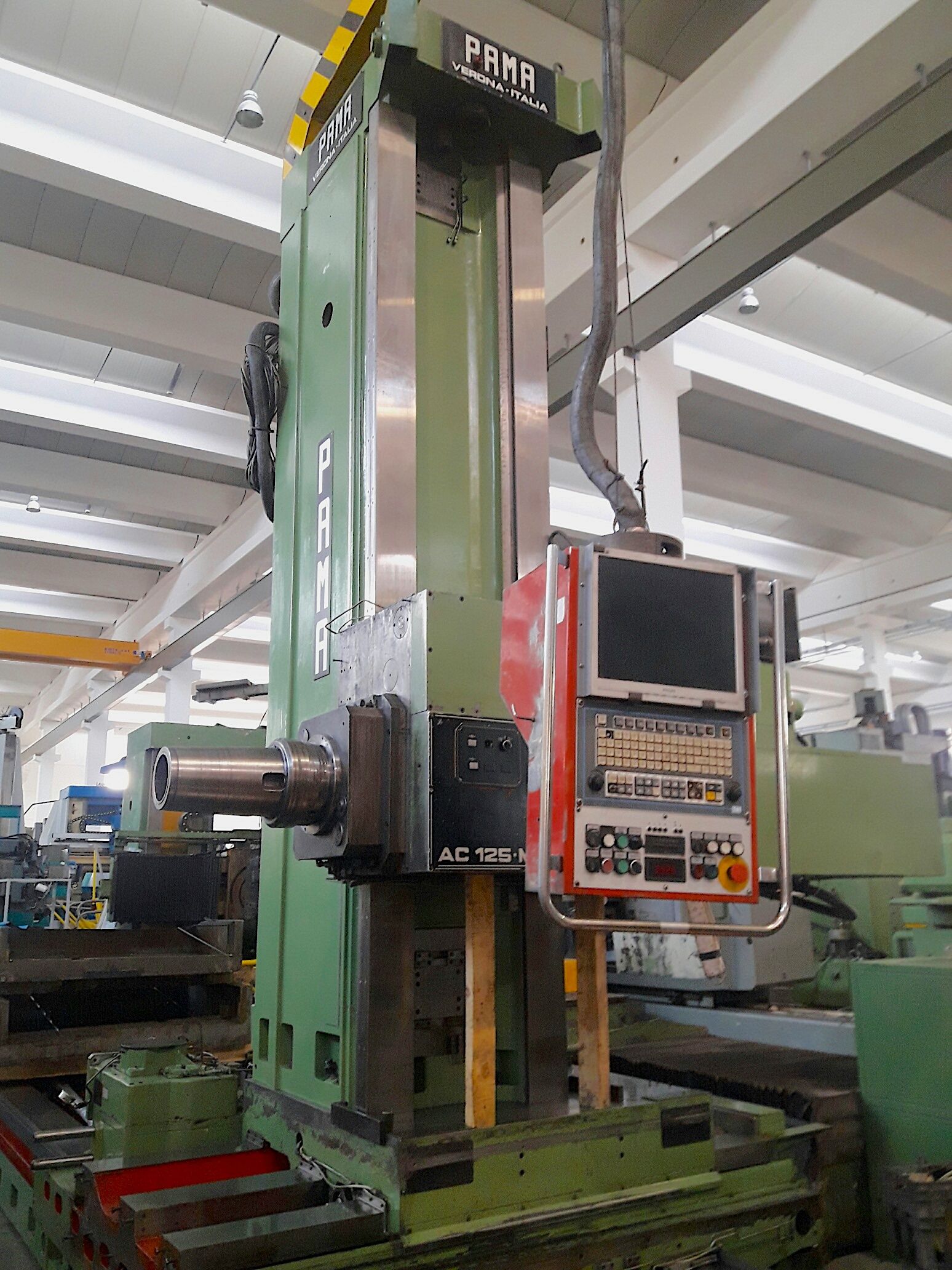

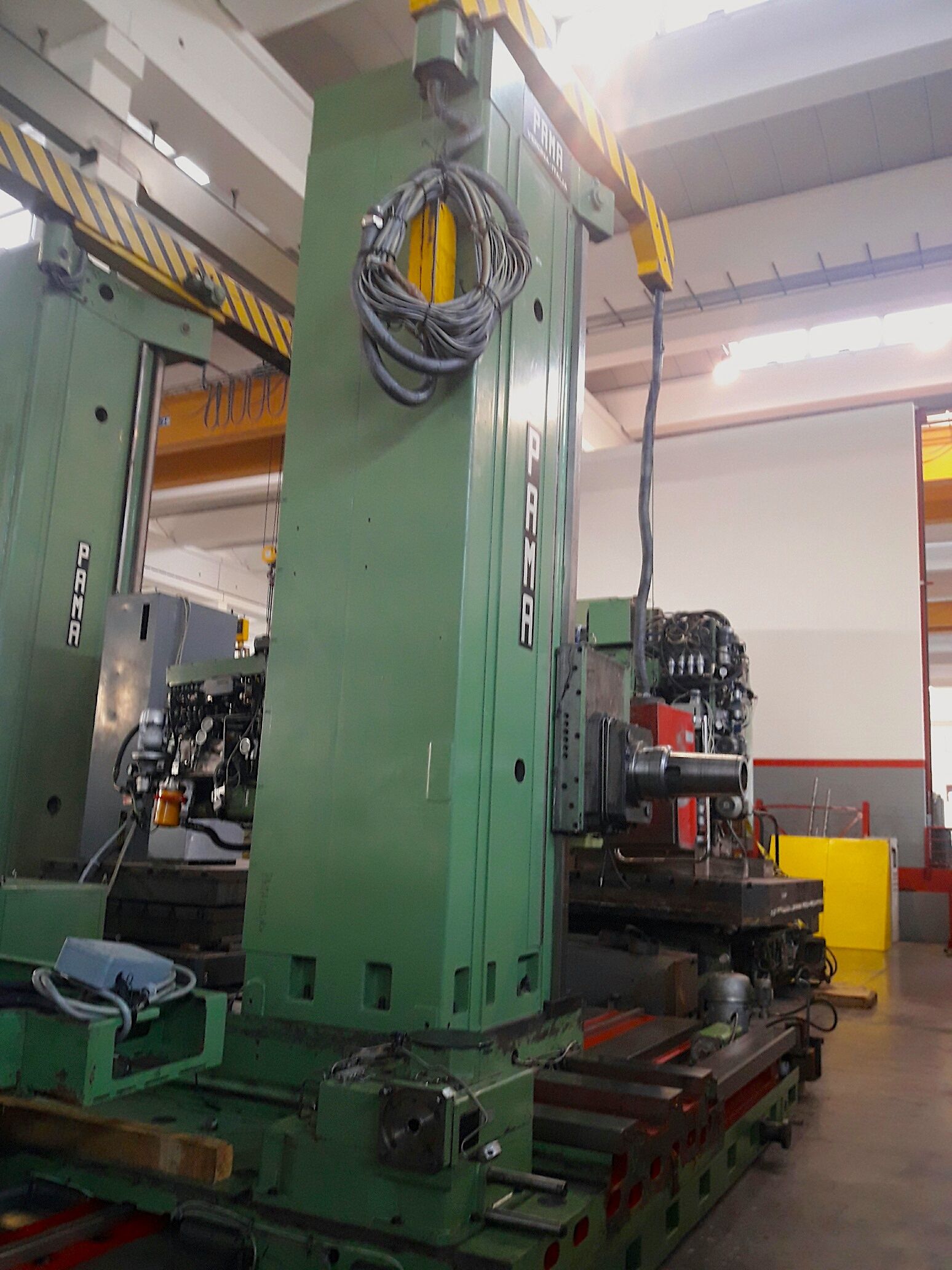

Category
Boring Machine
Type
Mobile Column
Made
Model
AC125 MCR
Capacity
6000x2700x900+800 mm236,22x106,30x35,43+31,50 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
6000 mm236,22 in
Vertical (Y)
2700 mm106,30 in
Quill (W)
800 mm31,50 in
Cross RAM (Z)
(montante a T) 900 mm(montante a T) 35,43 in

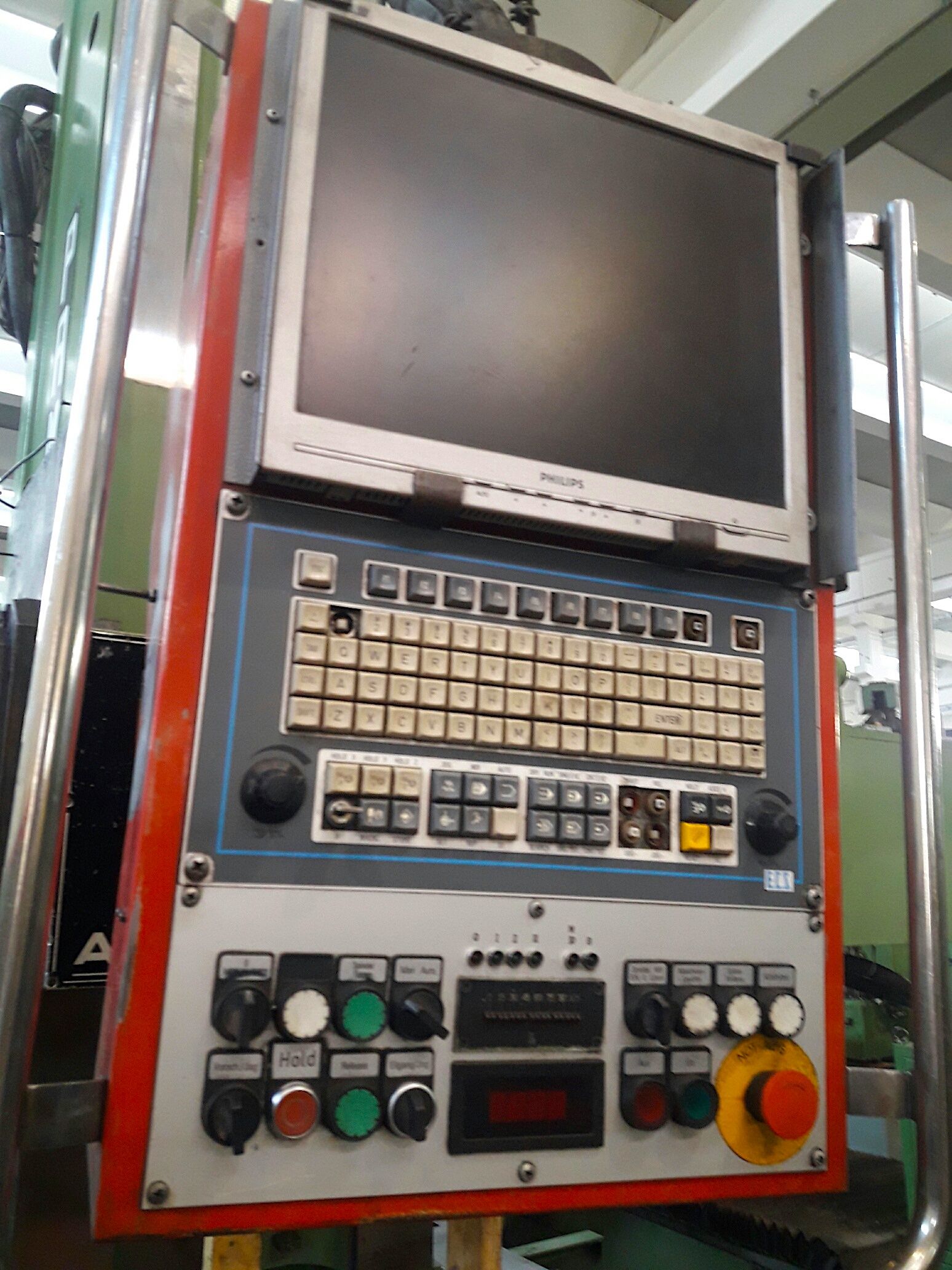

CNC
CNC
ECS 2601
SPINDLE
Quill diameter
125 mm4,92 in
FEEDS
Notes
Macchina idrostatica
HEAD 1
Type
Supporto di irrigidimento canotto
Spindle taper
ISO 50
EXTRA
Tooling included
Pulsantiera di comando, supporto di irrigidimento, idrostatica
Chip conveyor
Available in stock
Availability
Pronta consegna
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
