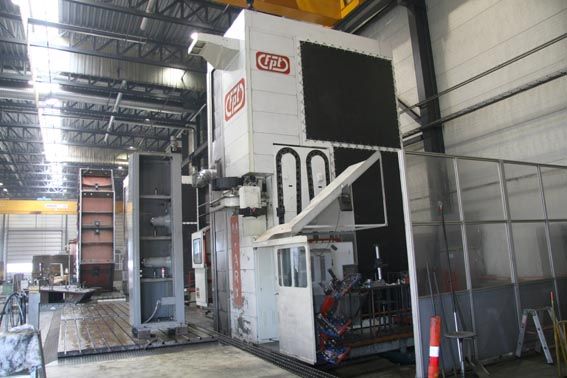

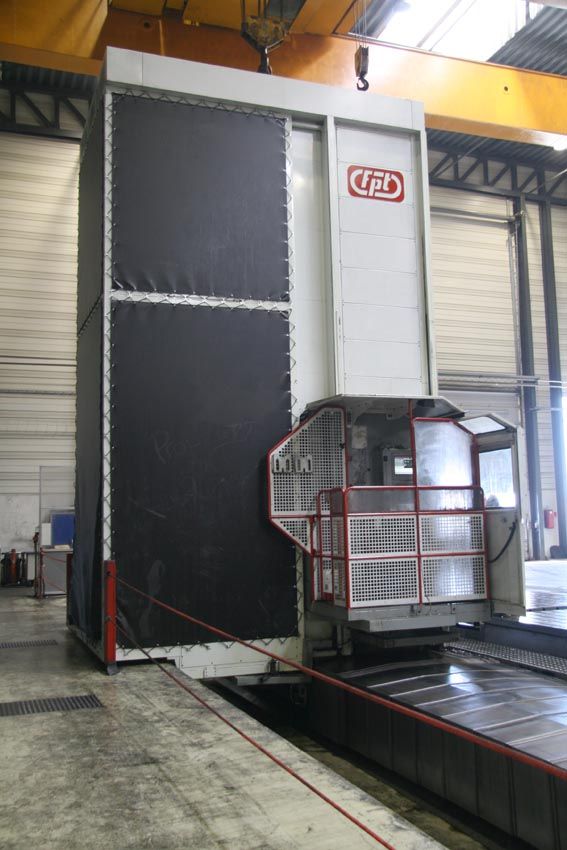

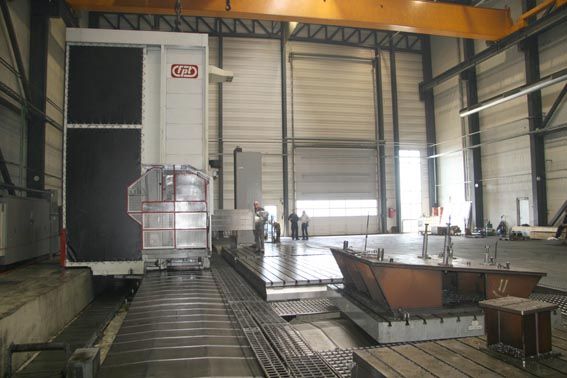

Category
Boring Machine
Type
Mobile Column
Made
Model
M-ARX M160
Capacity
16.000x5.000x1.500+900 mm0,63x0,20x0,06+35,43 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
16.000 mm0,63 in
Vertical (Y)
5.000 mm0,20 in
Cross RAM (Z)
1.500 mm0,06 in
Quill (W)
900 mm35,43 in
Table (V)
3.000 mm0,12 in
CNC
CNC

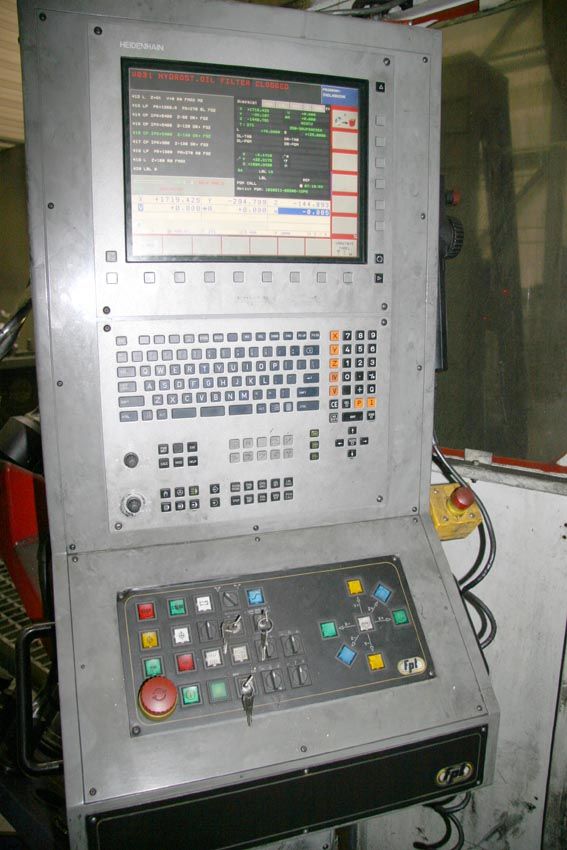

Heidenhain iTNC530SP
Measuring system
optical scales Heidenhain
SPINDLE
Quill diameter
160.2 mm6,31 in
RAM section
670x500 mm26,38x19,69 in
Spindle power
51 Kw
Rotating speed
2500 Rpm
Taper
ISO50
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm
Rapid W
12 m/min472,44 ipm
ATC
Positions
120
Max tool weight
35 Kg
Tool taper
ISO50
Max tool diameter
300 mm11,81 in
Max tool lenght
600 mm23,62 in

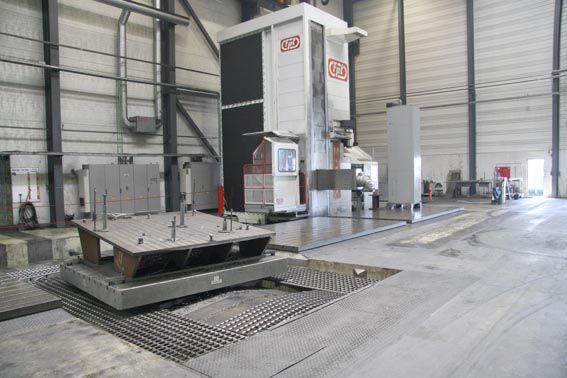

TABLE 1
Available upon request
Yes
Brand
FPT TRT70303030
Surface
3000x3000 mm118,11x118,11 in
Translation
3000 mm118,11 in
Accuracy (B axis)
360.000x0,001 °
Capacity
70.000 Kg
Support
Hydrostatic

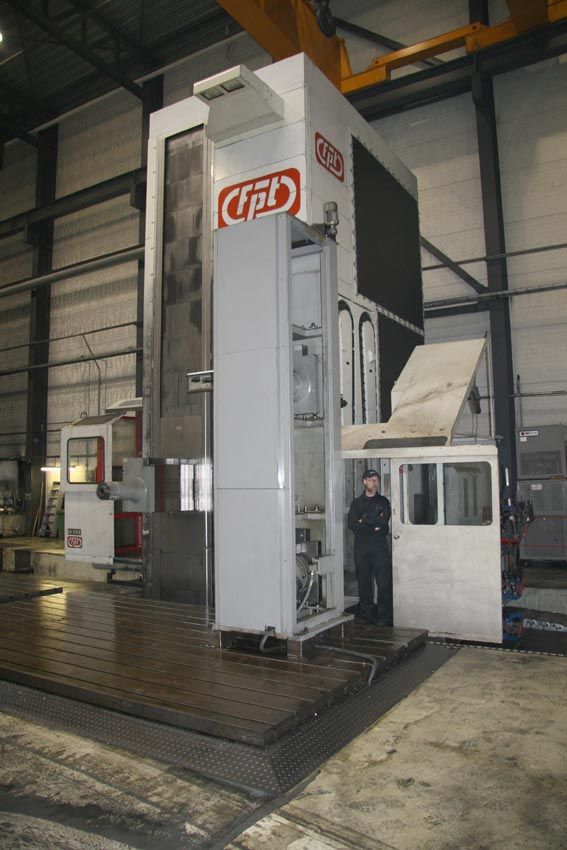

HEAD 1
Type
FPT TUPC
Spindle taper
ISO50
C axis
360.000x0,001 °
A axis
360.000x0,001 °
Max speed
3000 Rpm
Max power
51 Kw
Coolant
int/ext 20Bar
HEAD 2
Available upon request
No
Max speed
2500 Rpm
Max power
51 Kw
EXTRA
Total power supply
116,2 Kw
Floor space
22.500x14.650x7.590 mm0,89x0,58x0,30 in
Tooling included
Testa indexata FPT TUPC 0,001x0,001°, testa prolunga 400mm FPT SELS4, ATC120, Alta pressione 20Bar attraverso mandrino, piattaforma operatore per 3 persone con doppio movimento (Y/Z), tavola rototraslante 70ton
High Pressure
int/ext 20Bar
Mobile operator platform
si, movimento verticale e traversale
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Available under power
si
Relevant updates made on the machine
revisione cuscinetti mandrino 2017, manutenzione ordinaria
