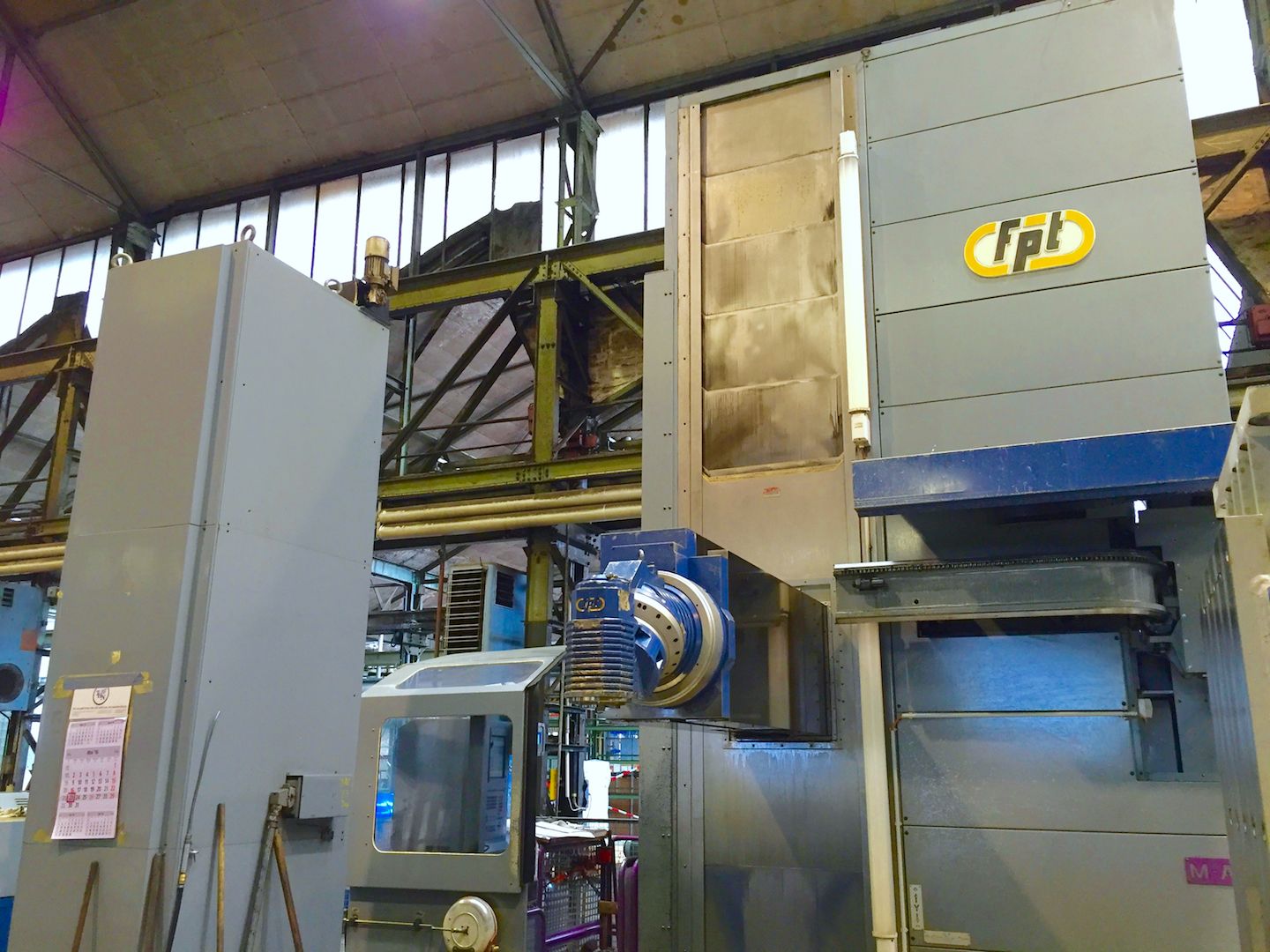

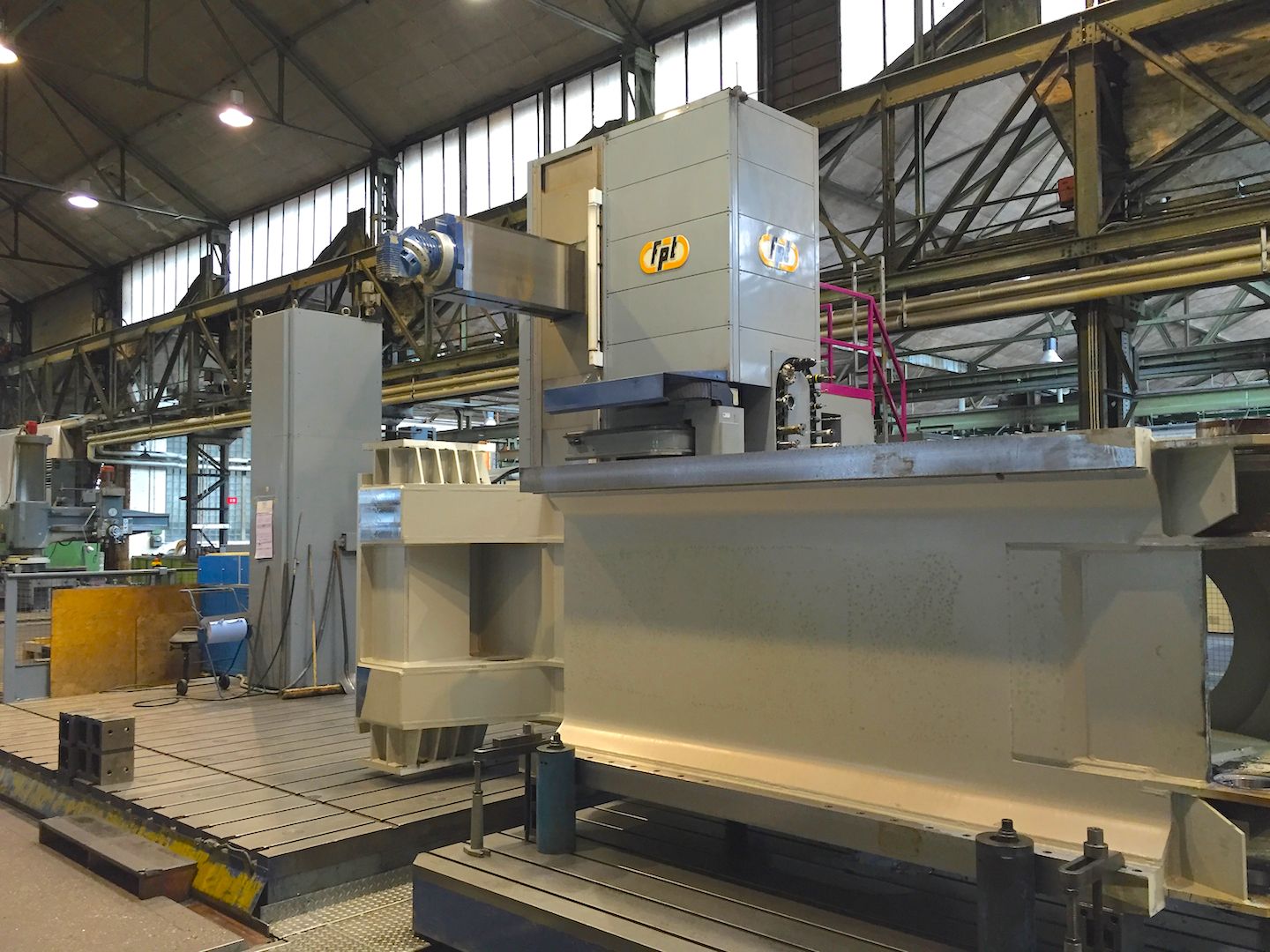

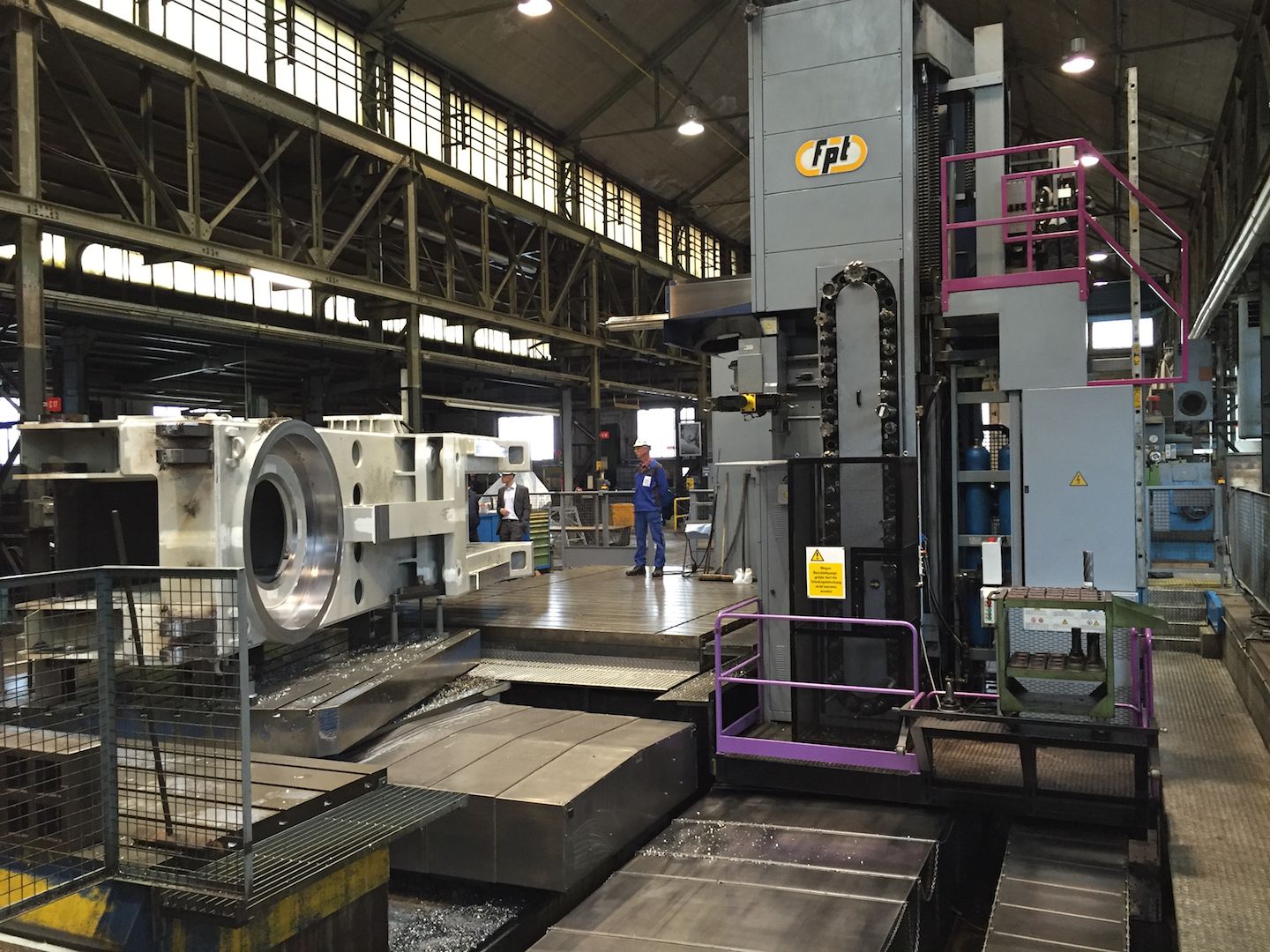

Category

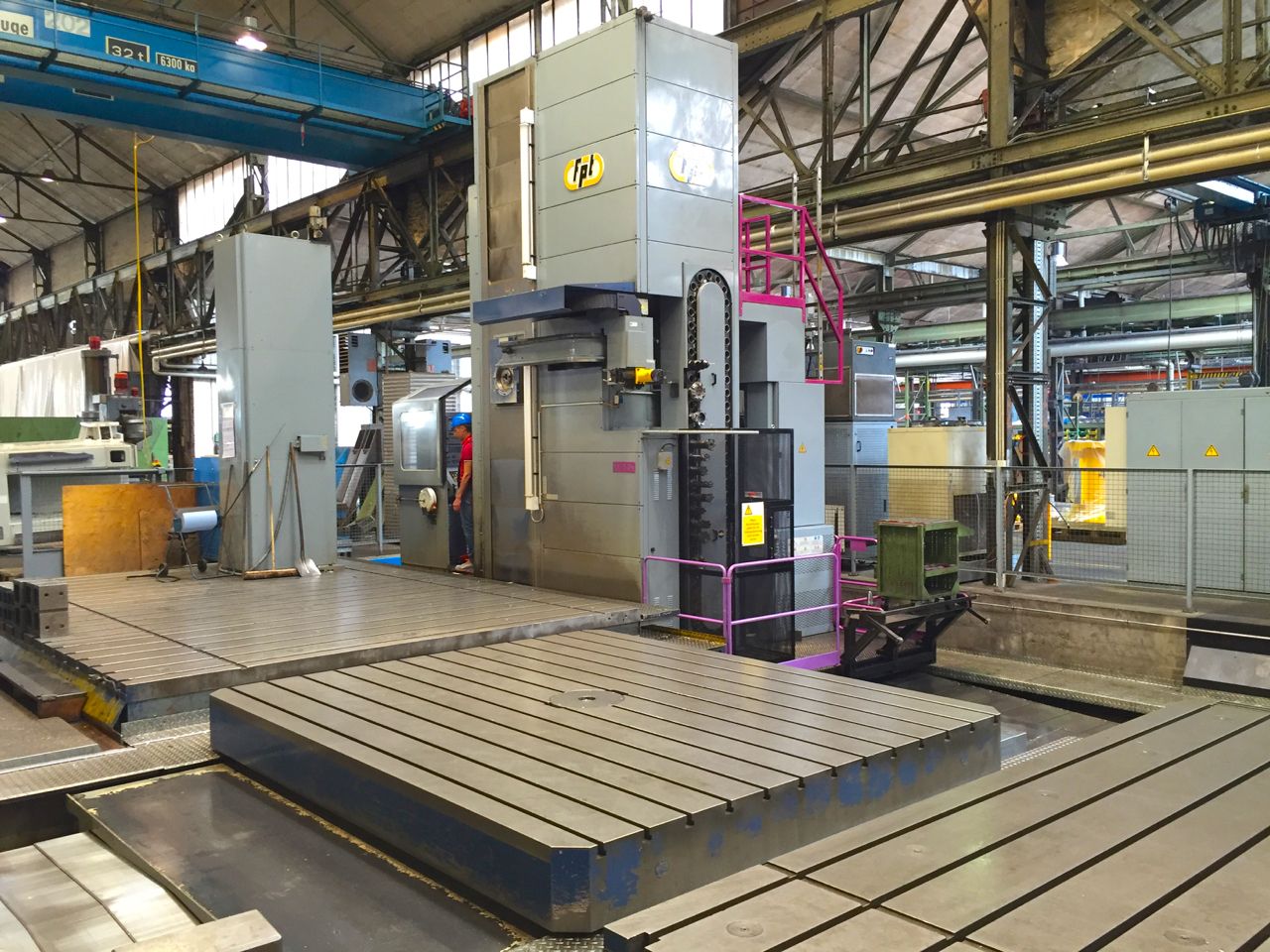

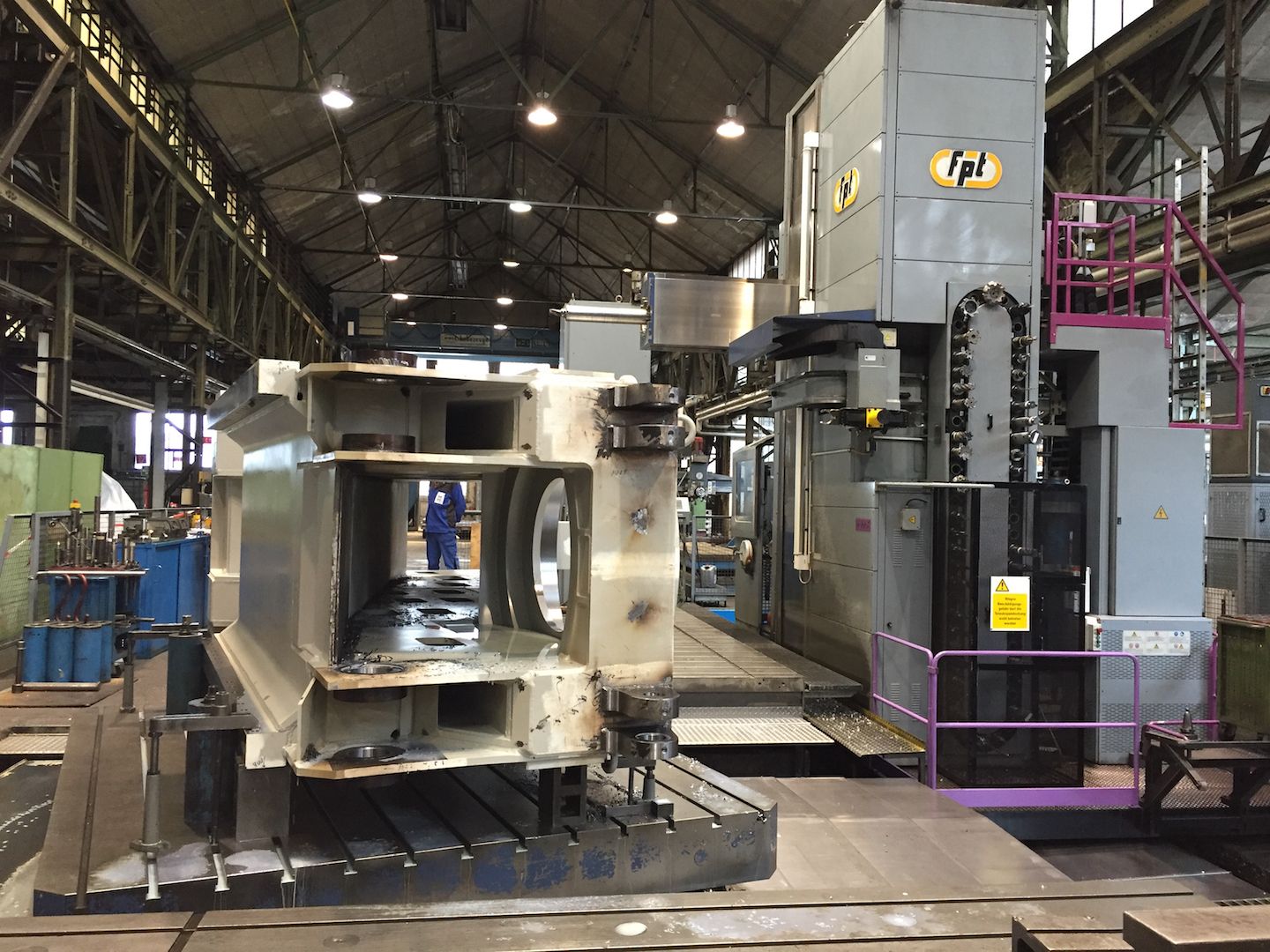

Boring Machine

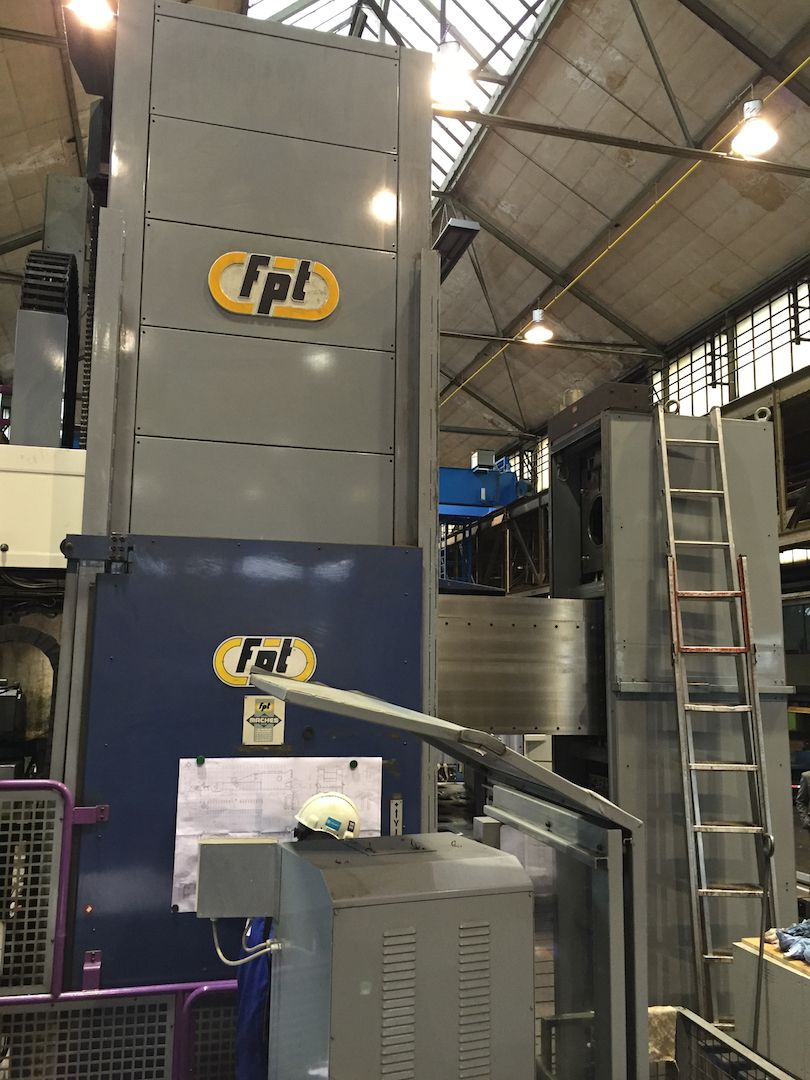

Type
Mobile Column
Made
Model
M-ARX M100
Capacity
10000x4000x1500+900 mm393,70x157,48x59,06+35,43 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
10000 mm393,70 in
Vertical (Y)
4000 mm157,48 in
Cross RAM (Z)
1500 mm59,06 in
Quill (W)
900 mm35,43 in
Table (V)
2000 mm78,74 in

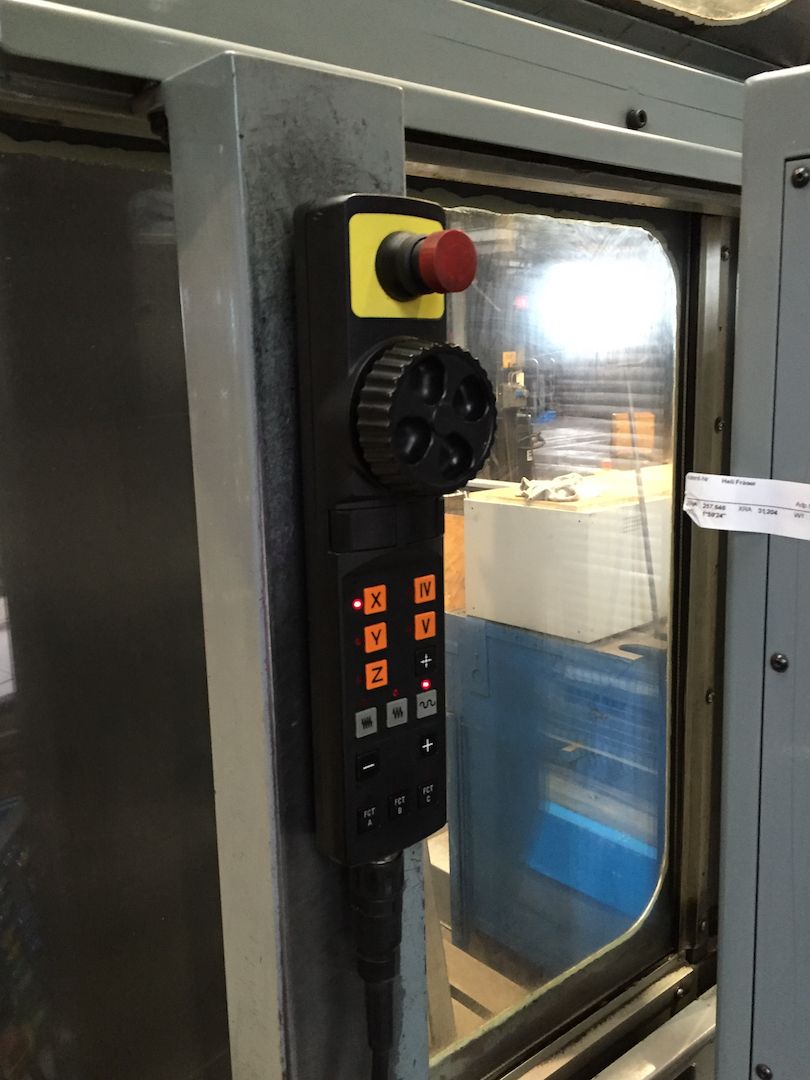

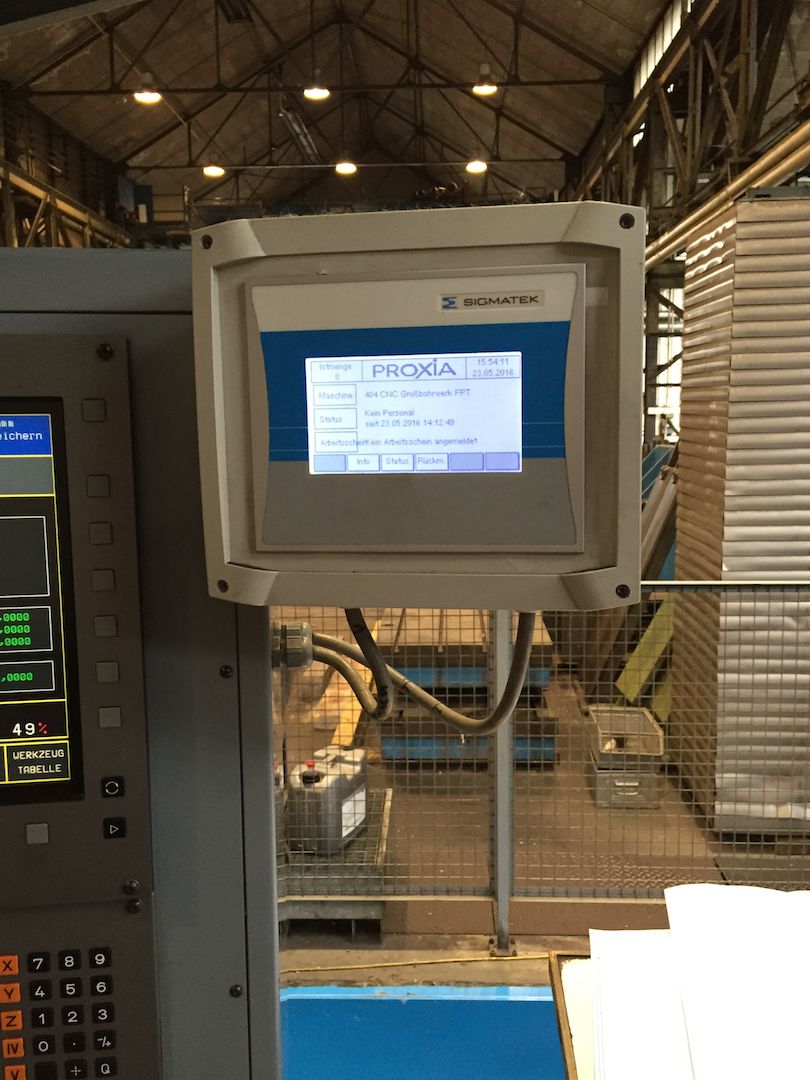

CNC
CNC

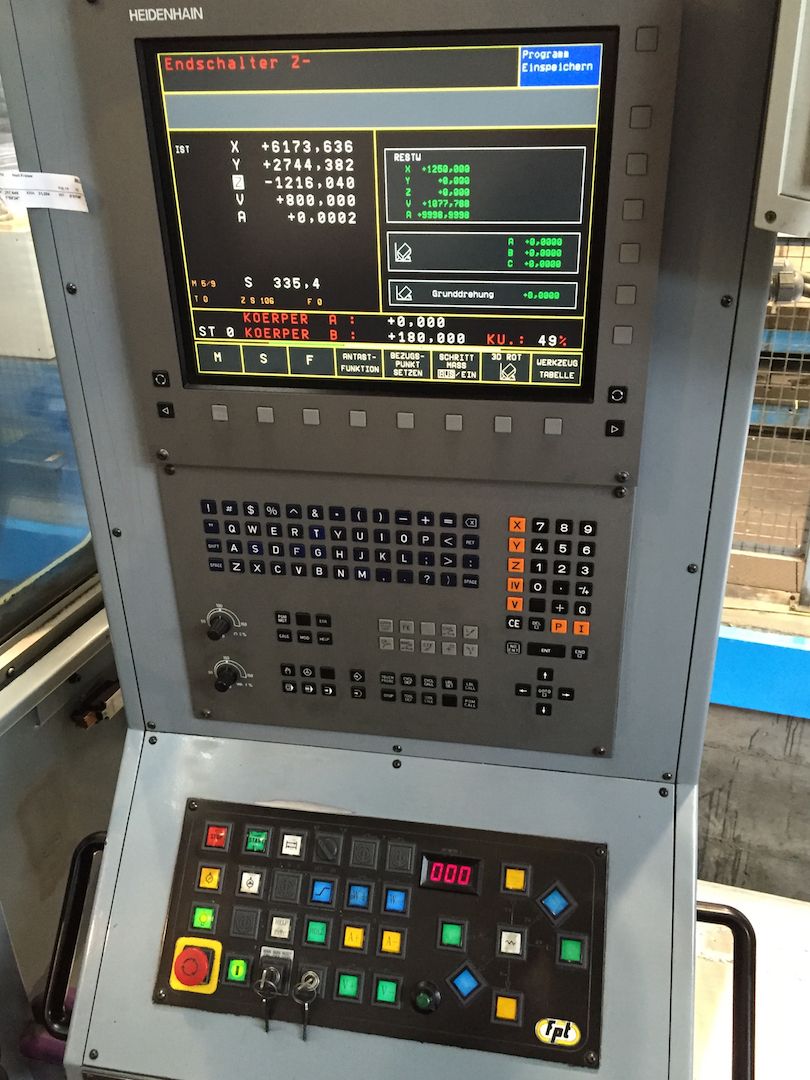

Heidenhain TNC430M

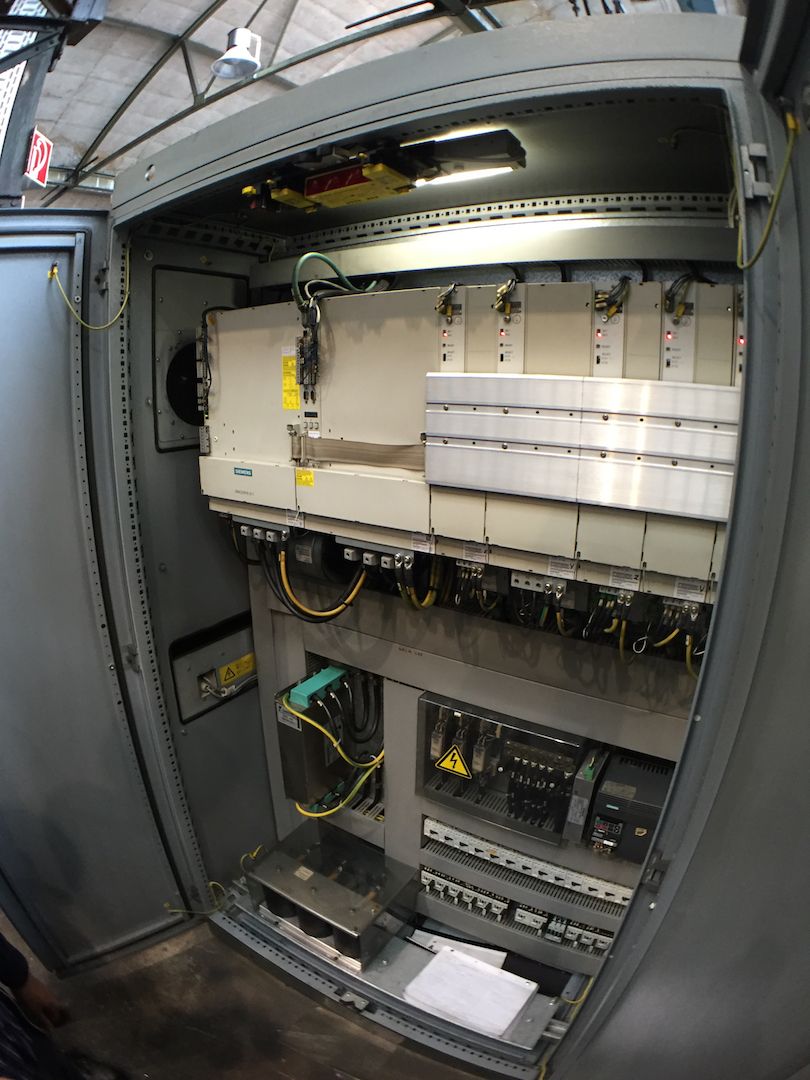

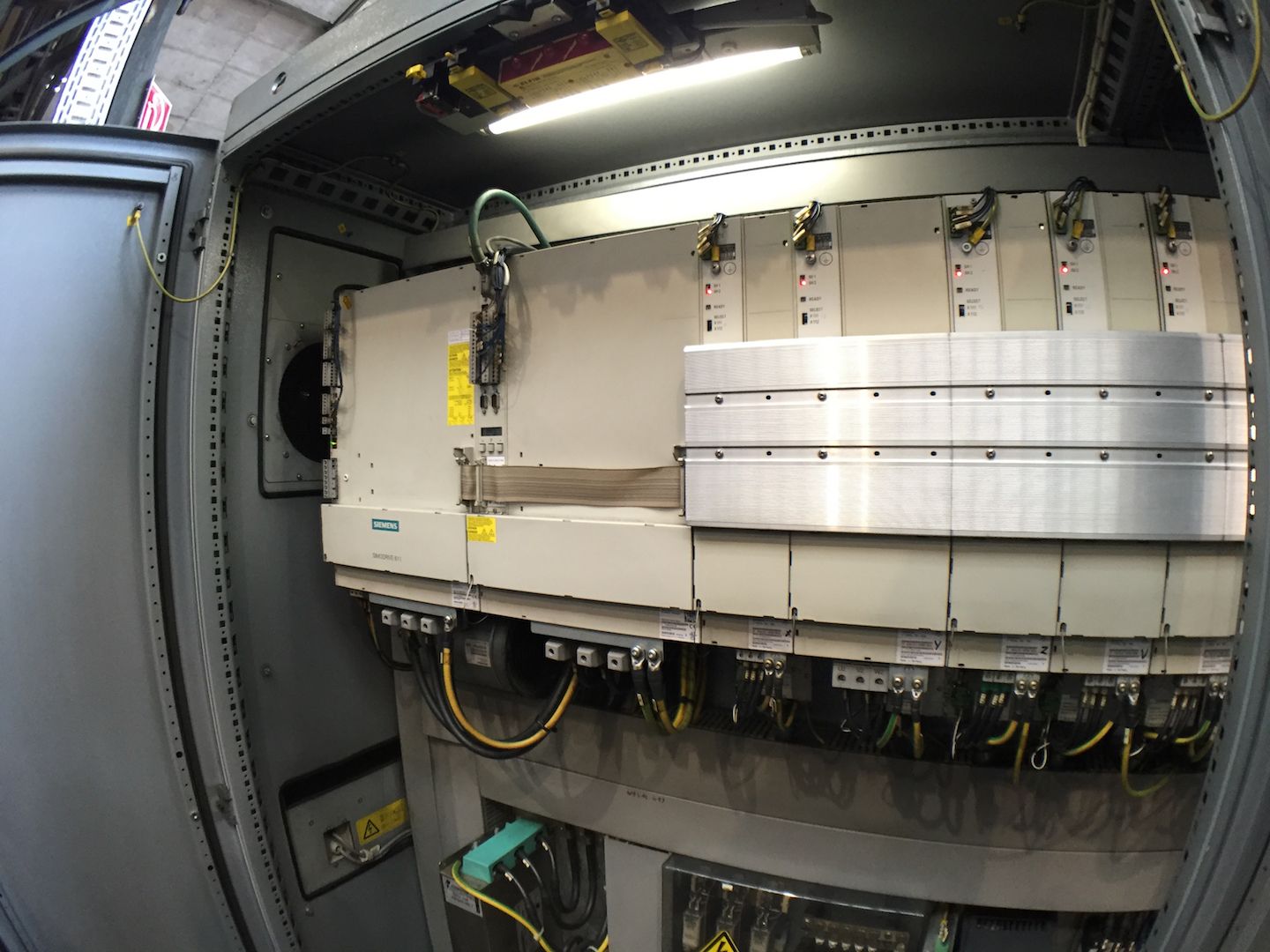

Drives
SIEMENS SINUMERIK611

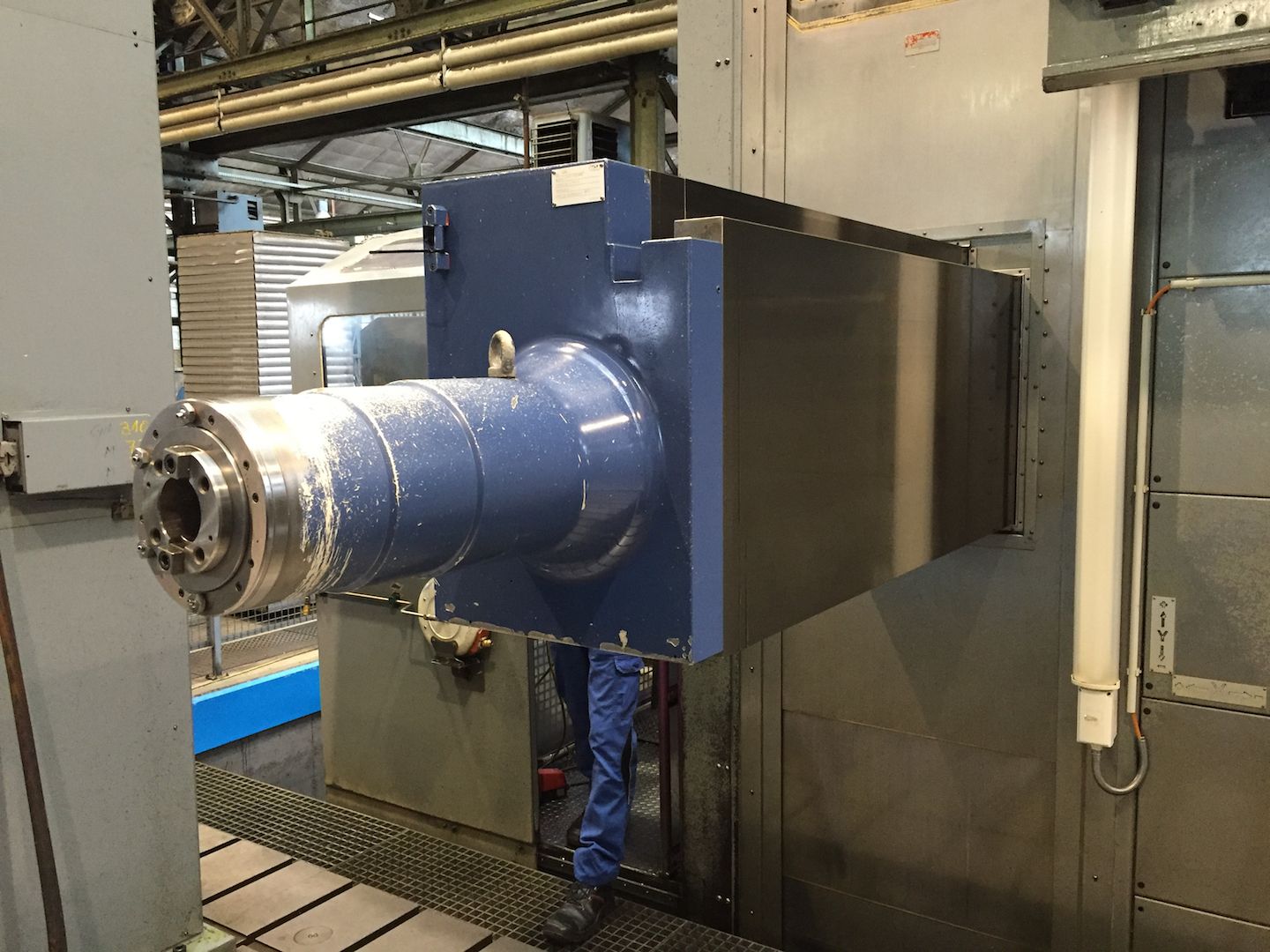

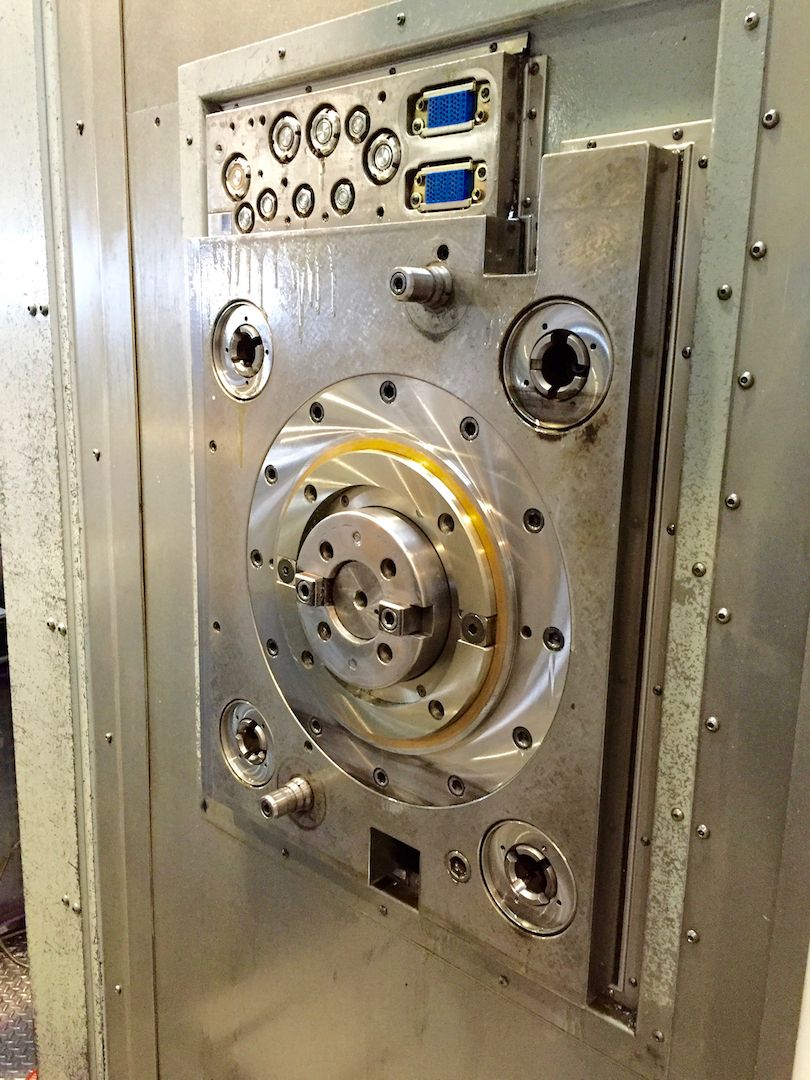

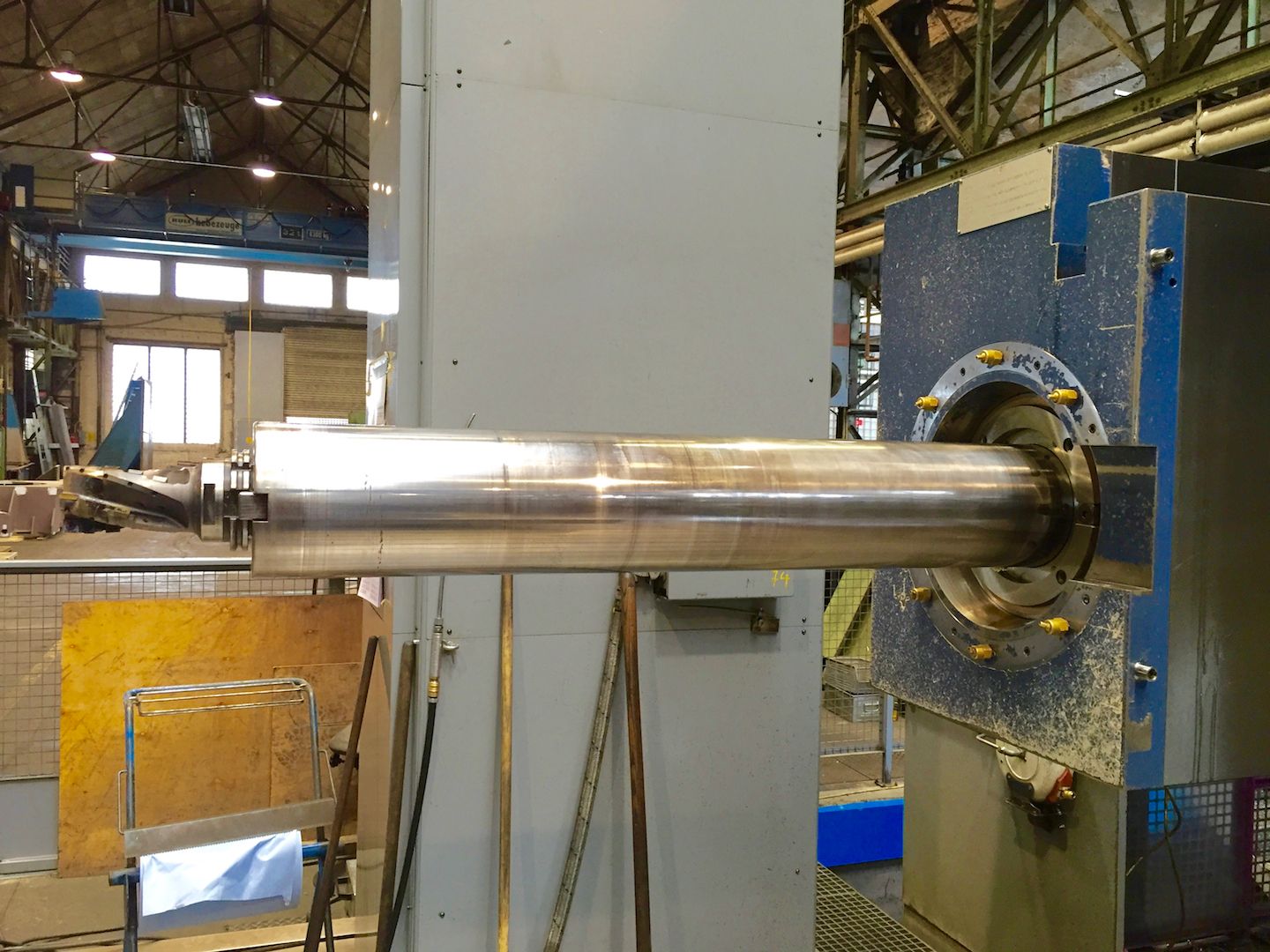

SPINDLE
Quill diameter
152 mm5,98 in
Spindle power
46/56 Kw
Rotating speed
0-2500 Rpm
Taper
ISO50
Support
idrostatico

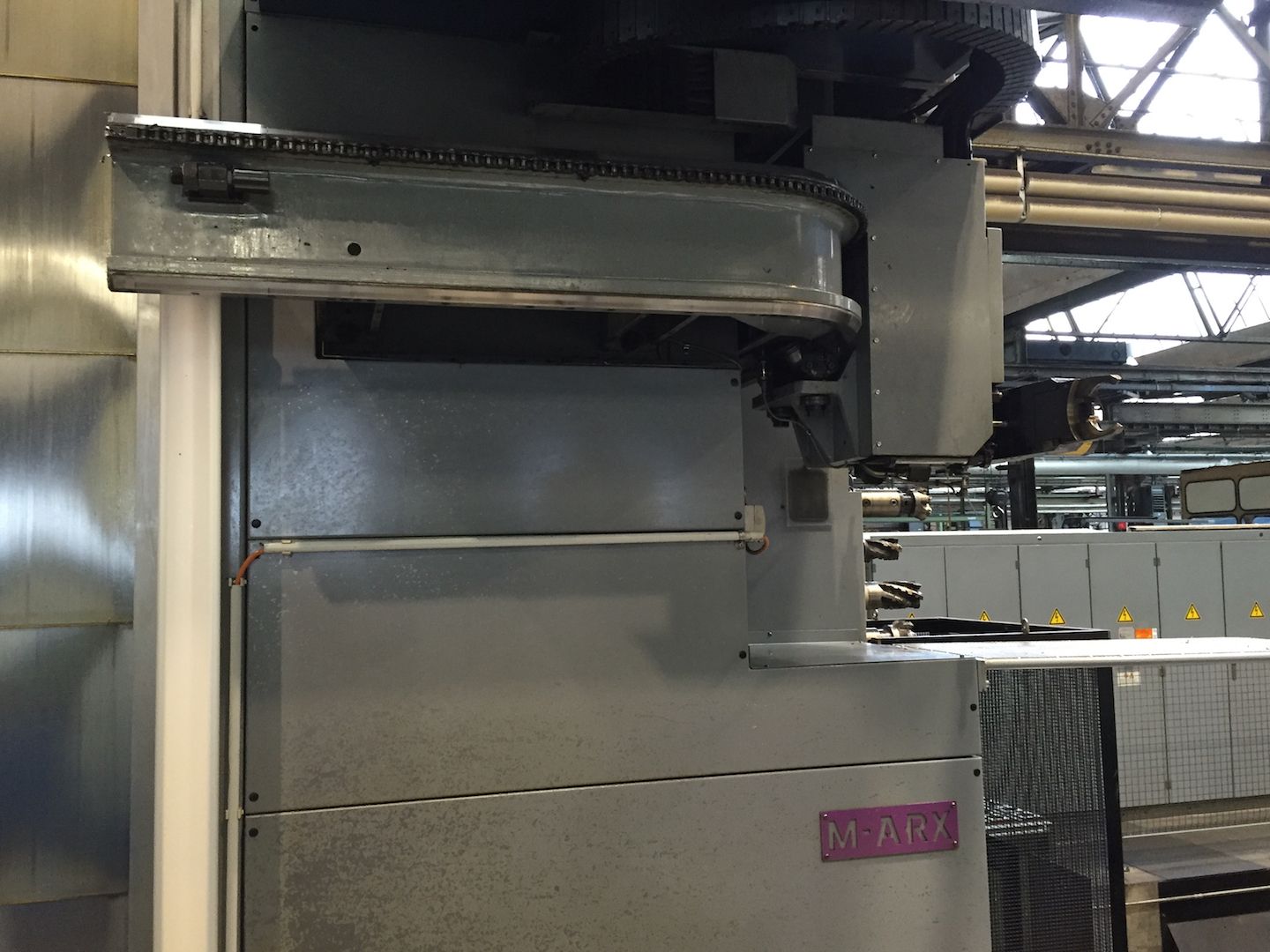

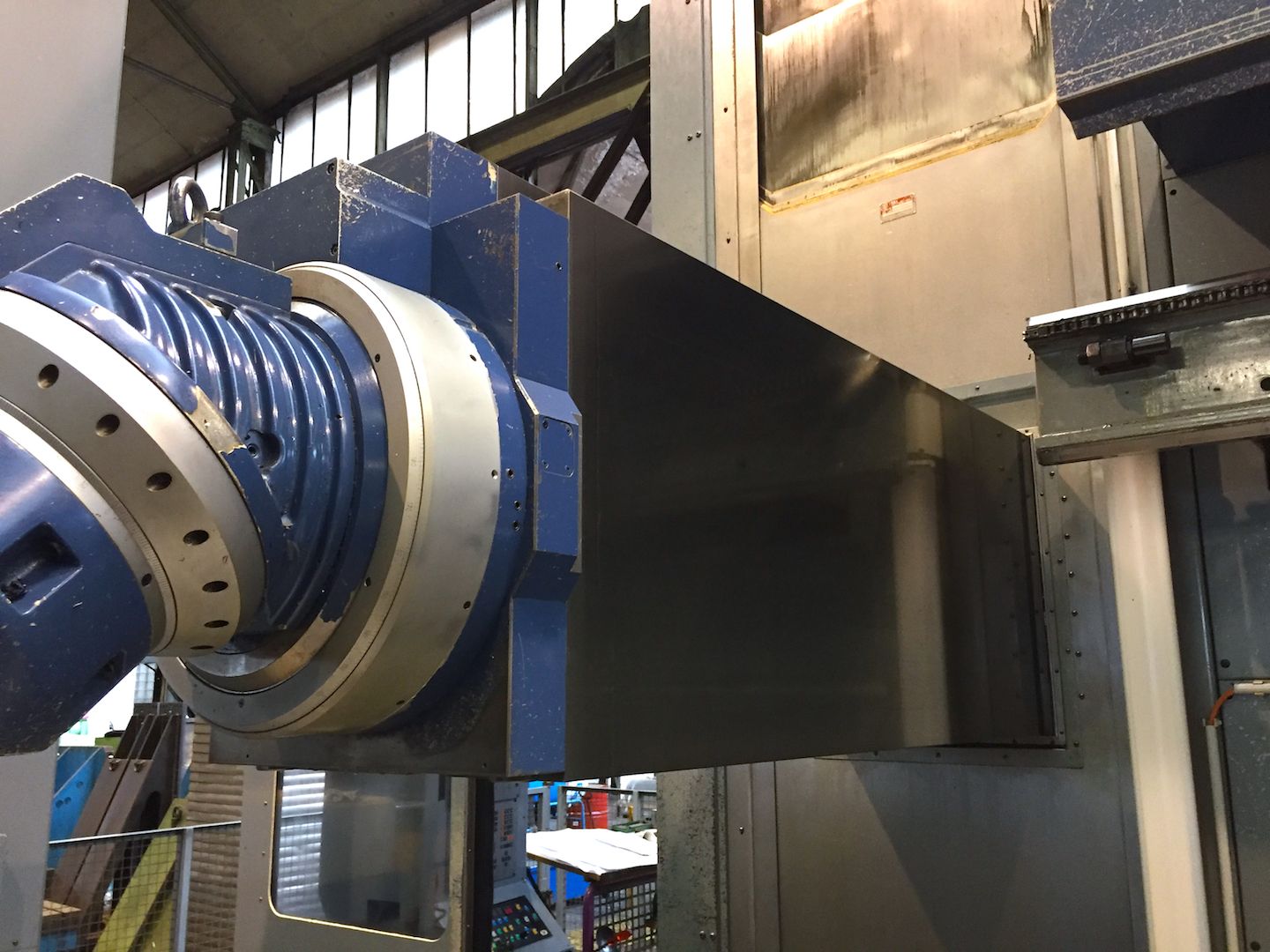

RAM section
705x490 mm27,76x19,29 in
Torque
2600 Nm

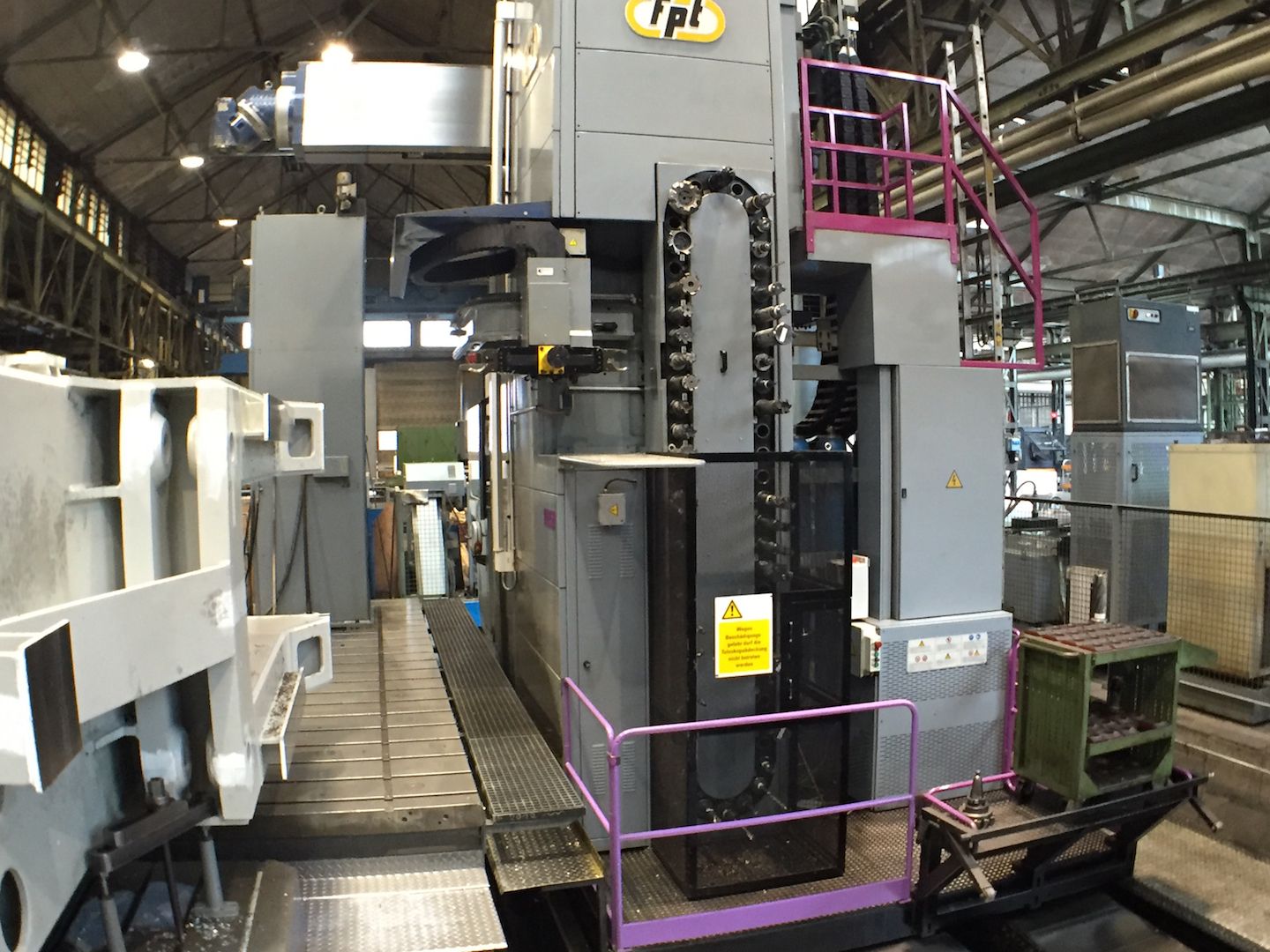

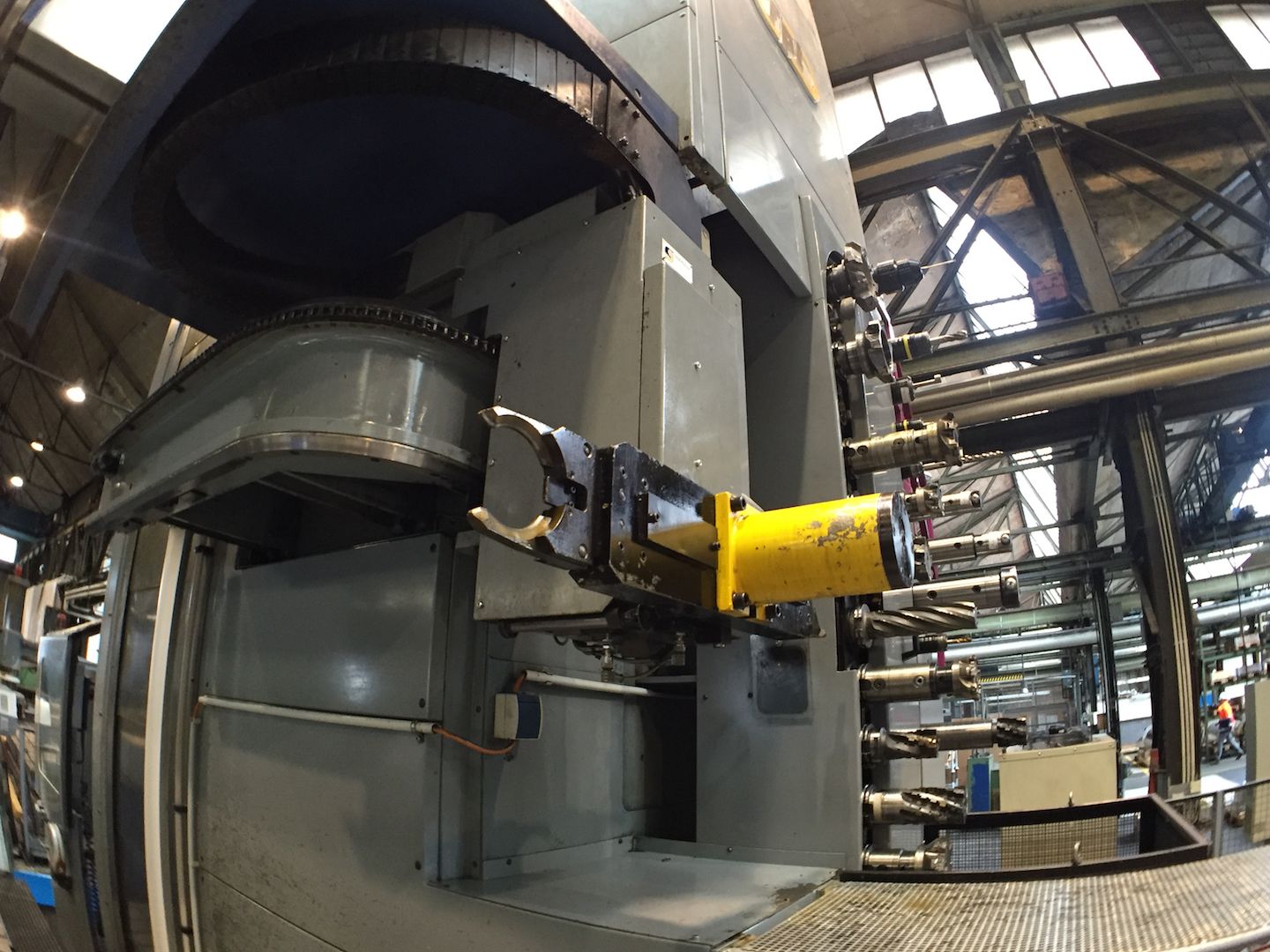

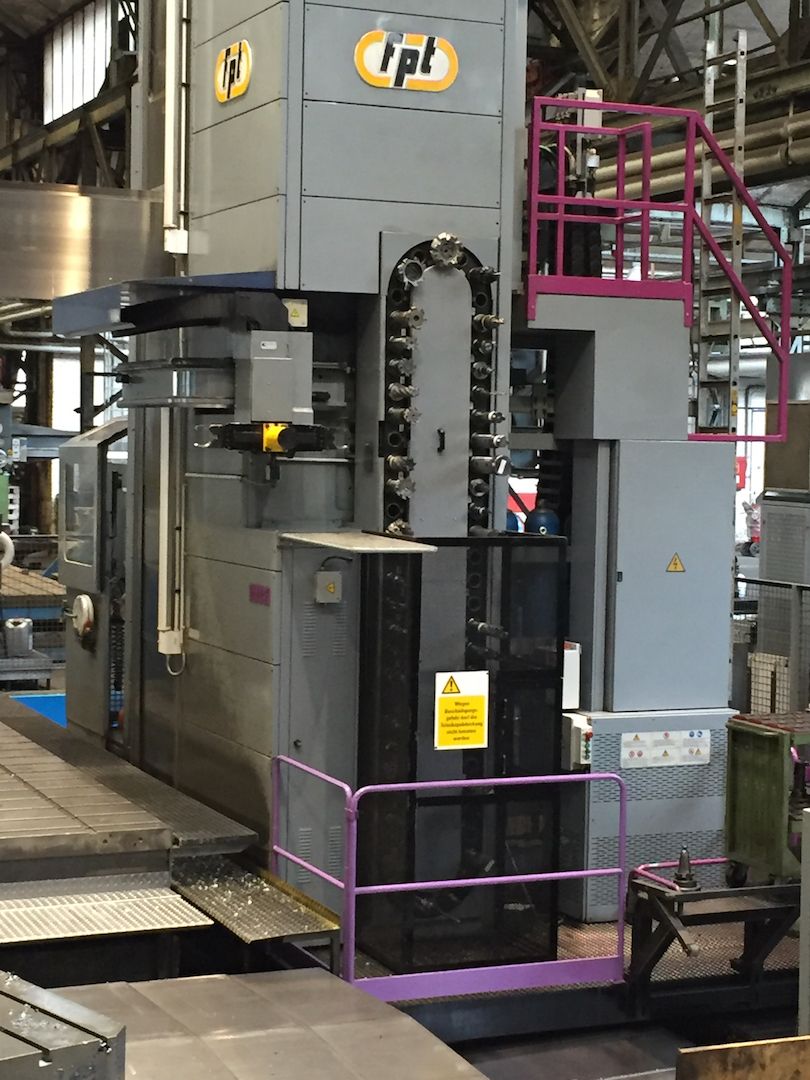

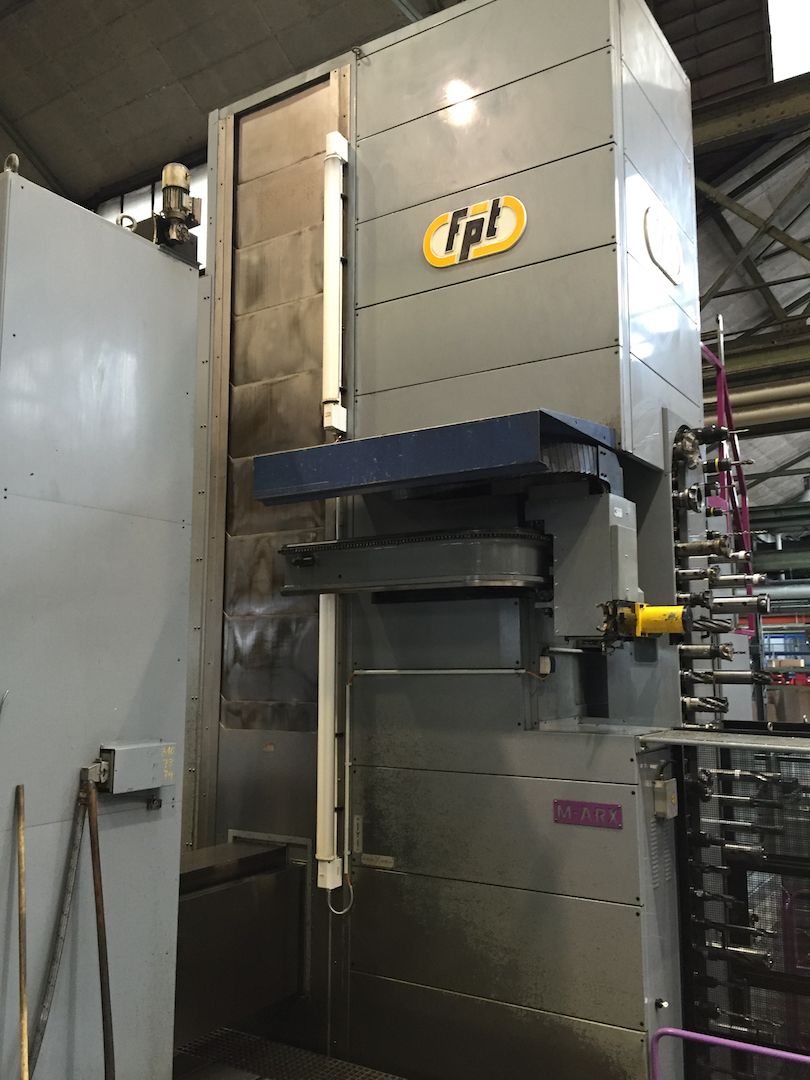

ATC
Positions
60
Max tool diameter
300 mm11,81 in
Max tool lenght
600 mm23,62 in
Max tool weight
35 Kg

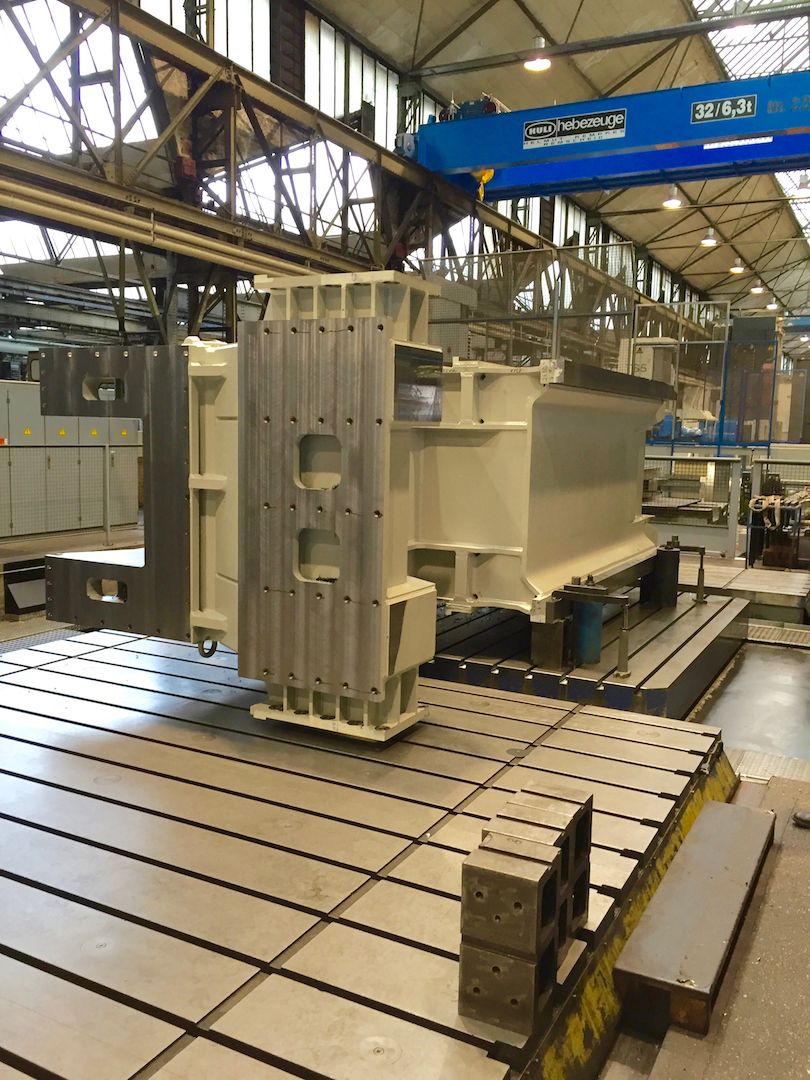

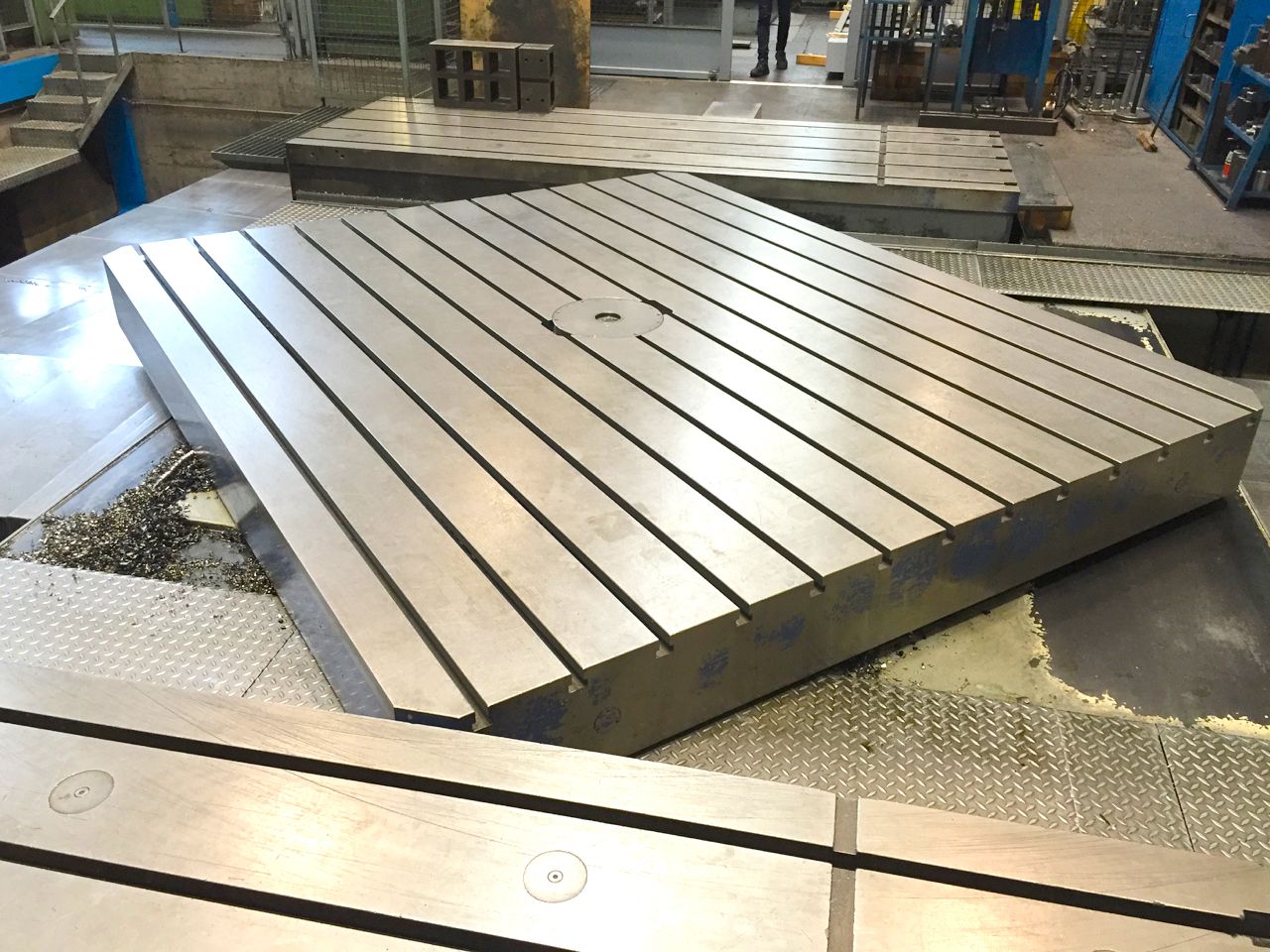

FIXING TABLE
Available upon request
Yes
Floorspace (LxWxH)
6300x4000 mm248,03x157,48 in

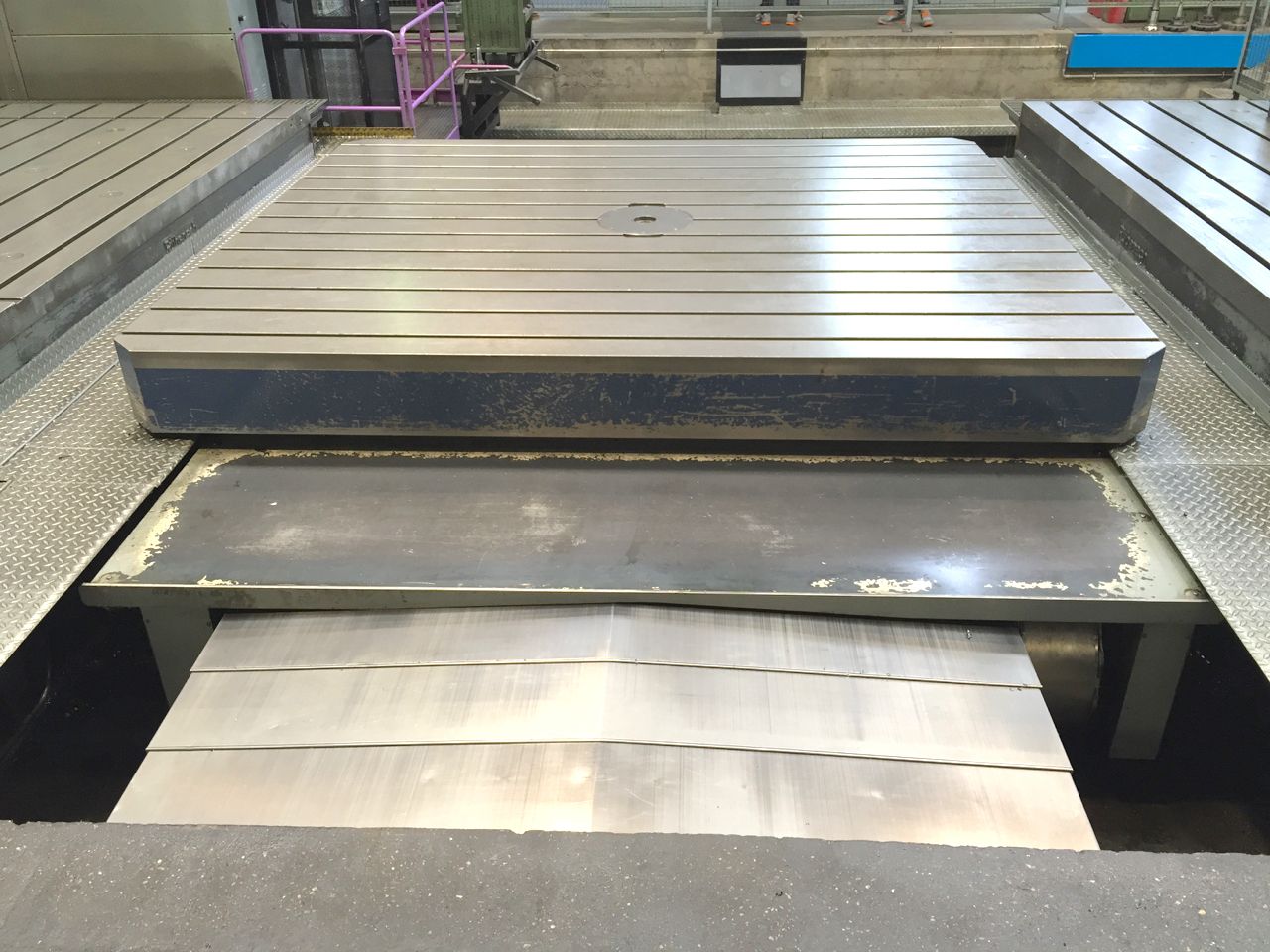

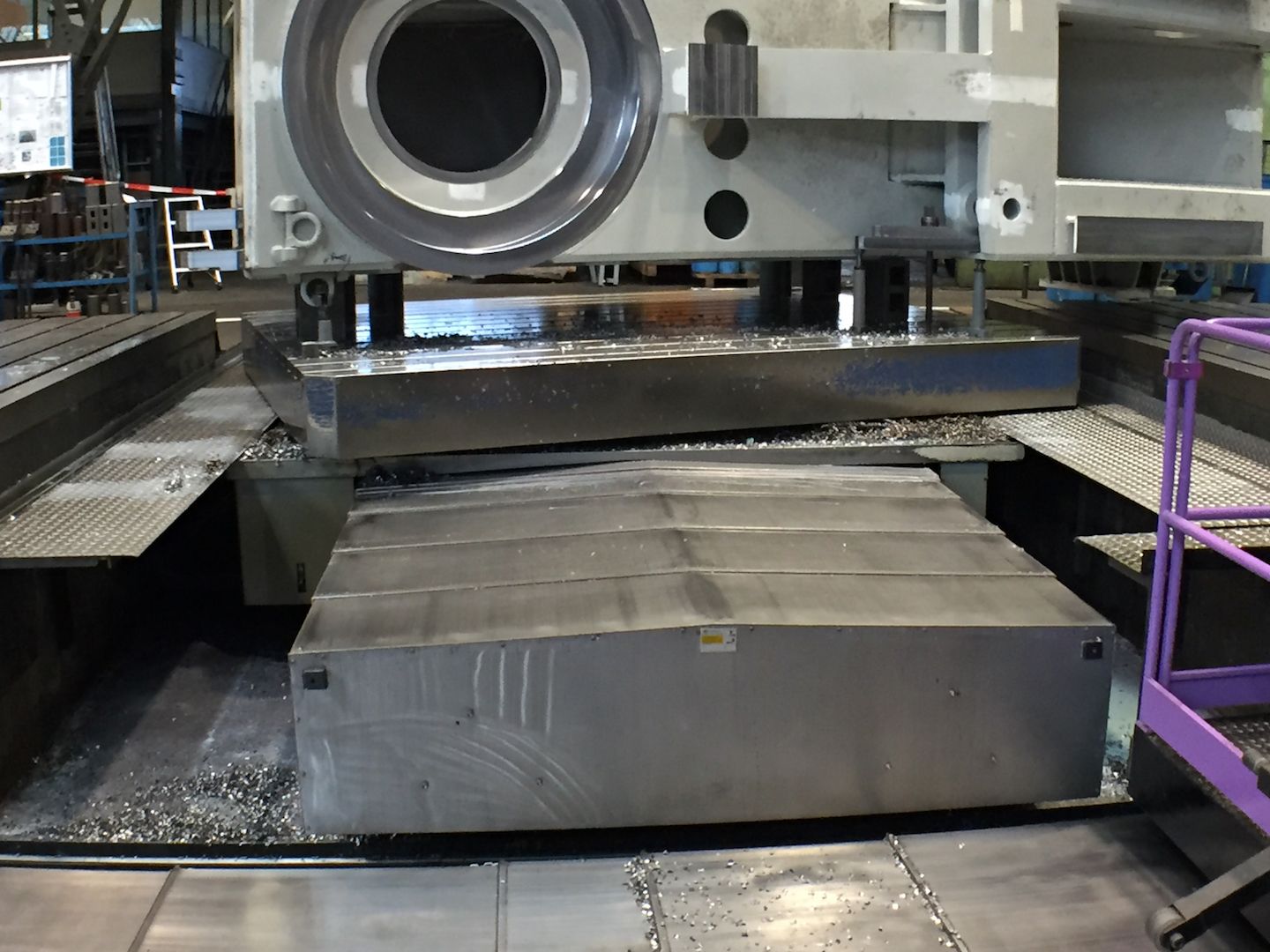

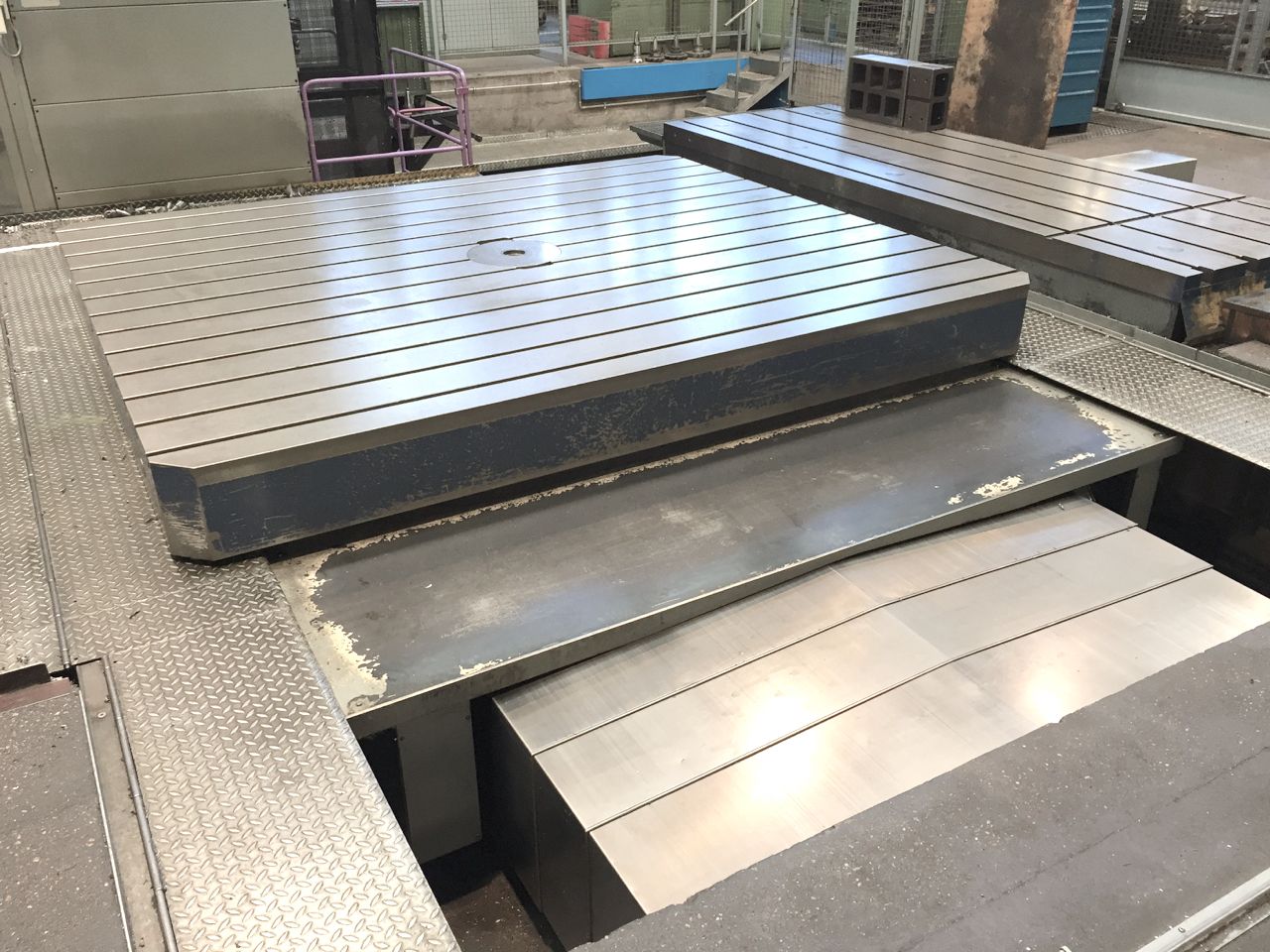

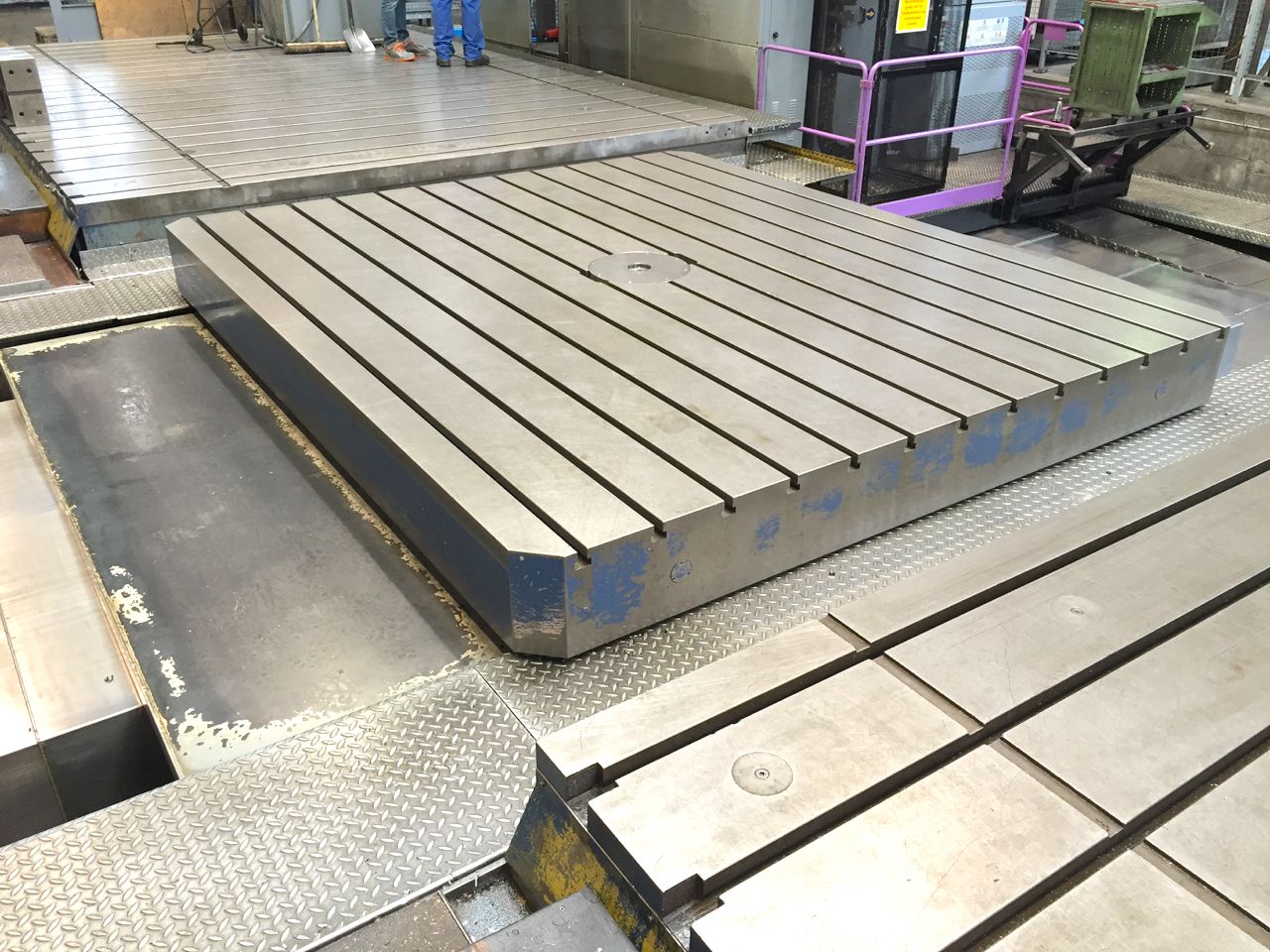

TABLE 1
Brand
FPT TRT80.20
Surface
3500x3000 mm137,80x118,11 in
Translation
2000 mm78,74 in
Accuracy (B axis)
0,0005 °
Capacity
80.000 Kg
Support
Hydrostatic

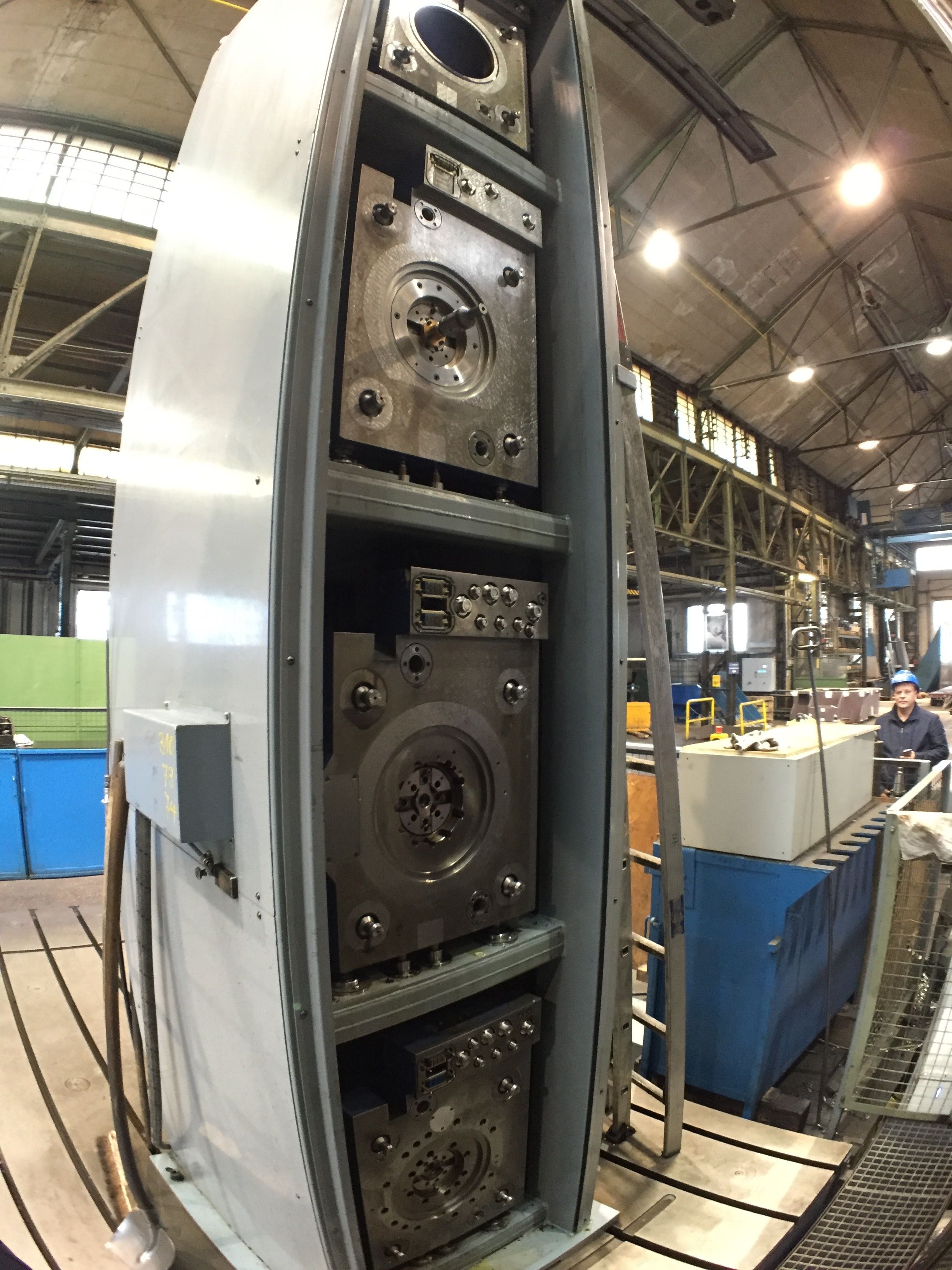

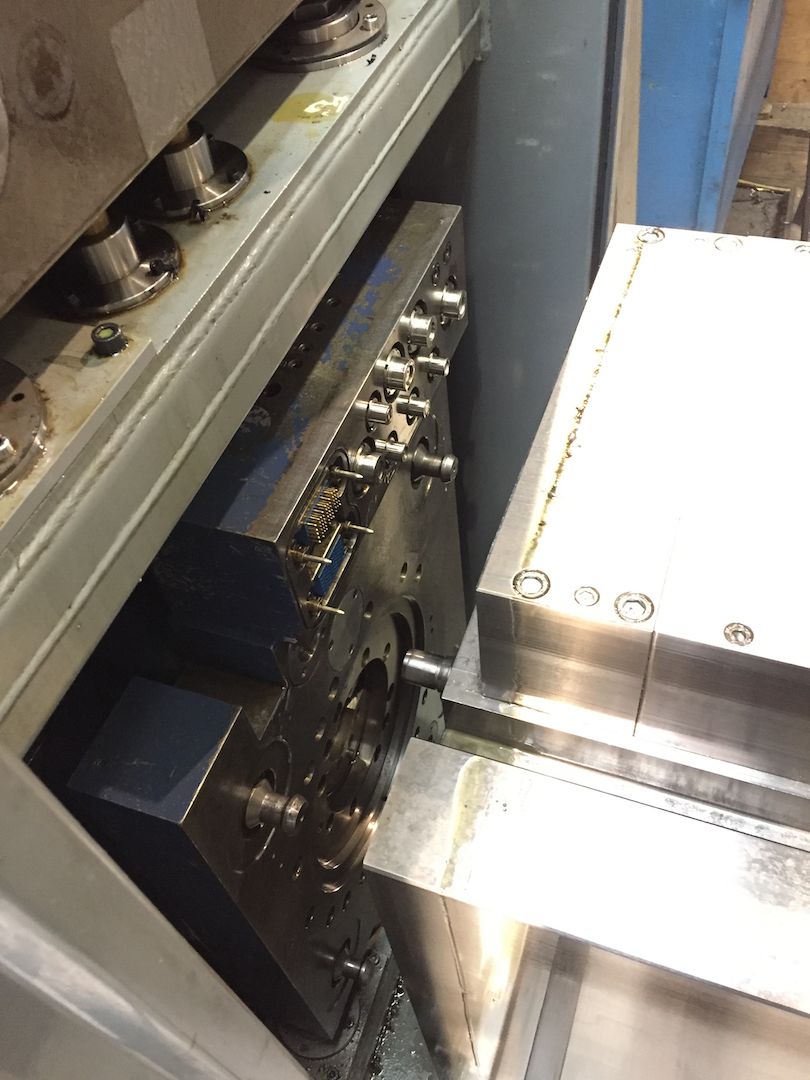

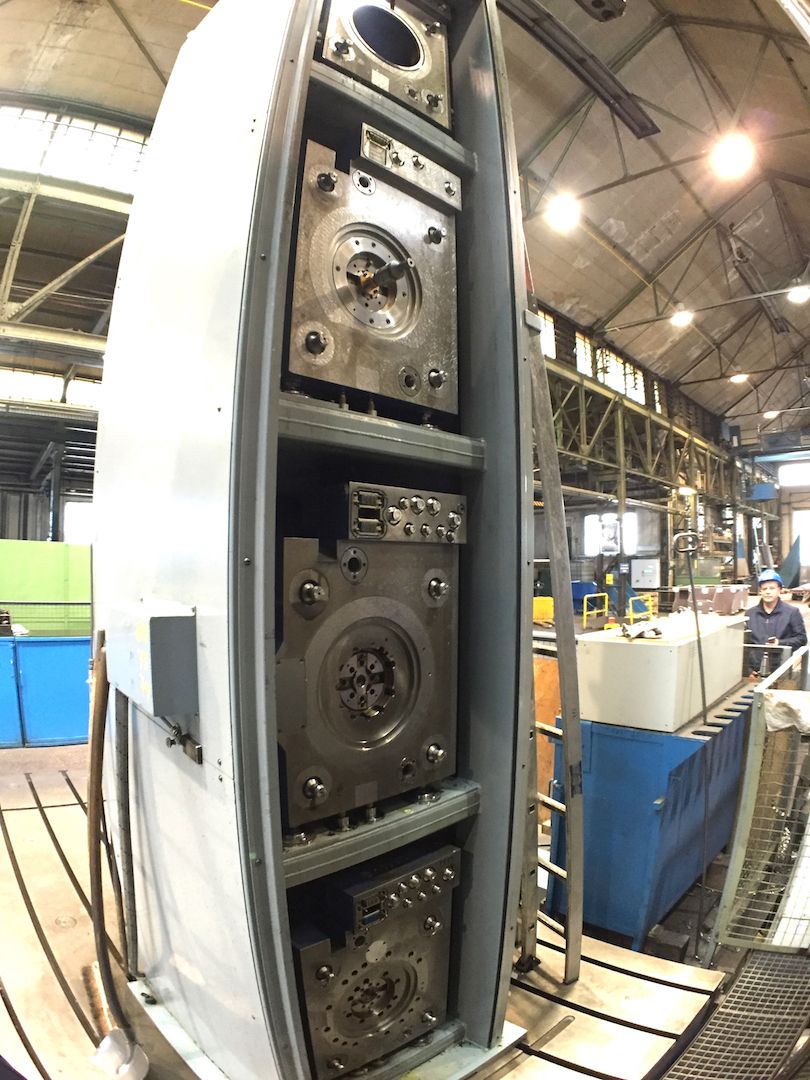

PICK UP STATION FOR HEADS
Positions
4

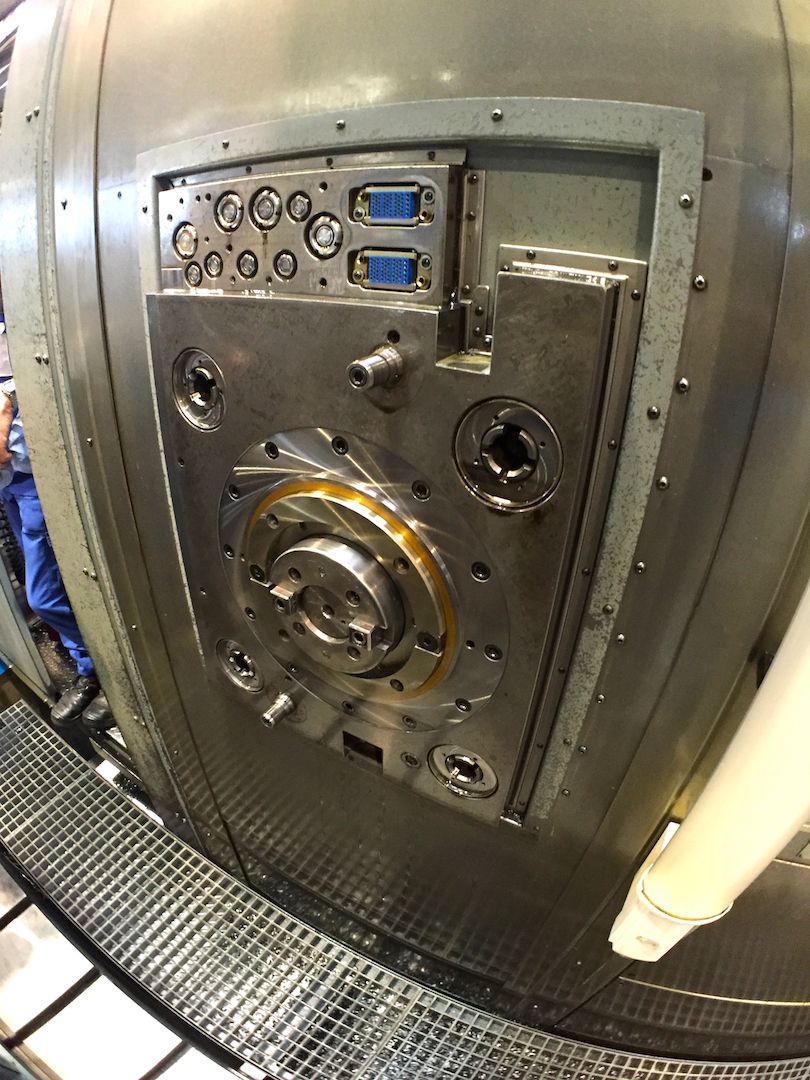

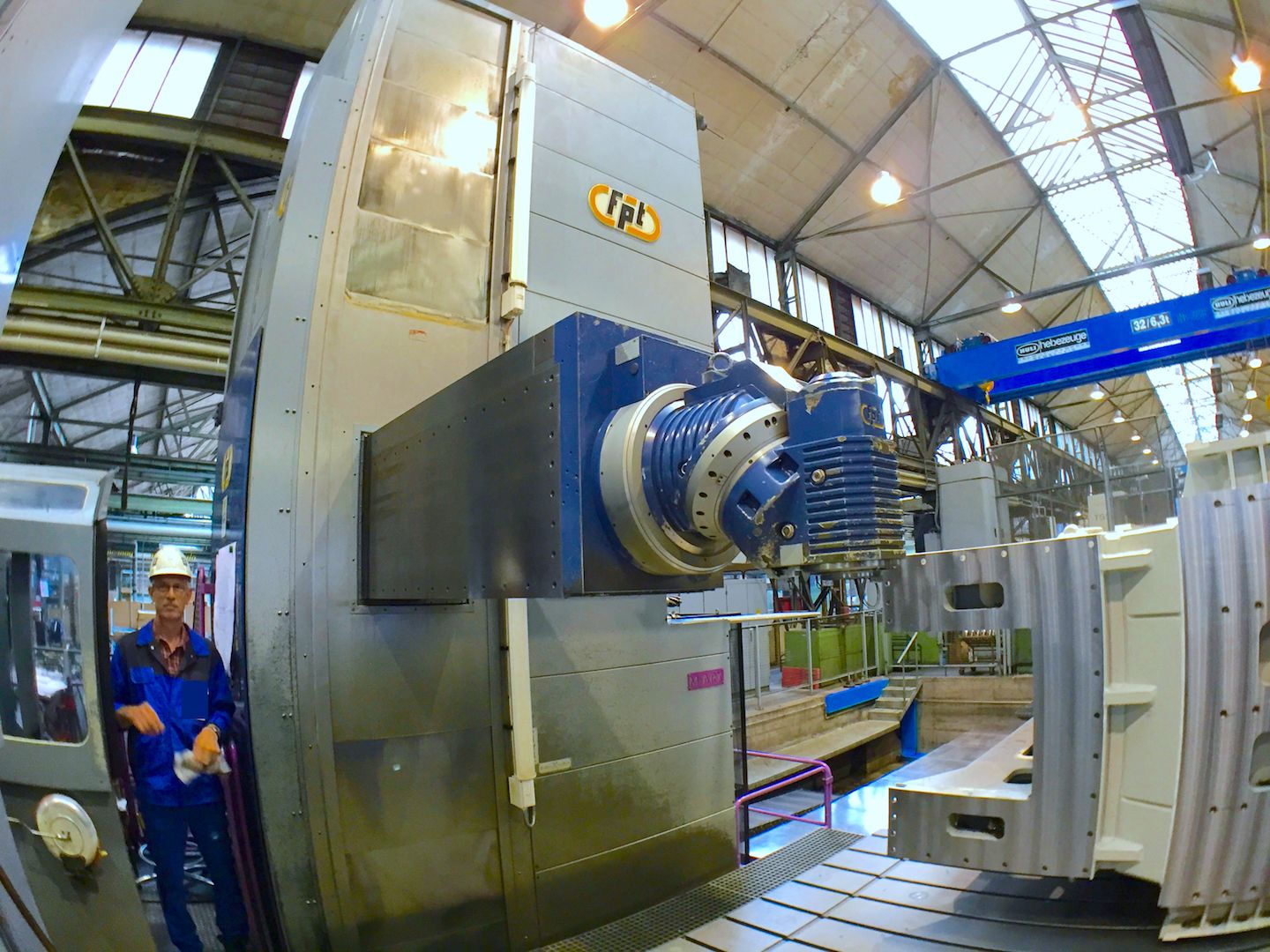

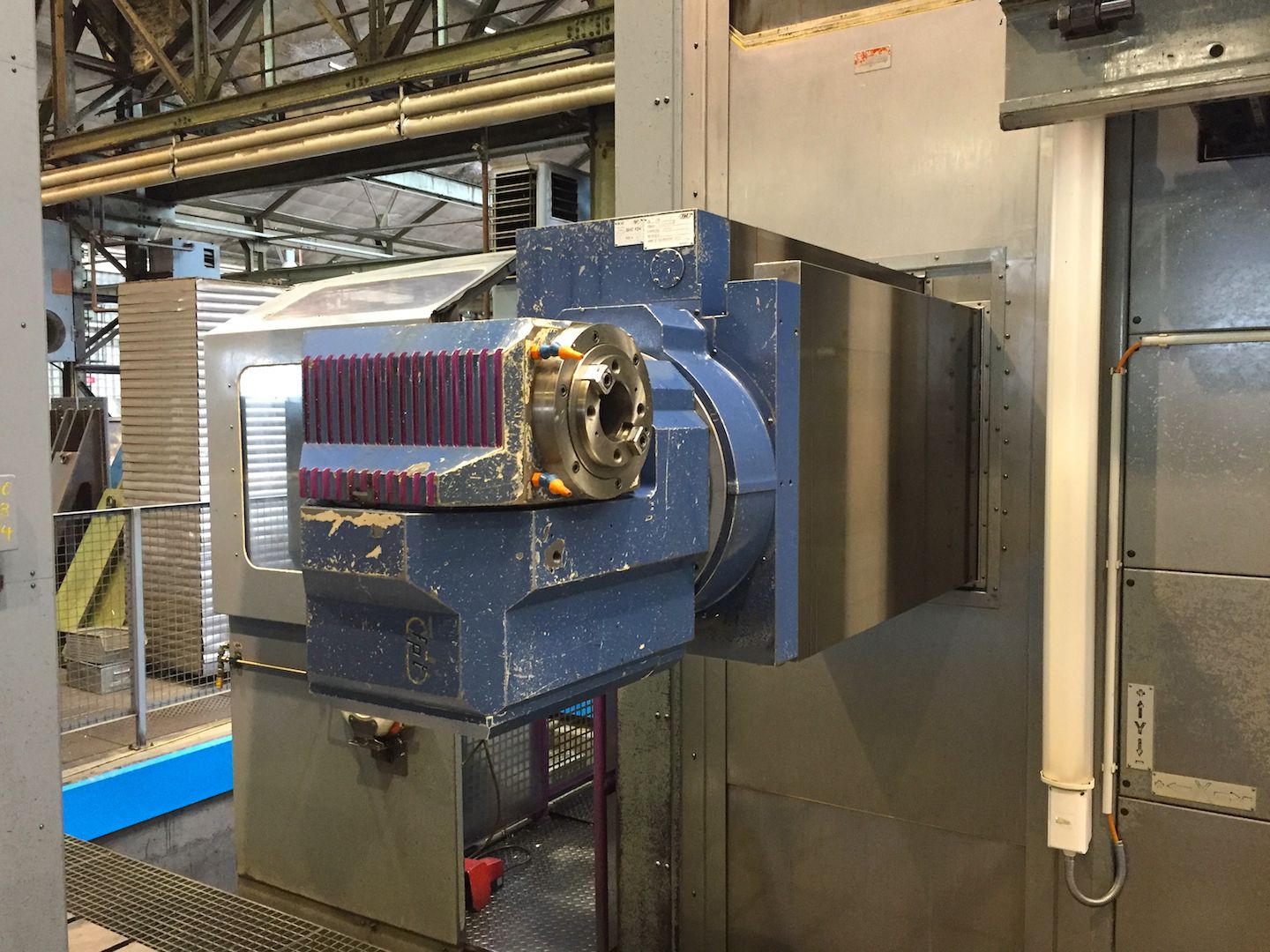

HEAD 1
Type
TUPC
Spindle taper
ISO50
A axis
0,001 °
C axis
0,001 °
Max speed
2500 Rpm
Max power
37 Kw
Coolant
interno
Max torque
1220 Nm
HEAD 2
Available upon request
No
A axis
1 °
C axis
1 °
Max speed
2500 Rpm
Max power
37 Kw
HEAD 3
Available upon request
No
Max torque
2567 Nm
Max speed
2500 Rpm
Max power
37 Kw
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
Rapid W
15 m/min590,55 ipm
Rapid V
15 m/min590,55 ipm
X
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
Z
6 m/min236,22 ipm
W
6 m/min236,22 ipm
V
6 m/min236,22 ipm
ATC 2
Max tool diameter
600 mm23,62 in
Max tool lenght
300 mm11,81 in
EXTRA
Total power supply
110 Kw
Floor space
16200x10405x8000 mm637,79x409,64x314,96 in

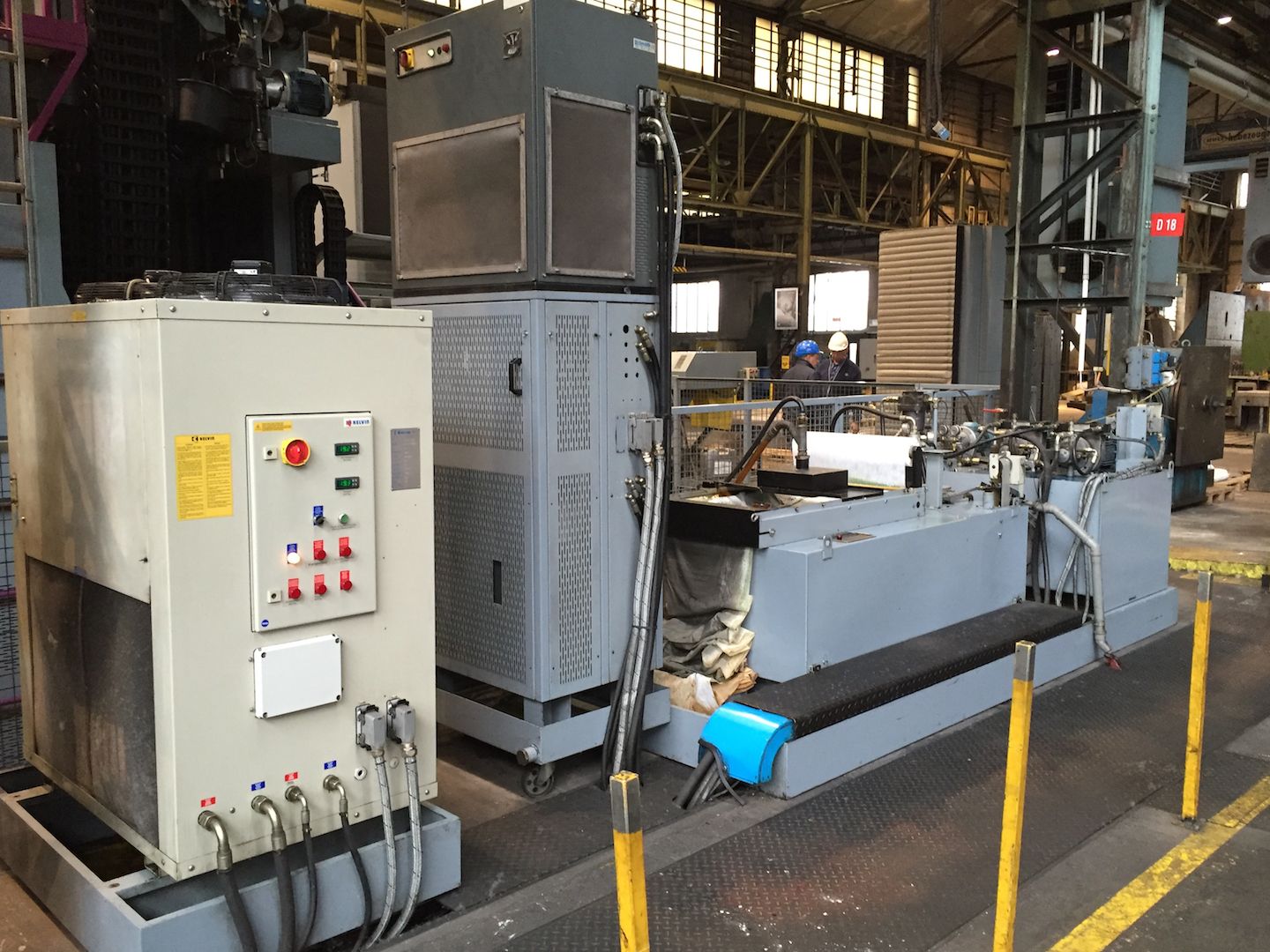

Chiller
si

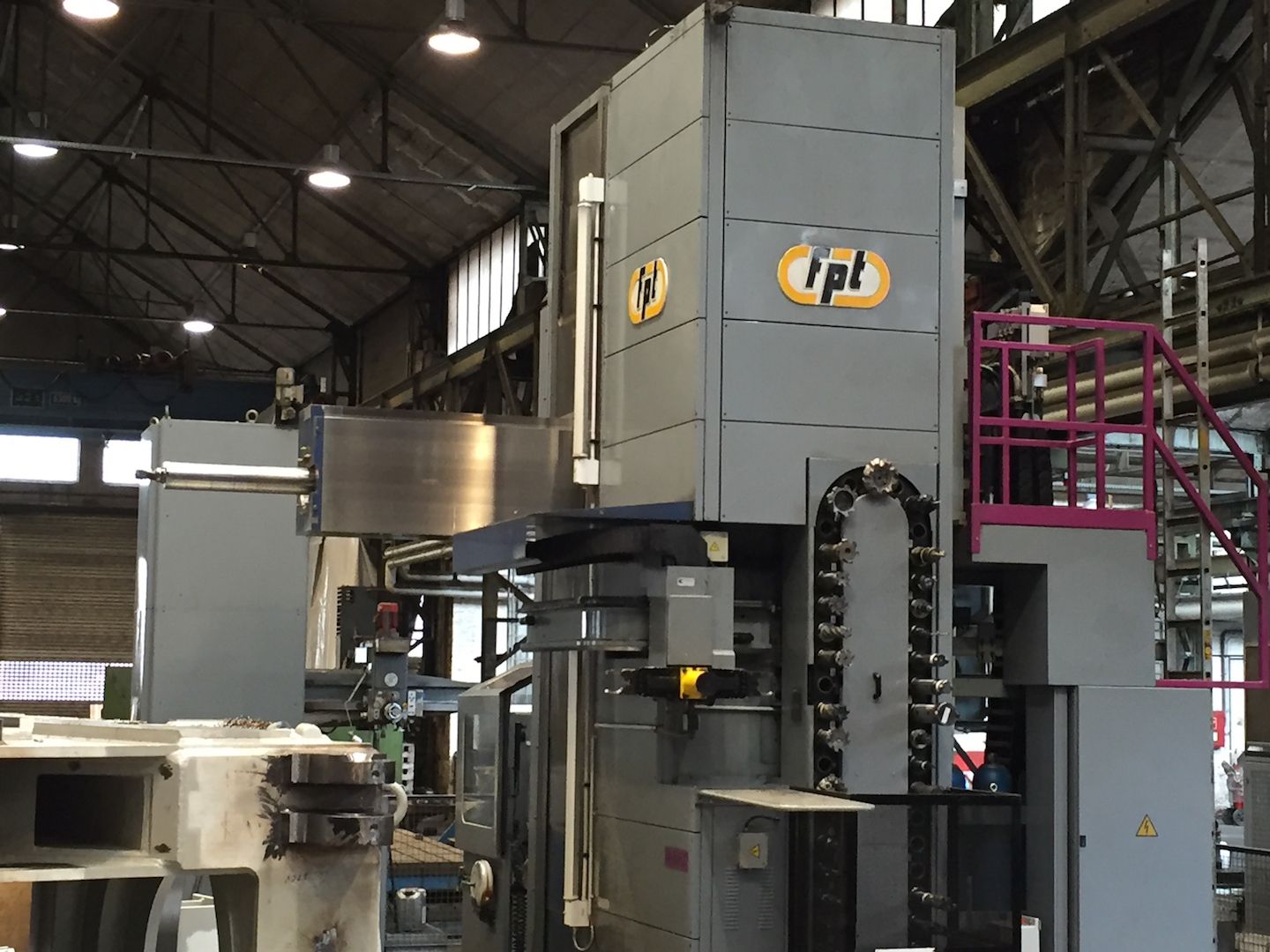

Mobile operator platform
si
Filtration unit
si
High Pressure
si

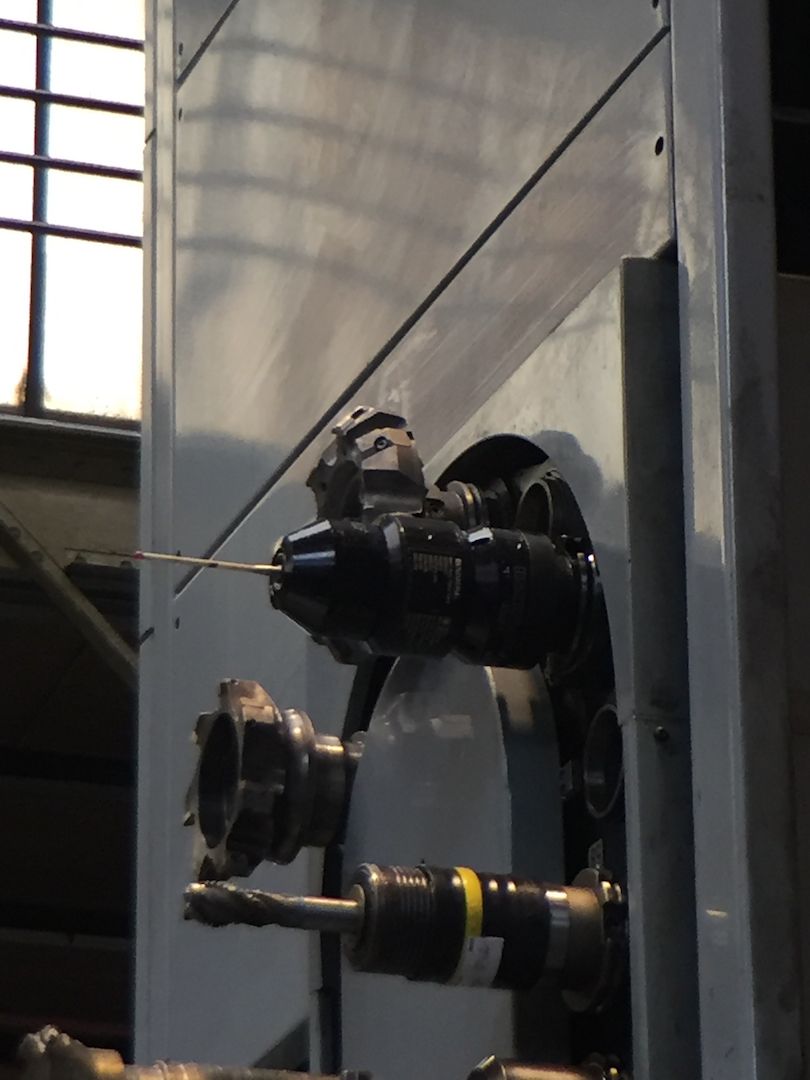

Workpiece touch probe
RENISHAW
Maintenance & Use books
Yes

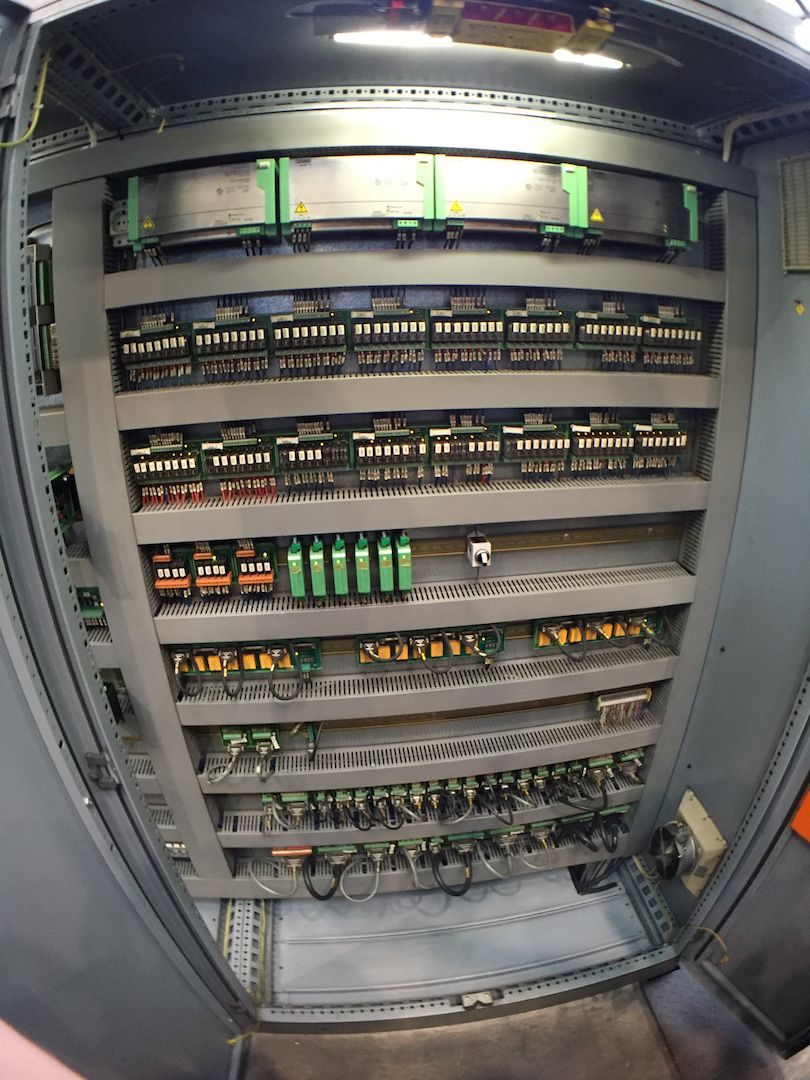

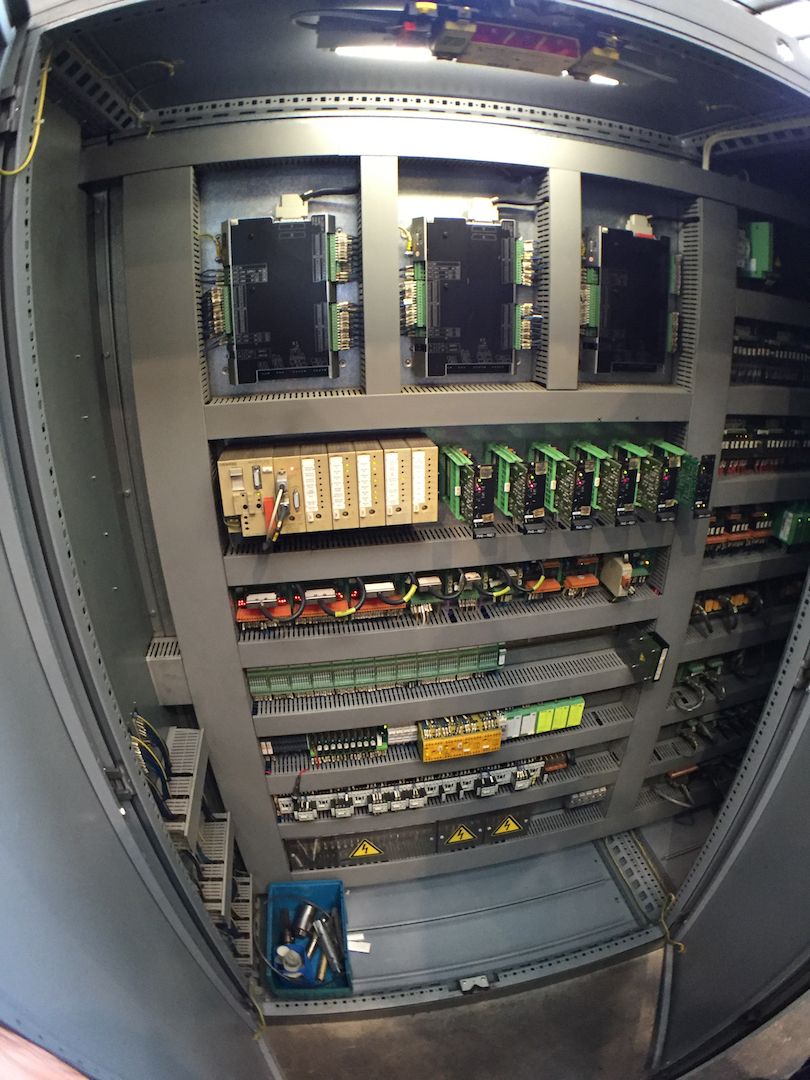

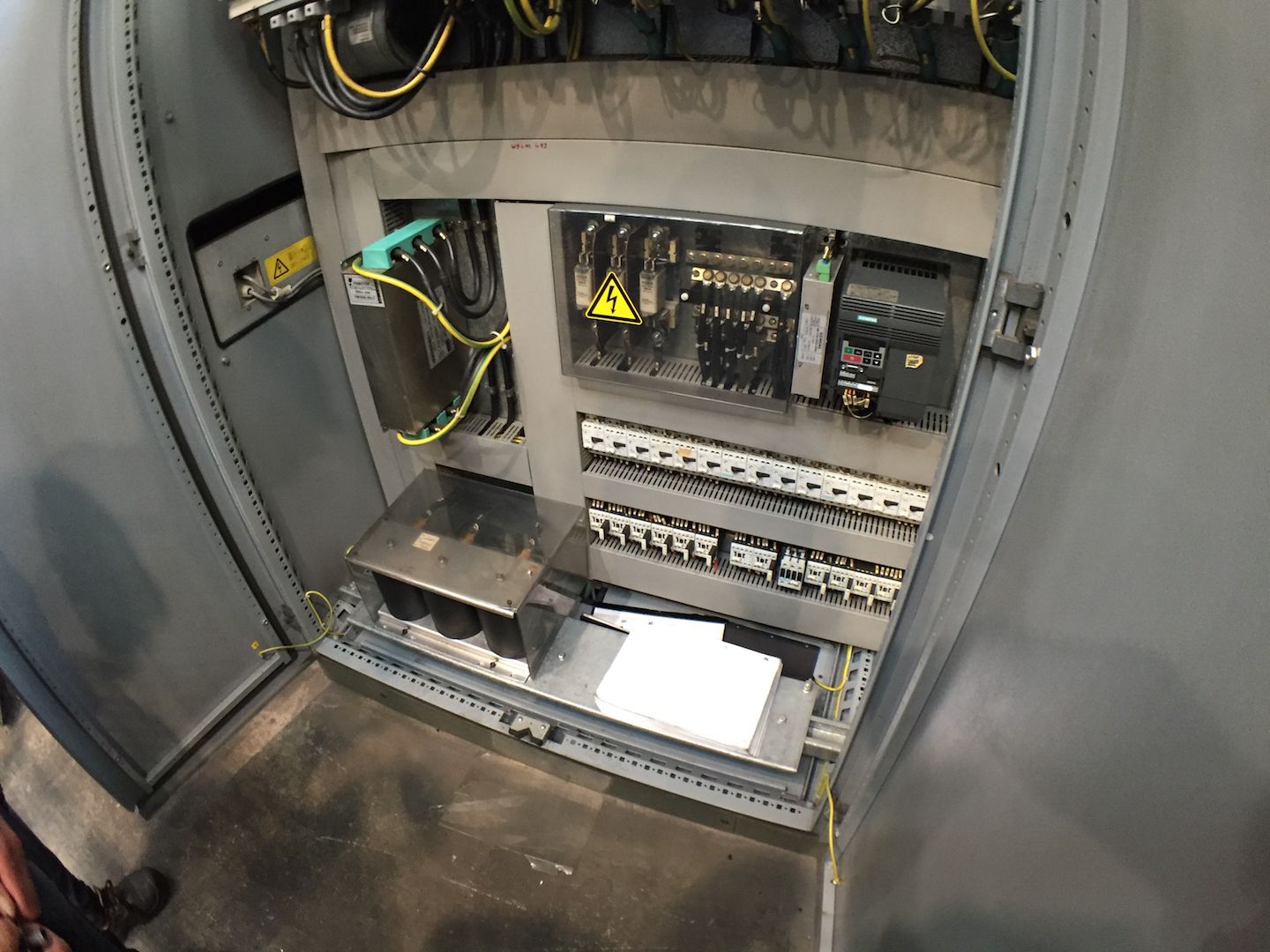

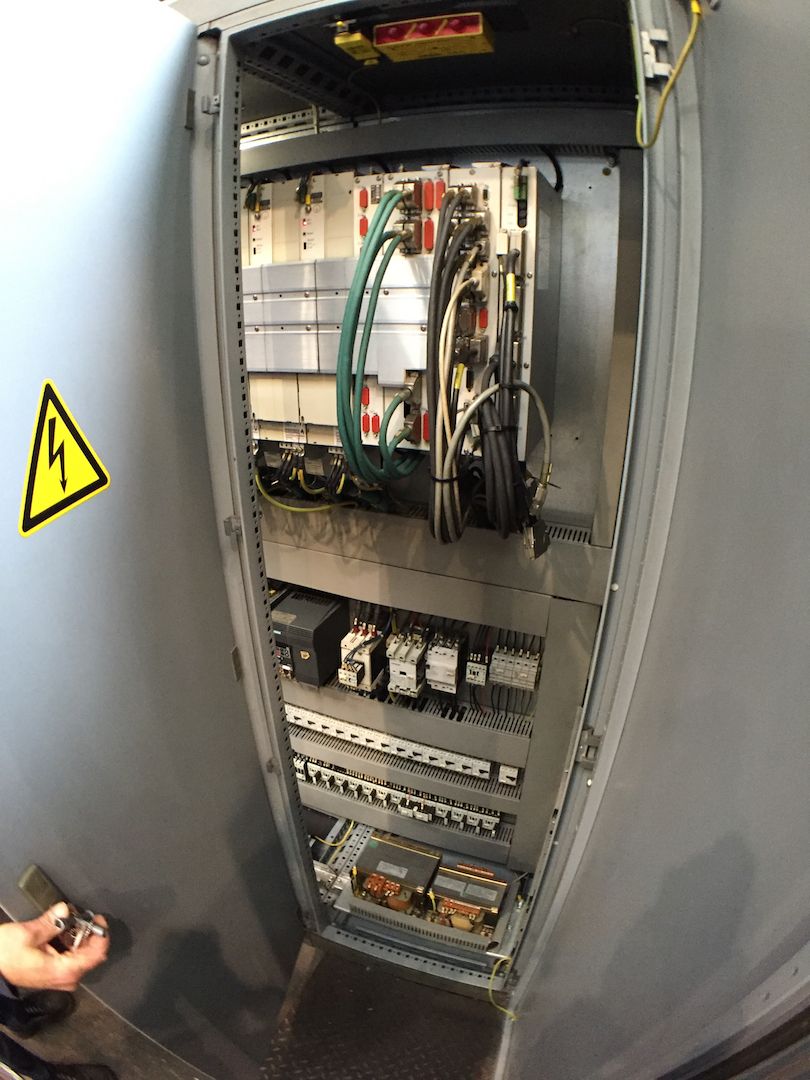

Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
si
Availability
pronta
Available under power
si
