Category
Boring Machine
Type
Mobile Column
Made
Model
FRAL400
Capacity
12000x4000x1250+900 mm472,44x157,48x49,21+35,43 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
12000 mm472,44 in
Vertical (Y)
4000 mm157,48 in
Cross RAM (Z)
1250 mm49,21 in
Quill (W)
900 mm35,43 in
Table (V)
3000 mm118,11 in

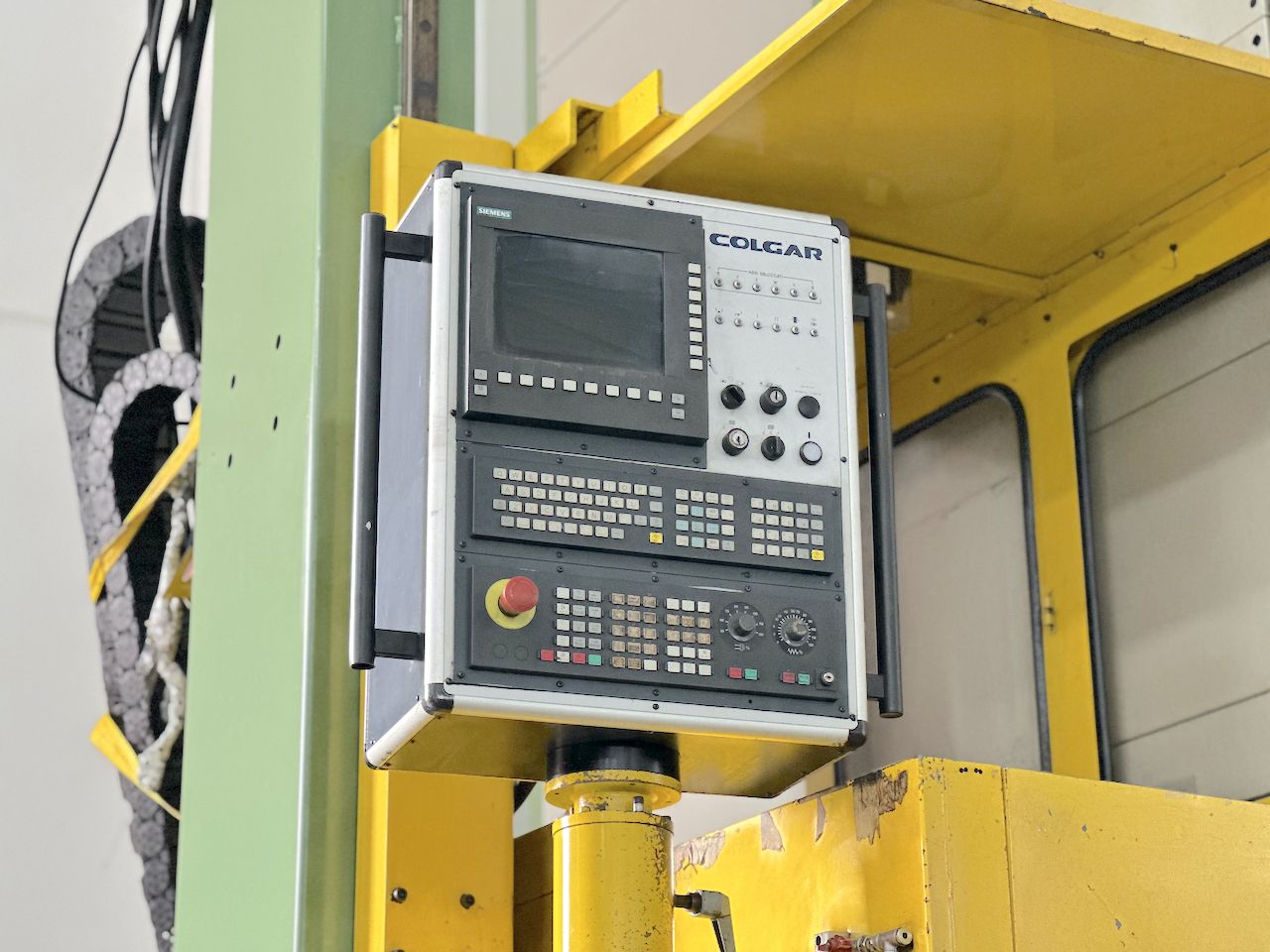

CNC
CNC
SIEMENS 840D
SPINDLE
Quill diameter
150 mm5,91 in
RAM section
505x410 mm19,88x16,14 in
Spindle power
60 Kw
Rotating speed
3000 Rpm
Gearbox
2 gamme
Torque
4000 Nm
Taper
ISO50

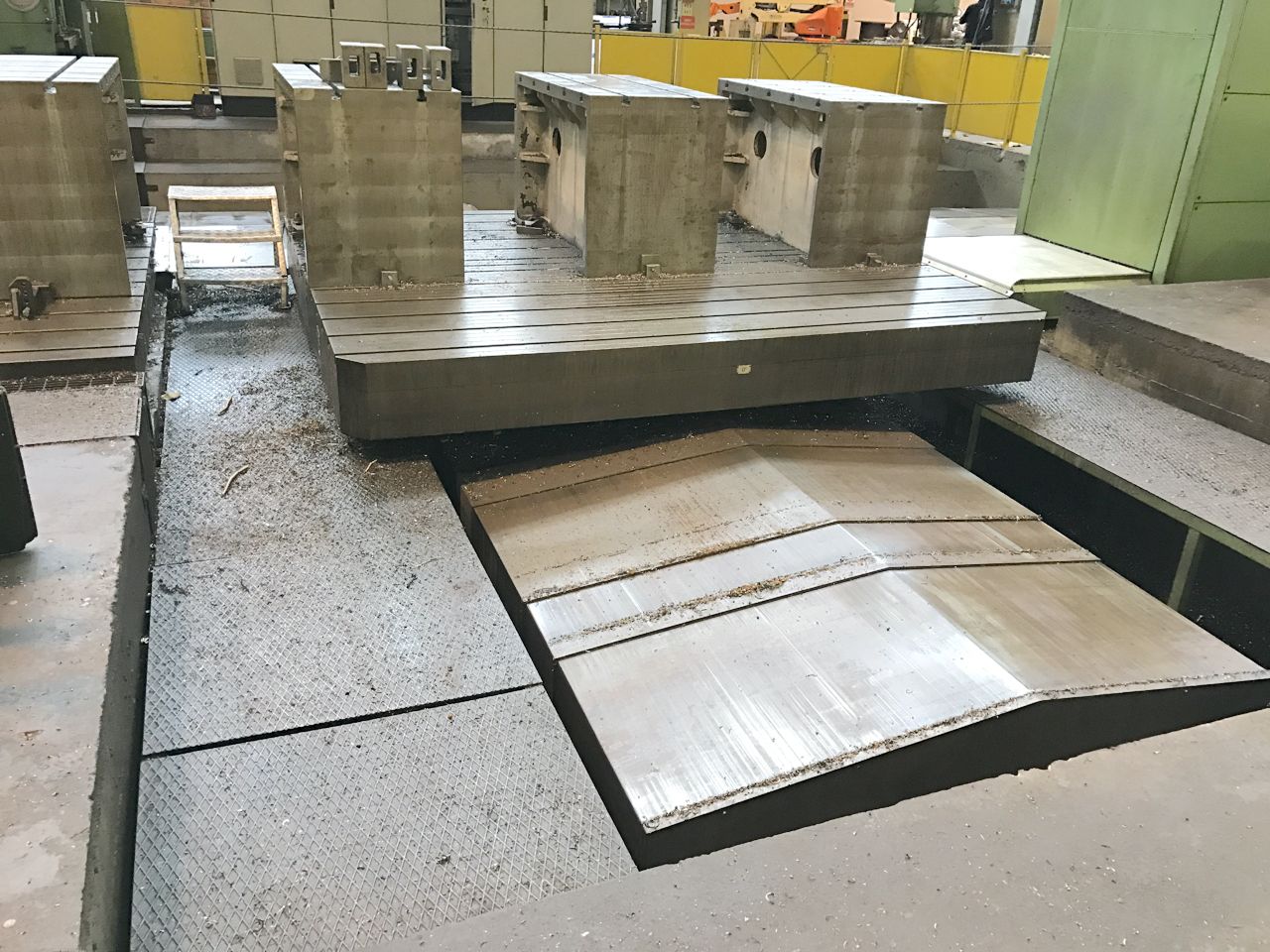

TABLE 1
Brand
COLGAR TRT
Surface
3500x3000 mm137,80x118,11 in
Translation
3000 mm118,11 in
Capacity
45.000 Kg
PICK UP STATION FOR HEADS
Positions
3
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
