Turning Machine
Type
sliding bed
Made
Model
GFS 12 CC
Capacity
1120x 2000/3000 mm44,09x 78,74/118,11 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
2000/3000 APERTO mm78,74/118,11 APERTO in
Centres height
560 mm22,05 in
Max swing on saddle
760 mm29,92 in
Bar passage
120 mm4,72 in
Lunghezza tornibile a banco aperto
3000 mm118,11 in
Diametro a banco aperto
1700 mm66,93 in
Axes movement
TAGLIO COSTANTE
Max turning lenght
3000 mm118,11 in
Notes
BANCALE MONOLITICO
BED
Bed width
640 mm25,20 in
Guide-ways number
2+1
Max weight between centres
1200/1500 Kg
Notes
SCORREVOLE MOTORIZZATO

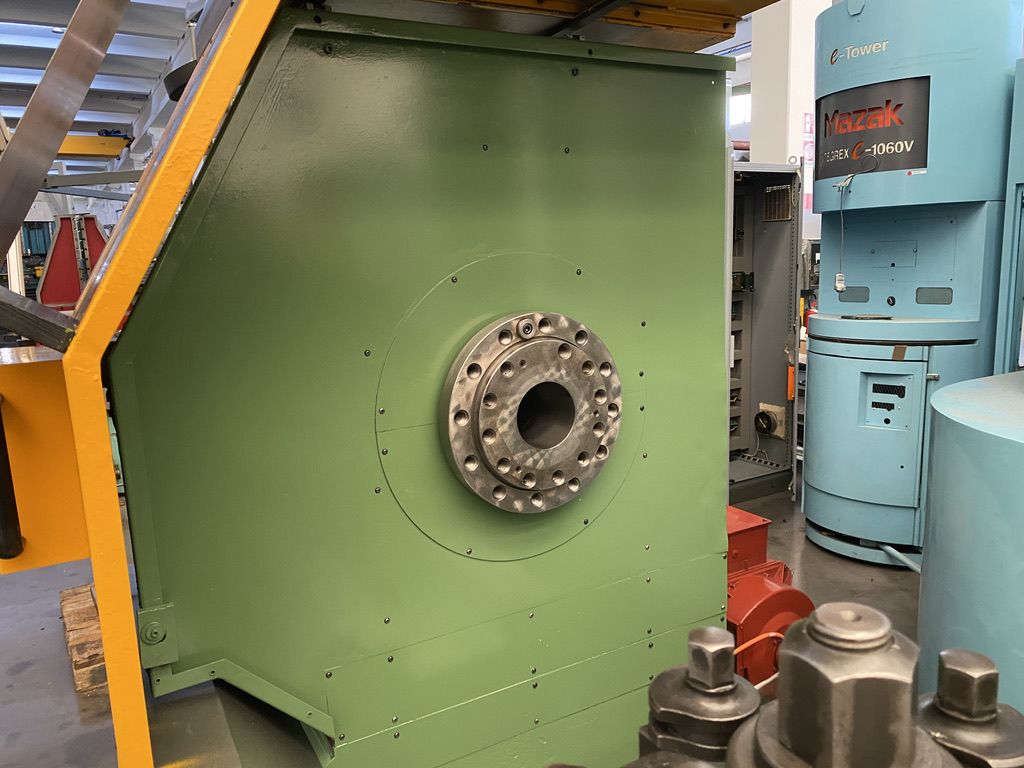

HEAD
Spindle power
40 Kw
Spindle speed
5-1000 Rpm
Spindle taper
ASA1 5

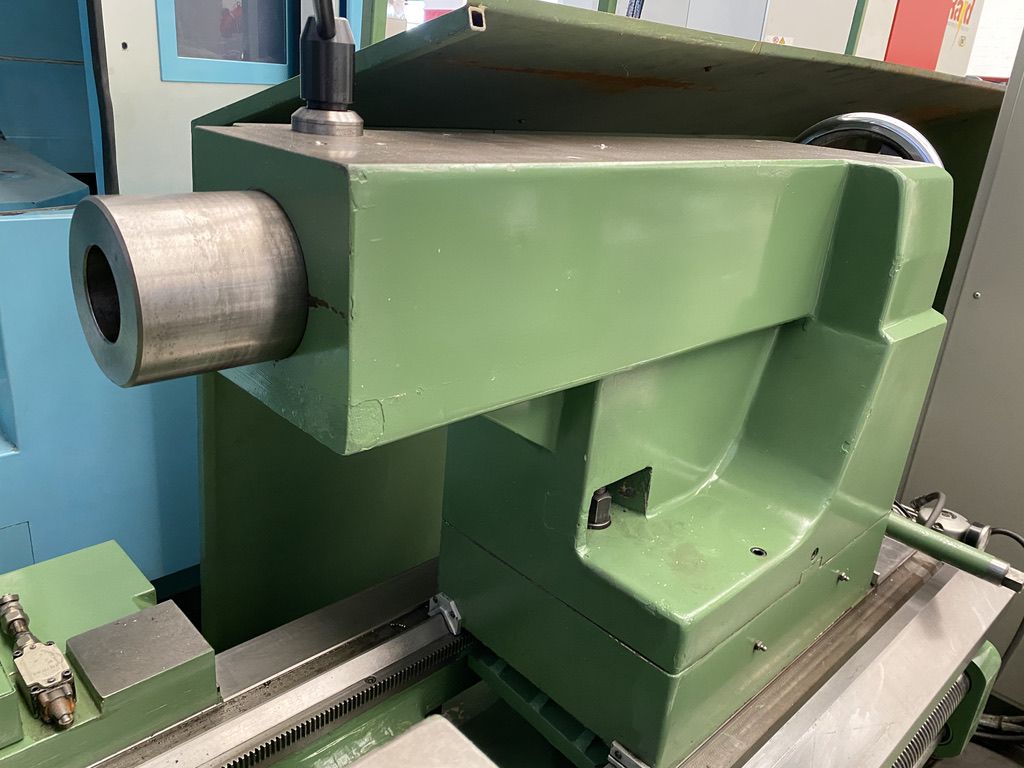

TAILSTOCK
Quill diameter
125 mm4,92 in
Quill stroke
300 mm11,81 in
Taper
CM 6
SADDLE
Notes
TAGLIO COSTANTE-ANANZAMENTO CARRINO
EXTRA

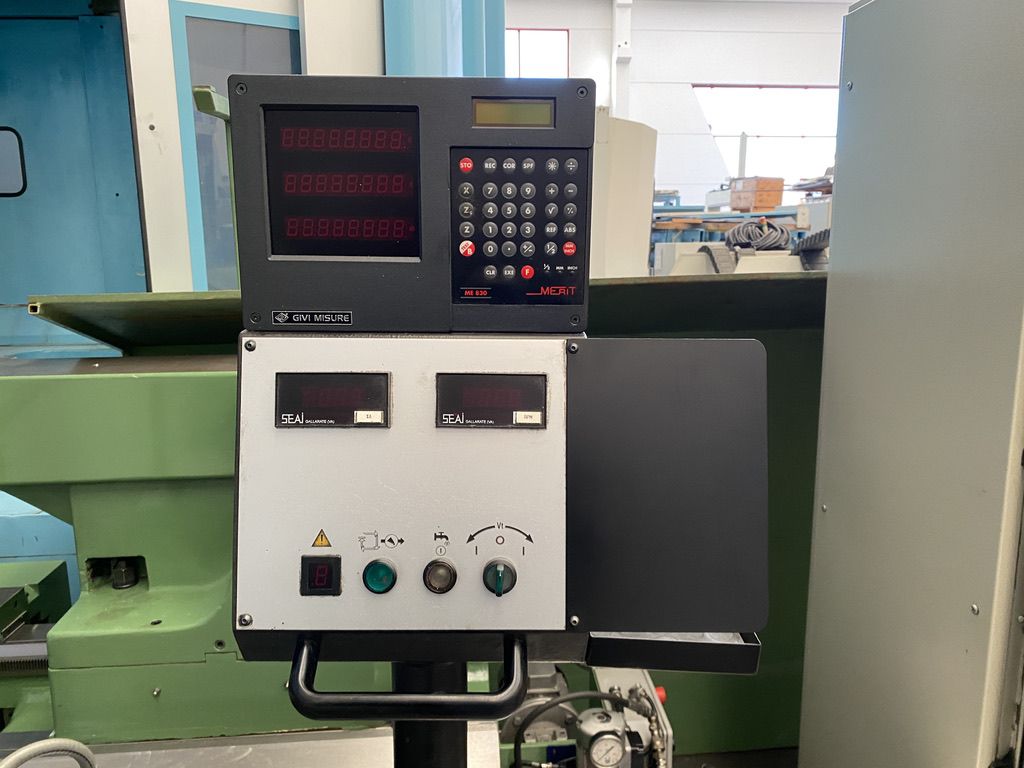

Digital read out (DRO)
SI
CE Certification
Yes

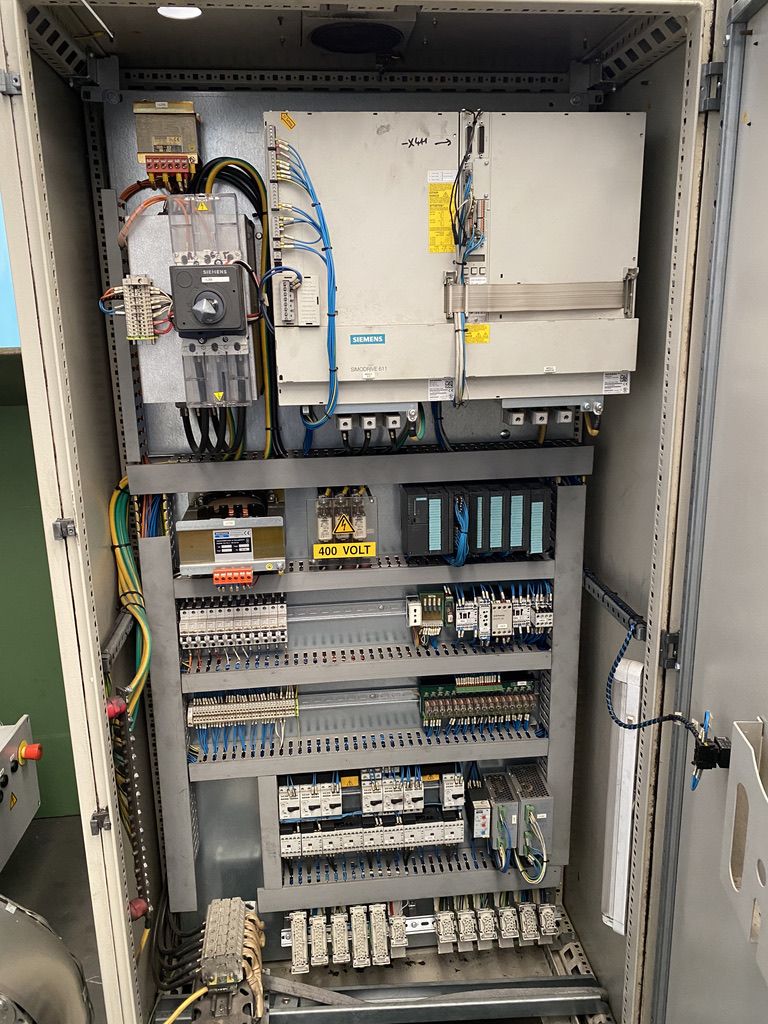

Electrical drawings
Yes
Maintenance & Use books
Yes
Open steadies
250/650
Closed steadies
650
Protections
SI
Availability
PRONTA
