Category
Turning Machine
Type
sliding bed
Made
Model
ET-BM 520 x2000
Capacity
520x2000 mm20,47x78,74 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Max swing on saddle
710 mm27,95 in
Lunghezza tornibile a banco aperto
3200 mm125,98 in
Diametro a banco aperto
1780 mm70,08 in
Bar passage
160 mm6,30 in
Centres height
710/1040 mm27,95/40,94 in
Centres distance
2000/3200 mm78,74/125,98 in

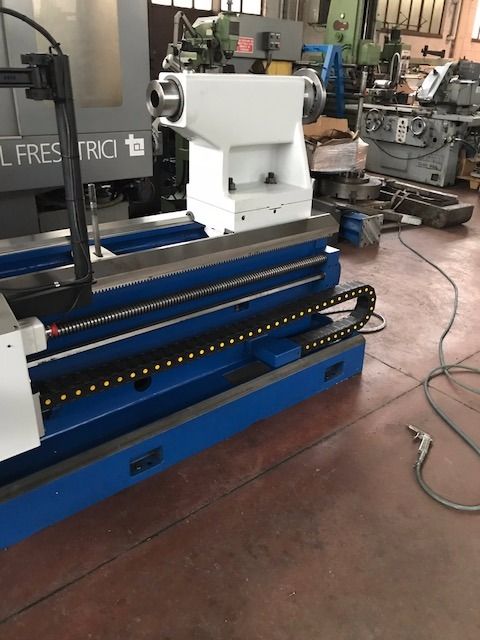

TAILSTOCK
Taper
morse 6
Quill stroke
300 mm11,81 in
Quill diameter
130 mm5,12 in
HEAD
Spindle taper
d1-11 cam-lock
Spindle speed
6/900 Rpm
Spindle power
25 Kw
BED
Notes
open bed/bancale scorrevole
EXTRA
Available under power
si
Available in stock
si
Availability
pronta
Electrical drawings
Yes
Maintenance & Use books
Yes
Platform
si

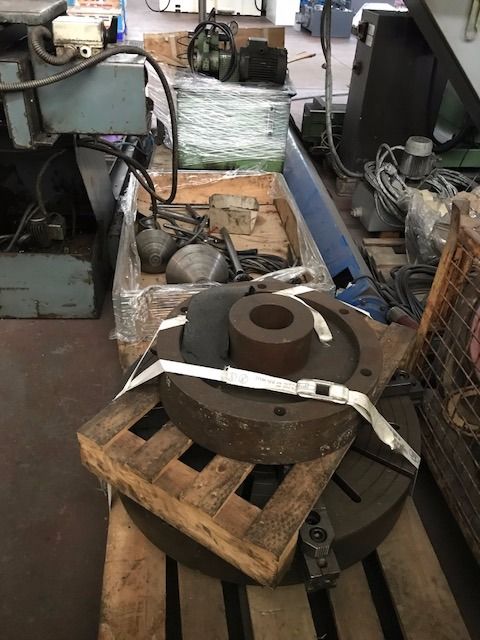

Autocentering chuck
si

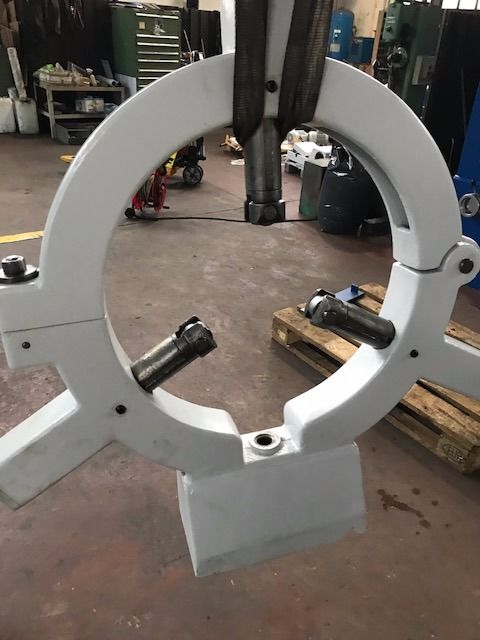

Open steadies
si
Digital read out (DRO)
si
Total power supply
hp25 Kw
