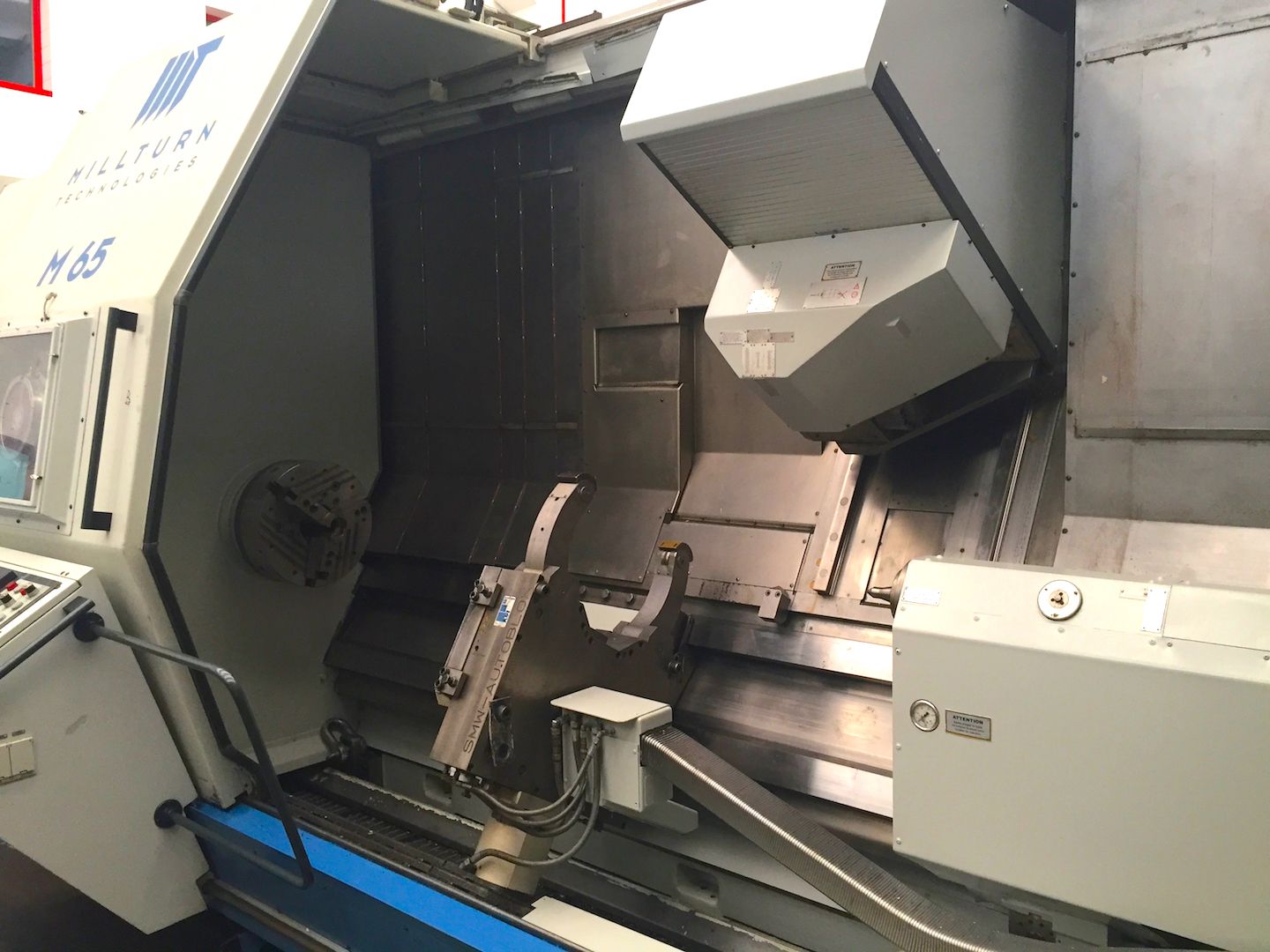

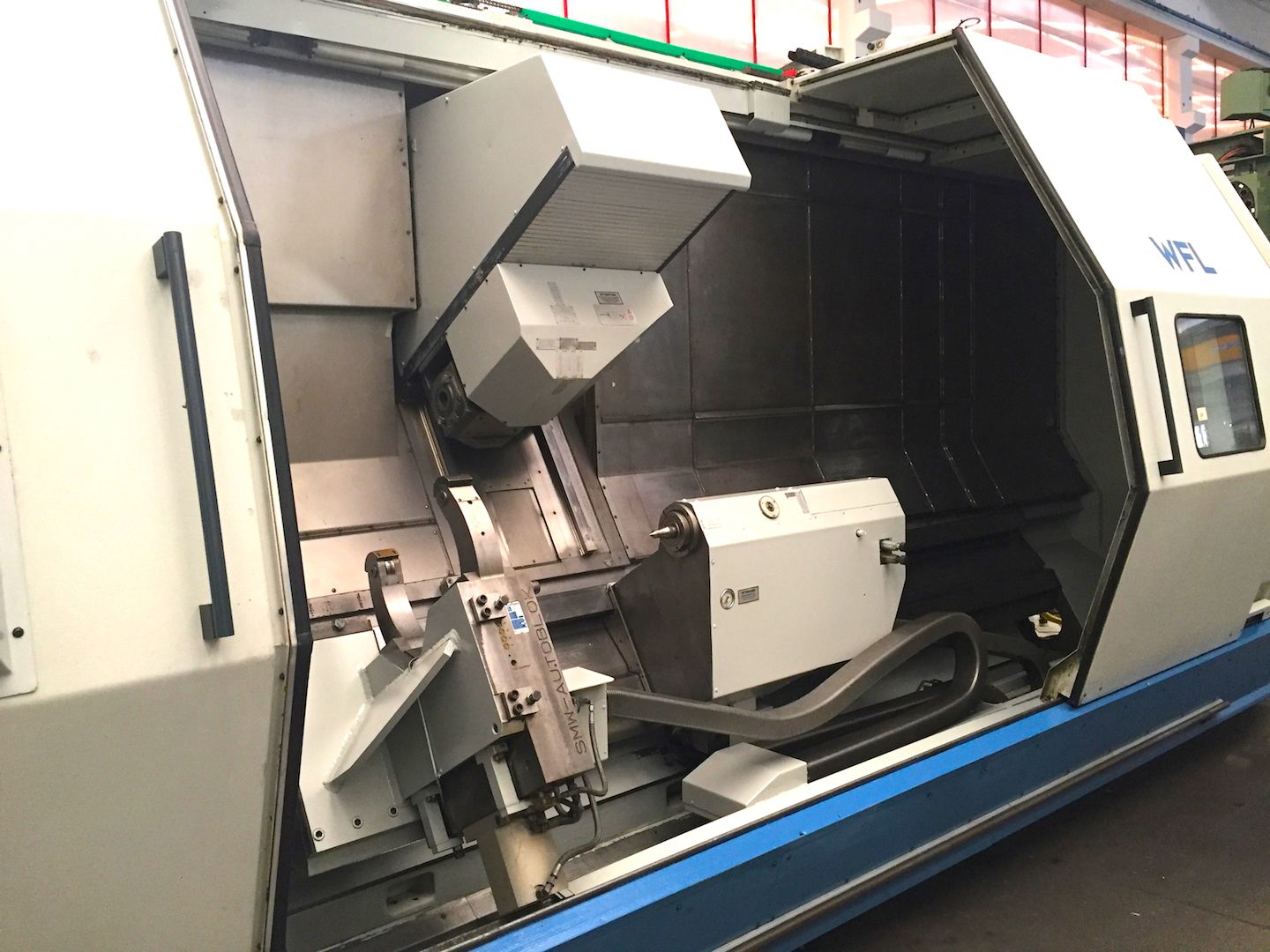

Category
Turning Machine
Type
Multi-tasking
Made
Model

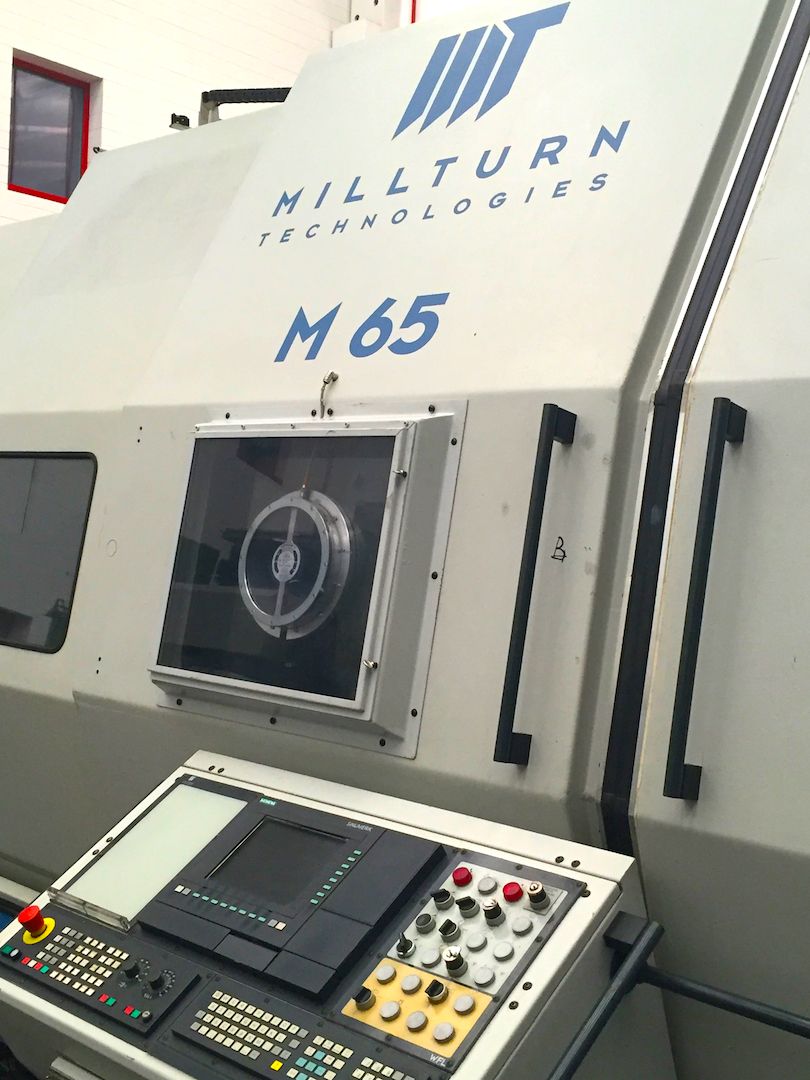

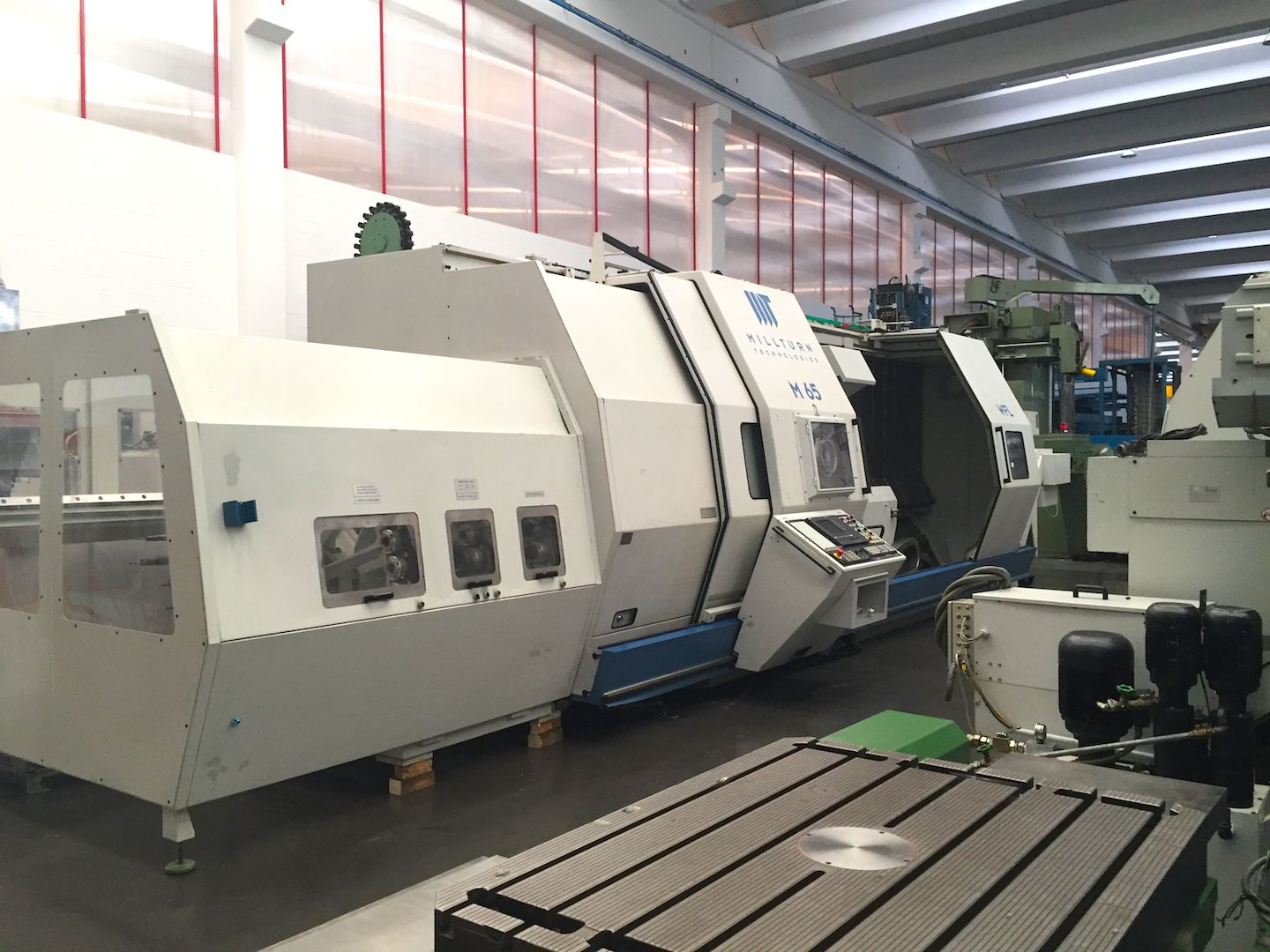

MILLTURN M65
Capacity
ø820x4500 mmø32,28x177,17 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max swing on the saddle
640 mm25,20 in
Max swing diameter
820 mm32,28 in
Max working lenght
4500 mm177,17 in
Max weight between centres
3500 Kg
CNC
CNC

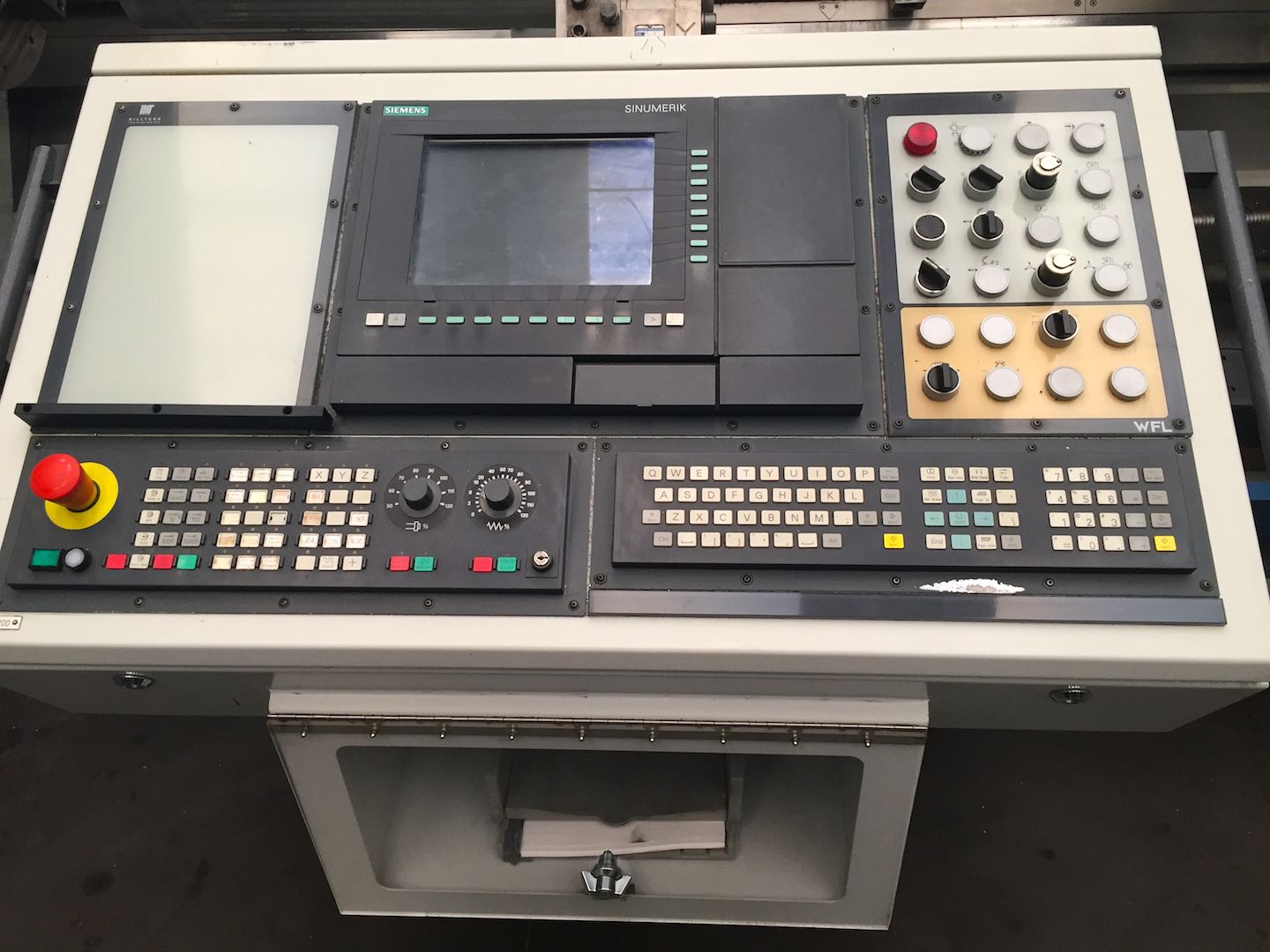

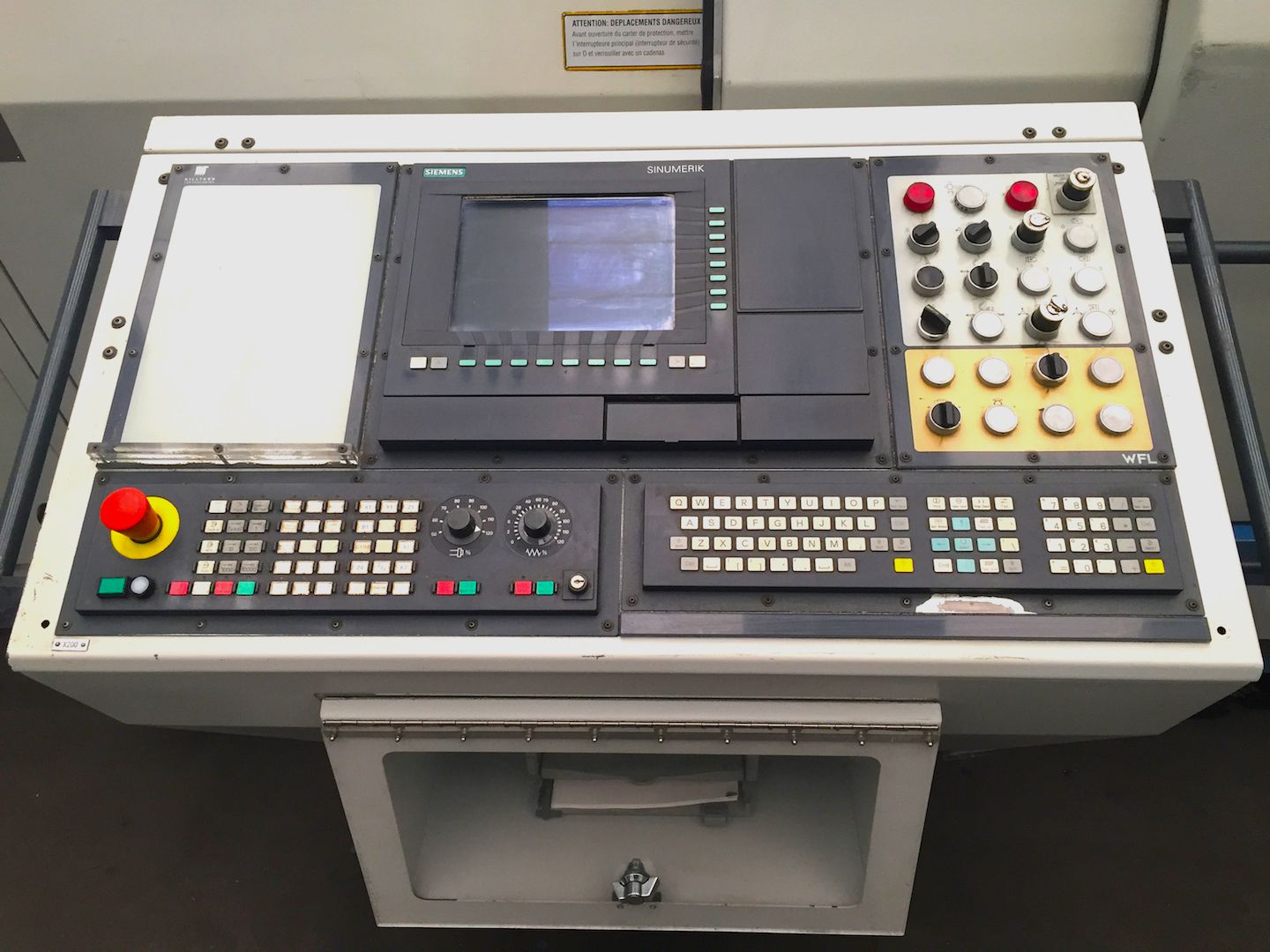

SIEMENS 840D
MAIN SPINDLE
Max rotation speed
2600 rpm
Spindle nose
ASA15”
Spindle hole
165 mm6,50 in
Internal bearing diameter
240 mm9,45 in
Chuck diameter
500 mm19,69 in
Max power
60 Kw
Max torque
2748 Nm
Accuracy (C axis)
0,001 °

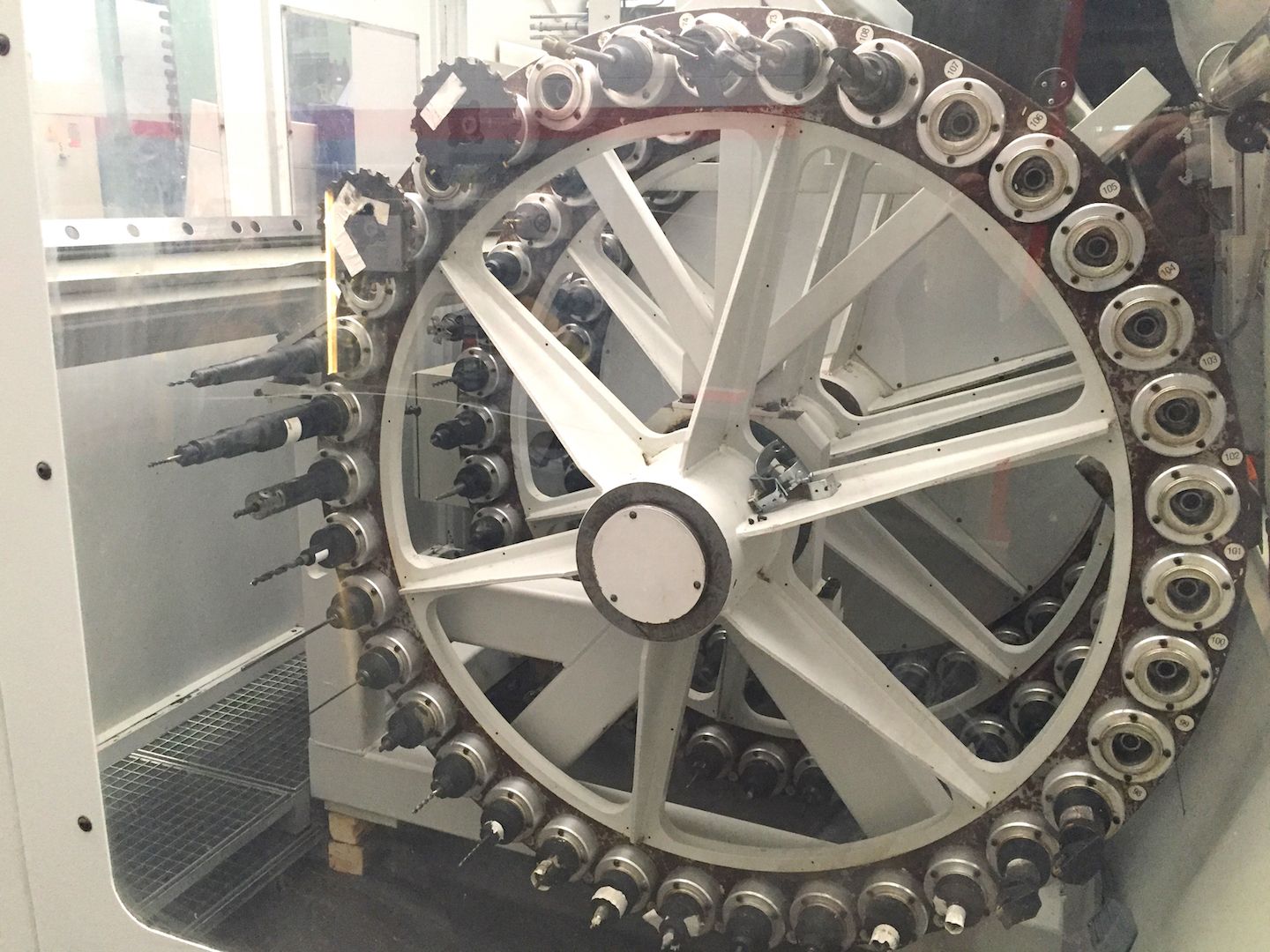

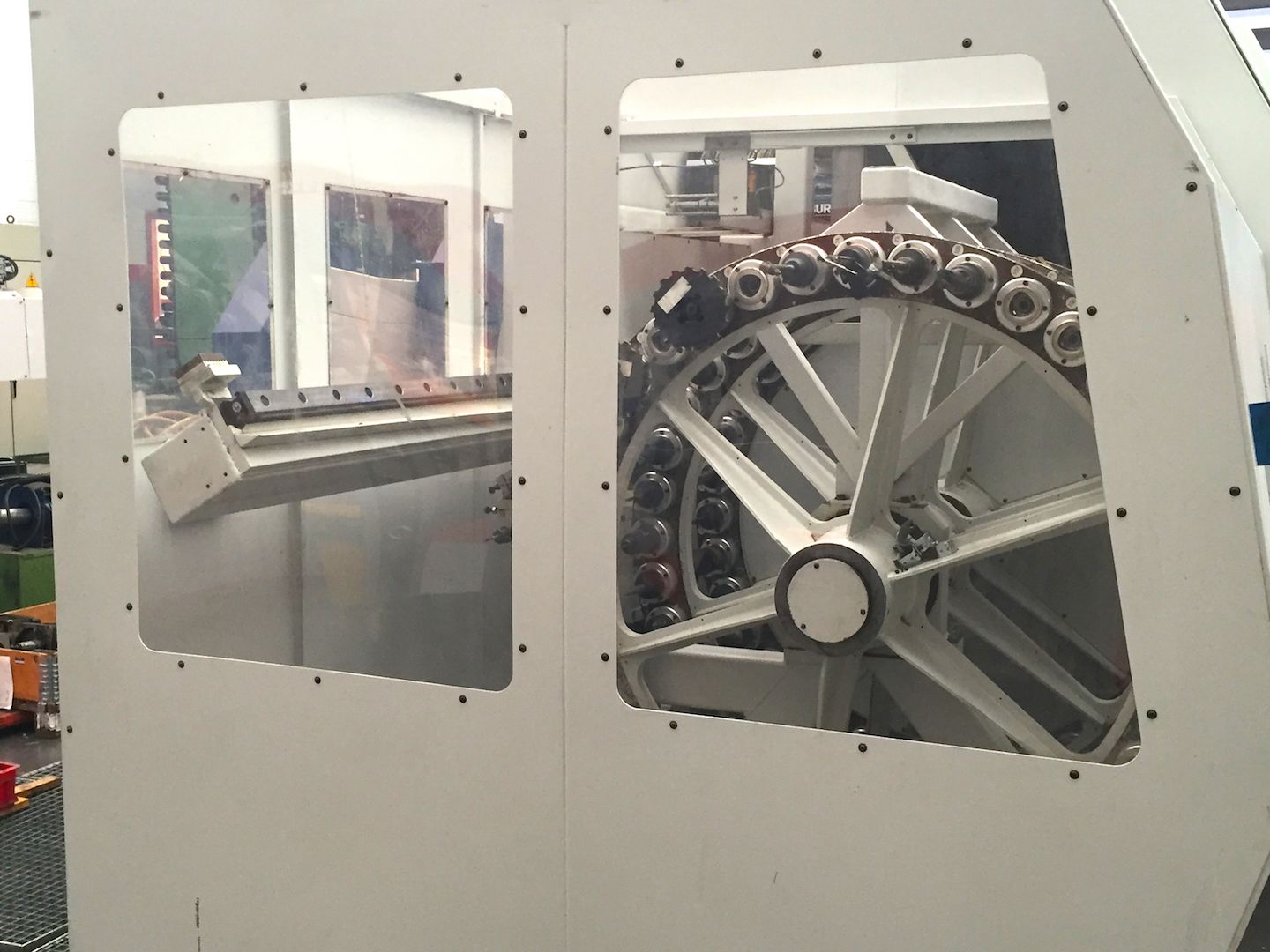

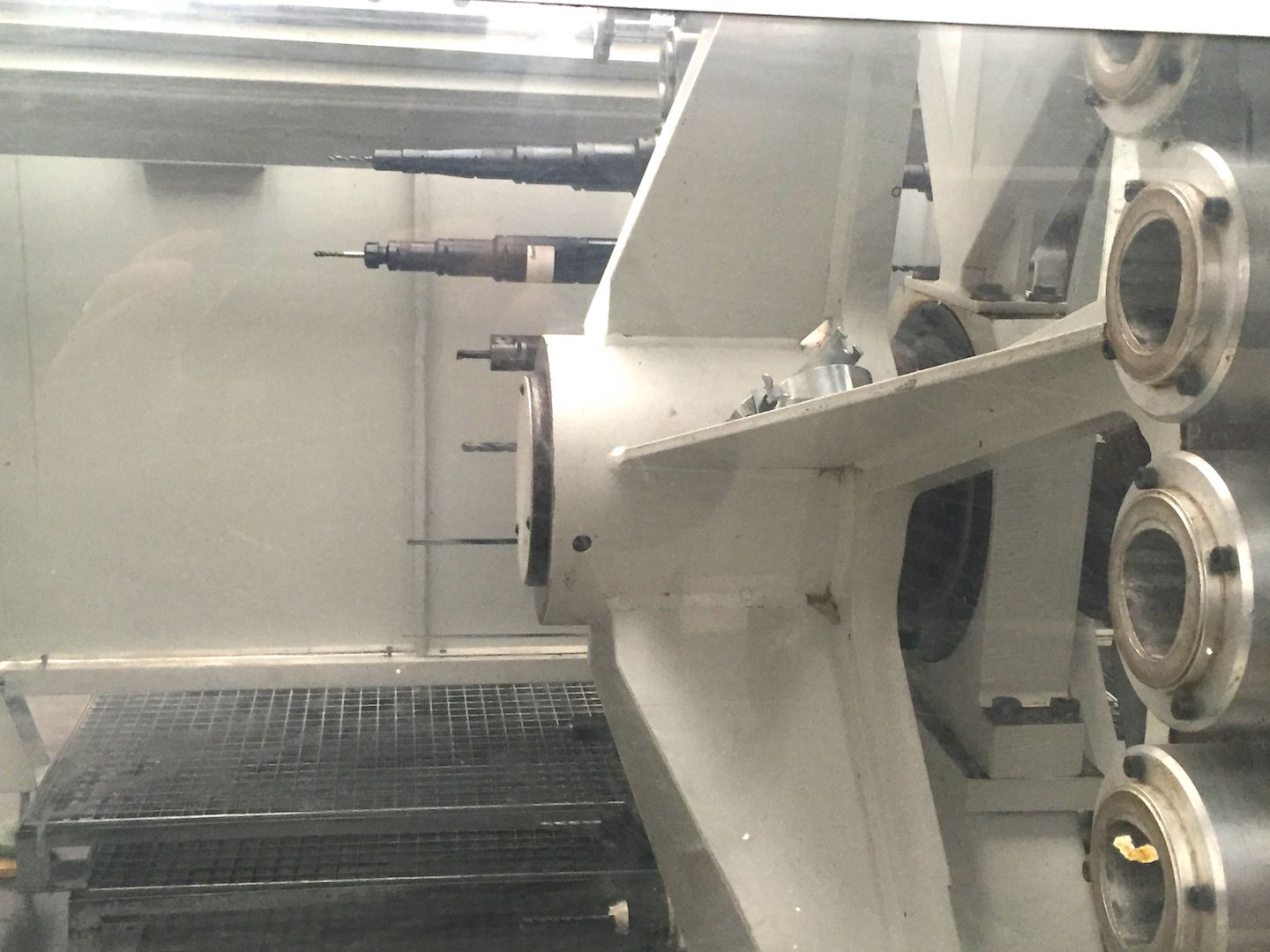

ATC
Max tool diameter
110 mm4,33 in
Max tool diam withount adiacent tools
250 mm9,84 in
Max tool length
900 mm35,43 in
Positions
108

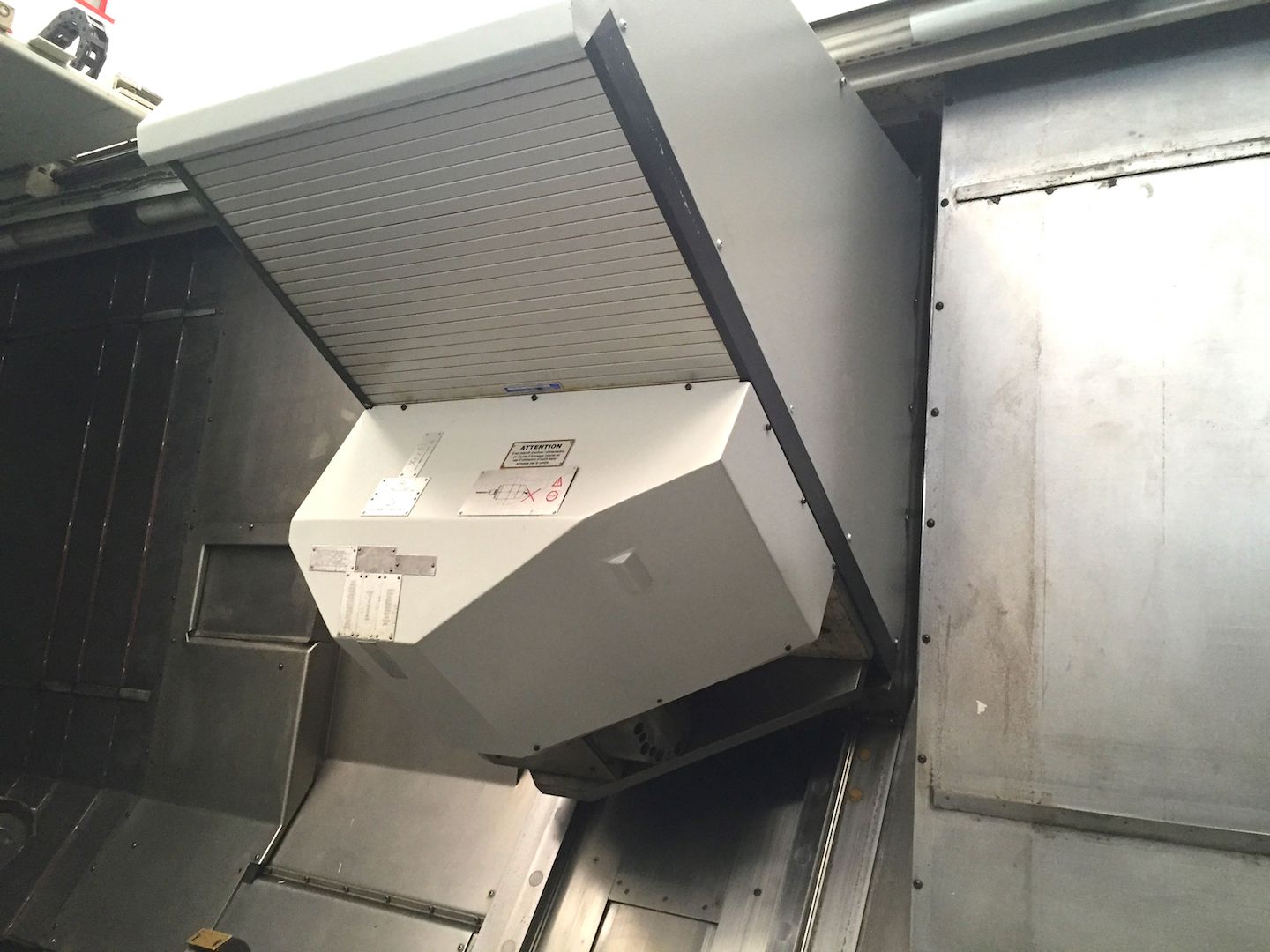

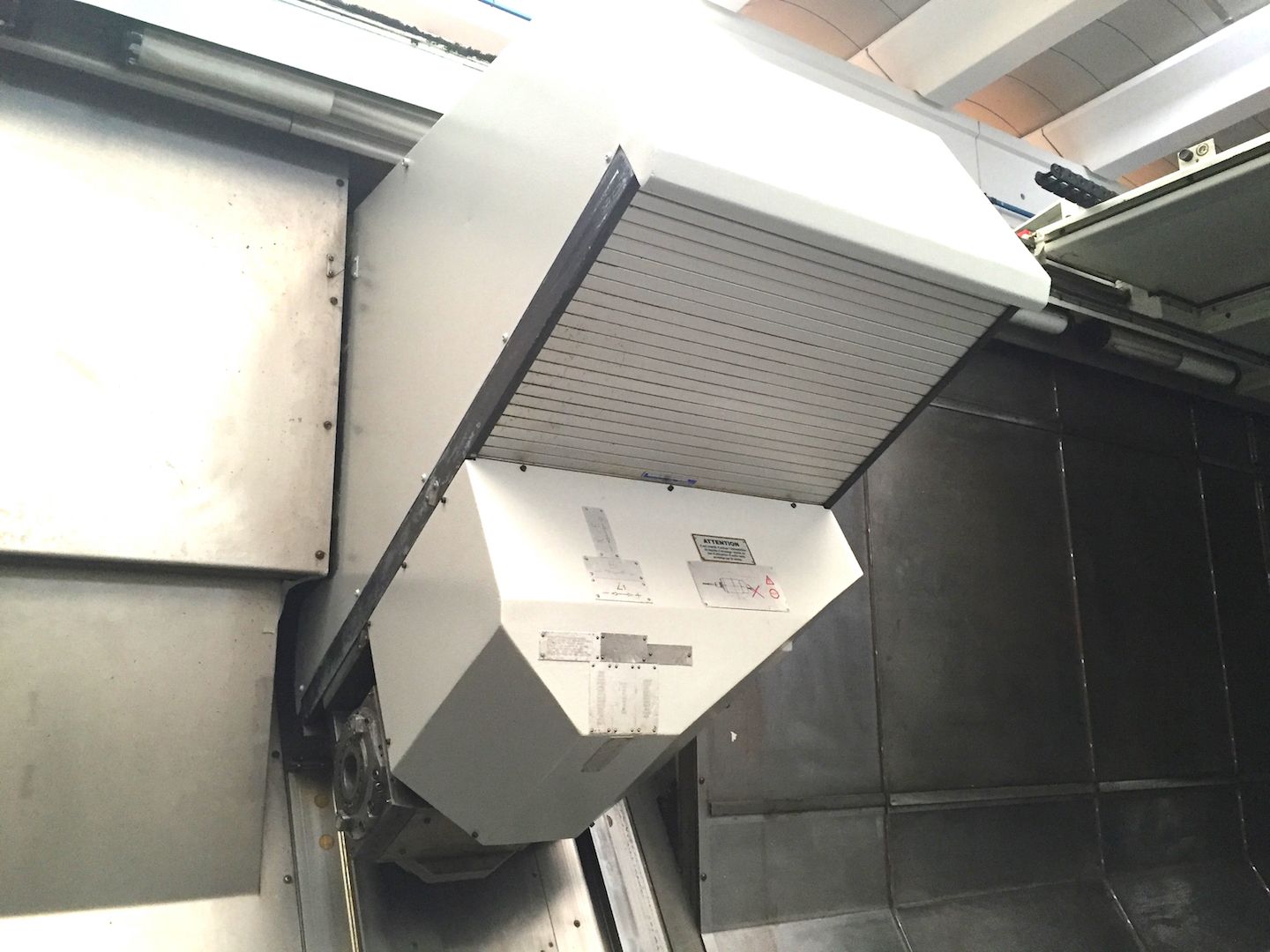

MILLING HEAD
Spindle taper
CAPTO C8
B axis working capacity
+110/-90 °
Accuracy (B axis)
0,001 °
Spindle speed
4000 rpm
Spindle power
17/25 Kw
Spindle torque
300 Nm
Axis stroke X
720 mm28,35 in
Rapid feed X
15 m/min590,55 ipm
Axis stroke Z
4650 mm183,07 in
Rapid feed Z
20 m/min787,40 ipm
Axis stroke Y
(500) -200/+300 mm(19,69) -7,87/+11,81 in
Rapid feed Y
12,5 m/min492,13 ipm

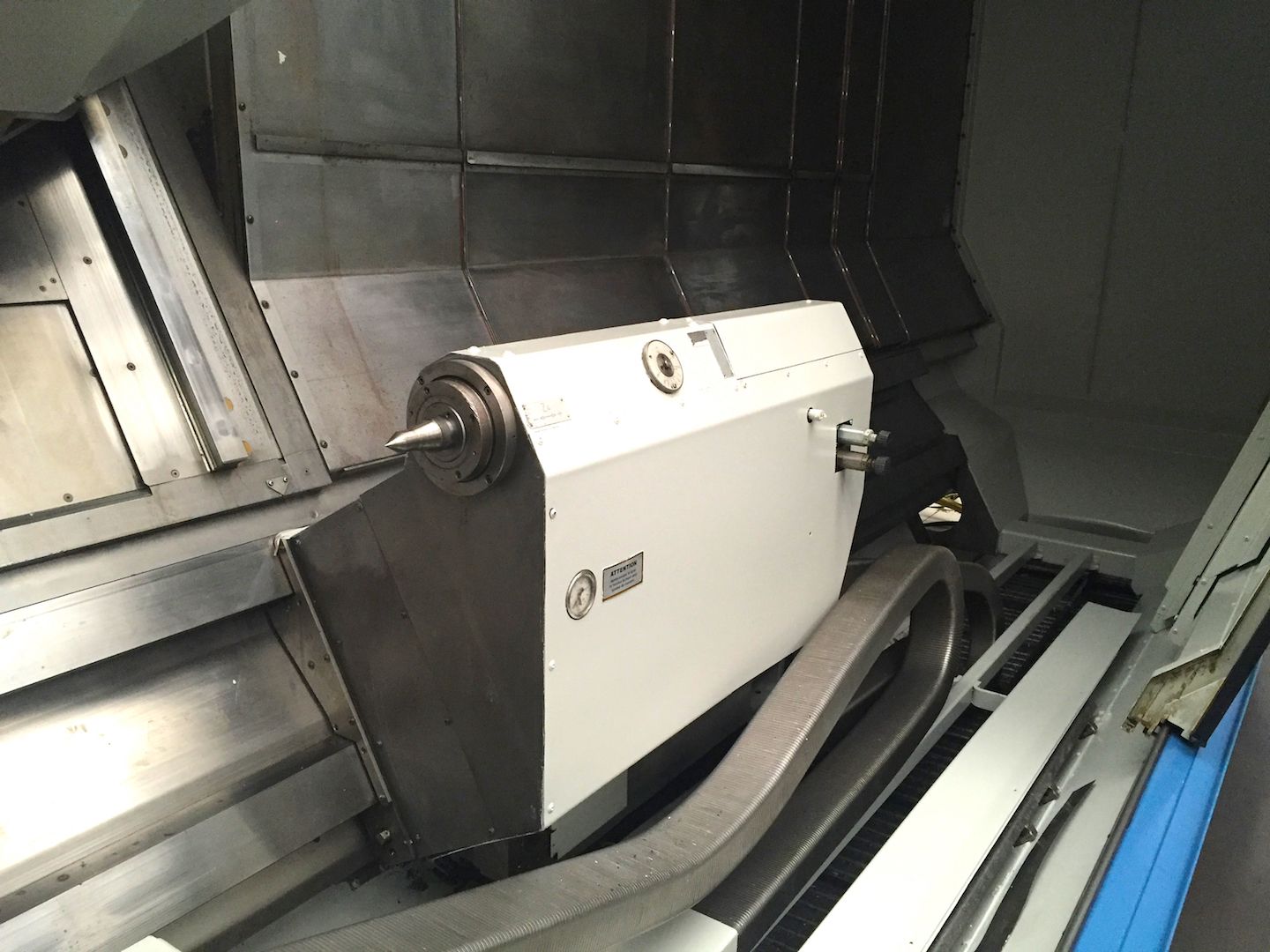

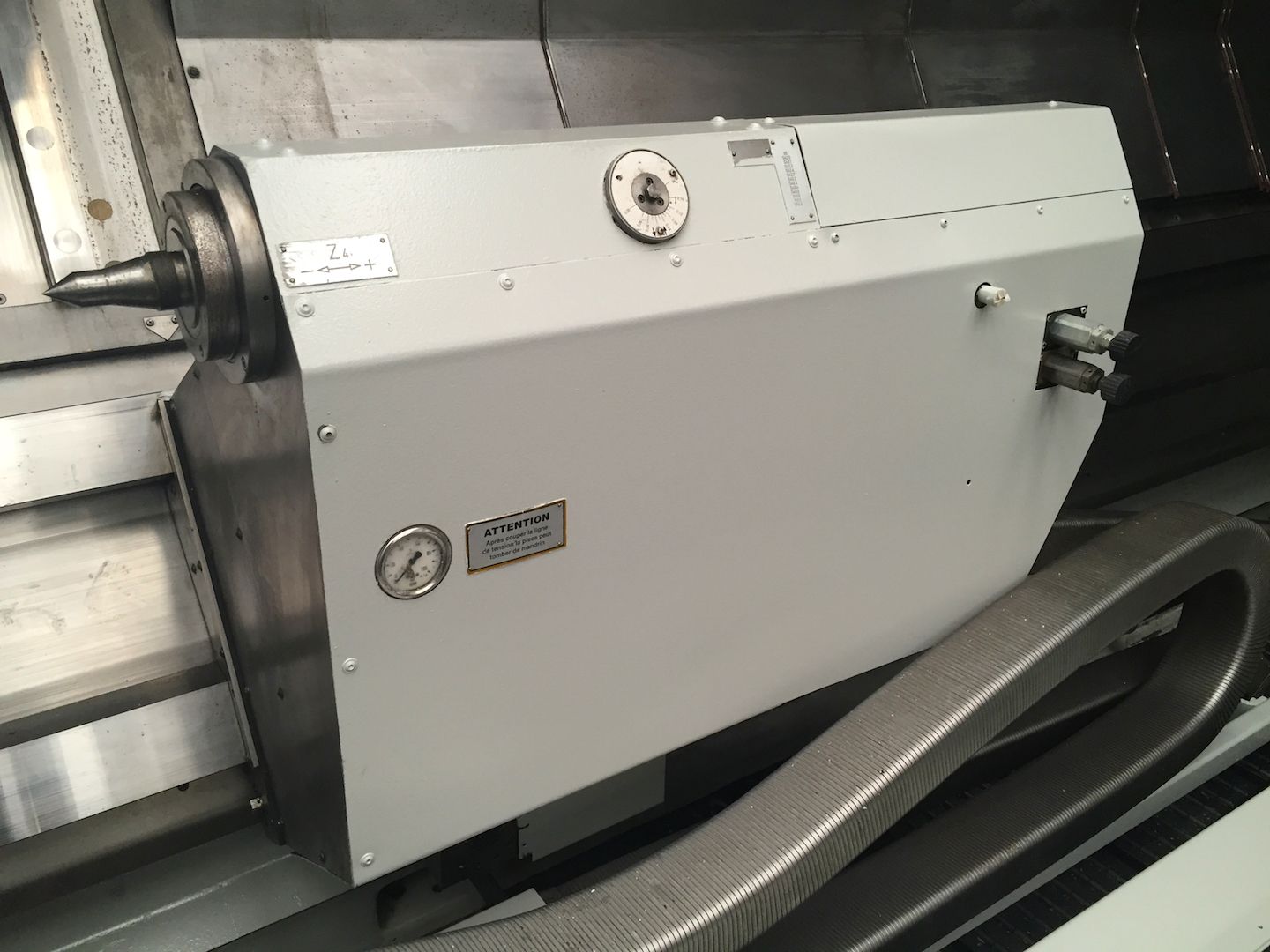

TAILSTOCK
Quill diameter
180 mm7,09 in
Quill stroke
200 mm7,87 in
Taper
MK6
EXTRA
Deep hole drilling tool attachment
Yes
Max power requirement
145 Kw
Machine total weight
36000 Kg
Floor space
13500x4200x3500 mm531,50x165,35x137,80 in

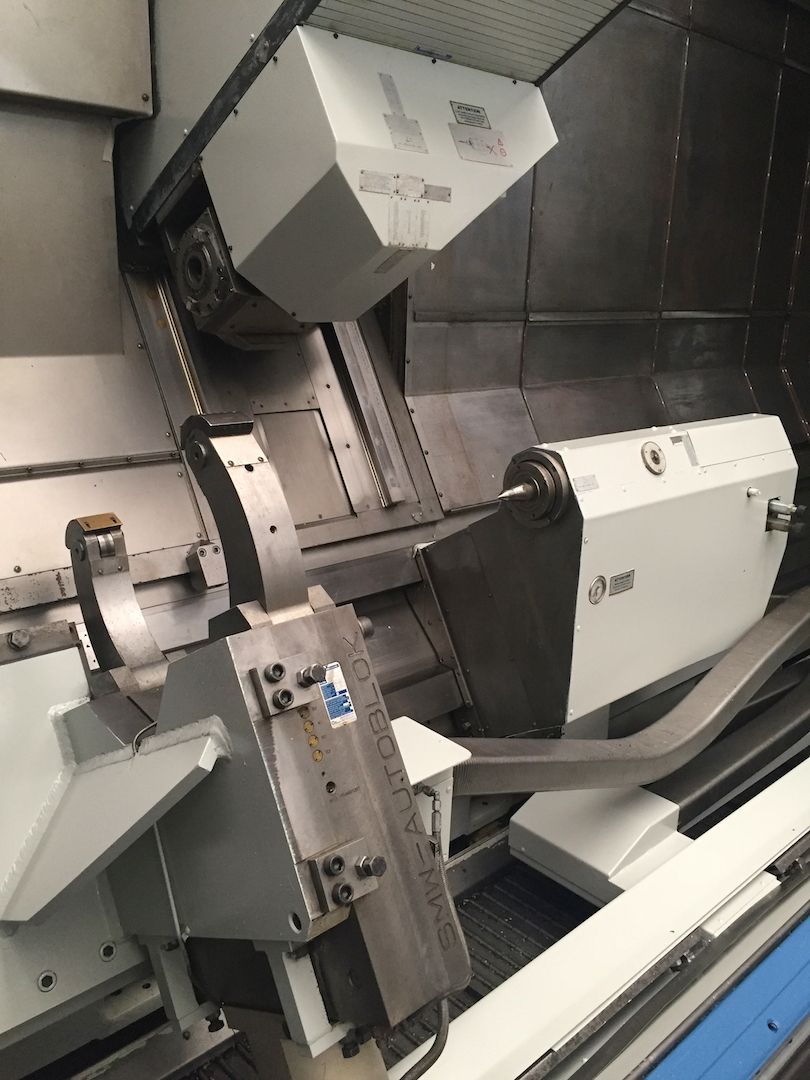

Hydr. steady rest
SMW Autoblock 460/650
Fixed toolholders
circa 150 utensili Capto C8

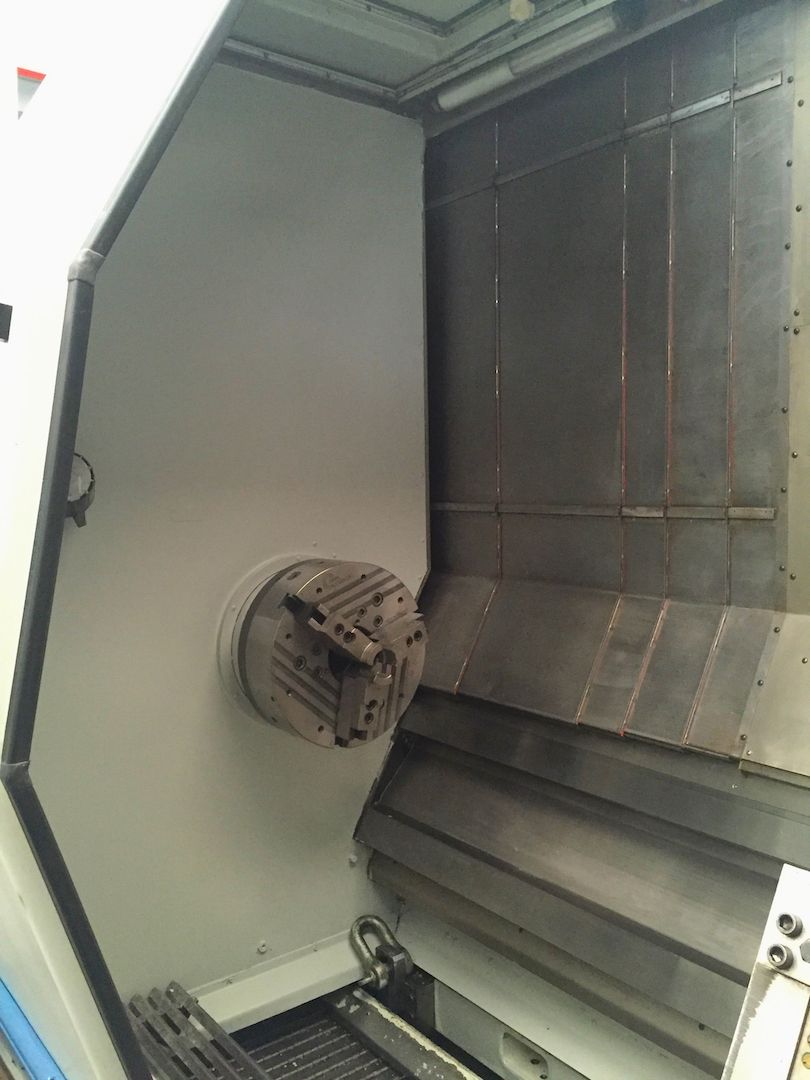

Autocentering chuck
SMW Autoblock 3 griffe 500mm
Chip conveyor
si
Workpiece touch probe
3 sonde Renishaw
Coolant pump
alta pressione 80Bar
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Protections
carenatura integrale
Mist extractor
Fibaron
Availability
pronta
Available in stock
si
