Category
Turning Machine
Type
Multi-tasking
Made
Model

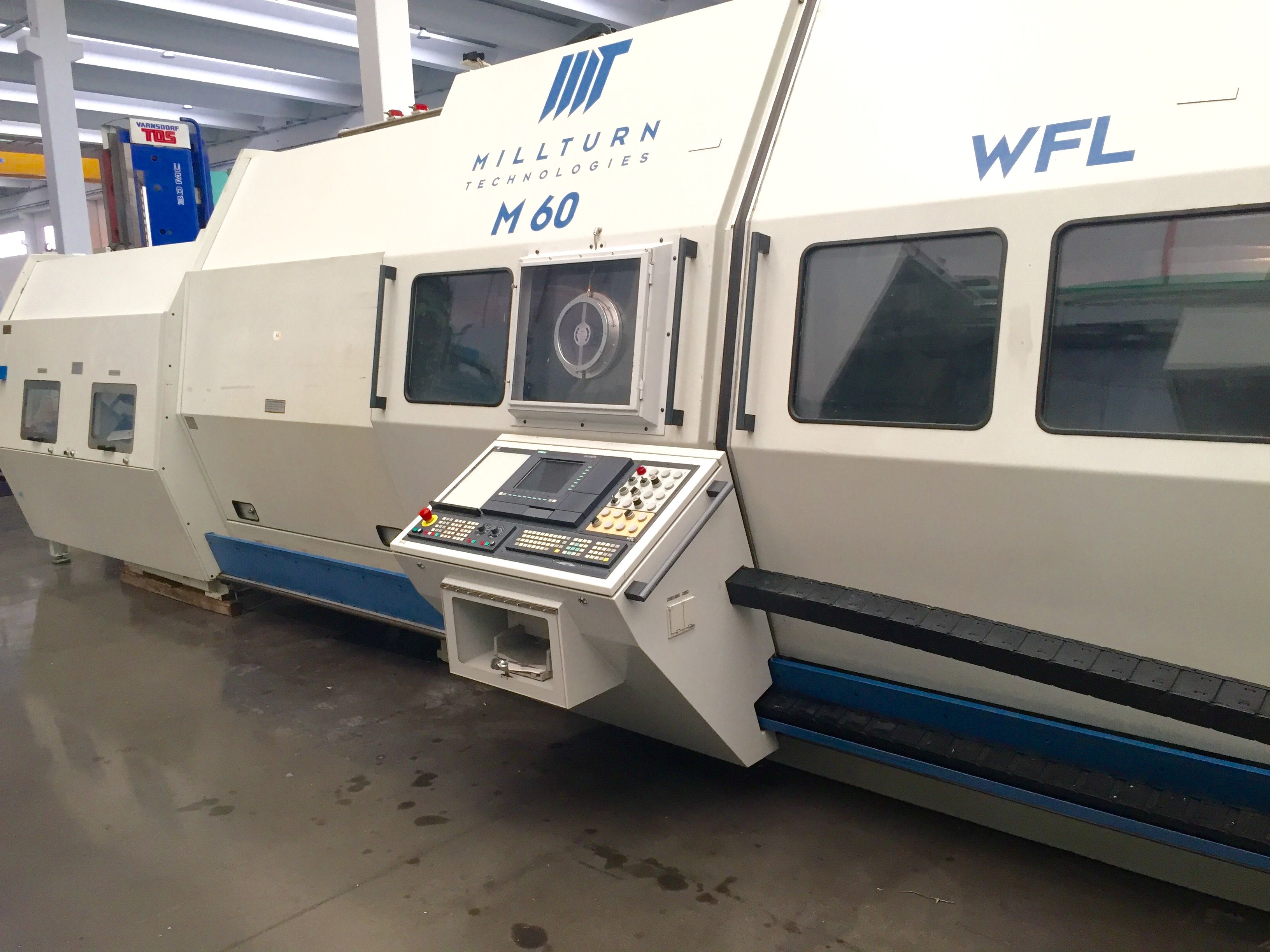

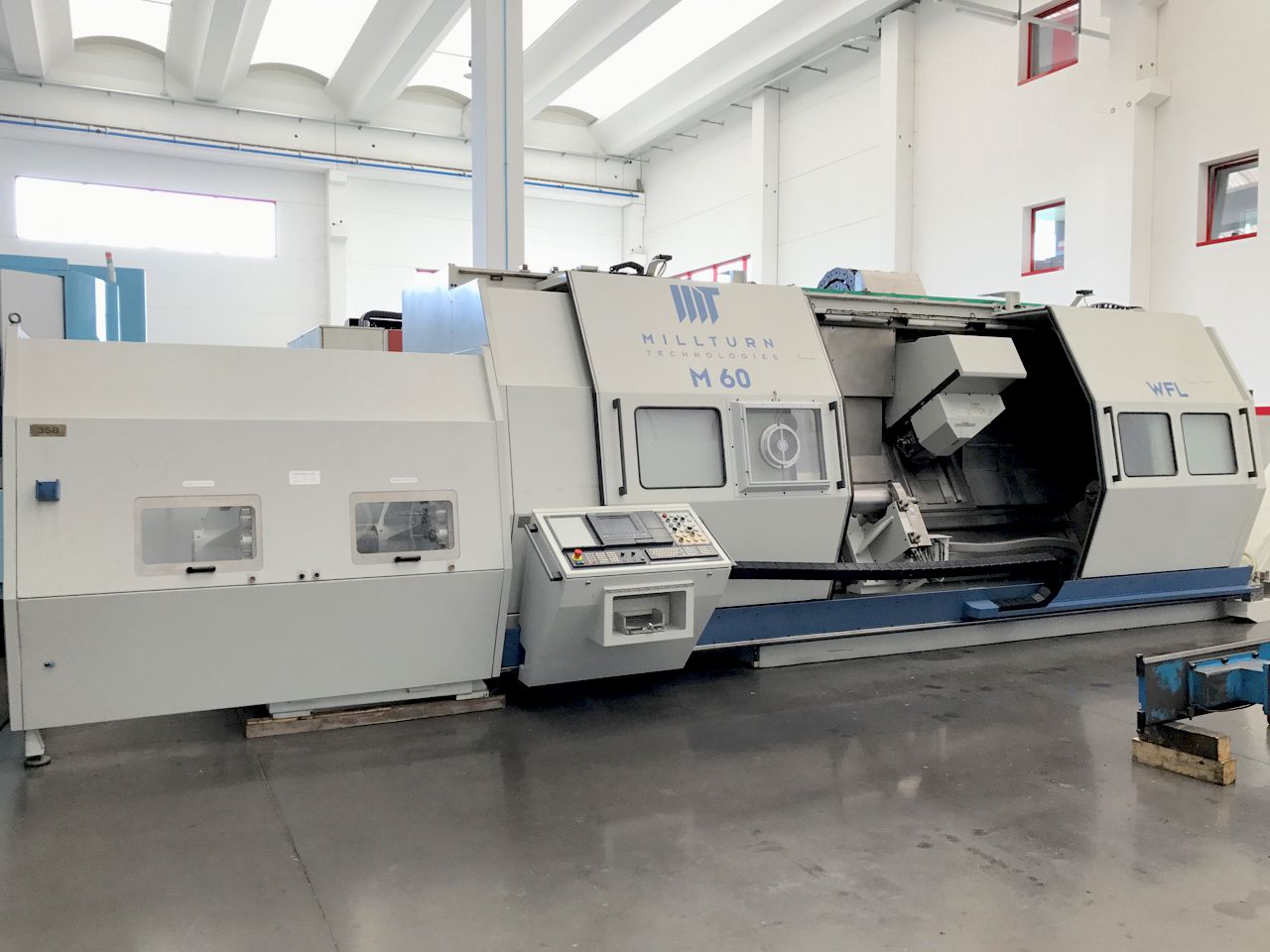

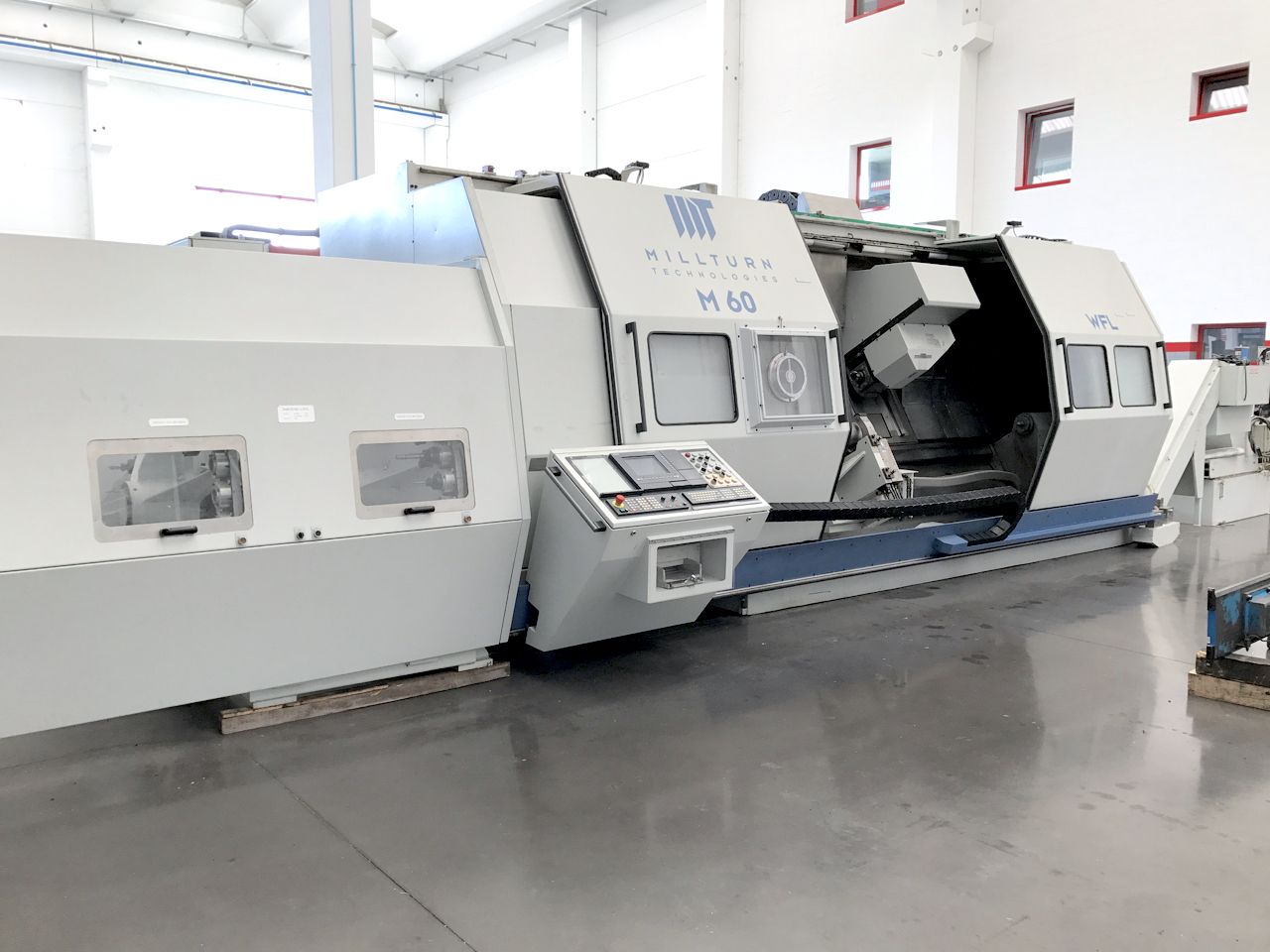

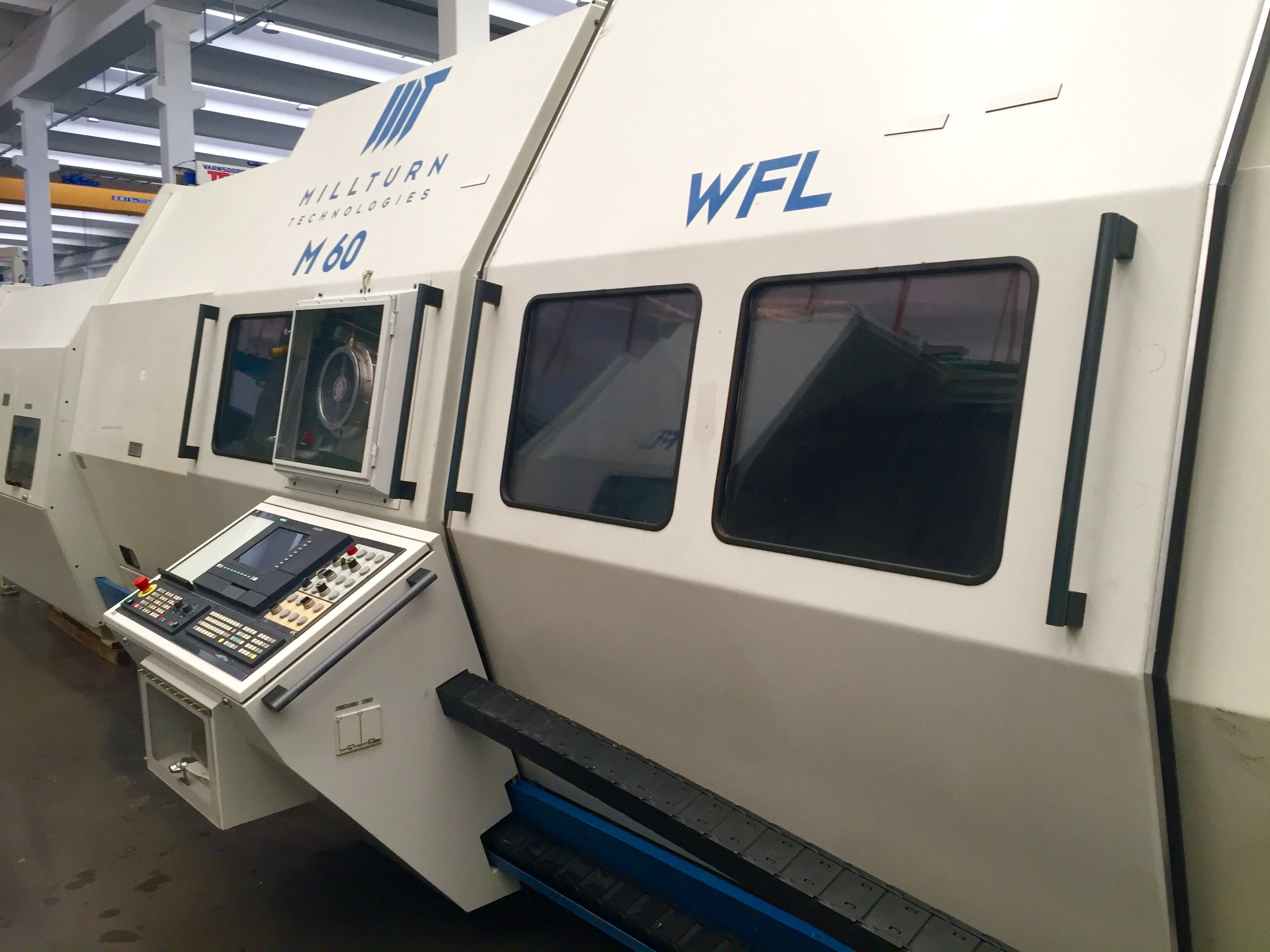

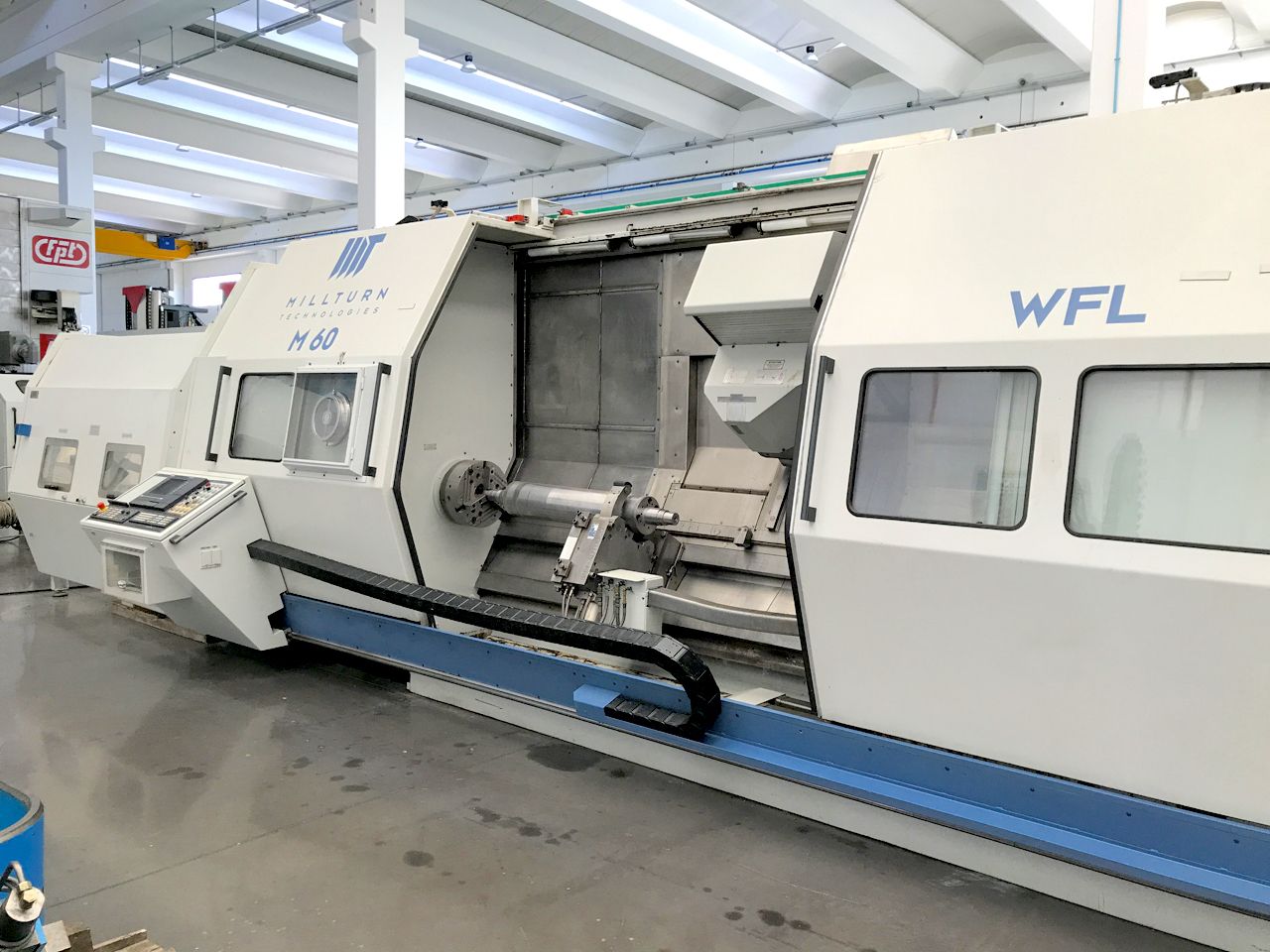

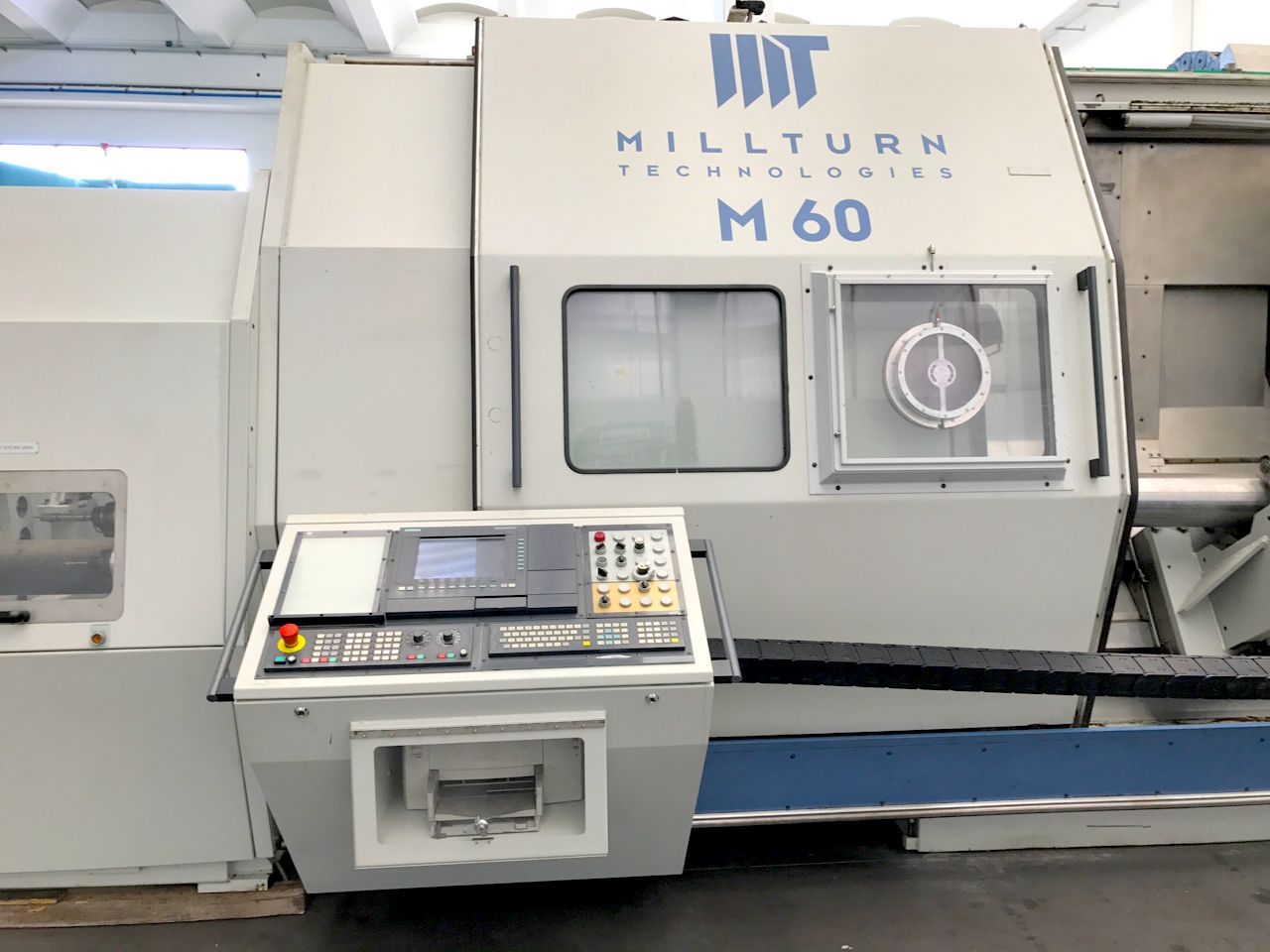

MILLTURN M60
Capacity
ø670x3000 mmø26,38x118,11 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max swing diameter
670 mm26,38 in
Max swing on the saddle
480 mm18,90 in
Max working lenght
3000 mm118,11 in
Max weight between centres
2500 Kg
CNC
CNC
SIEMENS 840D
MAIN SPINDLE
Max rotation speed
3300 rpm
Spindle nose
ASA11”
Max torque
1830/2748 Nm
Accuracy (C axis)
0,001 °
C axis speed
20 Rpm
Chuck diameter
400 mm15,75 in
Spindle hole
160 mm6,30 in

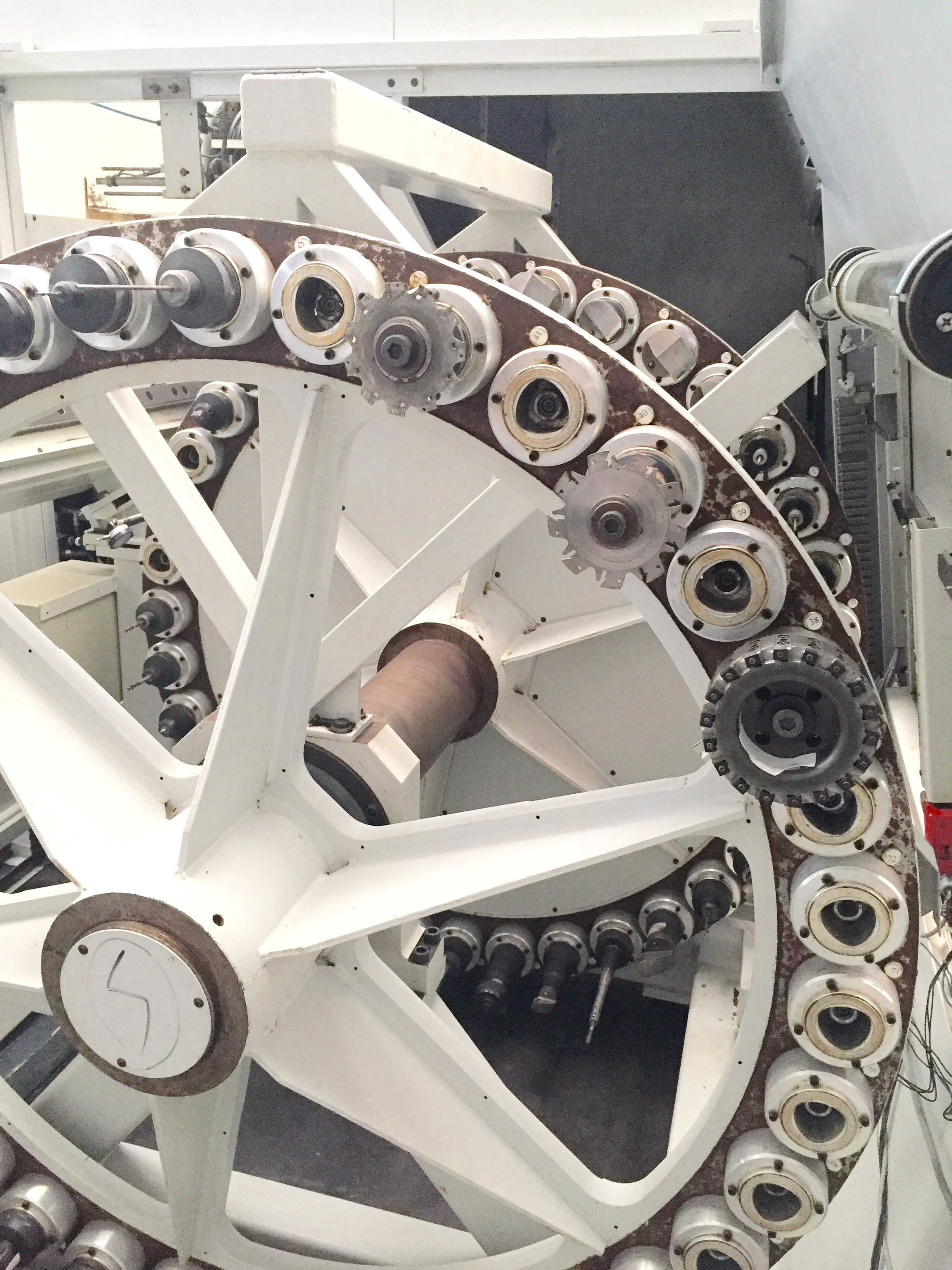

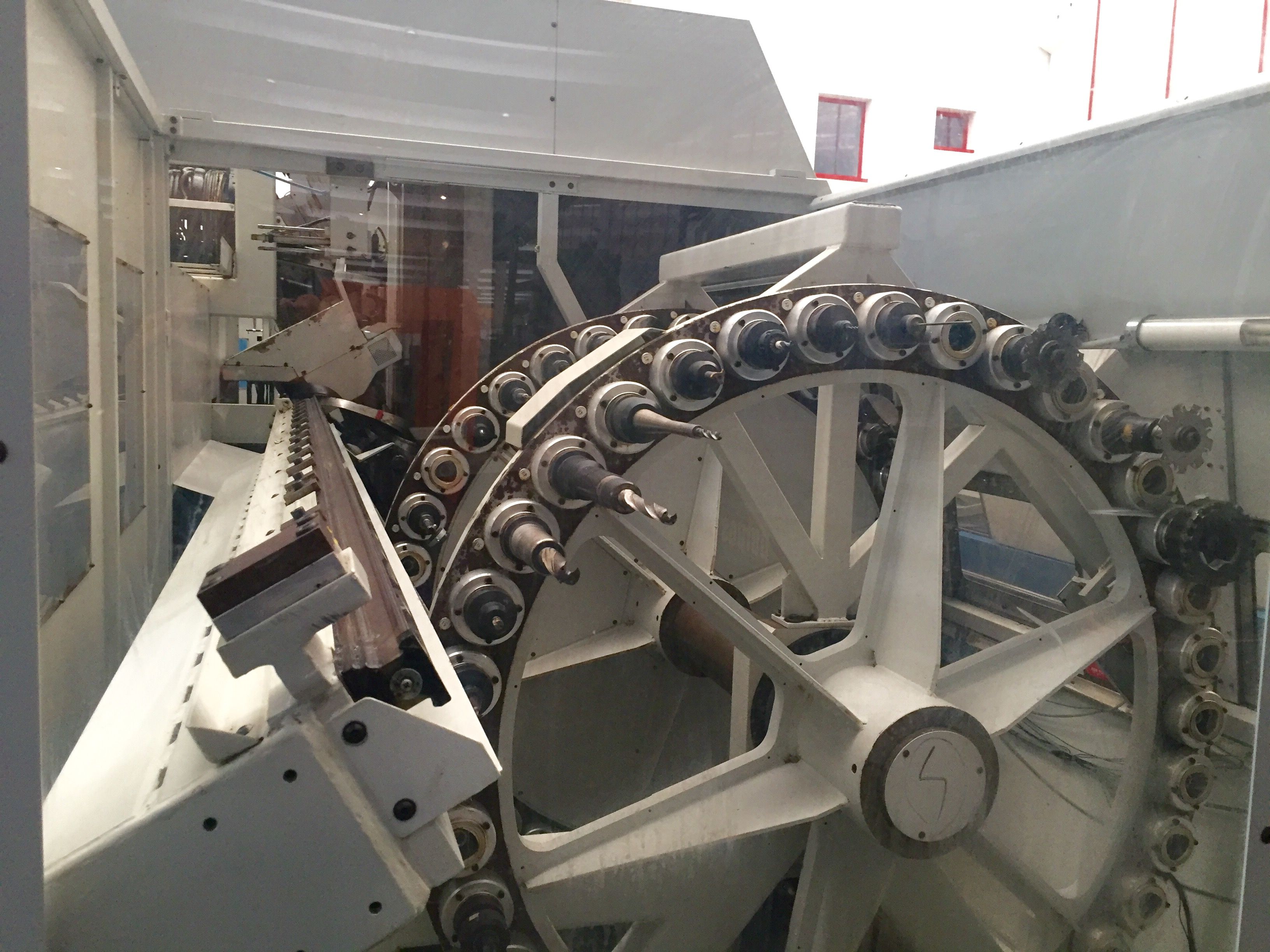

ATC
Max tool diameter
110 mm4,33 in
Max tool diam withount adiacent tools
250 mm9,84 in
Max tool length
500 mm19,69 in
Positions
72

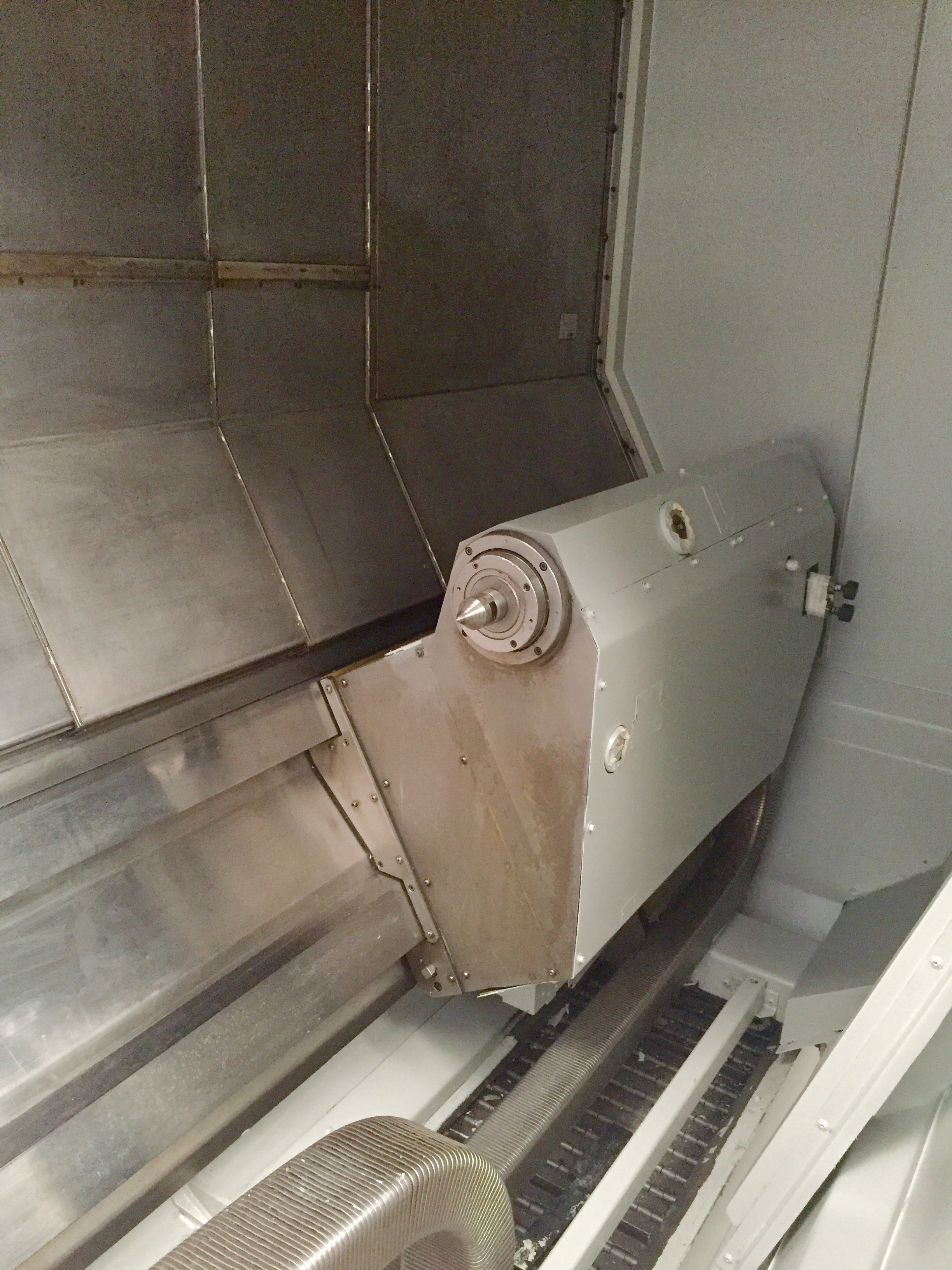

MILLING HEAD
Spindle taper
CAPTO C8
B axis working capacity
-105/+90 °
Accuracy (B axis)
0,001 °
Spindle speed
4000 rpm
Spindle power
17/25 Kw
Spindle torque
300 Nm
Axis stroke X
700 mm27,56 in
Rapid feed X
15 m/min590,55 ipm
Axis stroke Z
3070 mm120,87 in
Rapid feed Z
20 m/min787,40 ipm
Axis stroke Y
-225/+225 mm-8,86/+8,86 in
Rapid feed Y
12,5 m/min492,13 ipm
EXTRA
Max power requirement
140 Kw
Machine total weight
36000 Kg
Floor space
12000x3900x3300 mm472,44x153,54x129,92 in

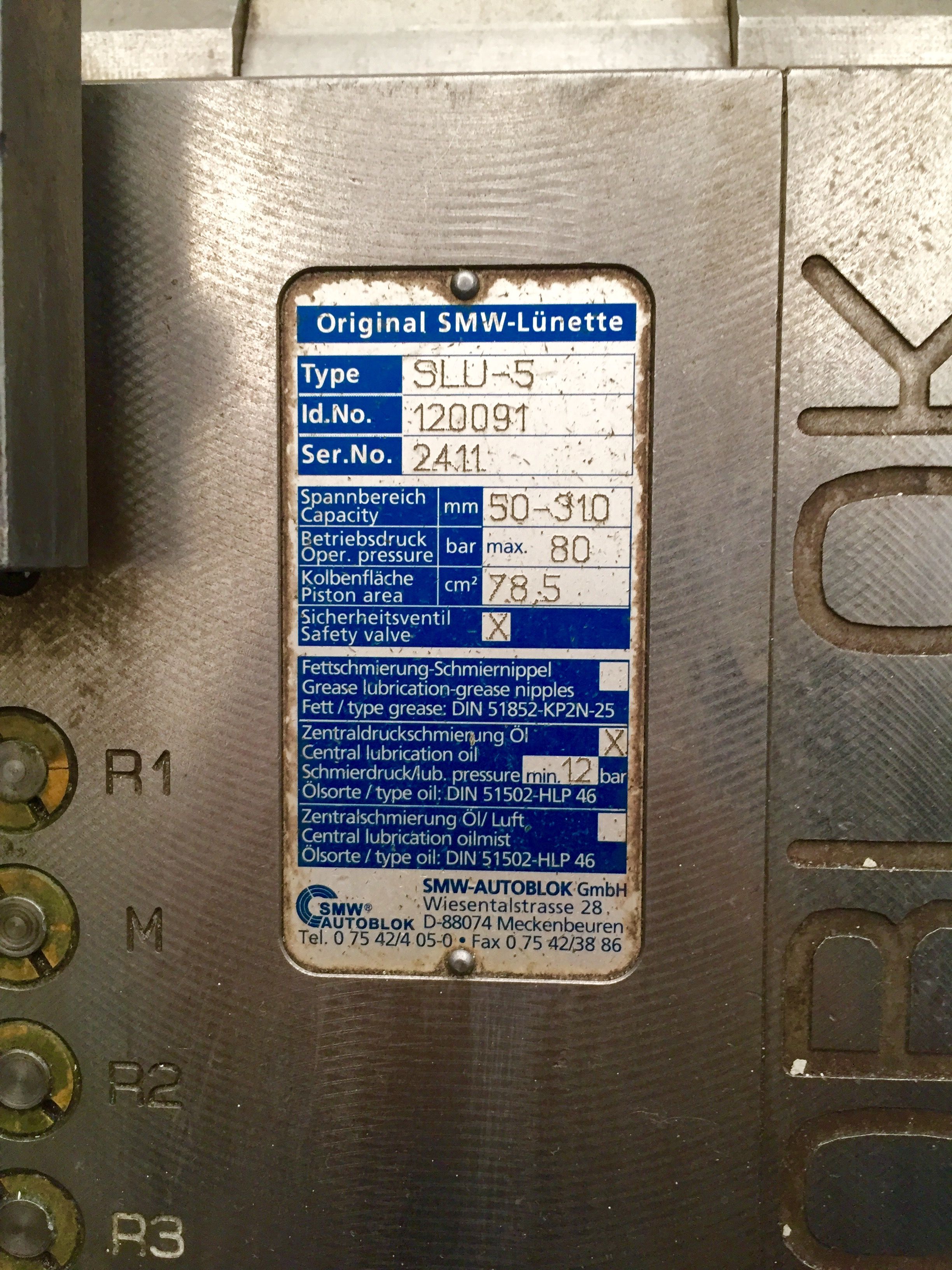

Hydr. steady rest
SMW Autoblock 310/500mm
Fixed toolholders
circa 140 utensili Capto C8

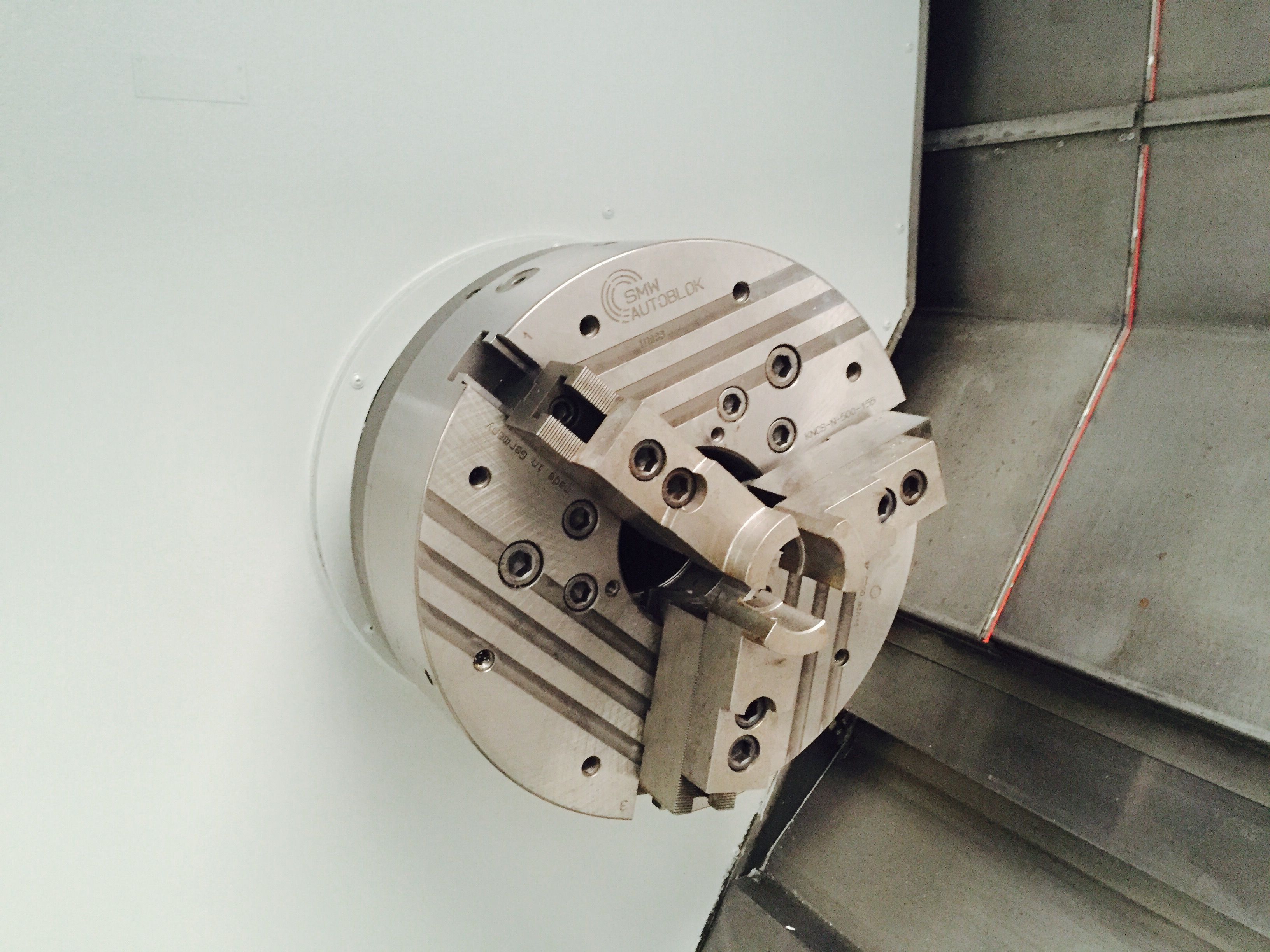

Autocentering chuck
SMW Autoblock 400mm 3 griffe
Chip conveyor
si
Workpiece touch probe
2 sonde Renishaw
Coolant pump
alta pressione 80 Bar
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Protections
integrale
Mist extractor
Fibaron
Availability
pronta
Available in stock
si
