Category
Turning Machine
Type
Multi-tasking
Made
Model

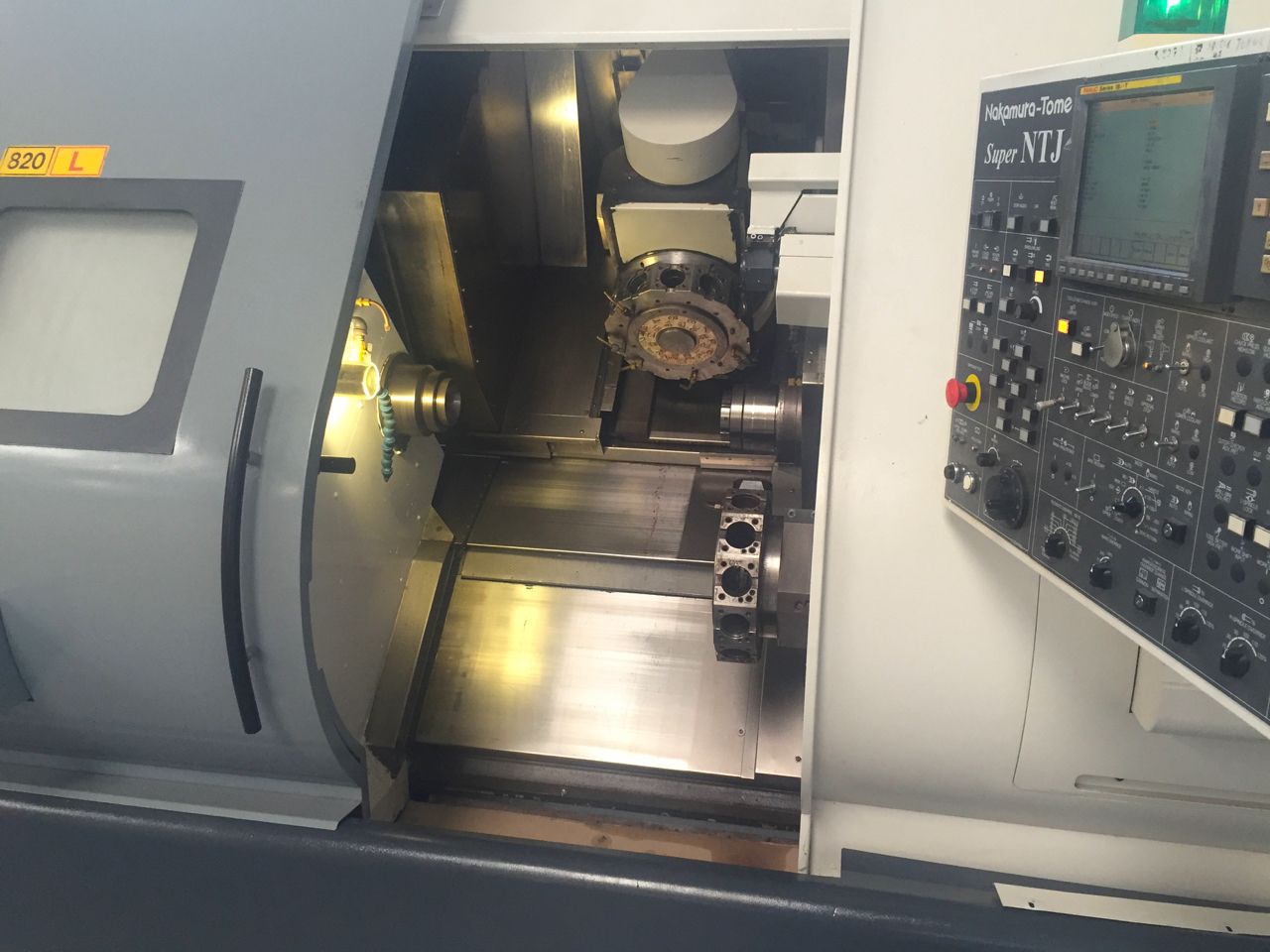

SUPER NTJ
Capacity
190x620 mm7,48x24,41 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
65 mm2,56 in
Max swing diameter
190 mm7,48 in
Max working lenght
620 mm24,41 in

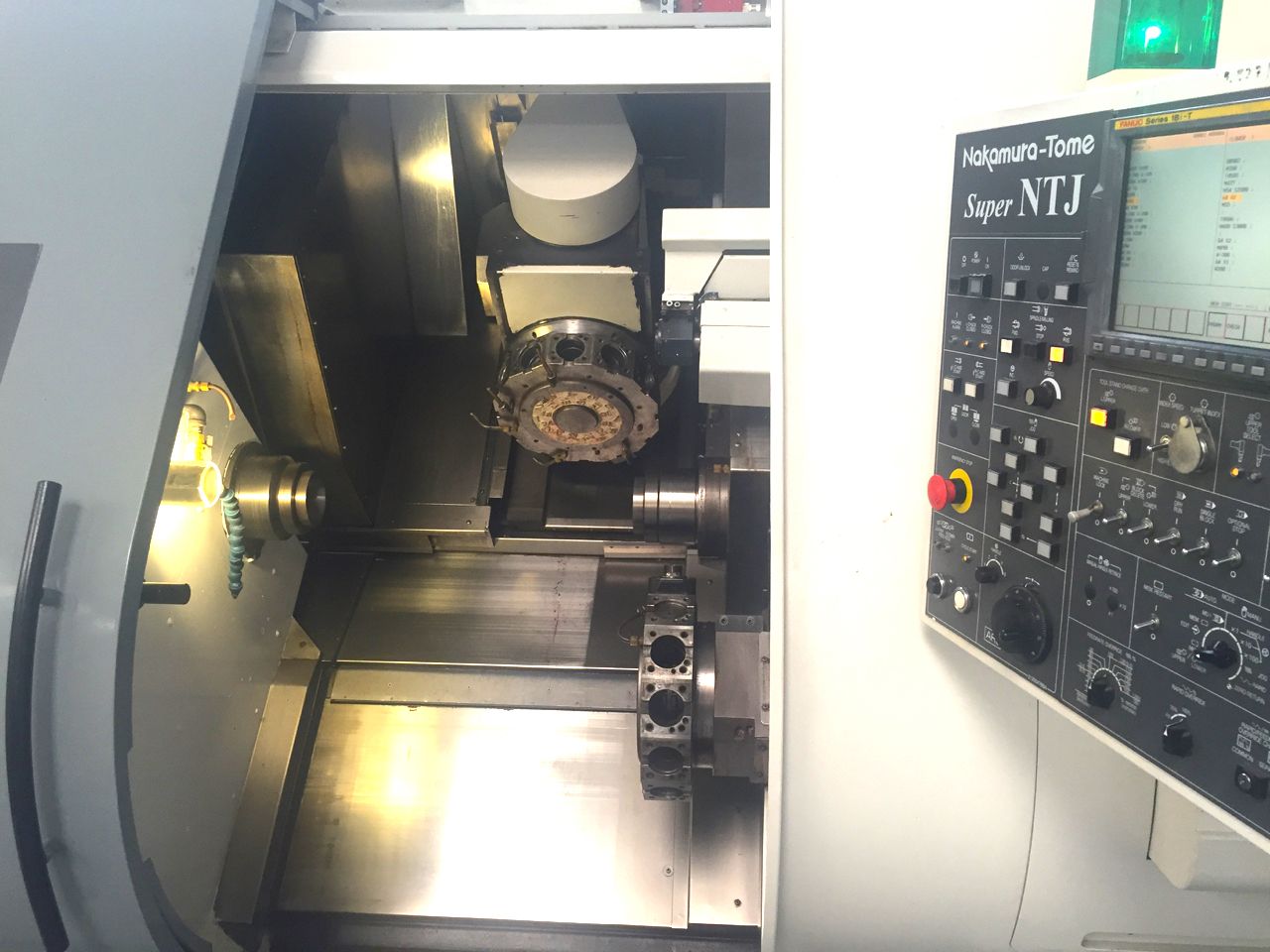

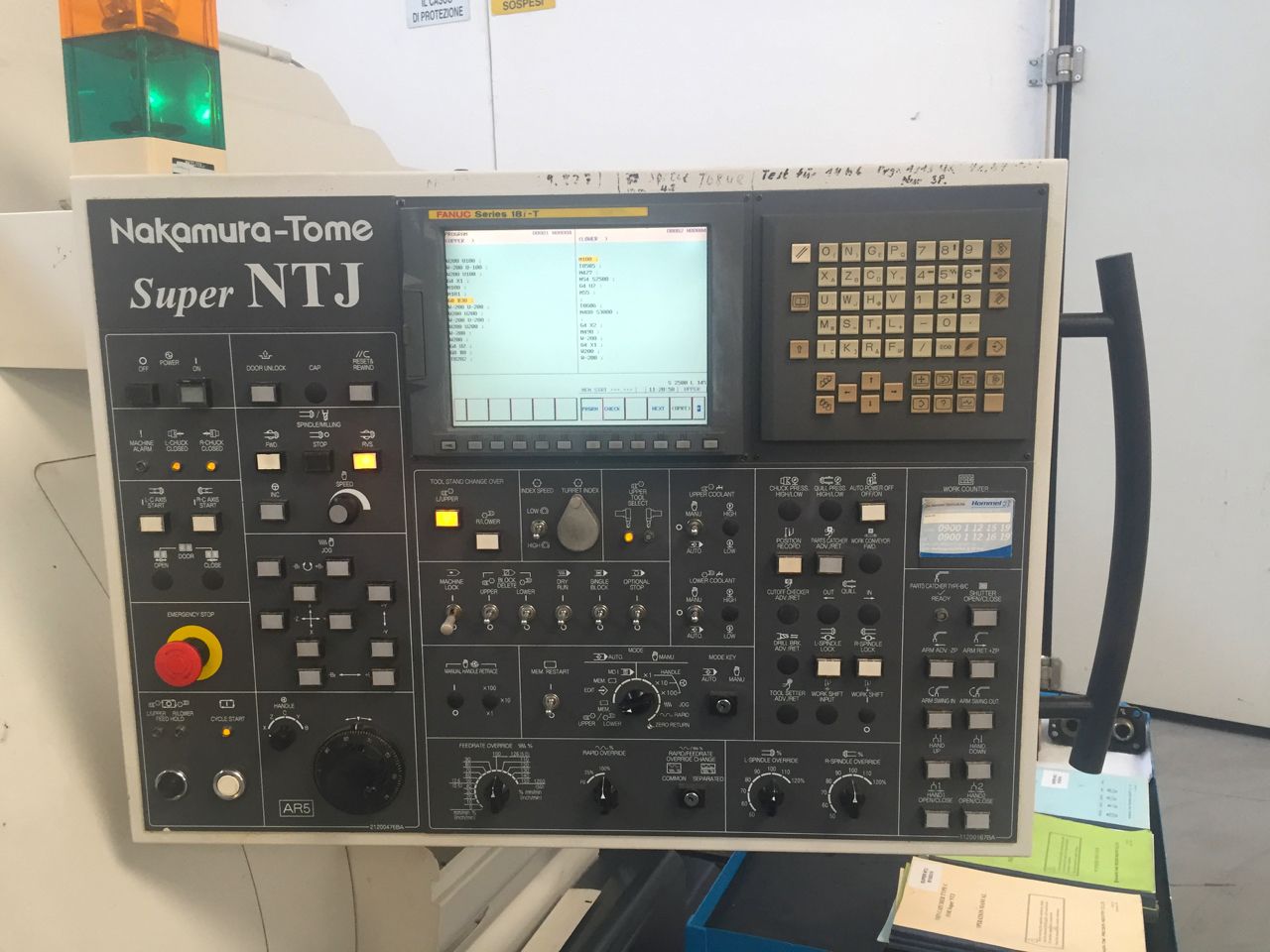

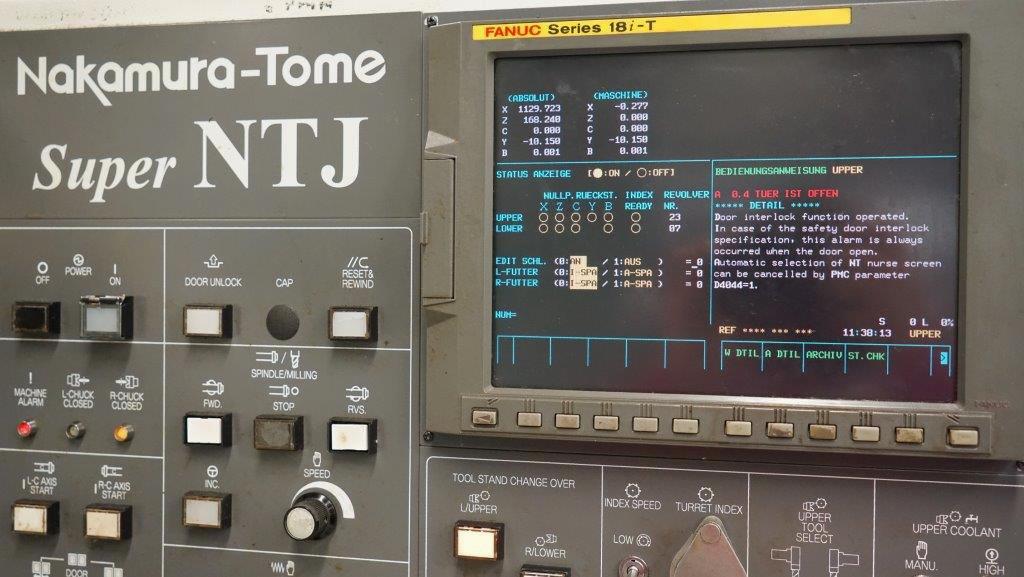

CNC
CNC
FANUC 18i-TB

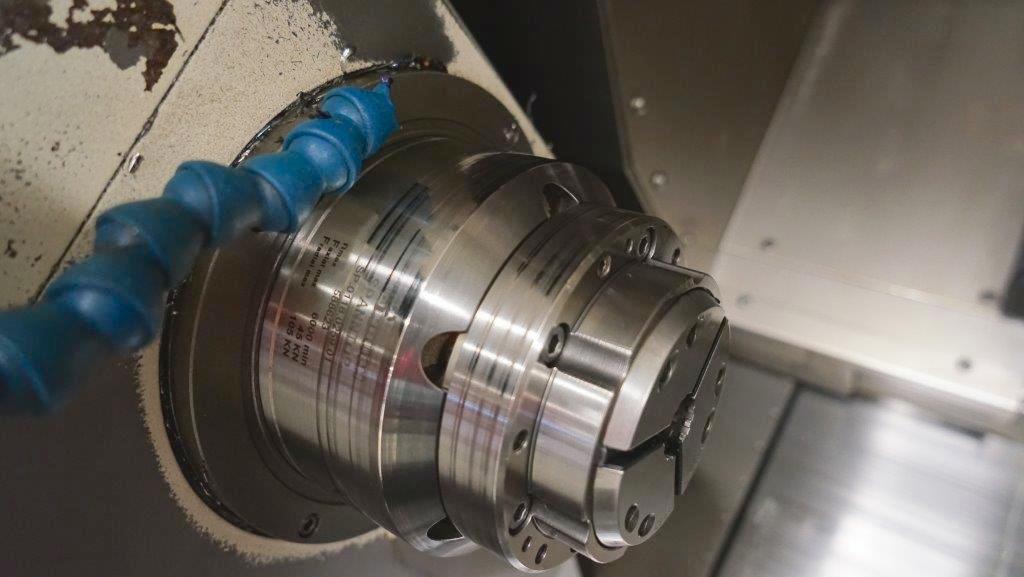

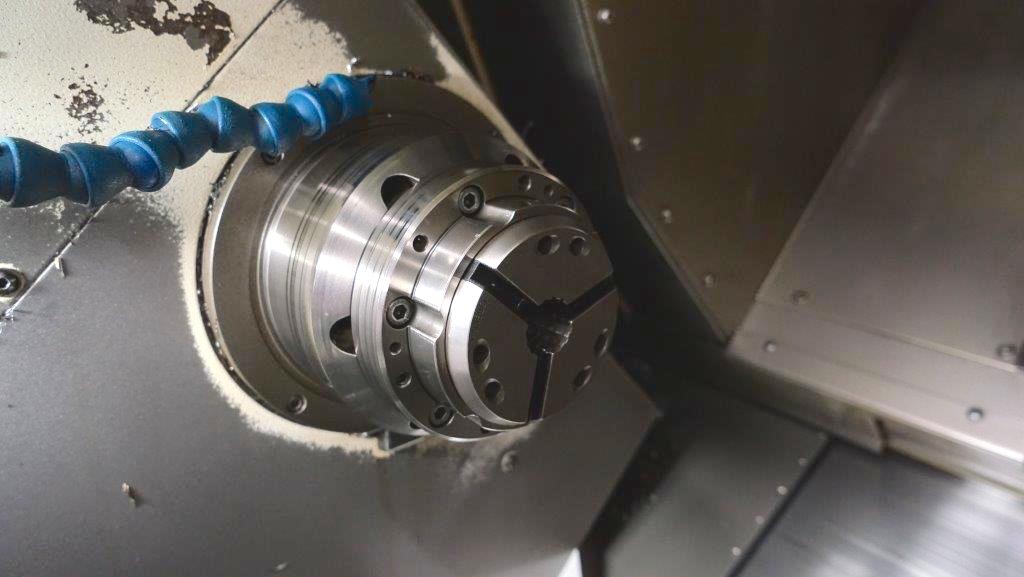

MAIN SPINDLE
Max rotation speed
4500 rpm
Spindle nose
ASA6”
Spindle hole
80 mm3,15 in
Max power
11/15 Kw
Accuracy (C axis)
0,001 °
C axis speed
600 Rpm

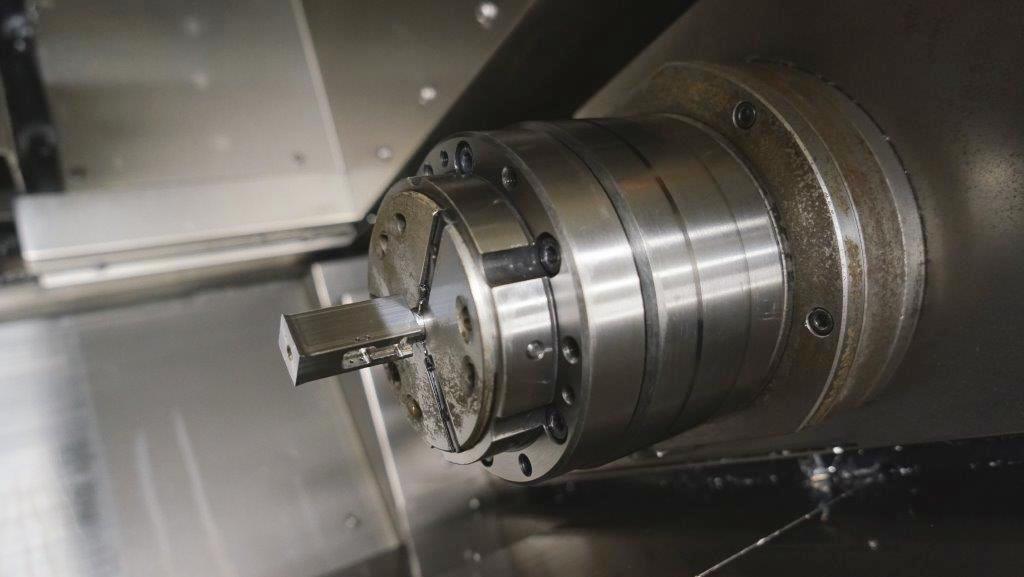

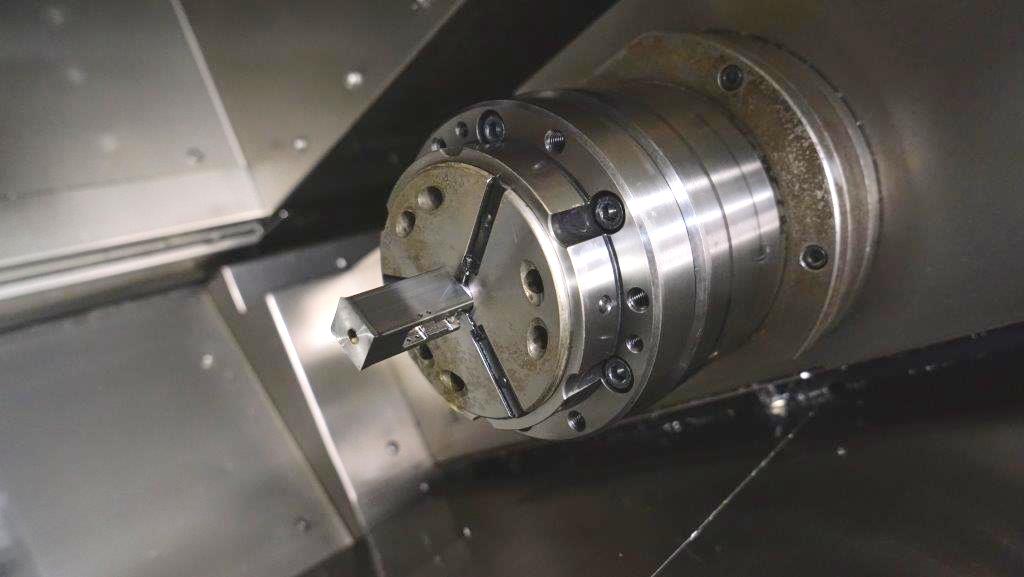

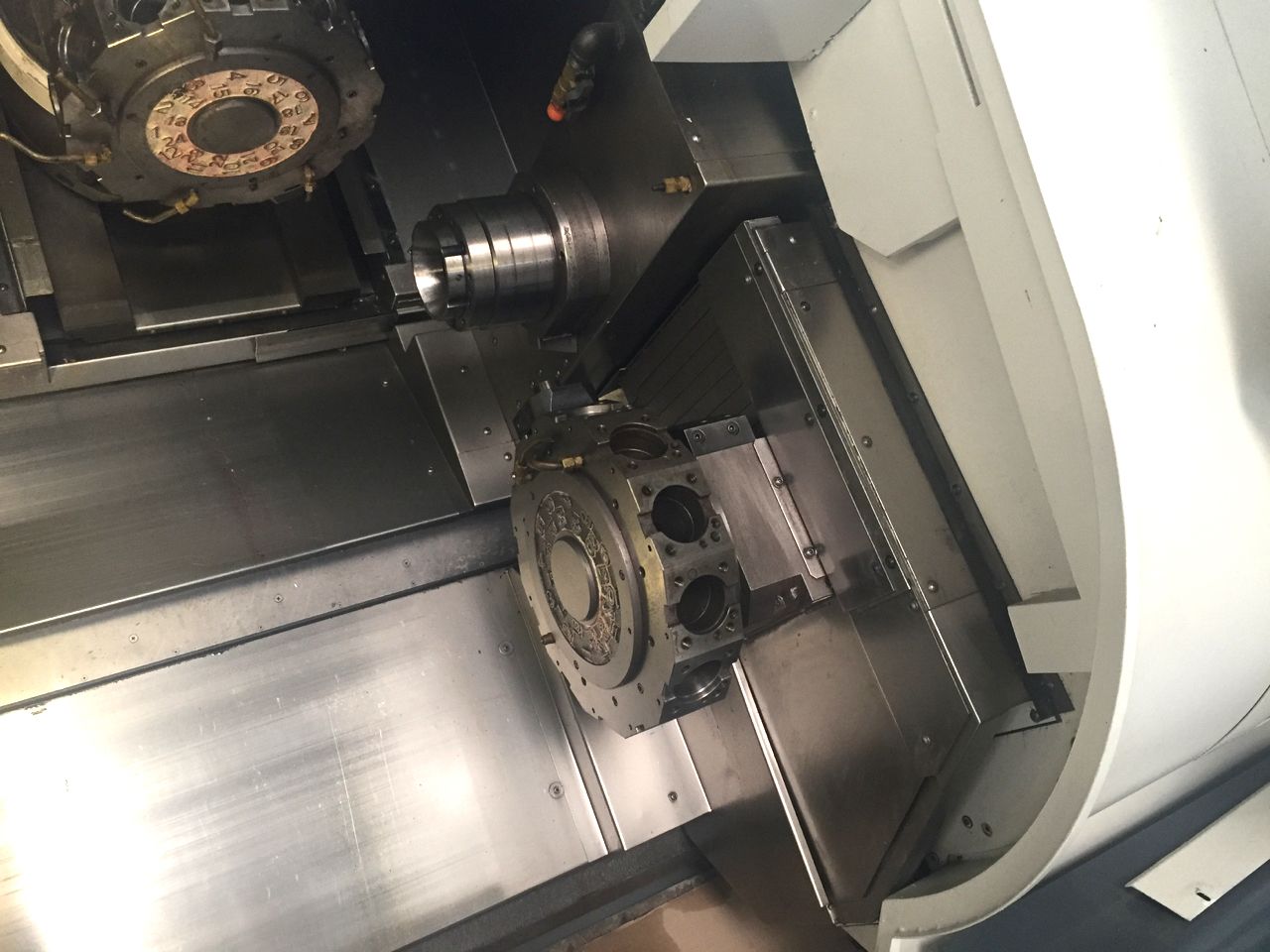

SUBSPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5”
Spindle hole
63 mm2,48 in
Max power
7,5/11 Kw
Accuracy (C axis)
0,001 °
C axis speed
600 Rpm

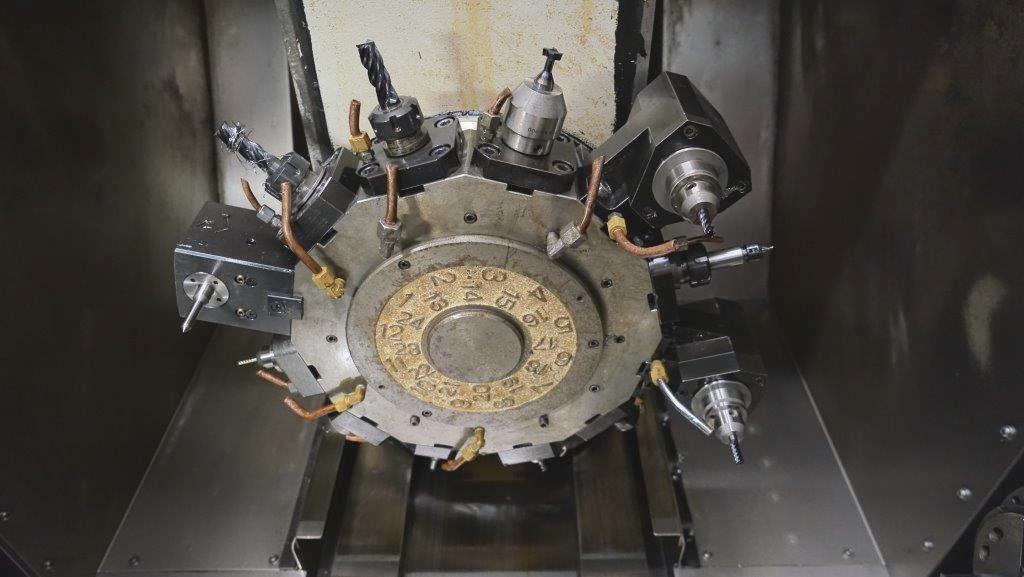

MILLING HEAD
Positions number
12+12
B axis working capacity
+/-91 °
Accuracy (B axis)
1 °
Spindle speed
60-6000 rpm
Spindle power
3,7/5,5 Kw
Axis stroke X
345 mm13,58 in
Rapid feed X
16 m/min629,92 ipm
Axis stroke Z
1240 mm48,82 in
Rapid feed Z
40 m/min1.574,80 ipm
Axis stroke Y
+/-45 mm+/-1,77 in
Rapid feed Y
16 m/min629,92 ipm

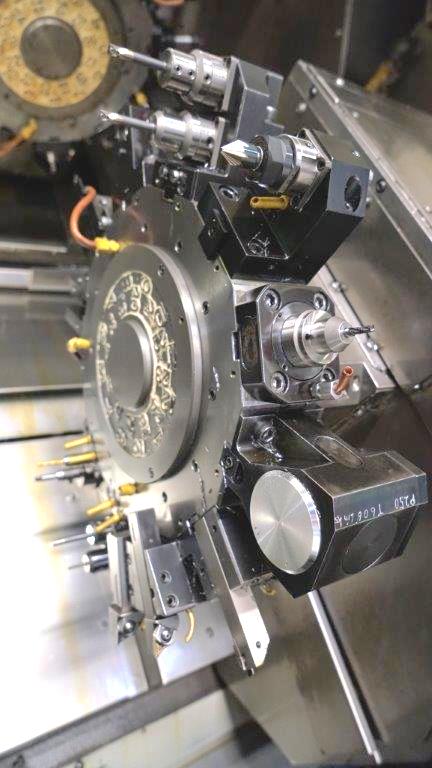

TORRETTA INFERIORE
Positions number
12+12
Number of driven stations
12
Driven tools speed
60-6000 rpm
Driven tools power
3,7/5,5 Kw
Axis stroke X2
167,5 mm6,59 in
Rapid feed X2
16 m/min629,92 ipm
Axis stroke Z2
685 mm26,97 in
Rapid feed Z2
40 m/min1.574,80 ipm
EXTRA
Machine total weight
12500 Kg
Floor space
5120x2470x2170 mm201,57x97,24x85,43 in
Fixed toolholders
5
Driven toolholders
6
Workpiece espulsion robot
si
Chip conveyor
si
Workpieces conveyor belt
si
Tool presetter
si
Coolant pump
alta pressione 20 Bar

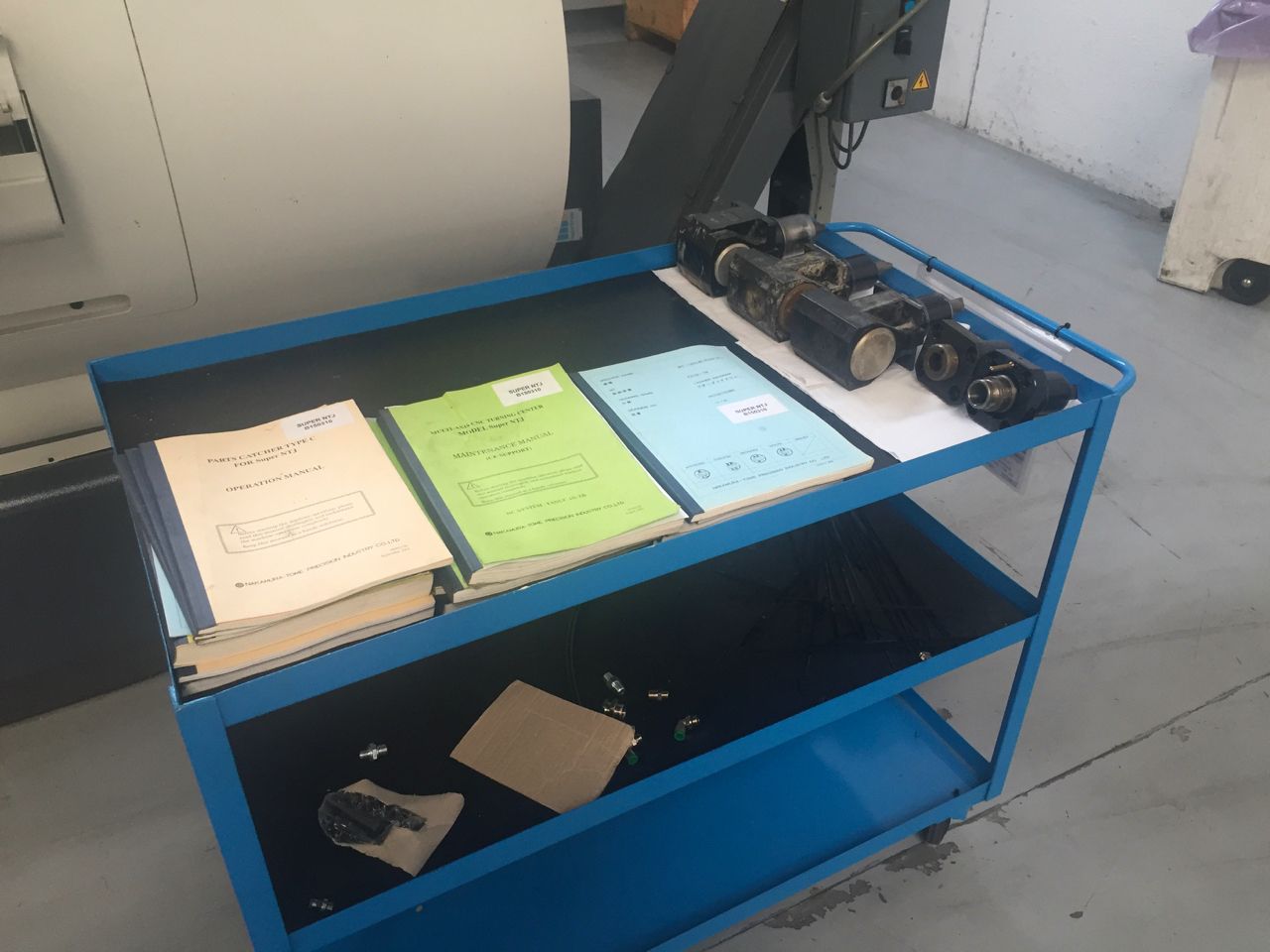

Maintenance & Use books
Yes

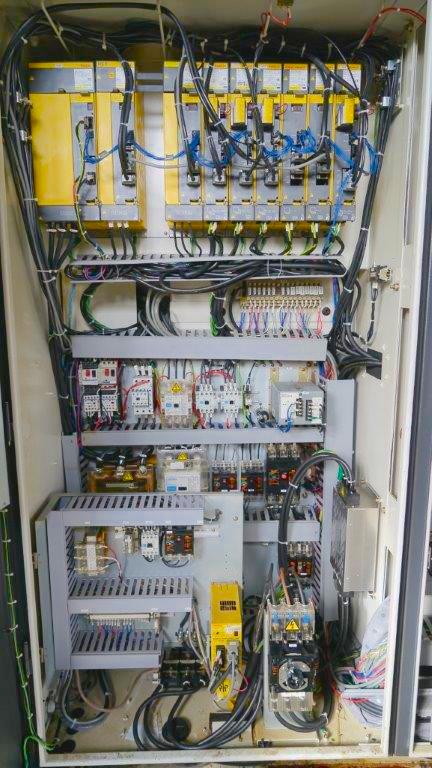

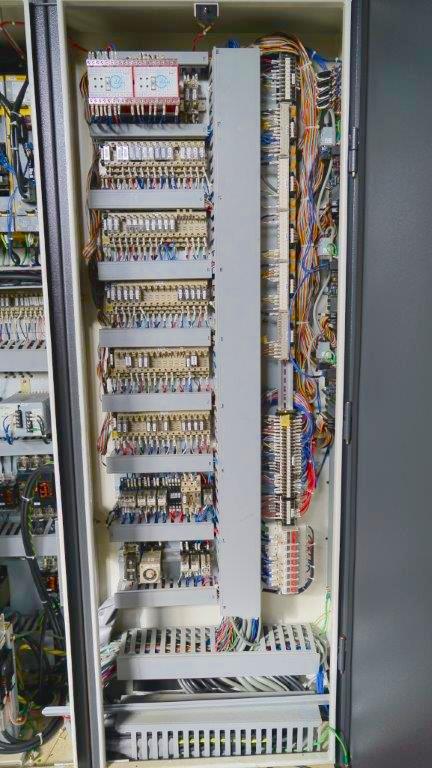

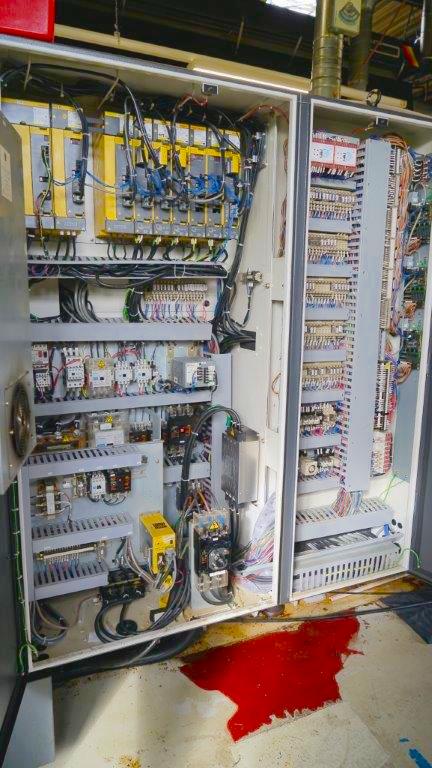

Electrical drawings
Yes
CE Certification
Yes
Availability
pronta
Available in stock
si
Available under power
previo appuntamento
