Category
Turning Machine
Type
Multi-tasking
Made
Model

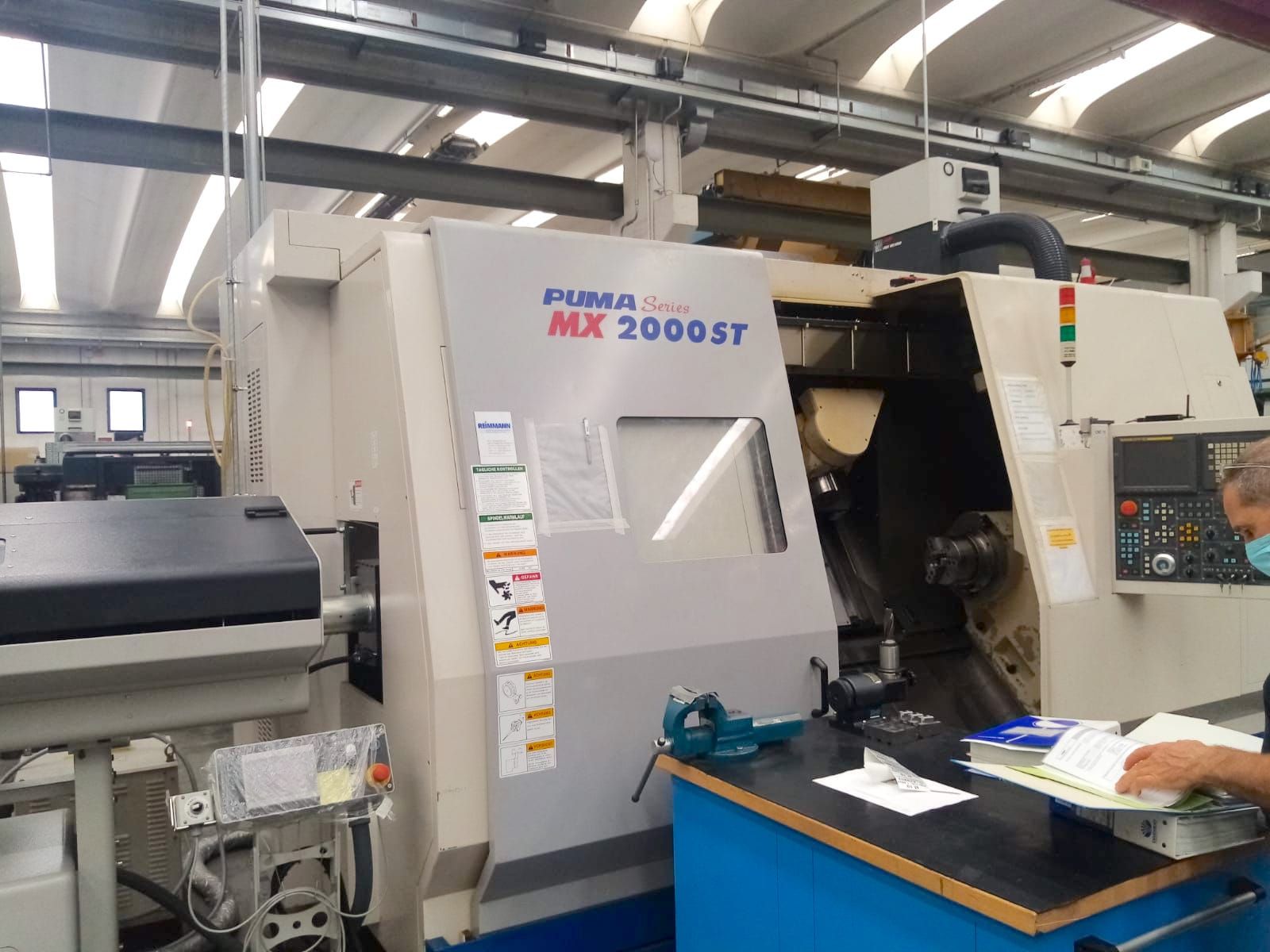

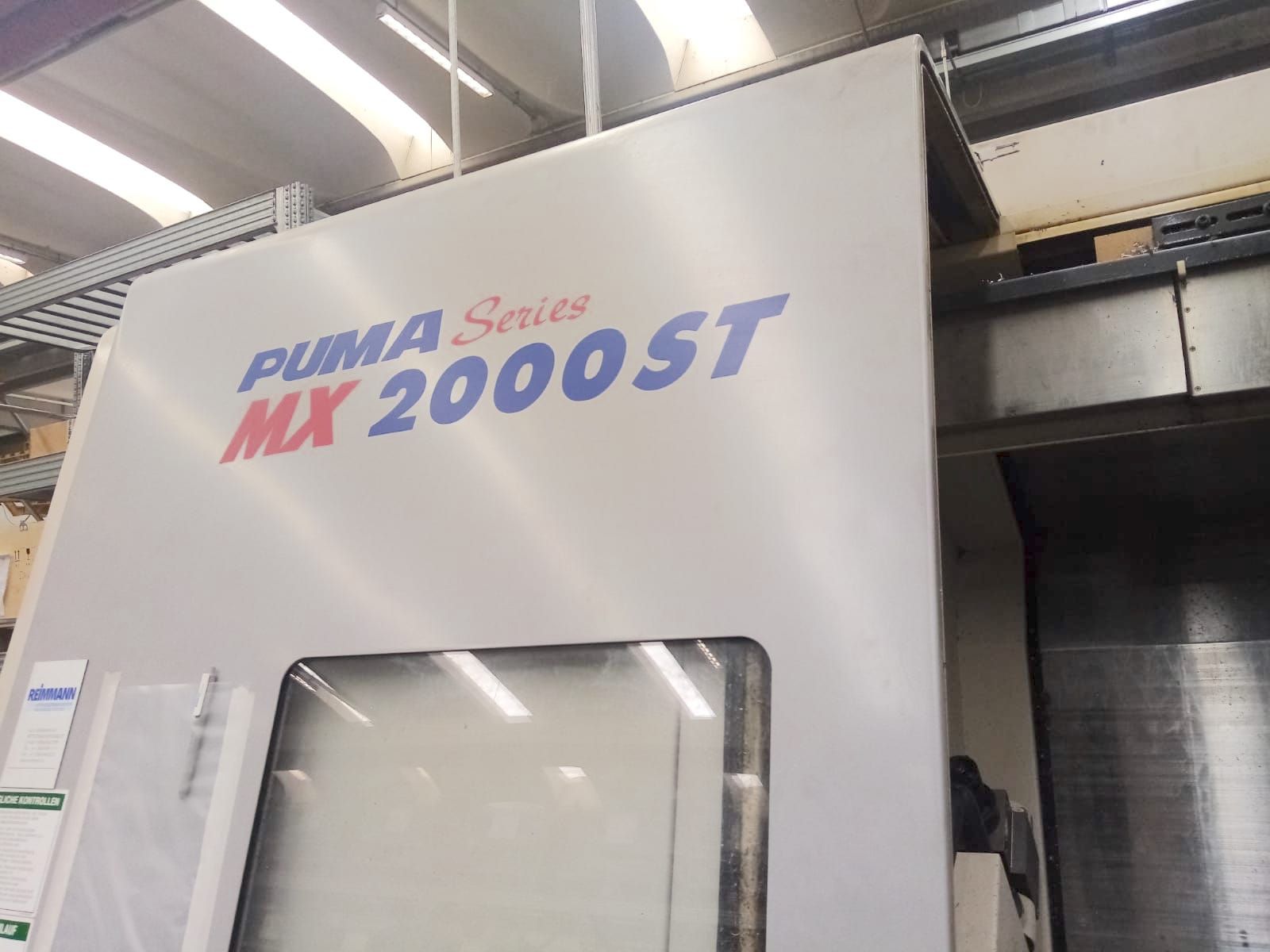

MX2000ST
Capacity
ø750x1020 mmø29,53x40,16 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
65 mm2,56 in
Max swing diameter
750 mm29,53 in
Max swing on the saddle
600 mm23,62 in
Max working lenght
1020 mm40,16 in
CNC
CNC

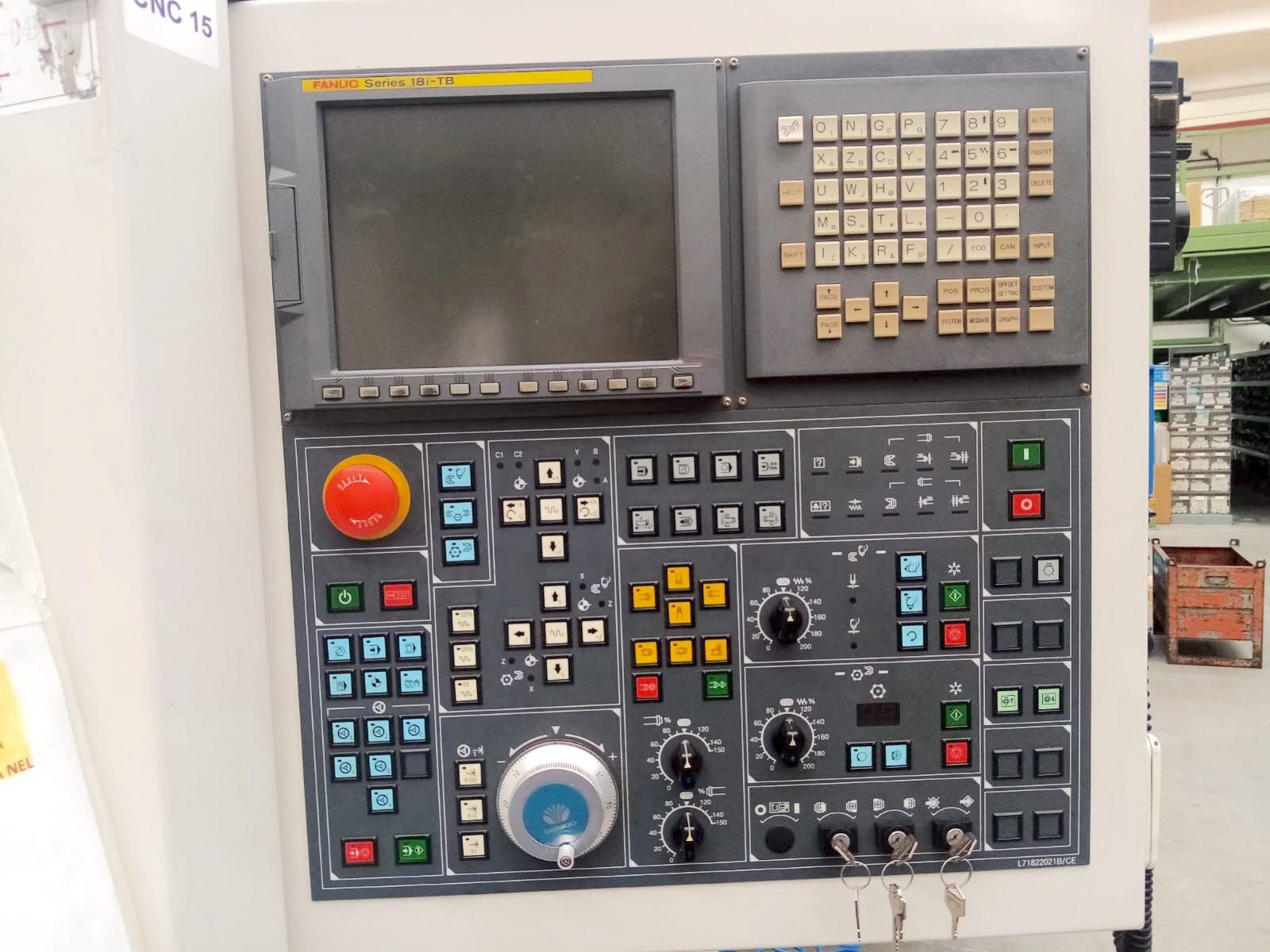

Fanuc 18i-TB
MAIN SPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA6”
Spindle hole
66 mm2,60 in
Max power
22 Kw
Accuracy (C axis)
0,001 °

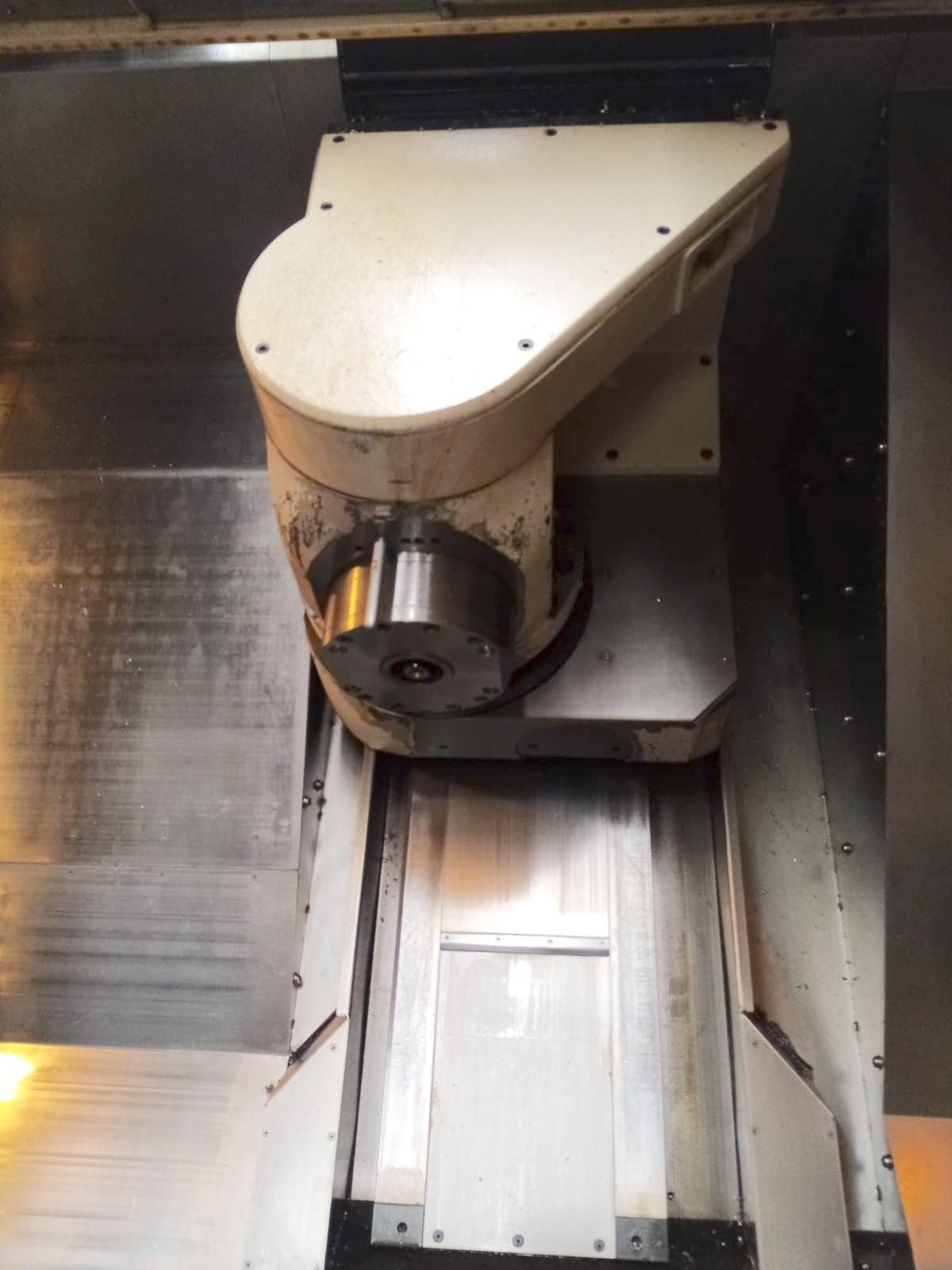

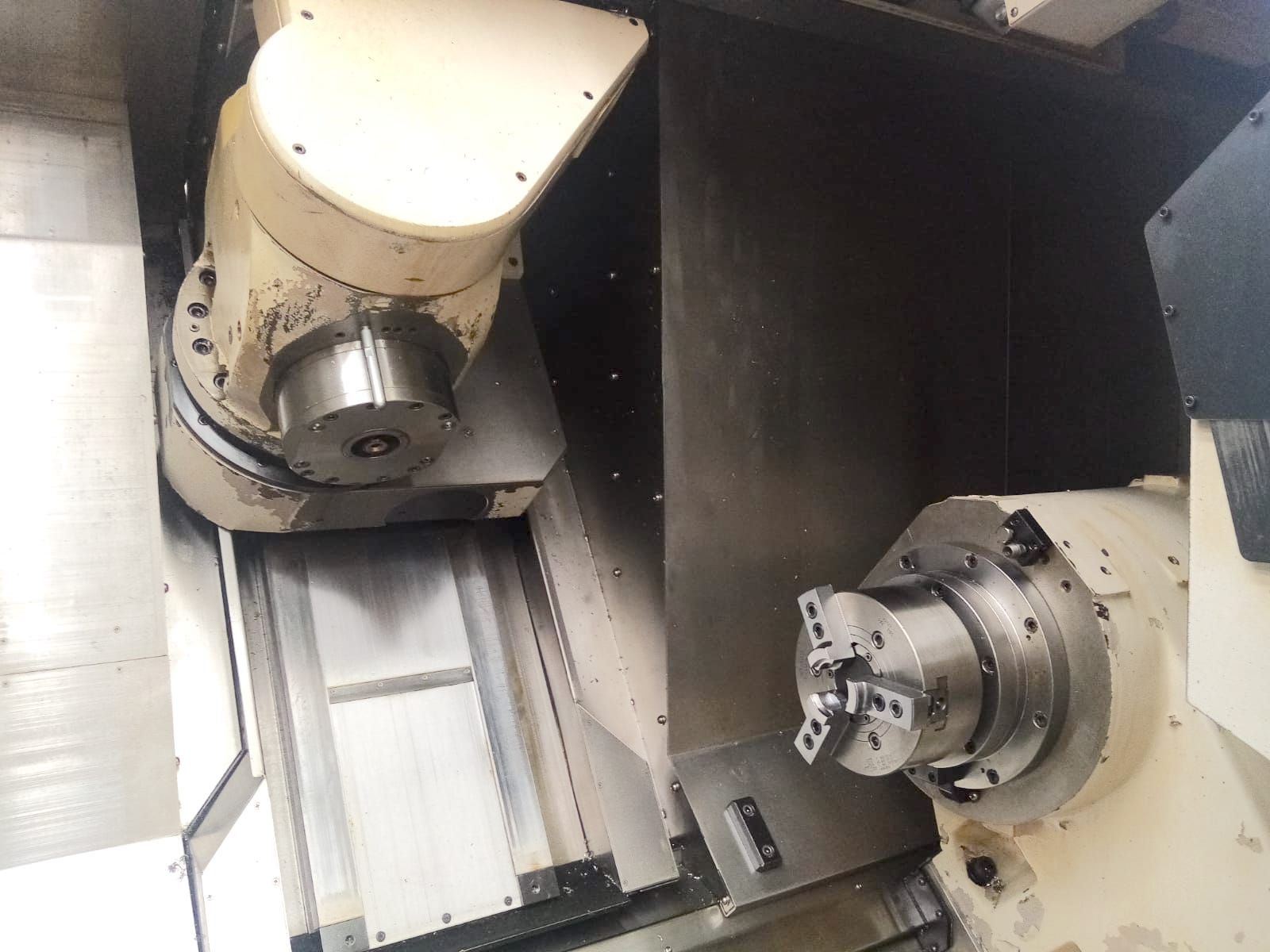

MILLING HEAD
Spindle taper
CAPTO C6
Axis stroke X
555 mm21,85 in
Rapid feed X
24 m/min944,88 ipm
Axis stroke Z
1095 mm43,11 in
Rapid feed Z
24 m/min944,88 ipm
Axis stroke Y
160 (+/-80) mm6,30 (+/-3,15) in
Rapid feed Y
16 m/min629,92 ipm
B axis working capacity
240 (+/-120) °
Accuracy (B axis)
15 °
Spindle speed
10000 rpm
Spindle power
15 Kw

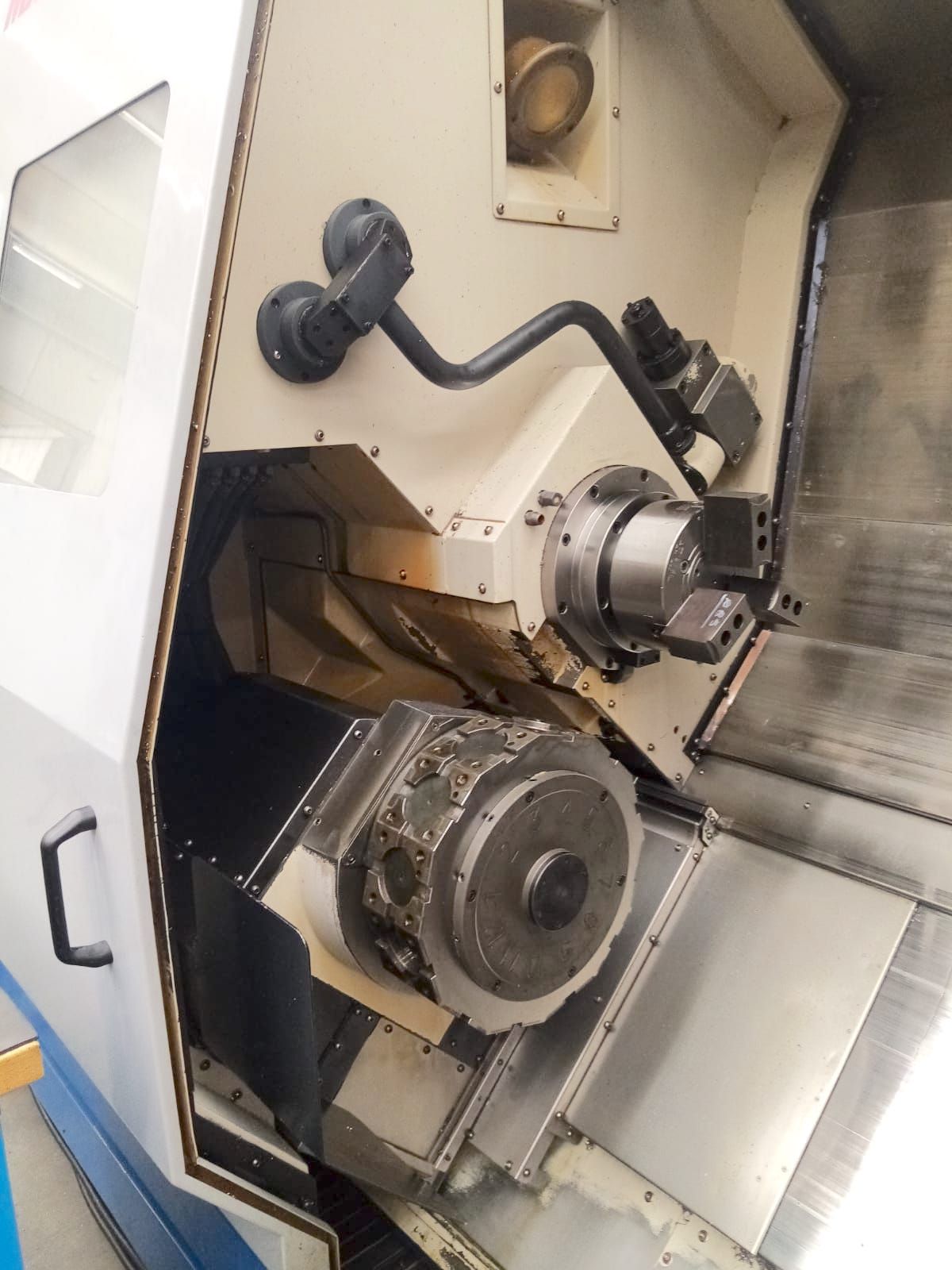

TORRETTA INFERIORE
Positions number
12
Rotation time (1 pos)
0,2 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
5,5 Kw
Axis stroke X2
185 mm7,28 in
Axis stroke Z2
1140 mm44,88 in
ATC
Max tool diameter
90 mm3,54 in
Max tool diam withount adiacent tools
120 mm4,72 in
Max tool length
300 mm11,81 in
Positions
80

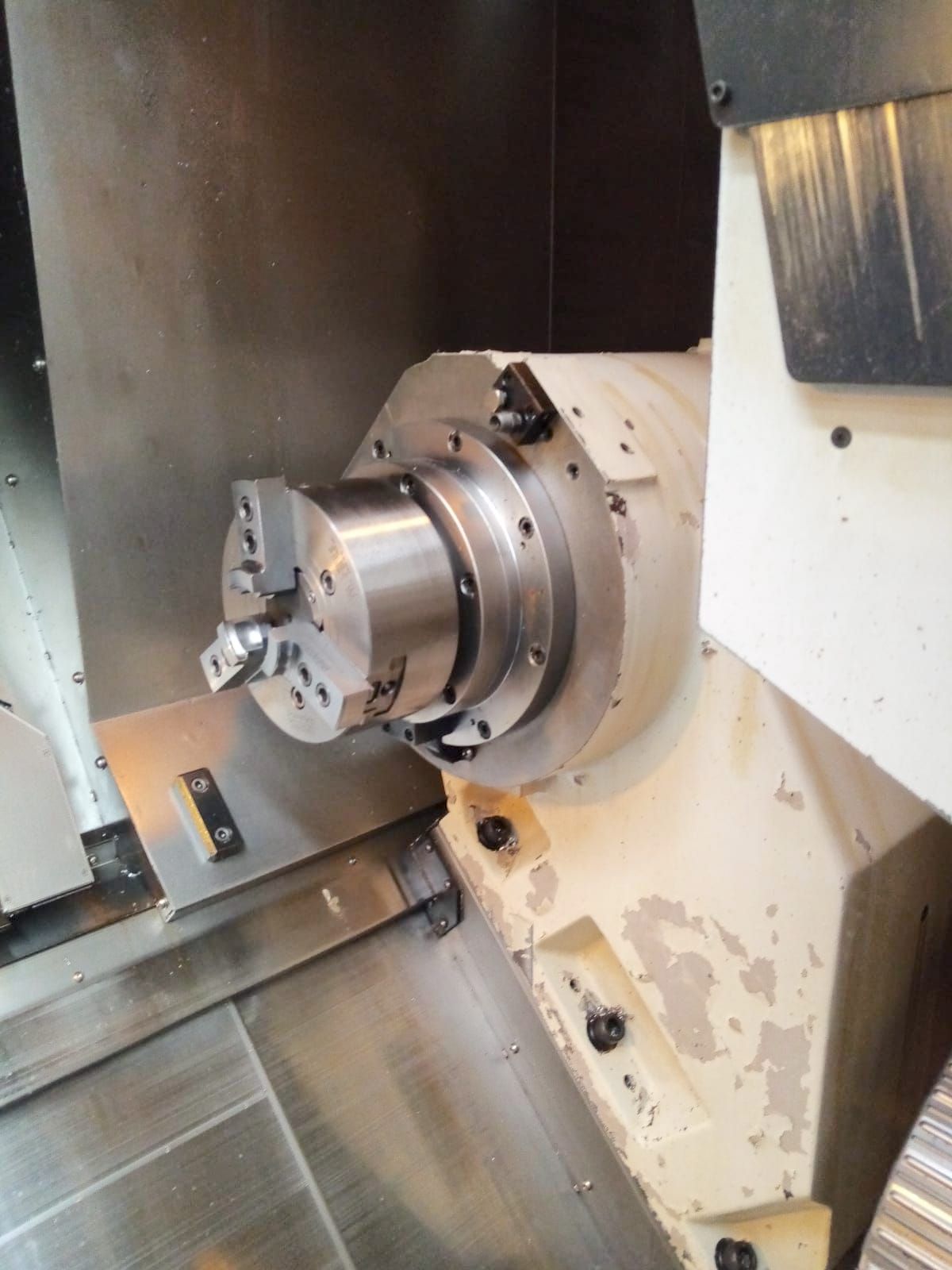

SUBSPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA6”
Spindle hole
66 mm2,60 in
Max power
22 Kw
Accuracy (C axis)
0,001 °
Automatic B axis positioning
1065 mm41,93 in
EXTRA
Floor space
4520x2495x2600 mm177,95x98,23x102,36 in
Machine total weight
12300 Kg
Max power requirement
66,1 KVA Kw
