Category
Turning Machine
Type
Multi-tasking
Made
Model

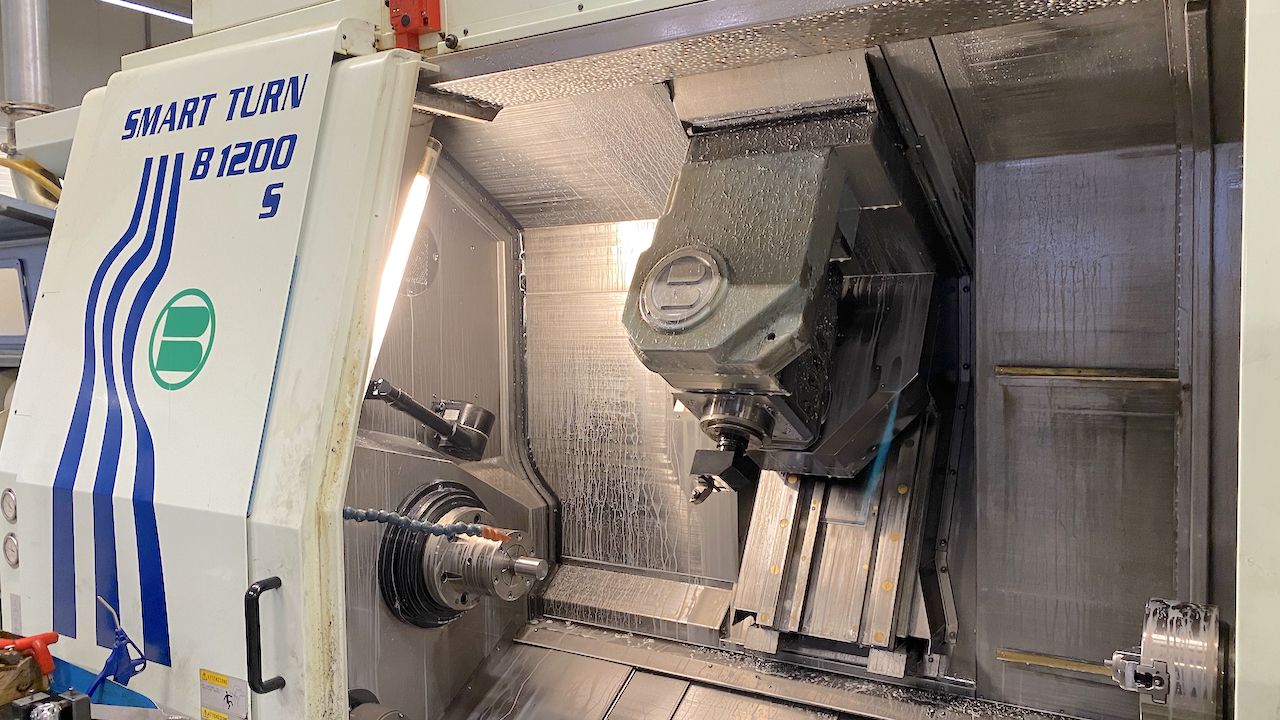

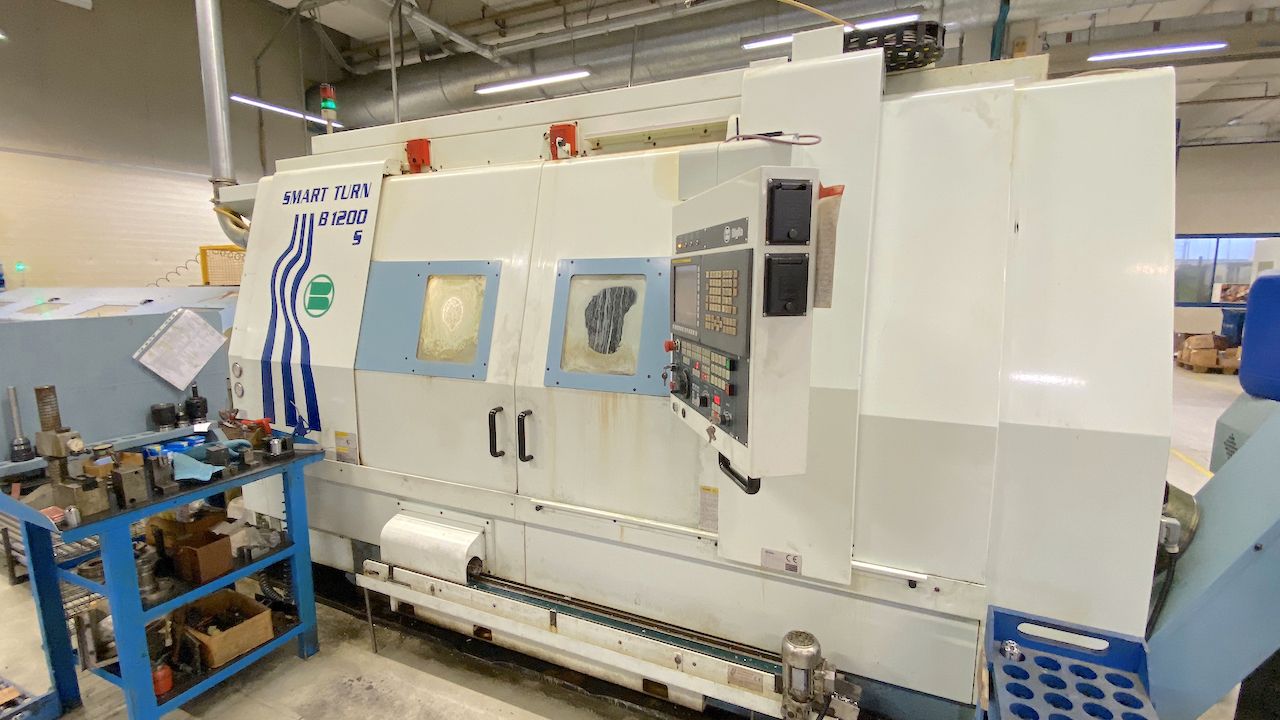

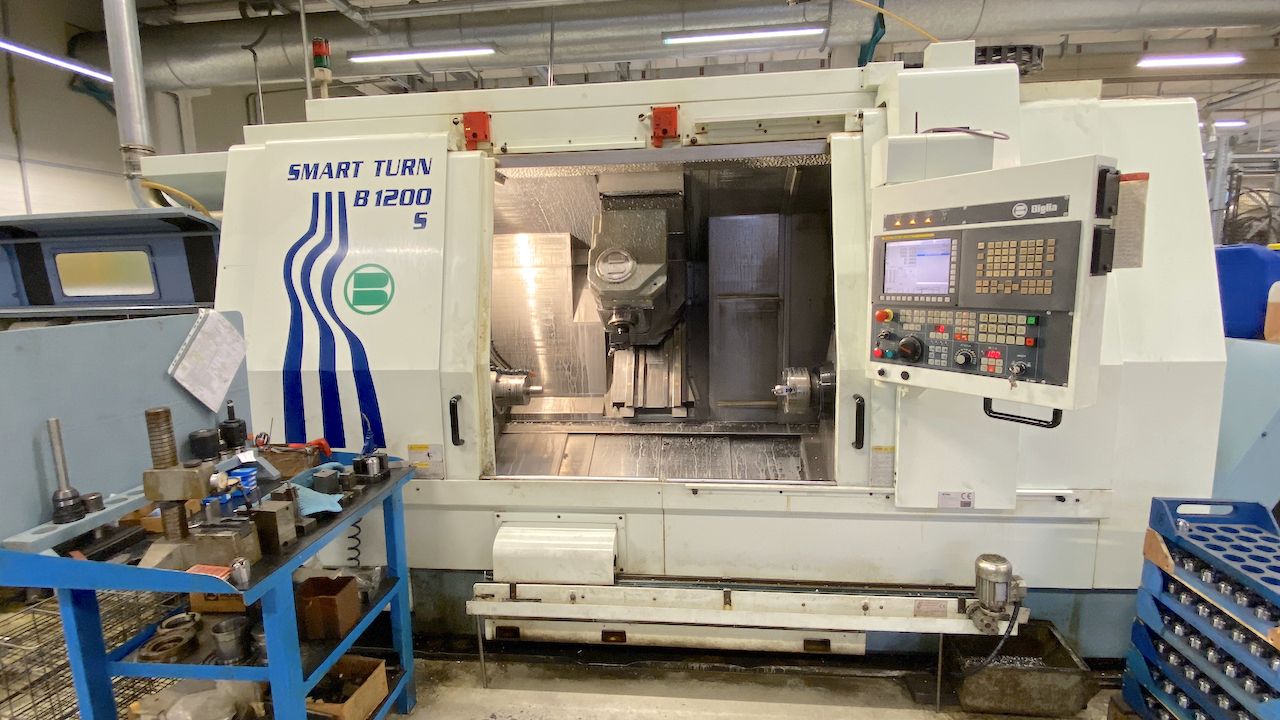

SMART TURN 1200 S
Capacity
ø500x1260 mmø19,69x49,61 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
94 mm3,70 in
Max swing diameter
750 mm29,53 in
Max swing on the saddle
500 mm19,69 in
Max working lenght
1260 mm49,61 in
CNC
CNC

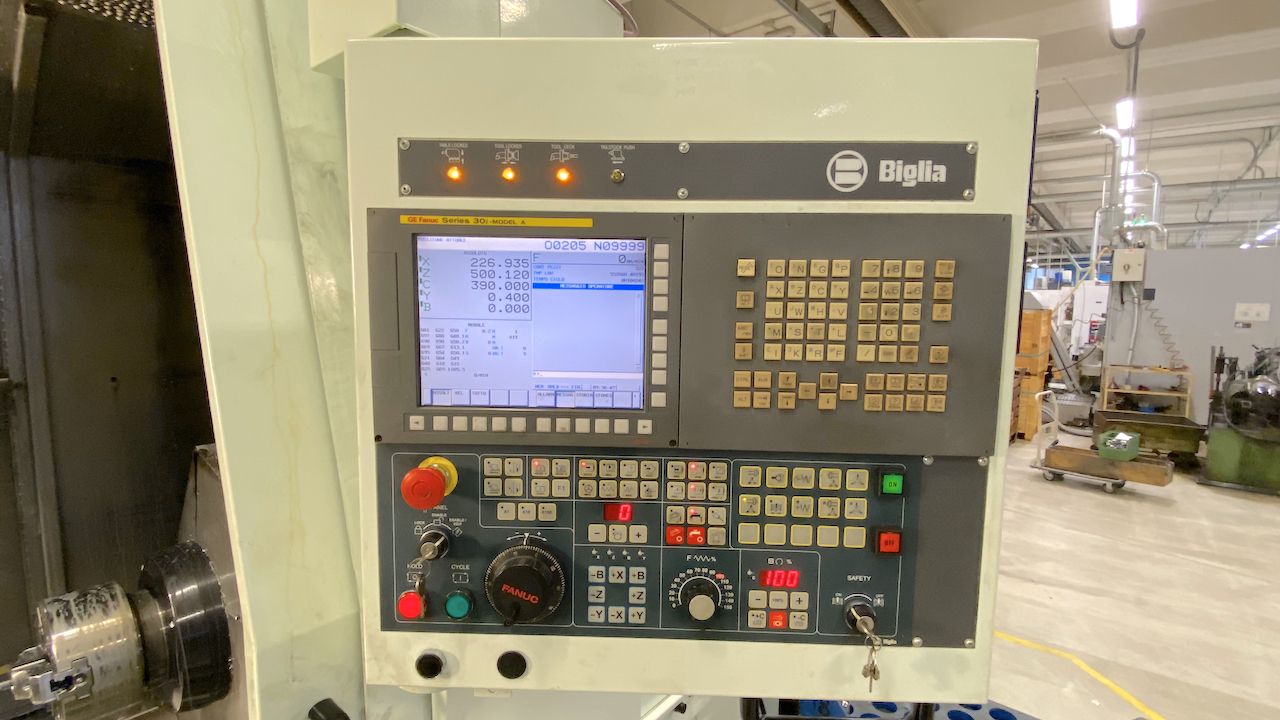

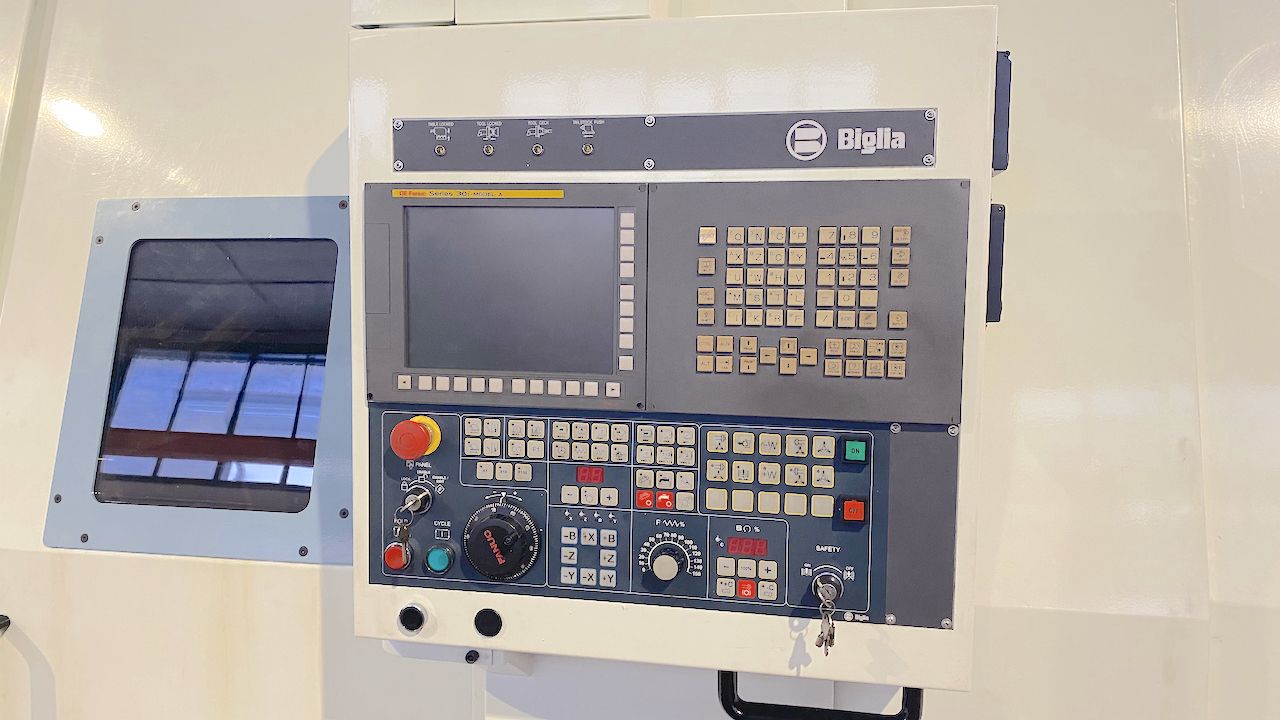

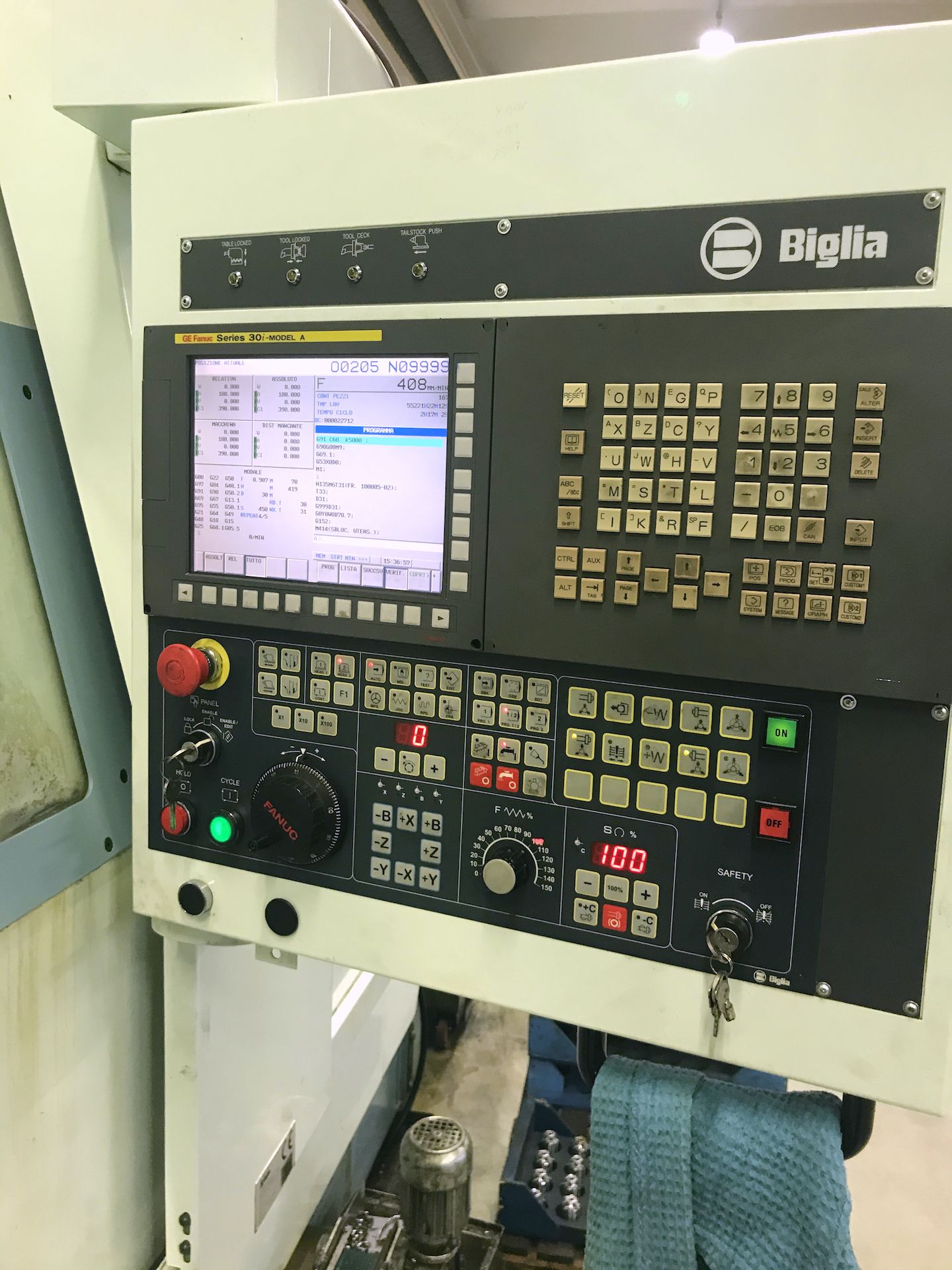

Fanuc 32i-T

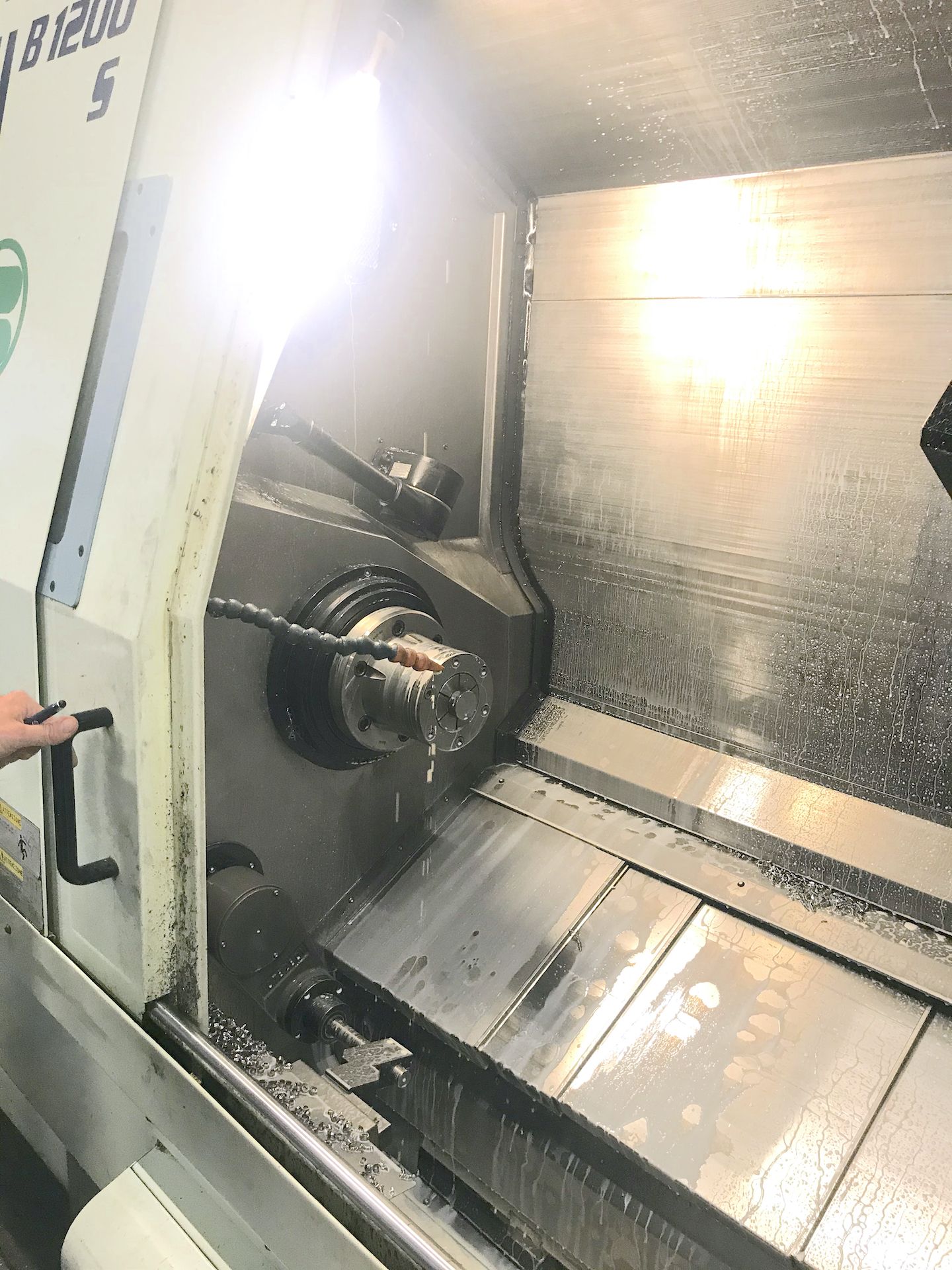

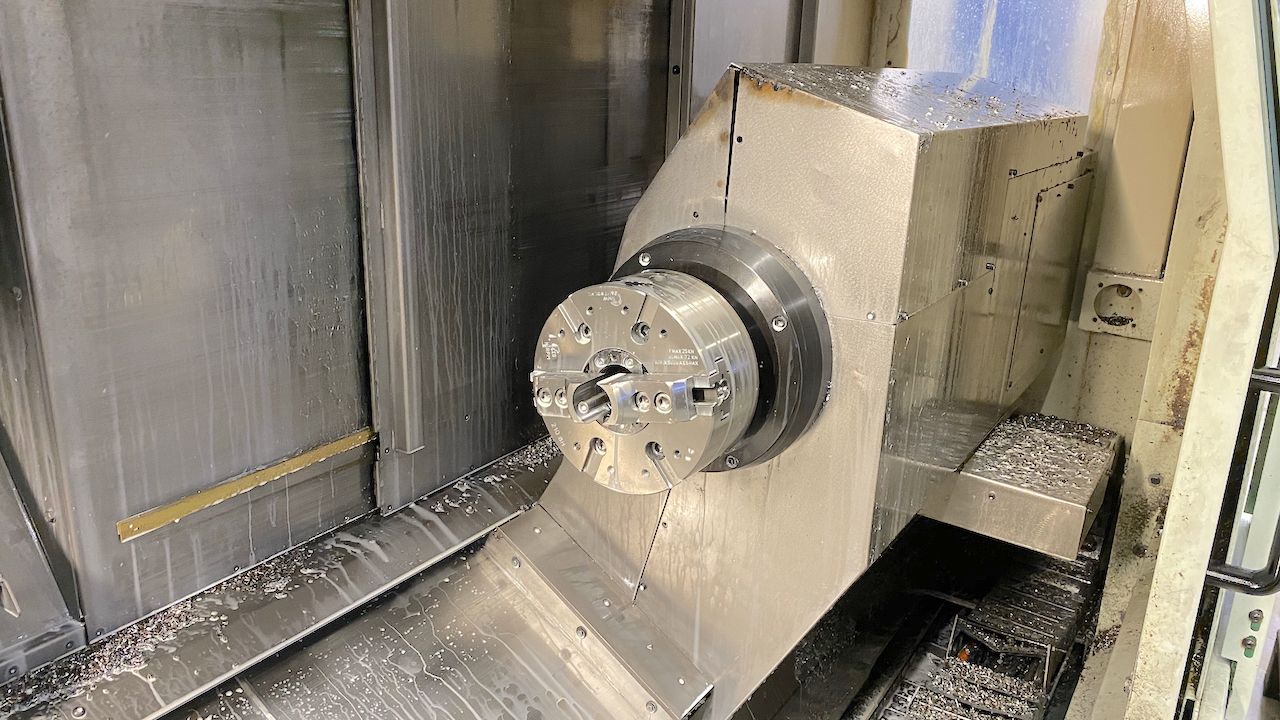

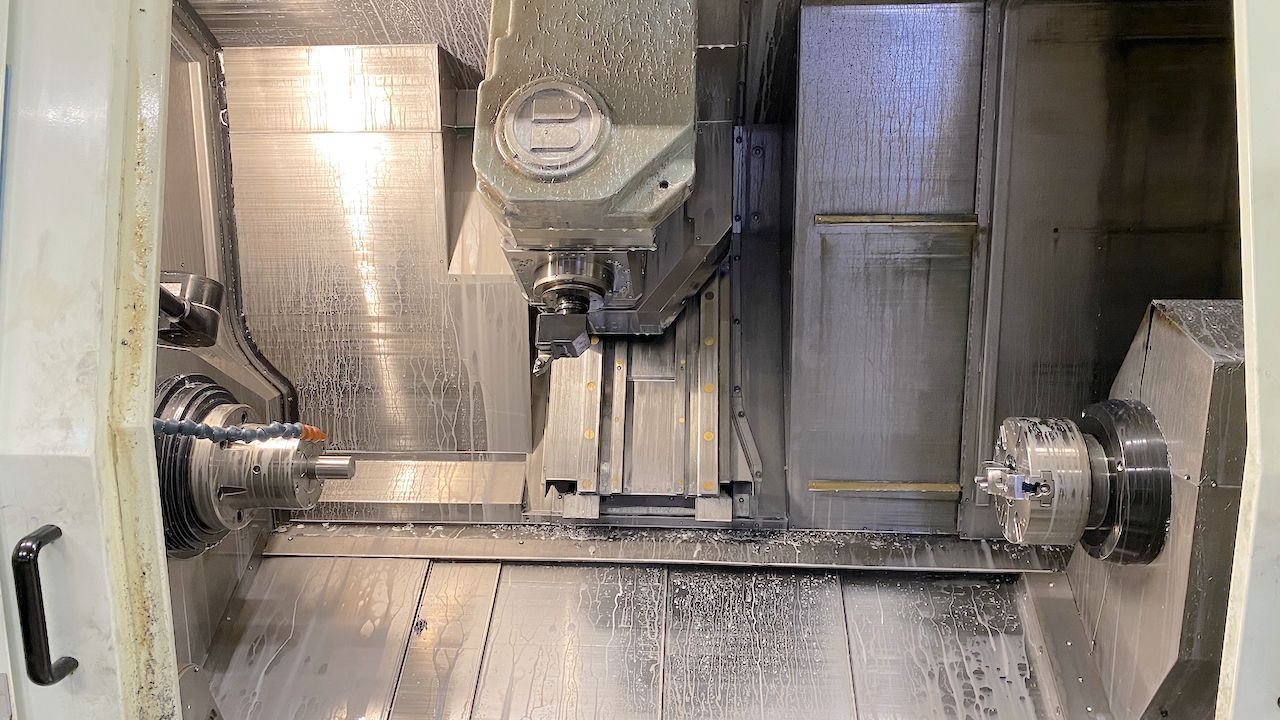

MAIN SPINDLE
Max rotation speed
3000 rpm
Spindle nose
ASA8”
Spindle hole
94 mm3,70 in
Max power
25 Kw
Max torque
795 Nm
Accuracy (C axis)
0,001 °

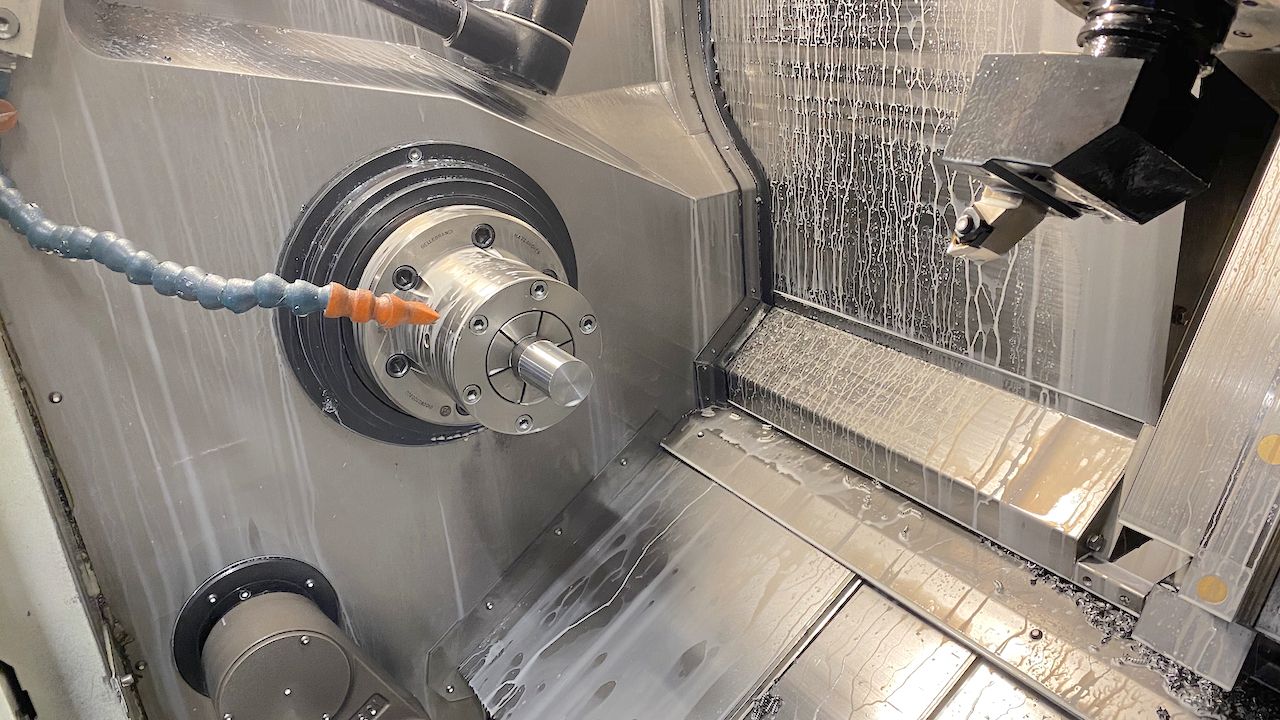

SUBSPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA6”
Spindle hole
65 mm2,56 in
Max power
24 Kw
Max torque
334 Nm
Accuracy (C axis)
0,001 °
Chuck diameter
SMW Autoblock 210 mmSMW Autoblock 8,27 in

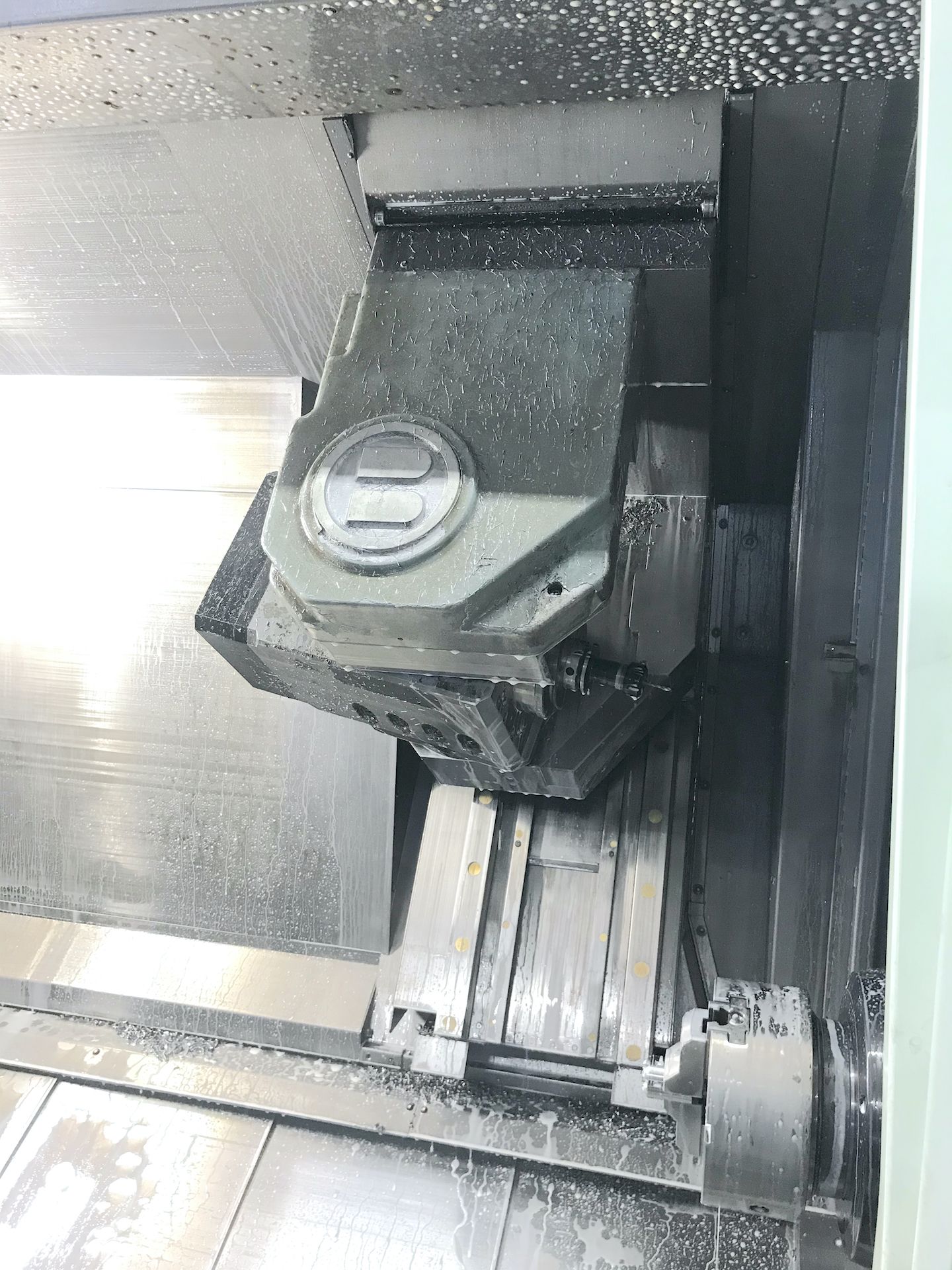

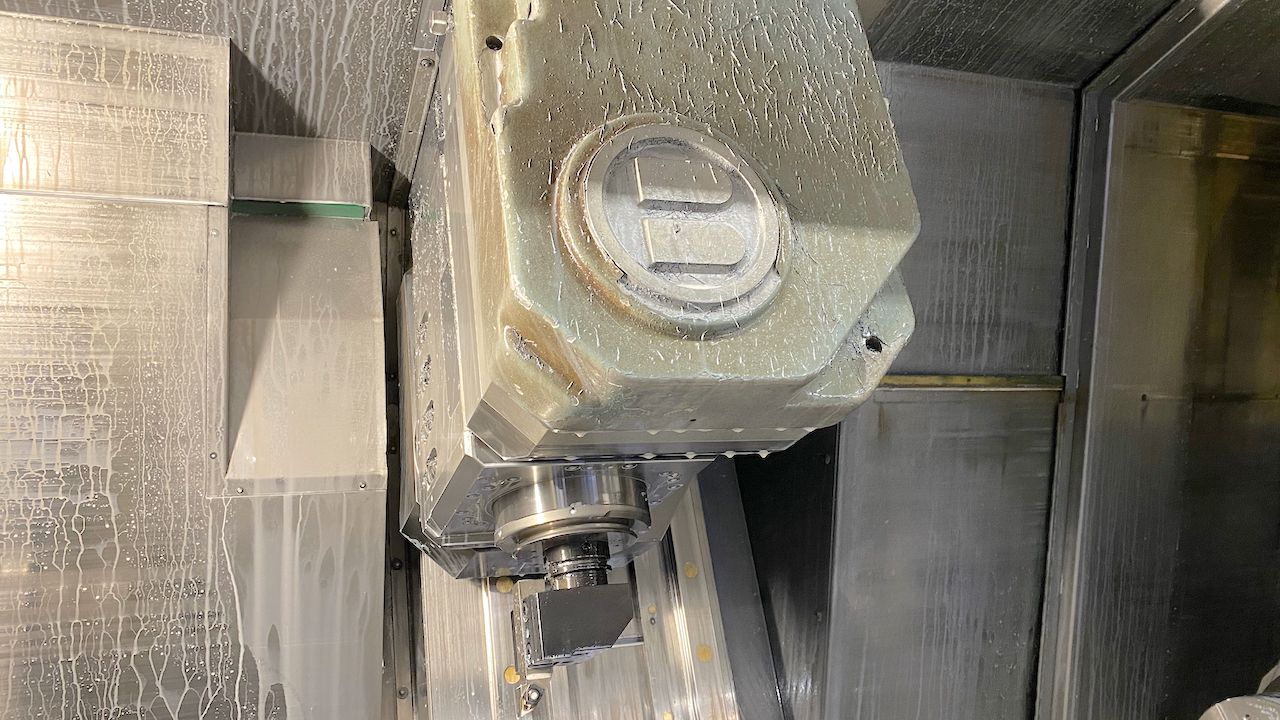

MILLING HEAD
Spindle taper
HSK63A
B axis working capacity
210 (+/-105) °
Accuracy (B axis)
0,001 °
Spindle speed
6000 rpm
Spindle power
20 Kw
Spindle torque
110 Nm
Axis stroke X
515 mm20,28 in
Axis stroke Z
1280 mm50,39 in
Axis stroke Y
210 (+120/-90) mm8,27 (+4,72/-3,54) in

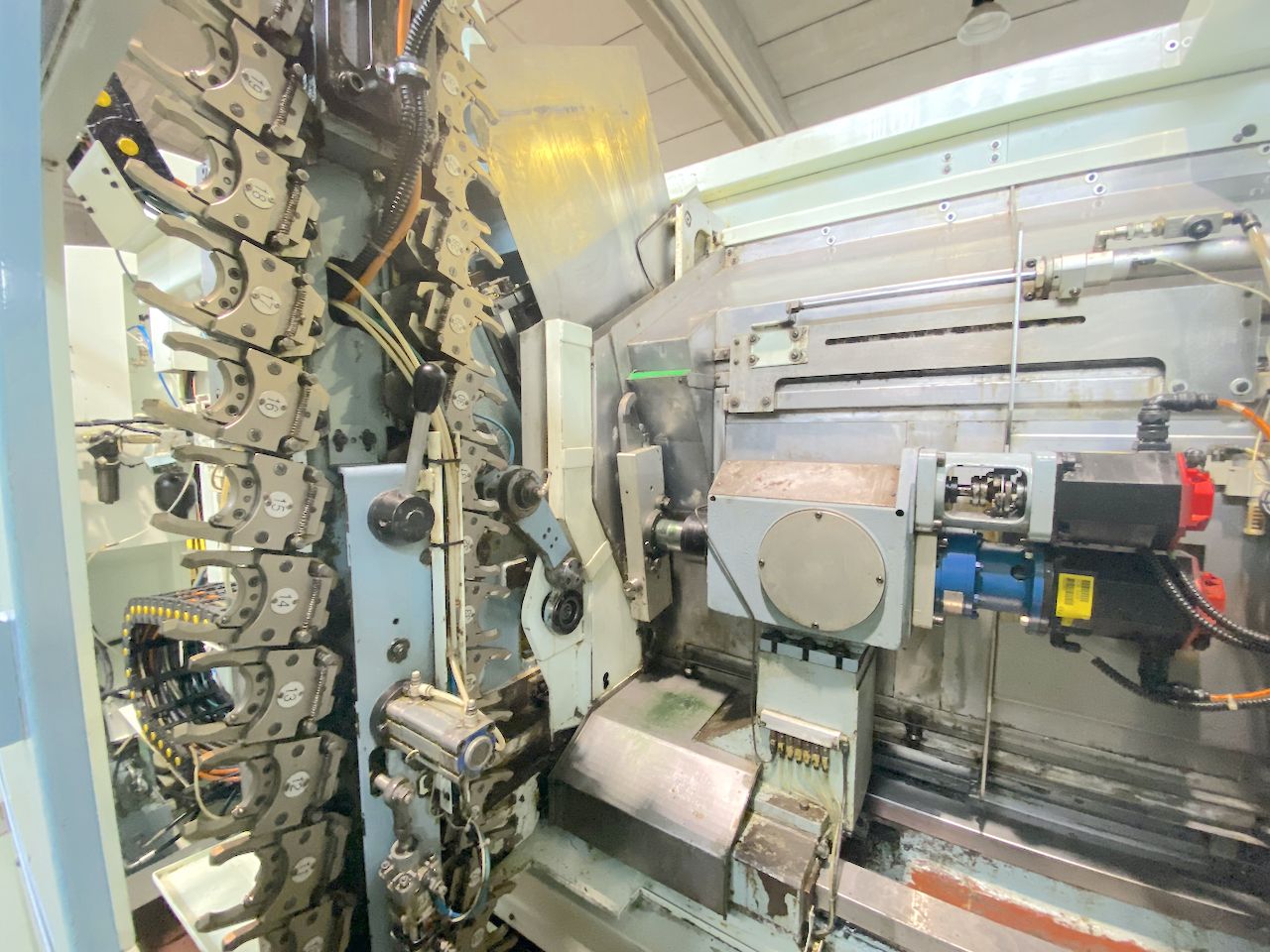

ATC
Max tool length
295 mm11,61 in
Positions
40
EXTRA
Machine total weight
9000 Kg
Floor space
5500x2300x2400 mm216,54x90,55x94,49 in

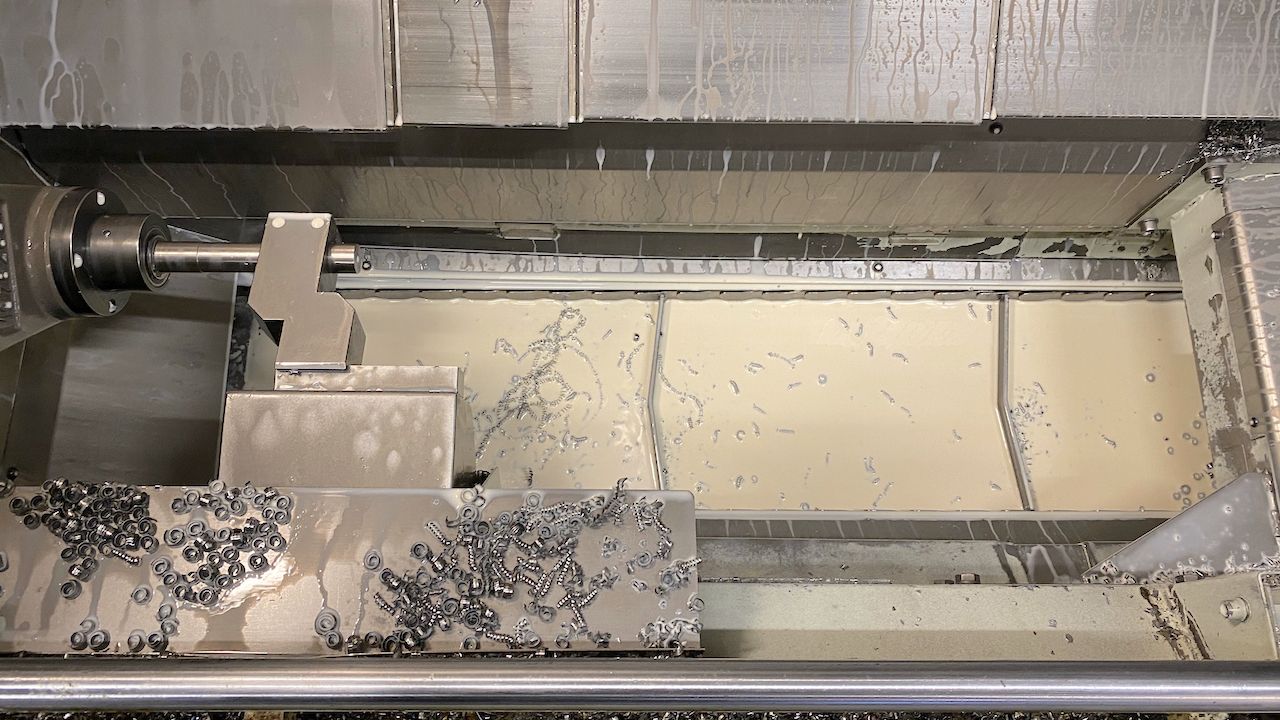

Chip conveyor
SI

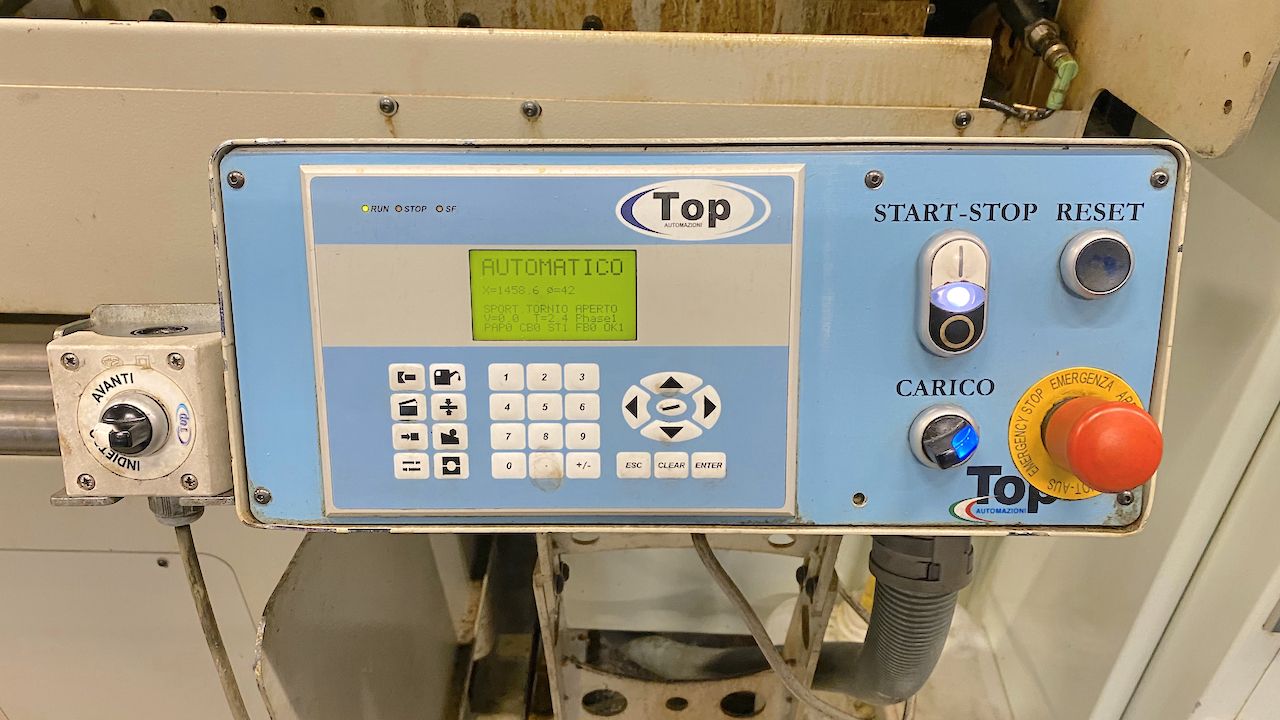

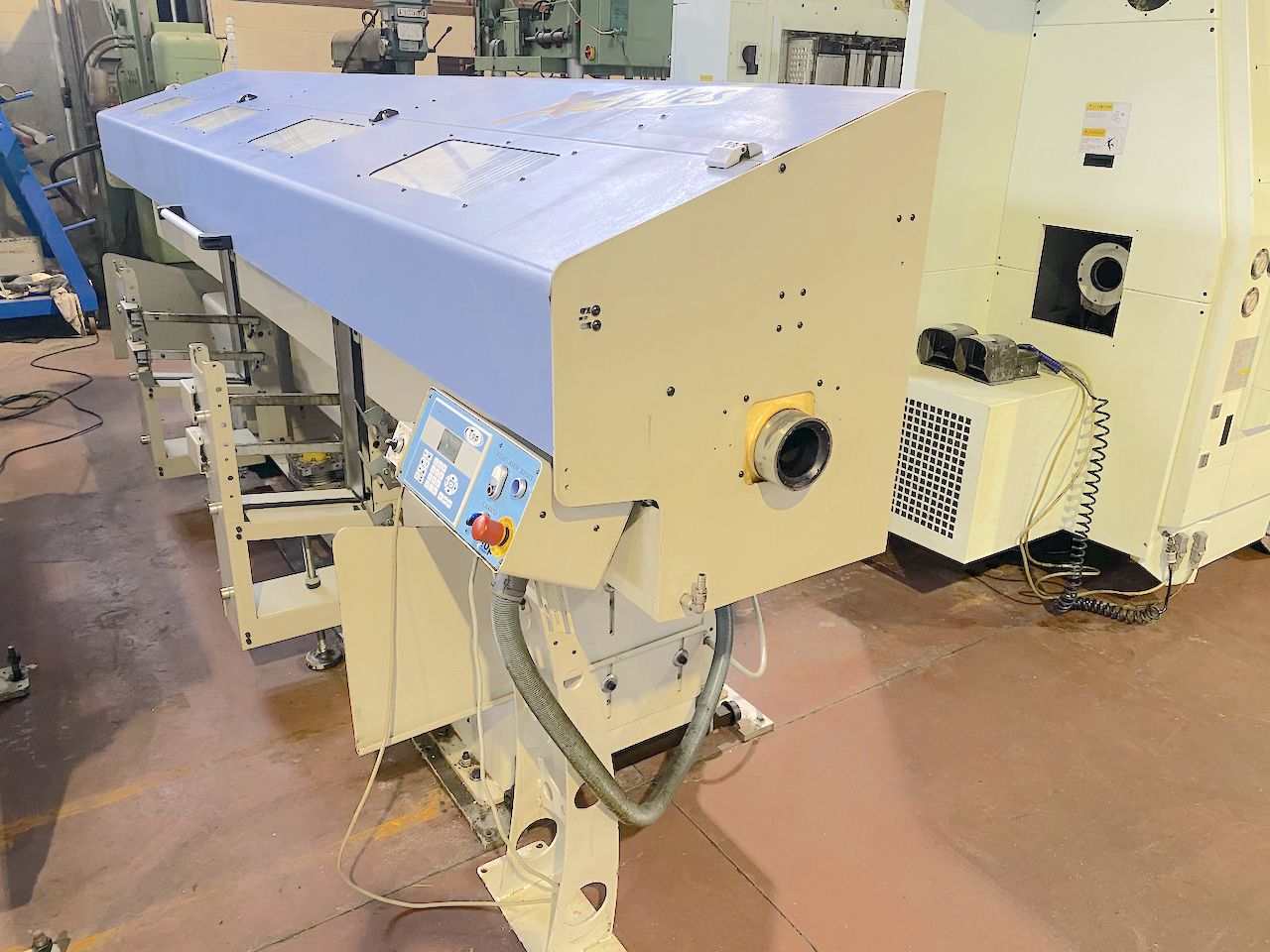

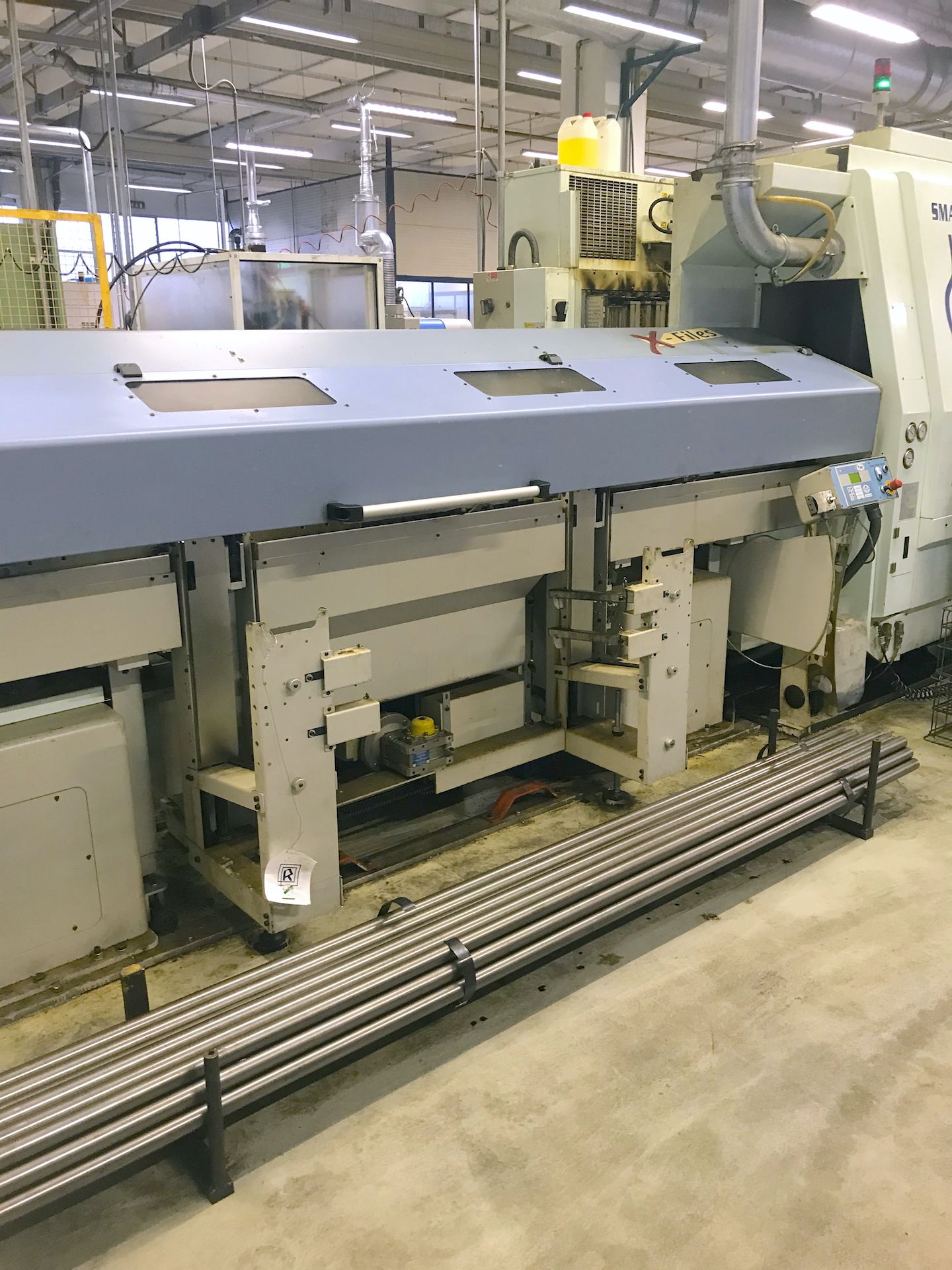

Bar feeder

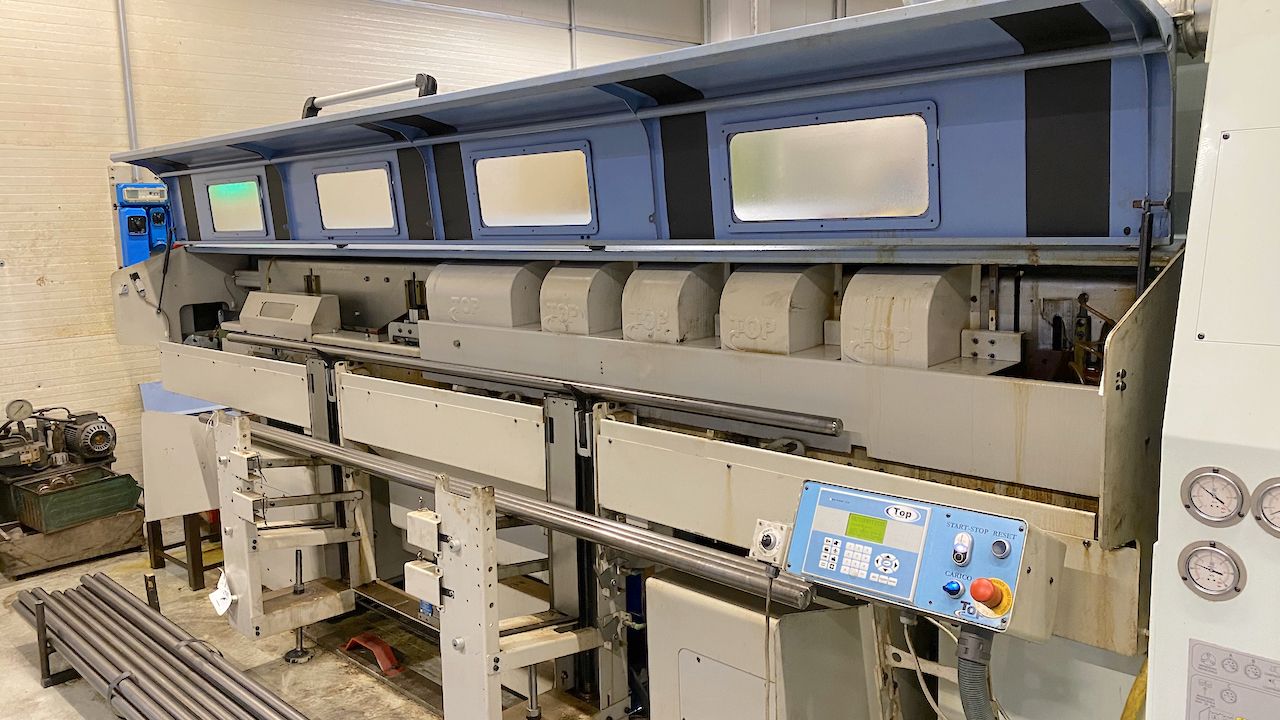

TOP AUTOMAZIONI X-Files 380
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Availability
Pronta

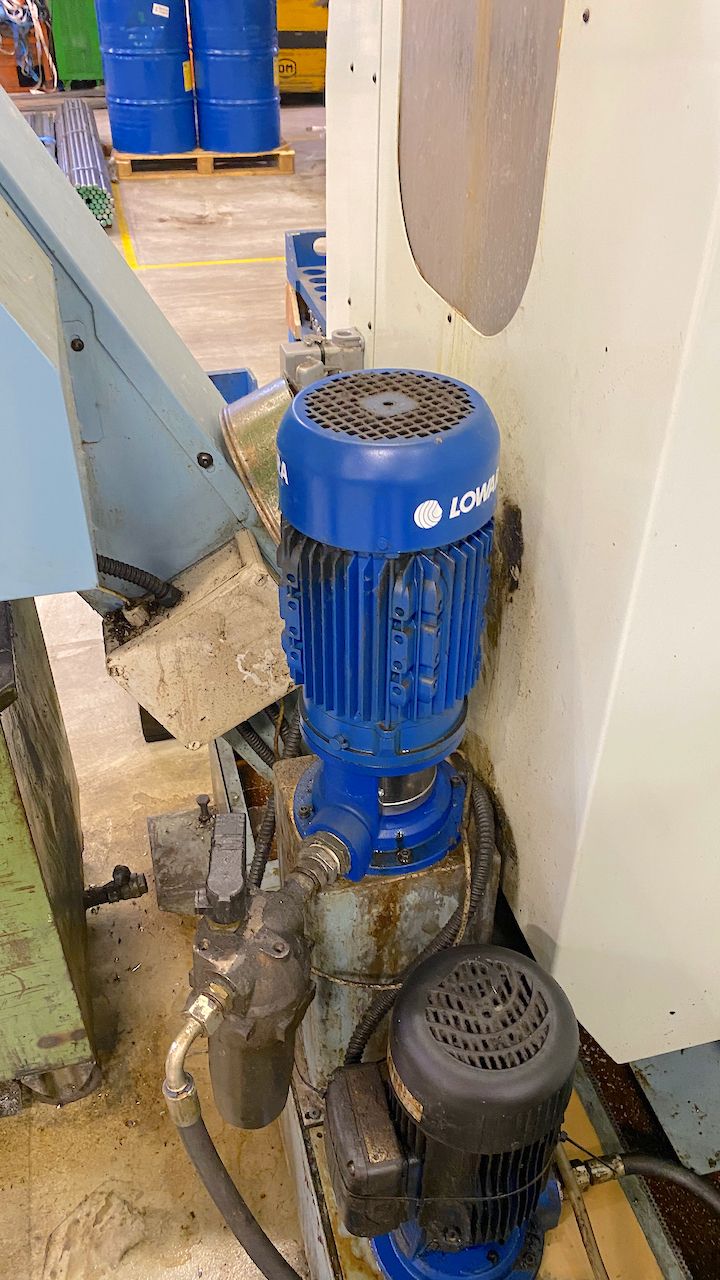

Coolant pump
Alta pressione 25Bar

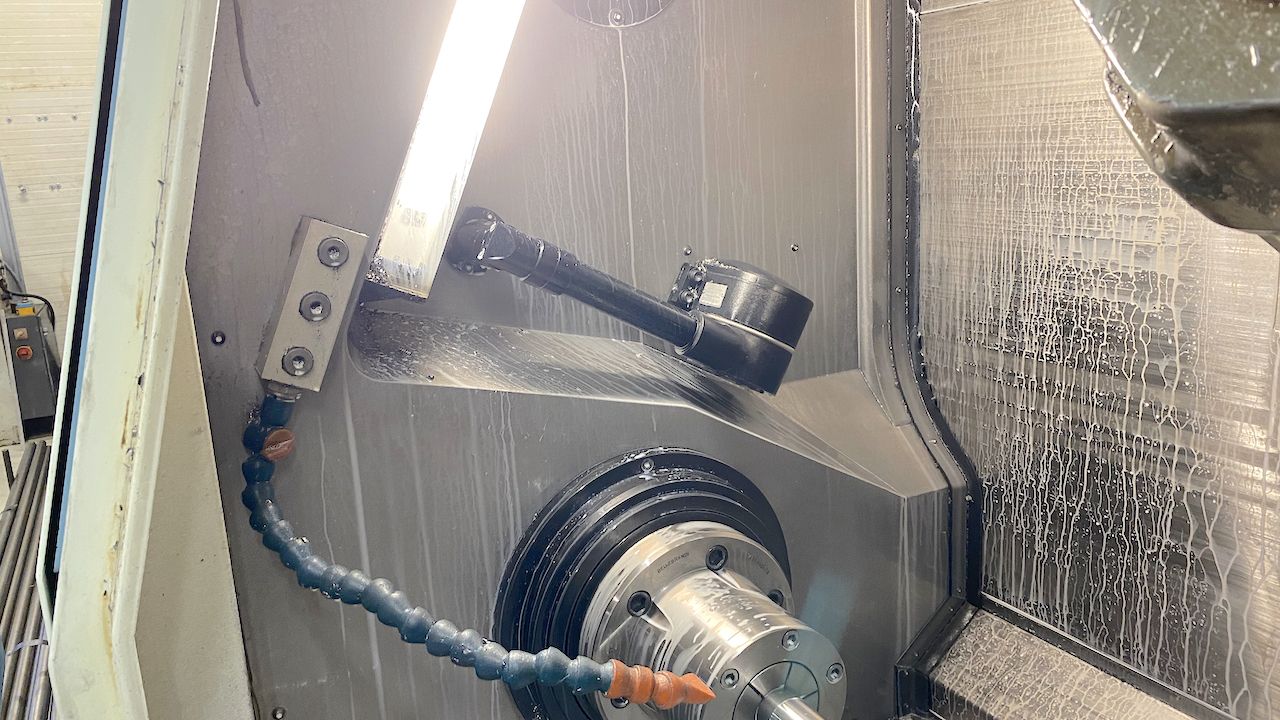

Tool presetter
si

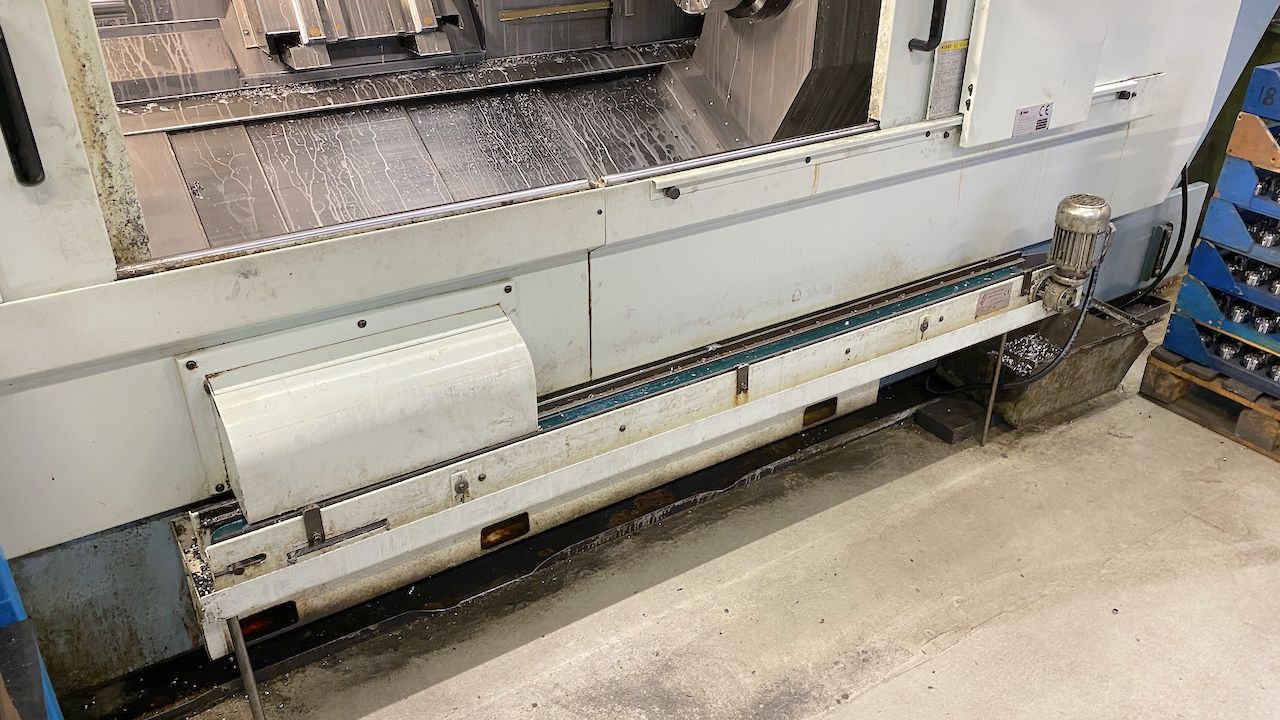

Workpieces conveyor belt
SI
Workpiece espulsion robot
SI
