Category

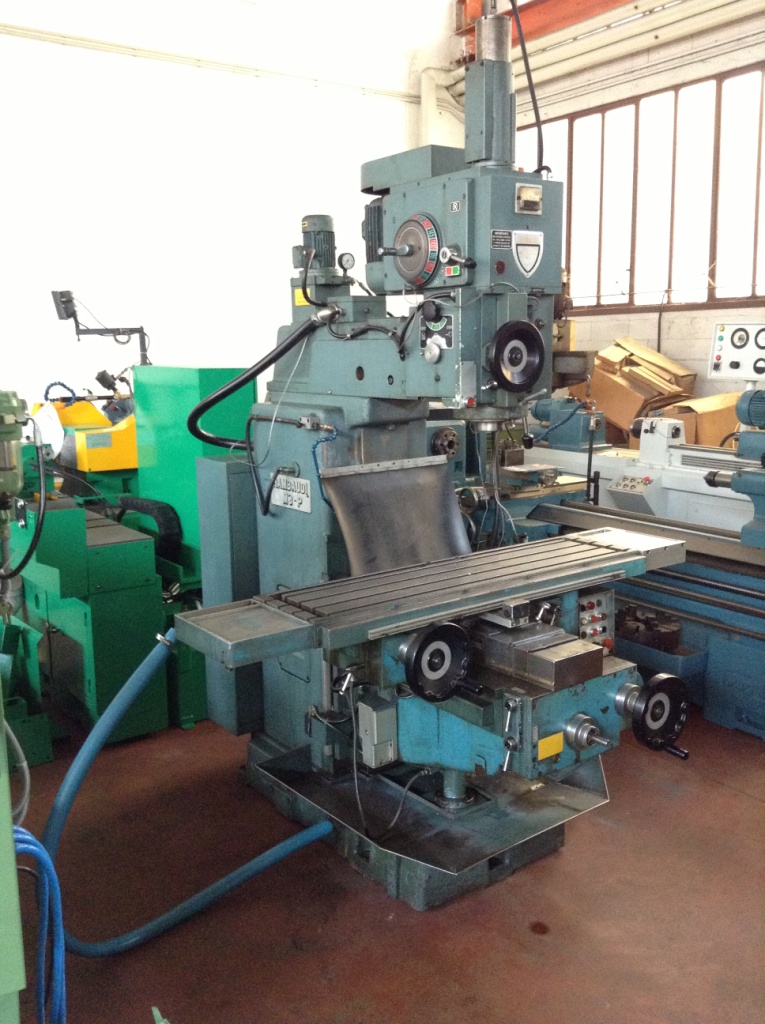

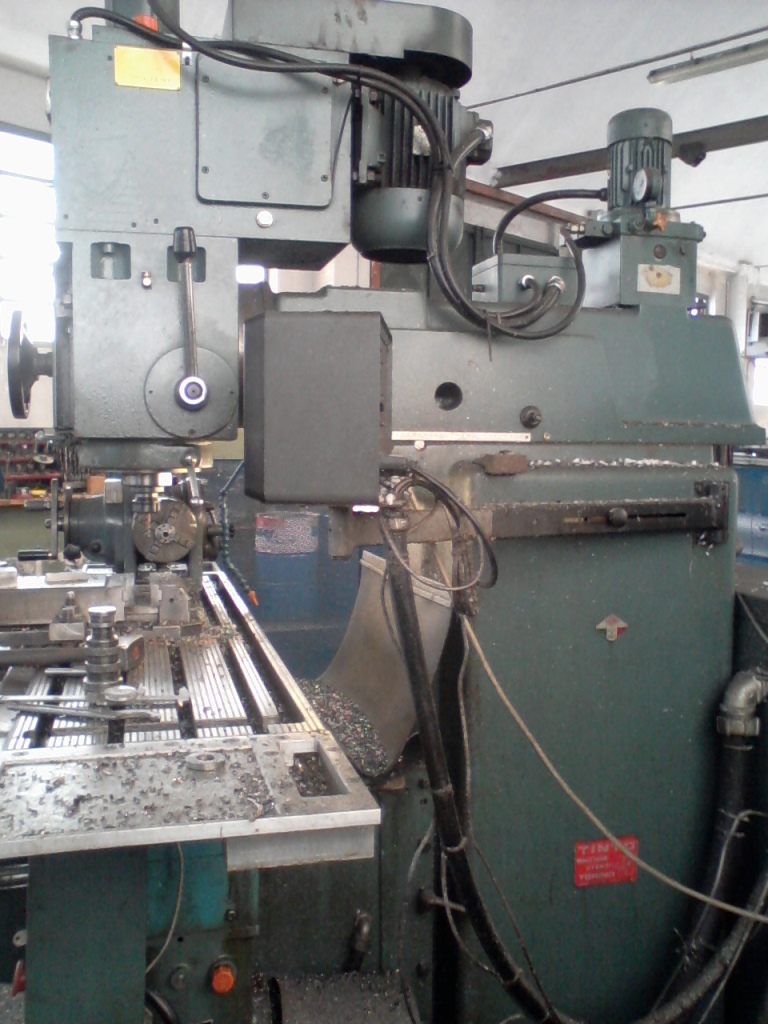

Milling machine
Type
Knee type
Made
Model
M3/P
Capacity
950x300x445 mm37,40x11,81x17,52 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
950 mm37,40 in
Vertical (Z)
445 mm17,52 in
Cross (Y)
300 mm11,81 in
Axes movement
su guide quadre
VERTICAL SPINDLE
Spindle power
5,5 Kw

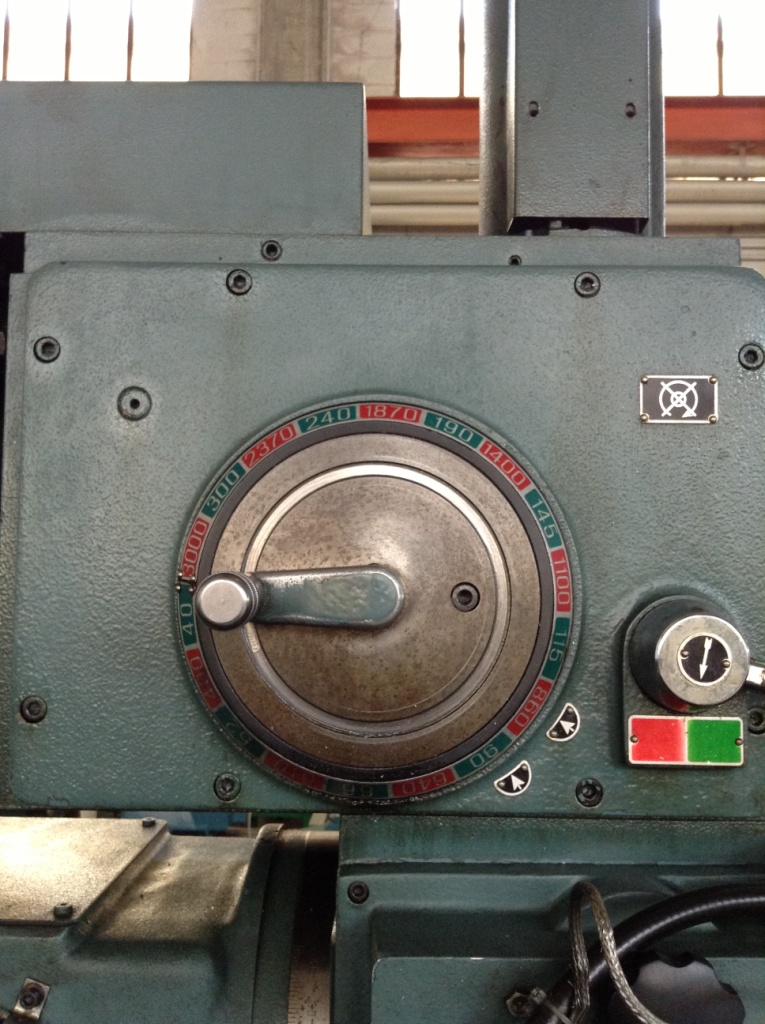

Rotating speed
40-3500 Rpm
Taper
ISO40
Transmission
meccanica
FEEDS
Rapid X
2 m/min78,74 ipm
Rapid Y
2 m/min78,74 ipm
Rapid Z
1 m/min39,37 ipm
X
0,012-0,550 m/min0,47-21,65 ipm
Y
0,012-0,550 m/min0,47-21,65 ipm
Z
0,006-0,275 m/min0,24-10,83 ipm
FIXING TABLE
Floorspace (LxWxH)
1300x300 mm51,18x11,81 in
EXTRA
Total power supply
7 Kw
Machine total weight
2440 Kg
Floor space
1820x1950x2200 mm71,65x76,77x86,61 in
Tooling included
Visualizzatore 4 assi, discesa canotto, tirante idraulico

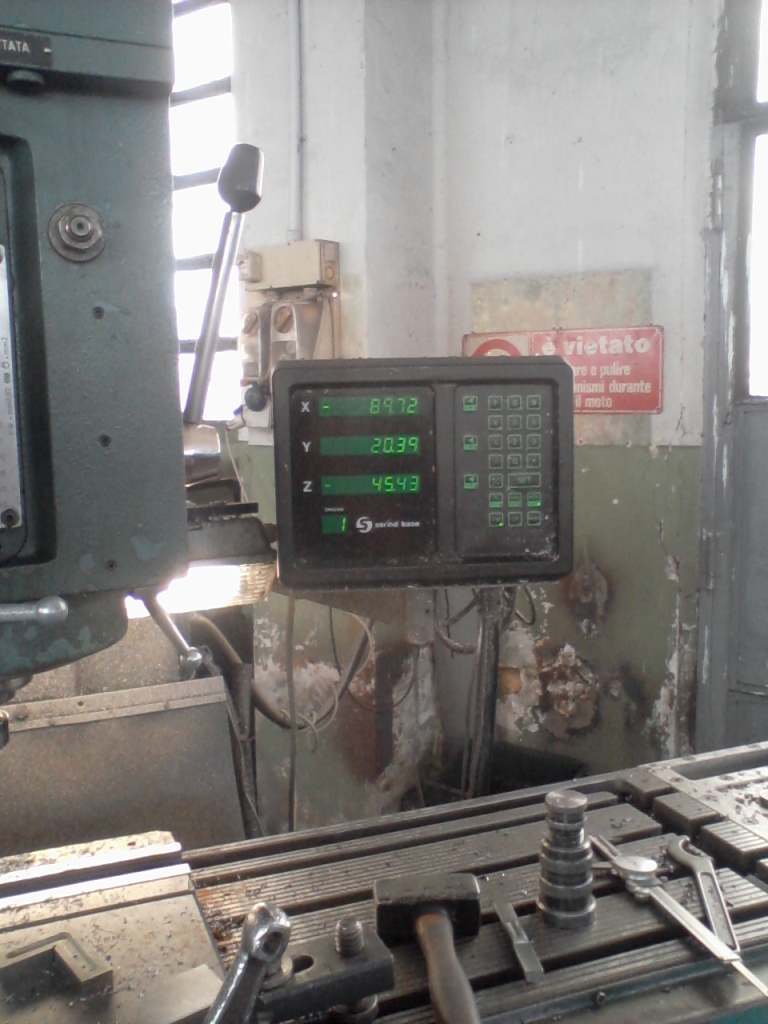

Digital read out (DRO)
4 assi
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta consegna
Available in stock
si
Available under power
si
