Category
Milling machine
Type
Knee type
Made
Model
MH 700
Capacity
700x450x500 mm27,56x17,72x19,69 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
700 mm27,56 in
Vertical (Z)
500 mm19,69 in
Cross (Y)
450 mm17,72 in
VERTICAL SPINDLE
Spindle power
8,4 Kw
Rotating speed
20-3150 Rpm
Taper
ISO40
HORIZONTAL SPINDLE
Spindle power
8,4 Kw
Rotating speed
20-3150 Rpm
Taper
ISO40
FEEDS
Rapid X
6 m/min236,22 ipm
Rapid Y
6 m/min236,22 ipm
Rapid Z
6 m/min236,22 ipm
FIXING TABLE
Floorspace (LxWxH)
900x500 mm35,43x19,69 in
Notes

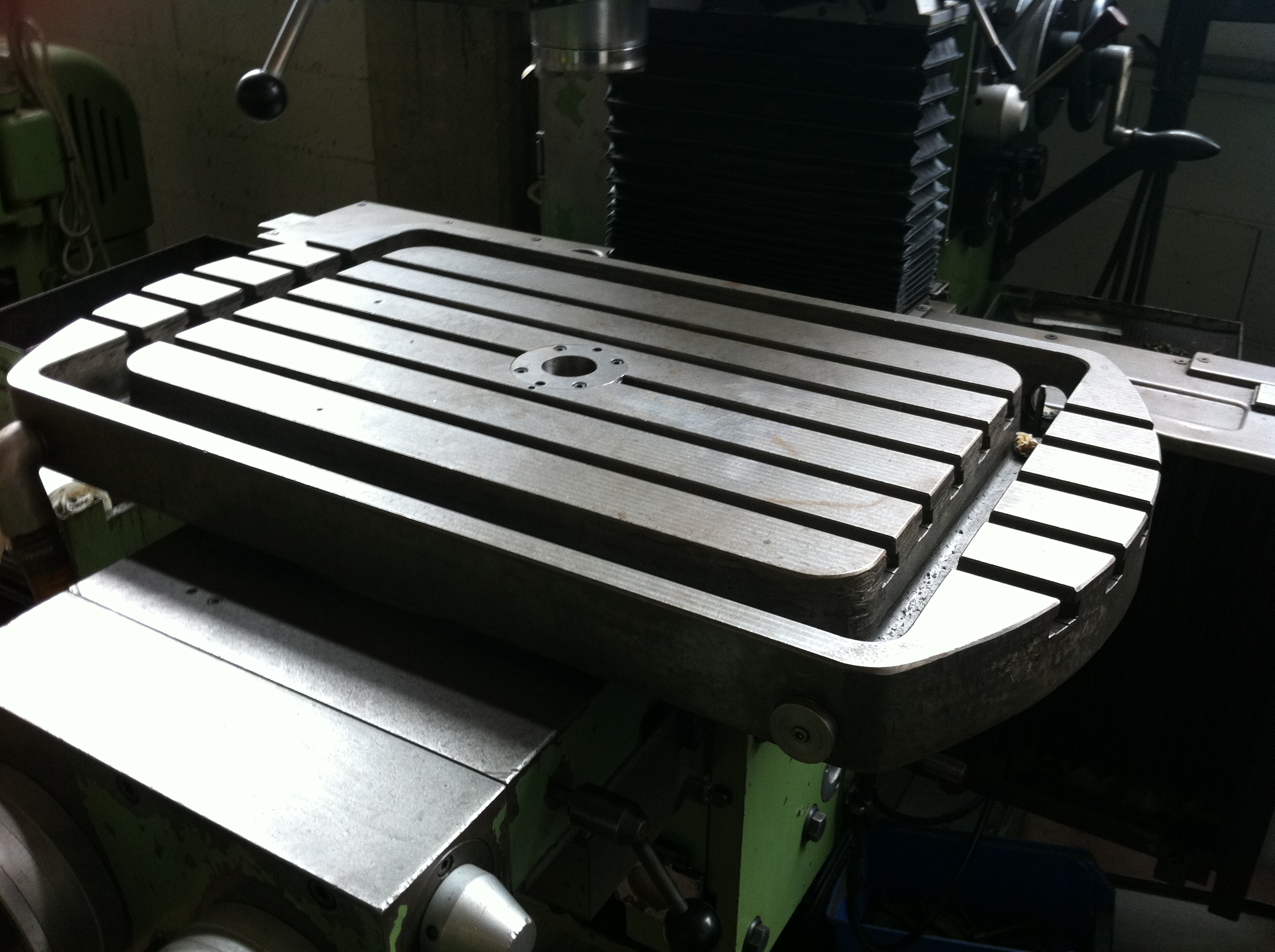

tavola rotobasculante
EXTRA
Machine total weight
3300 Kg
Available under power
si
Available in stock
si
Availability
pronta
Maintenance & Use books
Yes
Electrical drawings
Yes
Digital read out (DRO)
disponibile su richiesta
Tooling included
tavola rotobasculante Deckel
