Category
Milling machine
Type
Knee type
Model
FM2X
Capacity
900x300x500 mm35,43x11,81x19,69 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
900 mm35,43 in
Vertical (Z)
500mm + discesa automatica canotto 140 mm19,69mm + discesa automatica canotto 5,51 in
Cross (Y)
300 mm11,81 in
Notes
Slittone manuale 800mm
VERTICAL SPINDLE
Rotating speed
2800 Rpm
Taper
ISO40
HORIZONTAL SPINDLE
Taper
ISO50
Spindle power
4 Kw

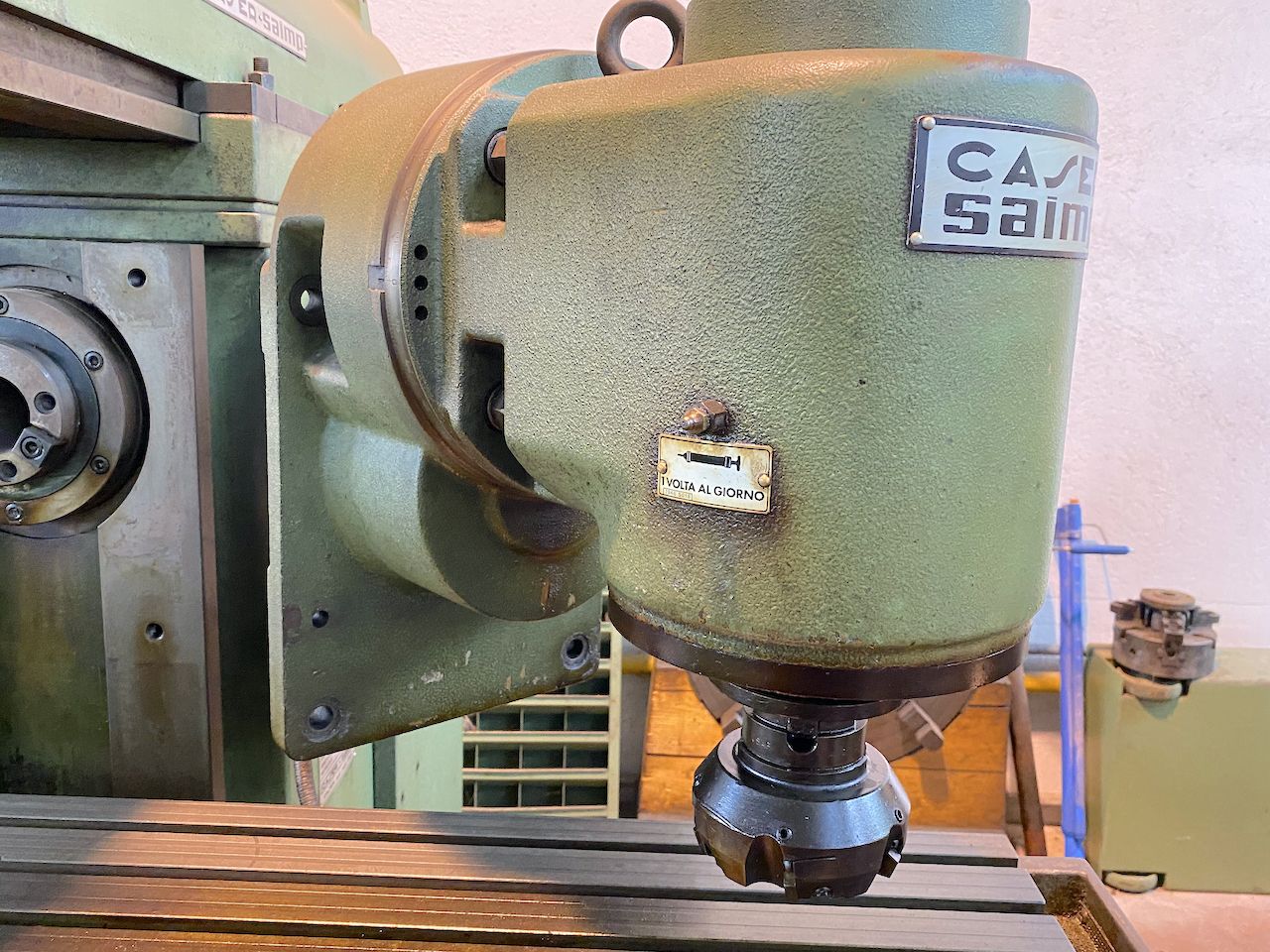

HEAD 1
Type
TV1
Spindle taper
ISO40
Max speed
2800 Rpm
Max power
1,5 Kw
Notes
cambio 2 velocità
HEAD 2
Available upon request
No
Max speed
1700 Rpm
TABLE 1
Diameter
1600x300 mm62,99x11,81 in
EXTRA
Available in stock
si
Available under power
si
Floor space
2300x1700 mm90,55x66,93 in
Machine total weight
≈3000 Kg
