Category
Milling machine
Type
Knee type
Made
Model
F20
Capacity
900x300x400 mm35,43x11,81x15,75 in

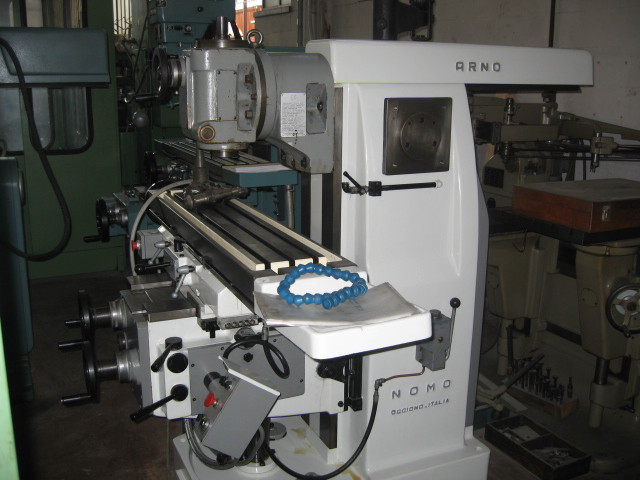

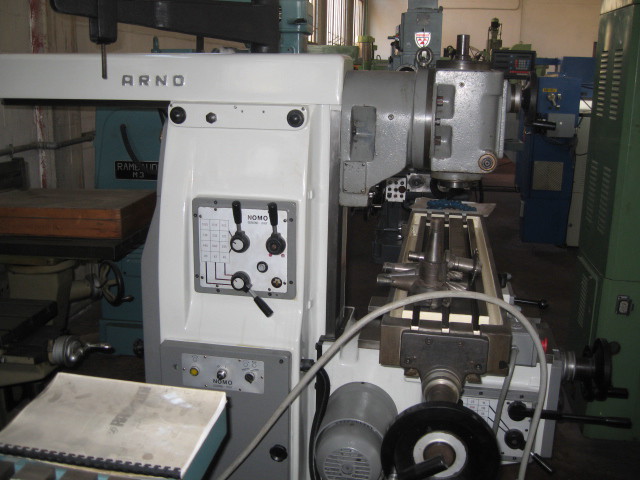

ARNO F20
All the machines are available subject to prior sale

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
900 mm35,43 in
Vertical (Z)
400 mm15,75 in
Cross (Y)
300 mm11,81 in
VERTICAL SPINDLE
Spindle power
5 Kw
Taper
ISO40
Gearbox
12 velocità
Rotating speed
40-1700 Rpm
FEEDS
Rapid X
2,7 m/min106,30 ipm
Rapid Y
2,7 m/min106,30 ipm
Rapid Z
1,1 m/min43,31 ipm
FIXING TABLE
Floorspace (LxWxH)
1250x270 mm49,21x10,63 in
T slots number
4
EXTRA
Relevant updates made on the machine
macchina ricondizionata
Total power supply
5,5 Kw
Machine total weight
2200 Kg
Floor space
2900x1500x1680 mm114,17x59,06x66,14 in
