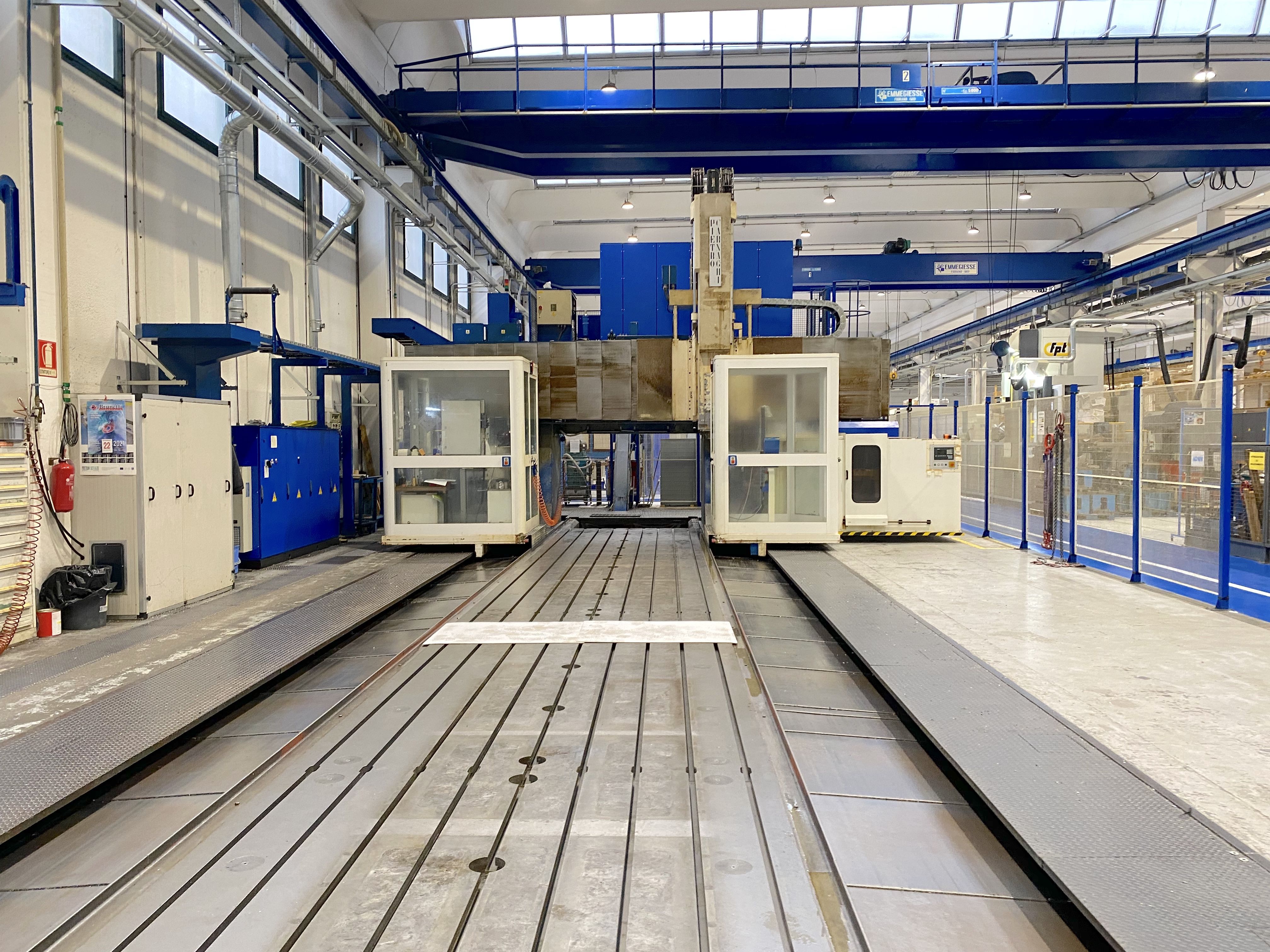

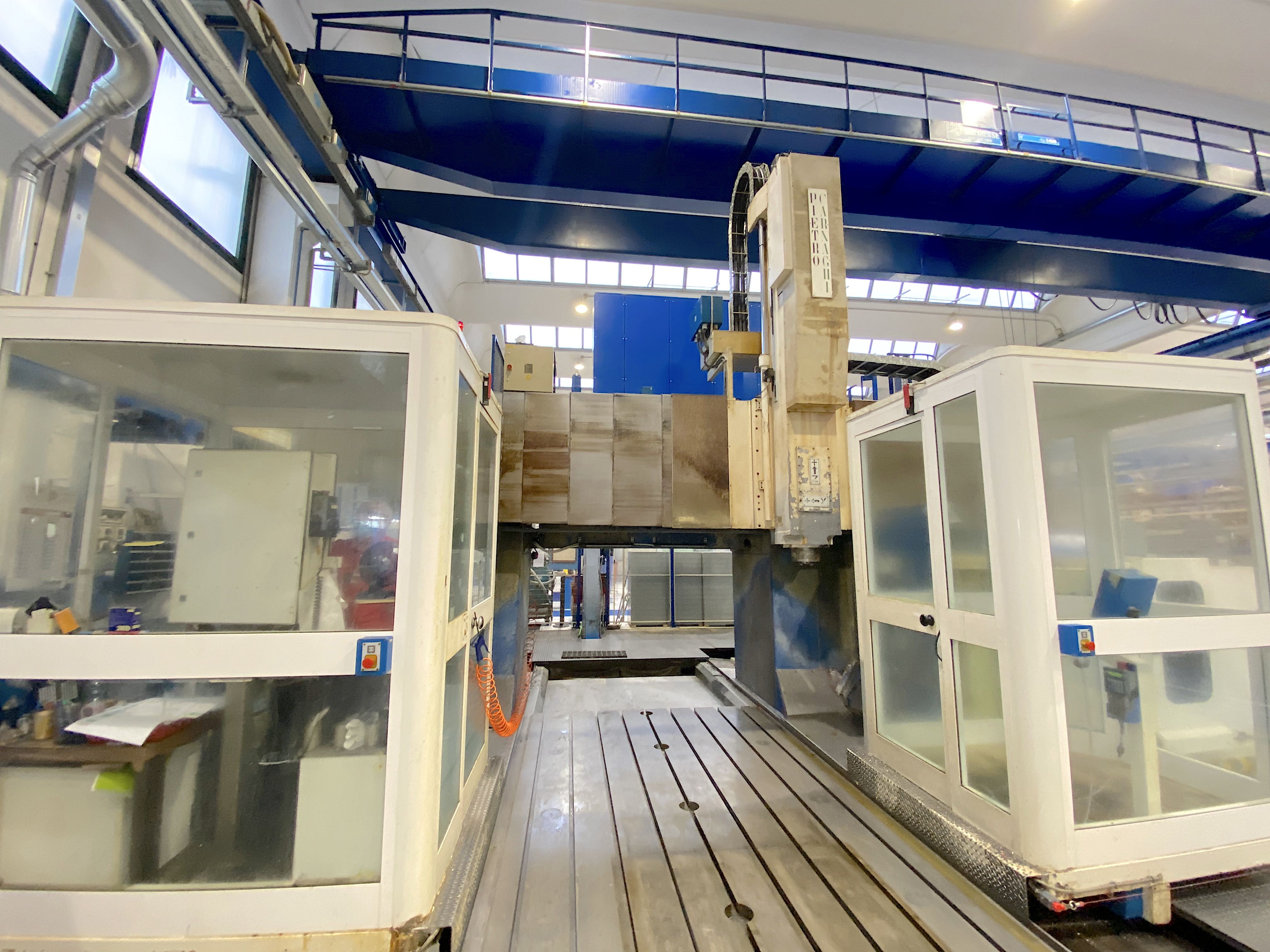

Category
Milling machine
Type

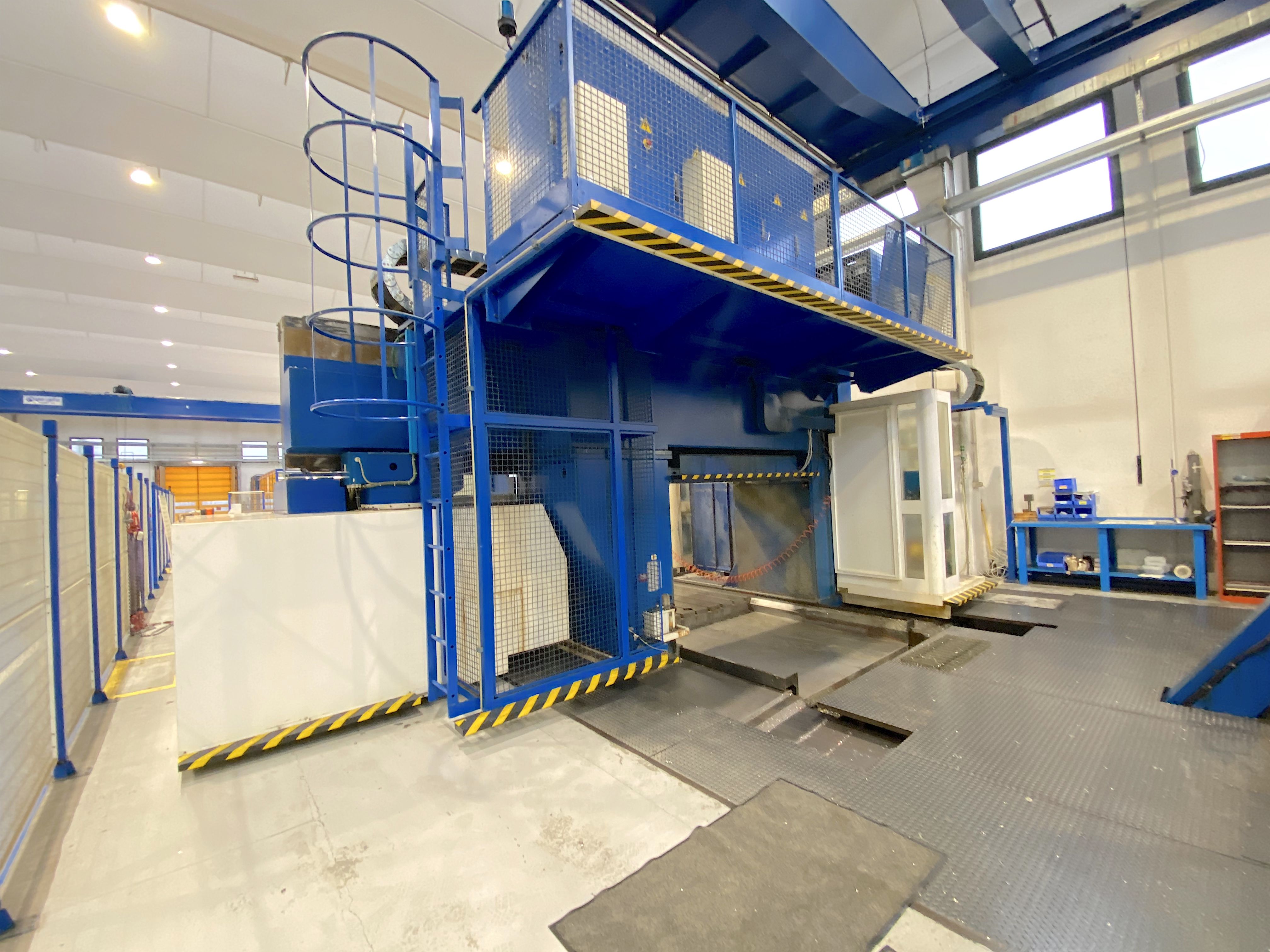

Gantry
Made
Model
UNIMILL 25
Capacity
16000x2500x1625 mm629,92x98,43x63,98 in
Technical specifications
Metric
Imperial

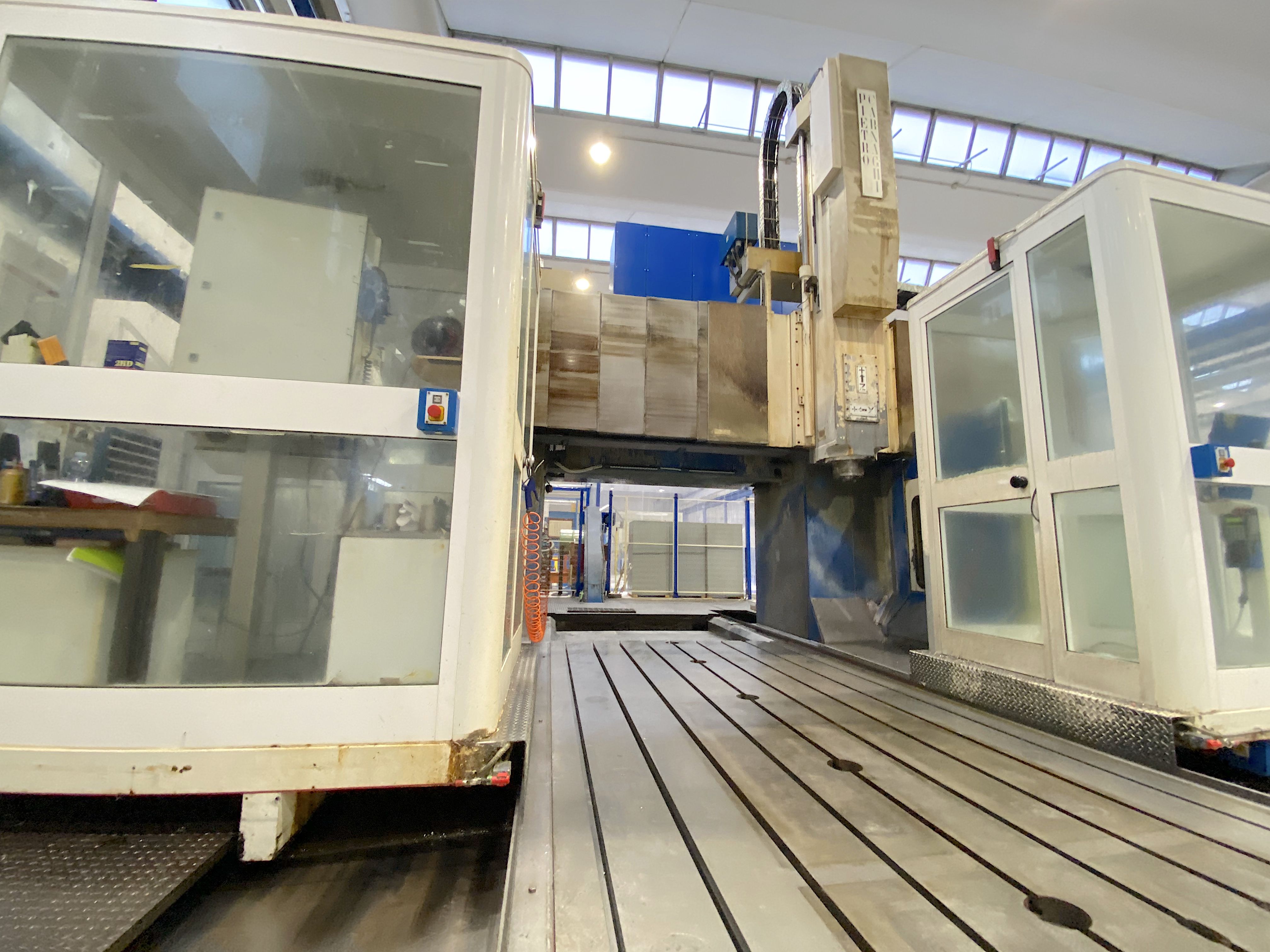

WORKING CAPACITY
Longitudinal (X)
16000 mm629,92 in
Vertical RAM (Y)
1250 mm49,21 in
Cross Crossrail (Z)
3500 mm137,80 in
Column distance
2500 mm98,43 in
Spindle nose - table distance
375-1625 mm14,76-63,98 in
HEAD 3
Available upon request
No
C axis
144x2,5 °
Max torque
1900 Nm
Max speed
3000 Rpm
Max power
35 Kw

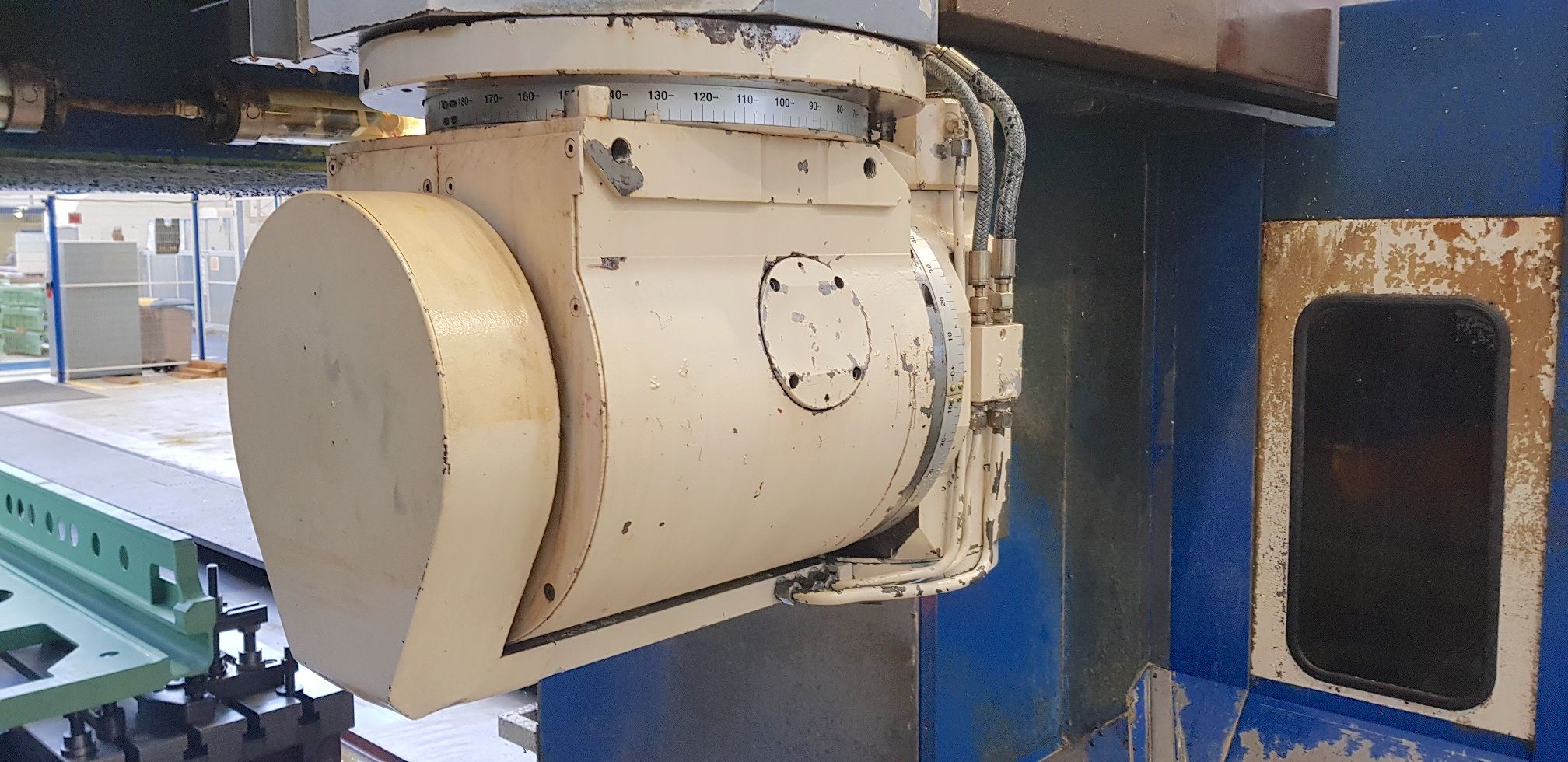

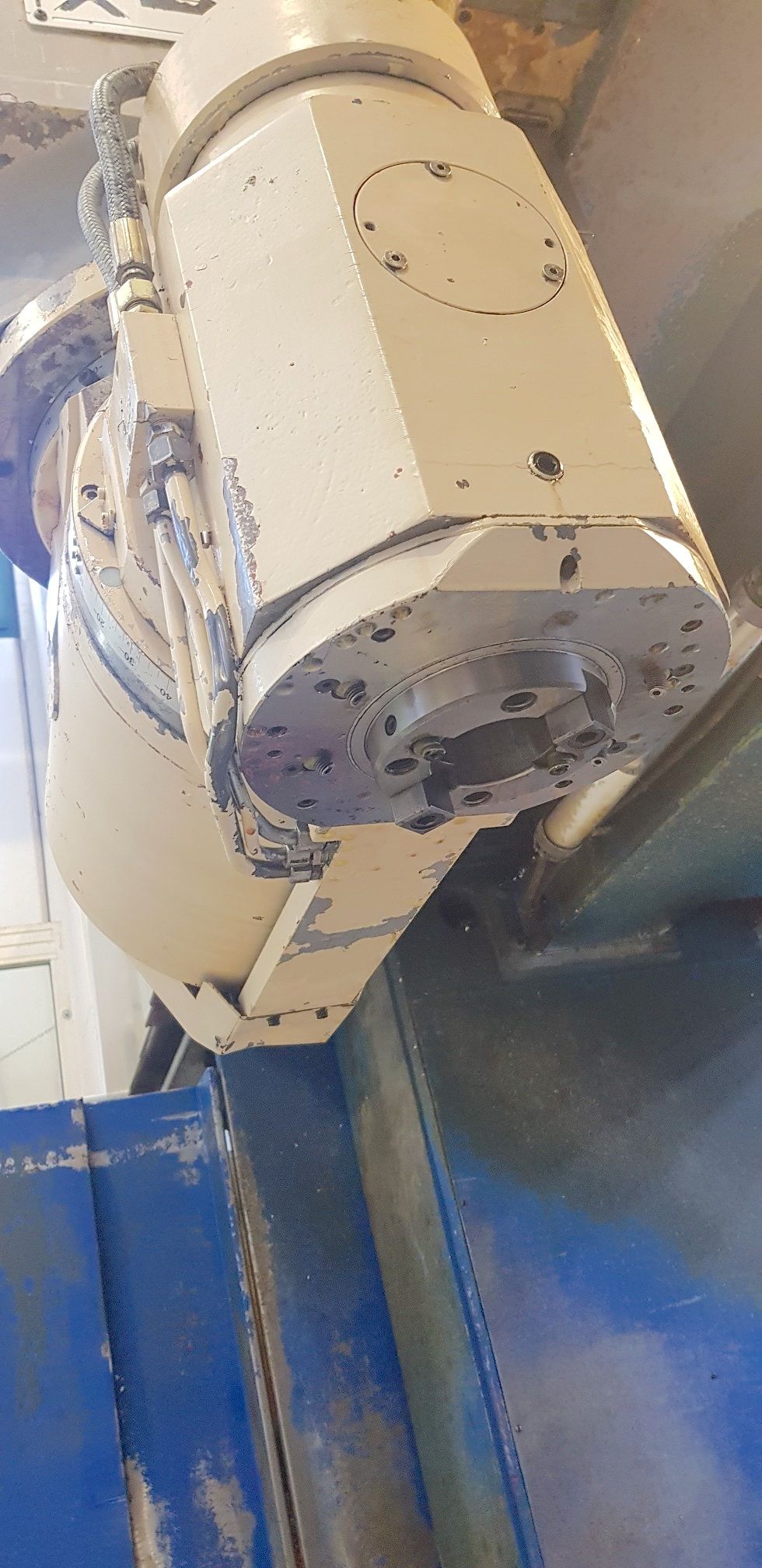

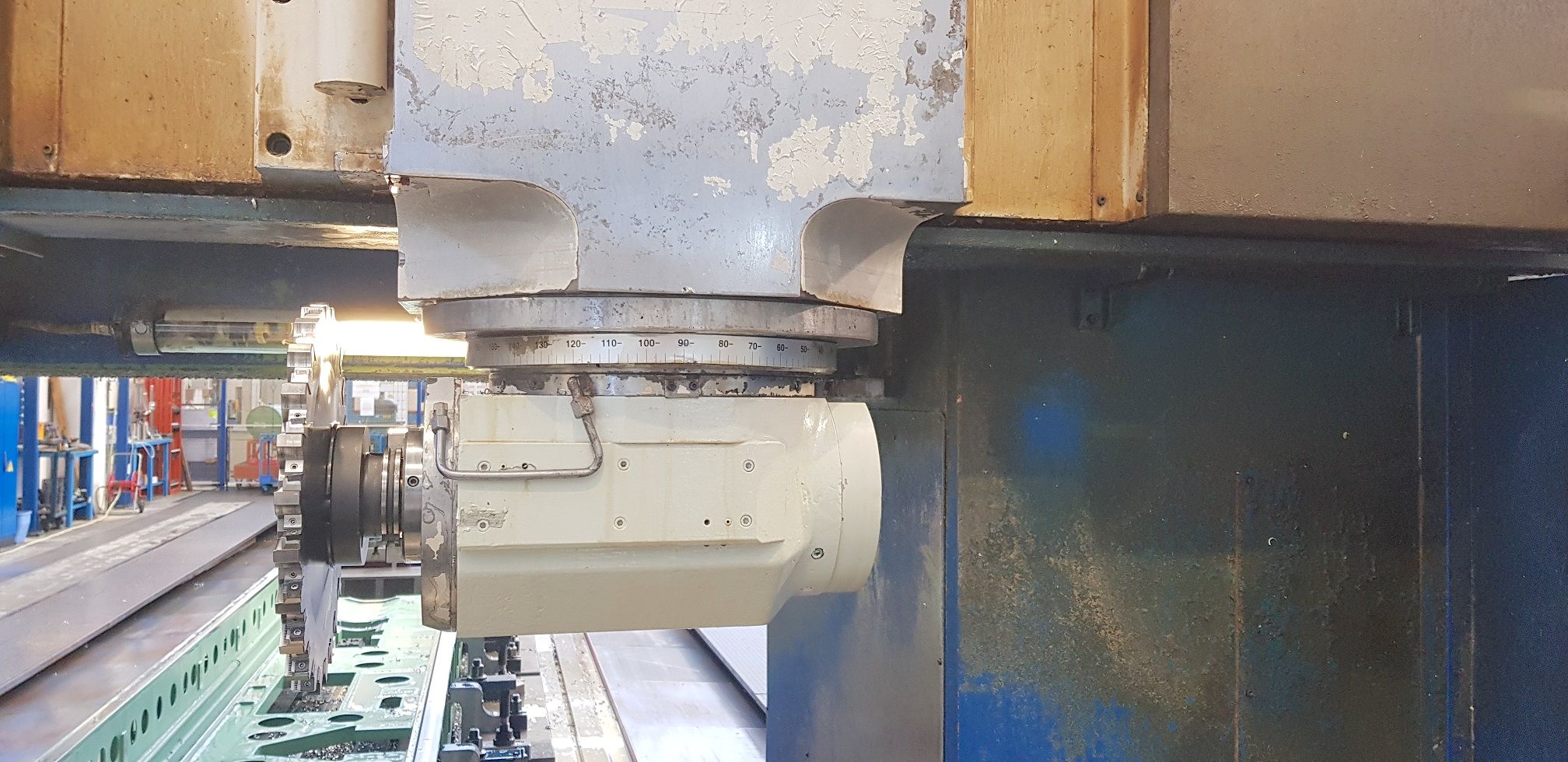

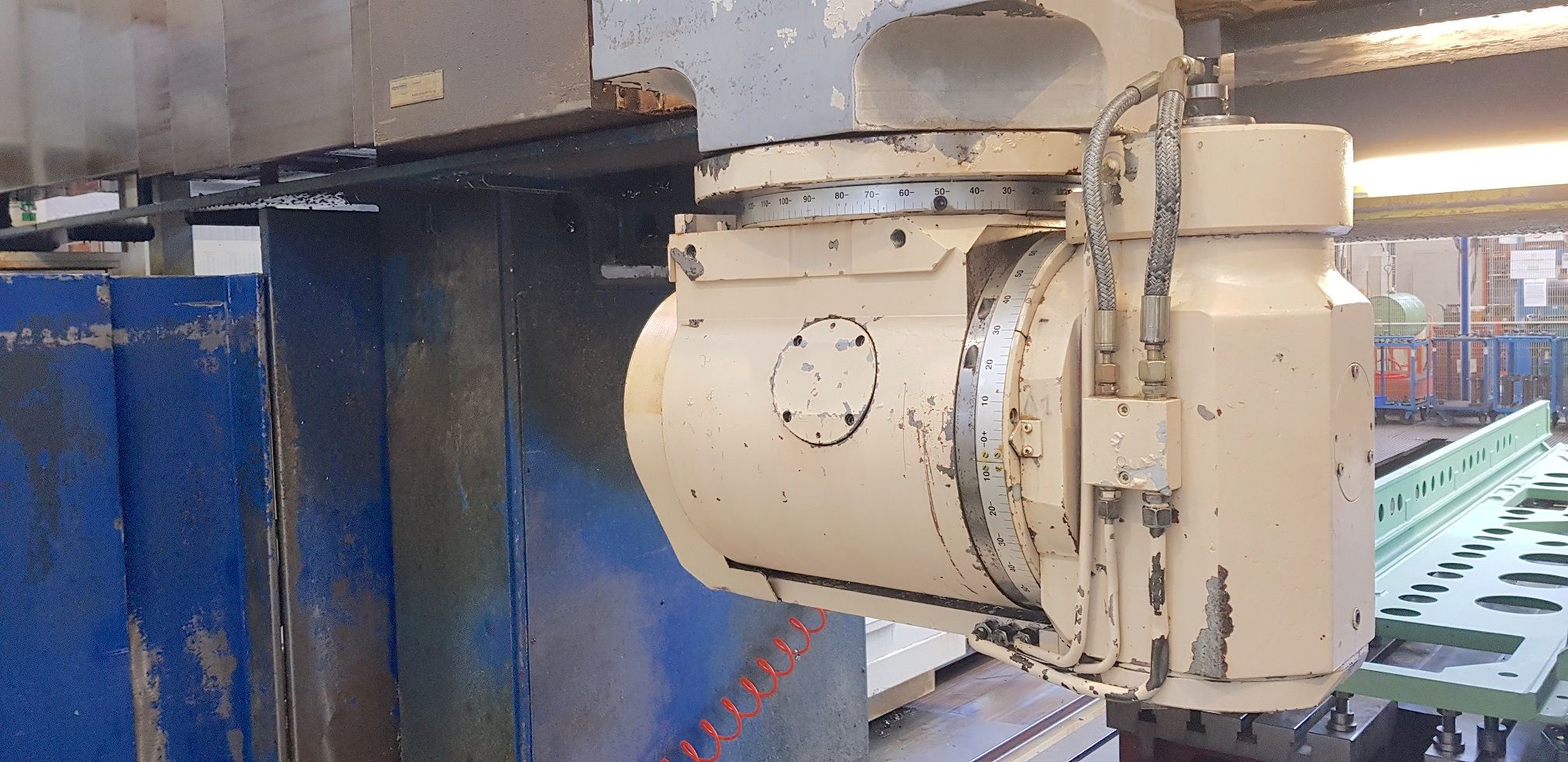

HEAD 2
Available upon request
No
A axis
(+/-100°) indexaggio 2,5 °
C axis
144x2,5 °
Max torque
1910 Nm
Max speed
3000 Rpm
Max power
35 Kw

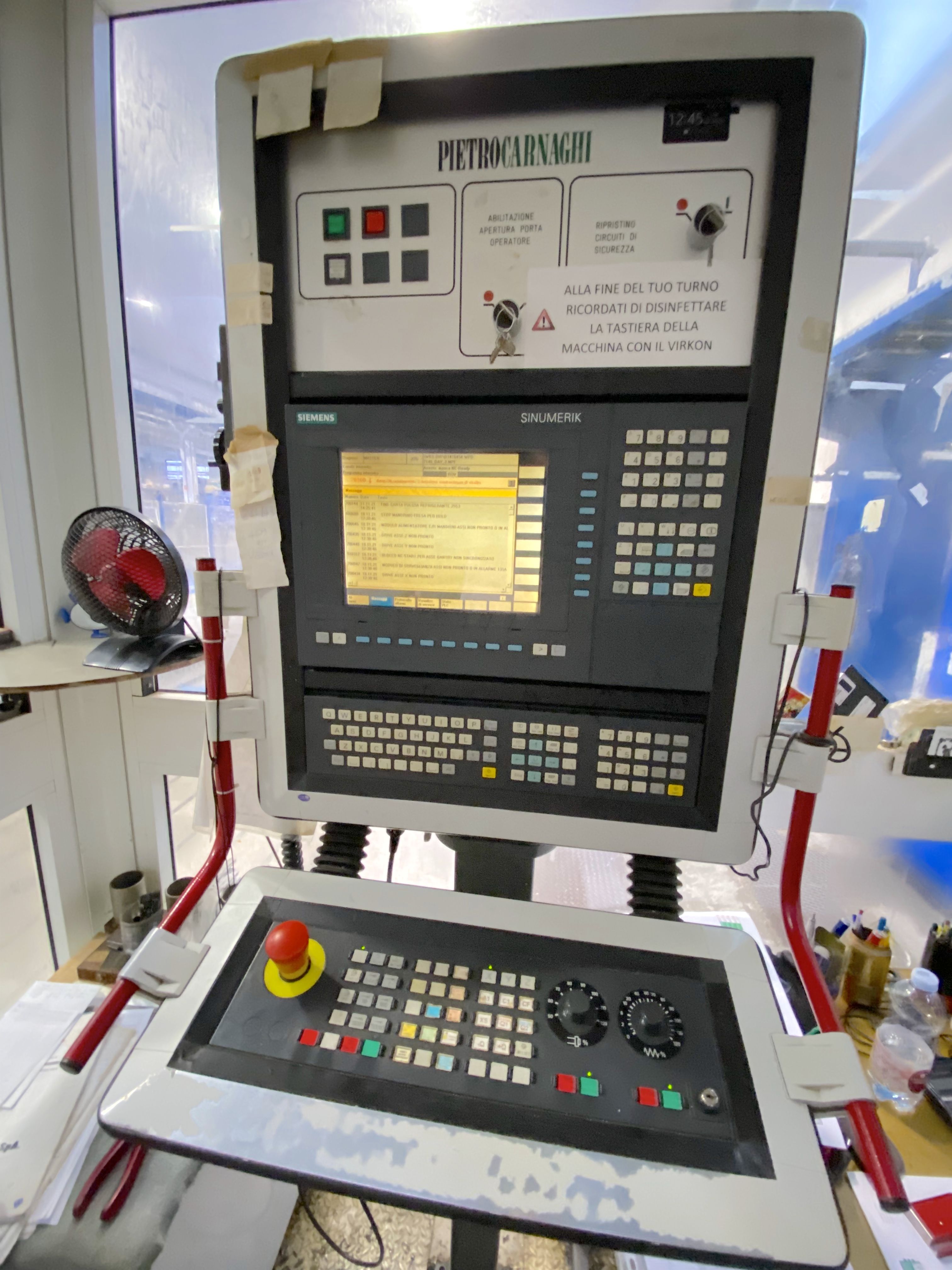

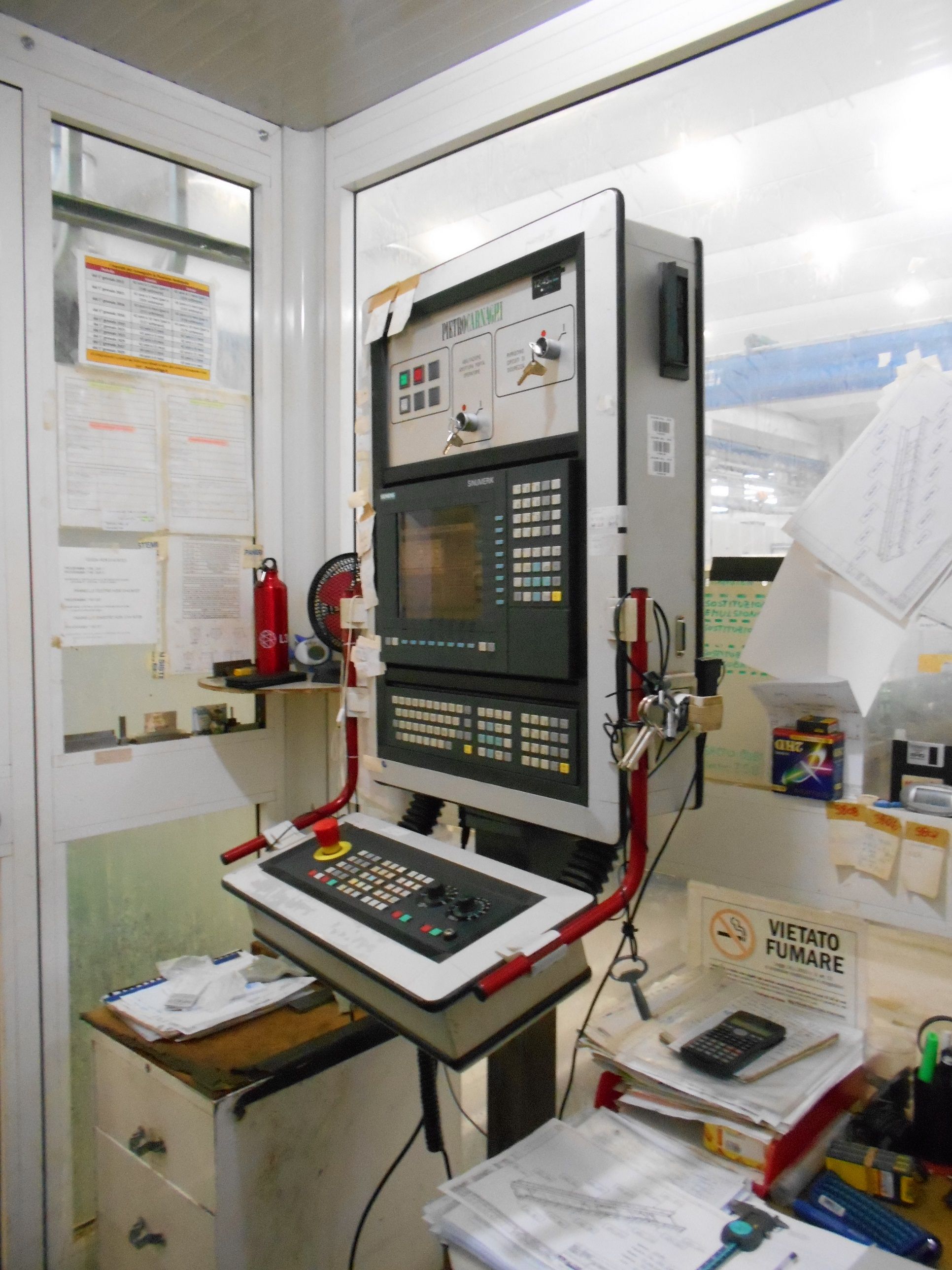

CNC
CNC
SIEMENS 840 D
SPINDLE
Spindle power
35 Kw
Rotating speed
3000 Rpm
Torque
1910 Nm
Taper
ISO50 DI69871

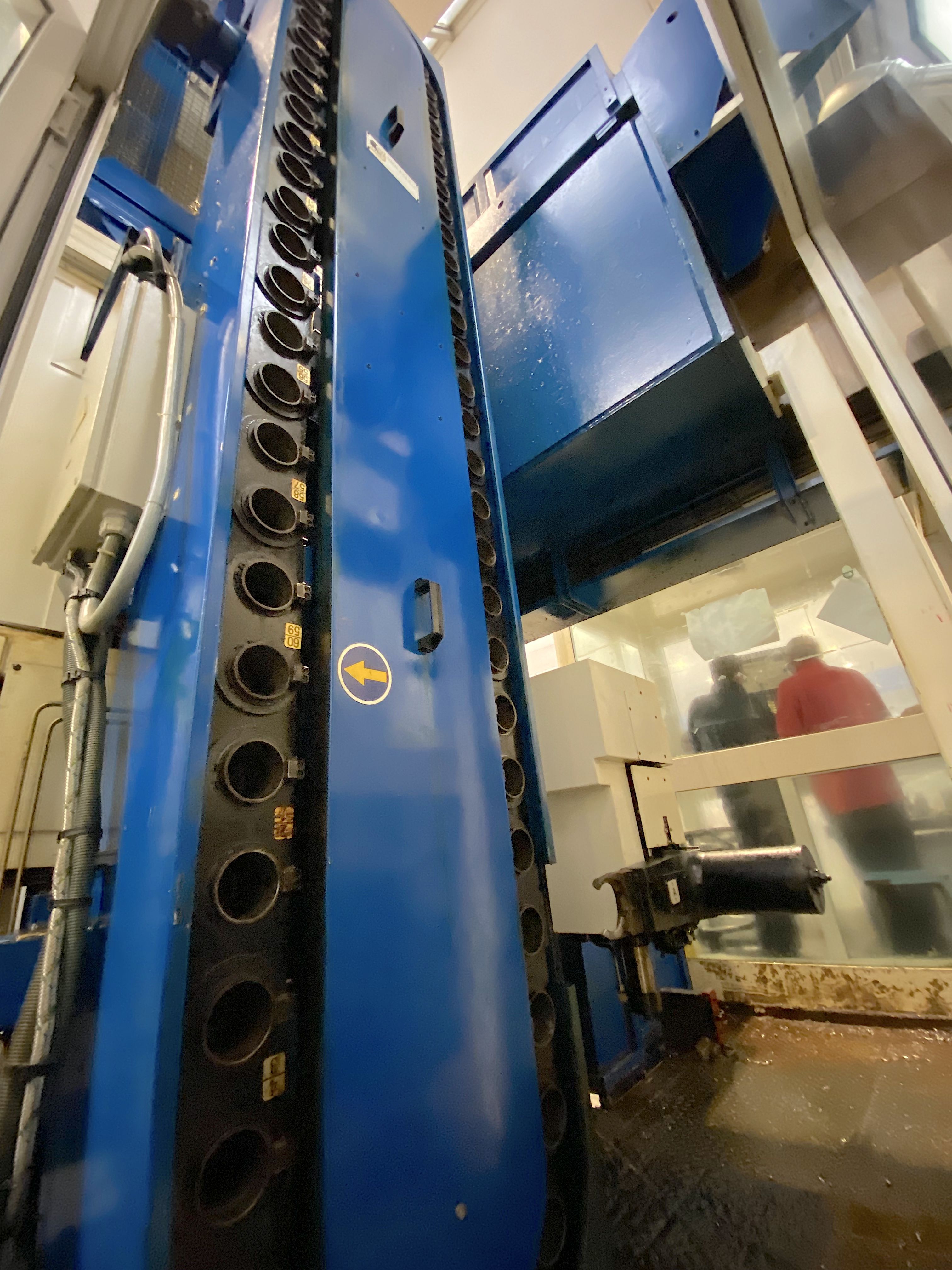

ATC
Positions
60
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
250 mm9,84 in
Max tool lenght
400 mm15,75 in
Max tool weight
40 Kg
Tool taper
ISO50

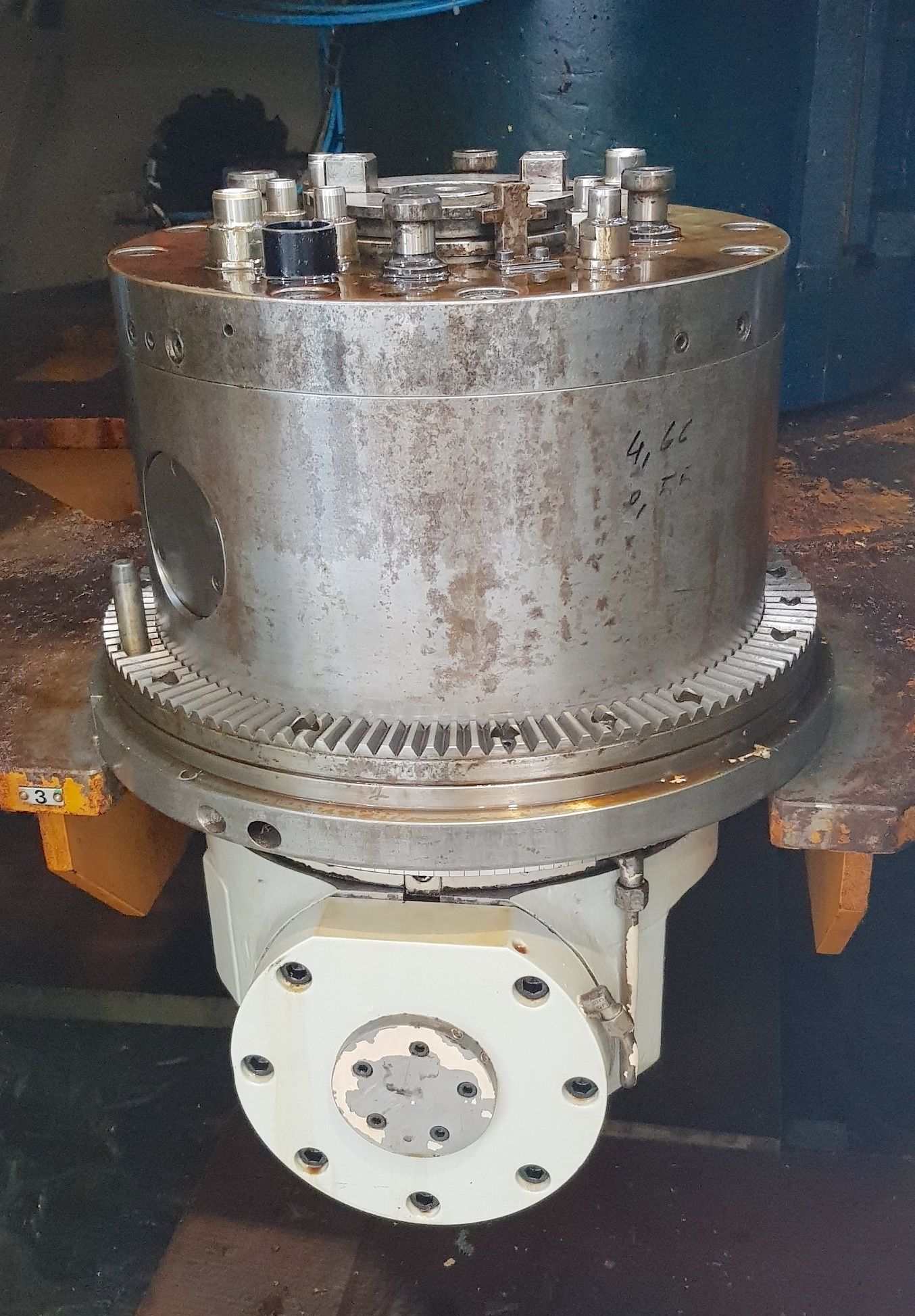

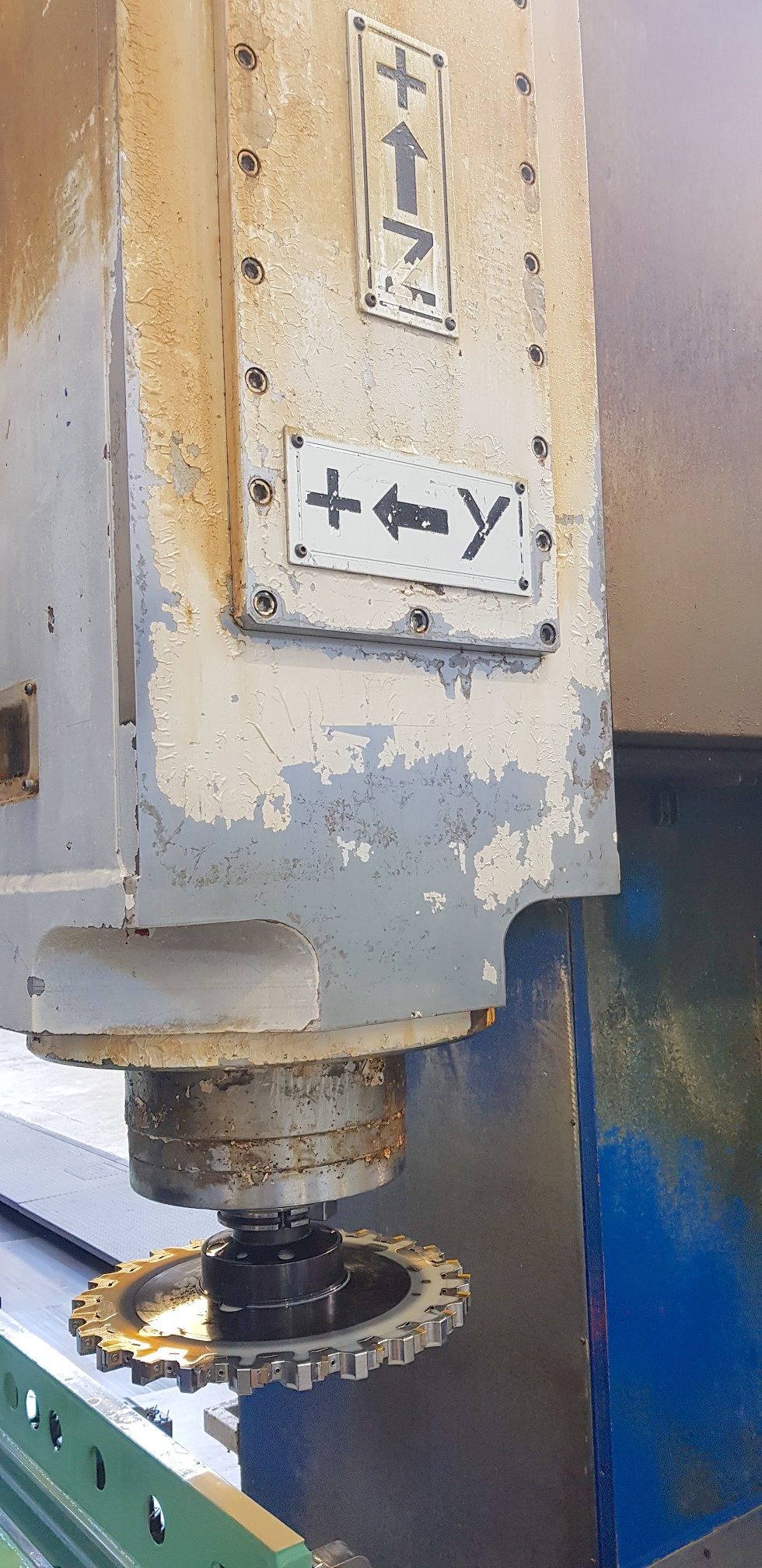

HEAD 1
Type
testa Verticale TV35
Spindle taper
ISO50 DIN69871
Max torque
1900 Nm
Max speed
3000 Rpm
Max power
35 Kw
Notes
Cambio testa automatico da pickup
Coolant
interno + 4 ugelli esterni

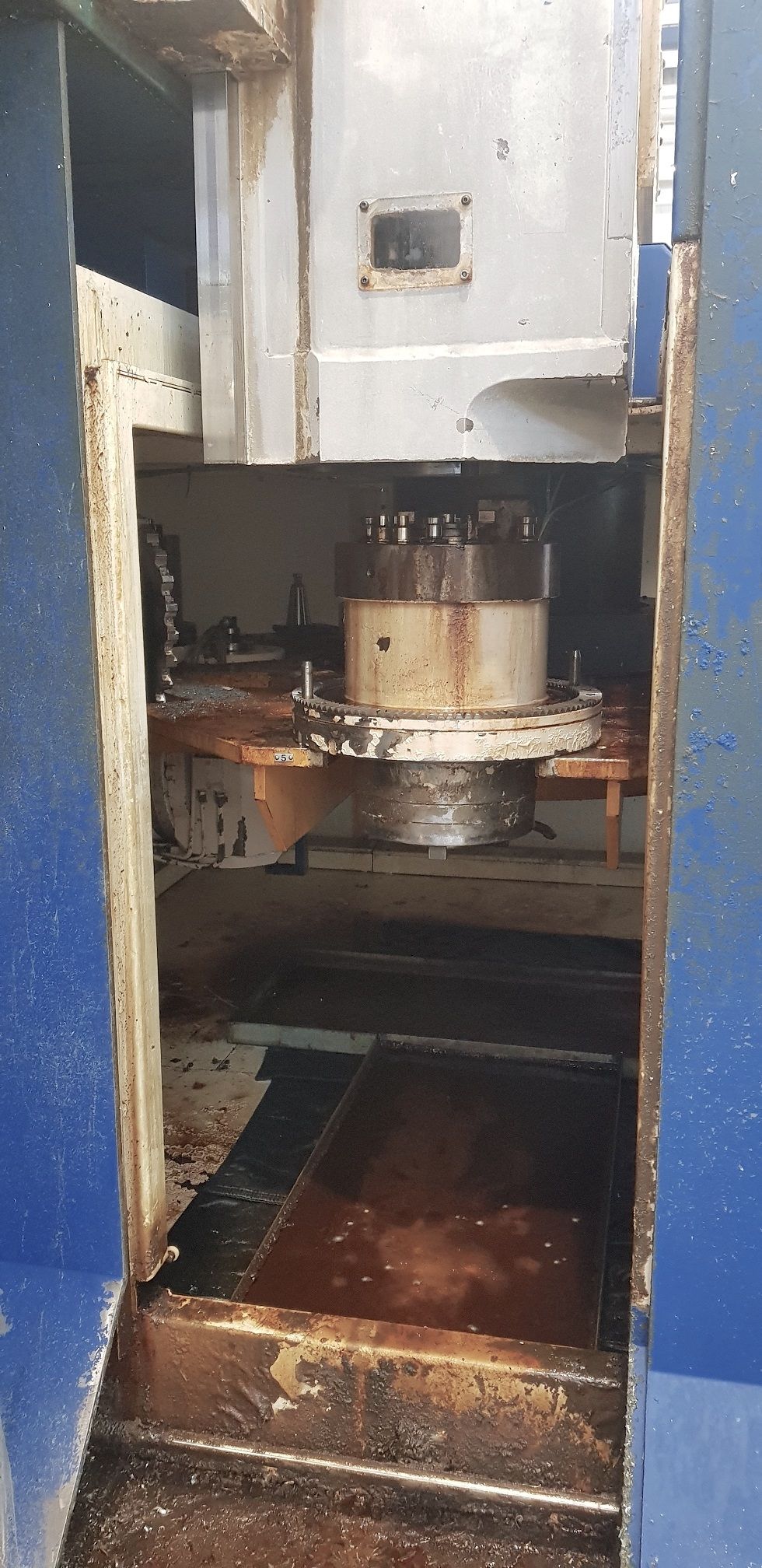

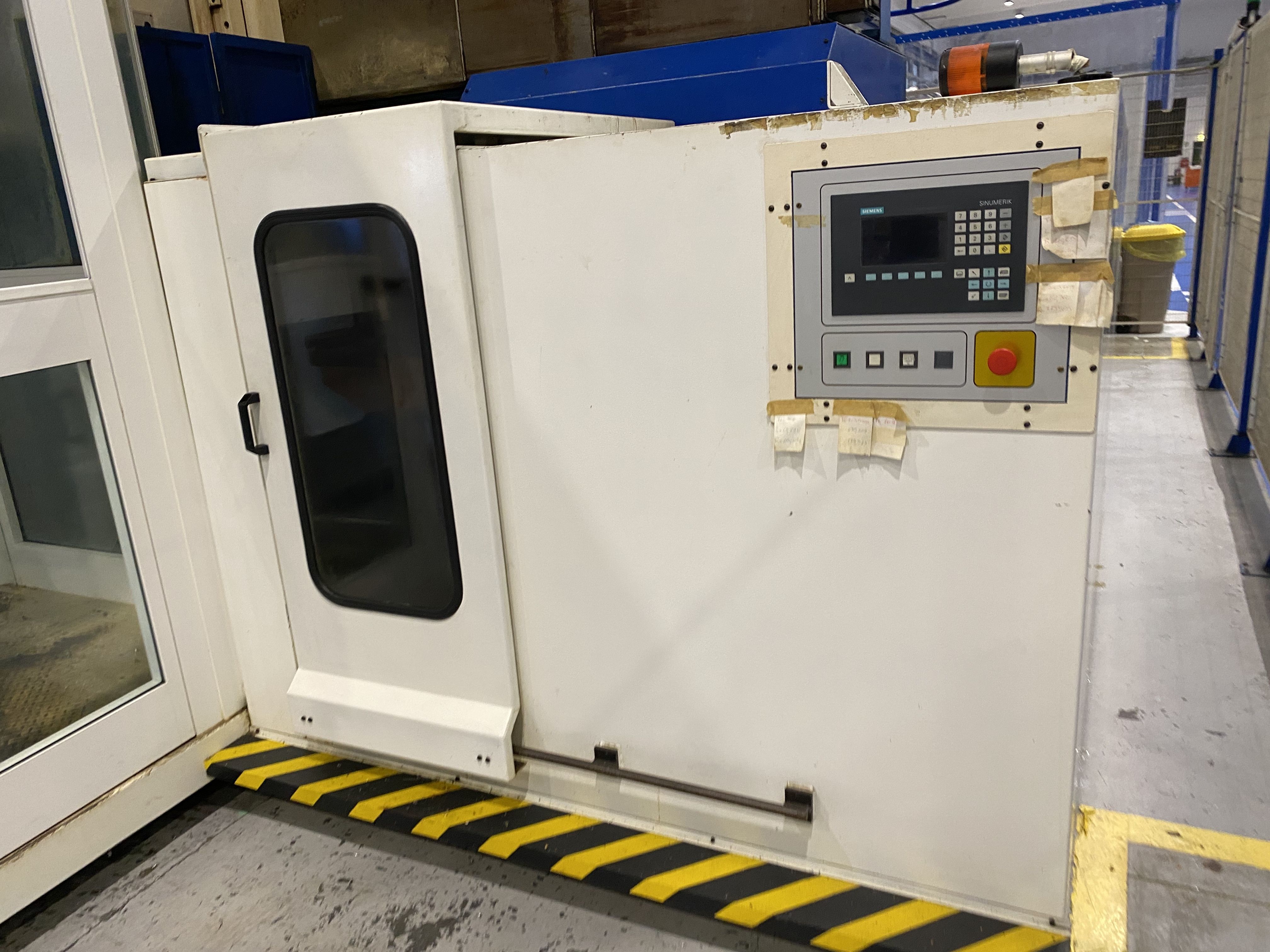

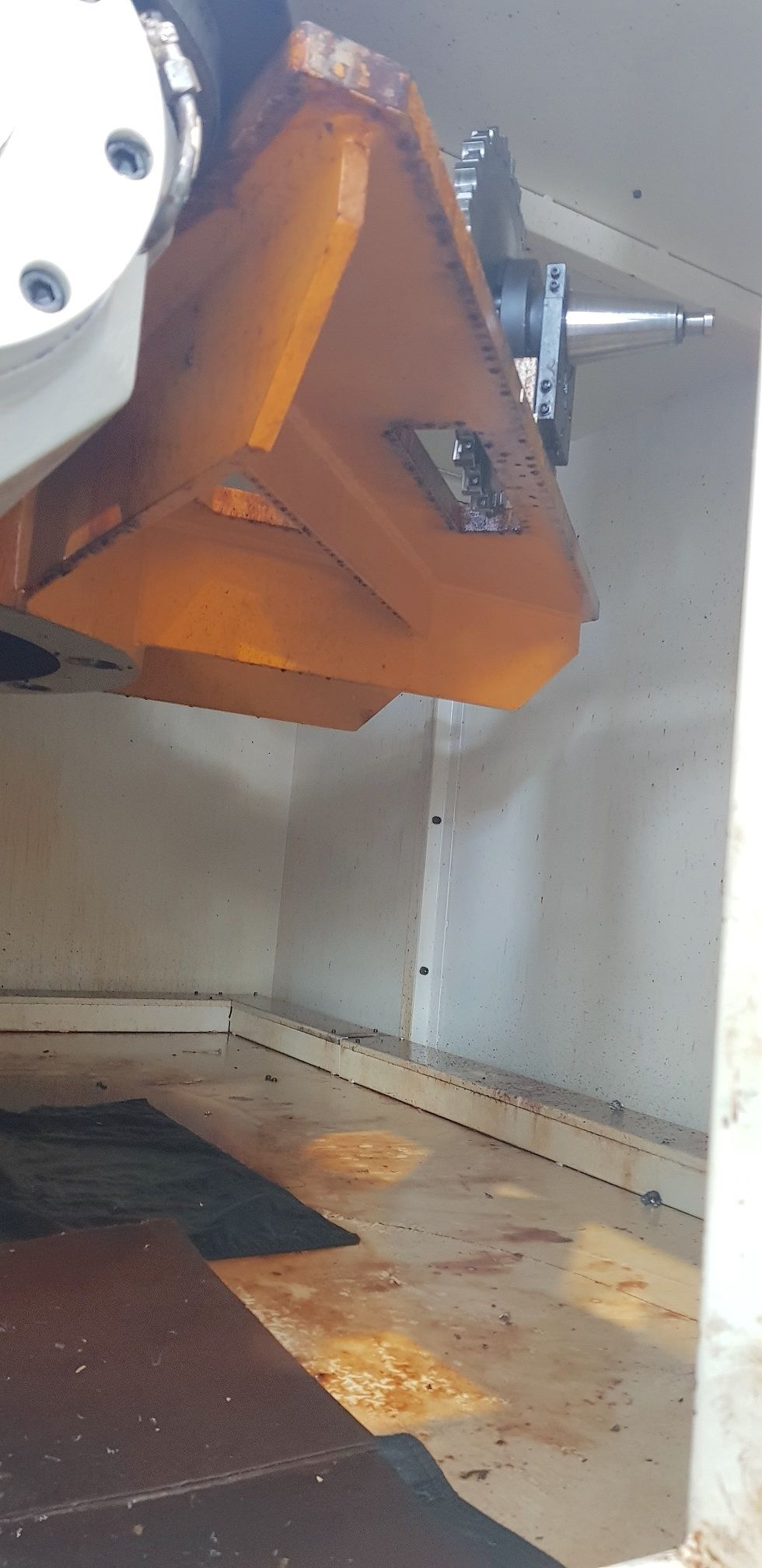

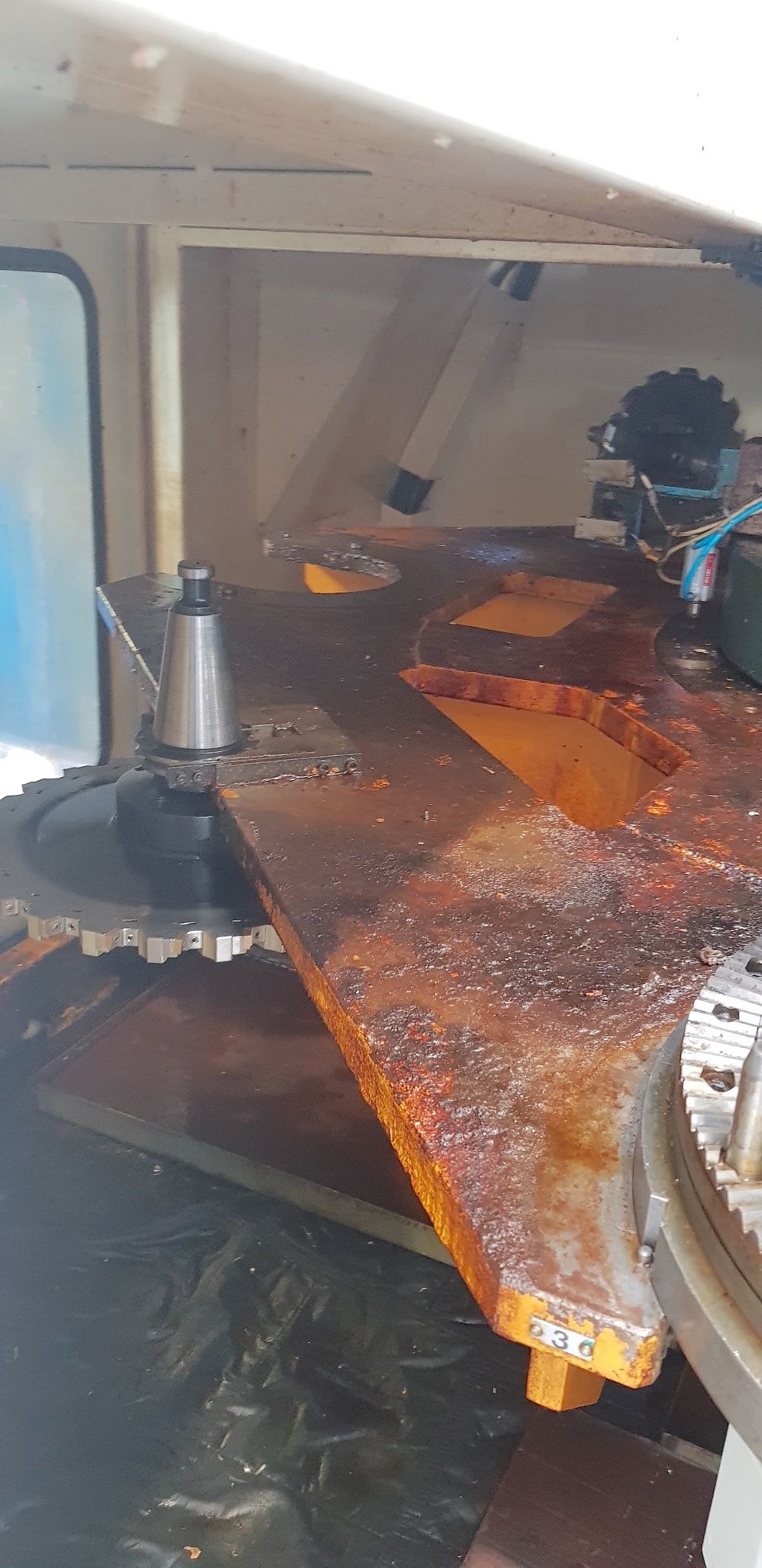

PICK UP STATION FOR HEADS
Positions
3 teste + 2 accessori orizzontali + 2 accessori verticali
EXTRA

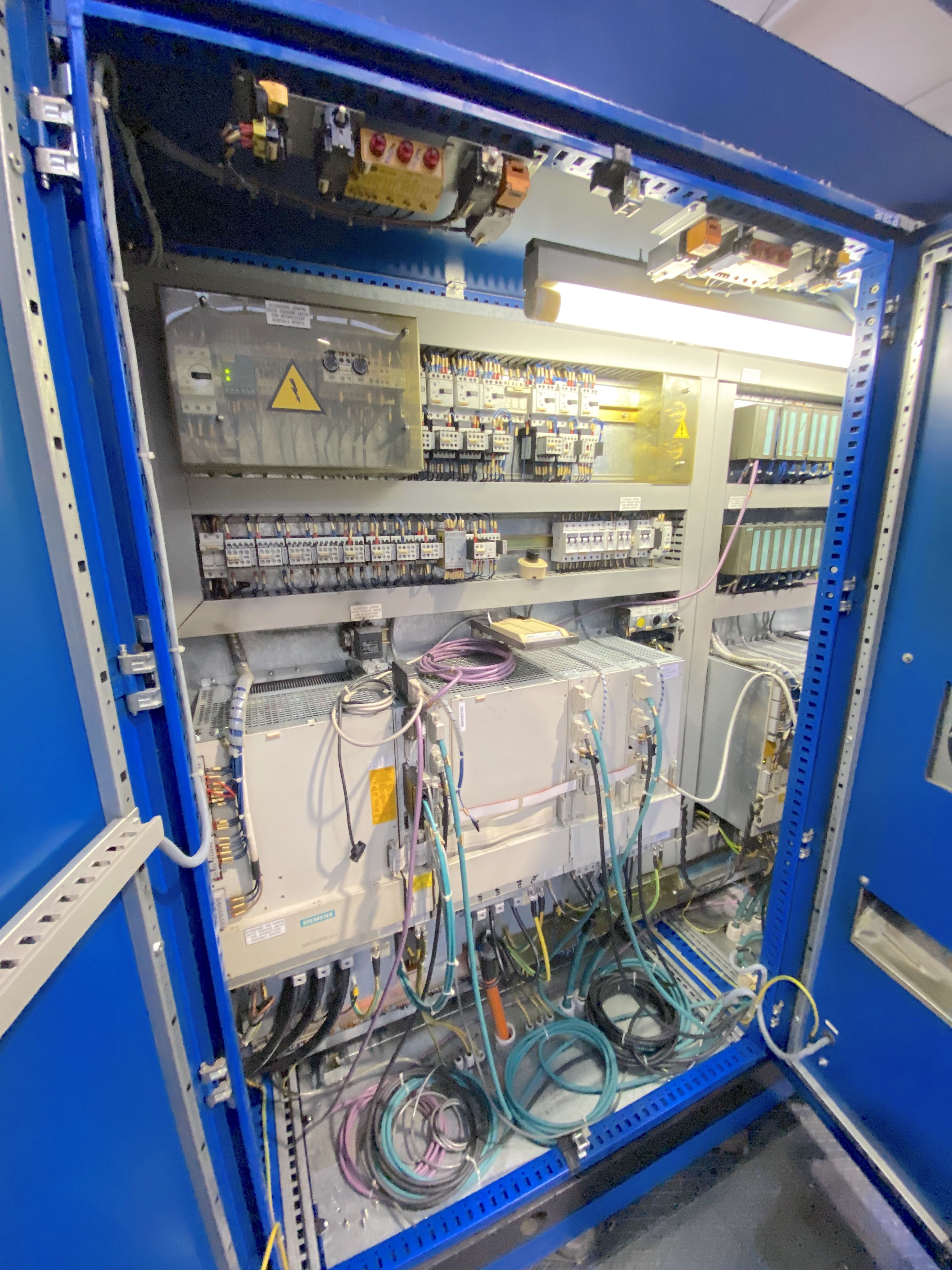

Total power supply
120KVA Kw
Tooling included
sistema anticollisione o rottura utensile CS100, presenza utensile, filtro a carta, lavorazione in pendolare, armadio elettrico climatizzato, misure di processo, volantino, tabella vita utensile, magazzino cambio teste, magazzino cambio accessori
