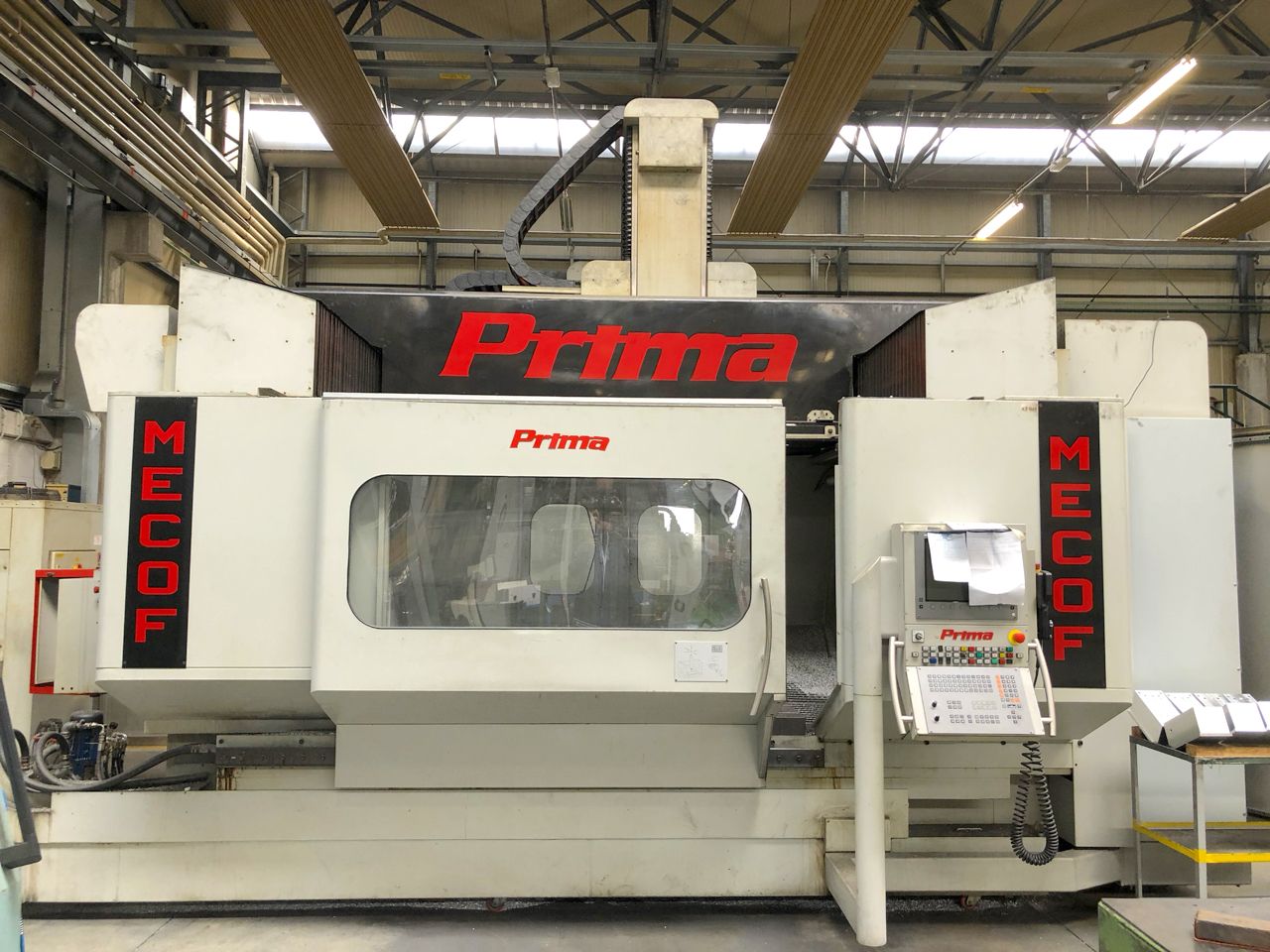

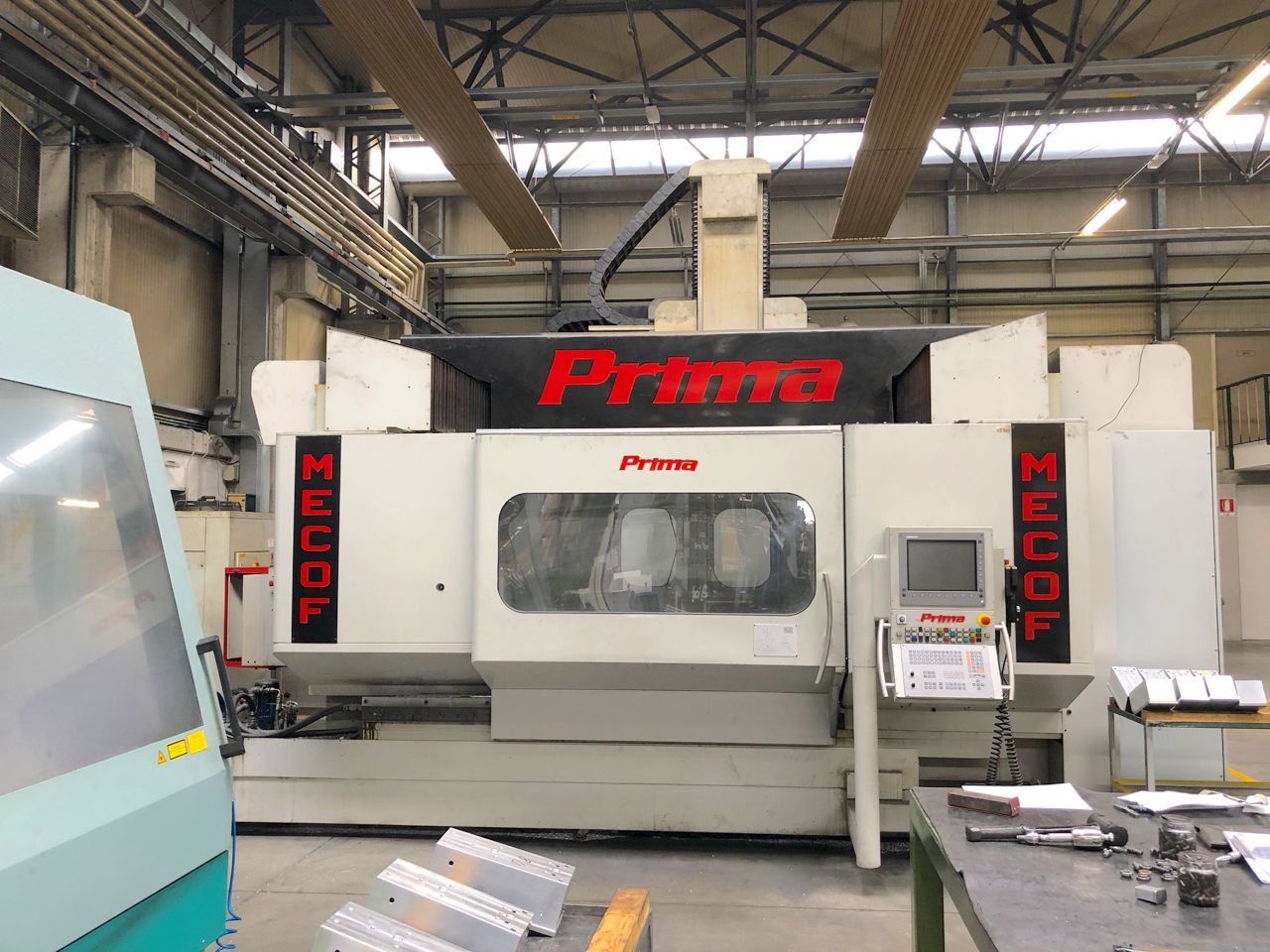

Category
Milling machine
Type
Gantry
Made
Model

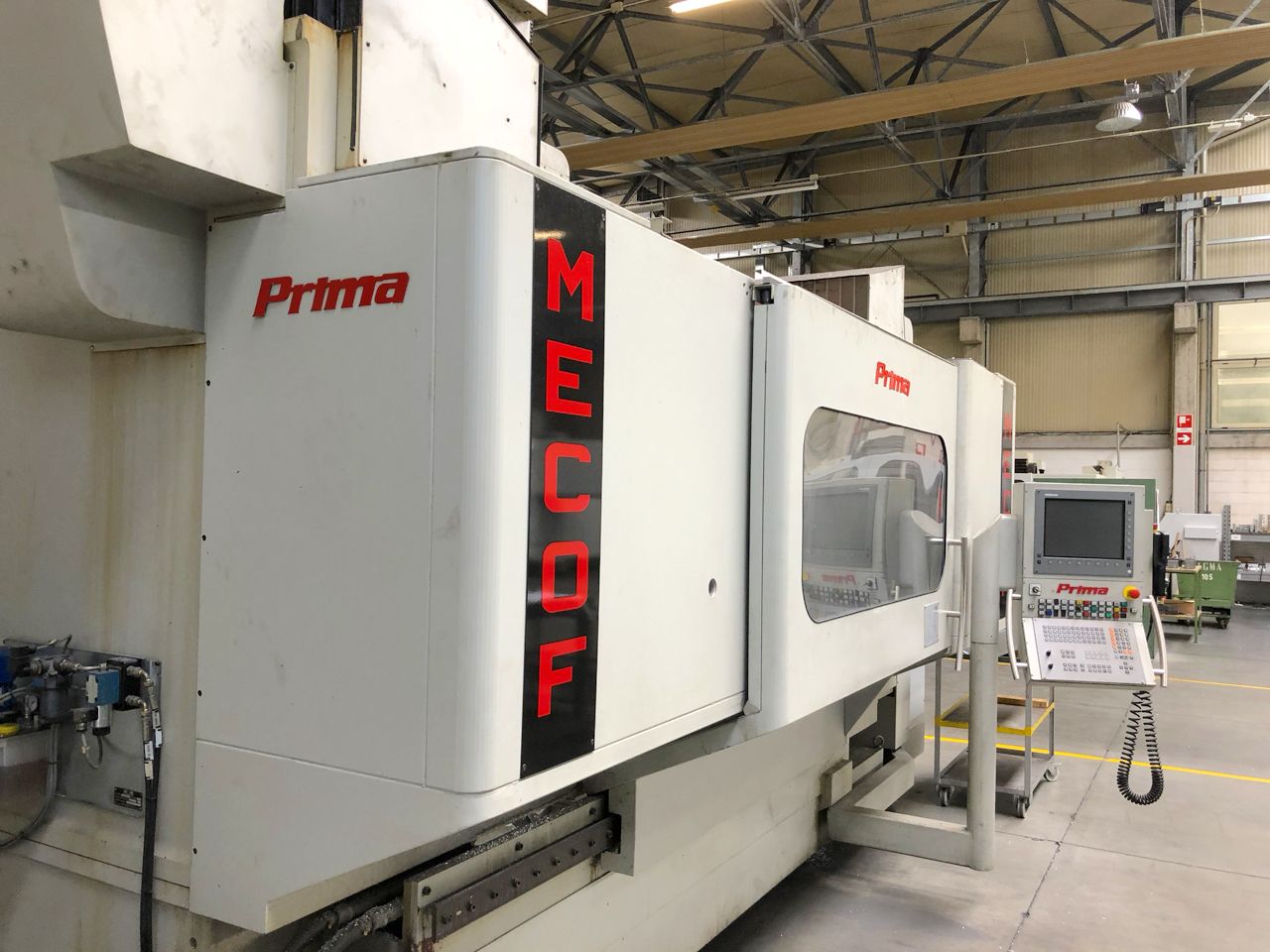

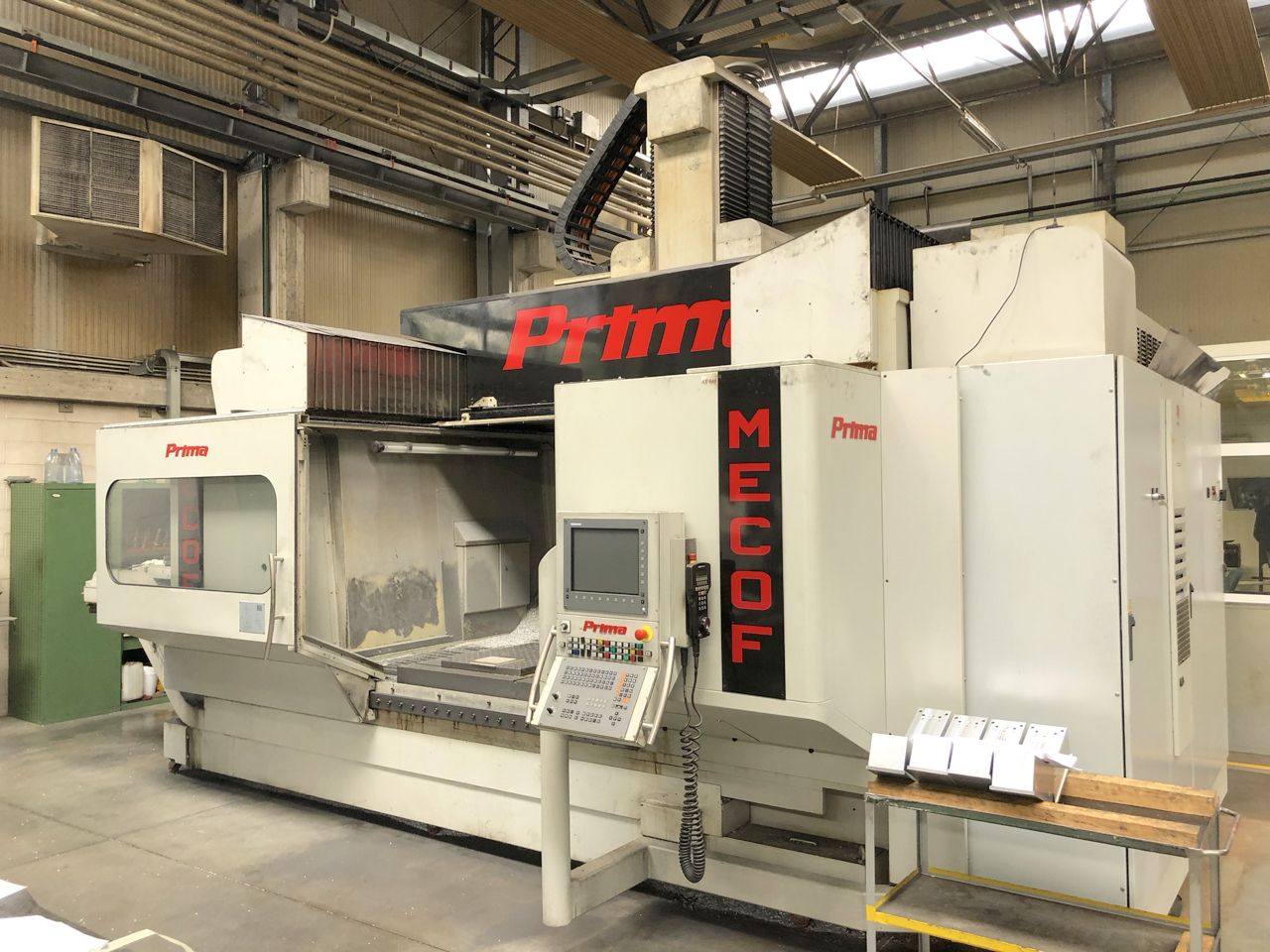

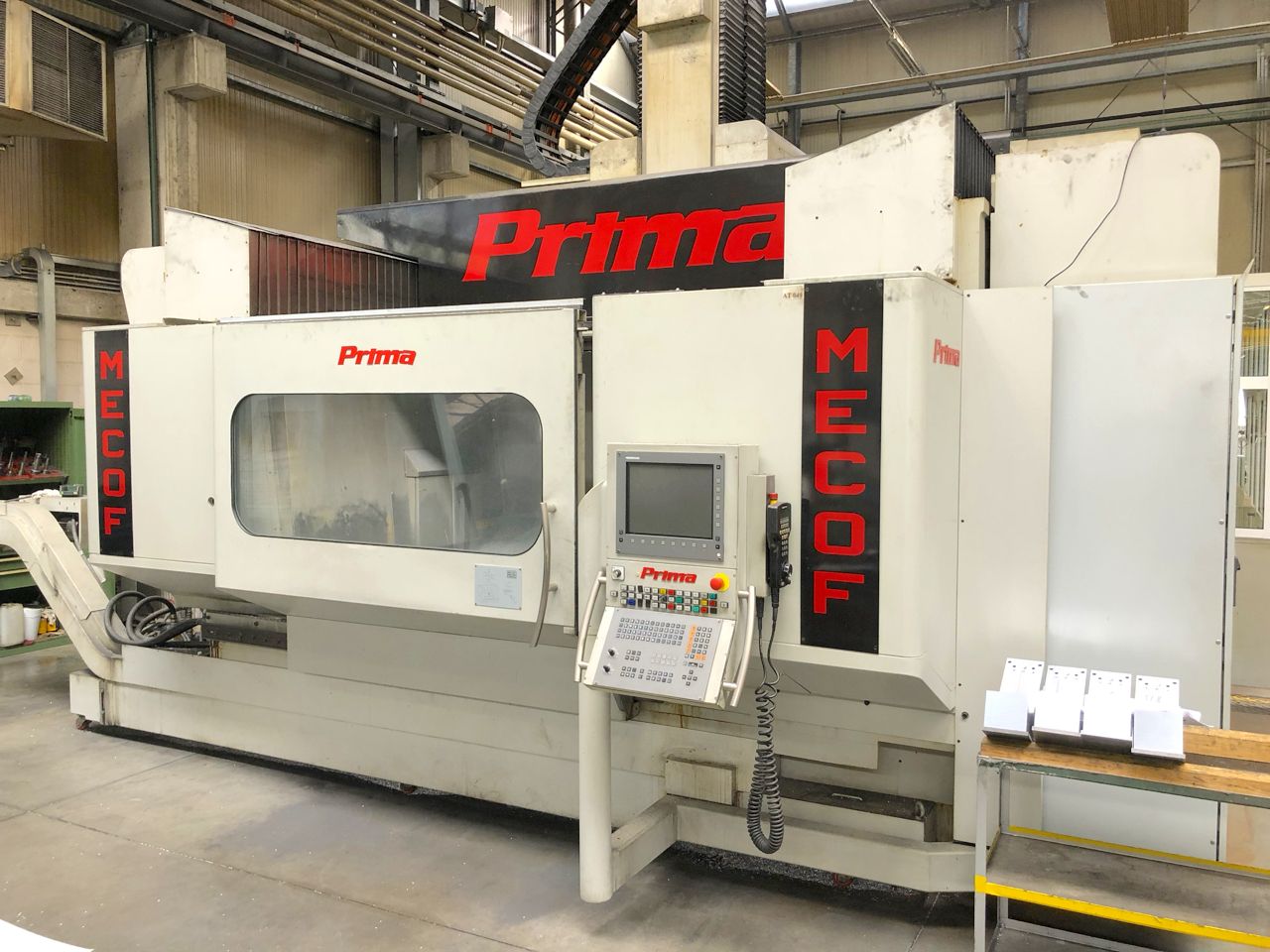

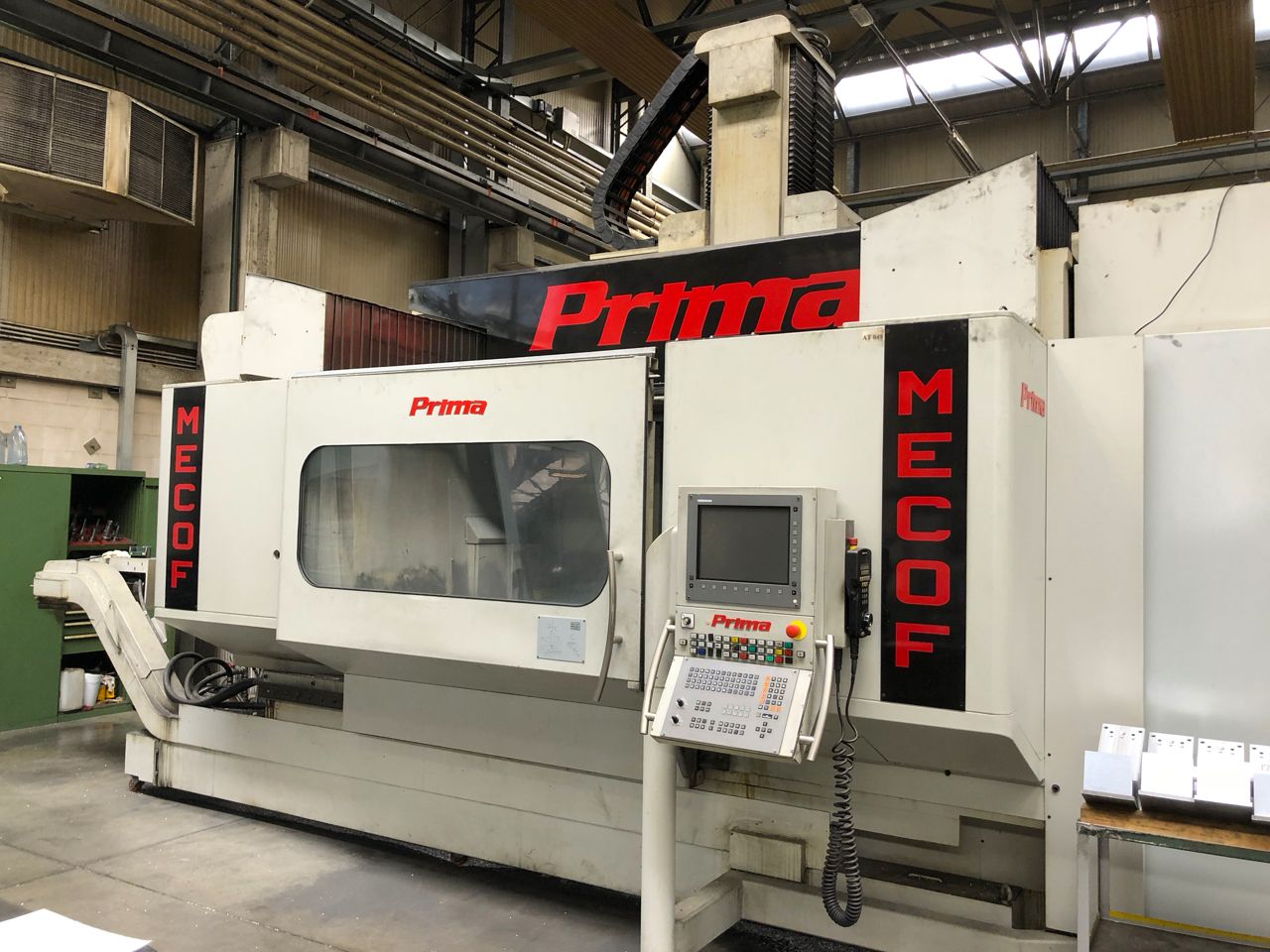

PRIMA
Capacity
1650x1400x800 mm64,96x55,12x31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1400 mm55,12 in
Vertical RAM (Y)
800 mm31,50 in
Cross Crossrail (Z)
1650 mm64,96 in
Axes support
guide lineari a ricircolo di rulli
Notes
Motori lineari su tutti gli assi

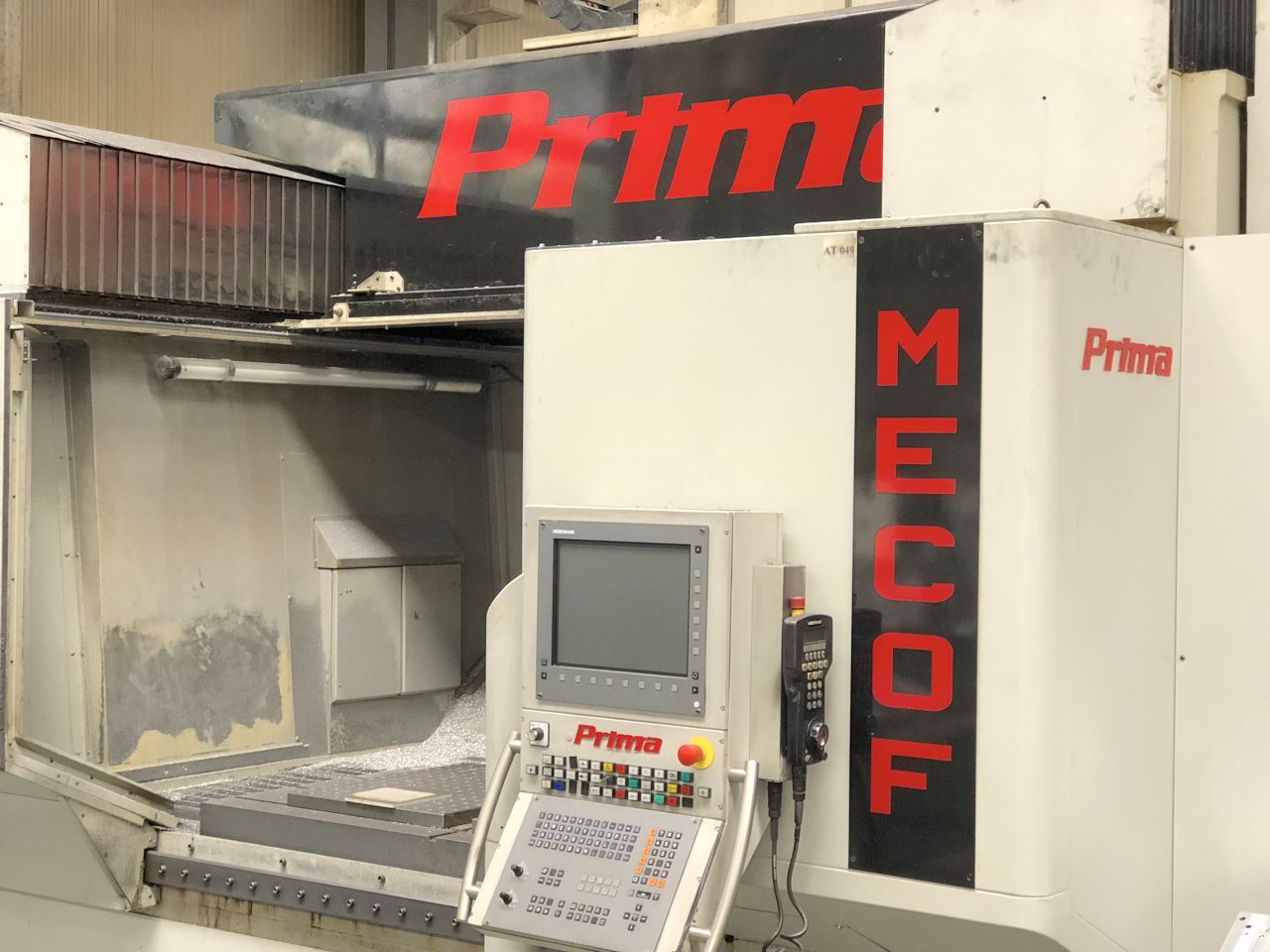

CNC
CNC

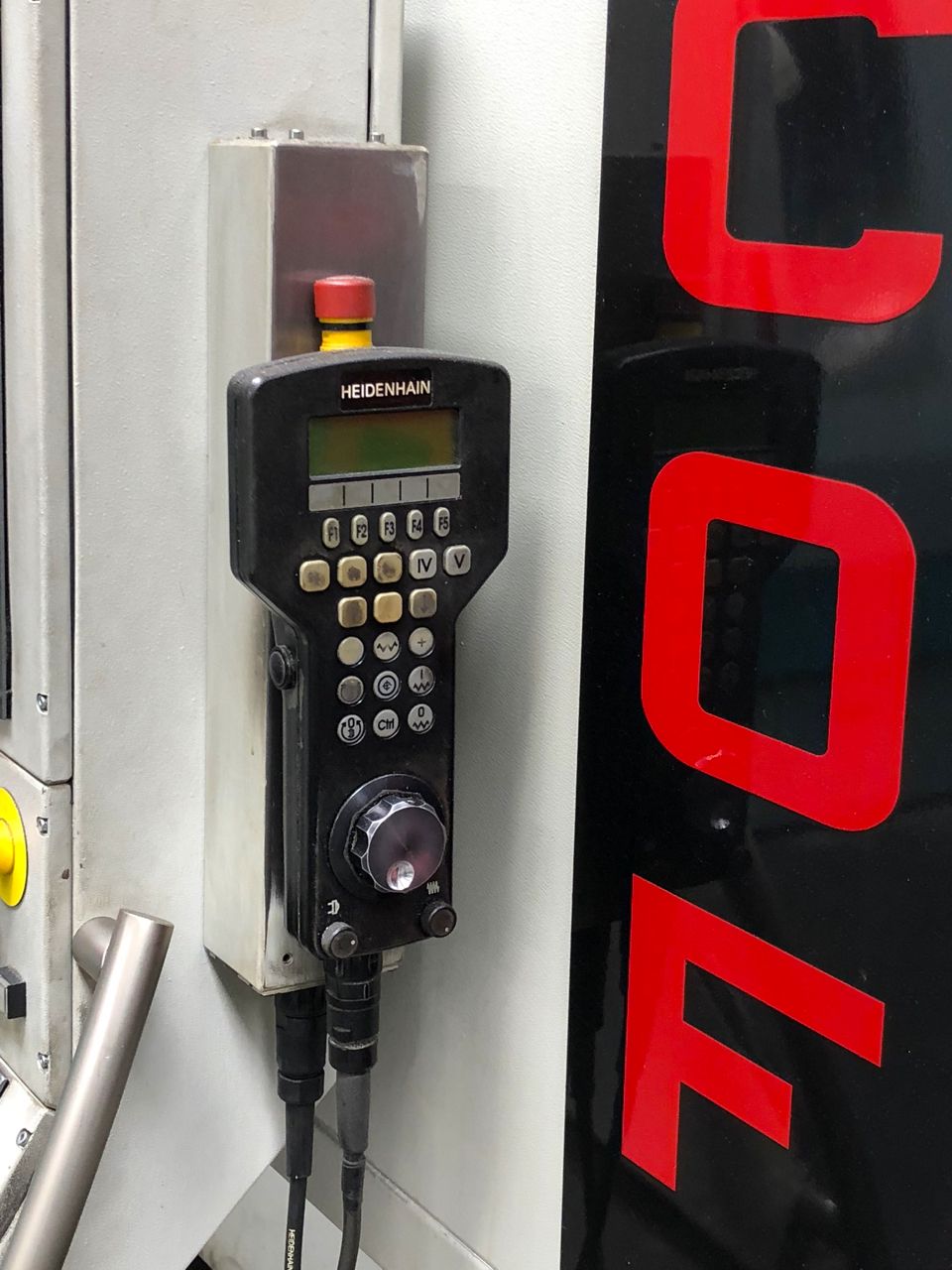

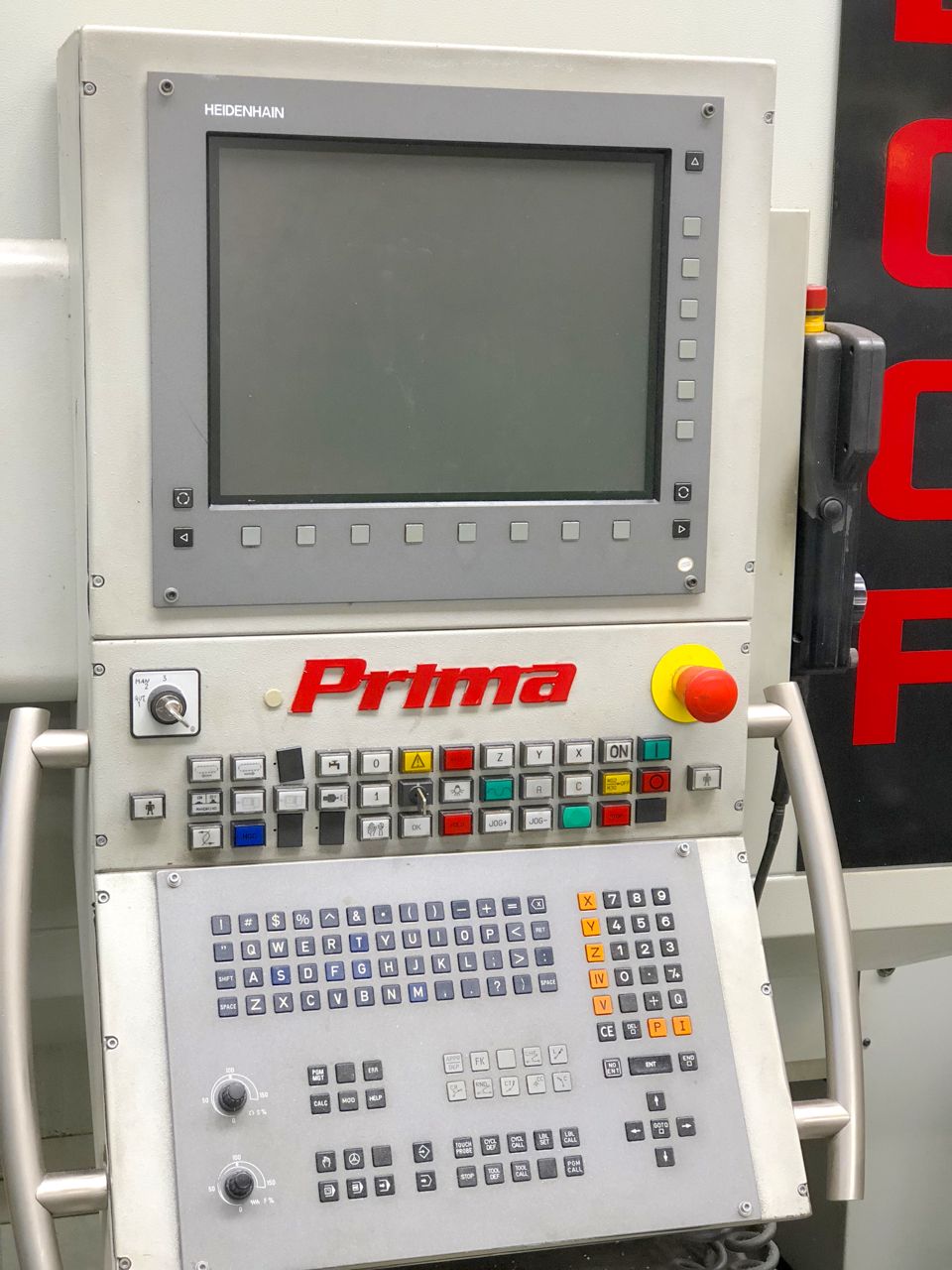

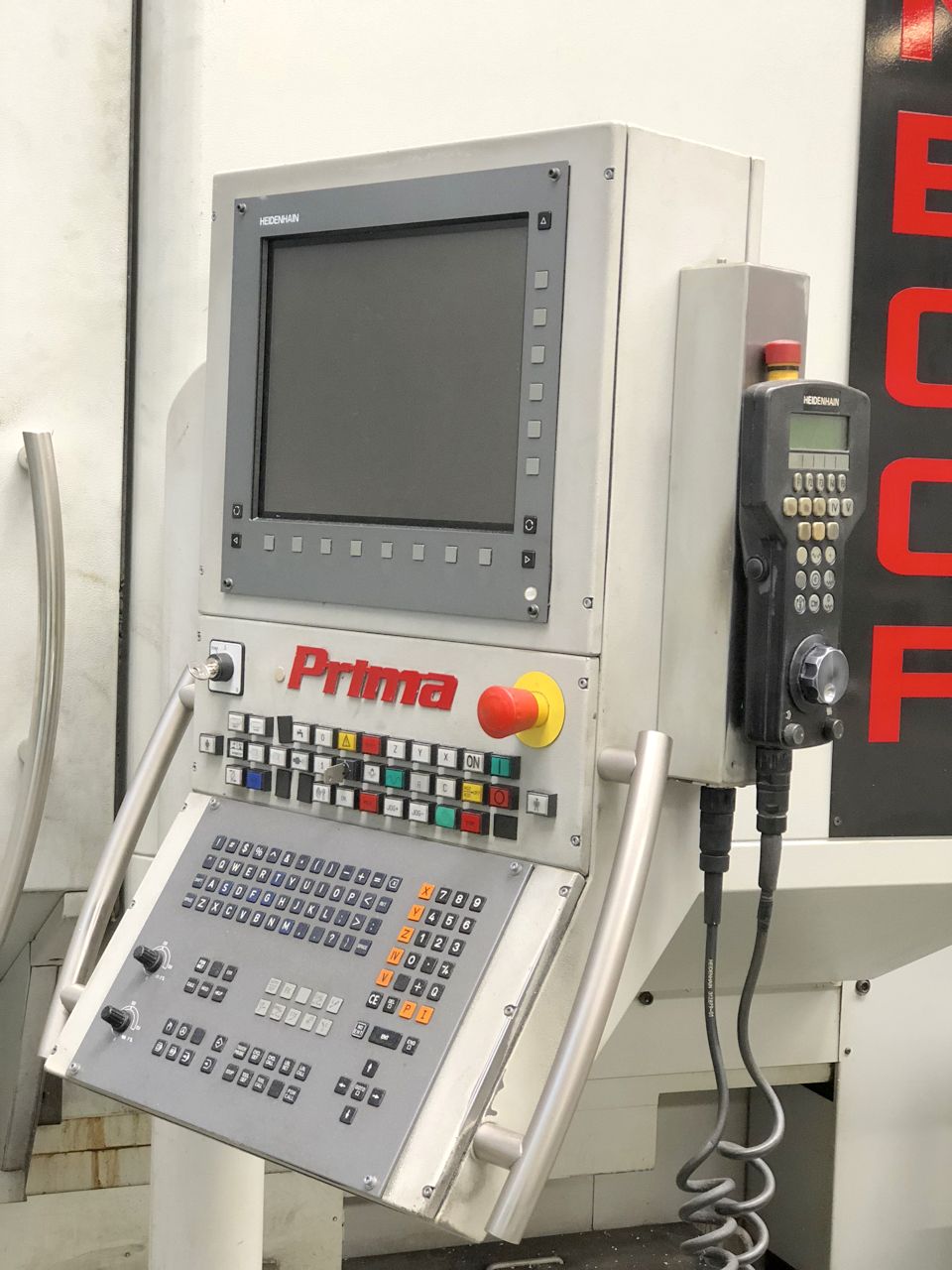

Heidenhain TNC530
Measuring system
Righe ottiche Heidenahin
SPINDLE
RAM section
400x400 mm15,75x15,75 in
Spindle power
30(S6)-24(S1) Kw
Rotating speed
500-18.000 Rpm
Torque
100(S6)-80(S1) Nm
Taper
HSK63A
Notes
Elettromandrino MG1
FEEDS
Rapid X
100 m/min3.937,00 ipm
Rapid Y
100 m/min3.937,00 ipm
Rapid Z
100 m/min3.937,00 ipm
X
60 m/min2.362,20 ipm
Y
60 m/min2.362,20 ipm
Z
60 m/min2.362,20 ipm

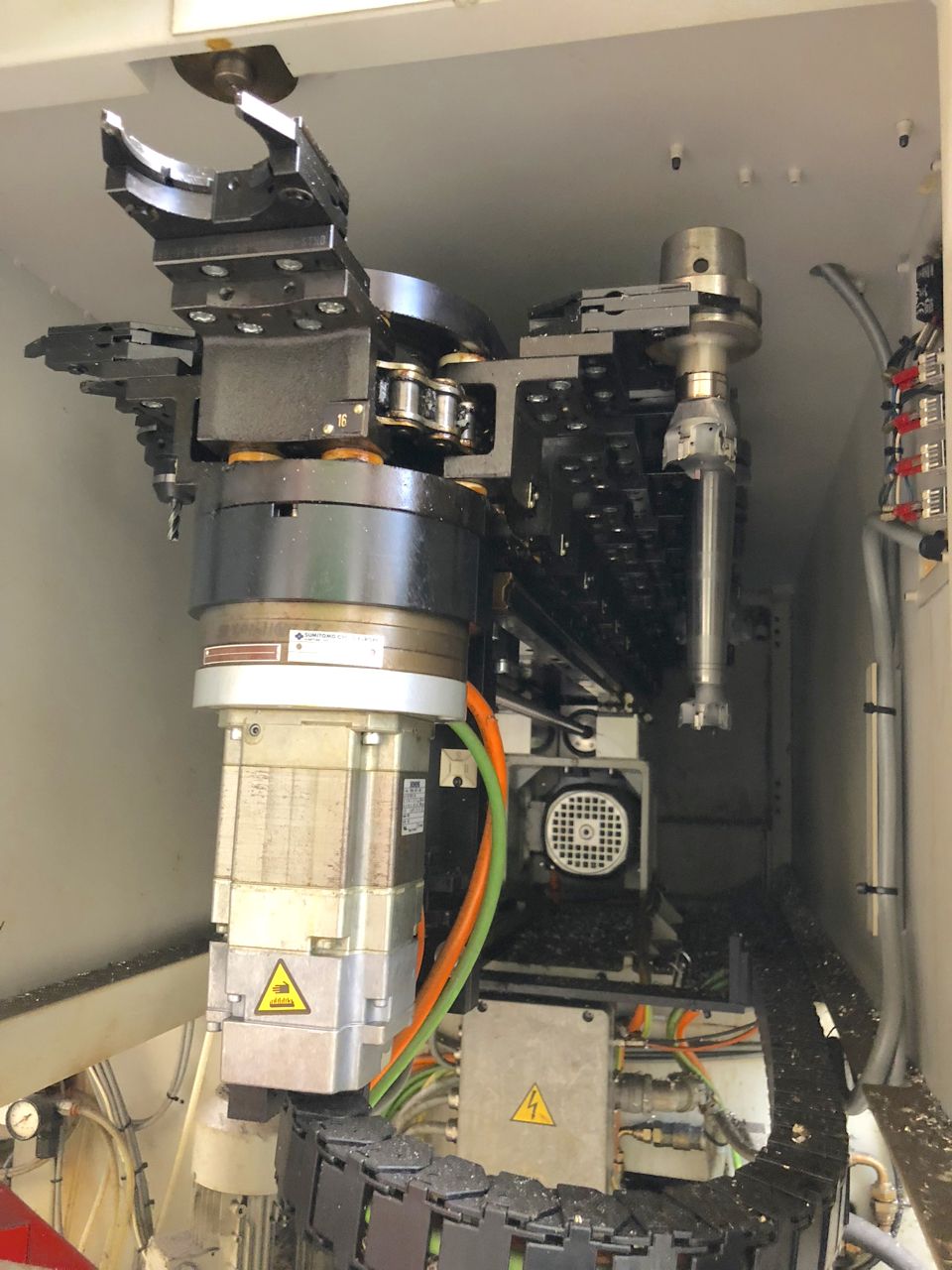

ATC
Positions
24
Max tool diameter
80 mm3,15 in
Max tool lenght
300 mm11,81 in
Tool taper
HSK63A
Max tool weight
7 Kg

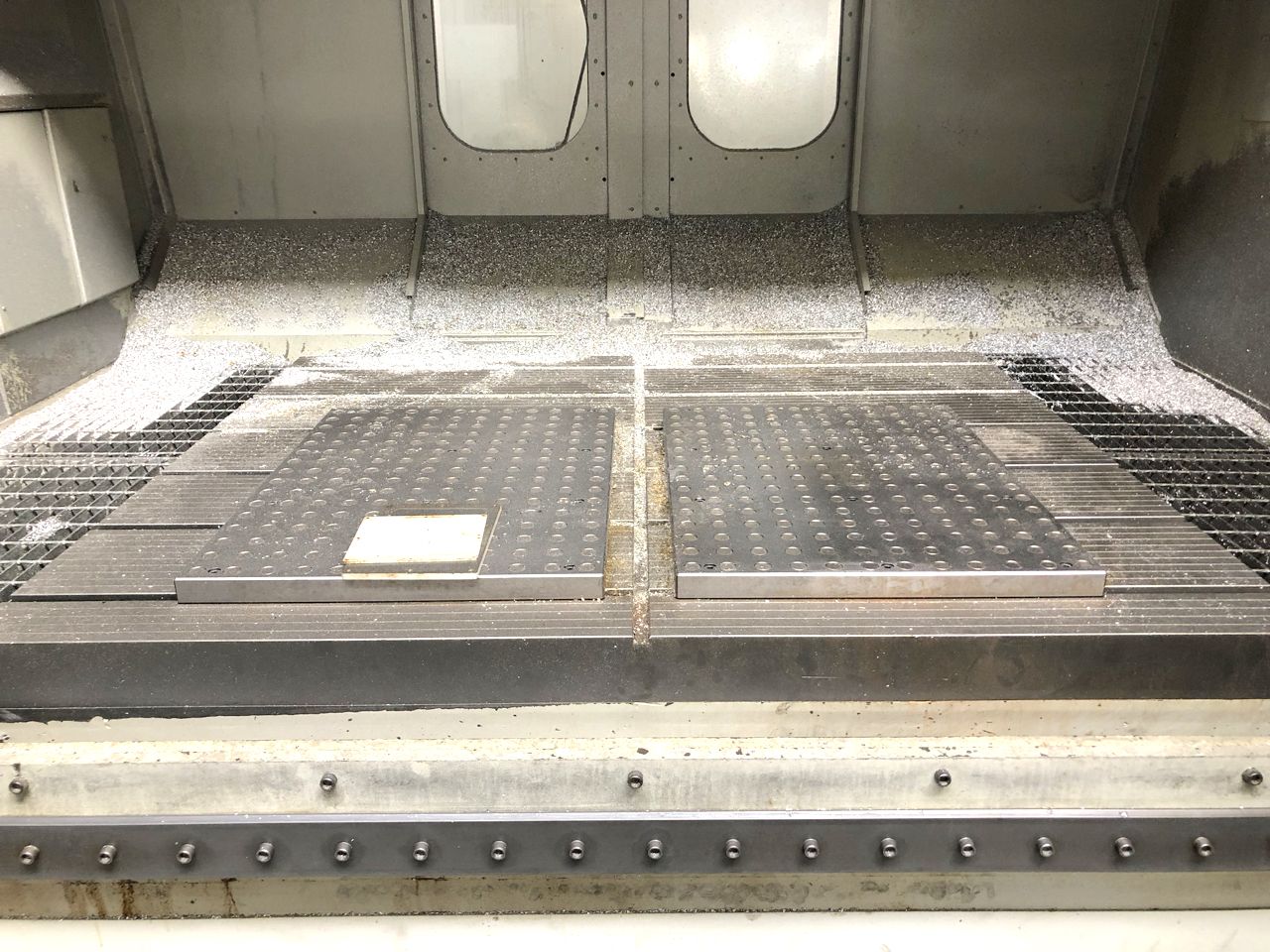

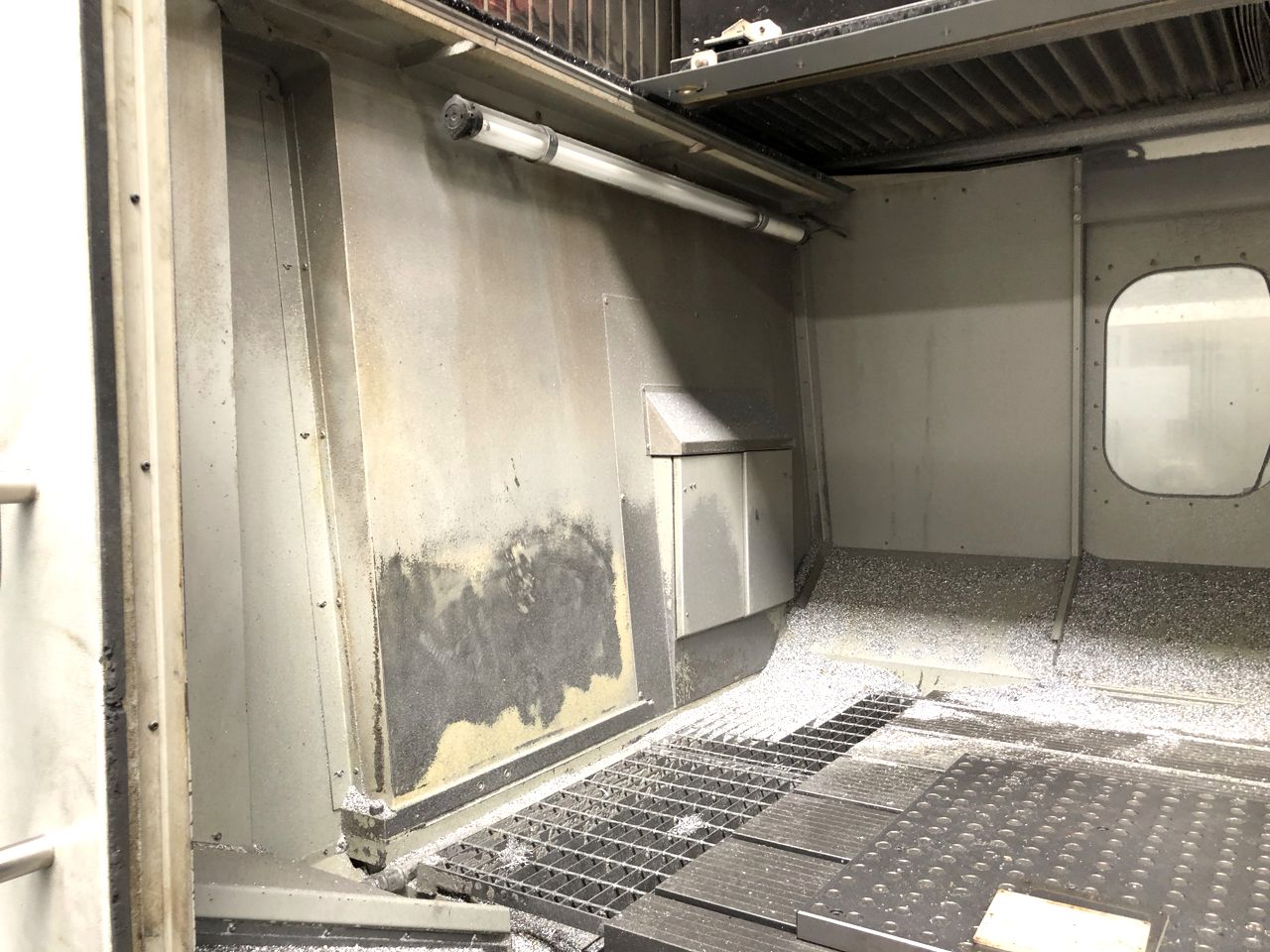

WARKING TABLE
Floorspace (LxWxH)
1800x1500 mm70,87x59,06 in
T slots number
6
Total weight capacity
10000 Kg
HEAD 1
Type
TWIN MG1
Spindle taper
HSK63A

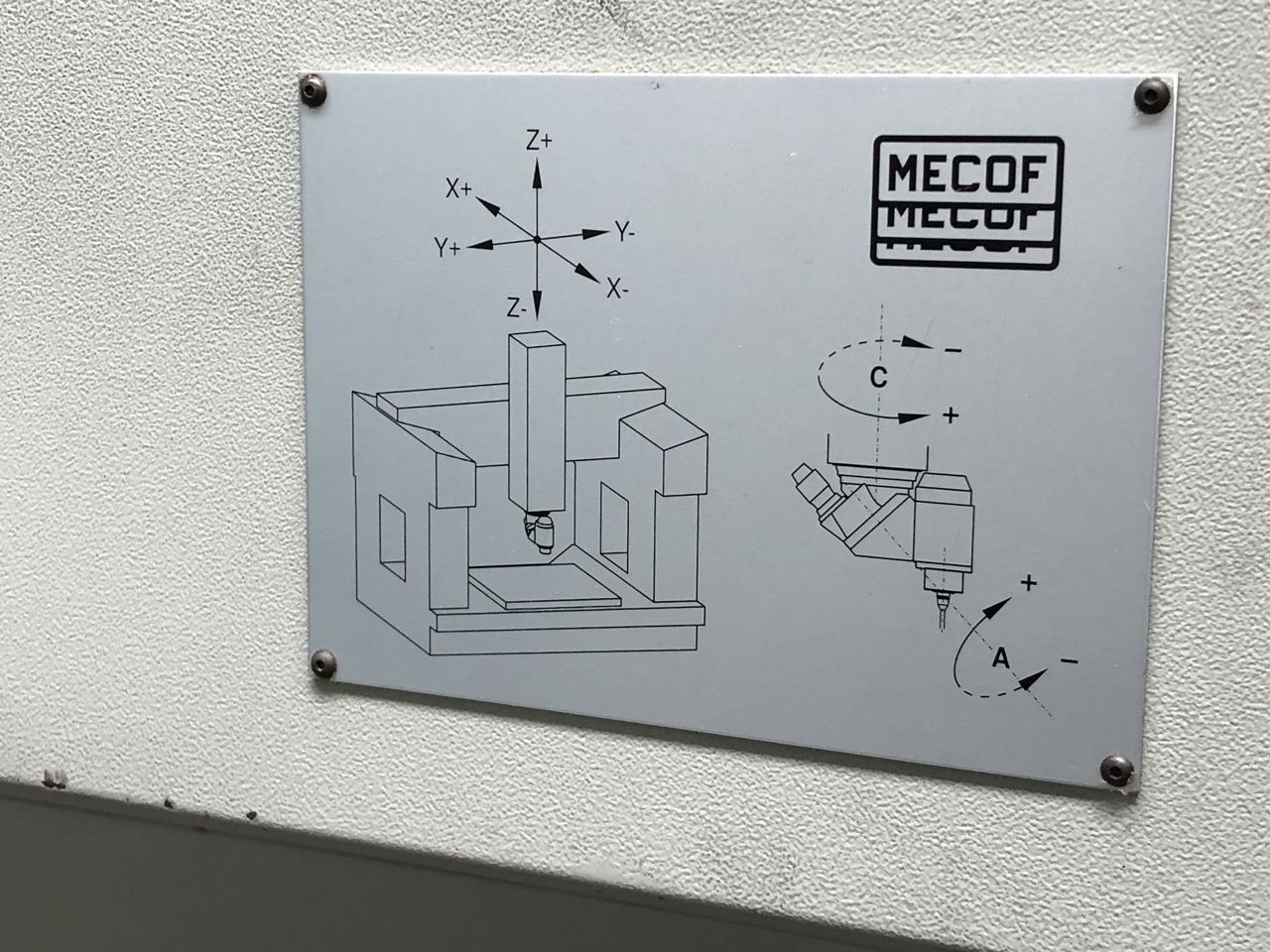

A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
18.000 Rpm
Max power
30 Kw
Max torque
100 Nm
Notes
cuscinetti testa nuovi
EXTRA
Machine total weight
39000 Kg
Floor space
6520x2930x3560 mm256,69x115,35x140,16 in
Tool presetter
si
Housing
integrale
Availability
pronta

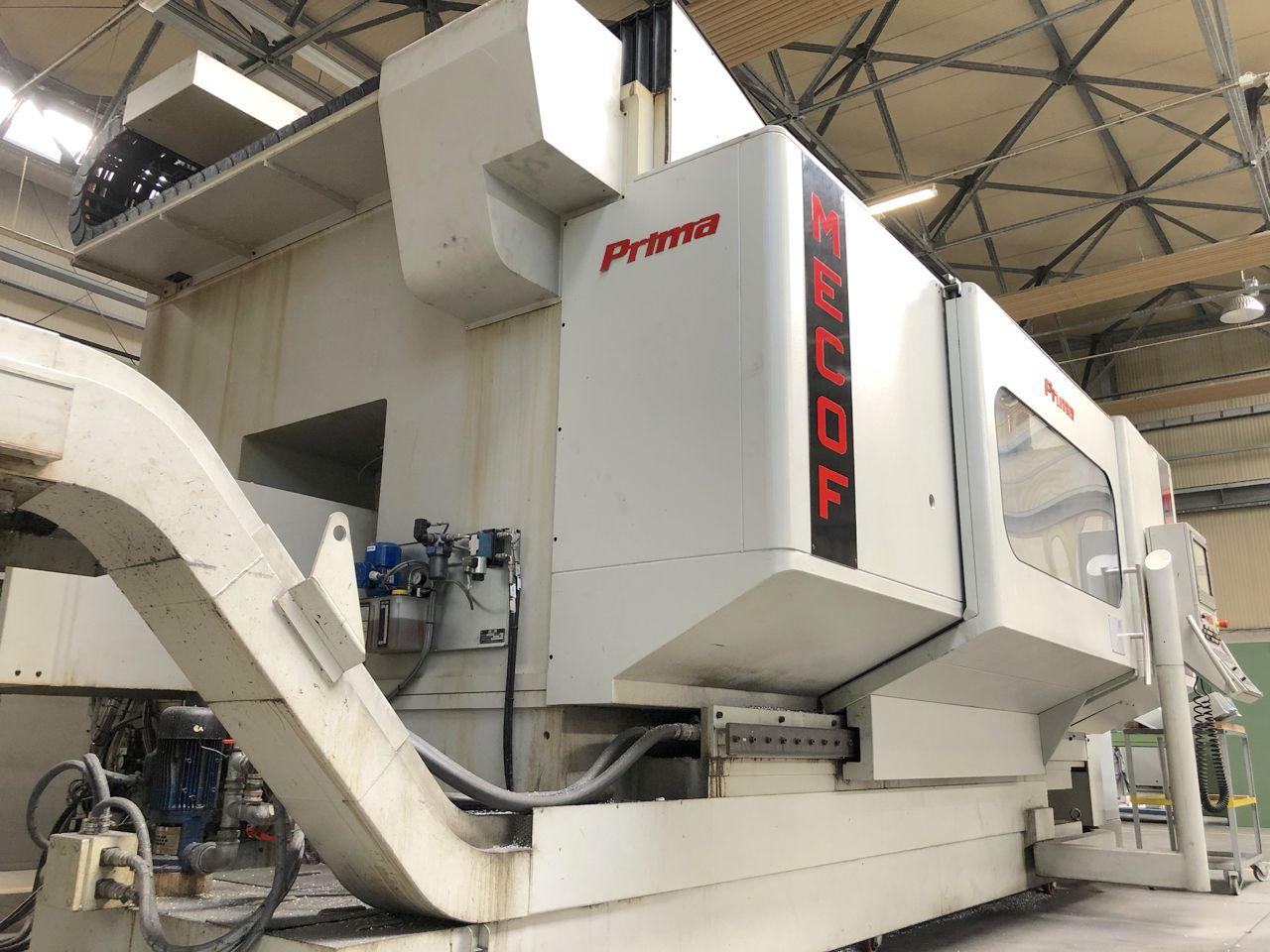

Chip conveyor
Yes
CE Certification
Yes
Maintenance & Use books
Yes
