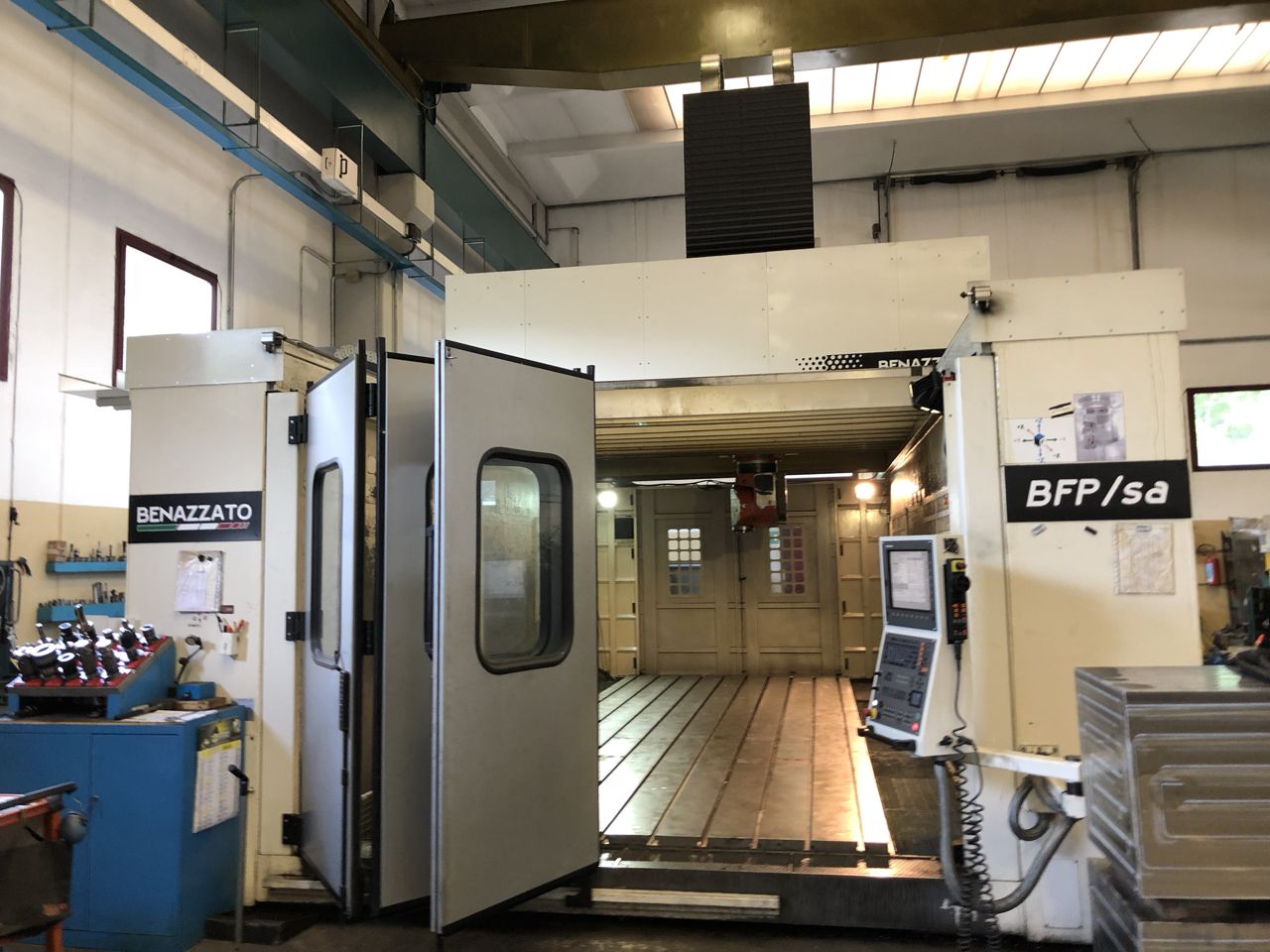

Milling machine
Type
Gantry
Made
Model
BFP/SA
Capacity
5000x2500x1500 mm196,85x98,43x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
5000 mm196,85 in
Vertical RAM (Y)
1500 mm59,06 in
Cross Crossrail (Z)
2500 mm98,43 in

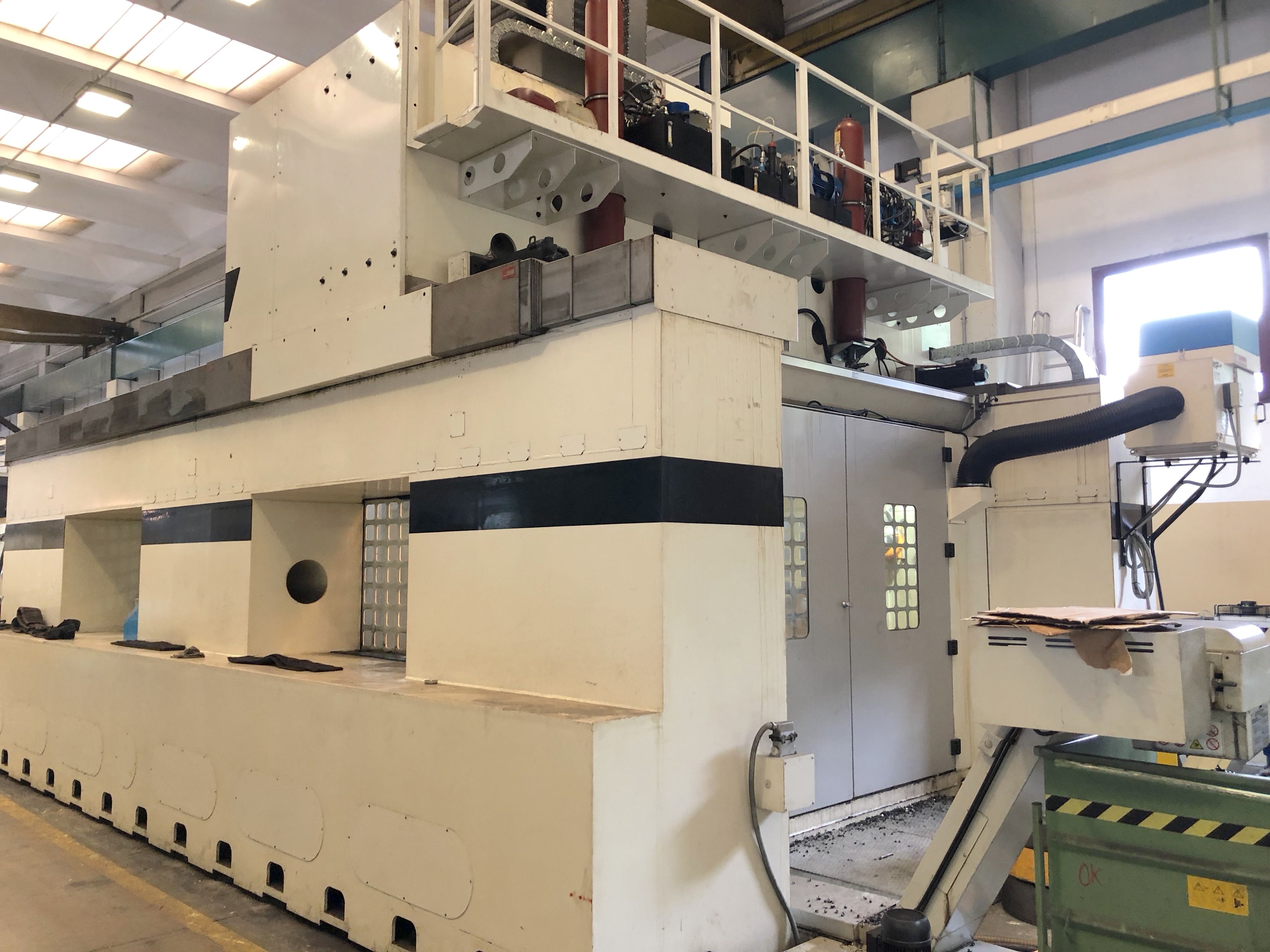

Column distance
3000 mm118,11 in
Axes support
Guide a THK sez. 100mm a ricircolo di rulli, viti a ricircolo di sfere con doppia chiocciola, doppio motore e 4 guide su asse X

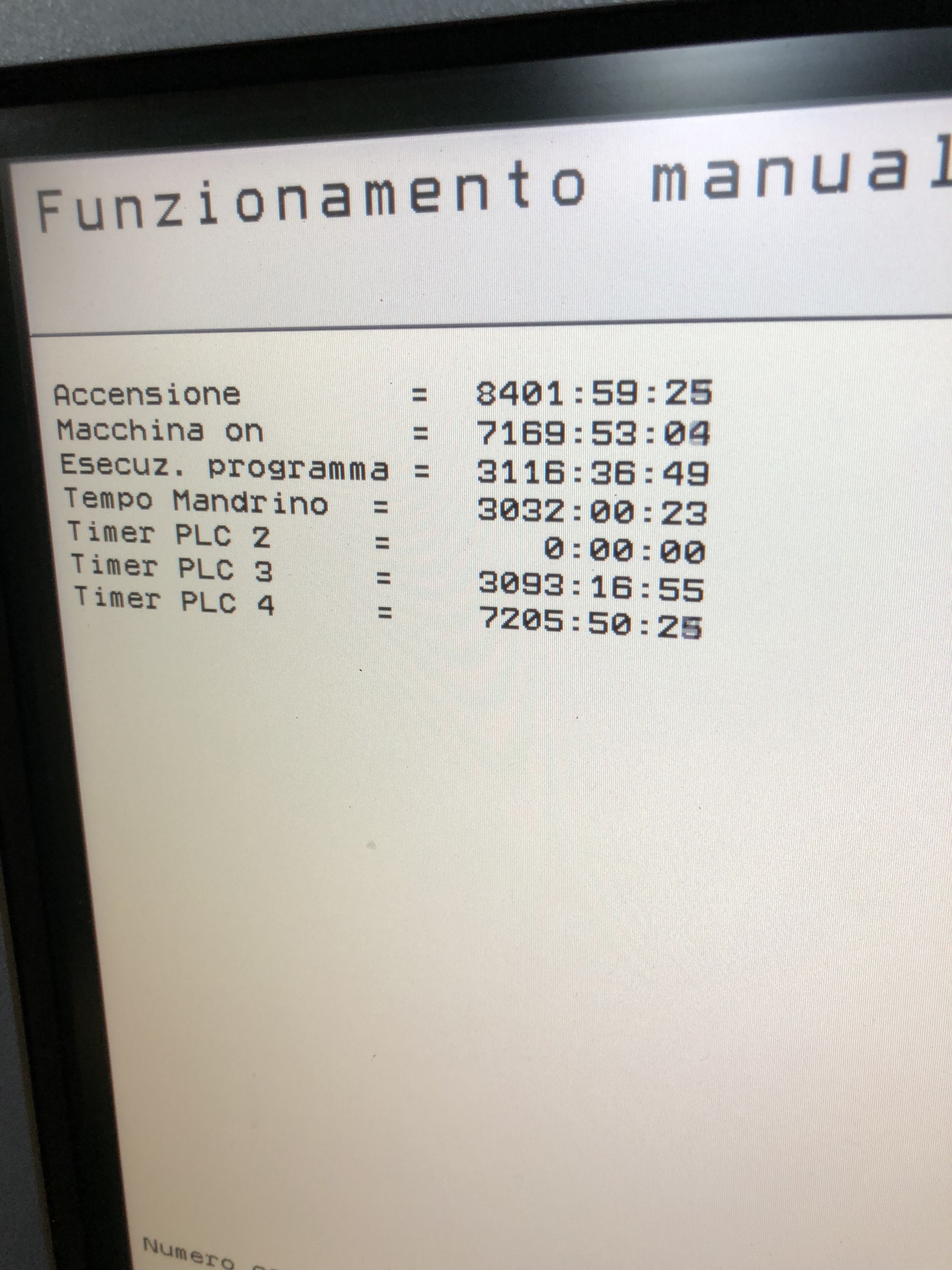

CNC
CNC

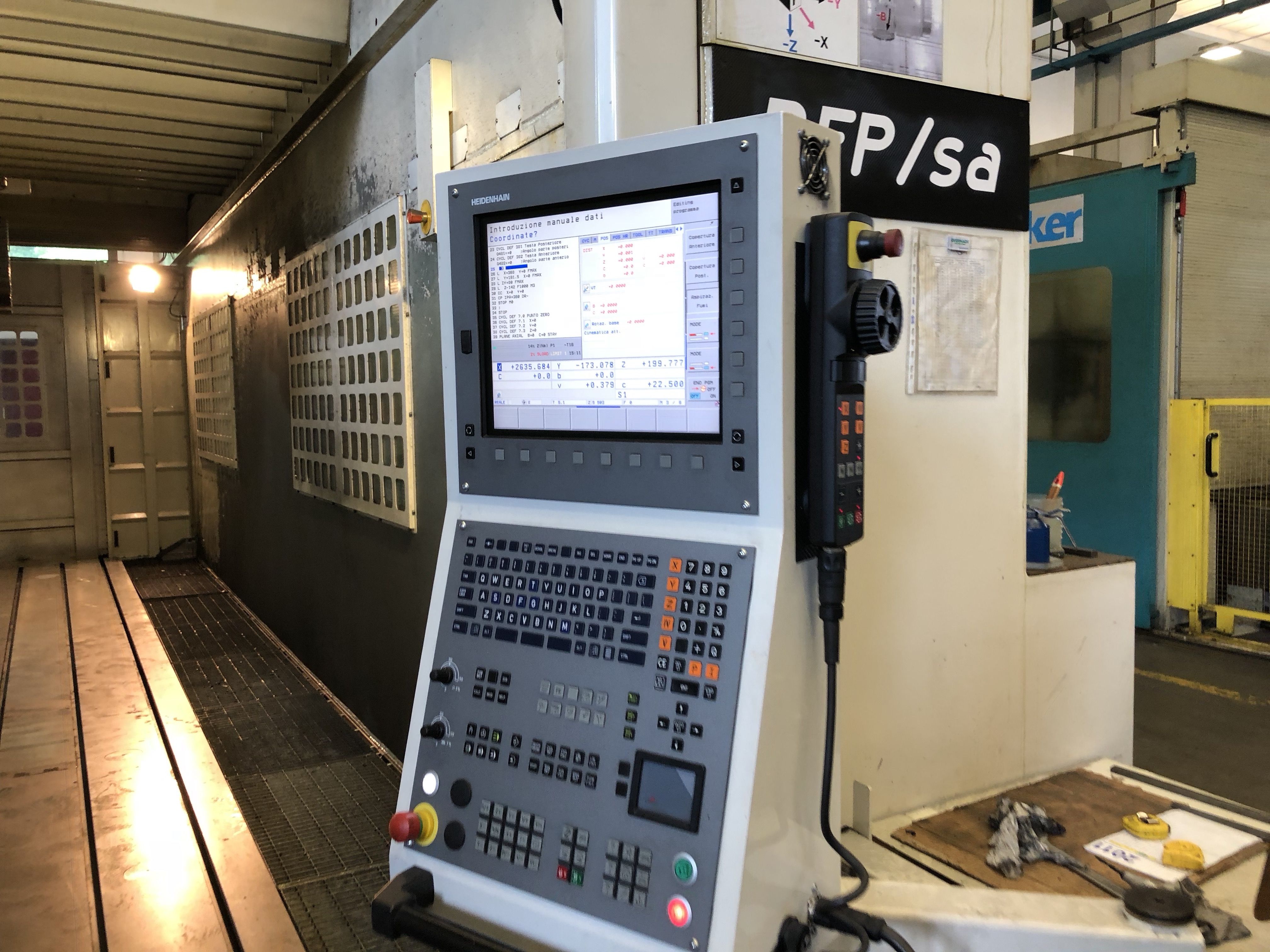

Heidenhain iTNC530SP
Drives
Heidenhain
Measuring system
Righe ottiche pressurizzate Heidenhain
SPINDLE
RAM section
600x600 mm23,62x23,62 in
Spindle power
40 Kw
Gearbox
2 gamme ZF
Rotating speed
0-4000 Rpm
Torque
1200 Nm
Taper
ISO50
Notes
refrigerante int/est

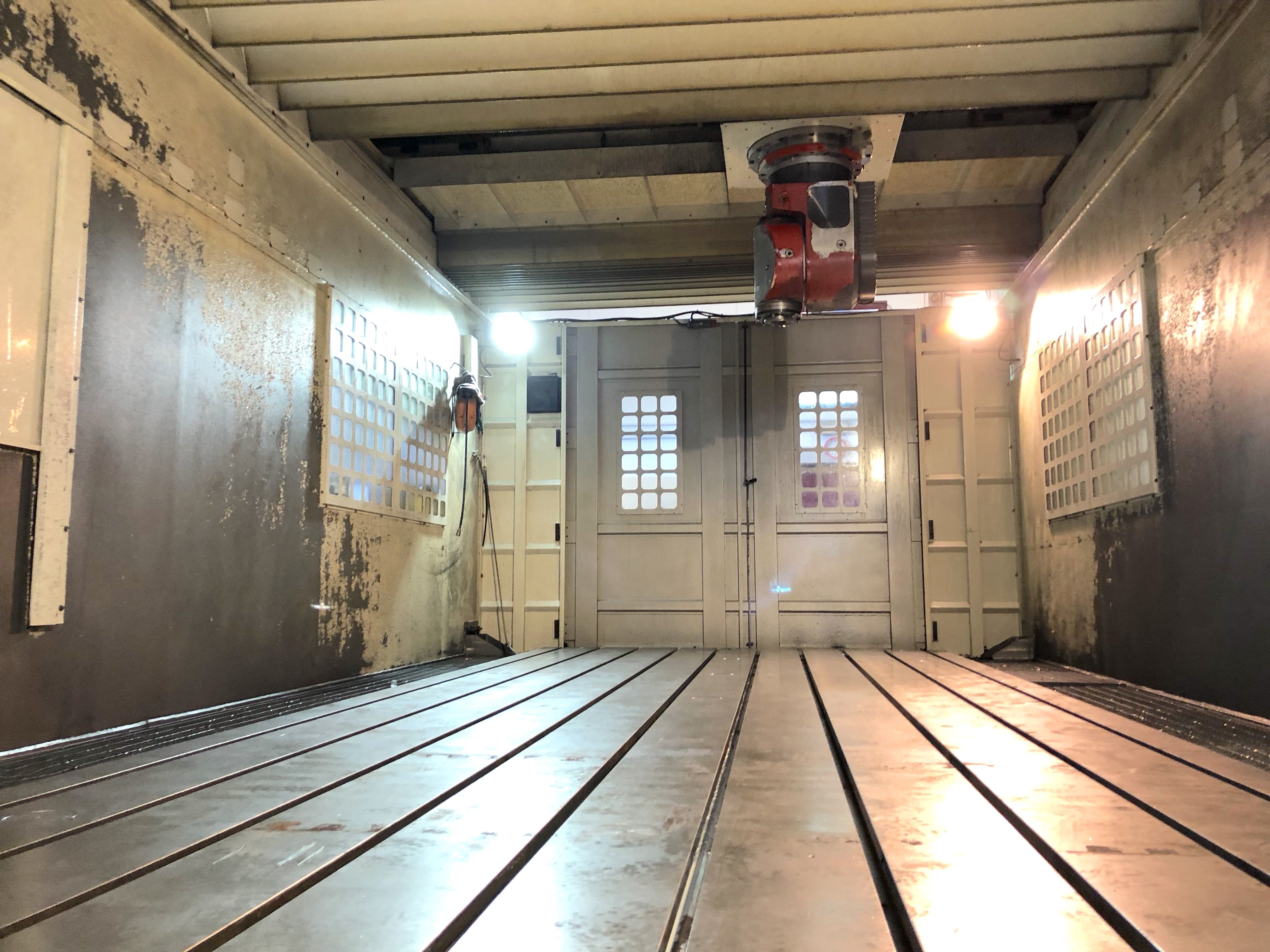

WARKING TABLE
Floorspace (LxWxH)
7000x2500x300 mm275,59x98,43x11,81 in
Capacity
10.000 Kg/mq
Total weight capacity
175.000 Kg
T slots number
10x250mm 28mm M24
Notes
Piano Stolle in Ghisa

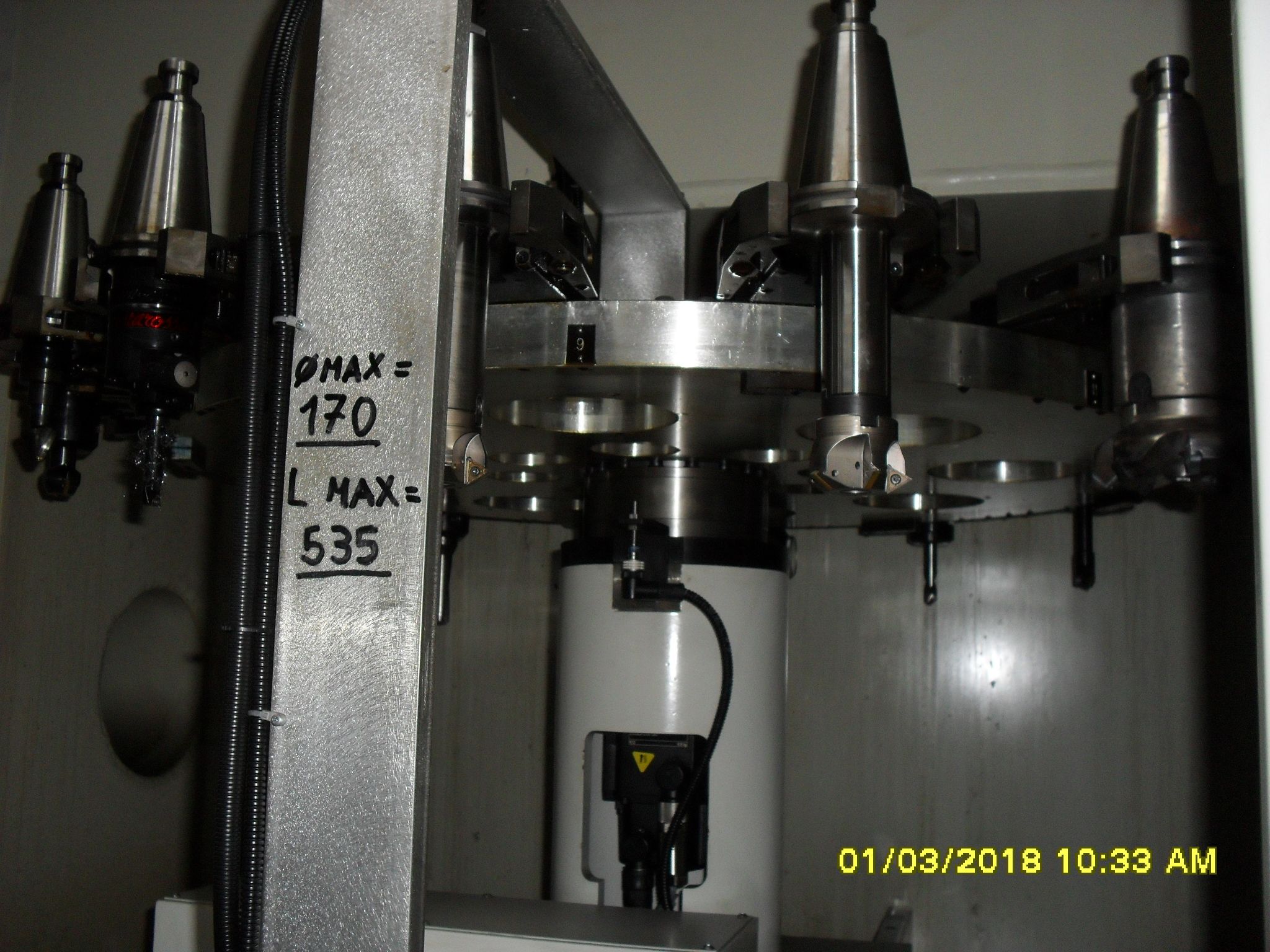

ATC
Positions
24
Max tool diameter
170 mm6,69 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
535 mm21,06 in
Max tool weight
25 Kg
Tool taper
ISO50 DIN 69871
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm

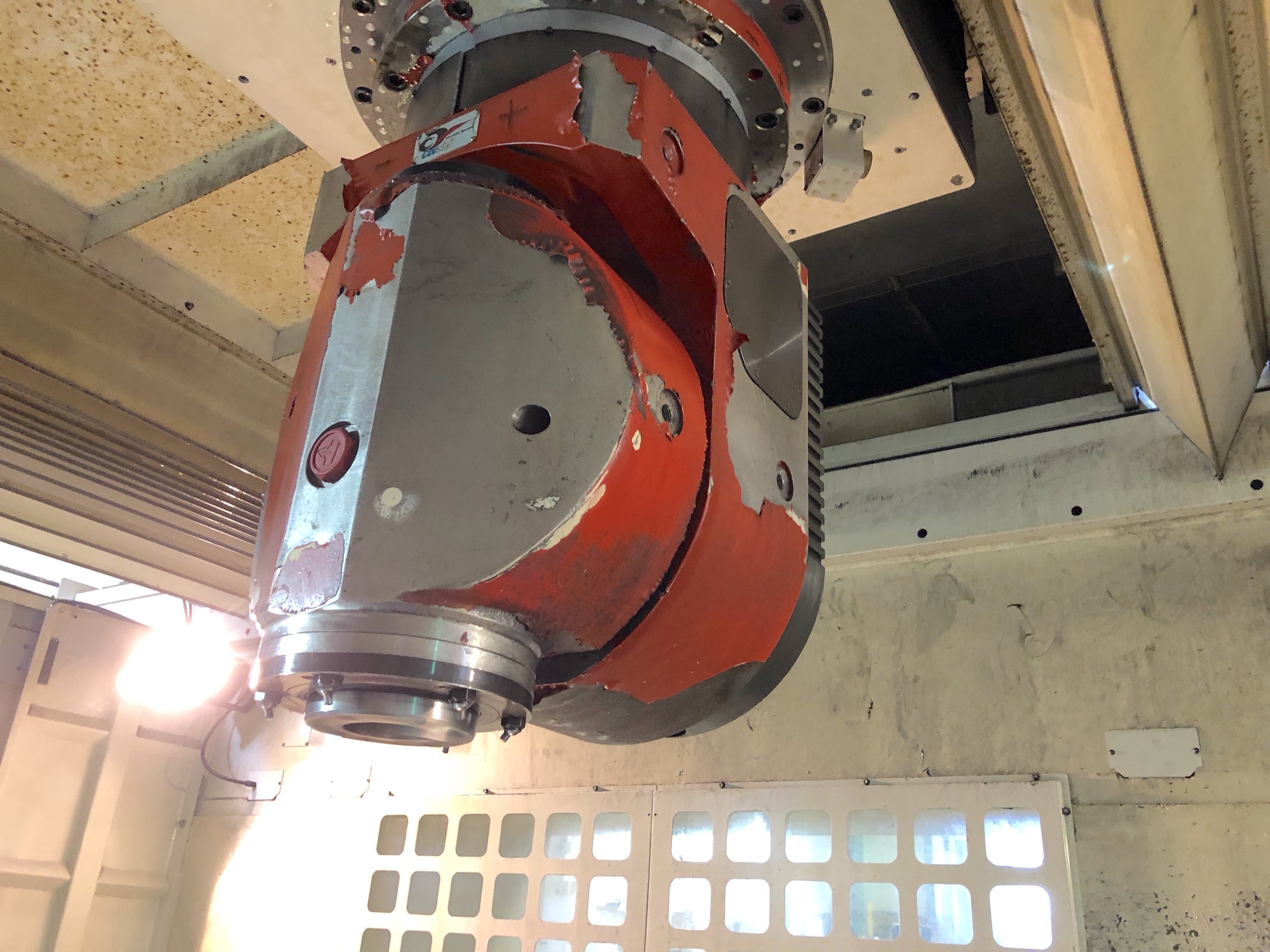

HEAD 1
Type
TW40C
Spindle taper
ISO50 DIN69871
A axis
(index 2,5°) +/- 105 °
C axis
(index 2,5°) +/- 180 °
Max torque
1200 Nm
Max speed
4000 Rpm
Max power
40 Kw
Coolant
Int/ext
EXTRA
Machine total weight
74000 Kg
High Pressure
40Bar

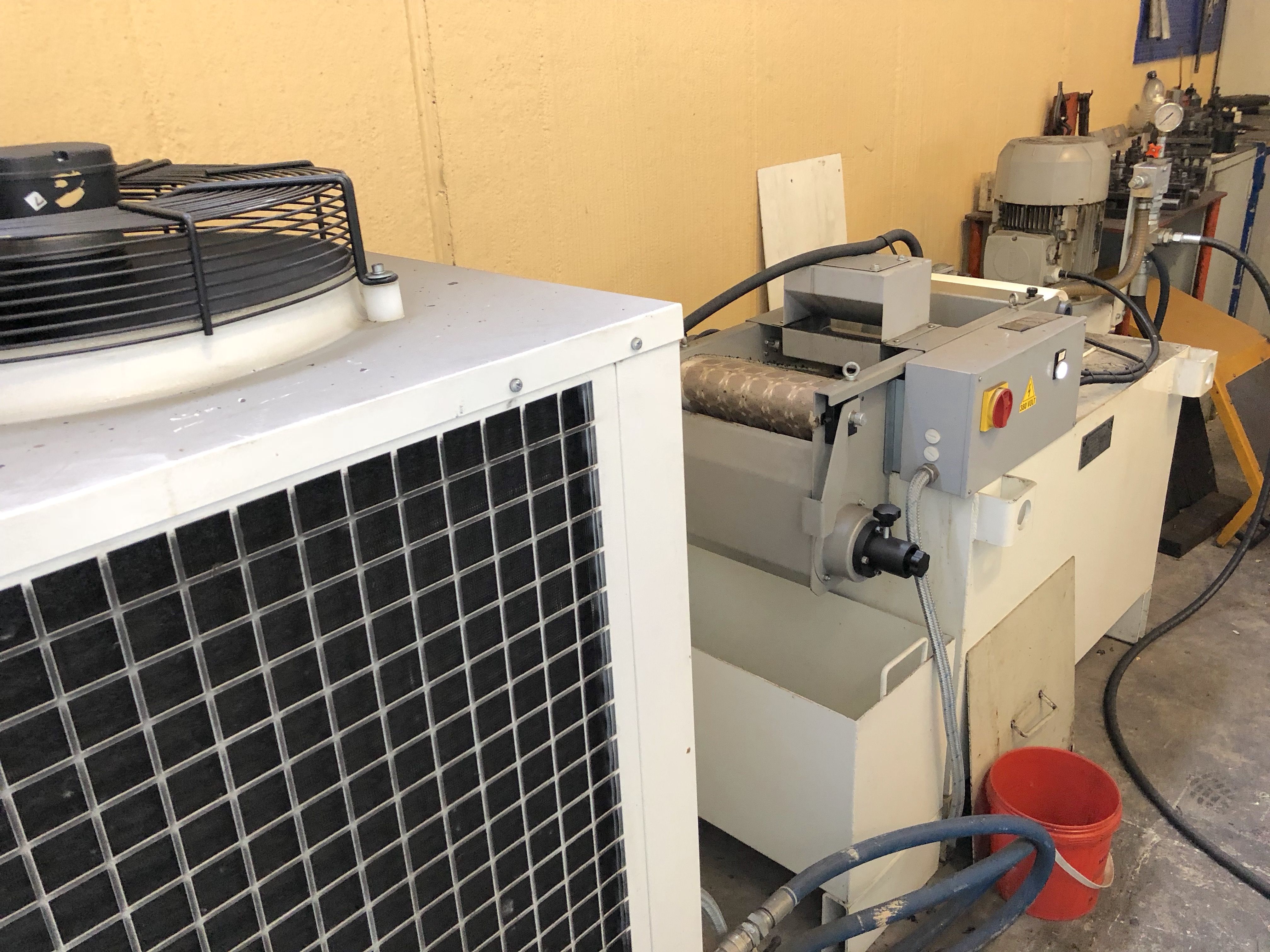

Filtration unit
Vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes

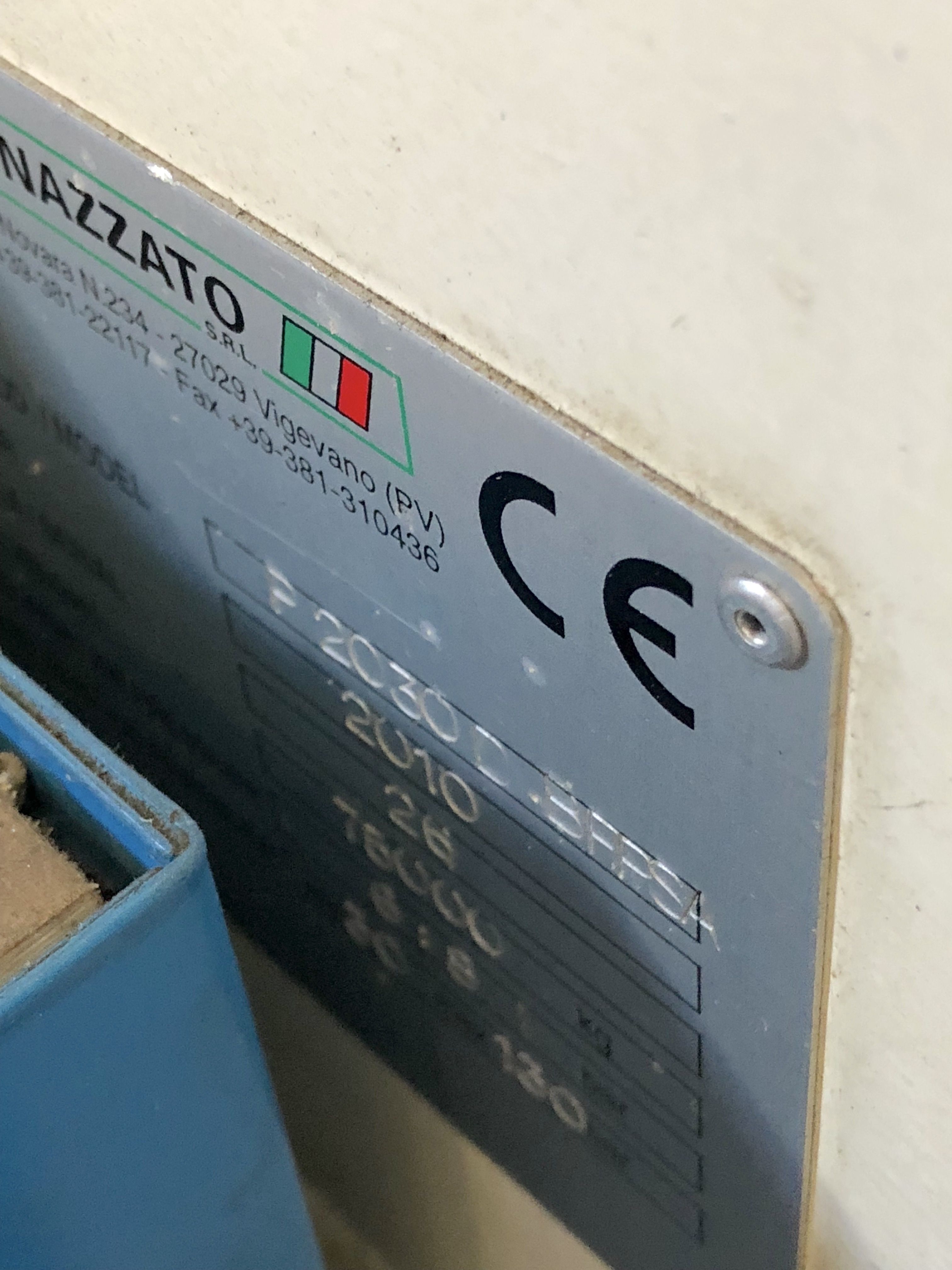

CE Certification
Yes

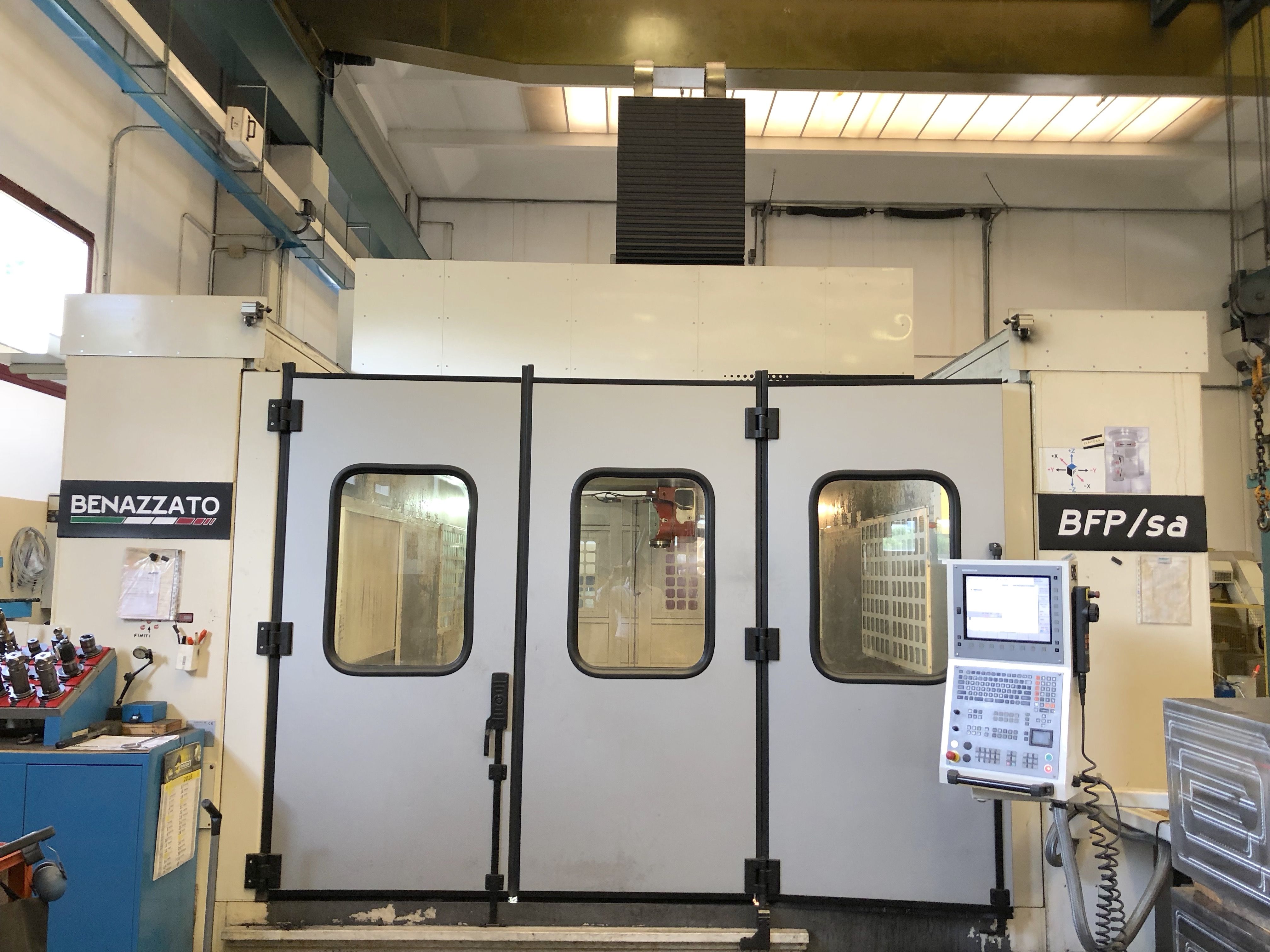

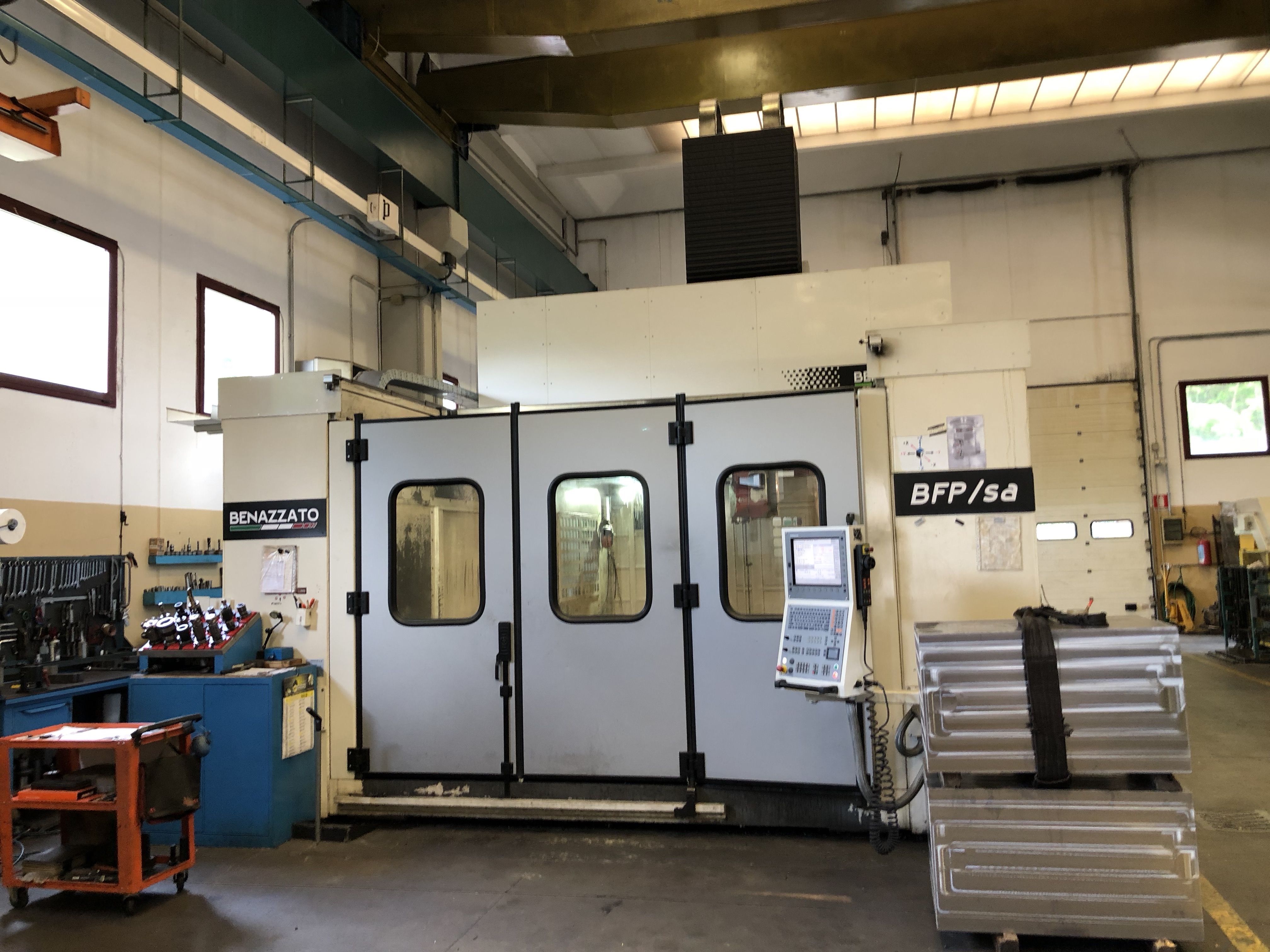

Housing
completa con tetto scorrevole

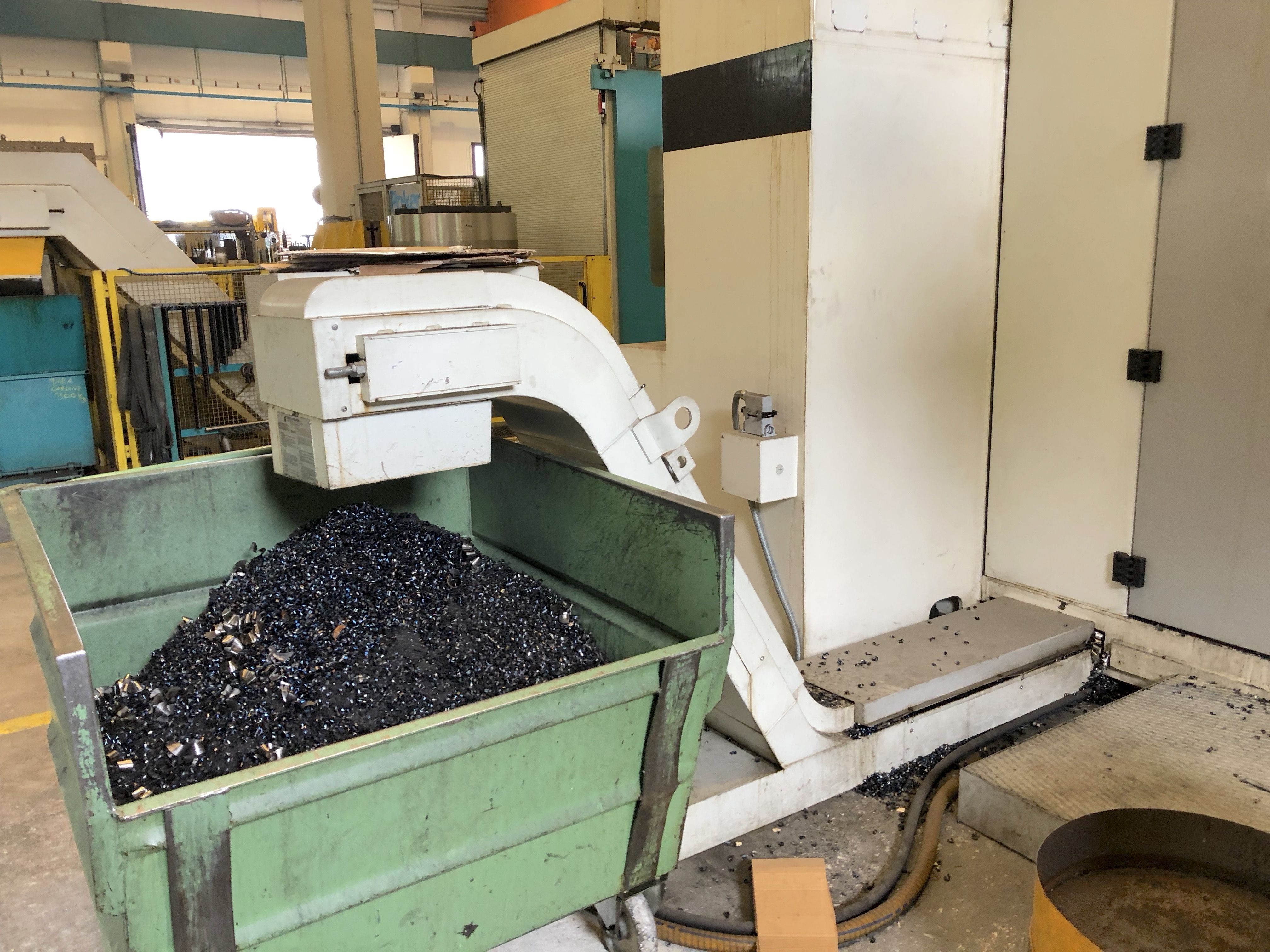

Chip conveyor
Yes
Available under power
Yes
