Category
Milling machine
Type
Bed type
Made
Model

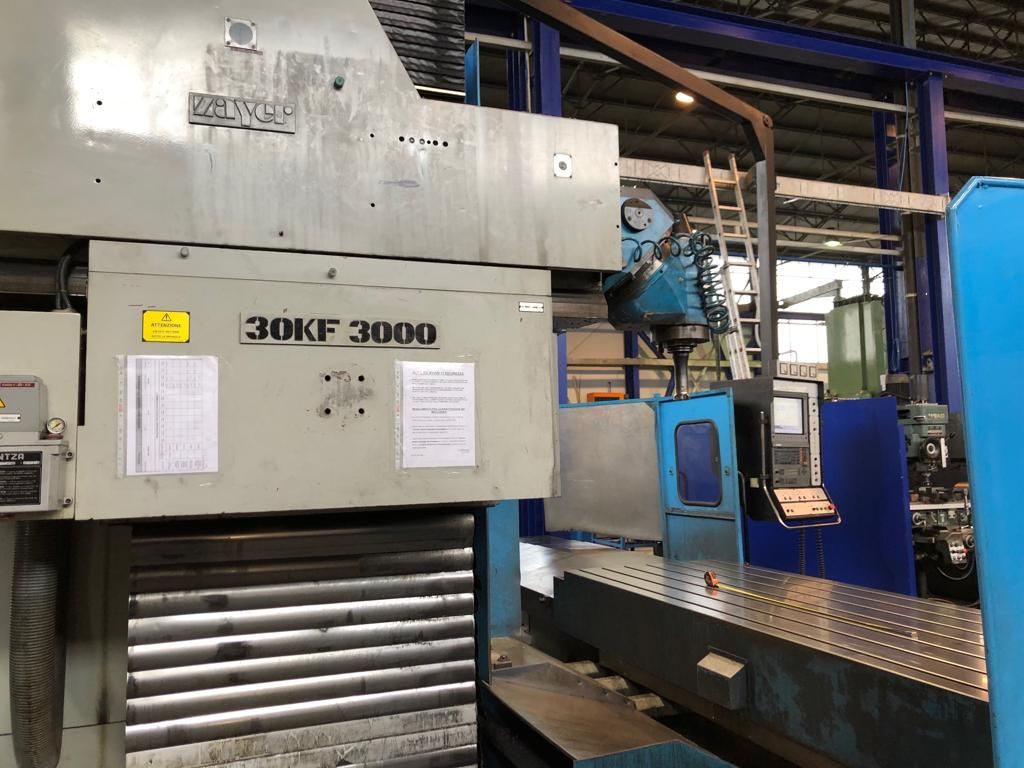

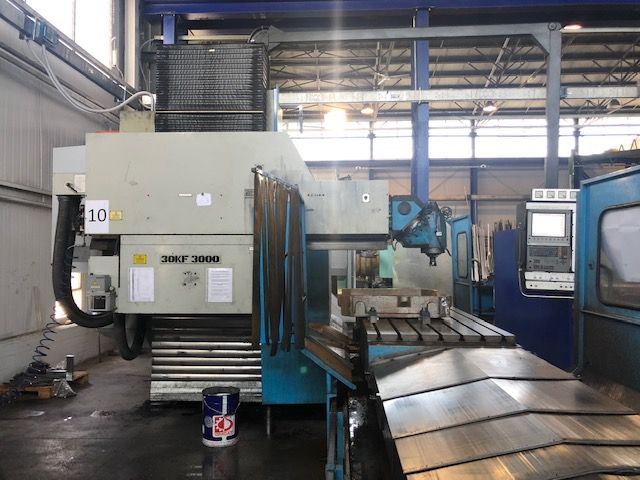

30KF3000
Capacity
3000x1250x1500 mm118,11x49,21x59,06 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2700 mm106,30 in
Vertical (Y)
1500 mm59,06 in
Cross RAM (Z)
1250 mm49,21 in
CNC
CNC

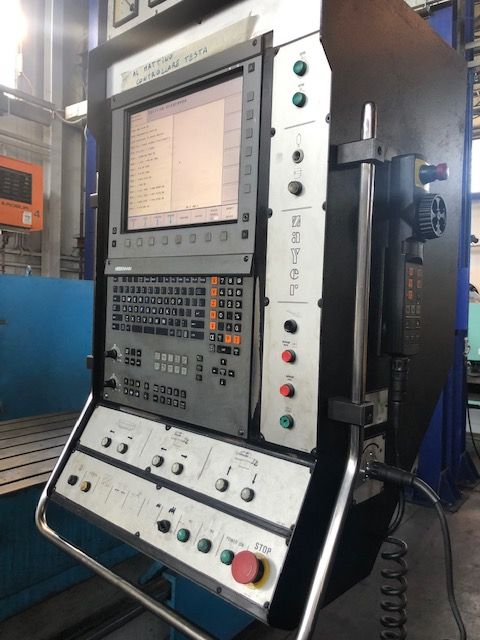

Heidenhain iTNC530
Drives

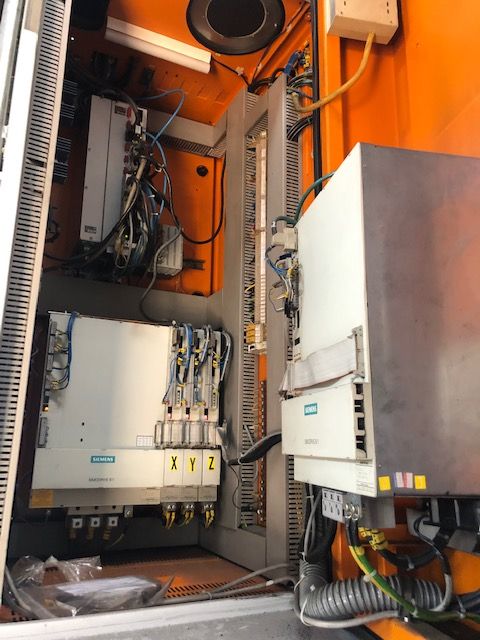

Siemens

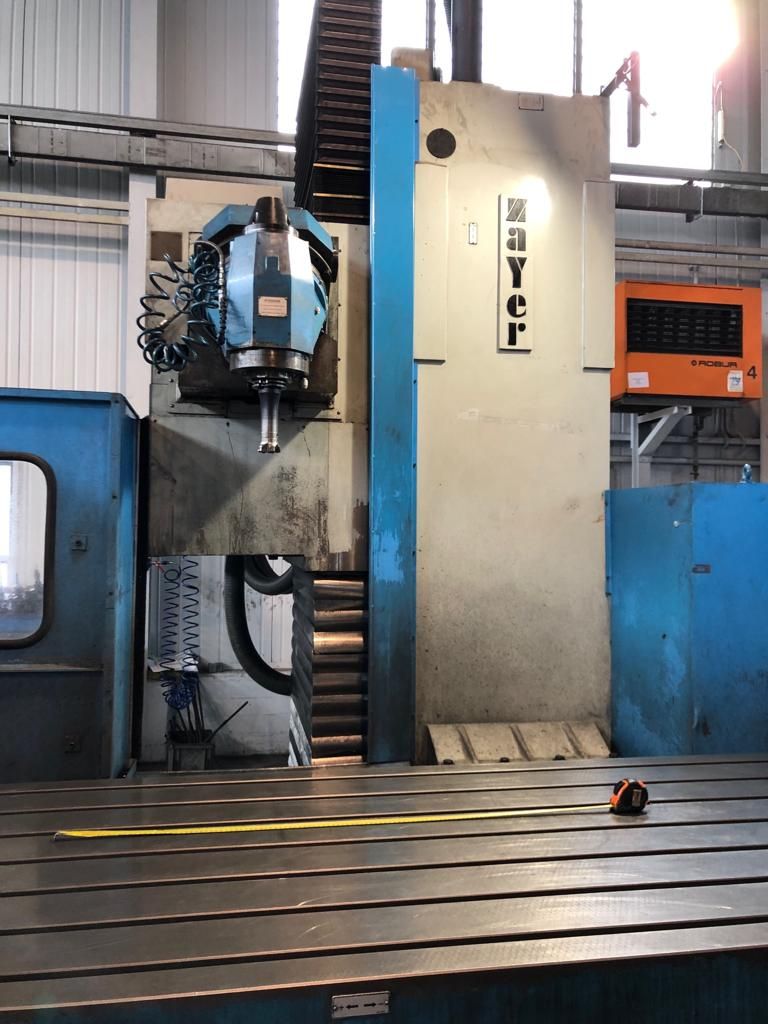

HEAD 1
Type
birotativa automatica
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
3000 Rpm
ATC
Tool taper
ISO 50
SPINDLE
Rotating speed
35-3000 Rpm
TABLE 1
Surface
3000 x 1000 mm118,11 x 39,37 in
EXTRA
CE Certification
Yes
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
