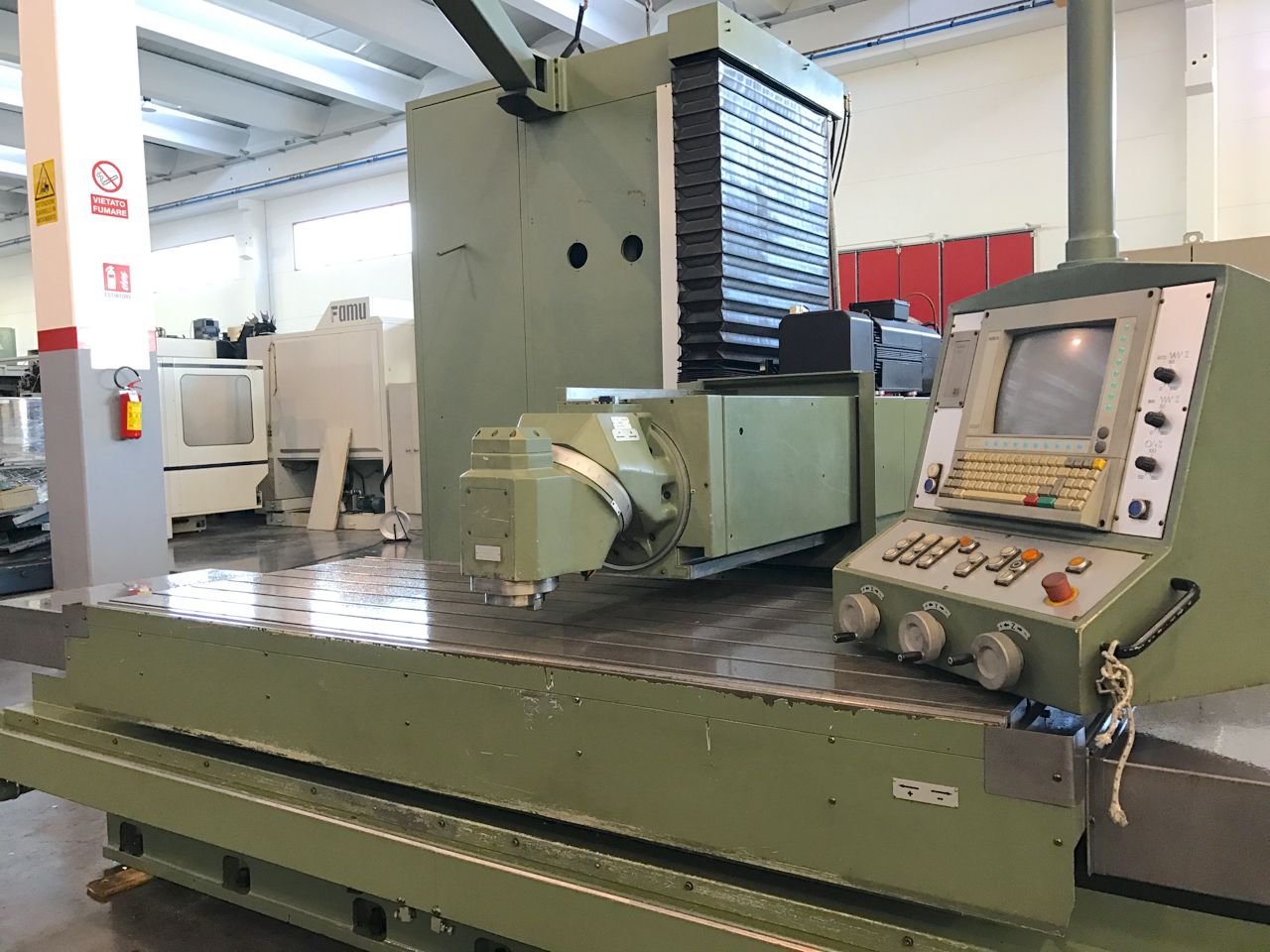

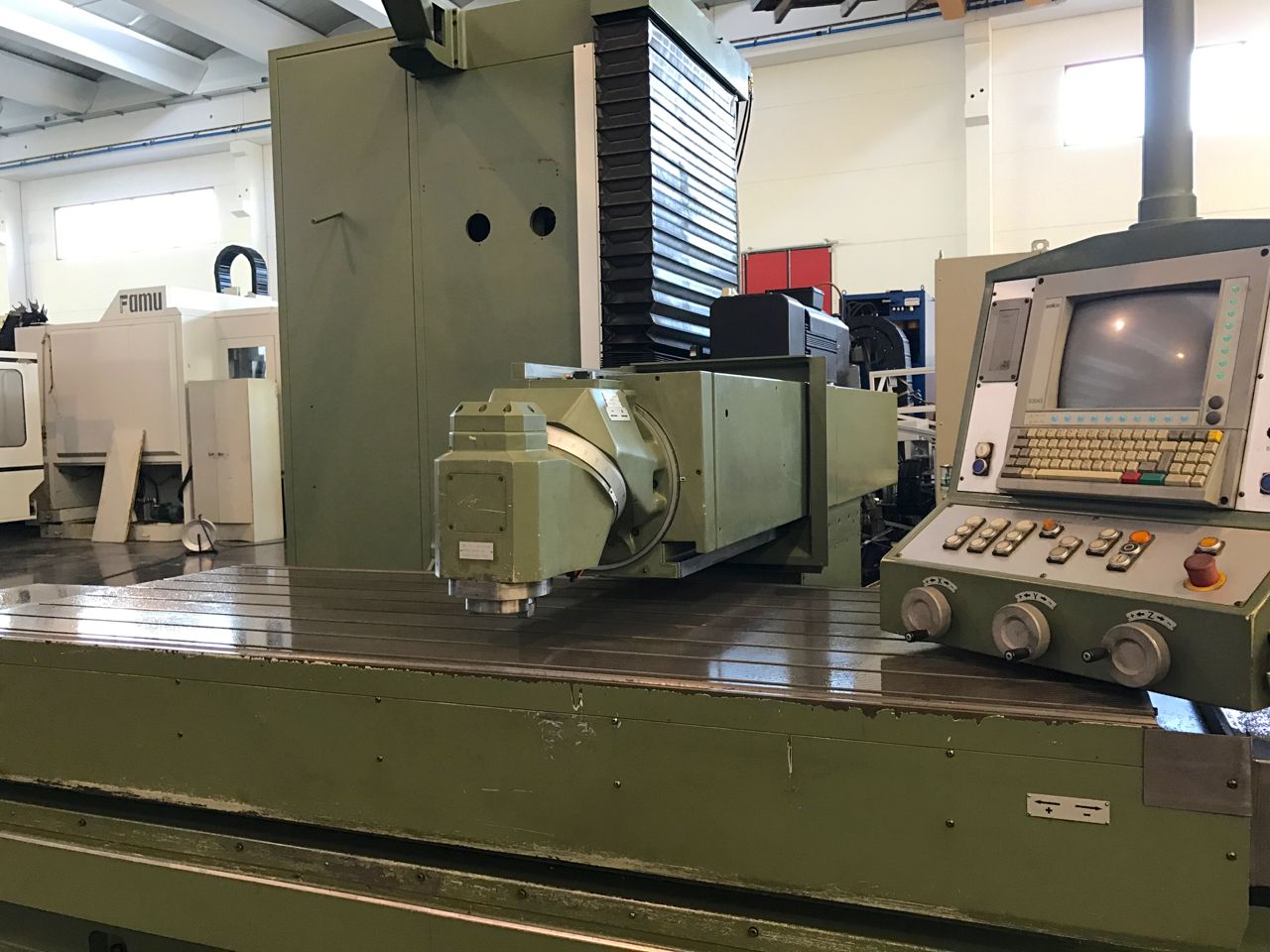

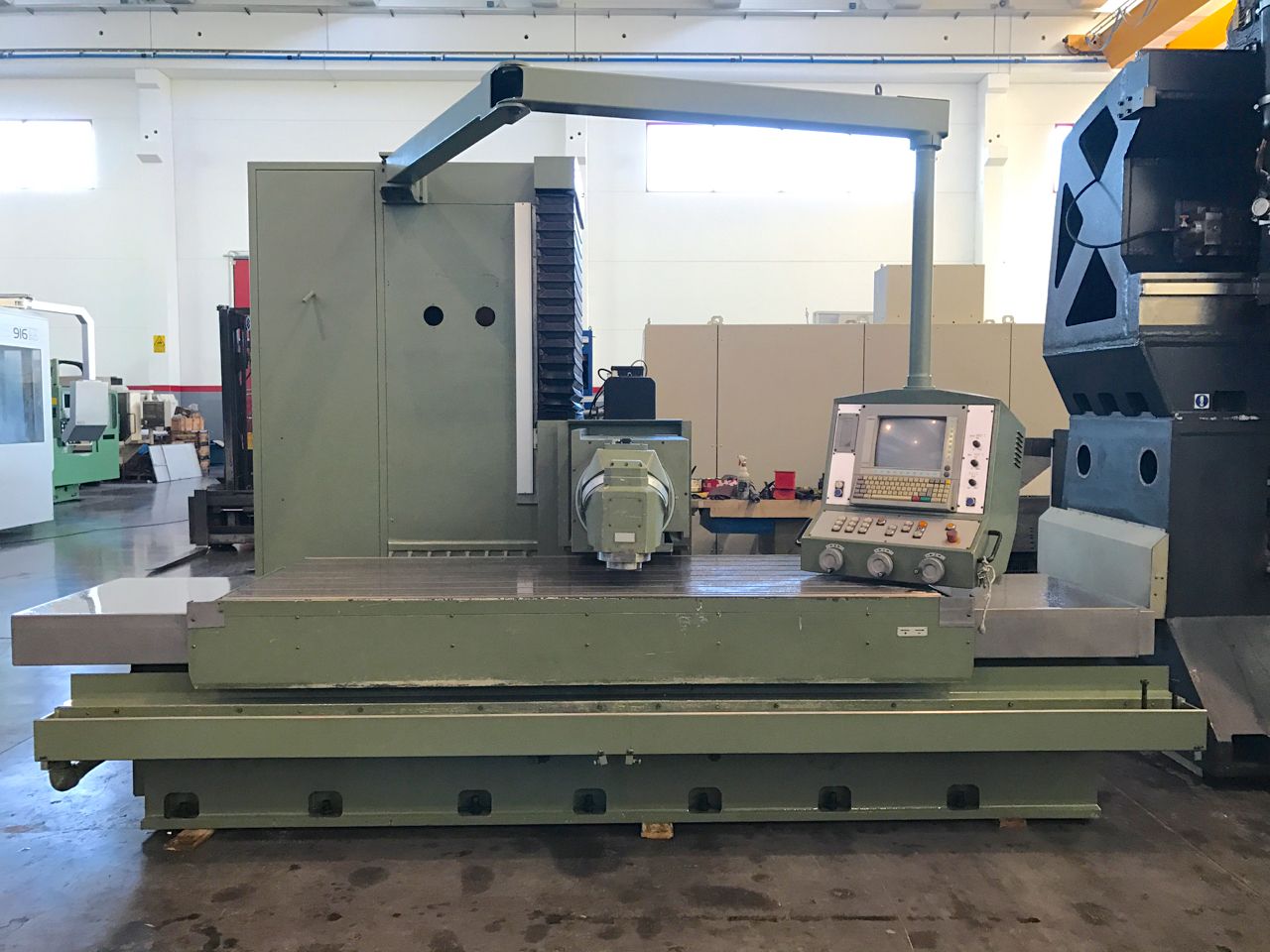

Category
Milling machine
Type
Bed type
Made
Model
SL90/2000
Capacity
2000x1250x1000 mm78,74x49,21x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1250 mm49,21 in

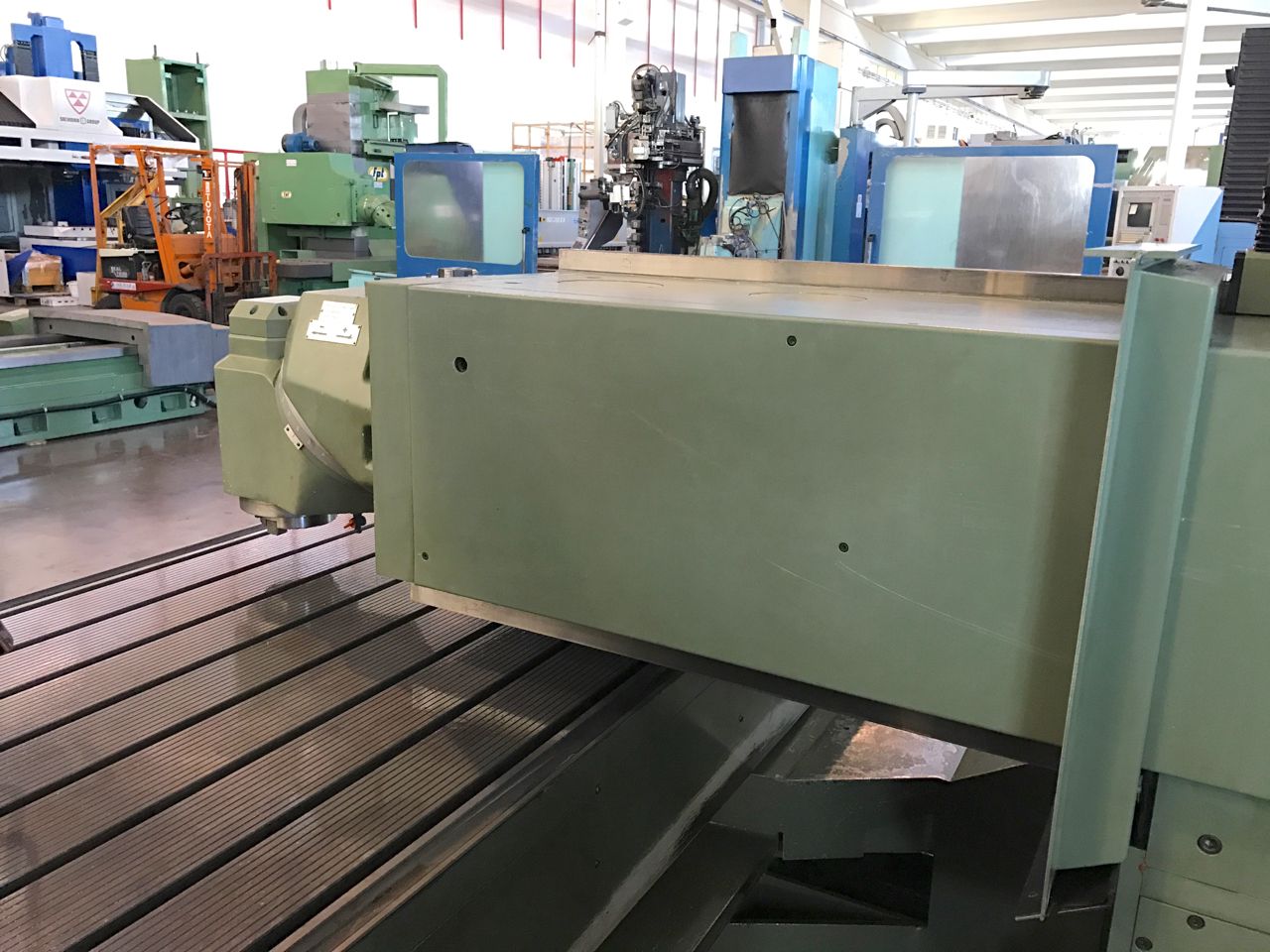

Cross RAM (Z)
1000 mm39,37 in

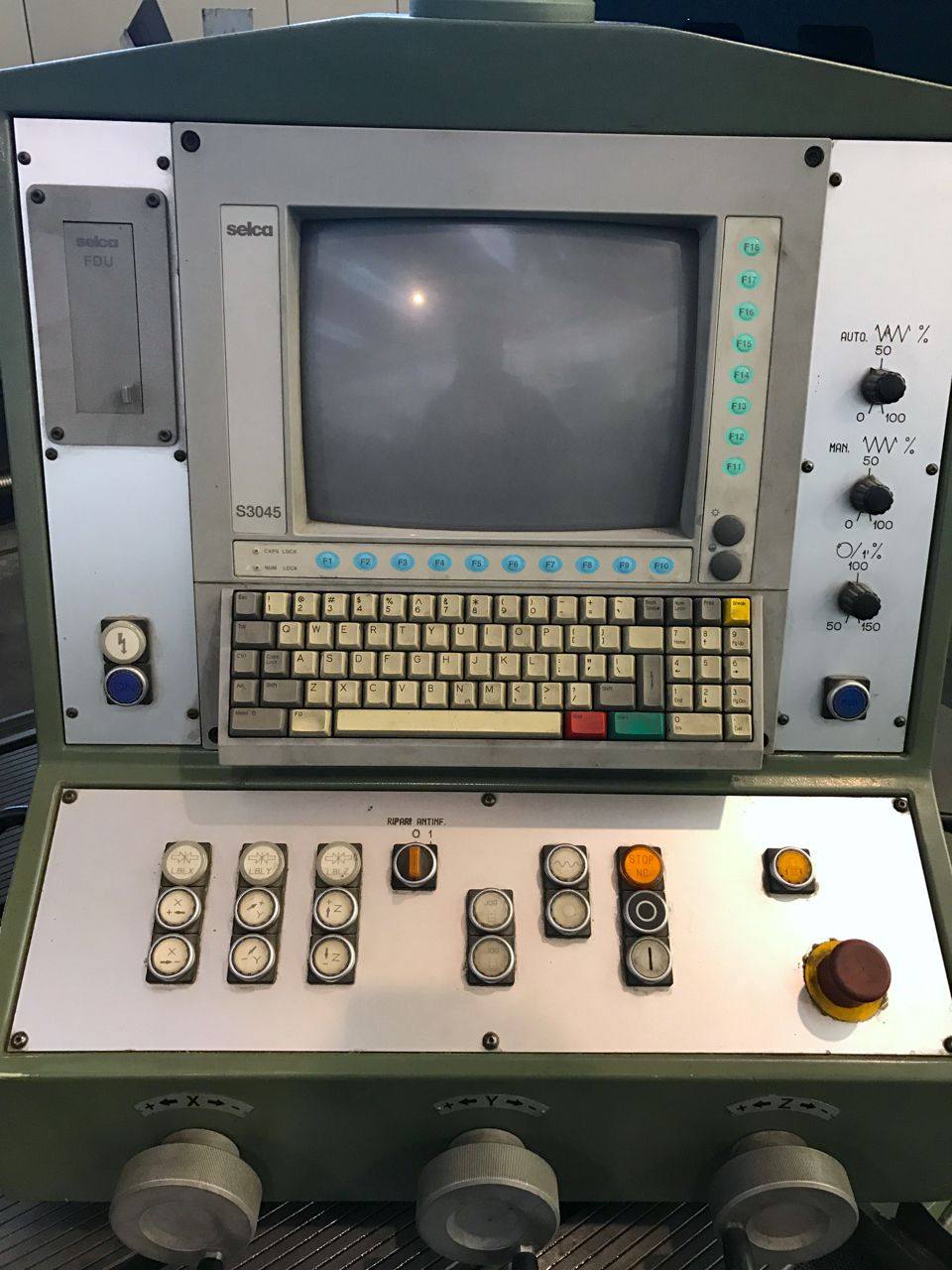

CNC
CNC
SELCA 3045

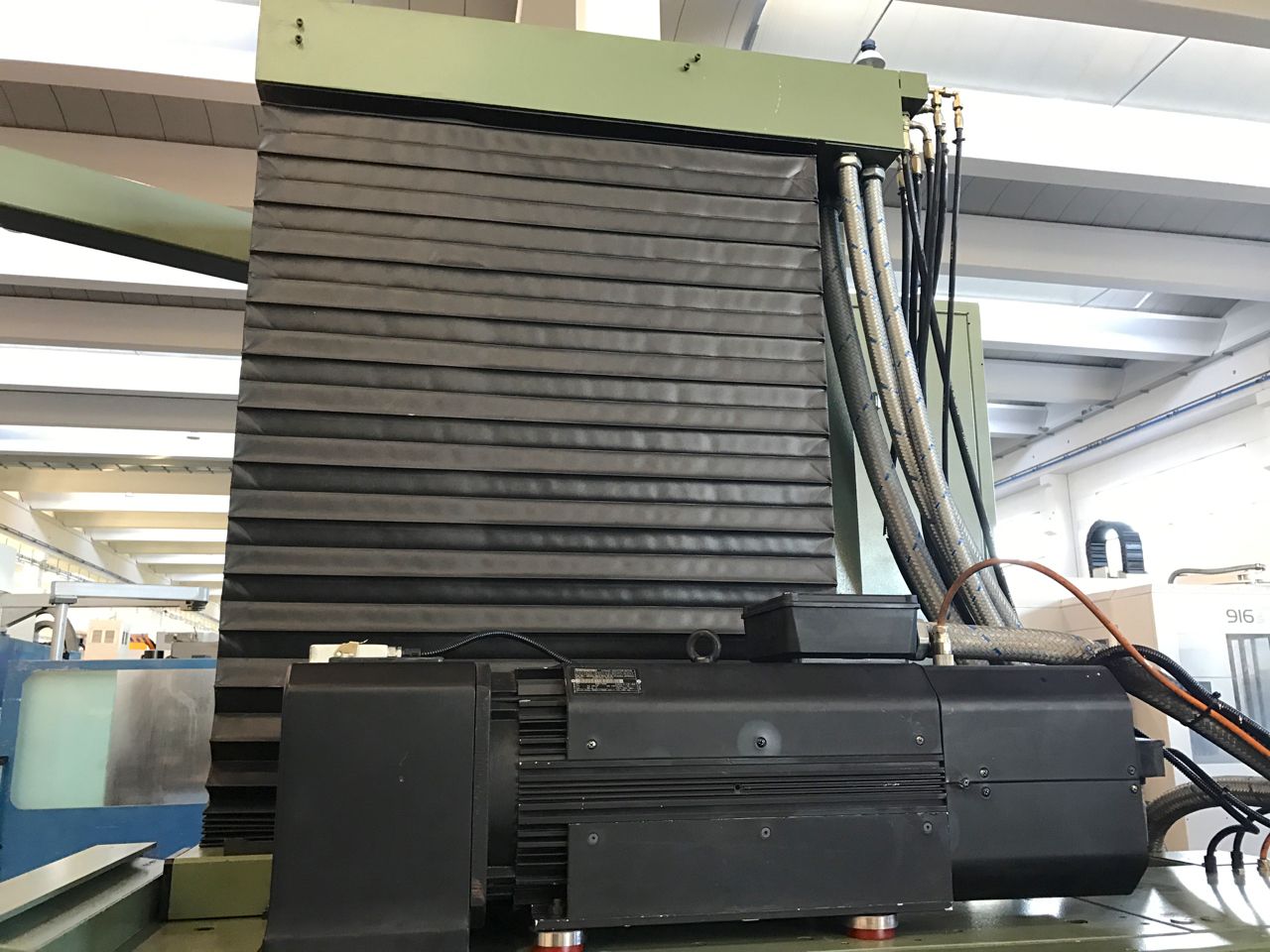

SPINDLE
Spindle power
22/33 Kw
Rotating speed
4000 Rpm
Taper
ISO 50
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
TABLE 1
Surface
2400x1000 mm94,49x39,37 in

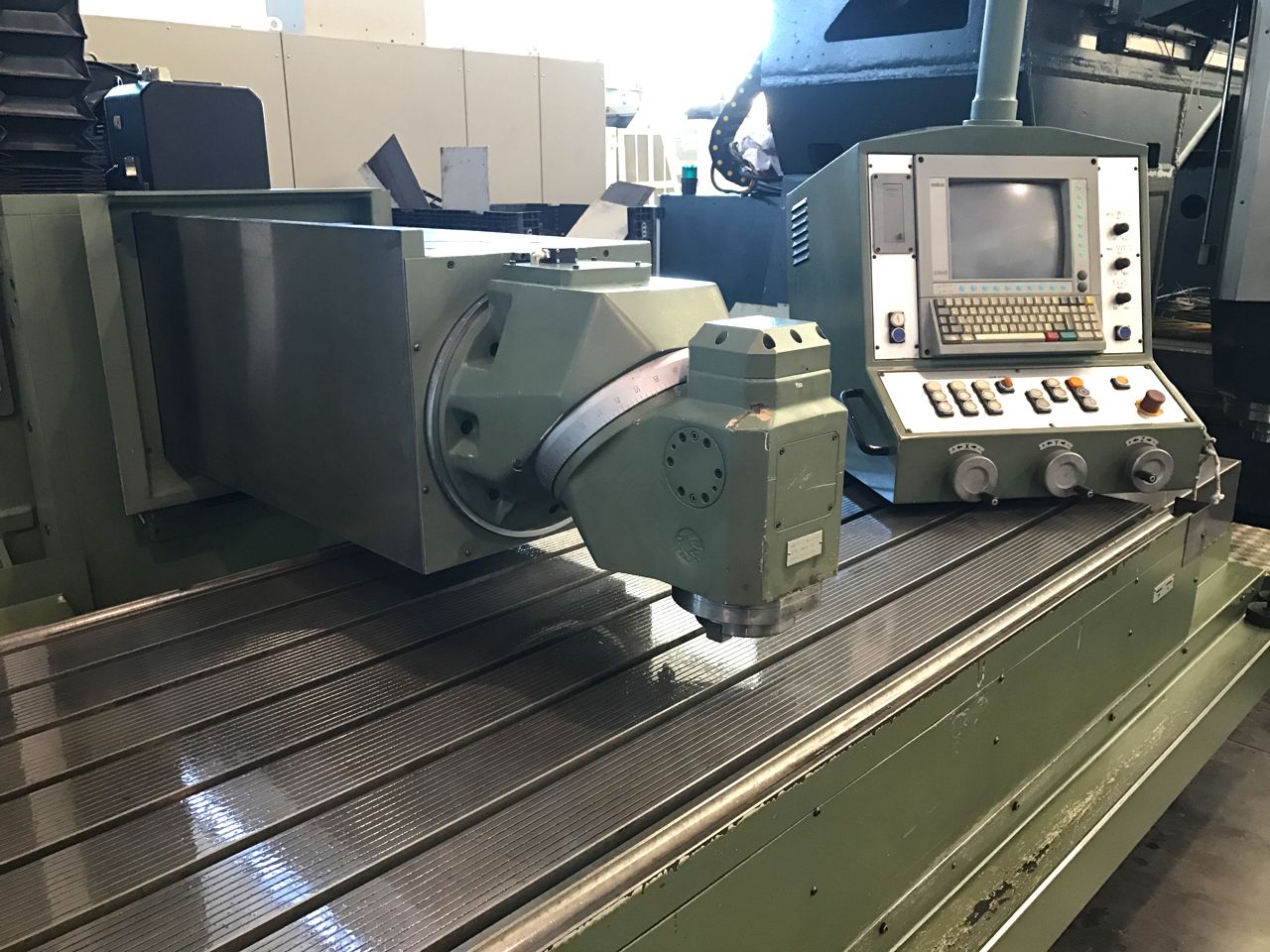

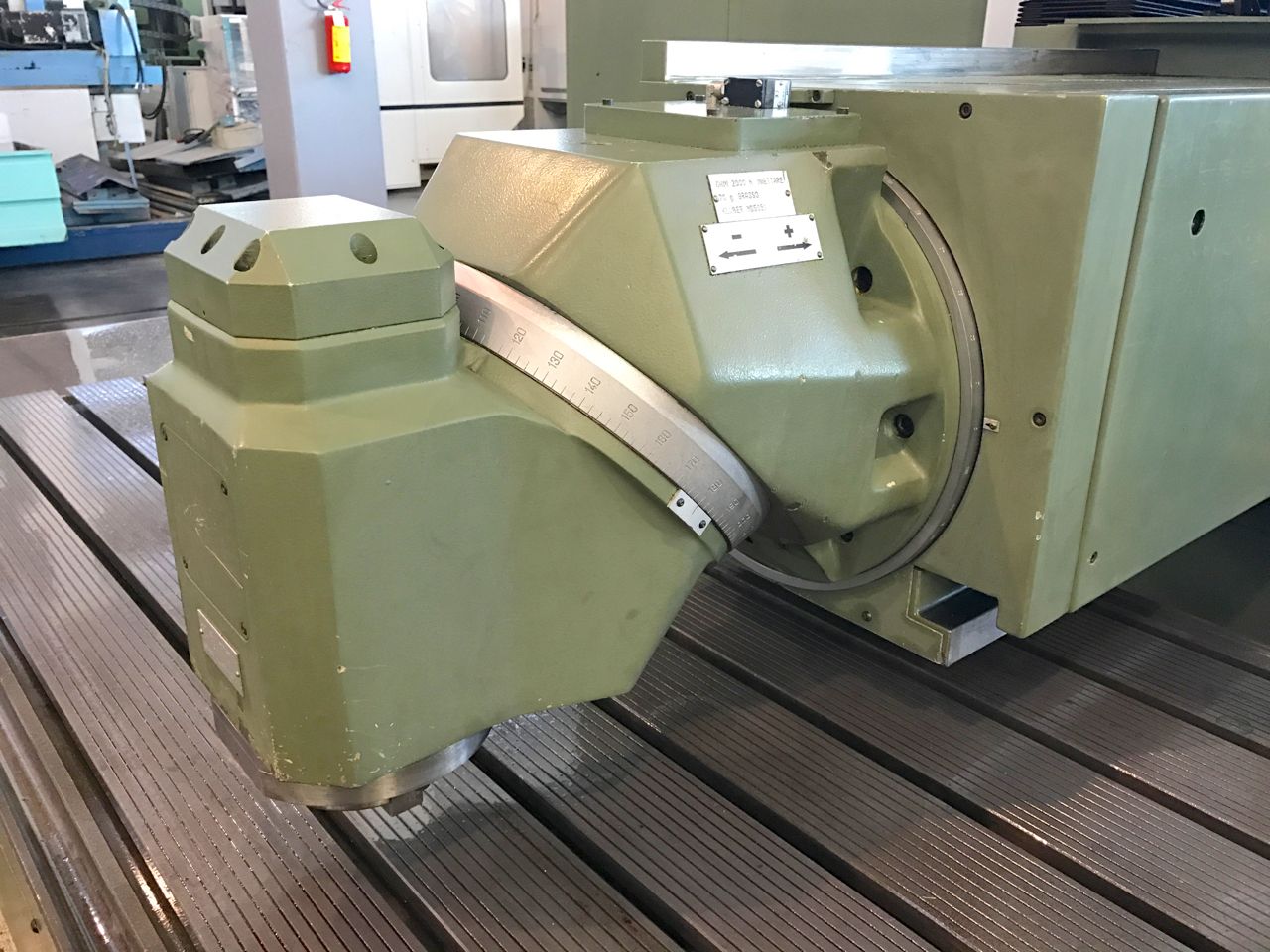

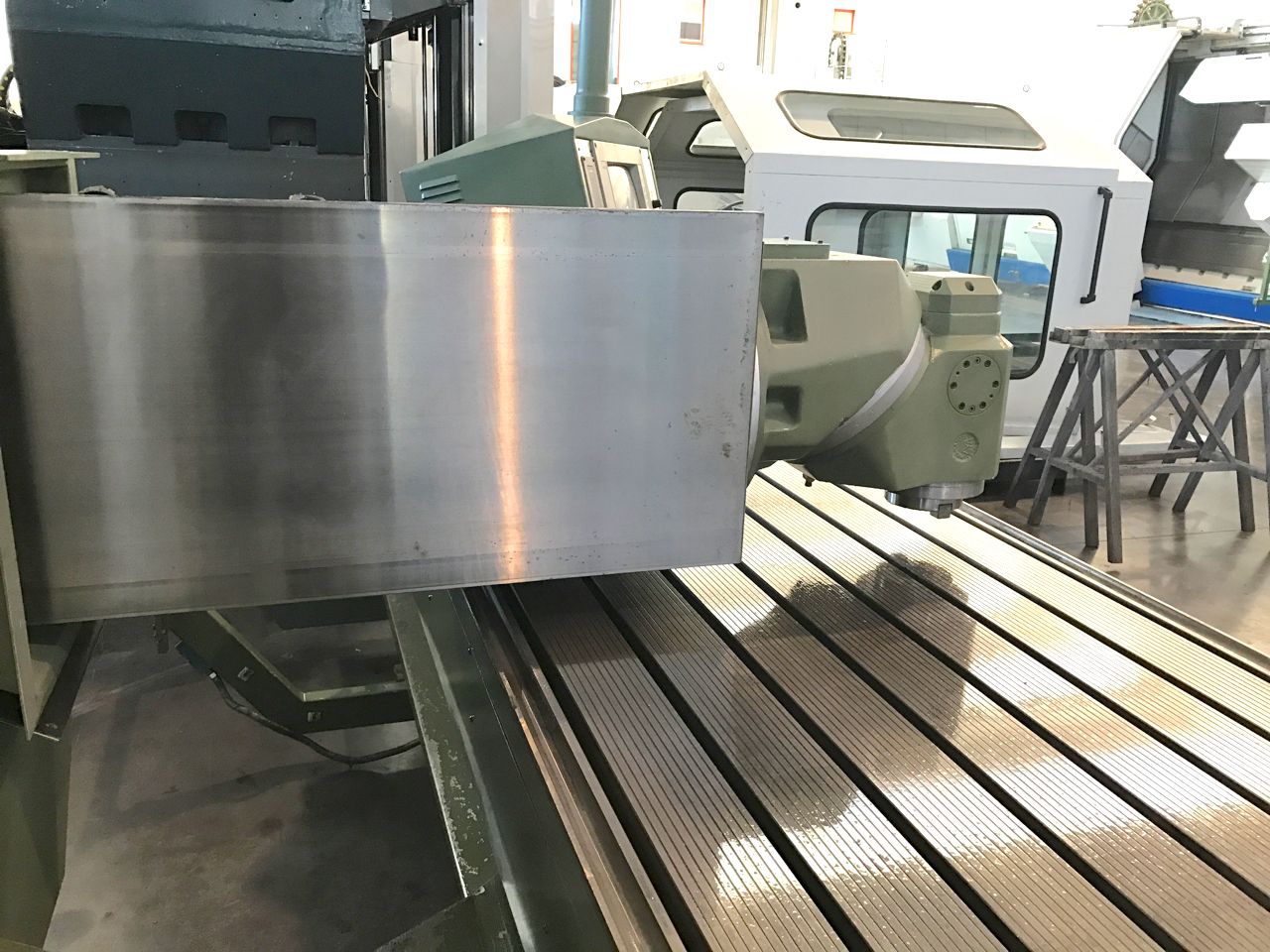

HEAD 1
Type
birotativa automatica
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
4000 Rpm
Max power
33 Kw
ATC
Positions
40
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
250 mm9,84 in
Max tool lenght
350 mm13,78 in
EXTRA
Housing
protezioni frontali scorrevoli
Chiller
si
Availability
pronta
Machine total weight
15 Kg
Floor space
5800x3900x2740 mm228,35x153,54x107,87 in
Chip conveyor
2
Workpiece touch probe
si
Filtration unit
coolant tank with paper filter
