Category
Milling machine
Type
Bed type
Made
Model

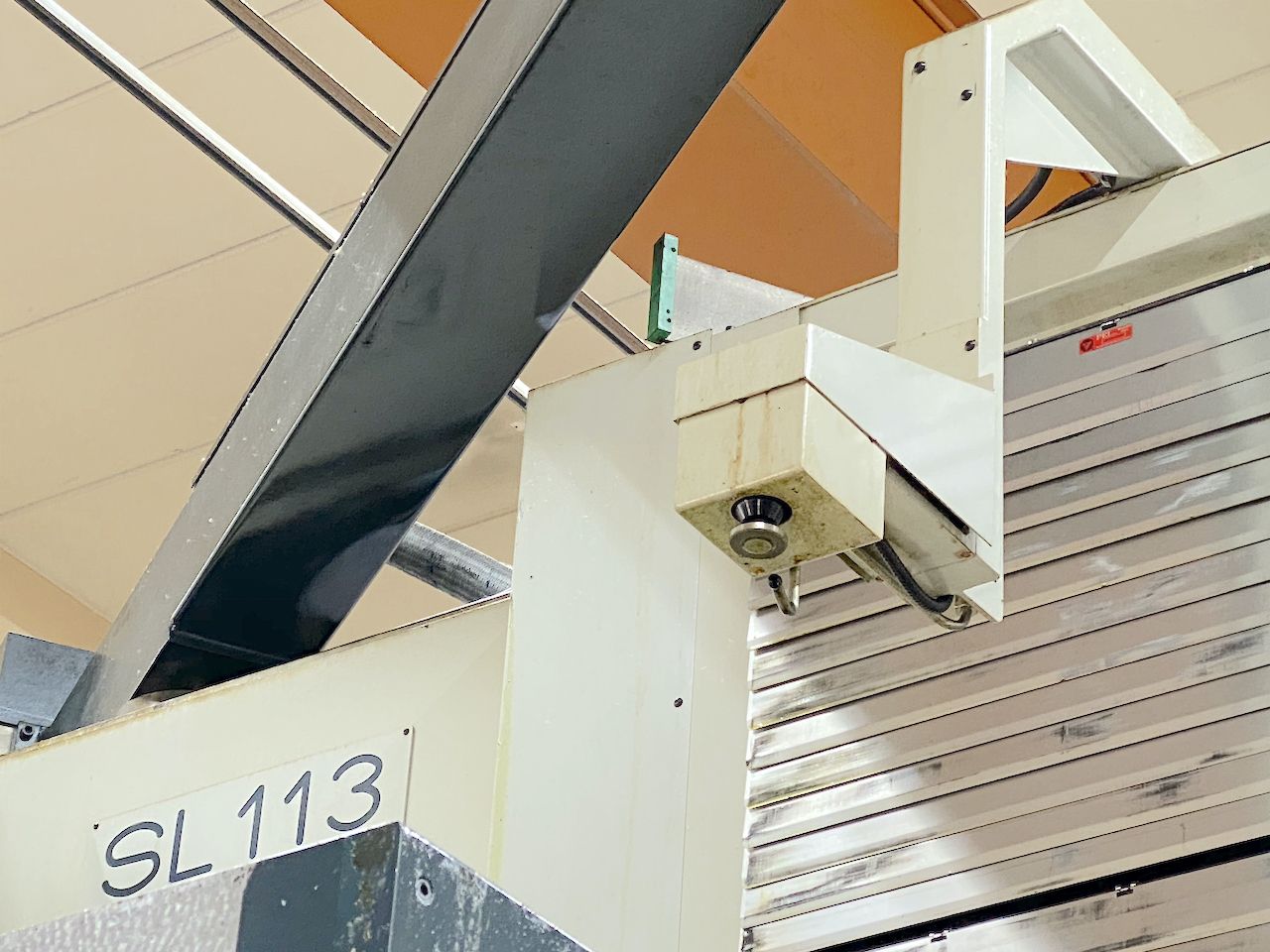

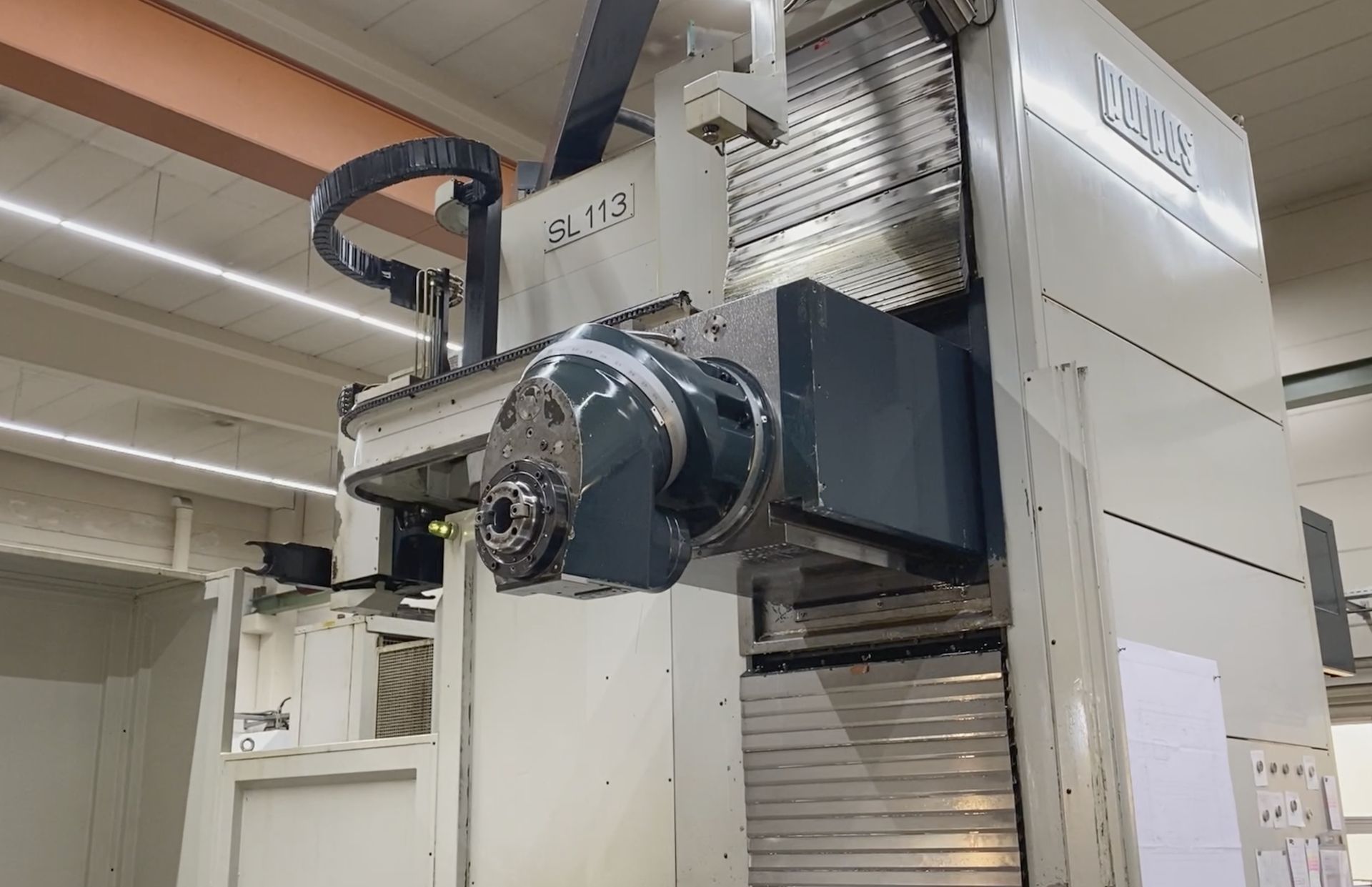

SL113
Capacity
3000x1720x1250 mm118,11x67,72x49,21 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1720 mm67,72 in
Cross RAM (Z)
1250 mm49,21 in

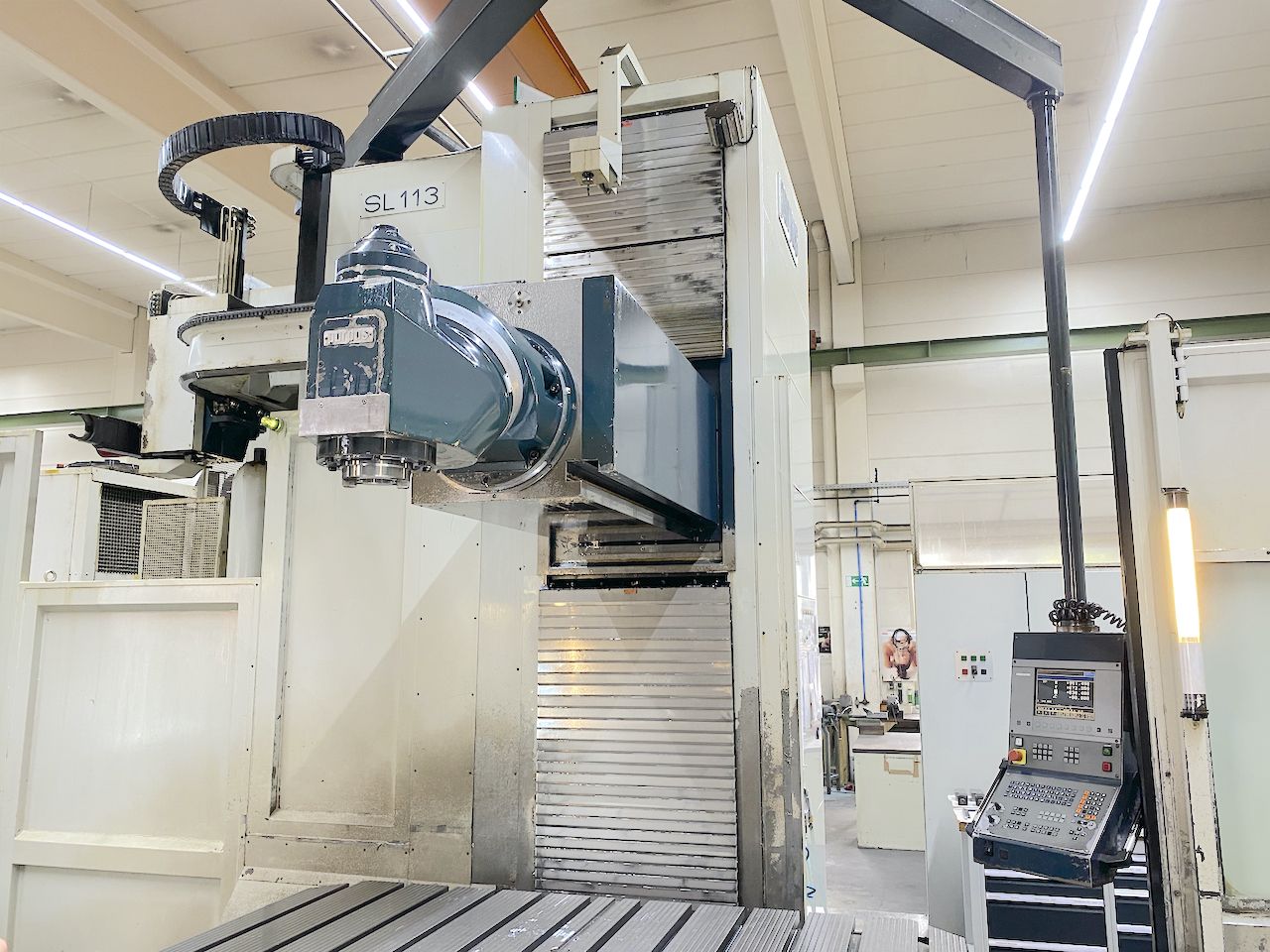

CNC
CNC

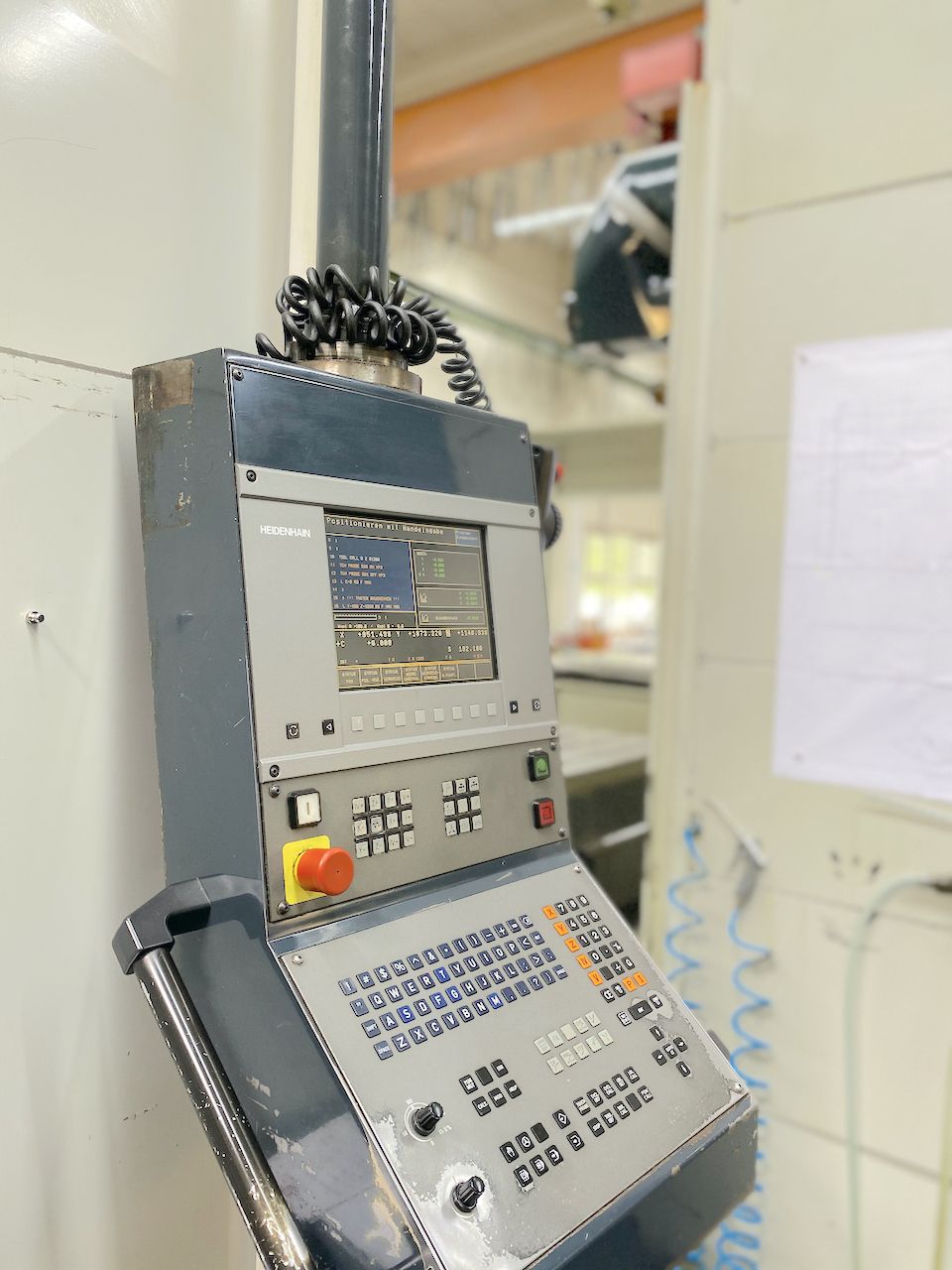

Heidenhain TNC430
SPINDLE
Spindle power
37 Kw
Gearbox
6-959 / 950-4000Rpm
Rotating speed
4000 Rpm
Taper
ISO50
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm

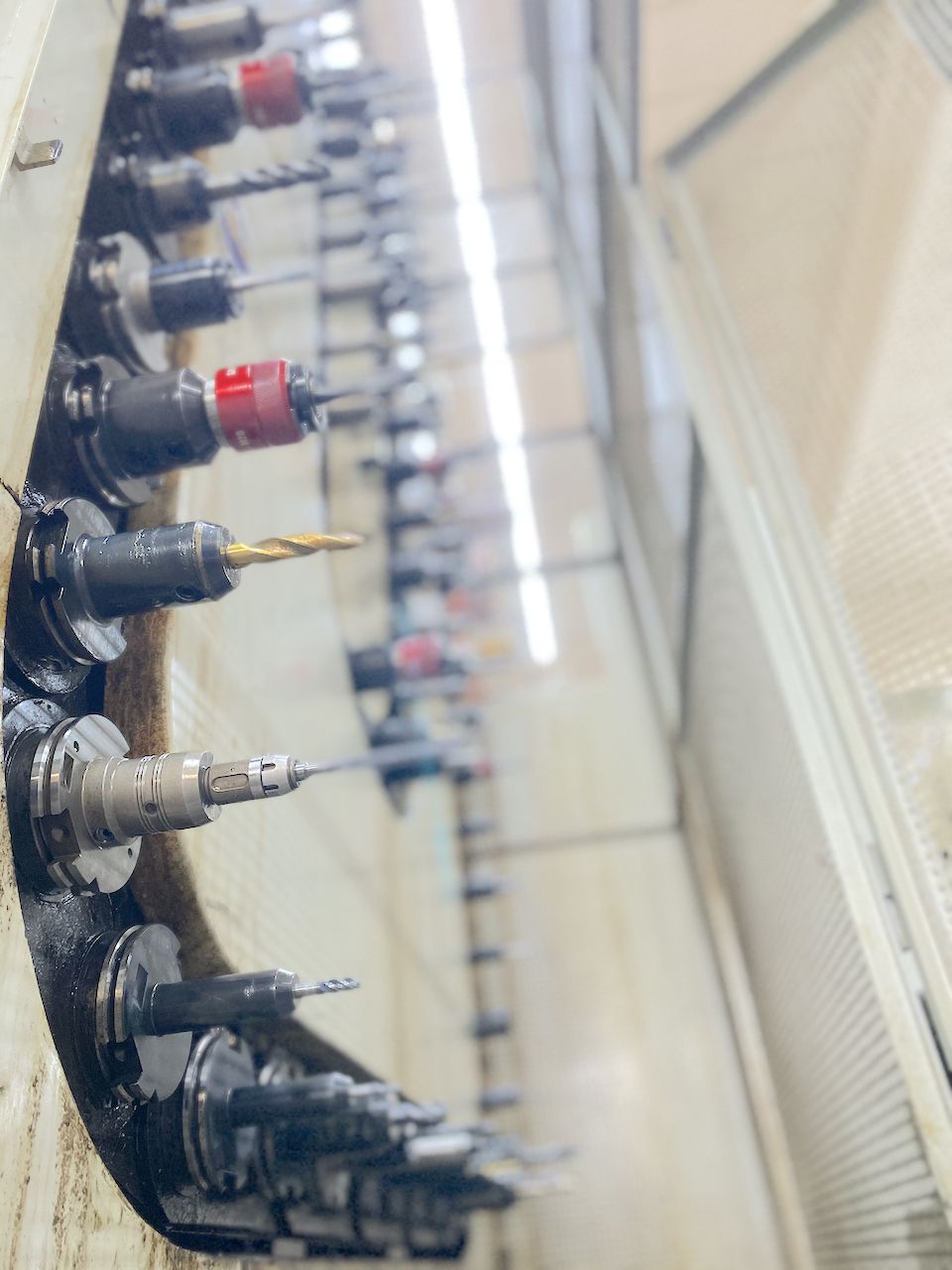

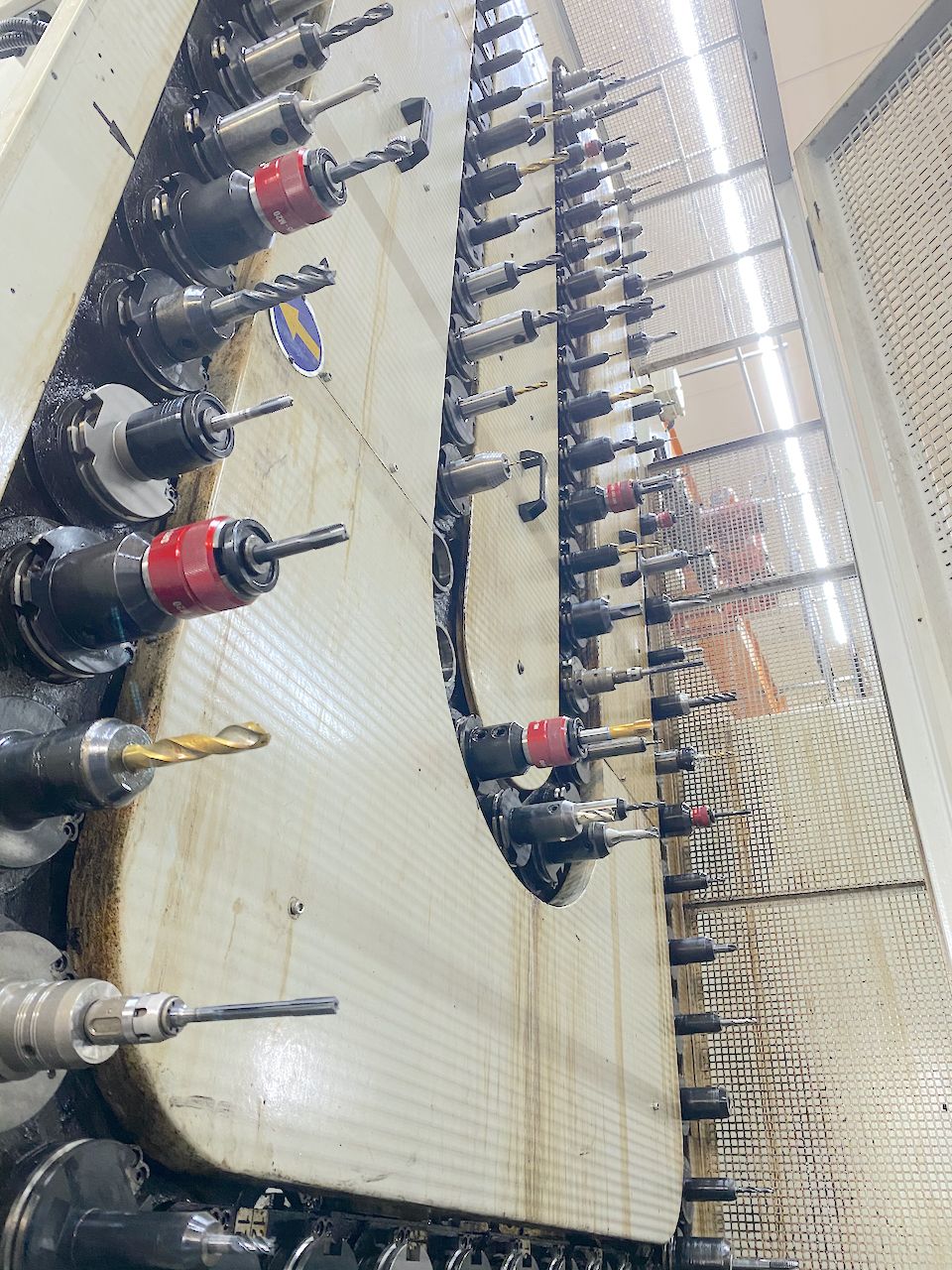

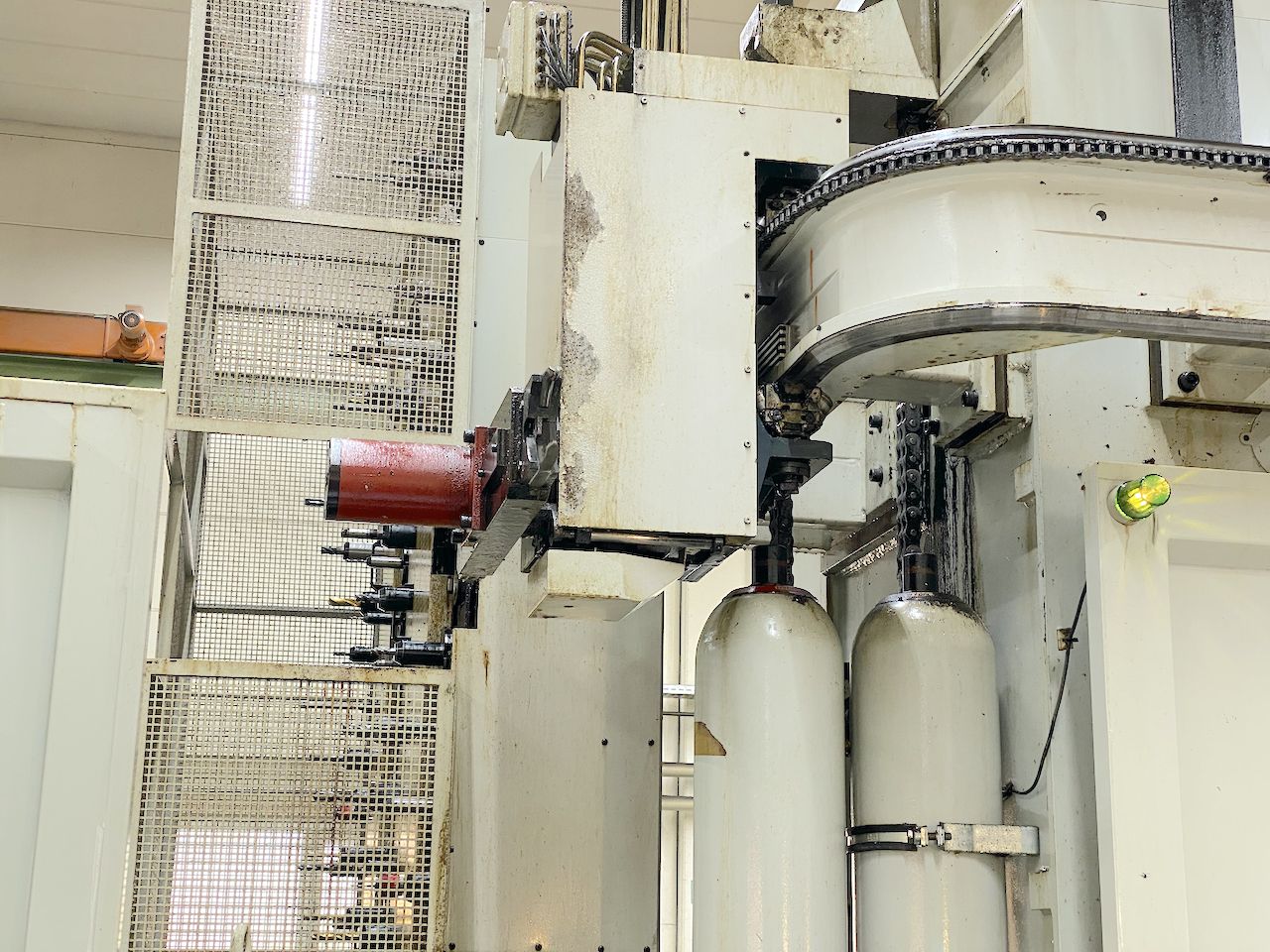

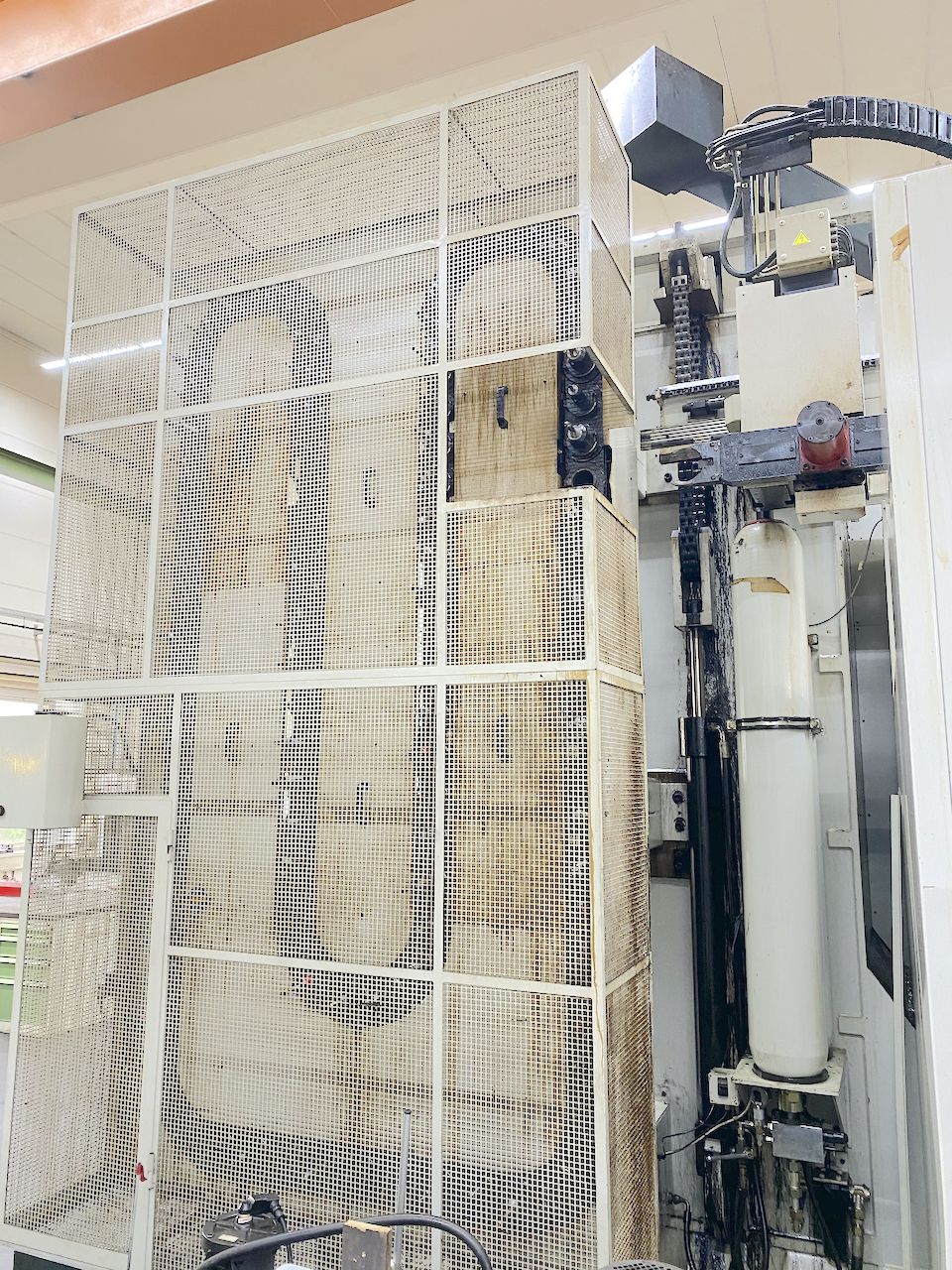

ATC
Positions
100
Max tool diameter
120 mm4,72 in
Max diam with free adiacent space
250 mm9,84 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg

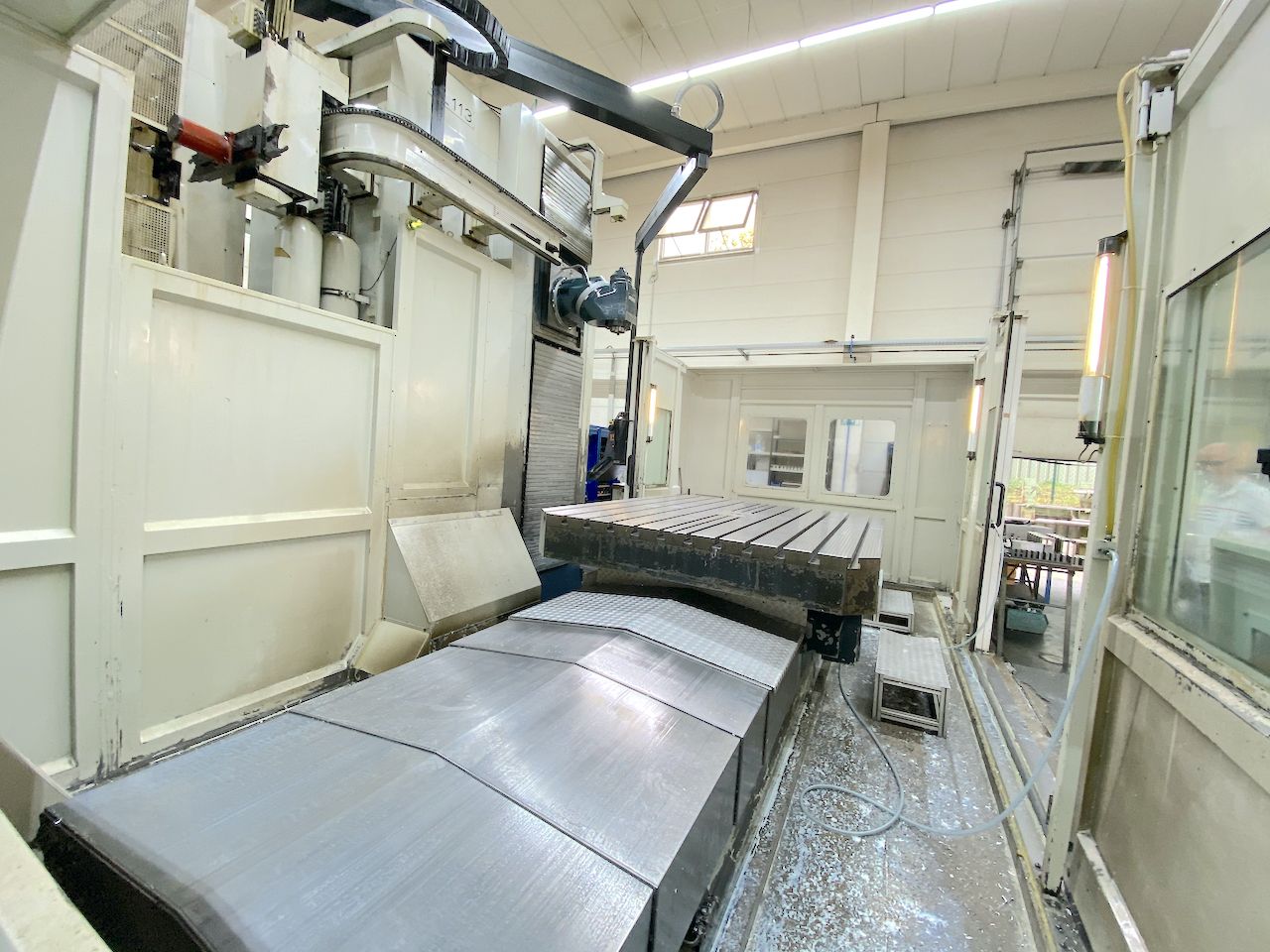

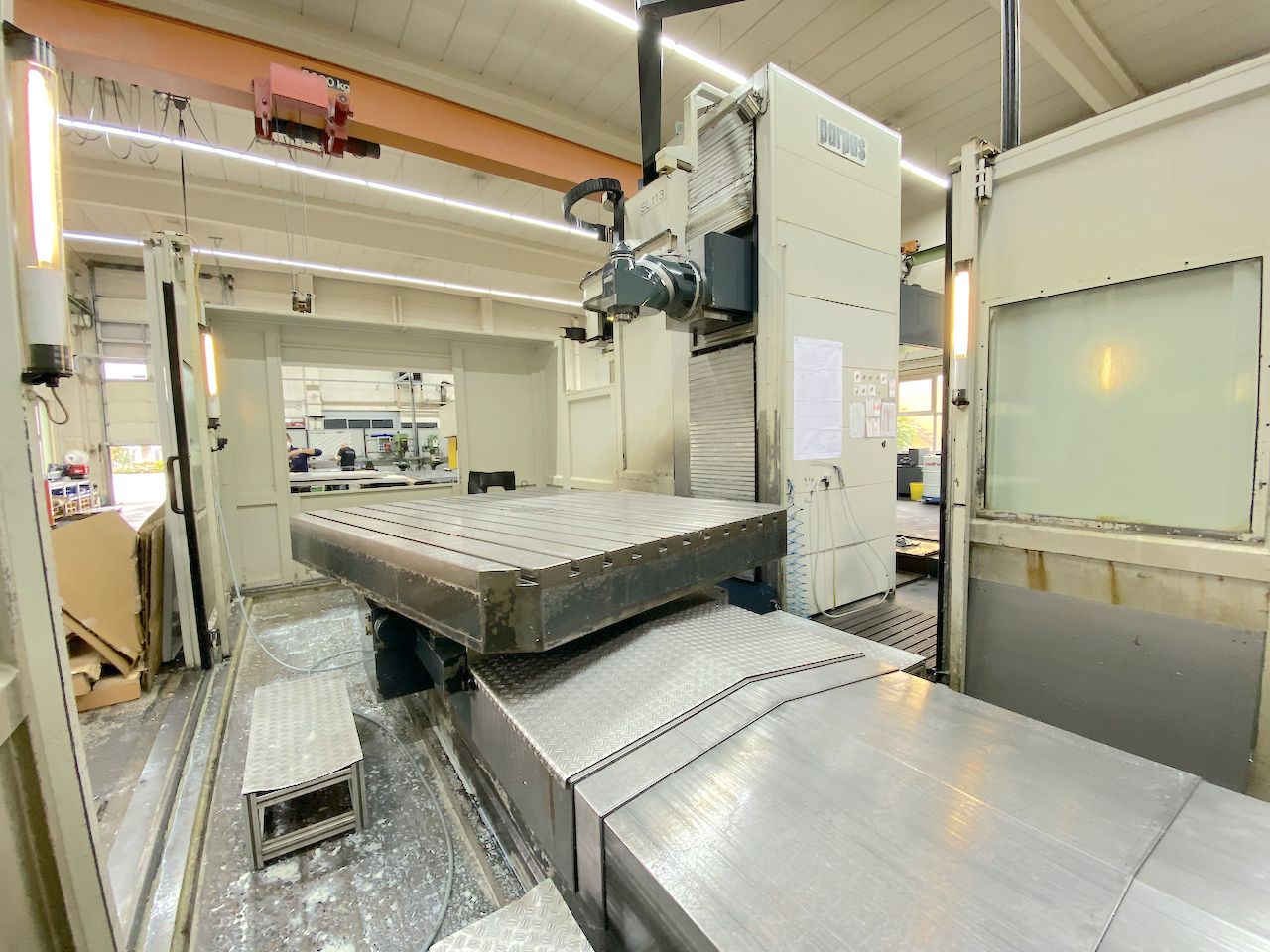

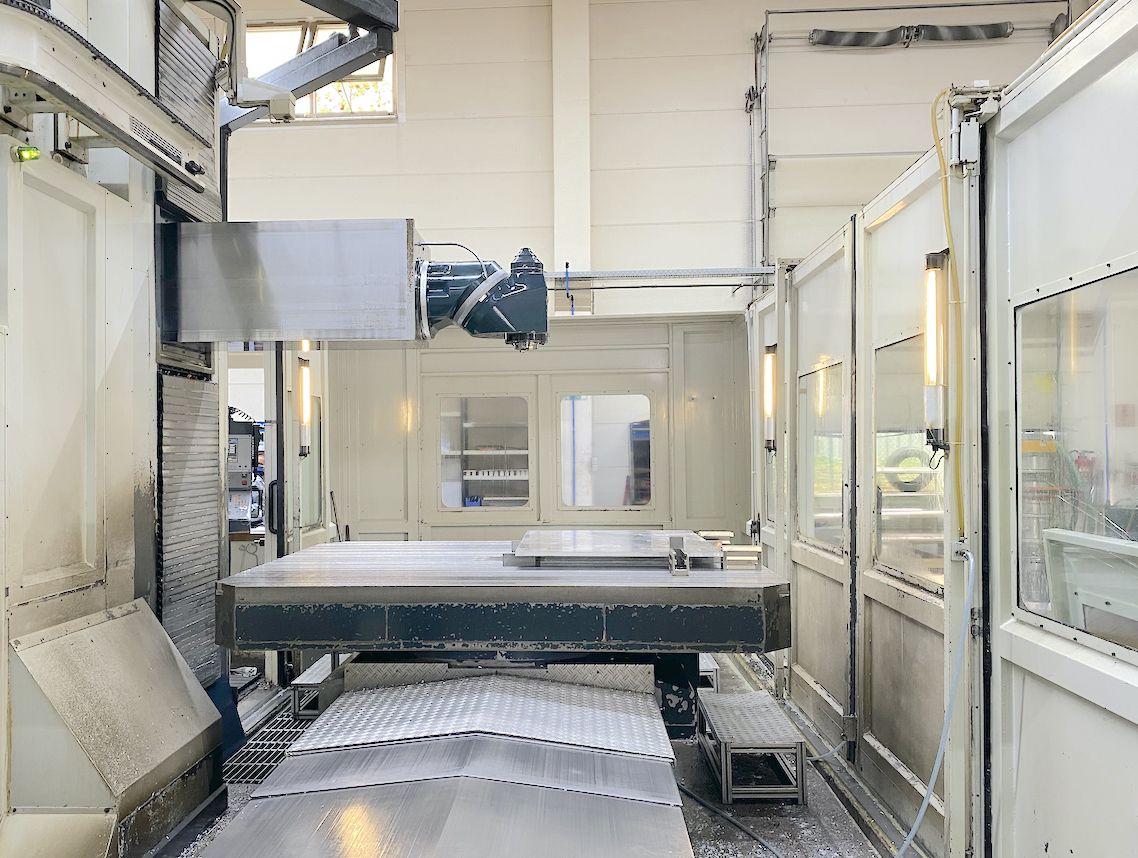

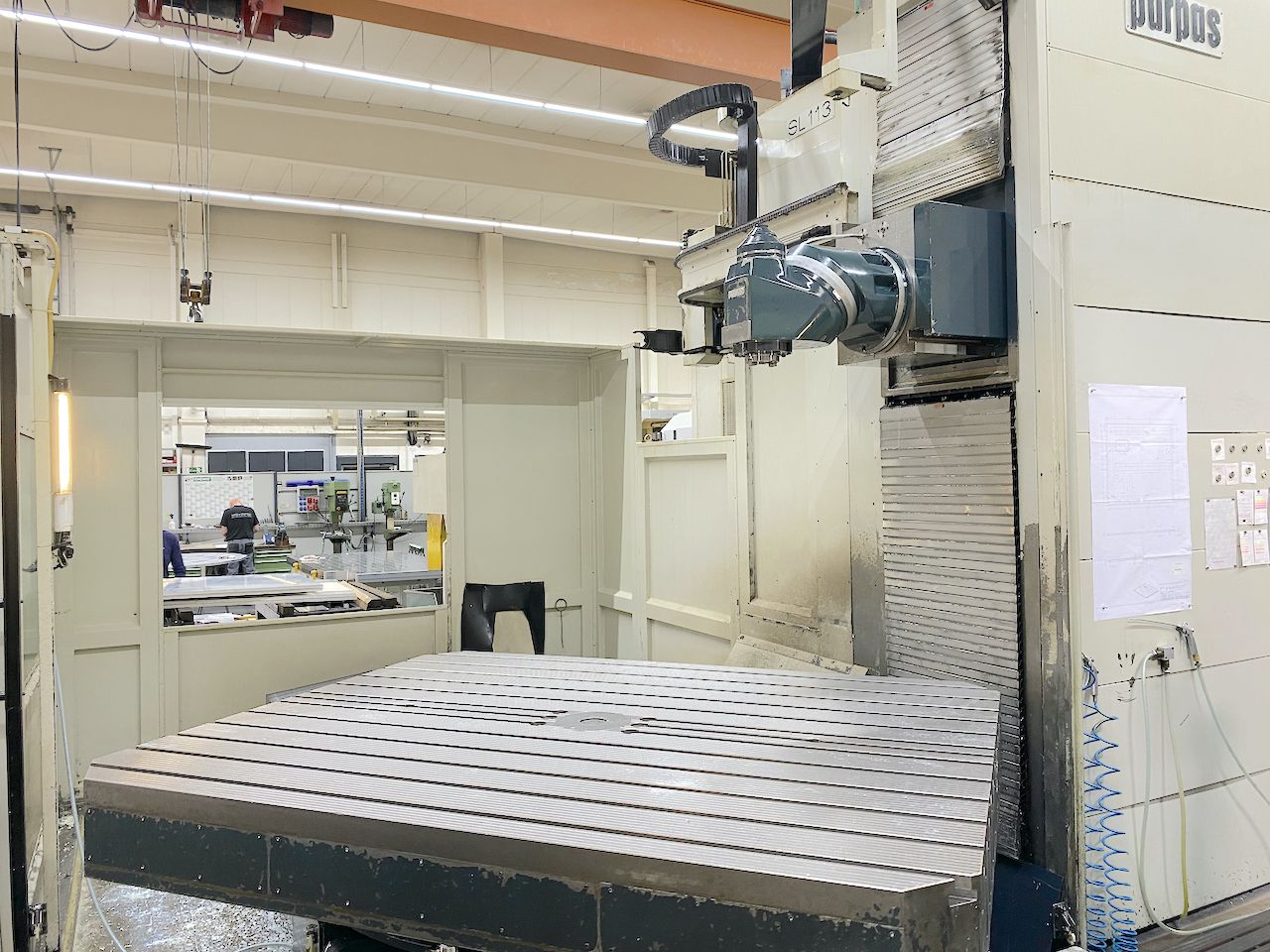

TABLE 1
Surface
2500x2000 mm98,43x78,74 in
Accuracy (B axis)
0,001 °
Capacity
10.000 Kg

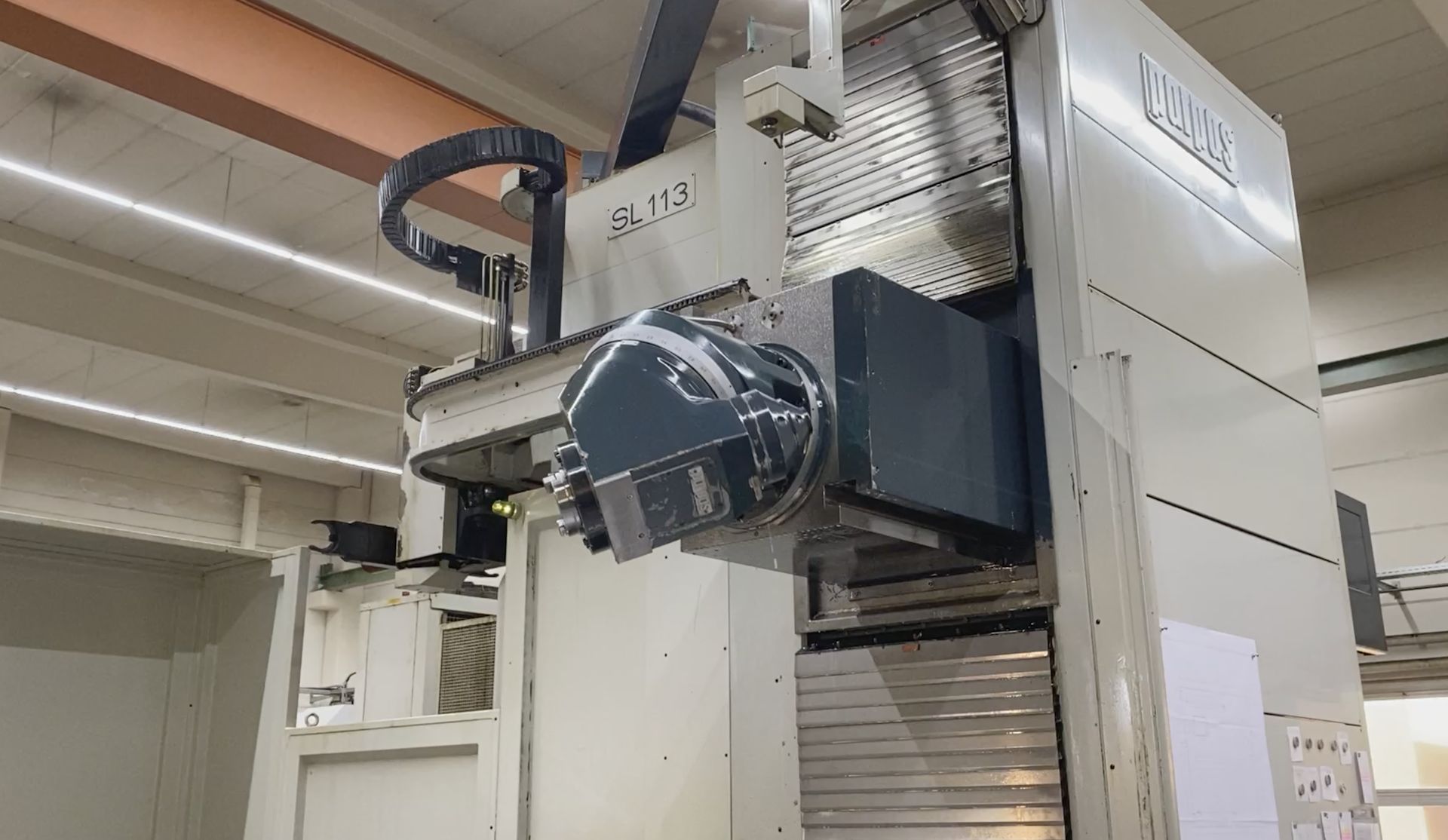

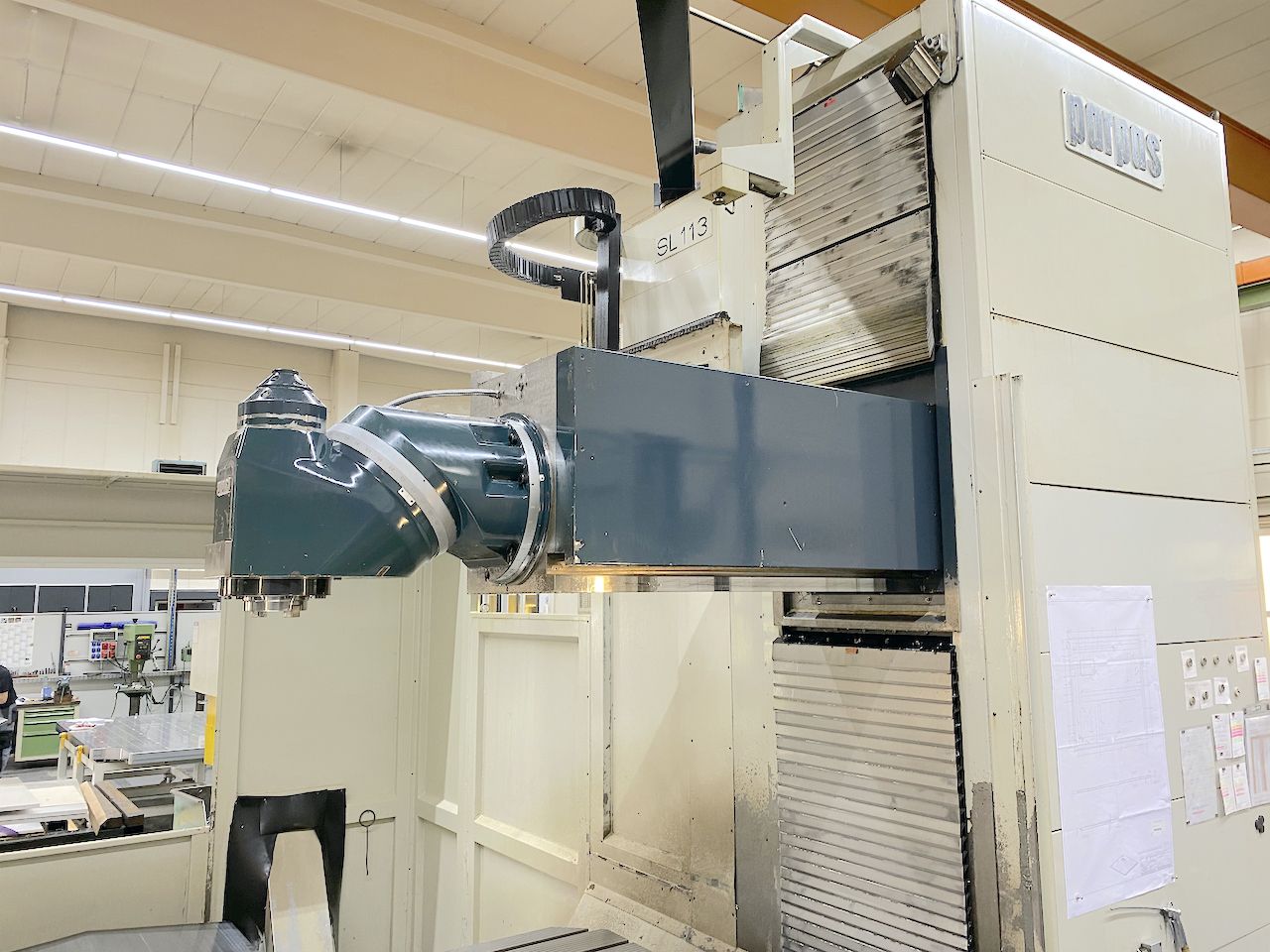

HEAD 1
Type
TI01 birotativa indexata
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
4000 Rpm
Max power
37 Kw
Coolant
CTS 20 Bar
EXTRA
Floor space
7400x6750x4300 mm291,34x265,75x169,29 in
Machine total weight
34.000 Kg
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
High Pressure
20Bar

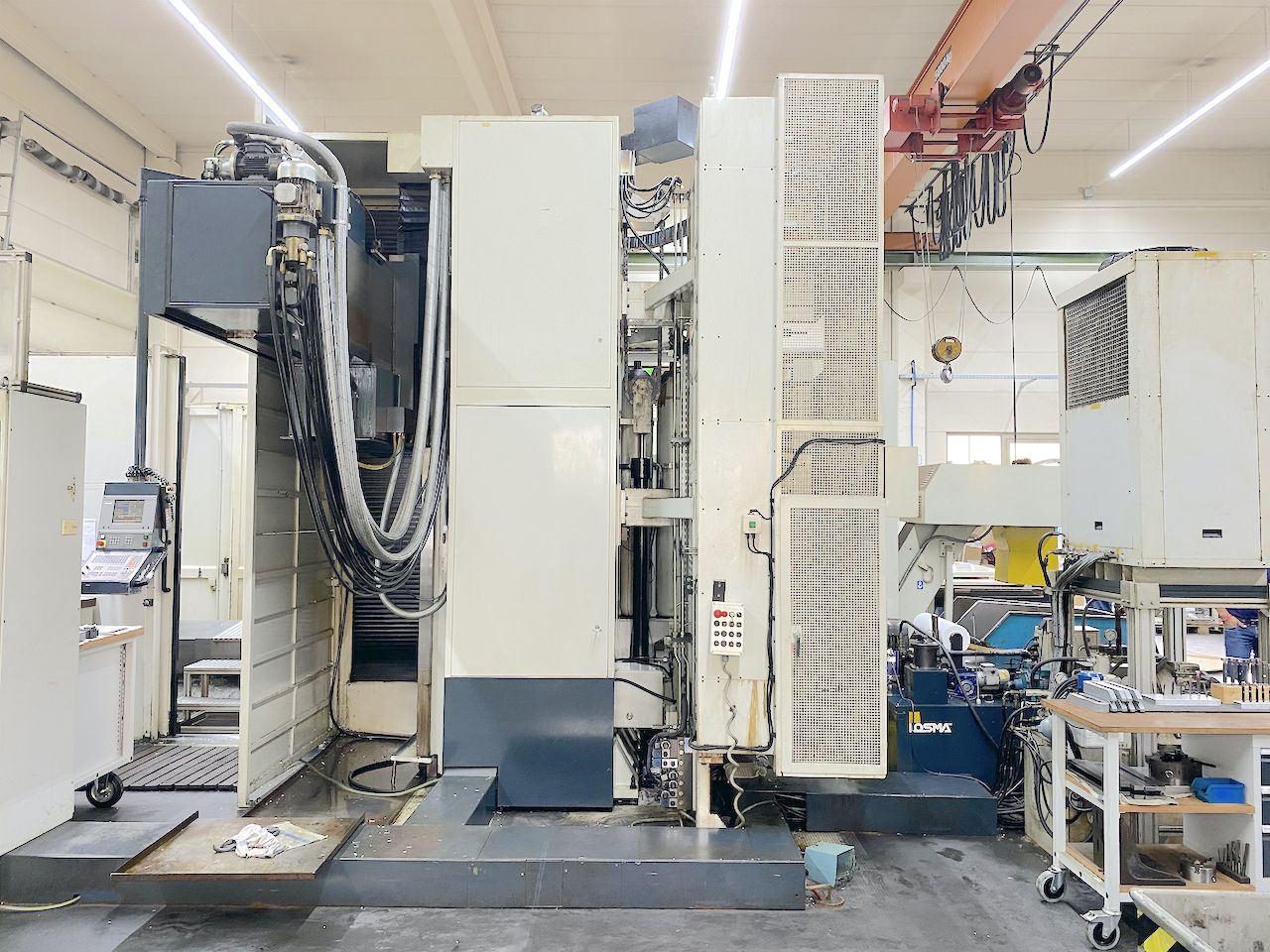

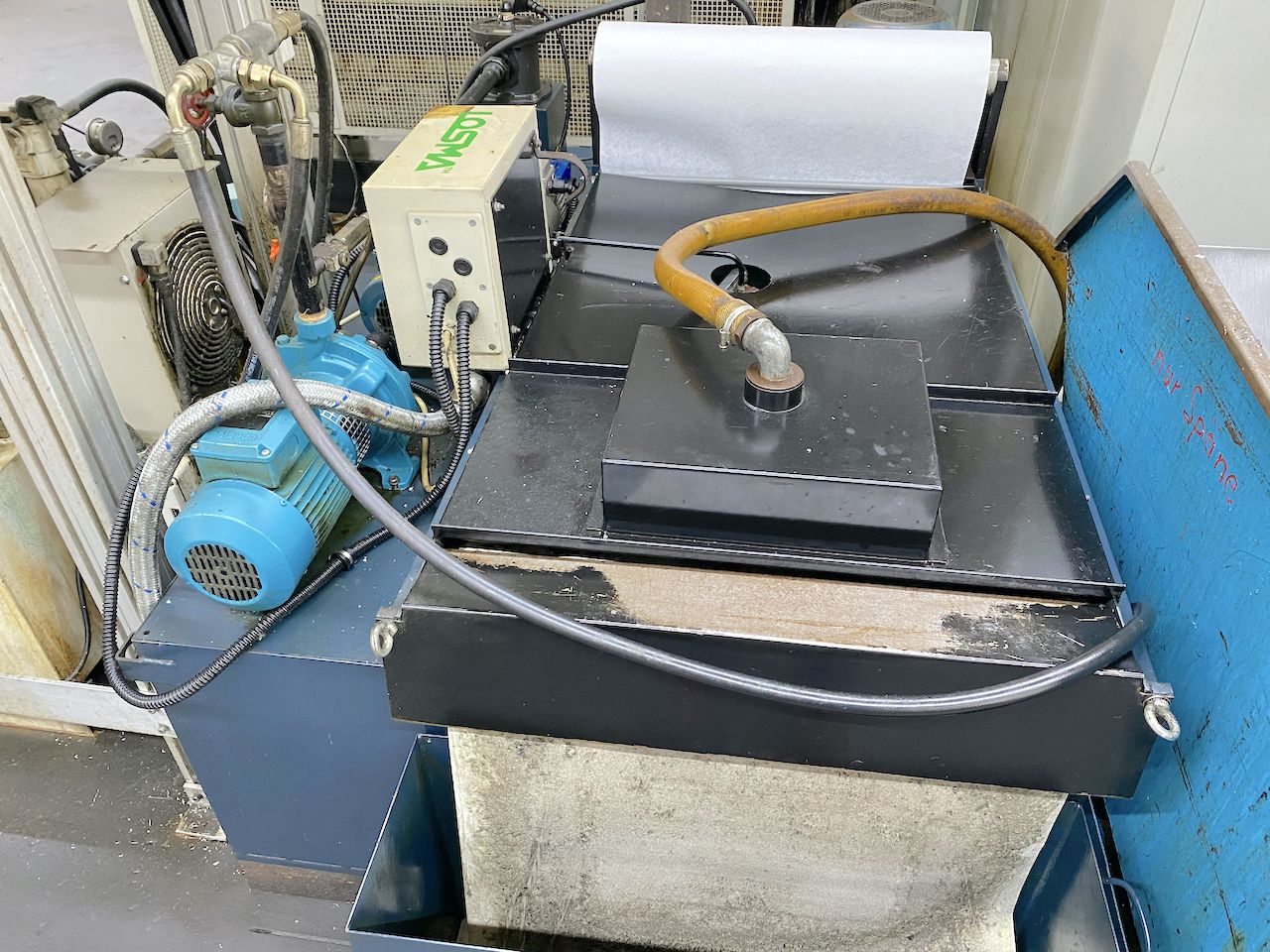

Filtration unit
Losma
Chiller
Si

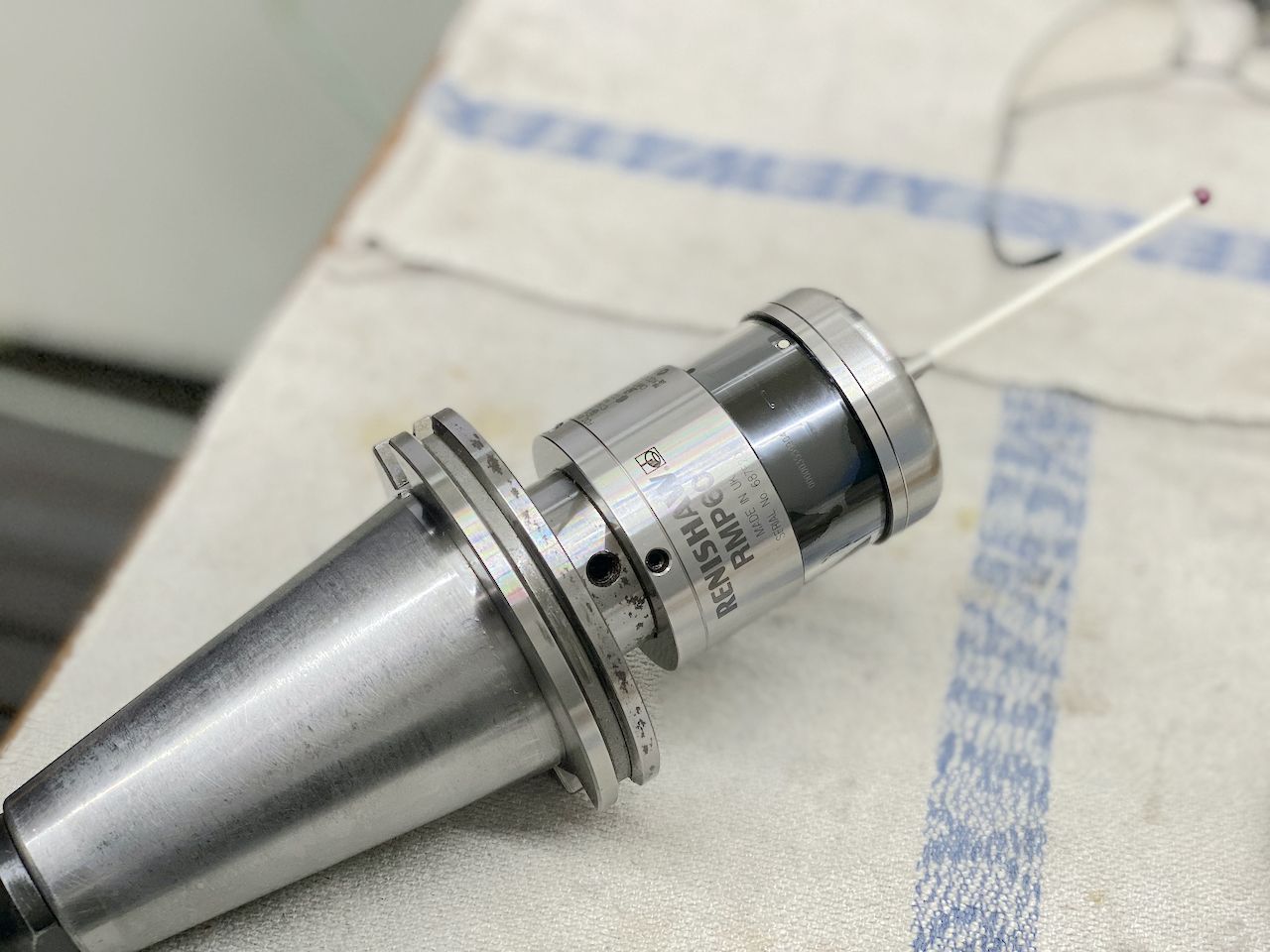

Workpiece touch probe
RENISHAW RMP60
Tool presetter
si

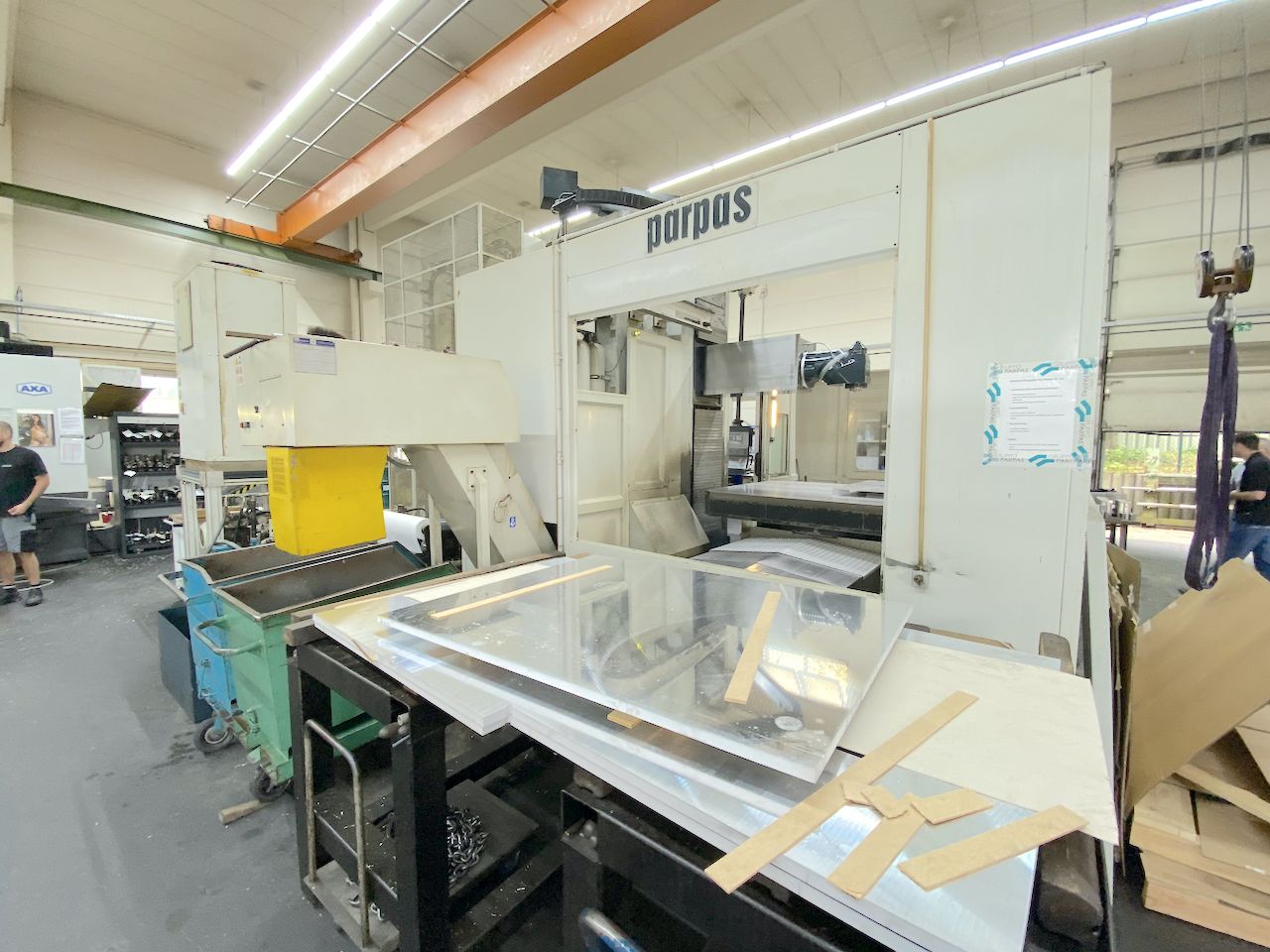

Housing
Perimetrale con portelloni scorrevoli
Chip conveyor
si
Available under power
Si
