Category

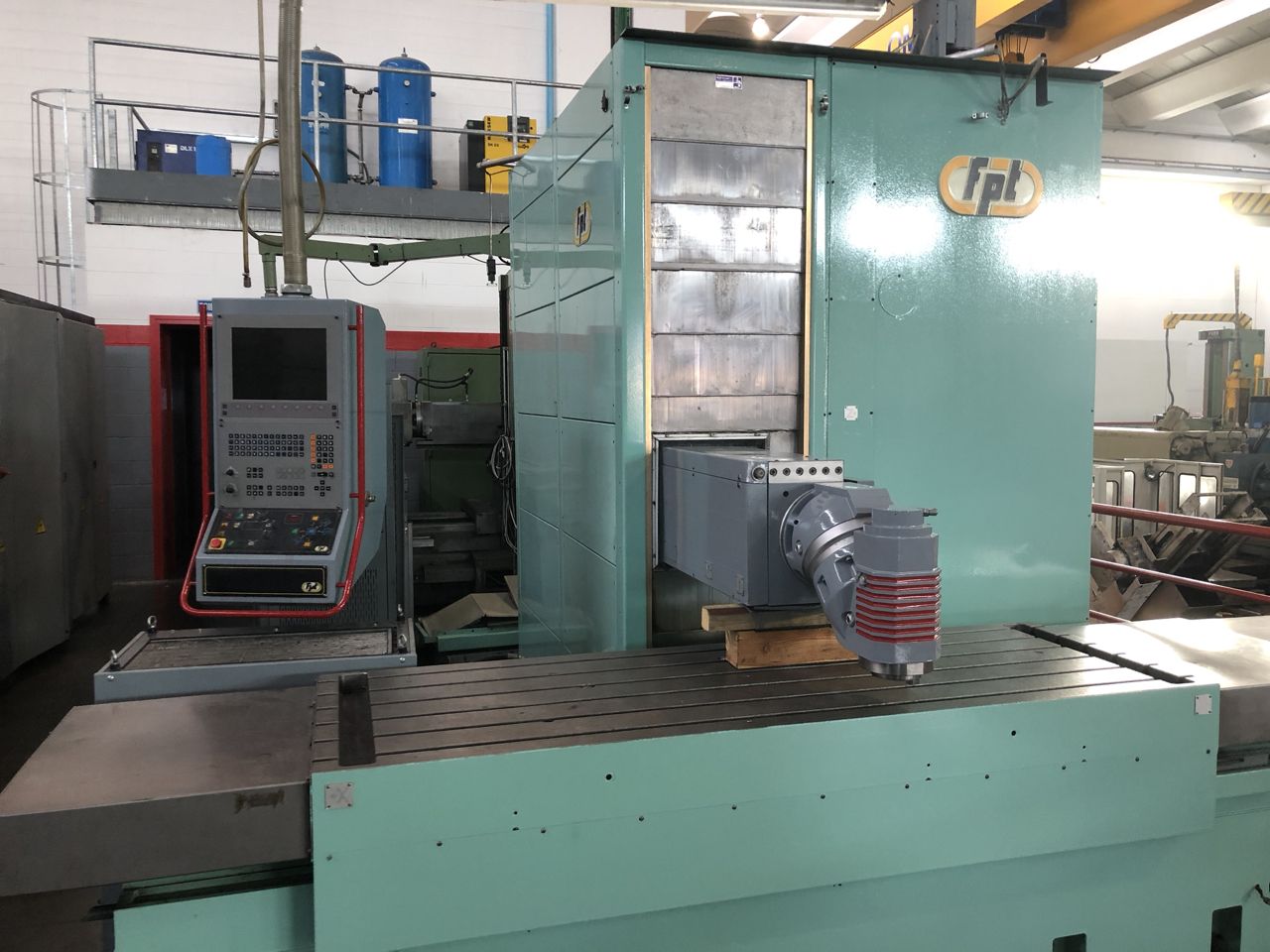

Milling machine
Type
Bed type
Made
Model

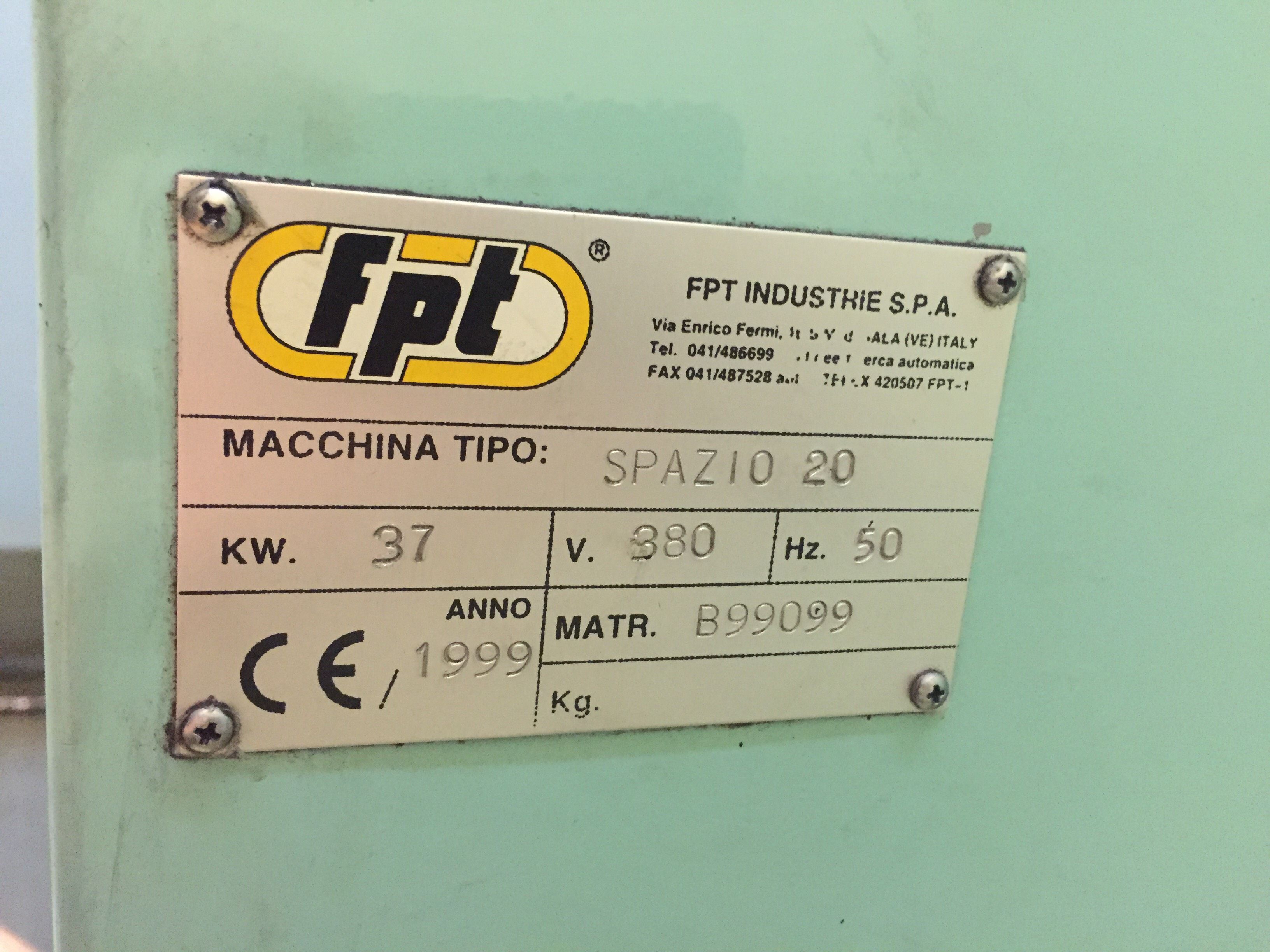

SPAZIO 20
Capacity
2000x1250x800 mm78,74x49,21x31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1250 mm49,21 in
Cross RAM (Z)
800 mm31,50 in

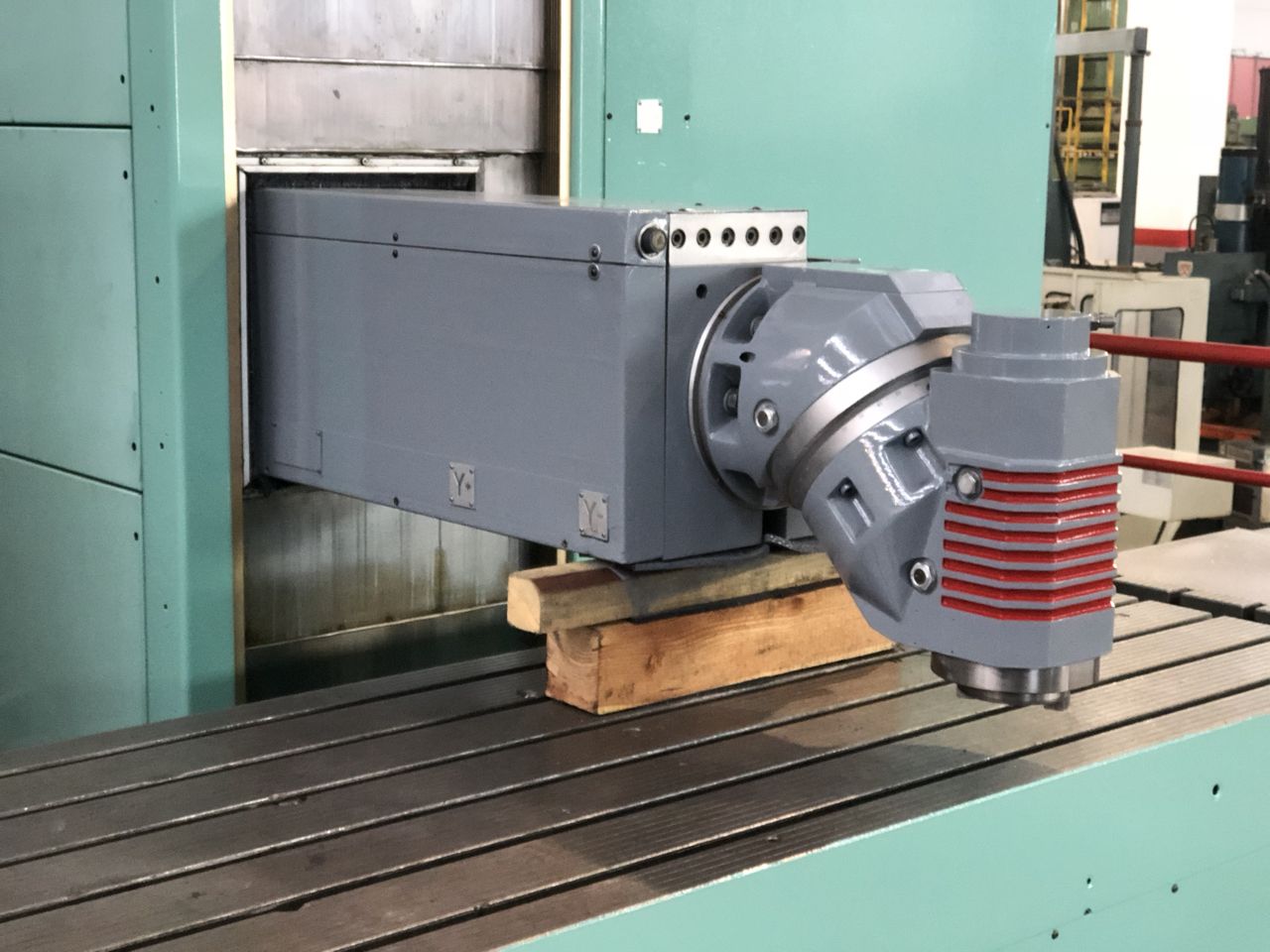

HEAD 1
Max torque
875 Nm
Type
TU144
Spindle taper
ISO 50
A axis
2,5 °
C axis
2,5 °
Max speed
4000 Rpm
Max power
22,5 Kw
Coolant
SI
SPINDLE
Torque
875 Nm
Spindle power
22,5 Kw
Rotating speed
4000 Rpm
Taper
ISO 50
FIXING TABLE
T slots number
n.6 18x120mm
Floorspace (LxWxH)
2200x750 mm86,61x29,53 in
Capacity
Tot. 3.500Kg / 2.000 Kg/mq

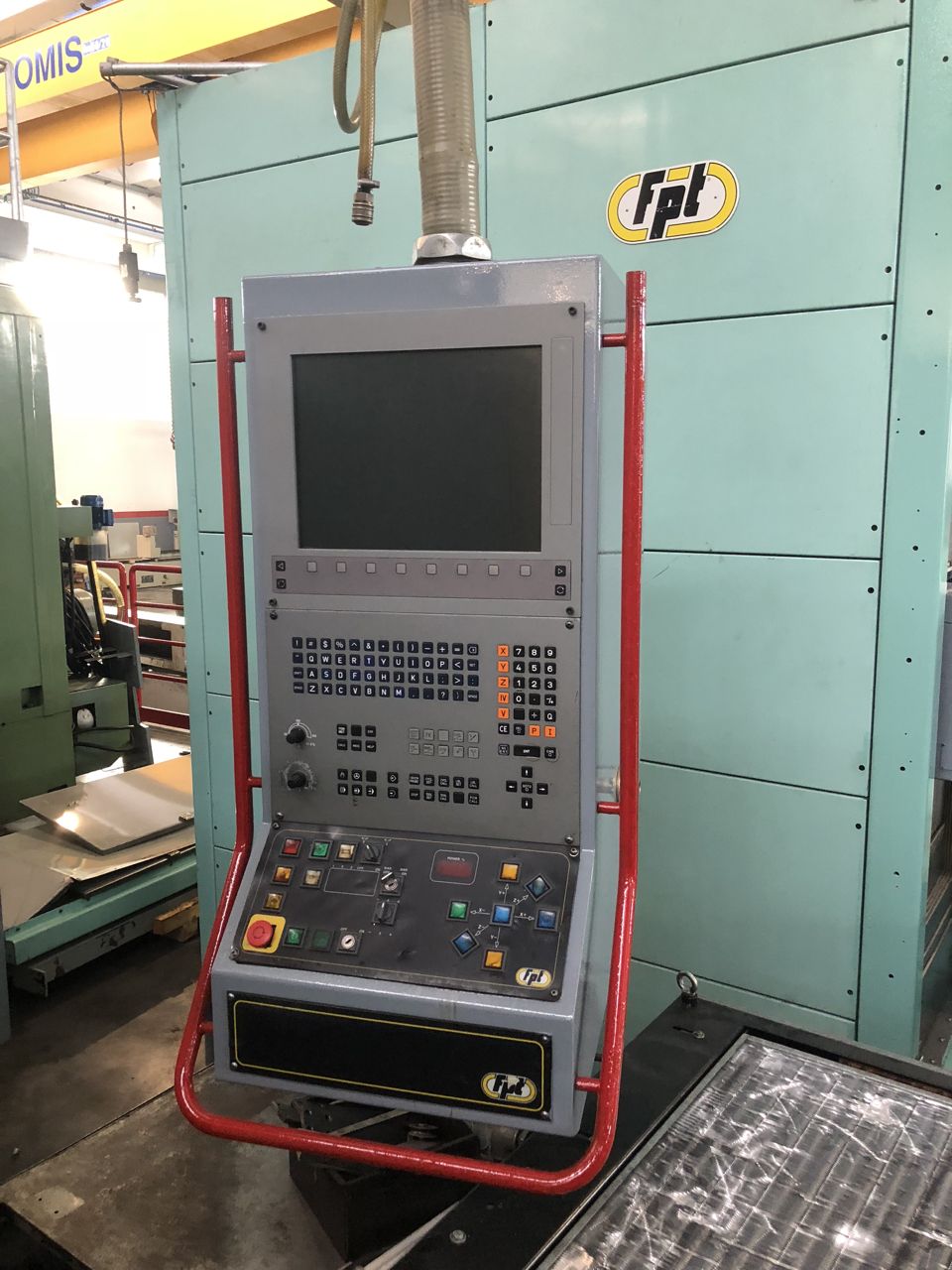

CNC
CNC
HADENHEIN 426 CB
Measuring system
RIGHE OTTICHE
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
X
5 m/min196,85 ipm
Y
5 m/min196,85 ipm
Z
5 m/min196,85 ipm
EXTRA
Floor space
5771x3672x3272 mm227,20x144,57x128,82 in
Machine total weight
9700 Kg
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
PERIMETRALE
Chip conveyor
SI
Availability
PRONTA
Available in stock
SI
CE Certification
Yes
Total power supply
37 Kw
