Category
Machining Centre
Type
Vertical
Made
Model
MISSION 5
Capacity
1250x600x685 mm49,21x23,62x26,97 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1250 mm49,21 in
Vertical (Z)
685 mm26,97 in
Cross (Y)
600 mm23,62 in
Axes support
ASSI X E Y SU PATTINI A RICIRCOLO DI SFERE, ASSE Z PRISMATICHE SCORRIMENTO TURCITE

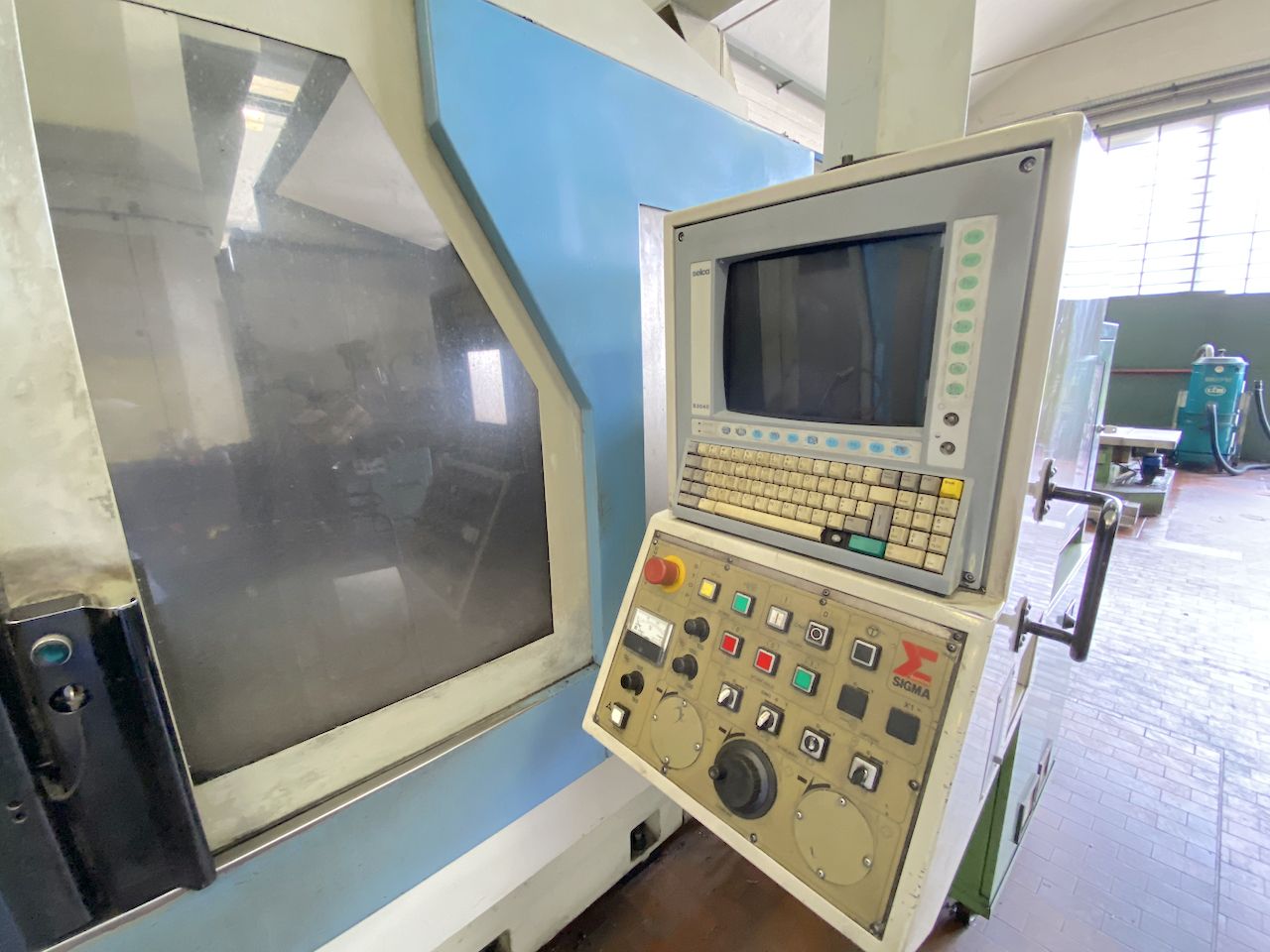

CNC
CNC
SELCA 3040
SPINDLE
Spindle power
11,5/16,5 Kw
Rotating speed
40-8000 Rpm
Torque
235 Nm
Taper
ISO40
FEEDS
Rapid X
24 m/min944,88 ipm
Rapid Y
24 m/min944,88 ipm
Rapid Z
15 m/min590,55 ipm

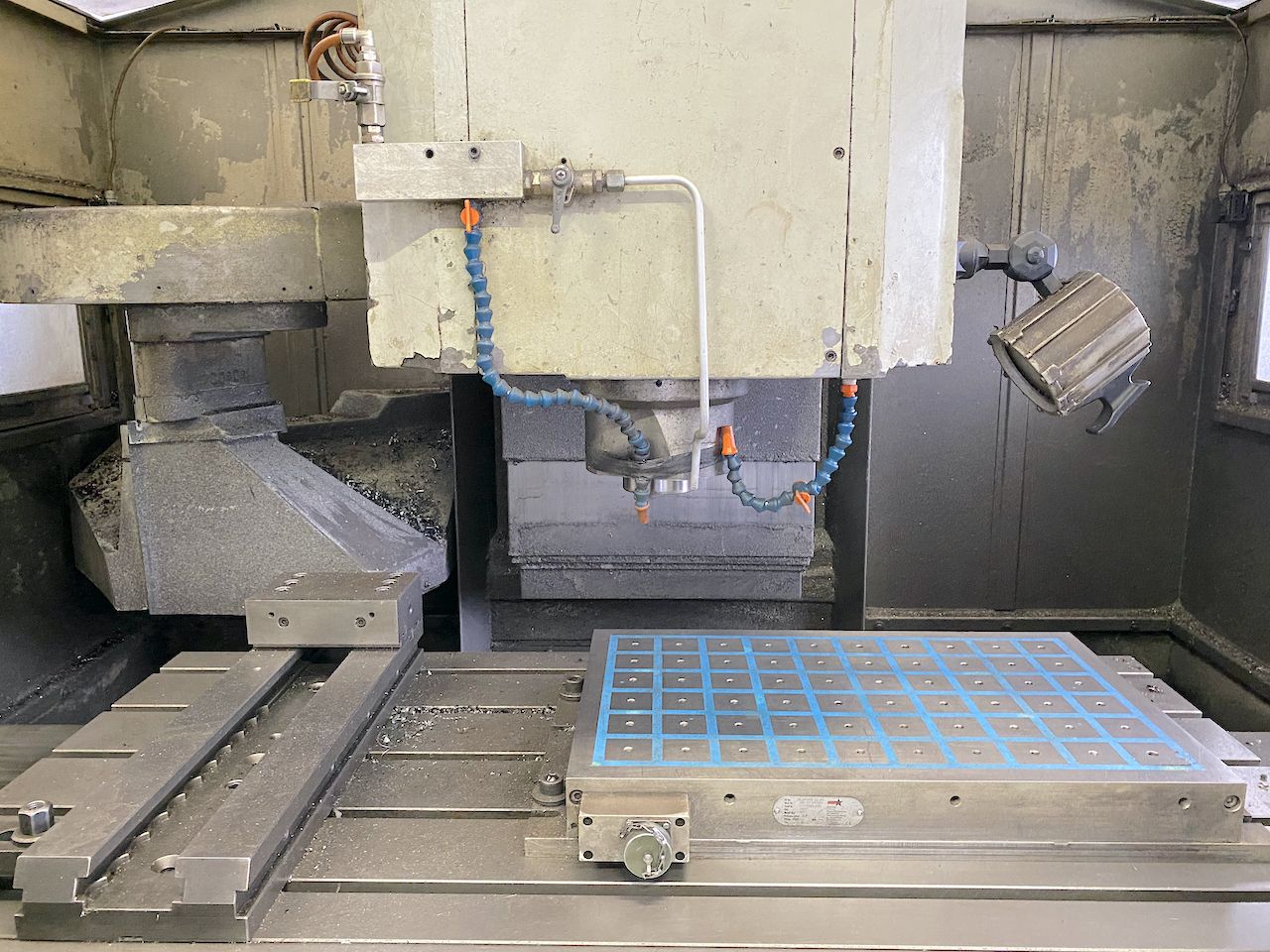

TABLE
Floorspace (LxWxH)
1400x650 mm55,12x25,59 in
T slots number
5x18x125
ATC
Positions
21
Max tool diameter
80 mm3,15 in
Max tool lenght
300 mm11,81 in
Max tool weight
6 Kg
Tool taper
ISO40 DIN69871
EXTRA
Total power supply
25 Kw
Machine total weight
8000 Kg
Floor space
2860+1260(evacuatore) x 4400x 3155 mm112,60+49,61(evacuatore) x 173,23x 124,21 in
High Pressure
refregerante interno al mandrino

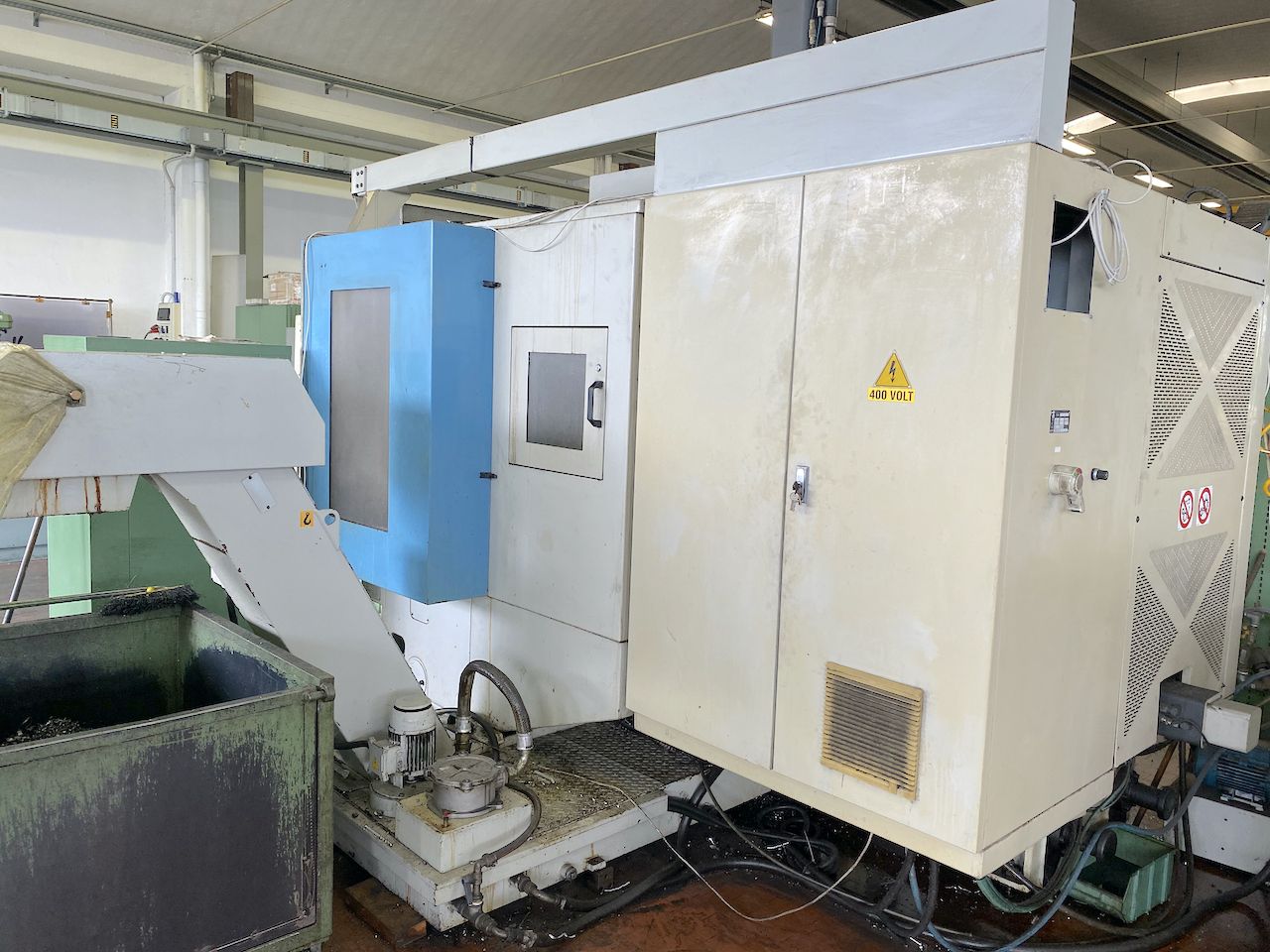

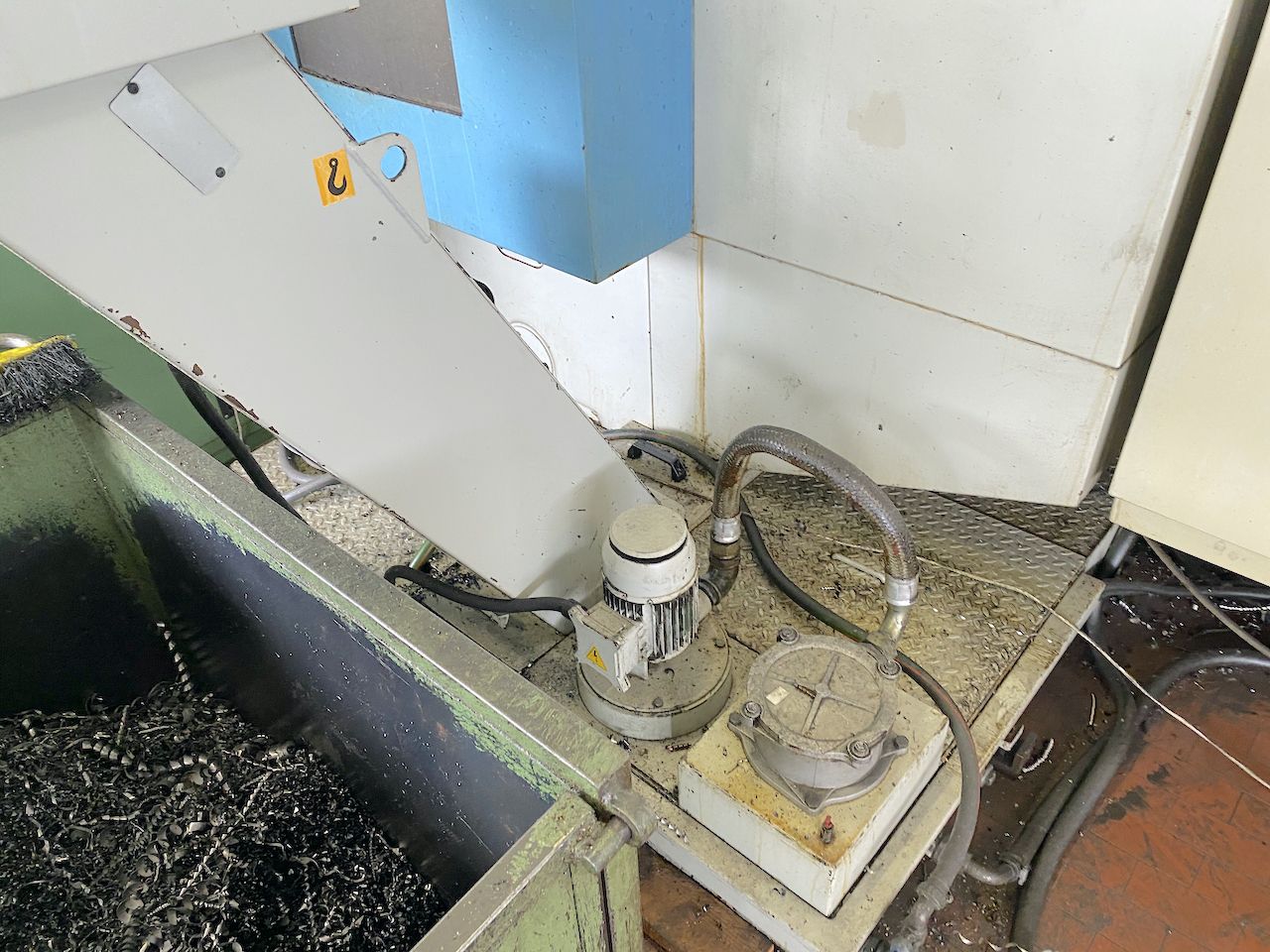

Chip conveyor
Yes
