Category
Machining Centre
Type
Vertical moving mast
Made
Model
LEONARD 5000 T5B
Capacity
5000x1000x1000 mm196,85x39,37x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
5000 mm196,85 in
Vertical (Y)
1000 mm39,37 in
Cross (Z)
1000 mm39,37 in
SPINDLE
Spindle power
24 Kw
Rotating speed
6000 Rpm
Torque
175 Nm
Taper
HSK63A
Notes
air blast
FEEDS
Rapid X
40 m/min1.574,80 ipm
Rapid Y
50 m/min1.968,50 ipm
Rapid Z
50 m/min1.968,50 ipm

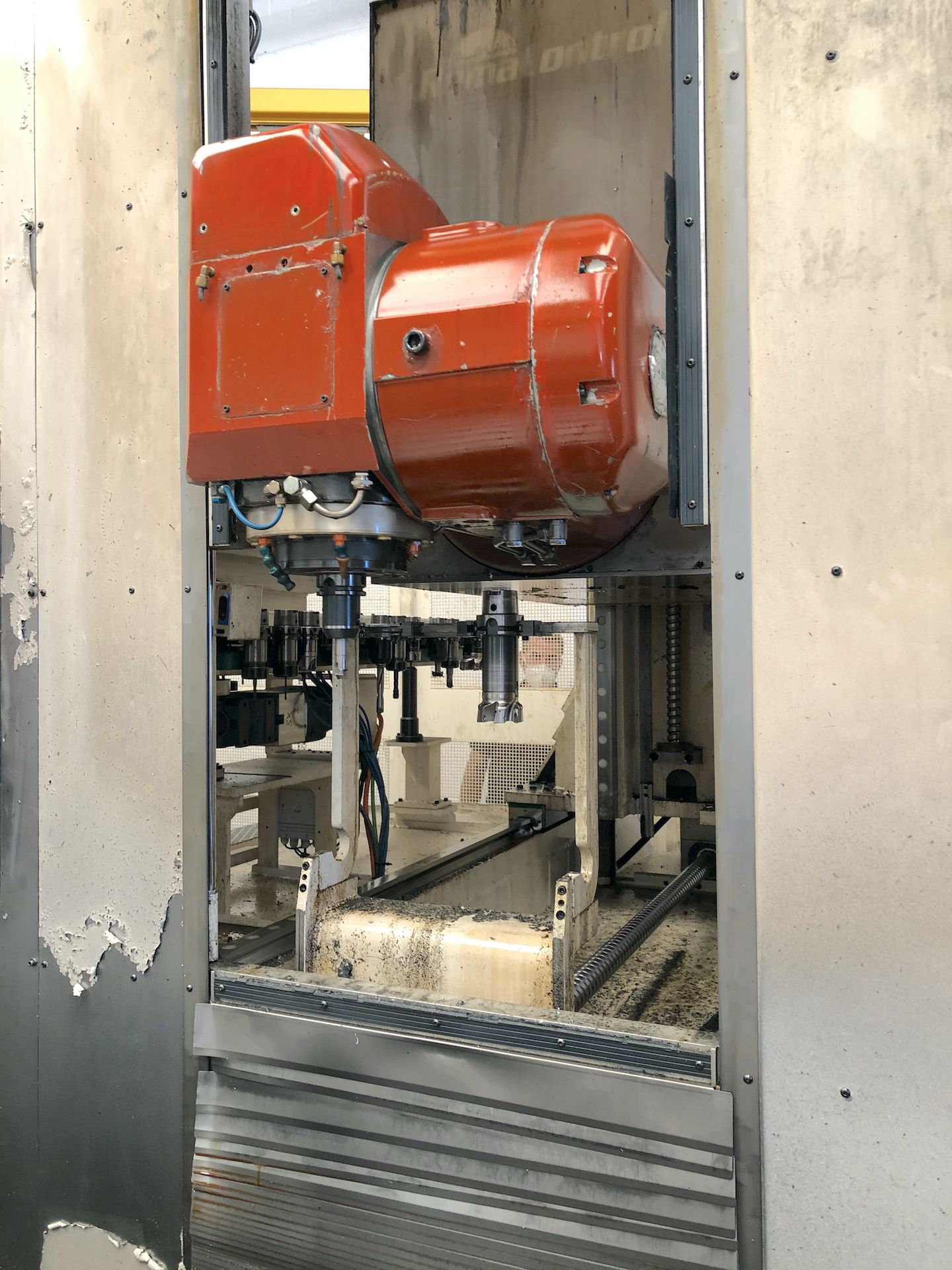

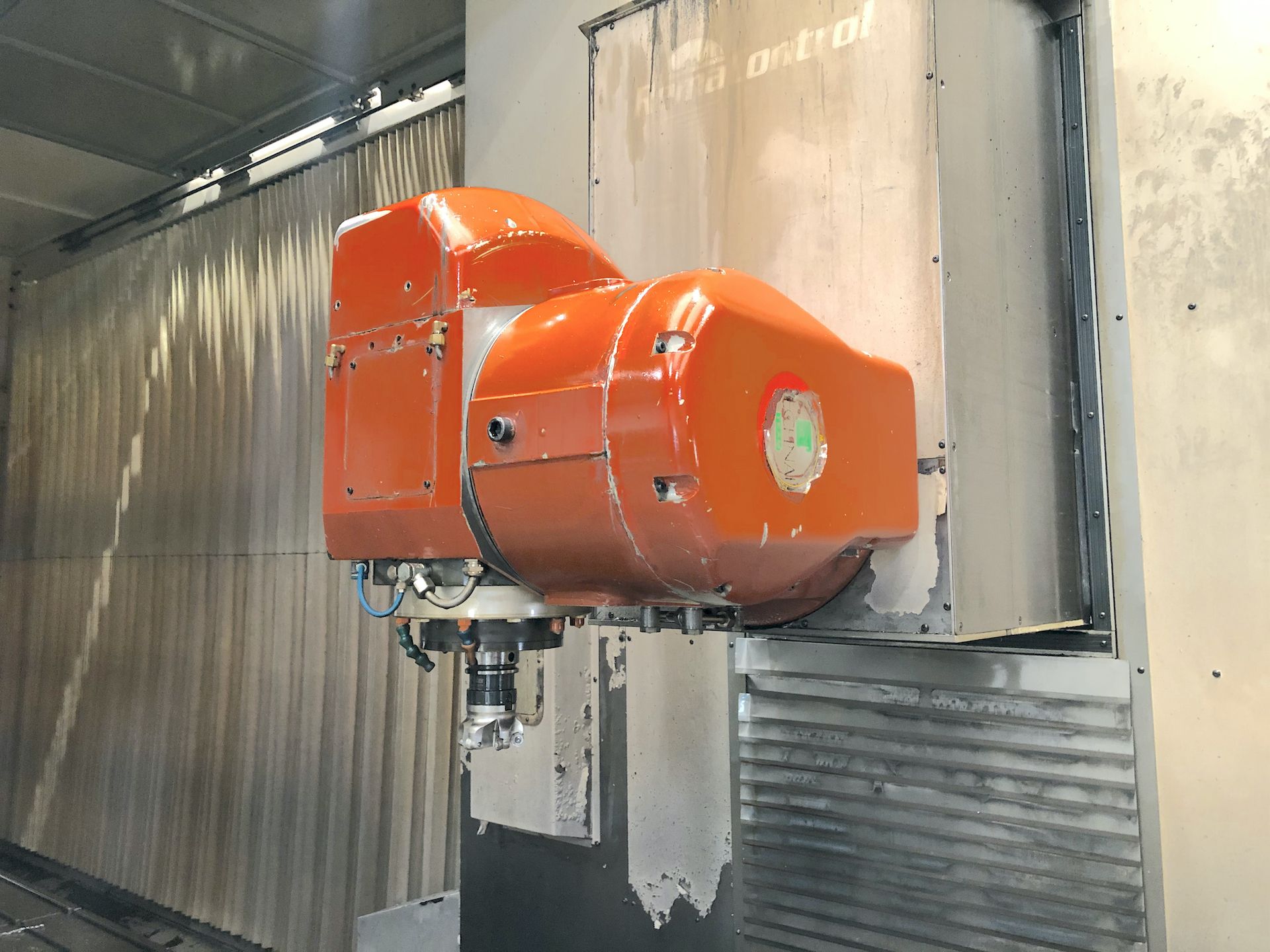

HEAD 1
Type
T5B
Spindle taper
HSK63A
A axis
+/- 115 °
C axis
+/- 190 °
Max torque
175 Nm
Max speed
6000 Rpm
Max power
24 Kw
Coolant
30 Bar interni
Notes
La macchina è dotata di una testa birotativa con motori coppia e movimento in continuo dei due assi. Gli assi possono essere bloccati oleodinamicamente per lavorazioni gravose. Grazie a questo tipo di testa, è possibile lavorare 4 lati di particolari anche grandi senza movimentarli

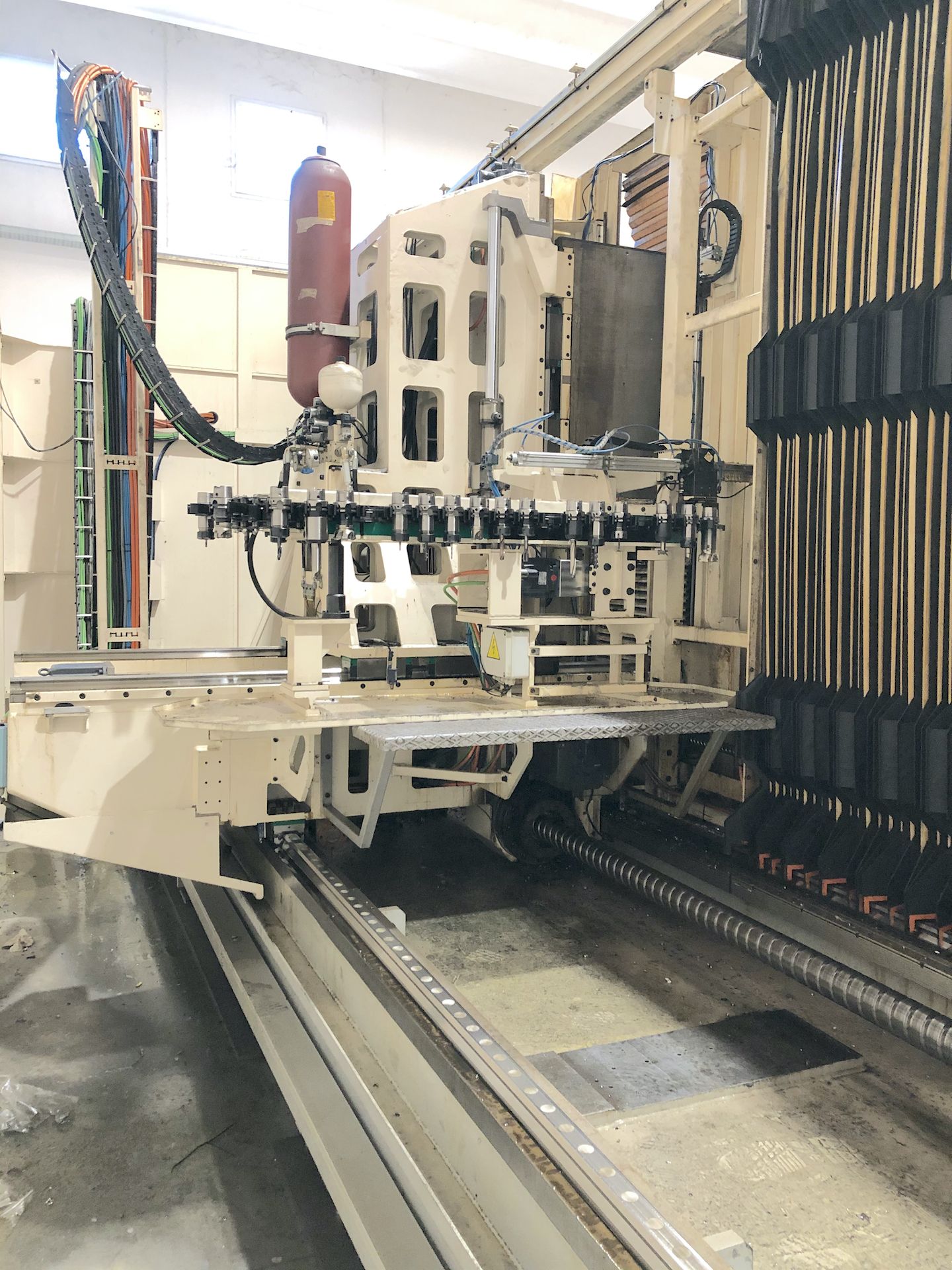

ATC
Positions
40
Max tool diameter
80 mm3,15 in
Max diam with free adiacent space
140 mm5,51 in
Max tool lenght
300 mm11,81 in
Max tool weight
8 Kg
Tool taper
HSK63A
CNC
CNC
Heidenhain TNC640
Measuring system
righe ottiche
EXTRA
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
High Pressure
30 Bar
Machine total weight
19000 Kg
Tooling included

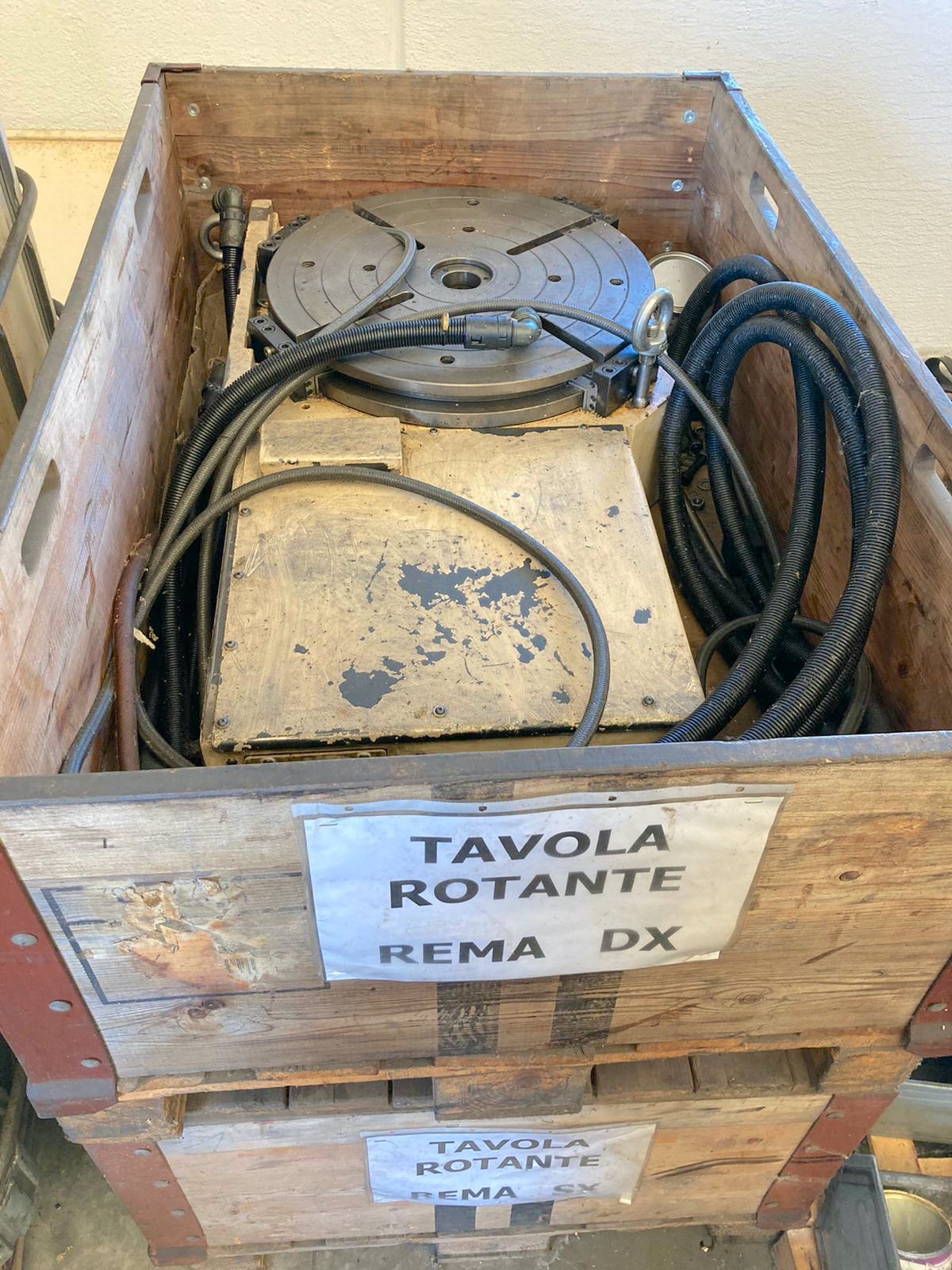

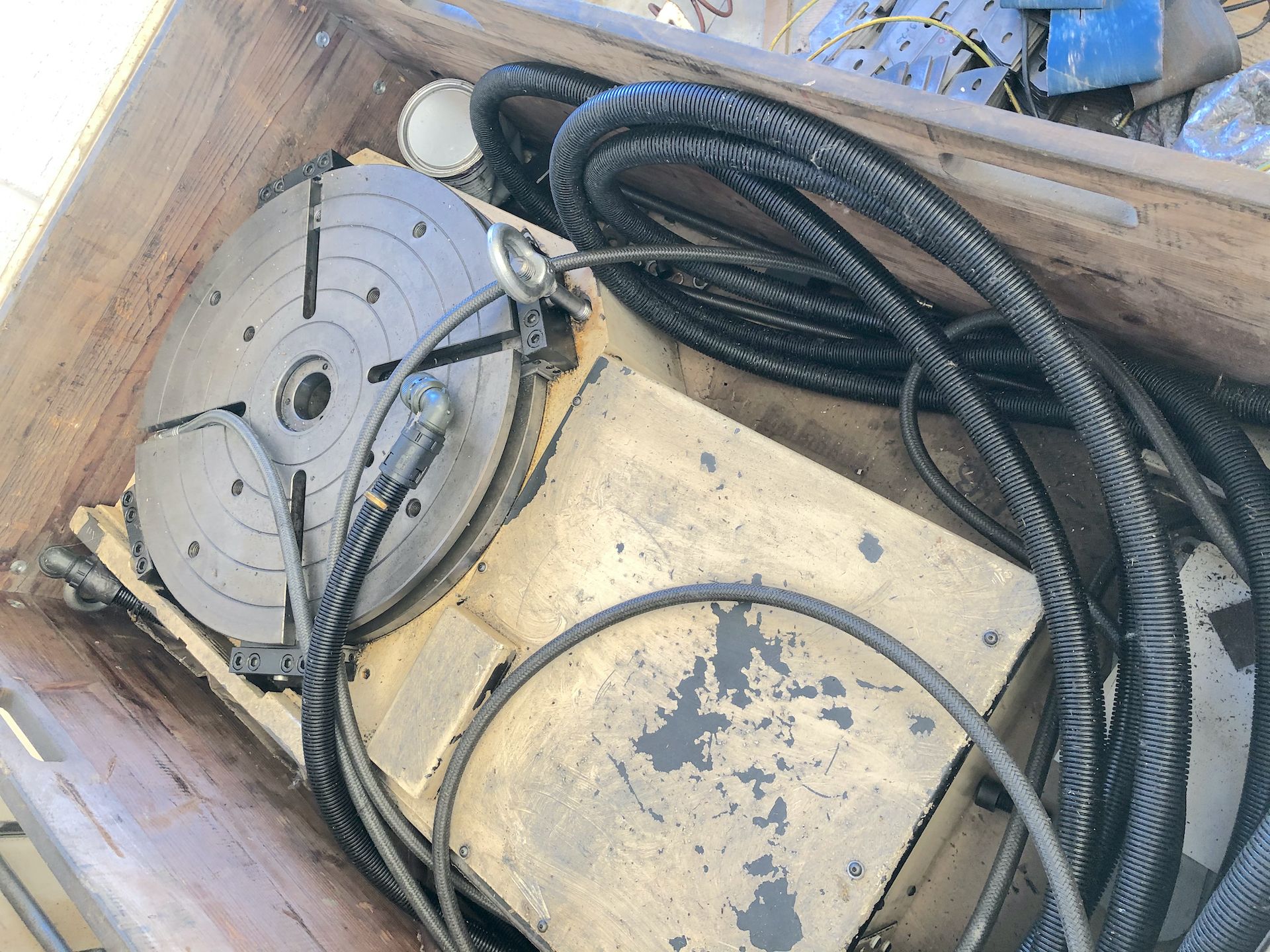

n.2 Tavole ø600mm, sonda MARPOSS E86, maschiatura rigida, air blast
Workpiece touch probe
MARPOSS E86
Housing
integrale
Chip conveyor
si
Availability
pronta
Relevant updates made on the machine
Retrofitting CNC con Heidenhain 640 nel 2018
Floor space
8500x3890x3465 mm334,65x153,15x136,42 in
Table
5300x820mm
