Category
Machining Centre
Type
Vertical
Made

MIKRON

Model
VCP 1000
Capacity
1000x750x750 mm39,37x29,53x29,53 in

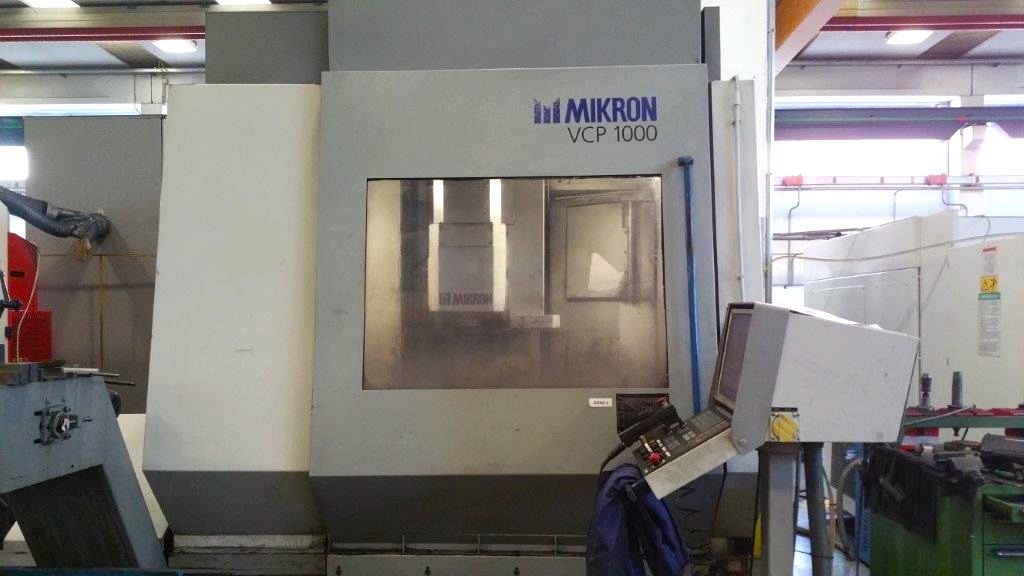

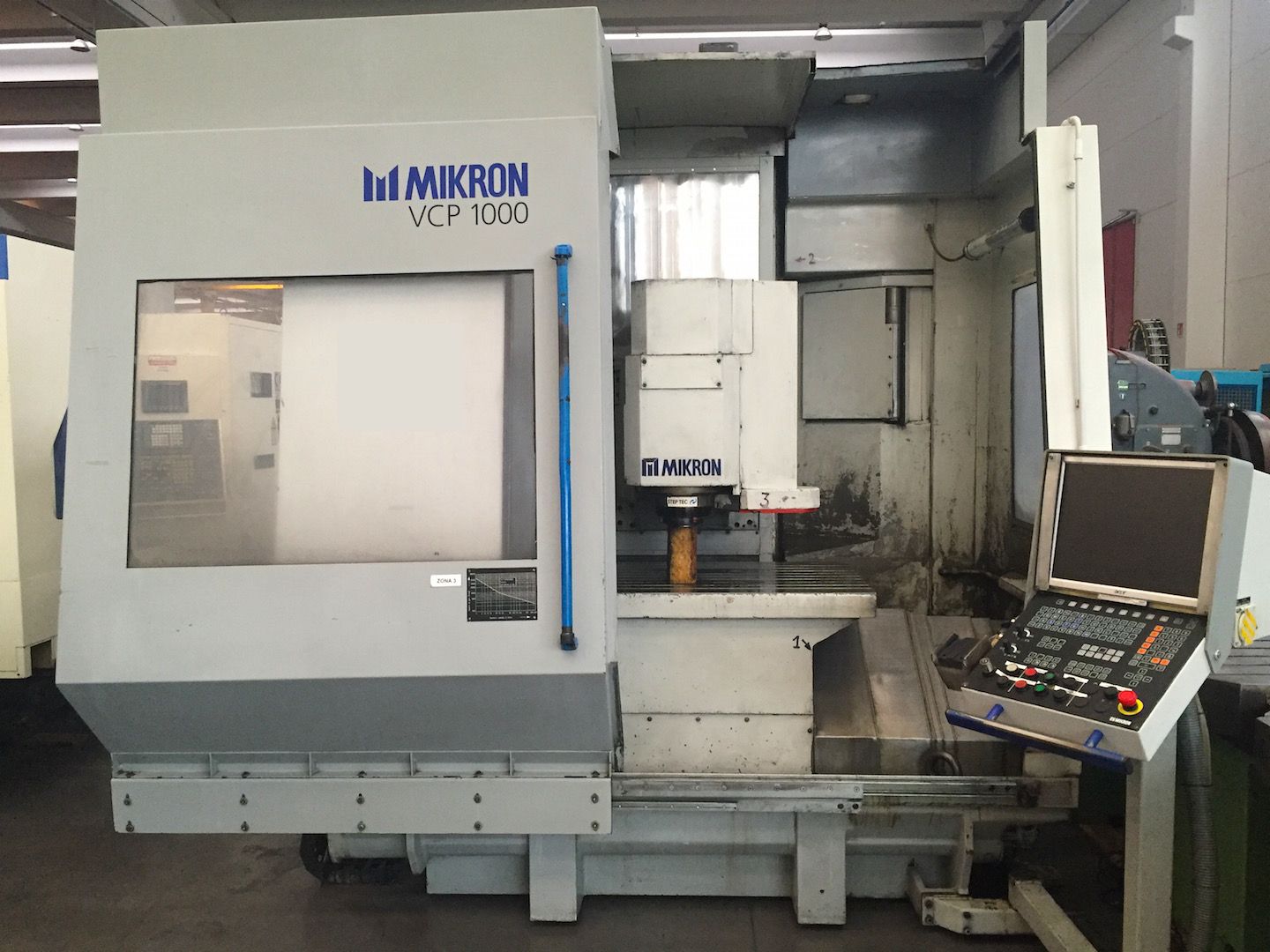

MIKRON VCP 1000
All the machines are available subject to prior sale
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Data sheet
Enable notifications

Technical specifications

Metric Imperial
WORKING CAPACITY
Vertical (Z)
750 mm29,53 in
Longitudinal (X)
1000 mm39,37 in
Cross (Y)
750 mm29,53 in

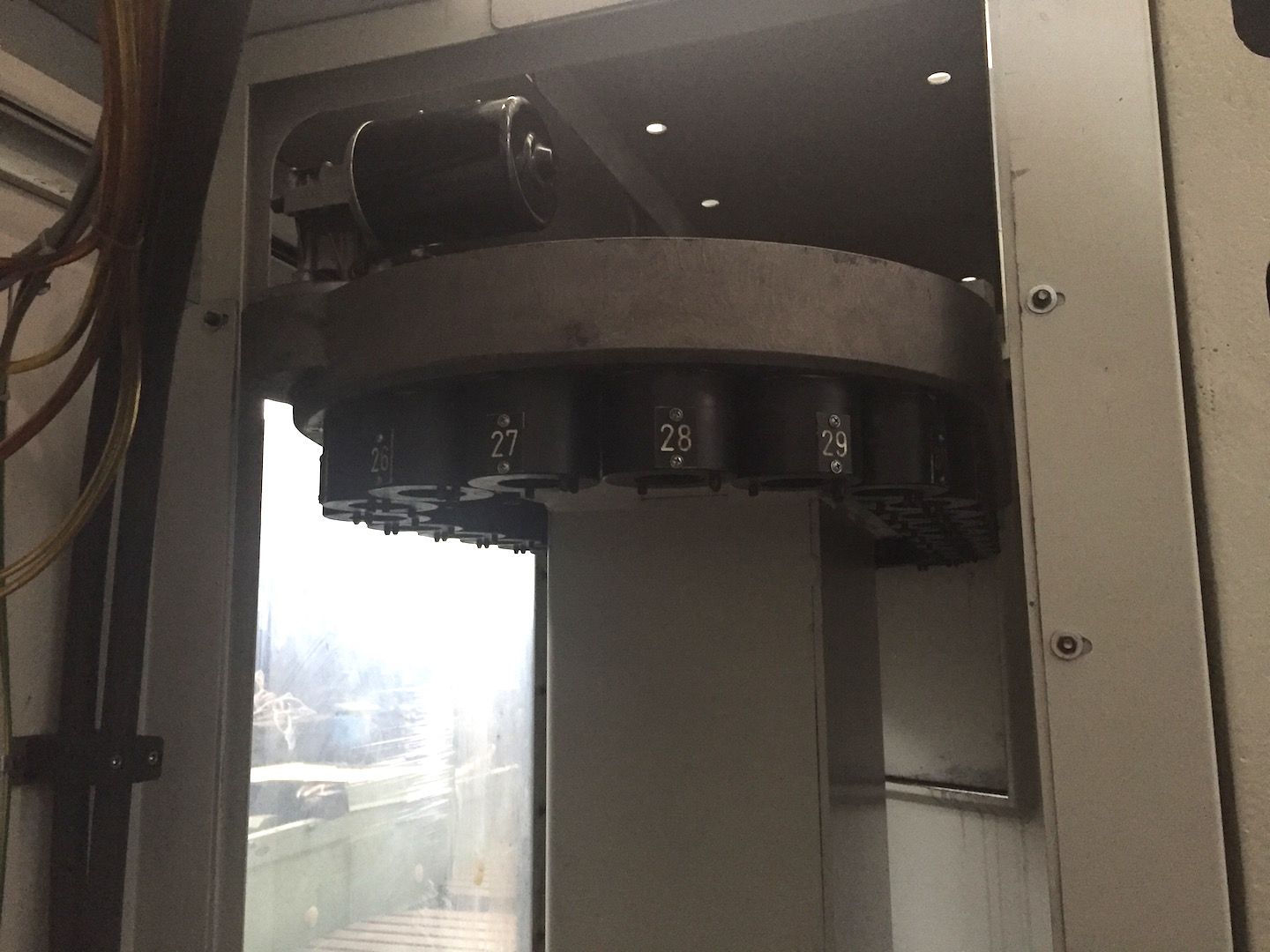

ATC
Positions
ATC30
TABLE
Floorspace (LxWxH)
1150x700 mm45,28x27,56 in
Capacity
1000 Kg/mq
FEEDS
Z
10 m/min393,70 ipm
Y
10 m/min393,70 ipm
X
10 m/min393,70 ipm
Rapid Z
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid X
30 m/min1.181,10 ipm
SPINDLE
Taper
ISO40
Rotating speed
0-12.000 Rpm
Spindle power
20 Kw
Internal coolant
20 Bar
CNC
CNC
Heidenhain TNC426
EXTRA
Floor space
4100x3000x3100 mm161,42x118,11x122,05 in
Machine total weight
10500 Kg
Total power supply
40 Kw

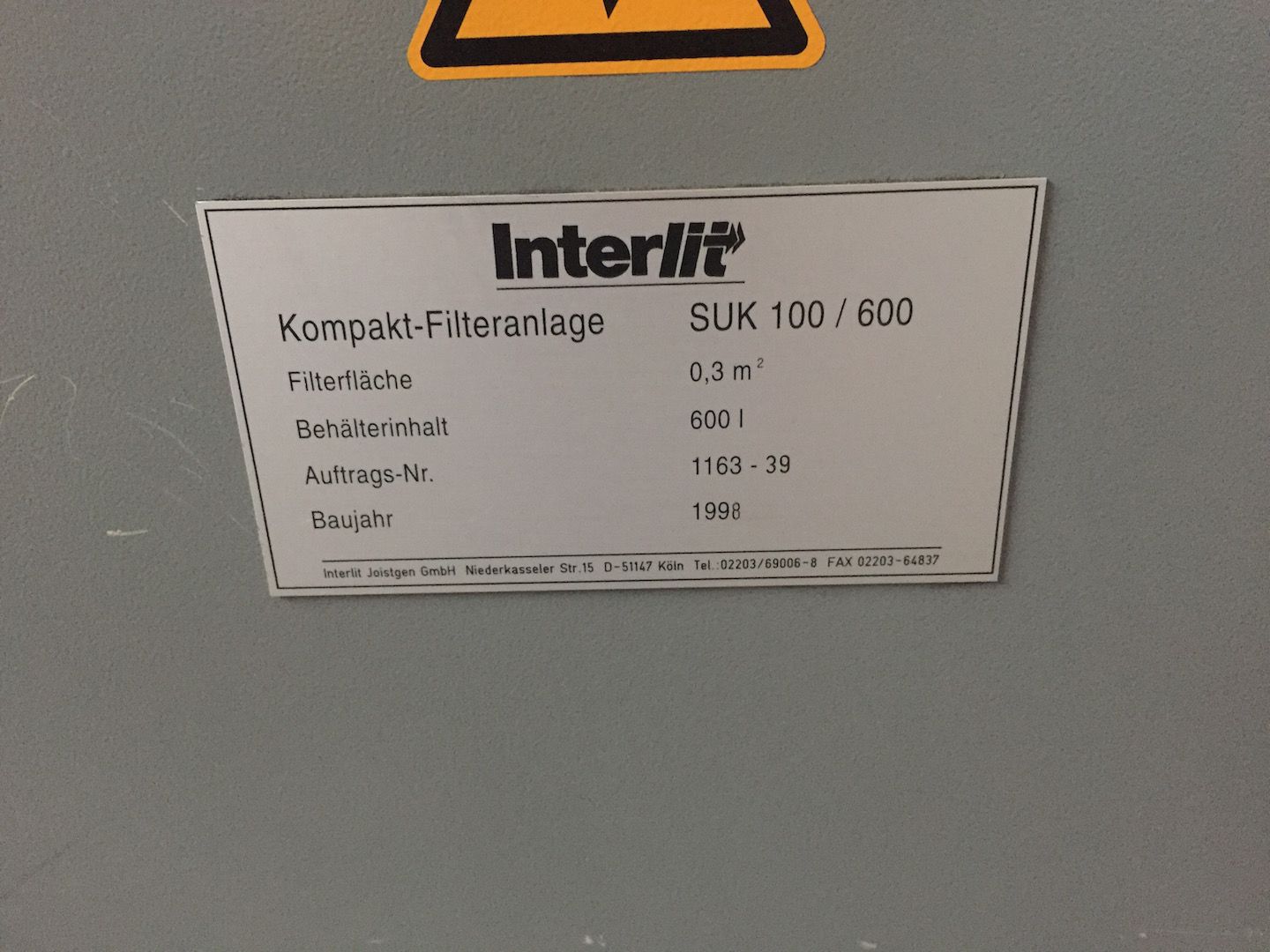

Filtration unit
Interlit SUK 100/600 600Lt.
Available in stock
Yes
Availability
pronta
Housing
integrale
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
High Pressure
refrigerante attraverso mandrino
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
