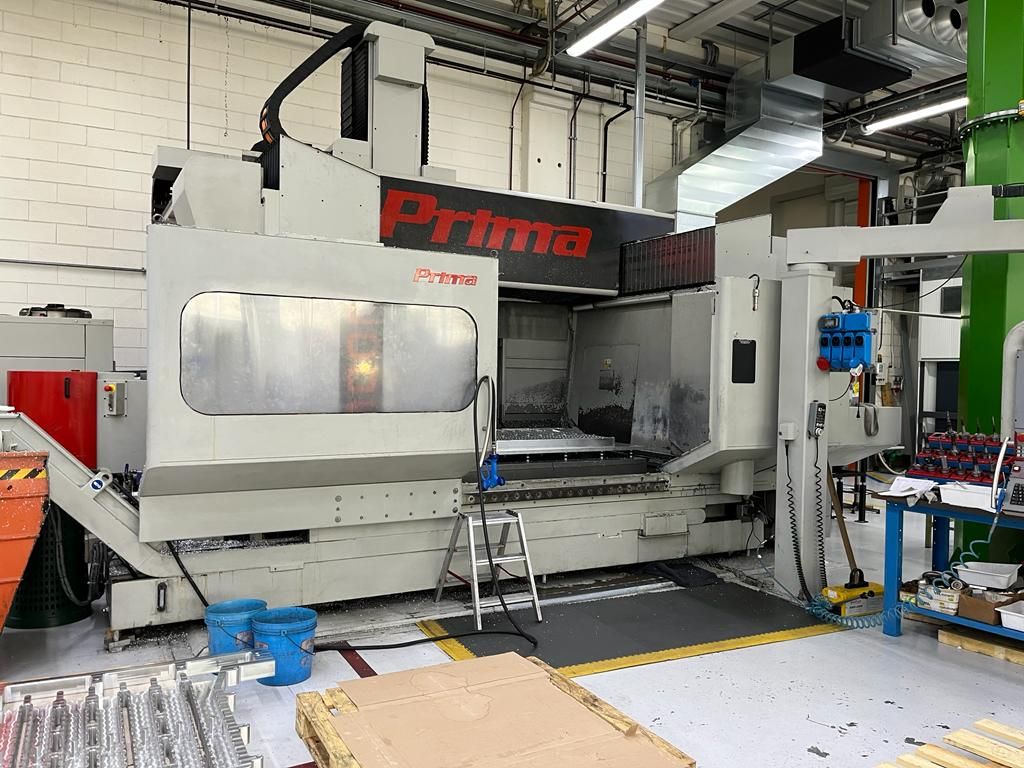

Skip to main content
Category
Machining Centre
Type
Vertical
Made
Model
Prima 1.3
Capacity
1650x1400x800 mm64,96x55,12x31,50 in

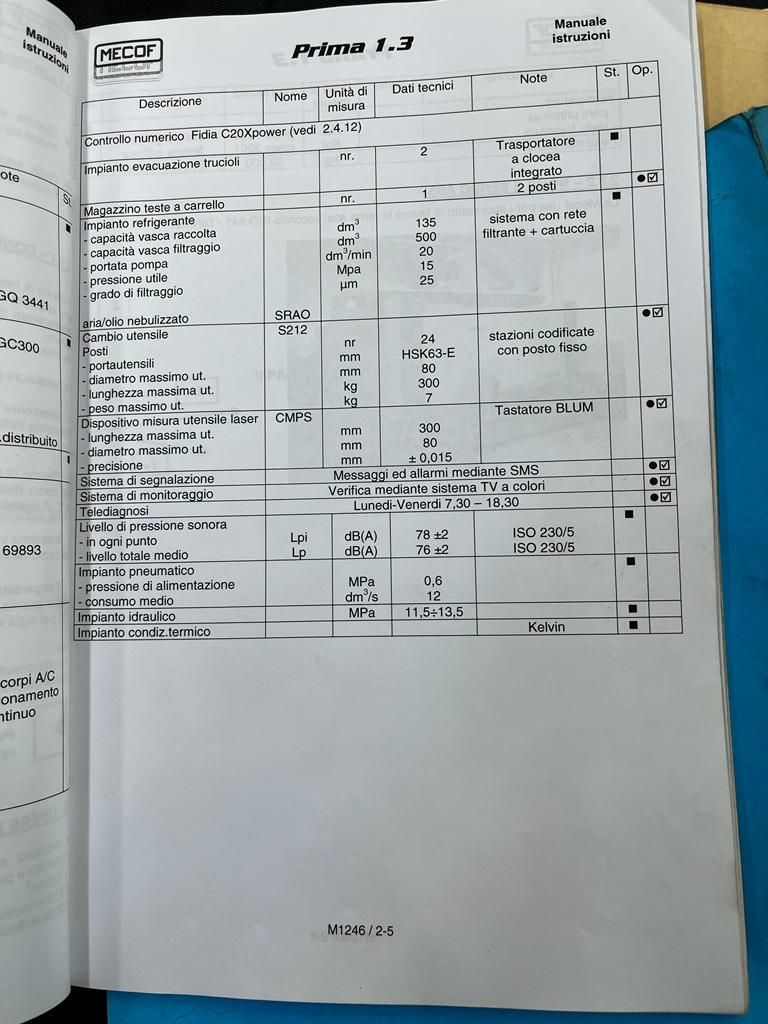

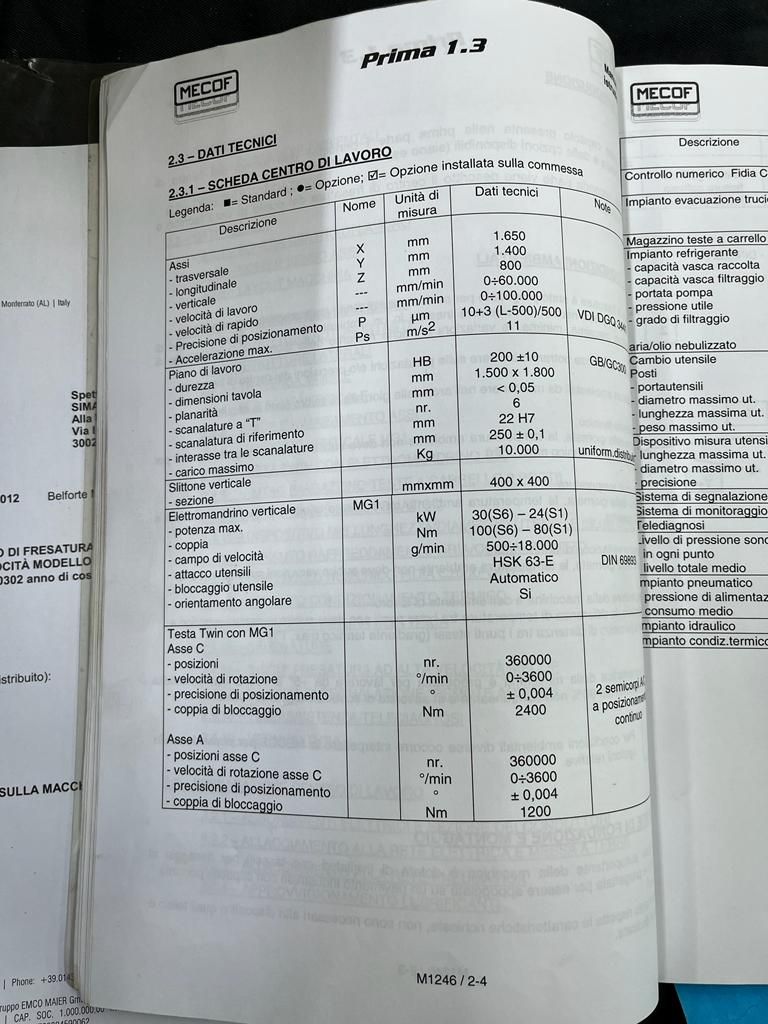

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1650 mm64,96 in
Vertical (Z)
800 mm31,50 in
Cross (Y)
1400 mm55,12 in

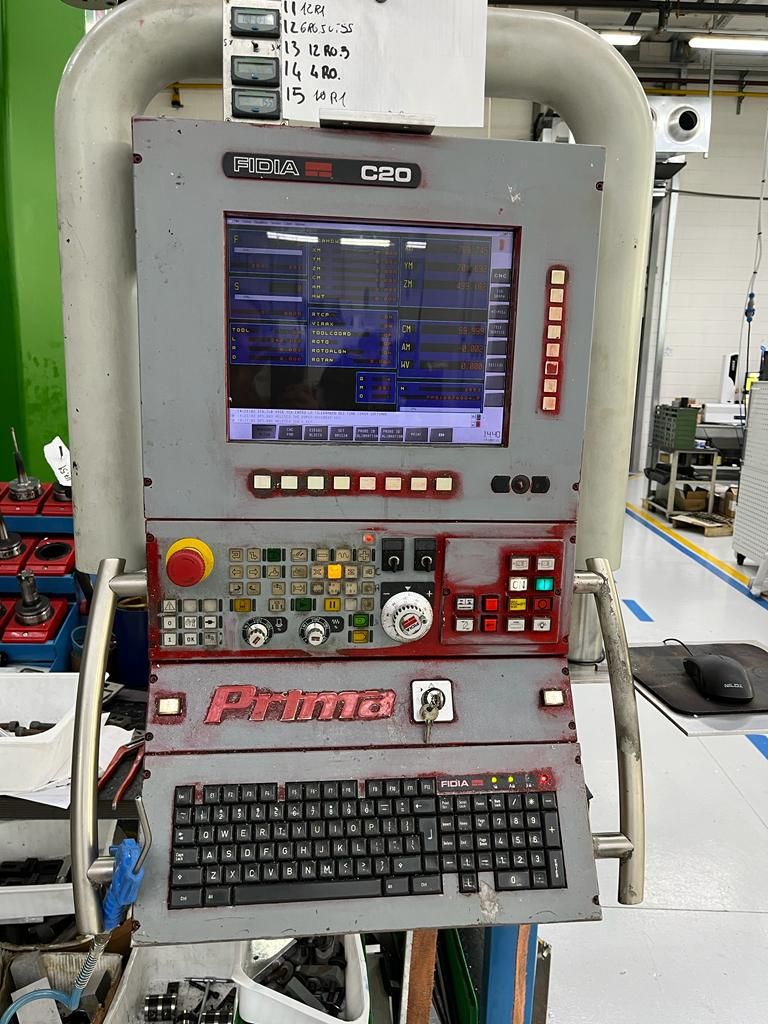

CNC
CNC
Fidia C20Xpower
Drives
Siemens
SPINDLE
Spindle power
30 (S6) - 24 (S1) Kw
Torque
100 (S6) - 80 (S1) Nm
Rotating speed
500 ÷ 18000 Rpm
Taper
HSK 63-E
TABLE
Floorspace (LxWxH)
1500x1800 mm59,06x70,87 in
Capacity
10000 Kg/mq
T slots number
6
ATC
Positions
24
Max tool diameter
80 mm3,15 in
Max tool lenght
300 mm11,81 in
Max tool weight
7 Kg
Tool taper
HSK 63-E
EXTRA
Availability
Pronta
Chip conveyor
Yes
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
