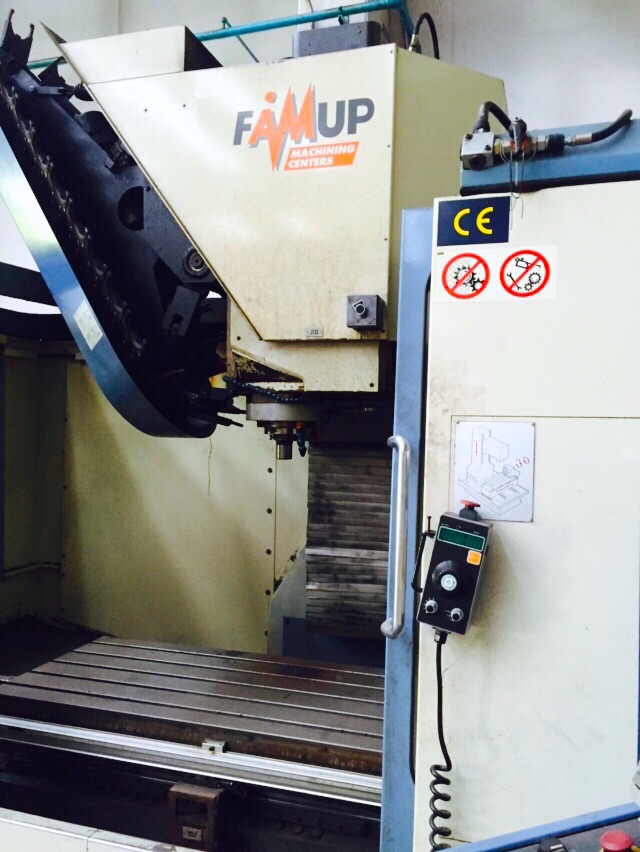

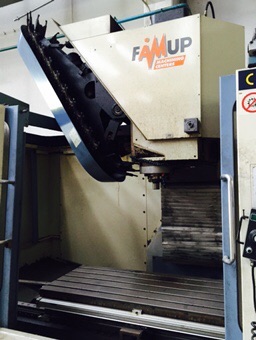

Category
Machining Centre
Type
Vertical
Made

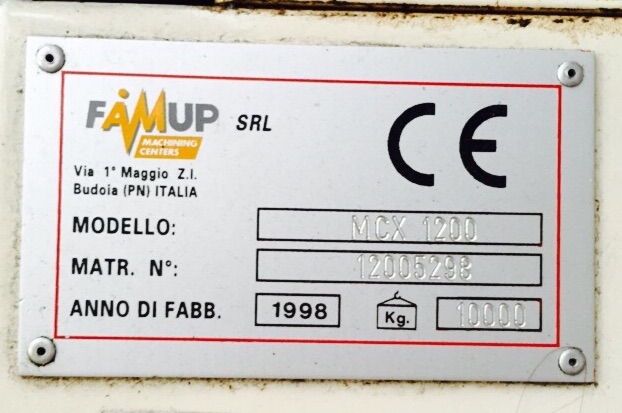

Model
MCX1200
Capacity
1200x600x650 mm47,24x23,62x25,59 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1200 mm47,24 in
Vertical (Z)
650 mm25,59 in
Cross (Y)
600 mm23,62 in

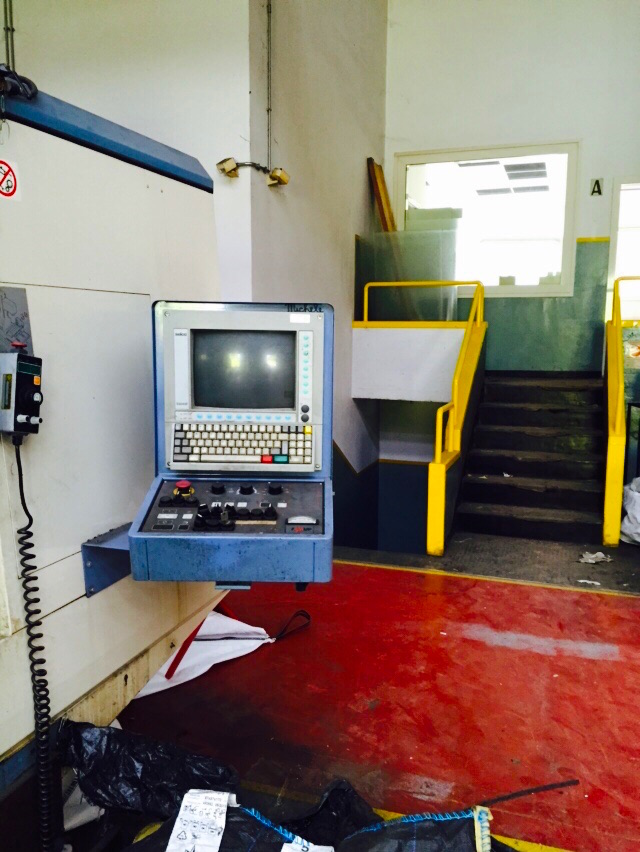

CNC
CNC
3045P
SPINDLE
Spindle power
19,25 Kw
Rotating speed
30-4000 Rpm
Gearbox
2 gamme elettroniche
Taper
ISO50
FEEDS
Rapid X
24 m/min944,88 ipm
Rapid Y
24 m/min944,88 ipm
Rapid Z
24 m/min944,88 ipm
X
10 m/min393,70 ipm
Y
10 m/min393,70 ipm
Z
10 m/min393,70 ipm
TABLE
Floorspace (LxWxH)
1400x550 mm55,12x21,65 in
T slots number
5
ATC
Positions
30
Max tool diameter
100 mm3,94 in
Max tool lenght
300 mm11,81 in
Max tool weight
12 Kg
Tool changing time
3 sec.
EXTRA
Total power supply
17 Kw
Machine total weight
10000 Kg
Floor space
3675x2985x3090 mm144,68x117,52x121,65 in
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Availability
pronta
Available in stock
Yes
Chip conveyor
Yes
Relevant updates made on the machine
ricablaggio completo, ricondizionamento meccanico
