Category
Machining Centre
Type
Vertical
Made
Model
DMC 70V Hi-Dyn APC
Capacity
700x550x500 mm27,56x21,65x19,69 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
700 mm27,56 in
Vertical (Z)
500 mm19,69 in
Cross (Y)
550 mm21,65 in

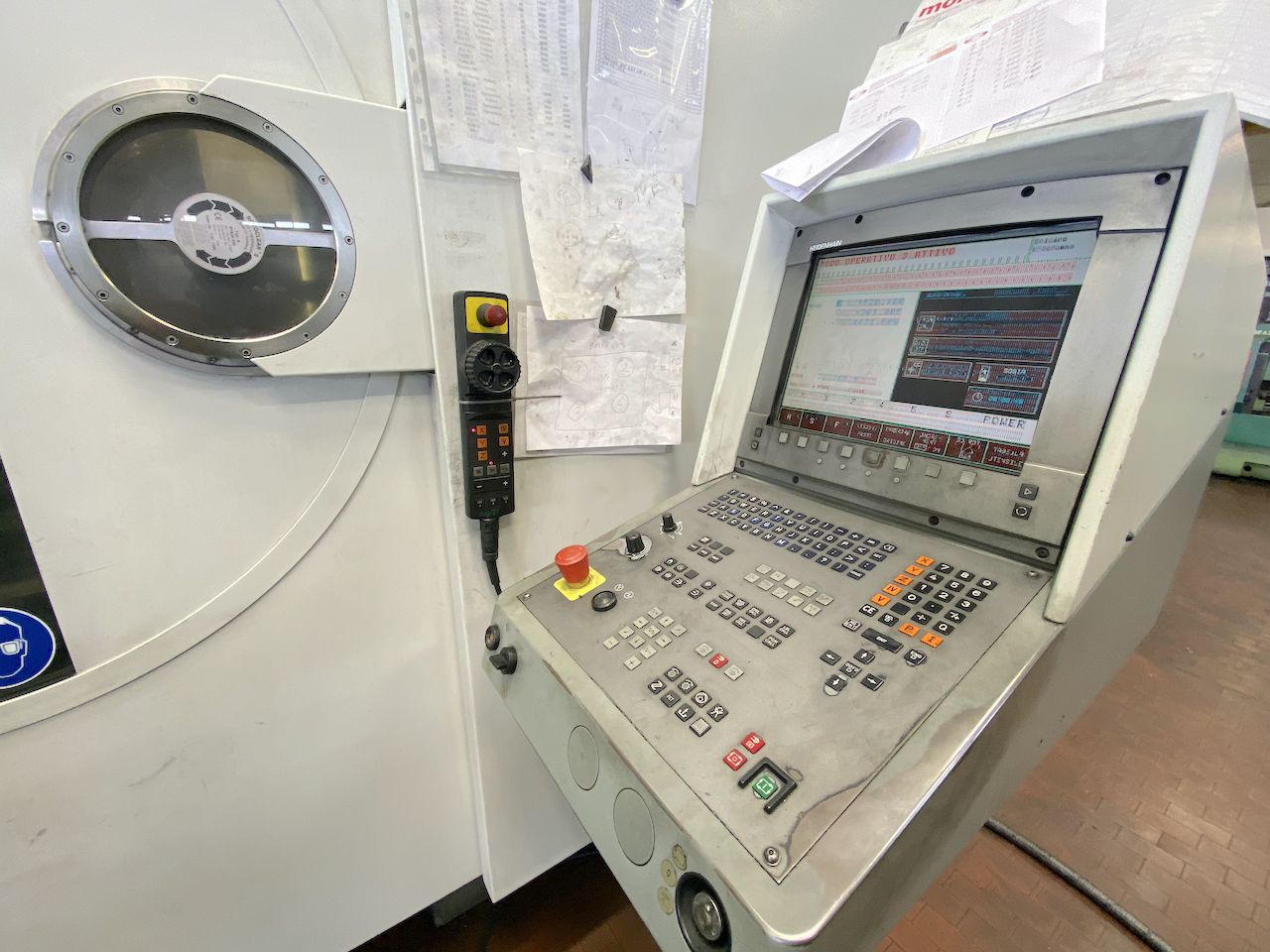

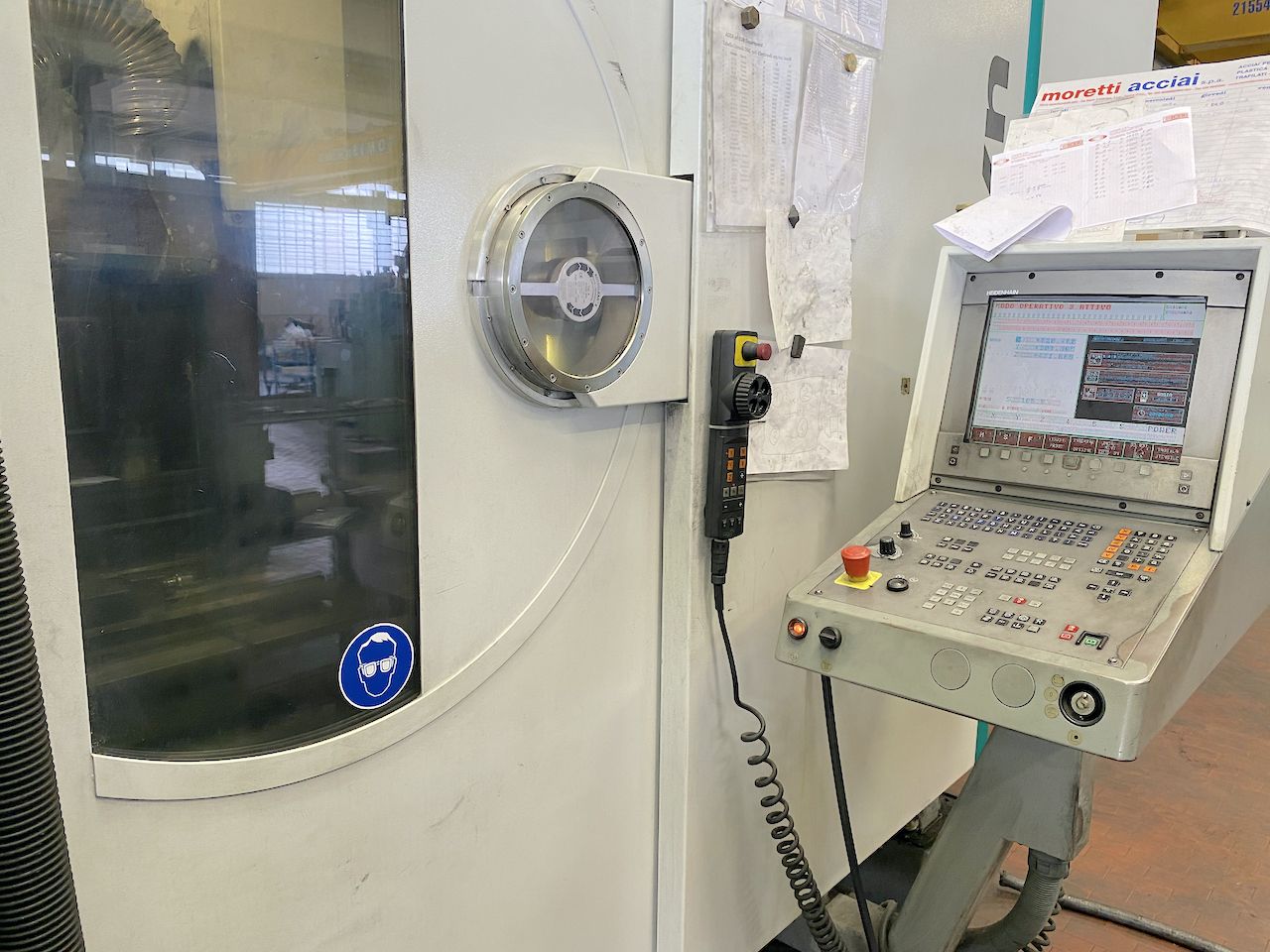

CNC
CNC
Heidenhain TNC426/430
FEEDS
Rapid X
50 m/min1.968,50 ipm
Rapid Y
50 m/min1.968,50 ipm
Rapid Z
50 m/min1.968,50 ipm

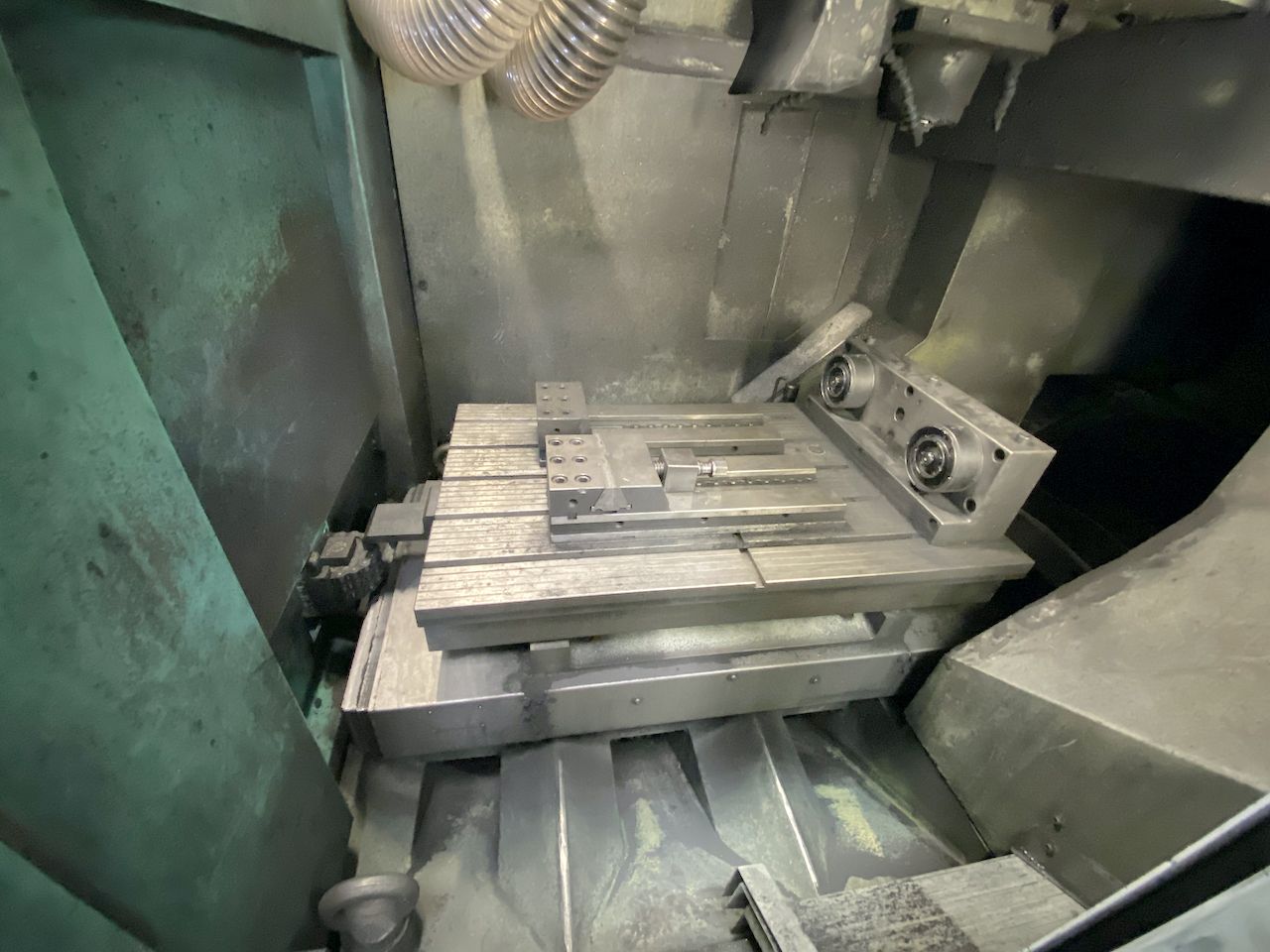

TABLE
Floorspace (LxWxH)
900x550 mm35,43x21,65 in
T slots number
6x14mm

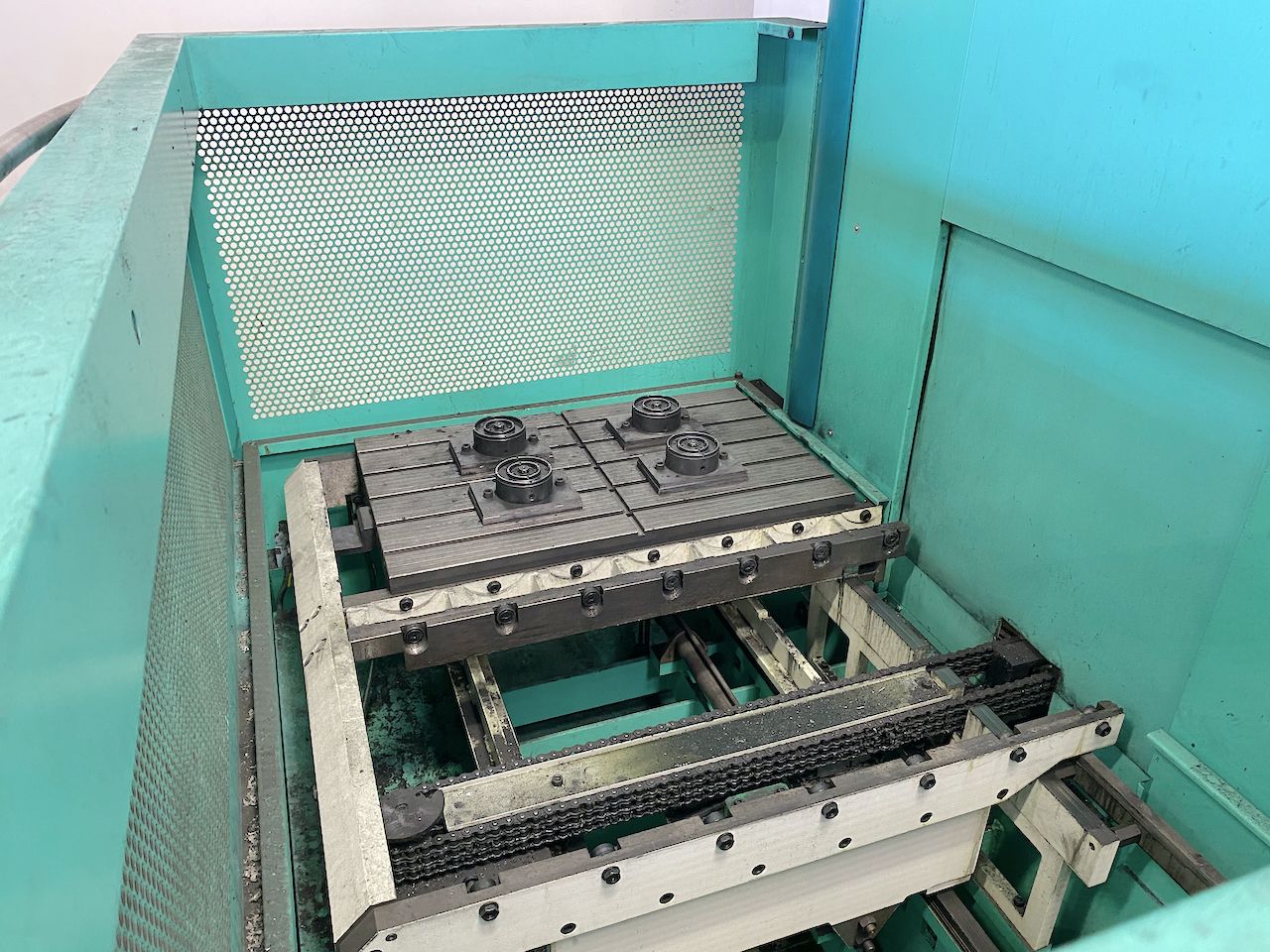

AUTO PALLET CHANGER (APC)
Pallet number
2
Pallet surface
900x550 mm35,43x21,65 in
Capacity
600 Kg
ATC
Positions
30
Max tool diameter
80 mm3,15 in
Max diam with free adiacent space
140 mm5,51 in
Max tool lenght
300 mm11,81 in
Max tool weight
12 Kg
Tool taper
ISO40
SPINDLE
Taper
ISO40
Spindle power
10/15 Kw
Rotating speed
18000 Rpm
Torque
130 Nm
EXTRA
Machine total weight
8200 Kg
Floor space
3600x4300 mm141,73x169,29 in
