Category
Machining Centre
Type
Vertical
Made
Model
XCEEDER 1200
Capacity
1200x1000x600 mm47,24x39,37x23,62 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1200 mm47,24 in
Vertical (Z)
600 mm23,62 in
Cross (Y)
1000 mm39,37 in
CNC
CNC

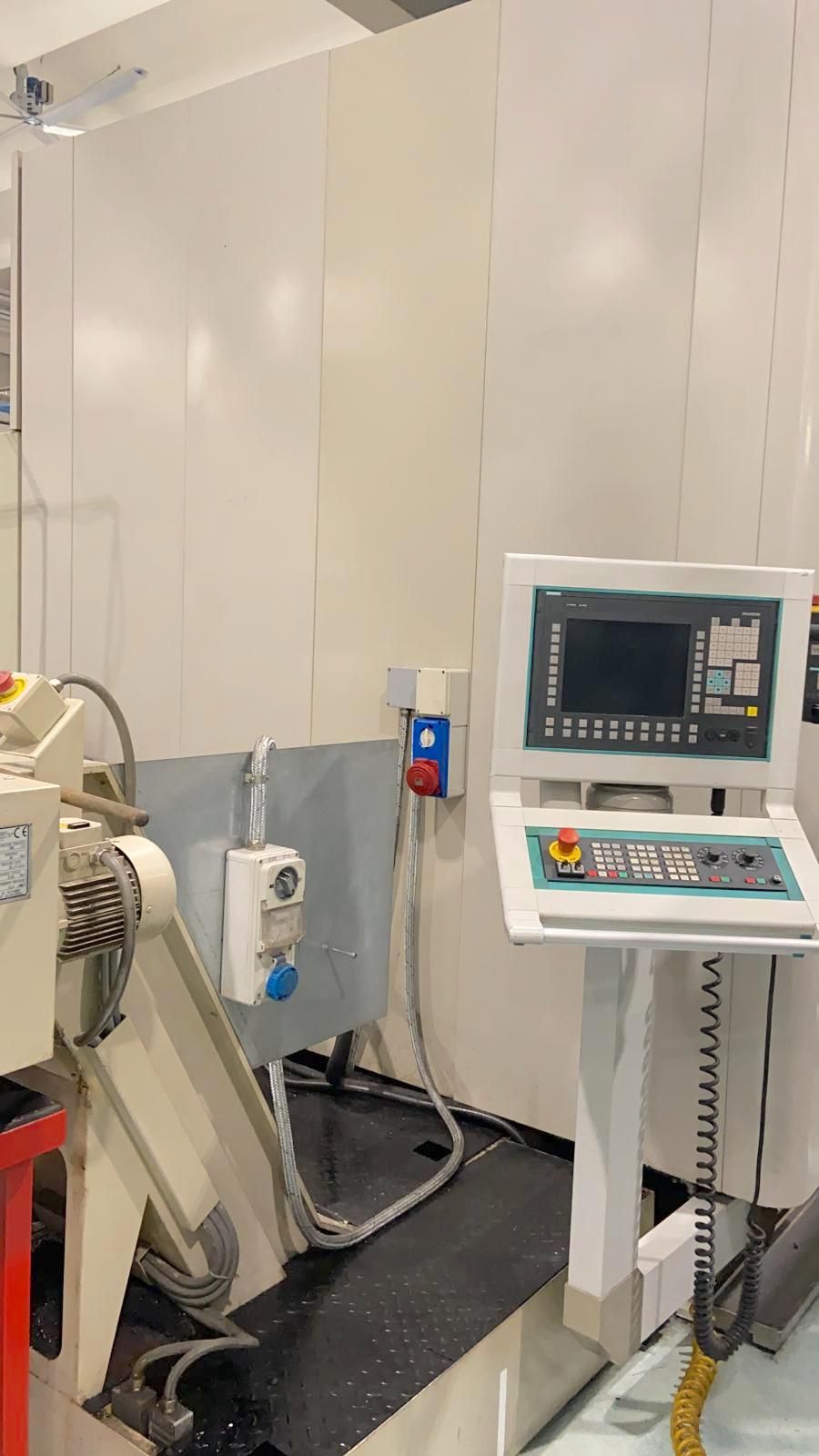

SIEMENS 840D
SPINDLE
Spindle power
20 Kw
Rotating speed
24000 Rpm
Torque
38 Nm
FEEDS
Rapid X
60 m/min2.362,20 ipm
Rapid Y
60 m/min2.362,20 ipm
Rapid Z
40 m/min1.574,80 ipm
TABLE
Floorspace (LxWxH)
1500x1000 mm59,06x39,37 in

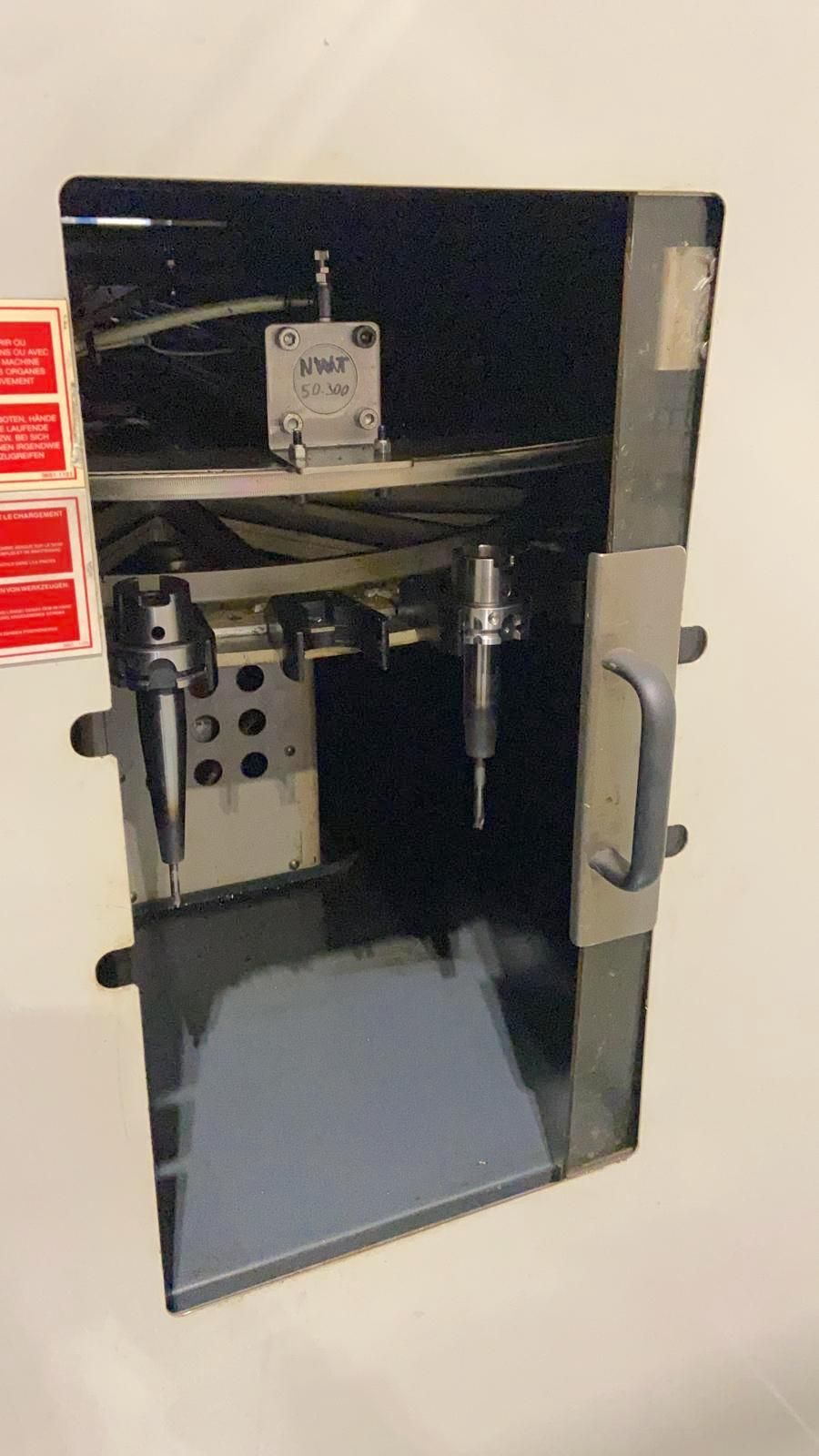

ATC
Positions
30
EXTRA
Machine total weight
18000 Kg
Total power supply
85 Kw
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
