Category
Machining Centre
Type
Vertical
Made

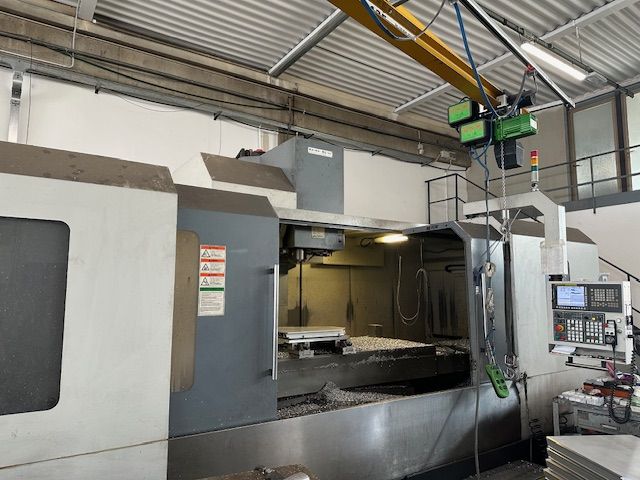

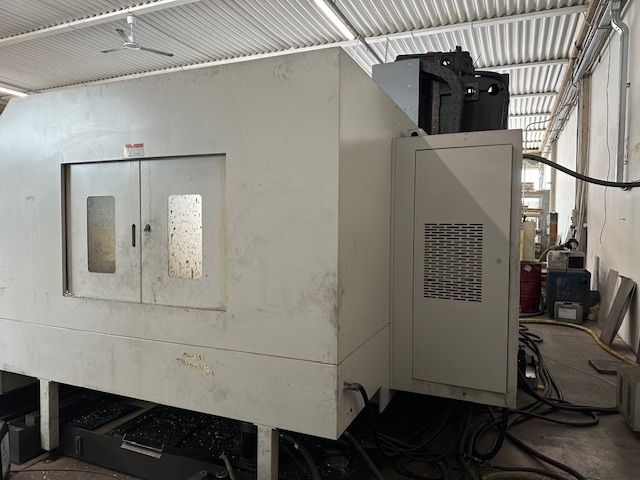

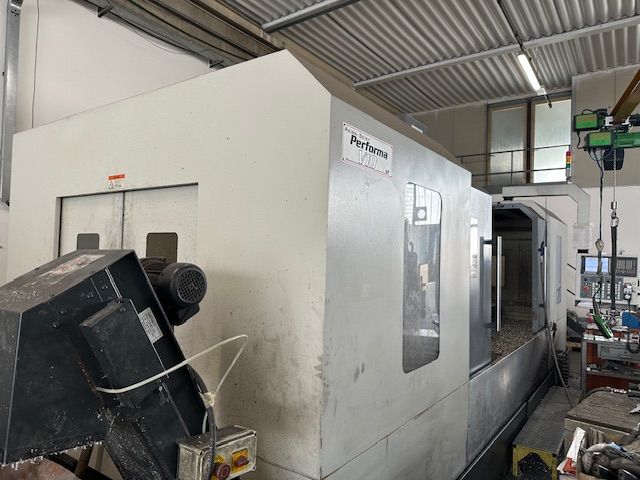

Model
V10 XP Performa
Capacity
2600x1030x815 mm102,36x40,55x32,09 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2600 mm102,36 in
Vertical (Z)
1030 mm40,55 in
Cross (Y)
815 mm32,09 in

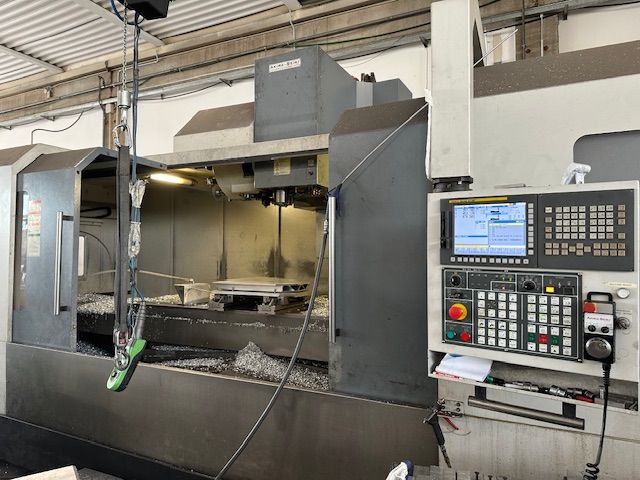

CNC
CNC
Fanuc 0i-MF(A)
FEEDS
Rapid X
33 m/min1.299,21 ipm
Rapid Y
33 m/min1.299,21 ipm
Rapid Z
25 m/min984,25 ipm
X
12 m/min472,44 ipm
Y
12 m/min472,44 ipm
Z
12 m/min472,44 ipm
SPINDLE
Rotating speed
11000 Rpm
Notes
Refrigerazione mezzo madrino
Taper
ISO40 DIN69871
TABLE
Floorspace (LxWxH)
2750x950 mm108,27x37,40 in
ATC
Positions
28
Max tool diameter
65 mm2,56 in
Max tool lenght
250 mm9,84 in
Max tool weight
7 Kg
Tool changing time
4,2 sec.
Tool taper
ISO40 DIN69871
EXTRA
Chip conveyor
Yes
Total power supply
30 Kw
Machine total weight
21400 Kg
Availability
Pronta
CE Certification
Yes
Maintenance & Use books
Yes
Available in stock
Yes
High Pressure
CTS 35Bar
Floor space
7050x4000x3330 mm277,56x157,48x131,10 in
4° axis predisposition
Yes
