Category
Machining Centre
Type
Horizontal
Made
Model
HX630i
Capacity
ø1000x1100 mmø39,37x43,31 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1050 mm41,34 in
Vertical (Z)
820 mm32,28 in
Cross (Y)
800 mm31,50 in
Table (B)
0,001 °
Max workpiece size (LxWxH)
ø1000x1100 mmø39,37x43,31 in
Axes support
guide lineari
Notes
doppie viti raffreddate e doppi motori su tutti gli assi

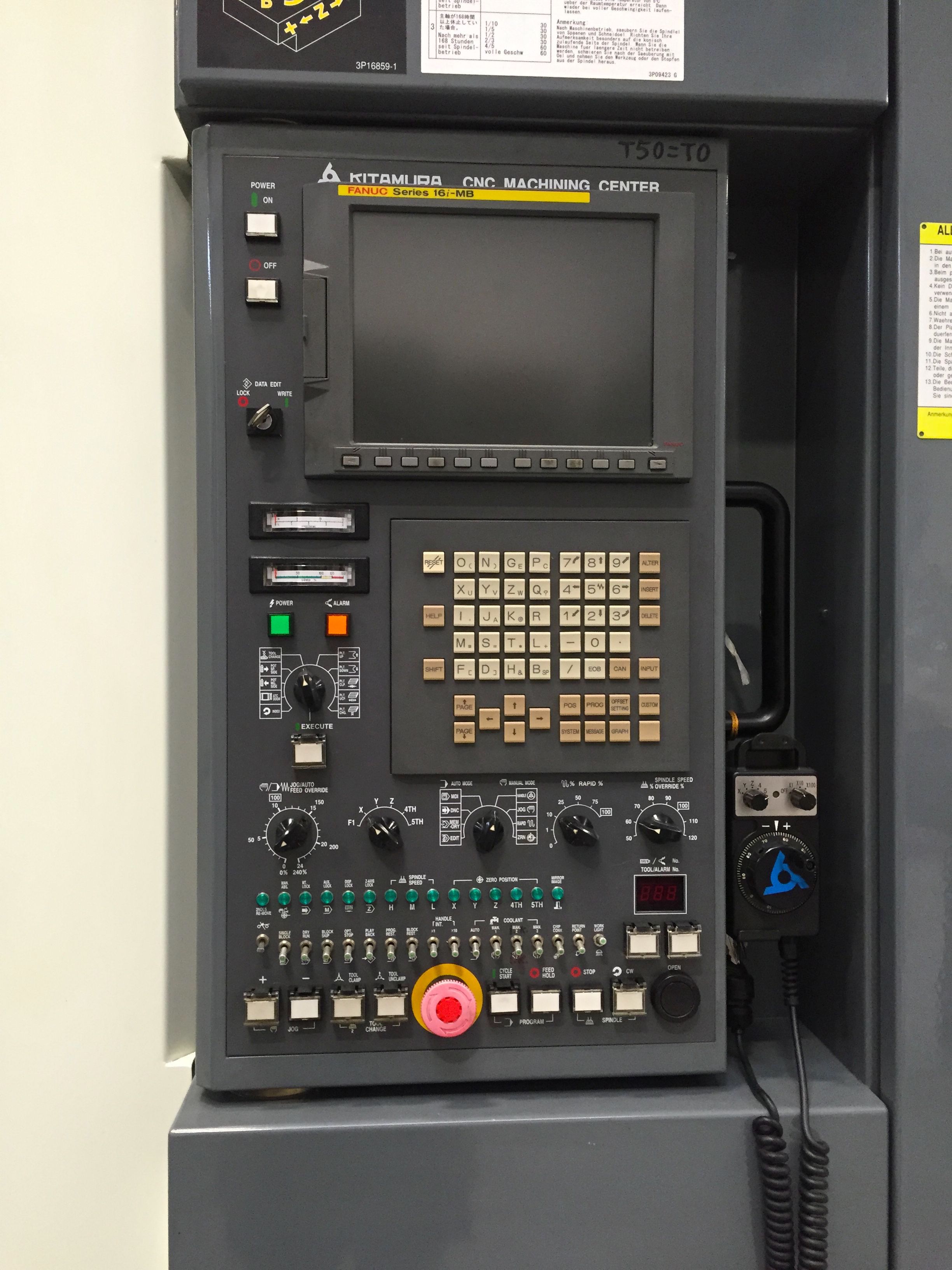

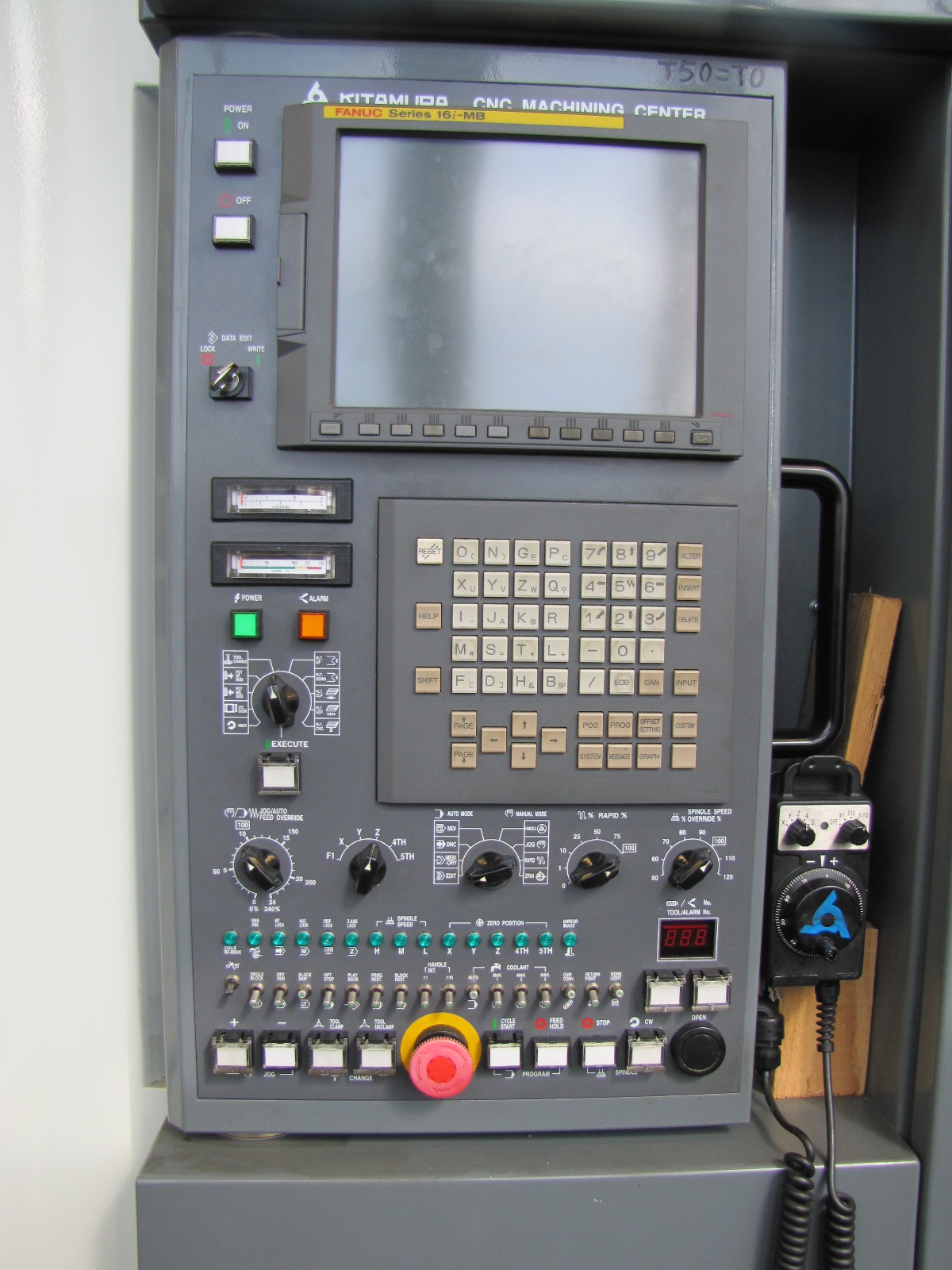

CNC
CNC
FANUC 16i-MB

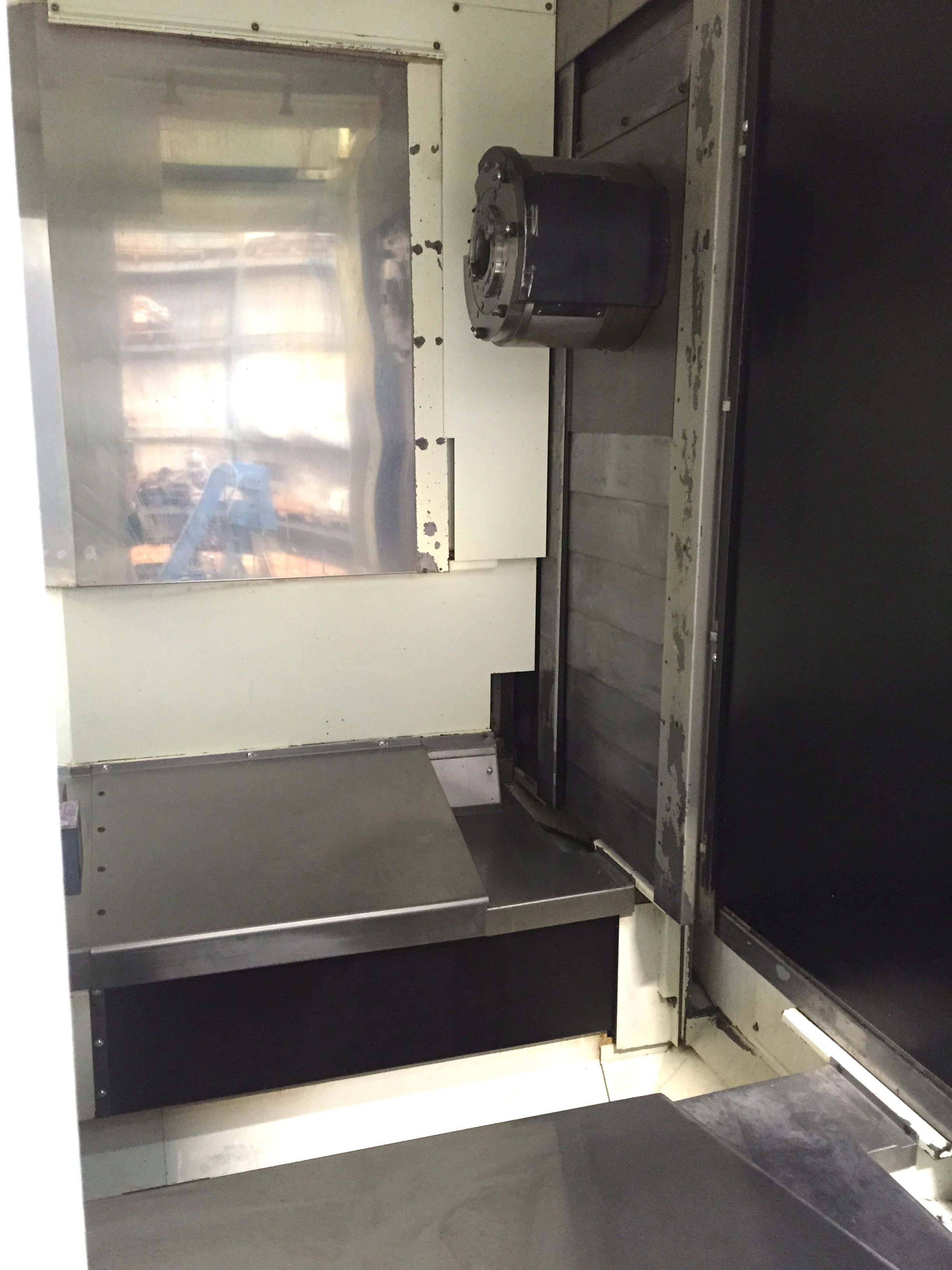

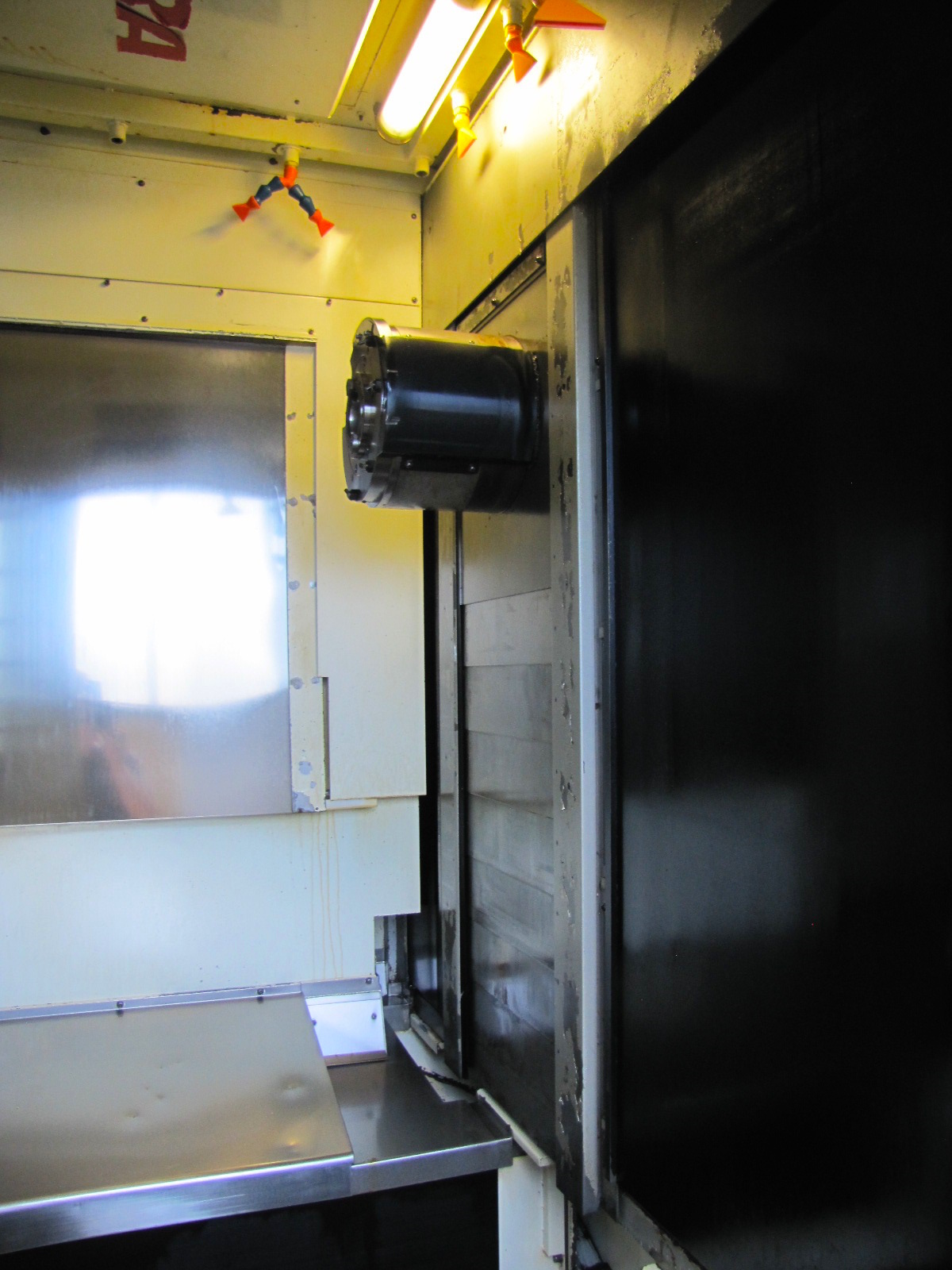

SPINDLE
Spindle power
26 Kw
Gearbox
2 gamme meccaniche
Rotating speed
35-12000 Rpm
Torque
380 Nm
Taper
ISO50
Spindle transmission
Gear Drive
Internal coolant
40 Bar
FEEDS
Rapid X
50 m/min1.968,50 ipm
Rapid Y
50 m/min1.968,50 ipm
Rapid Z
50 m/min1.968,50 ipm
Rapid B
25 Rpm
X
50 m/min1.968,50 ipm
Y
50 m/min1.968,50 ipm
Z
50 m/min1.968,50 ipm

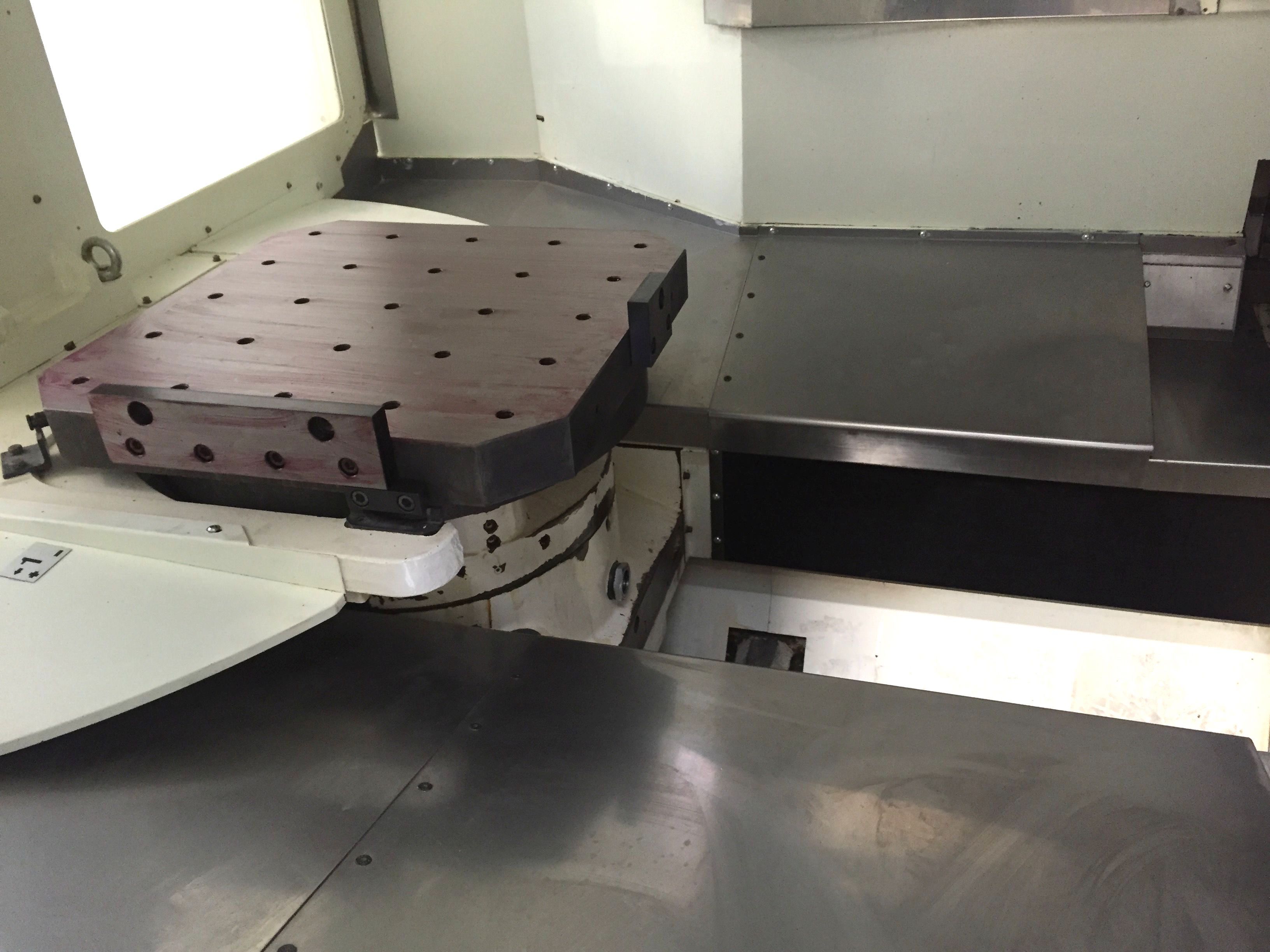

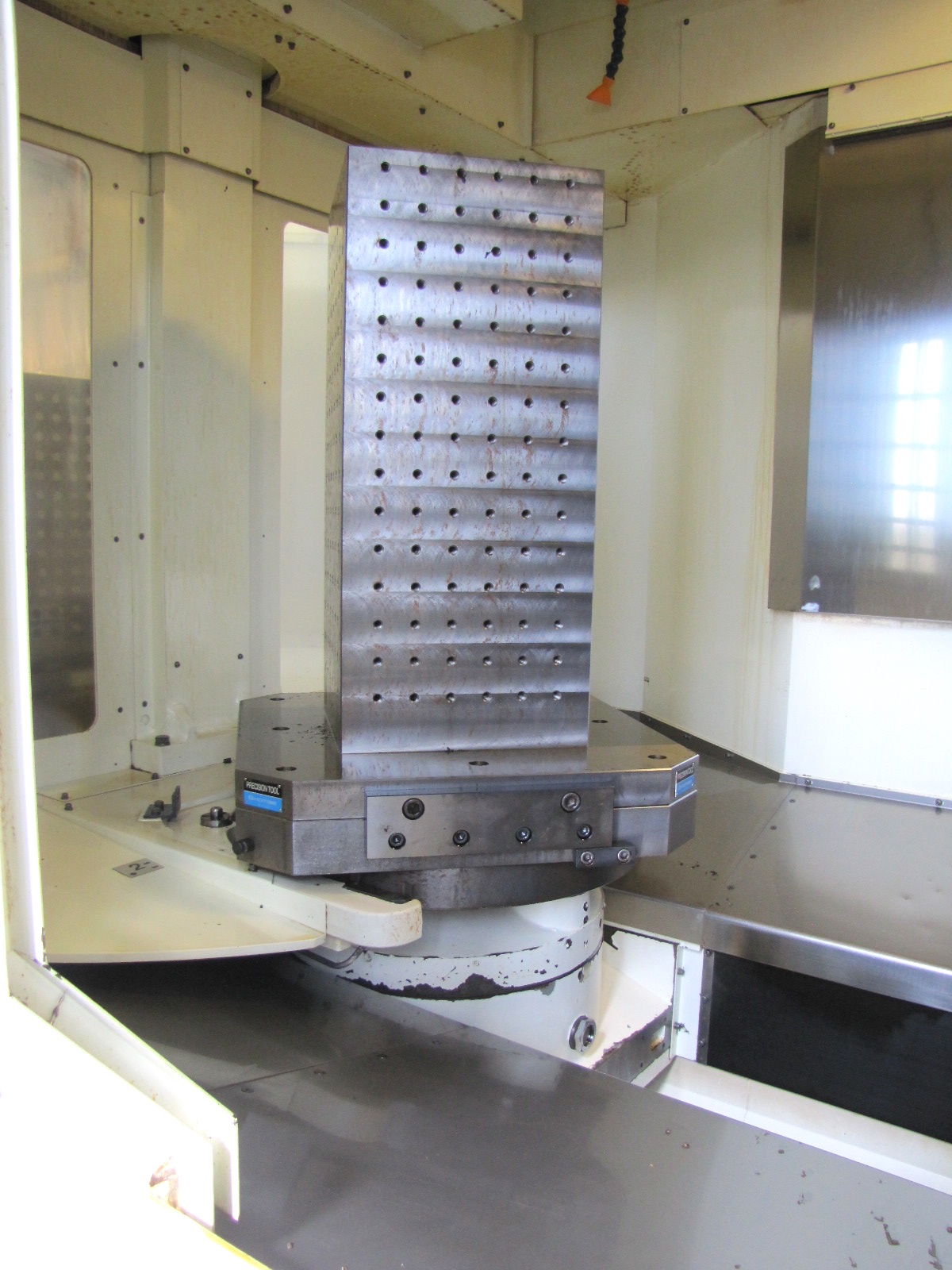

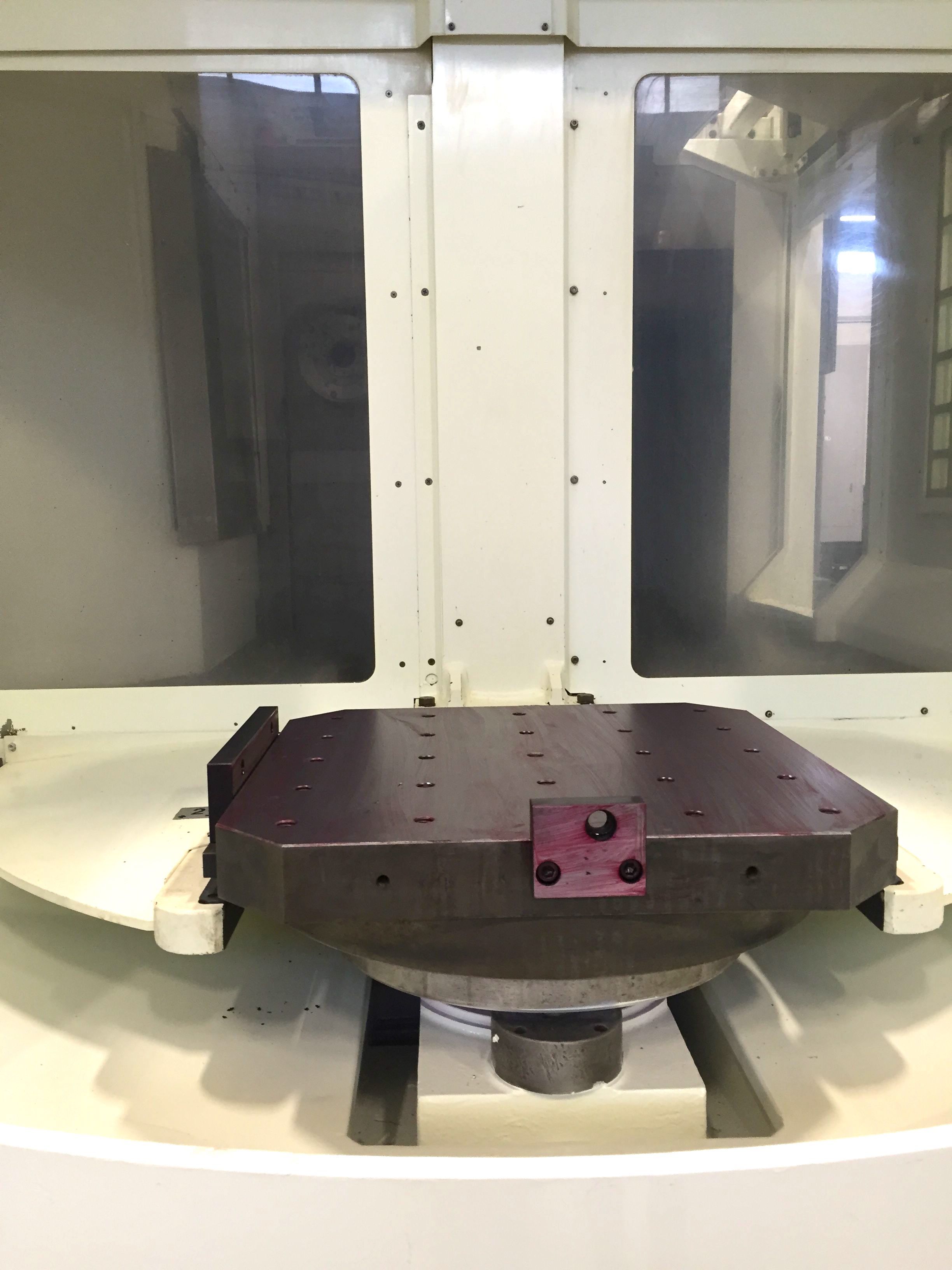

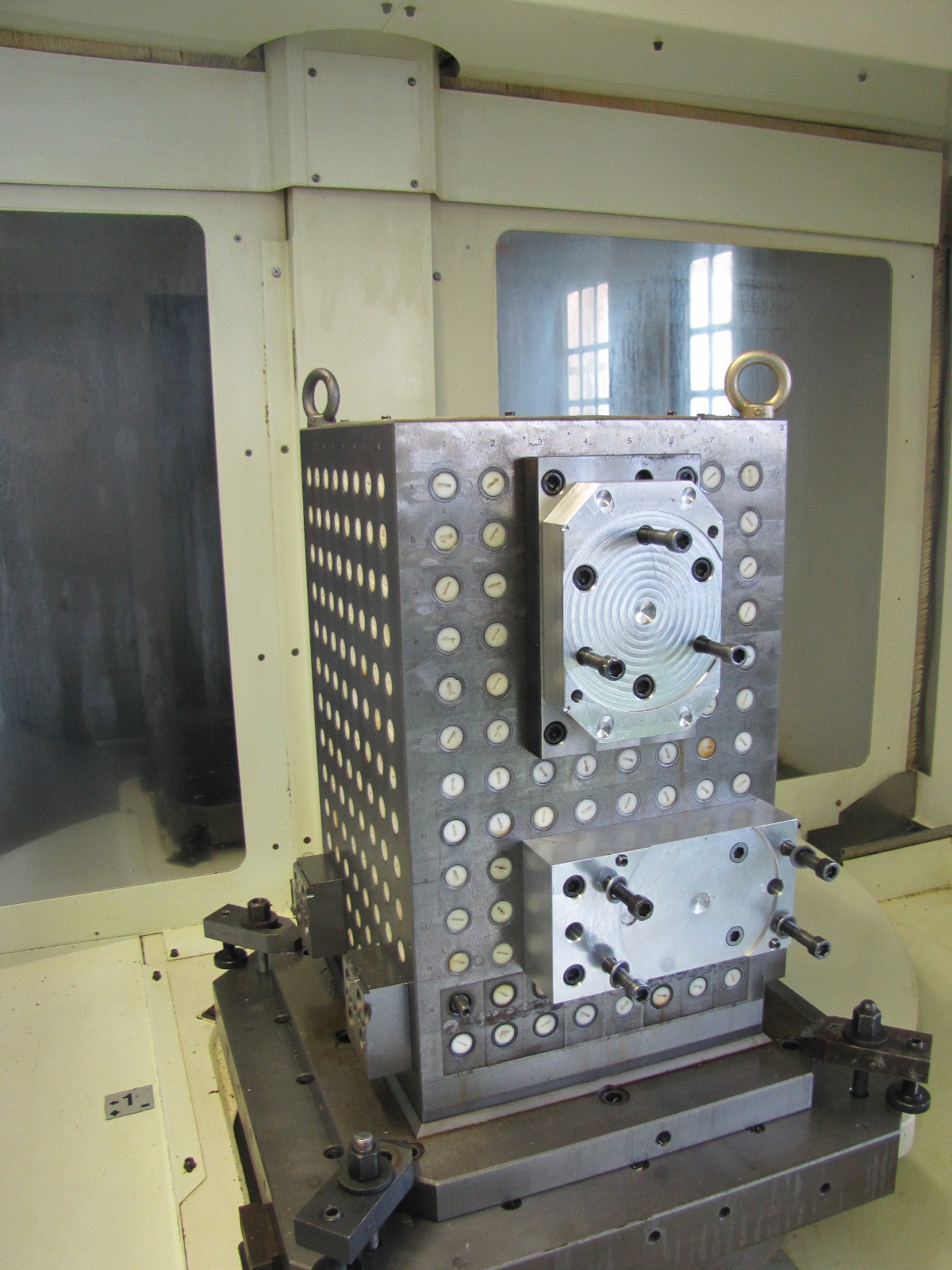

TABLE
Floorspace (LxWxH)
630x630 mm24,80x24,80 in
Capacity
1200 Kg
Accuracy (B axis)
0,001 °
AUTO PALLET CHANGER (APC)
Pallet number
2
Loading station
1
Pallet surface
630 mm24,80 in
Pallet changing time
6 sec

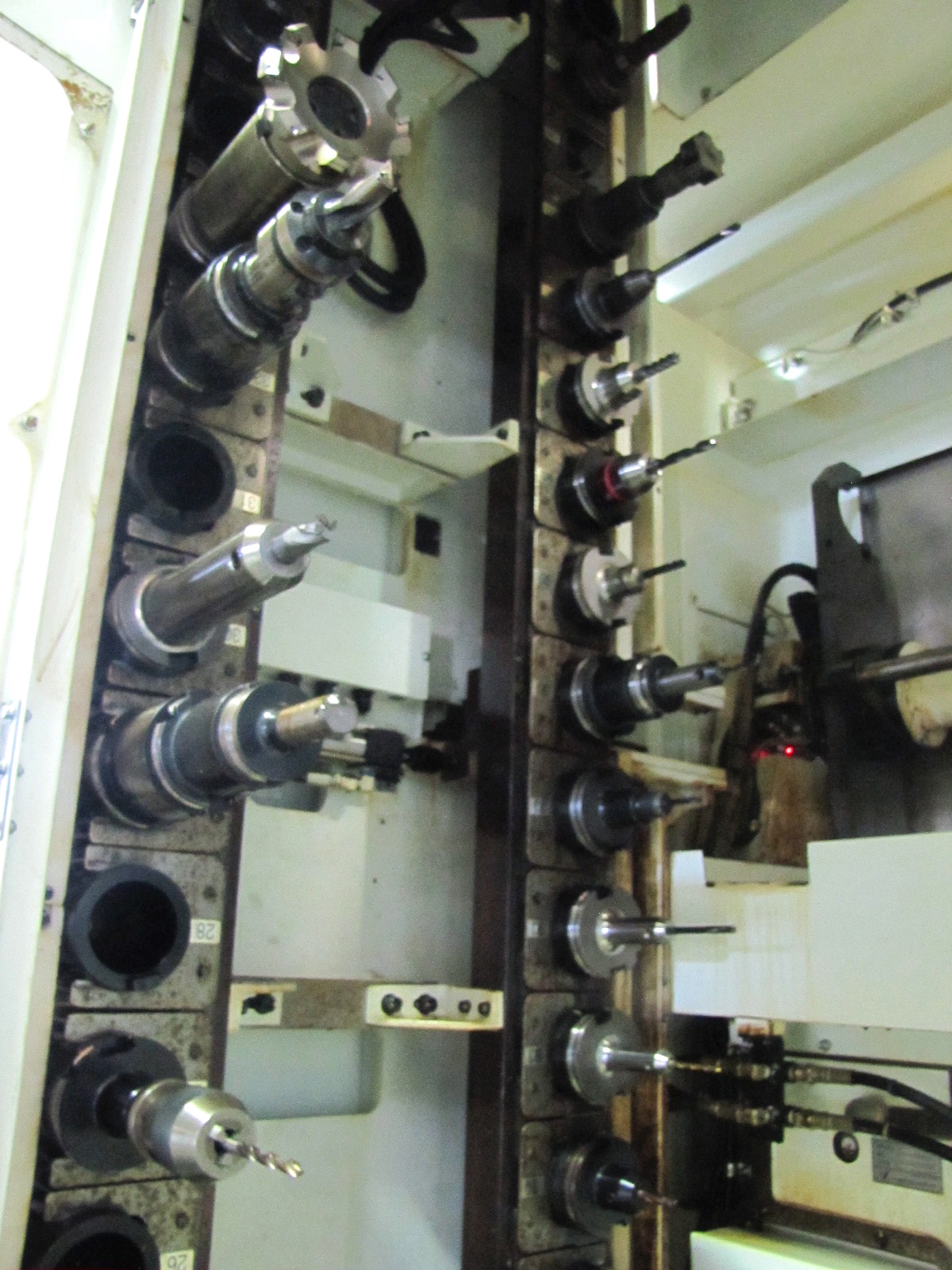

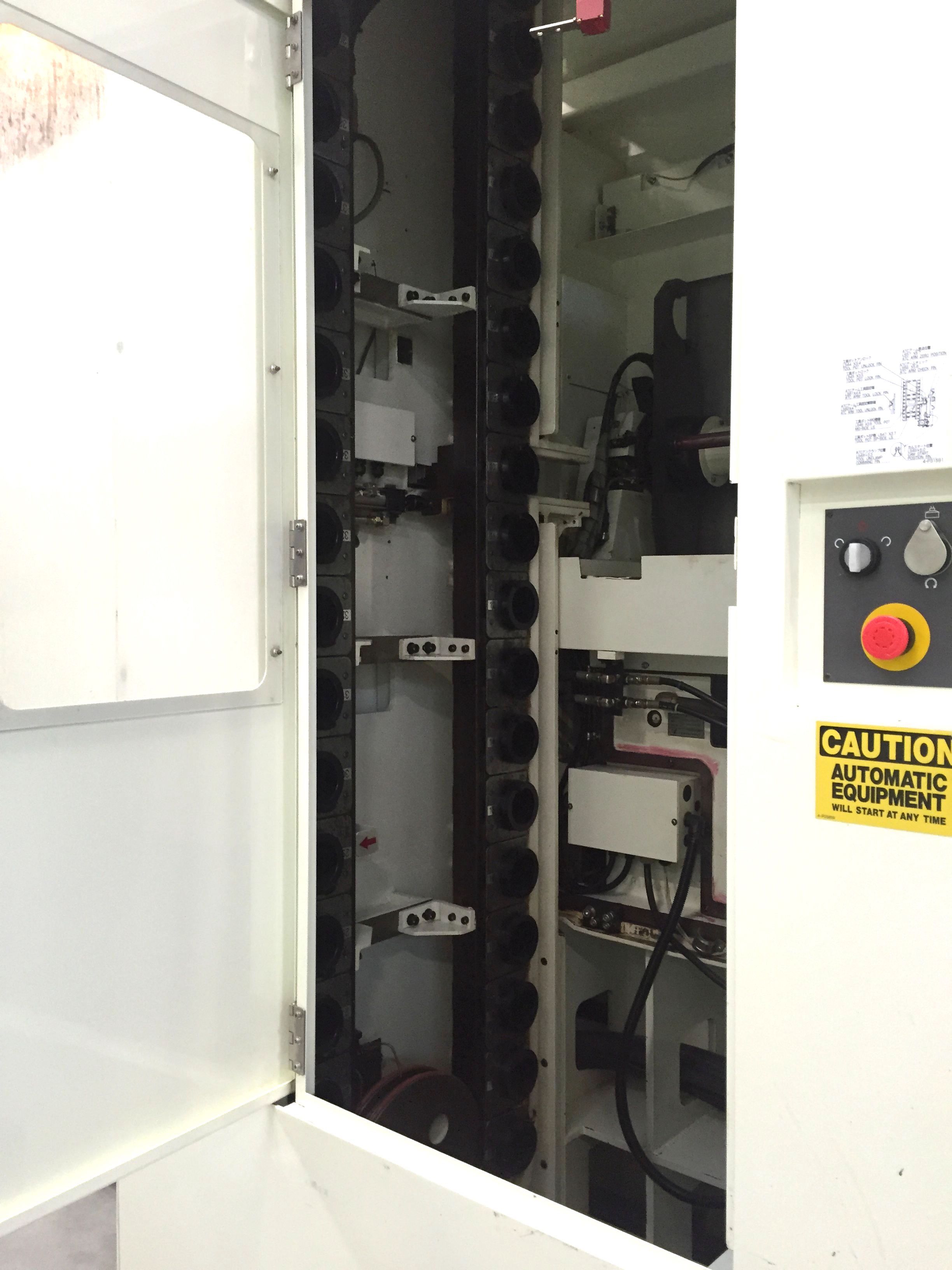

ATC
Positions
50
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
200 mm7,87 in
Max tool lenght
600 mm23,62 in
Max tool weight
20 Kg
Tool taper
ISO50
Tool changing time
T/T 1,5sec. C/C 5,5 sec.
EXTRA
Machine total weight
20500 Kg
Floor space
4607x6290x3499 mm181,38x247,64x137,76 in
High Pressure
pompa Knoll
Tool presetter
si
Total power supply
55 Kw
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Availability
pronta
Available in stock
si
Available under power
si
Tooling included
ISO50 set of cones
