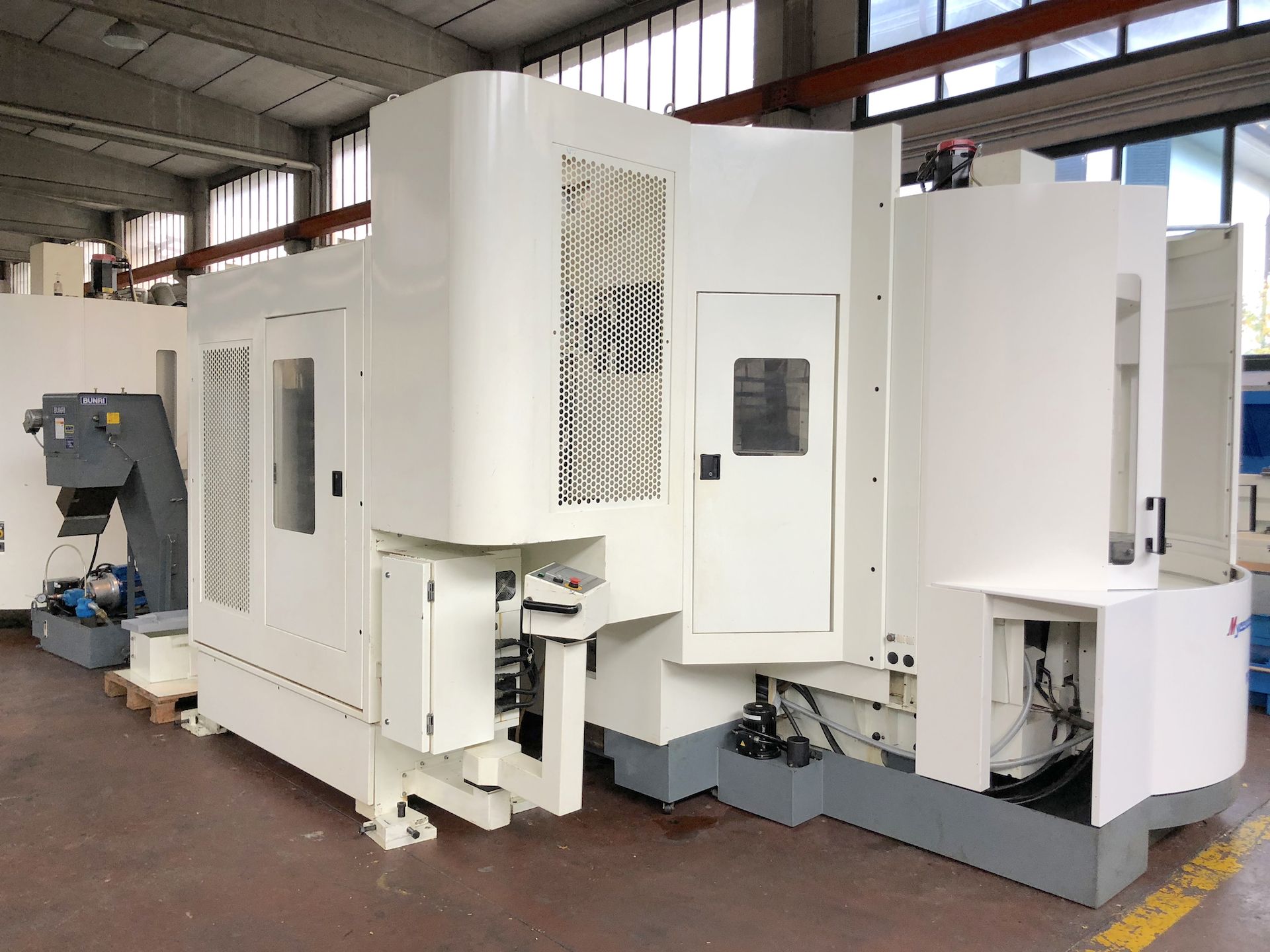

Category
Machining Centre
Type
Horizontal
Made
Model
HX 400i
Capacity
660x560x610 mm25,98x22,05x24,02 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
660 mm25,98 in
Vertical (Z)
560 mm22,05 in
Cross (Y)
610 mm24,02 in
Table (B)
0,001 °
Axes support
guide piane

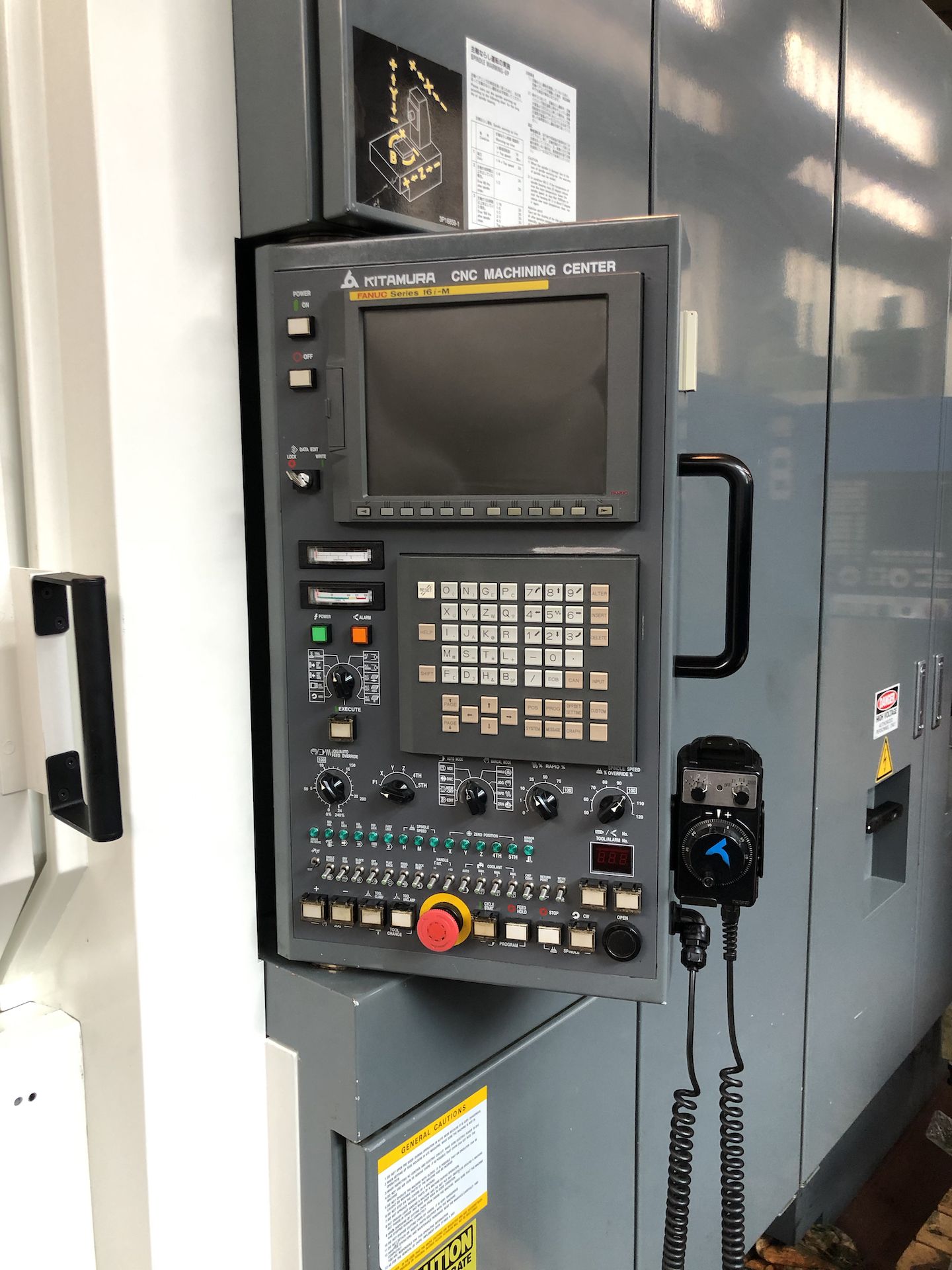

CNC
CNC
Fanuc 16iM
SPINDLE
Spindle power
15-18,5 Kw
Rotating speed
35-13.000 Rpm
Taper
ISO40
Spindle transmission
direct drive
Gearbox
meccanico
Internal coolant
si Bar
FEEDS
Rapid X
50 m/min1.968,50 ipm
Rapid Y
50 m/min1.968,50 ipm
Rapid Z
50 m/min1.968,50 ipm
Rapid B
40 Rpm
Notes
doppie viti forate e refrigerate con doppi motori su tutti gli assi

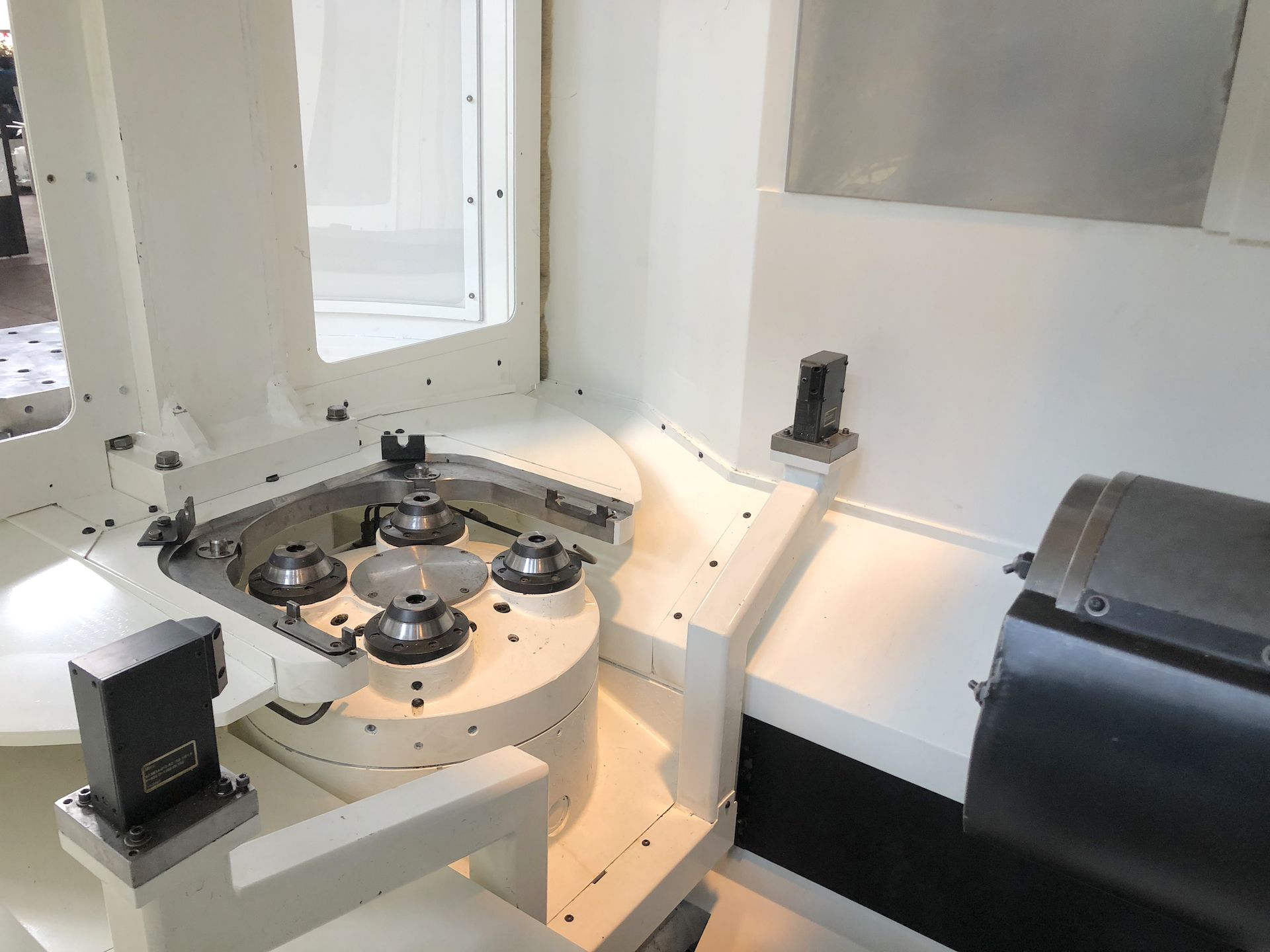

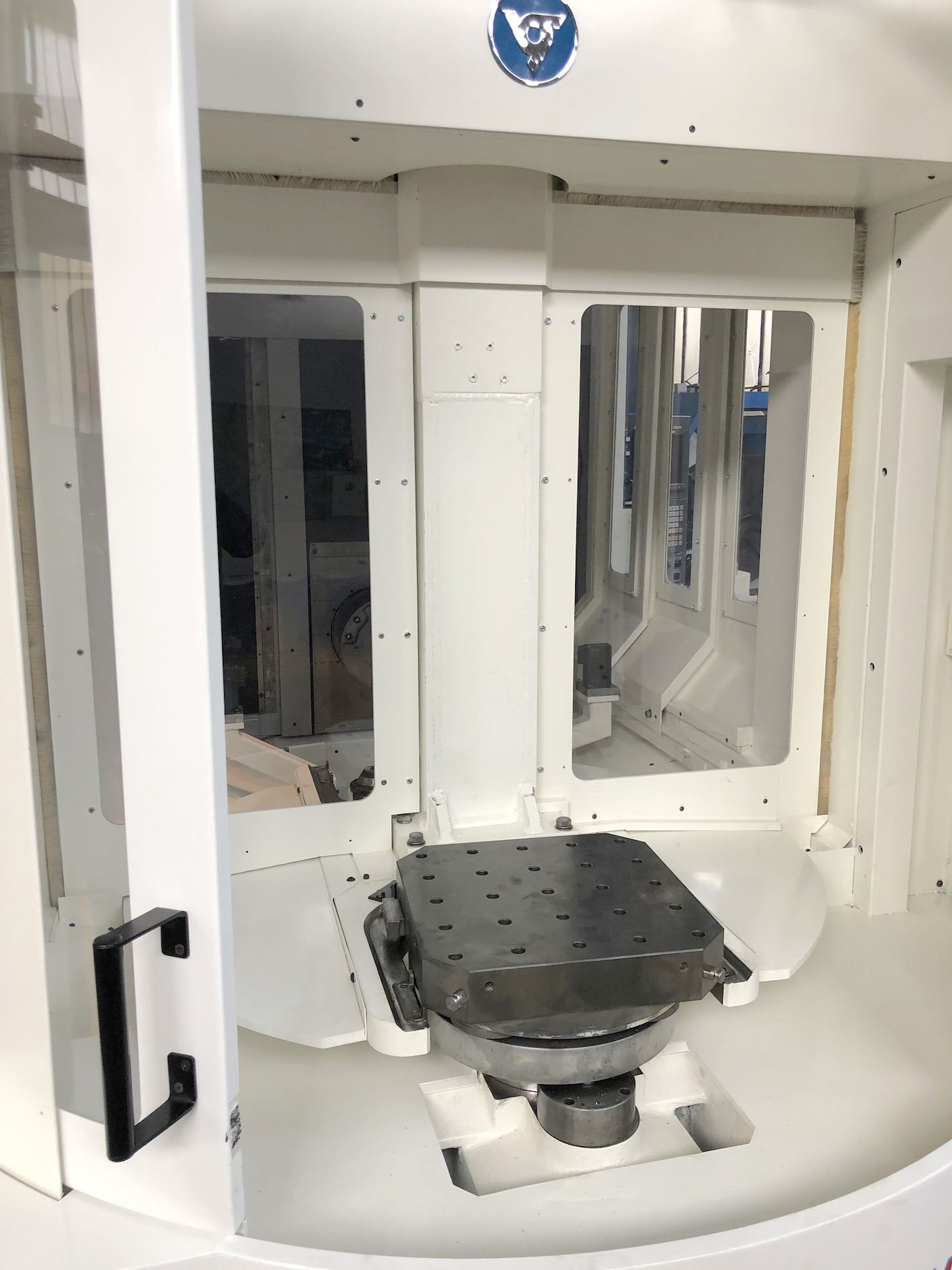

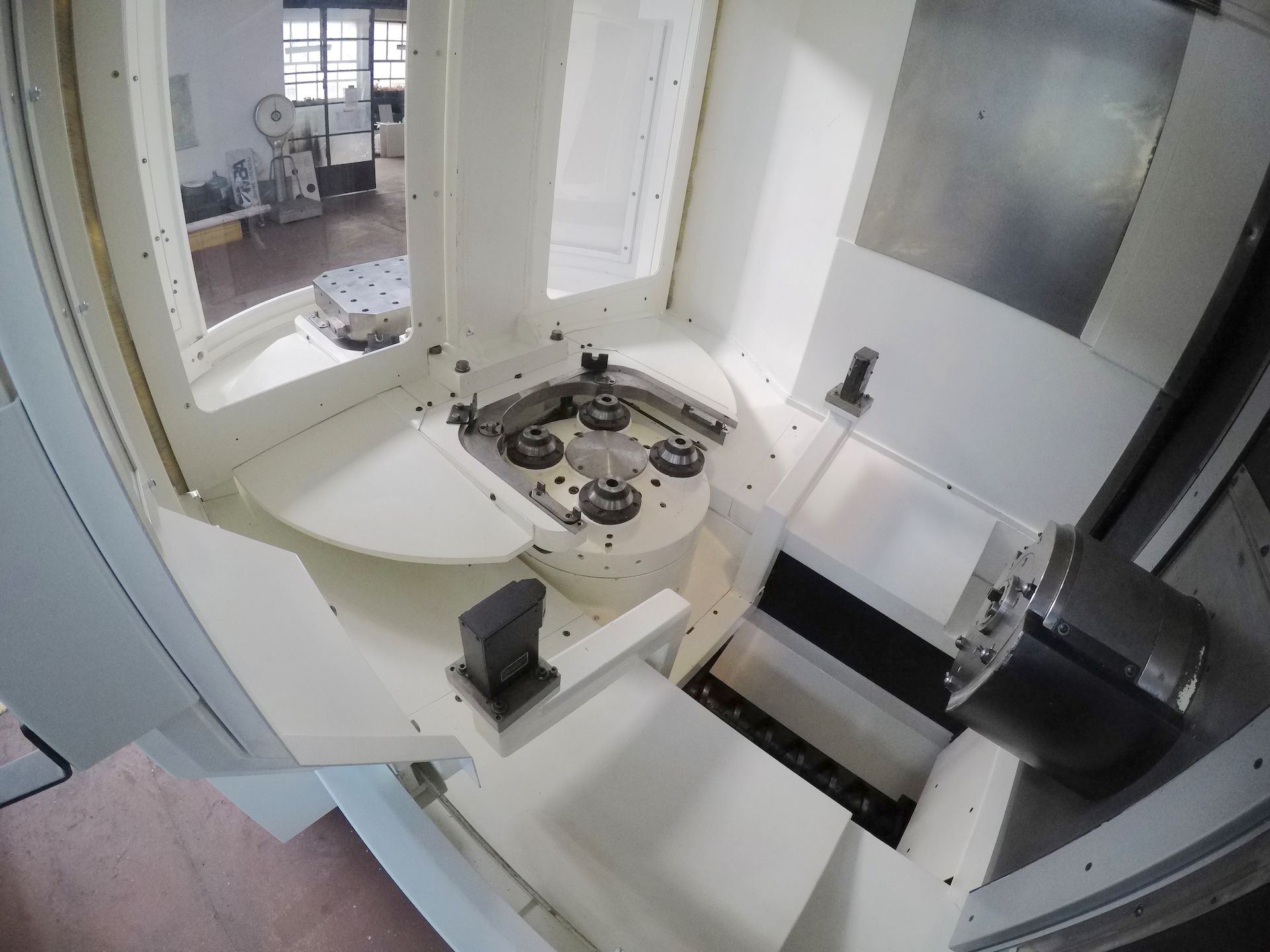

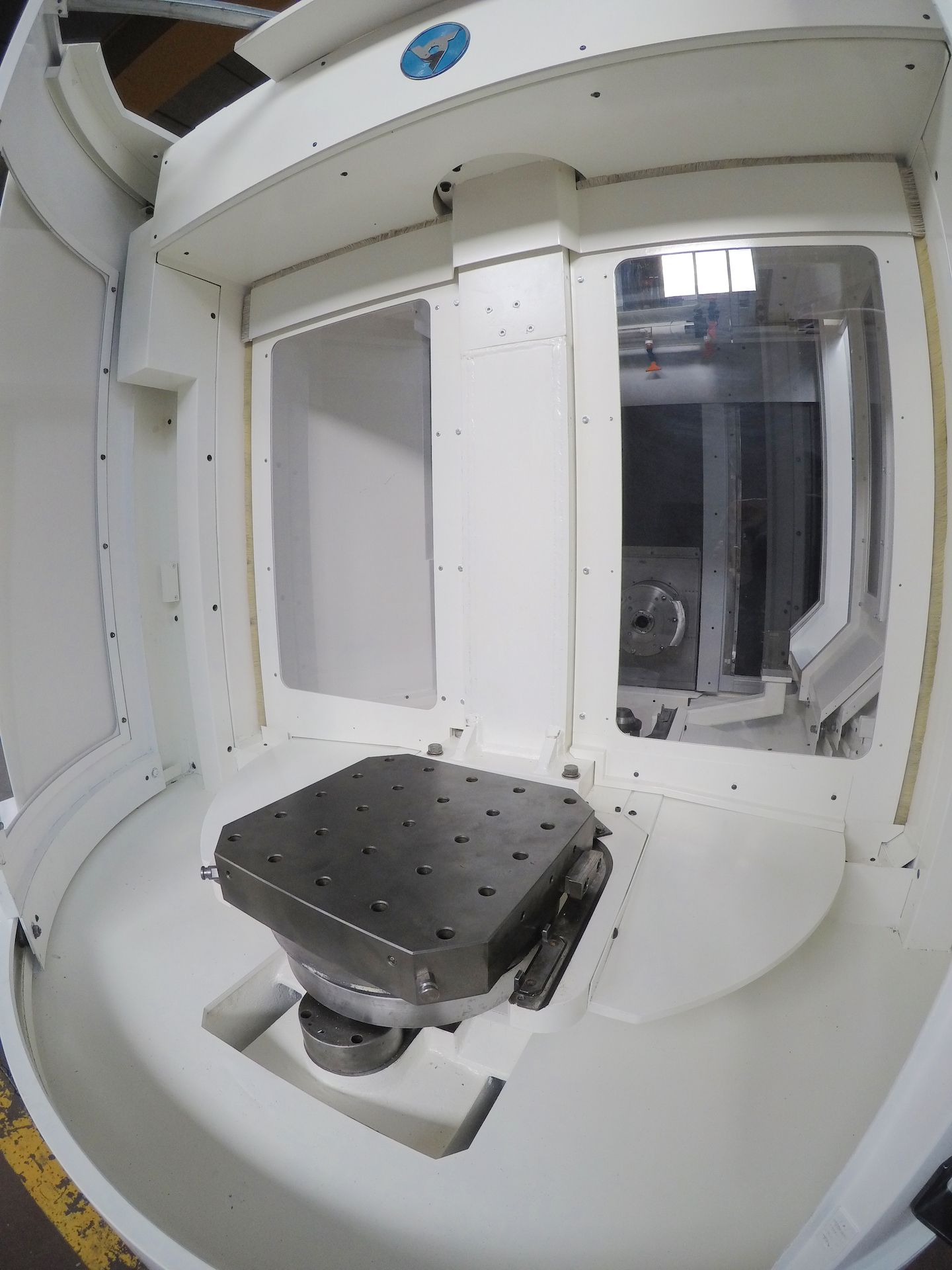

AUTO PALLET CHANGER (APC)
Pallet number
2
Pallet surface
400x400 mm15,75x15,75 in
Capacity
500 Kg
TABLE
Floorspace (LxWxH)
400x400 mm15,75x15,75 in
Capacity
500 Kg
Accuracy (B axis)
0,001 °

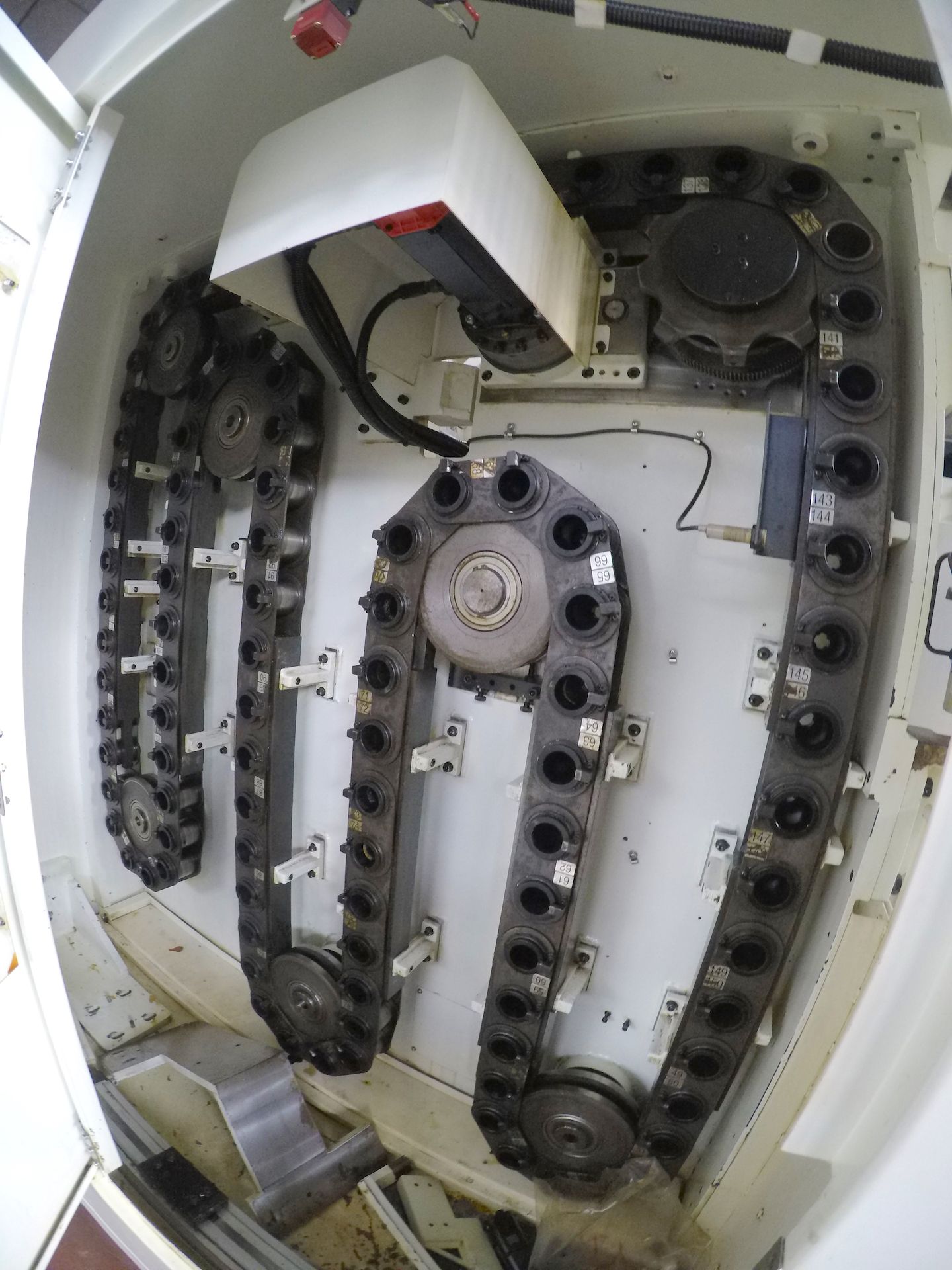

ATC
Positions
150
Max tool diameter
95 mm3,74 in
Max diam with free adiacent space
150 mm5,91 in
Max tool lenght
360 mm14,17 in
Max tool weight
10 Kg
Tool taper
ISO50
Tool changing time
1 sec.
EXTRA
Tooling included
Cambio utensile esteso a 100 posti, presetting meccanico, evacuatore truciolo dual deck, refrigerante 18 bar attraverso il mandrino, predisposizione sistema FMS FASTEMS, luce di servizio
Available in stock
si
Relevant updates made on the machine
manutenzione ordinaria
Available under power
no
Machine total weight
16.000 Kg
Floor space
4600x2450x3300 mm181,10x96,46x129,92 in

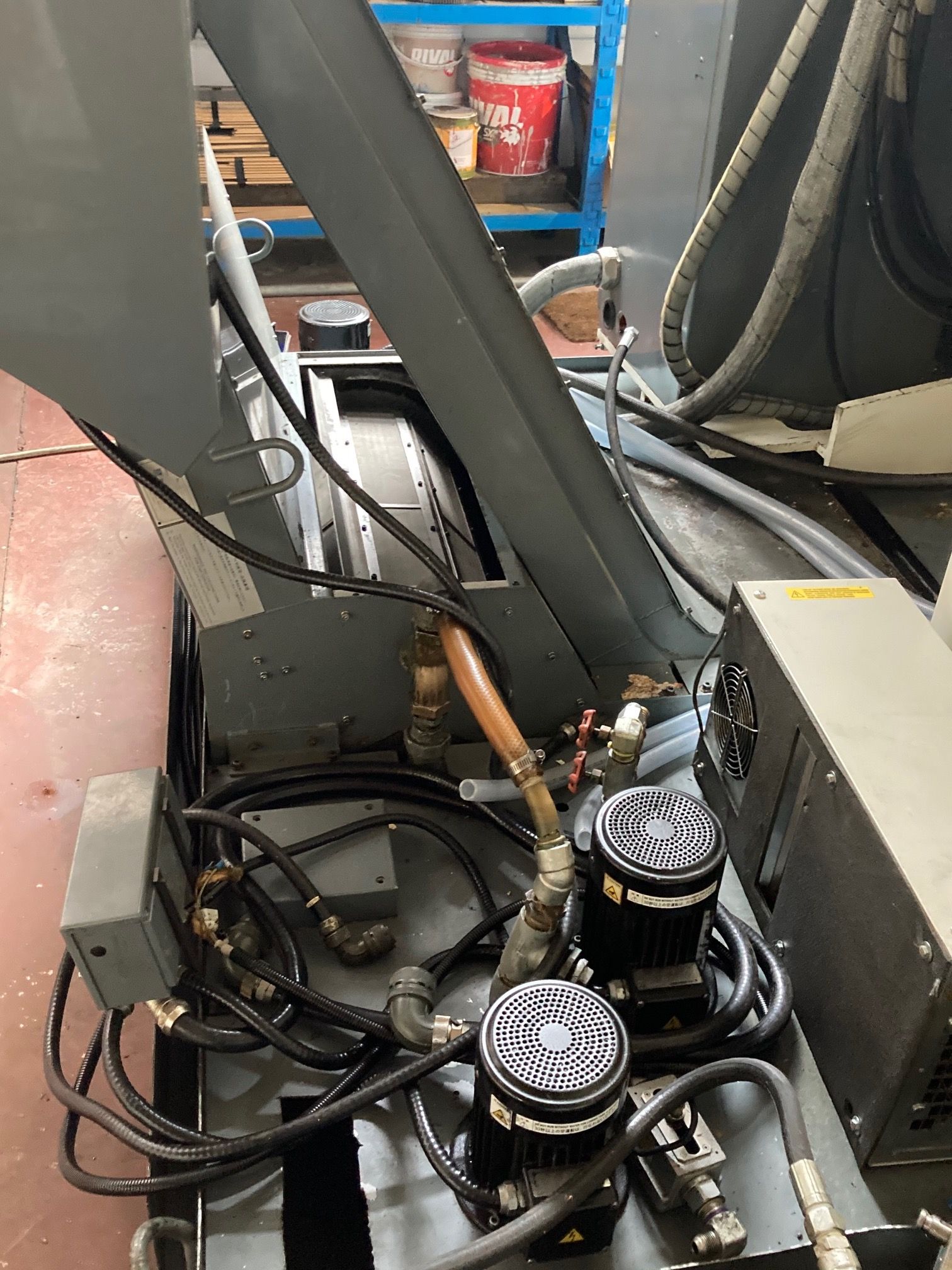

Filtration unit
convogliatore truciolo dual deck
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
integrale
Availability
pronta
