Category
Machining Centre
Type
Horizontal
Made

KITAMURA

Model
HX 400i
Capacity
660x560x610 mm25,98x22,05x24,02 in

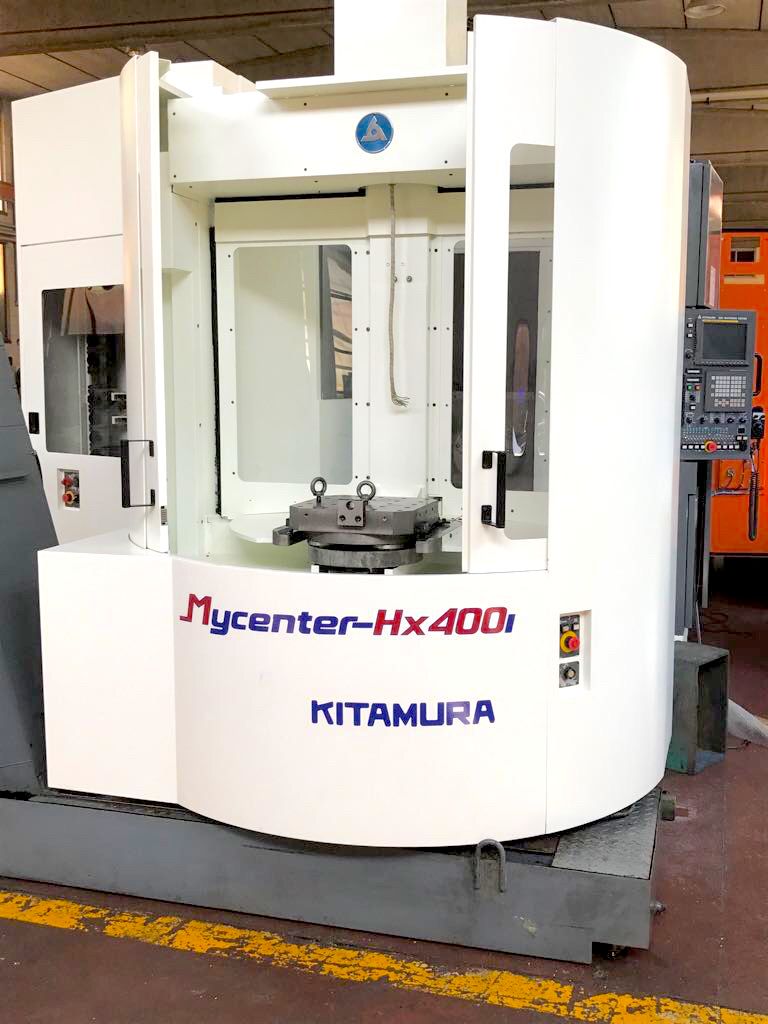

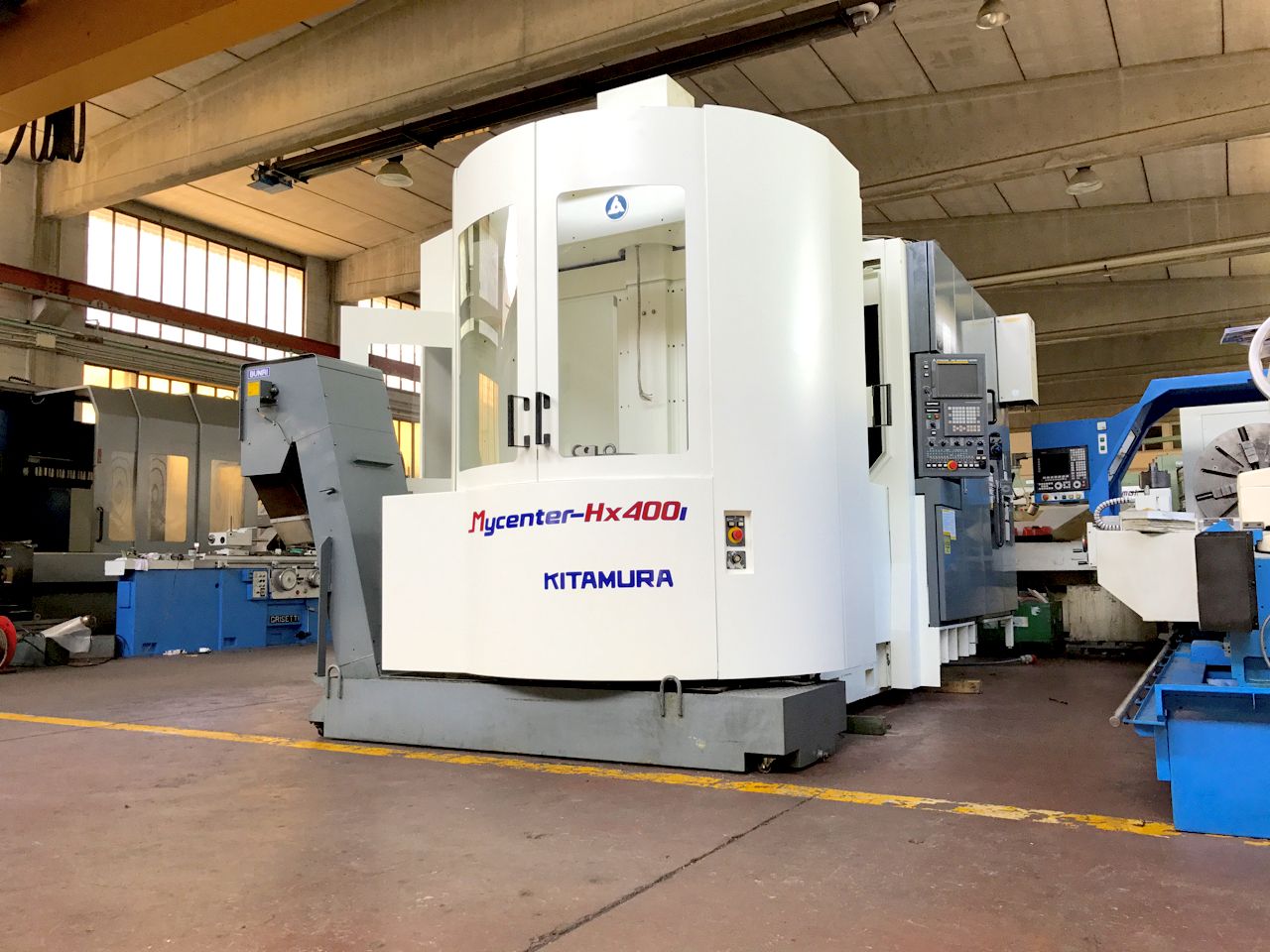

KITAMURA HX 400i
All the machines are available subject to prior sale
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Gallery - 12 photos
Data sheet

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
660 mm25,98 in
Vertical (Z)
560 mm22,05 in
Cross (Y)
610 mm24,02 in
Table (B)
0,001 °
Axes support
guide piane, movimento con doppie viti forate e raffreddate e doppi motori su ogni asse
SPINDLE
Torque
270 Nm
Spindle power
15-18,5 Kw
Gearbox
2 meccaniche
Rotating speed
35-13000 Rpm
Taper
ISO40
Spindle transmission
cambio gamma meccanico
Internal coolant
18 Bar

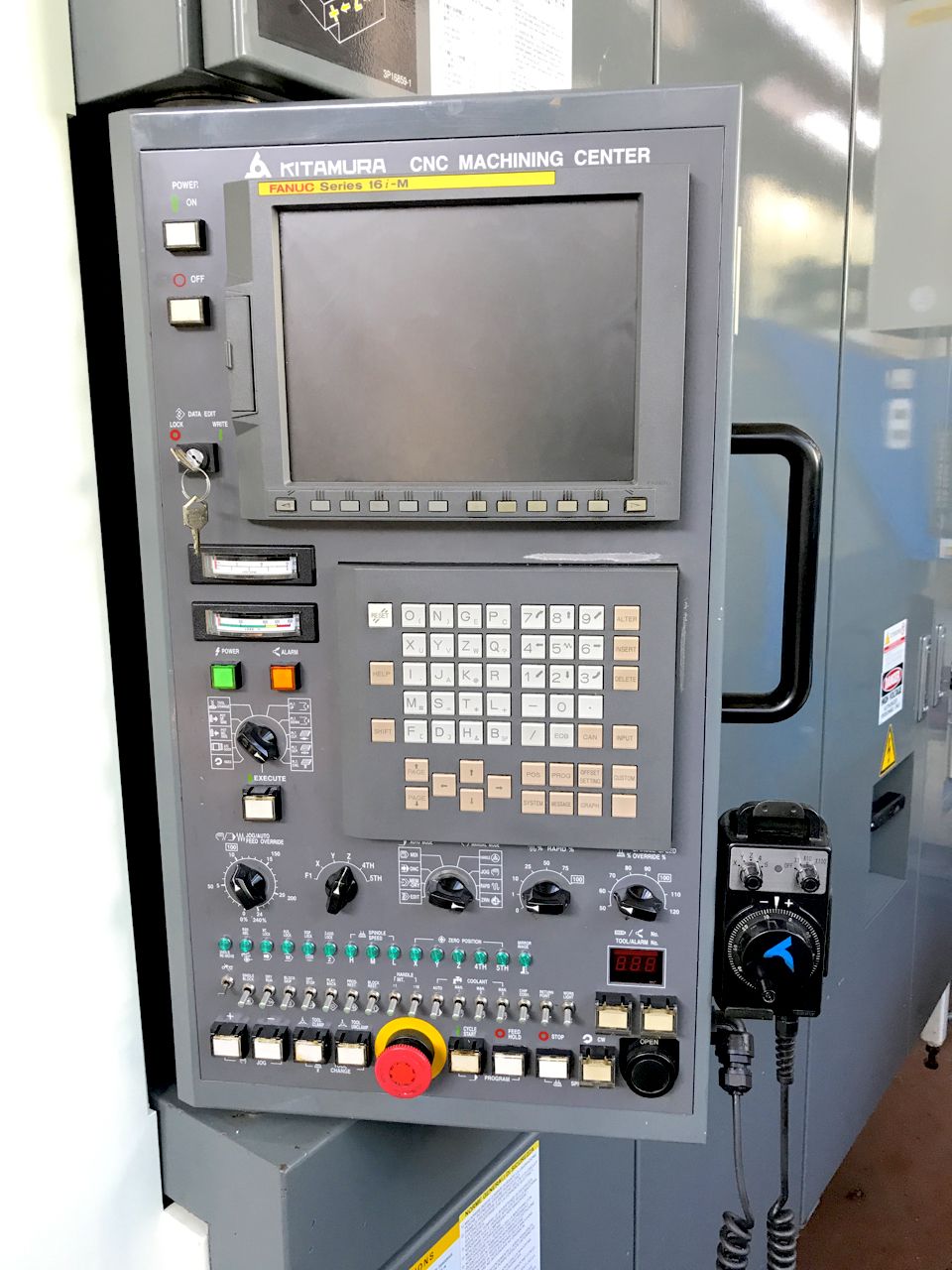

CNC
CNC
FANUC 16iM
Drives
Fanuc
Measuring system
Righe ottiche su assi lineari, Encoder su asse B
FEEDS
Rapid X
50 m/min1.968,50 ipm
Rapid Y
50 m/min1.968,50 ipm
Rapid Z
50 m/min1.968,50 ipm
Rapid B
40 Rpm

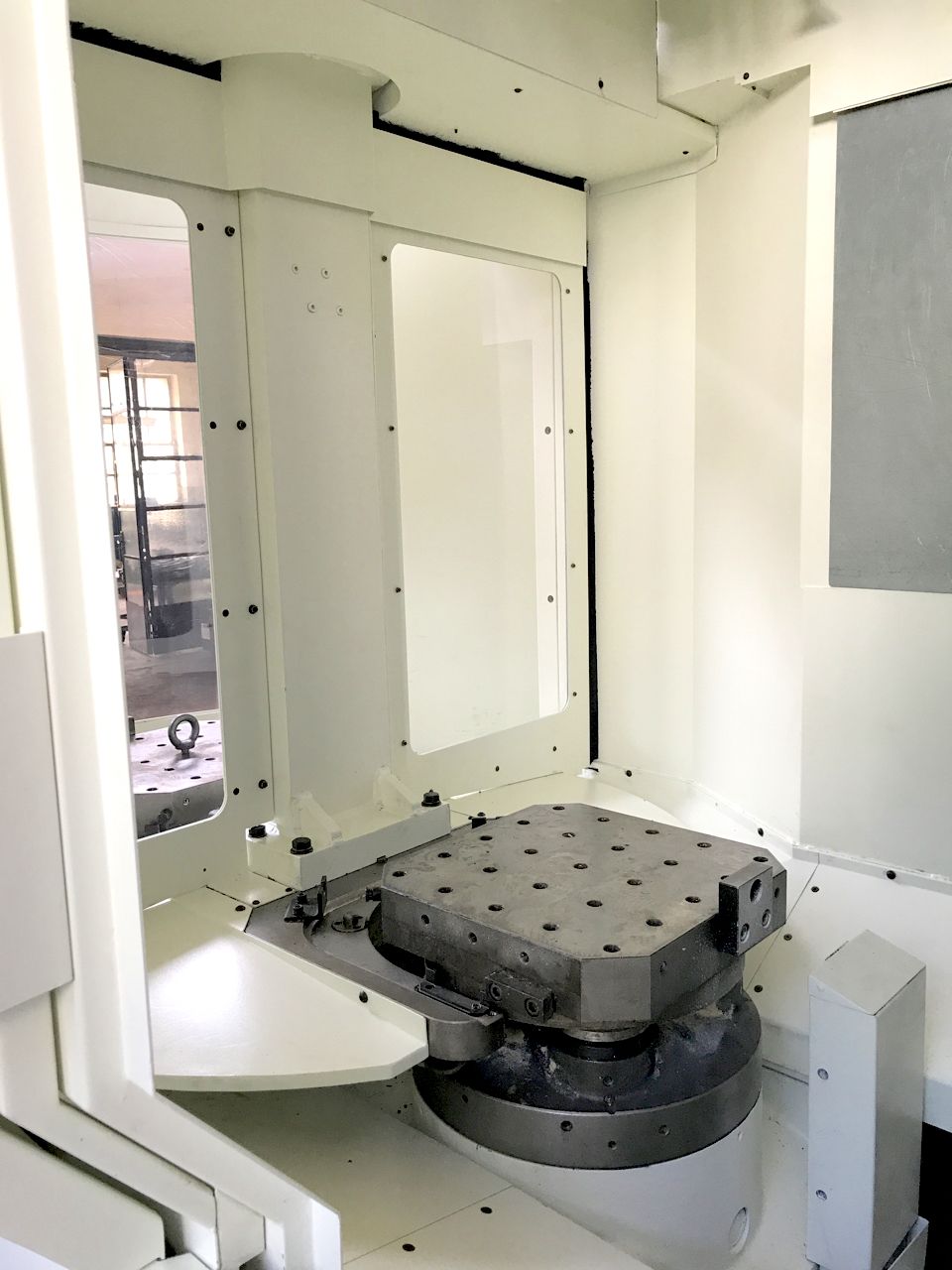

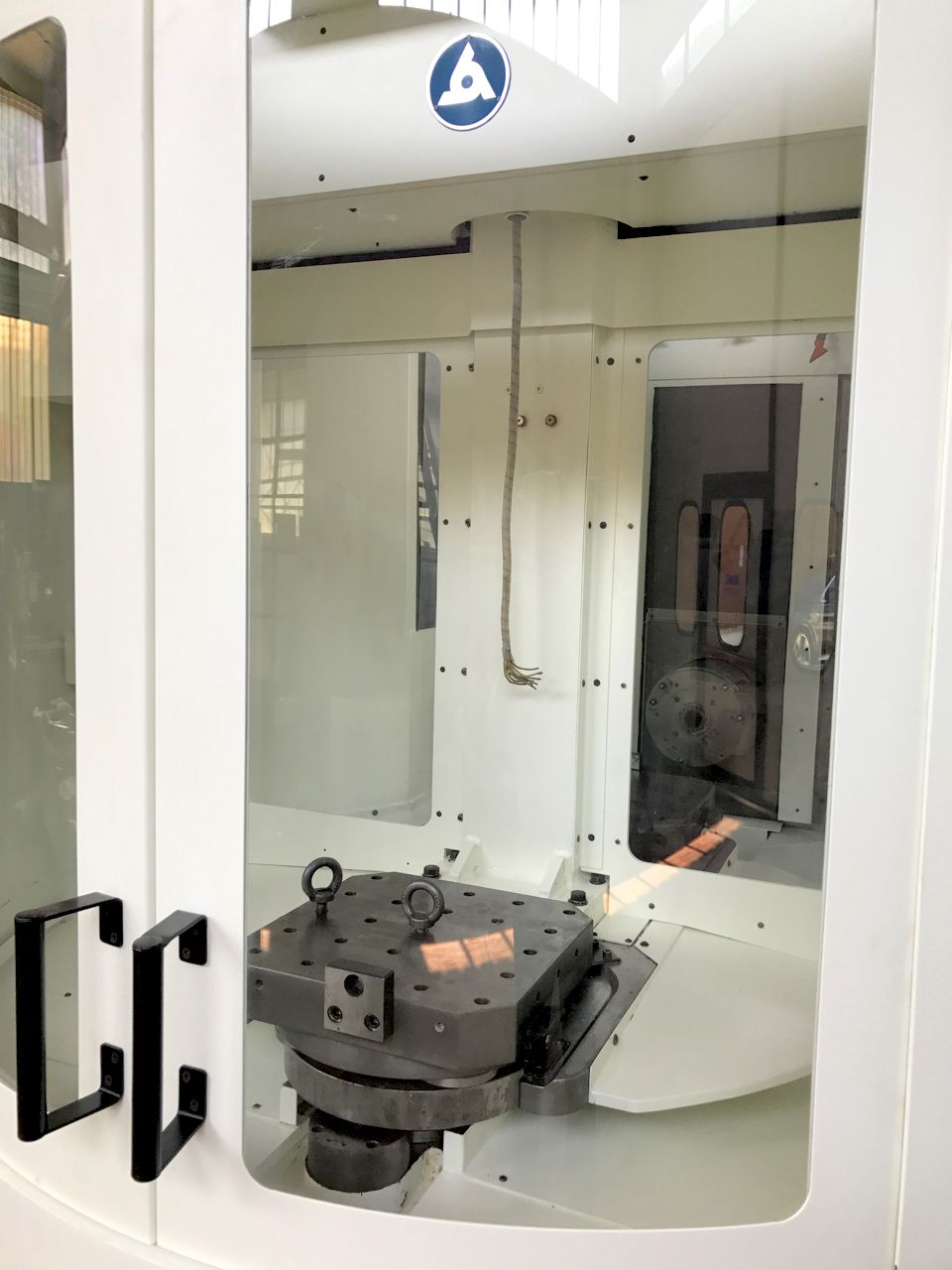

TABLE
Floorspace (LxWxH)
400x400 mm15,75x15,75 in
Capacity
500 Kg
Accuracy (B axis)
0,001 °
Measuring system
Encoder rotativo
AUTO PALLET CHANGER (APC)
Pallet number
2
Pallet surface
400x400 mm15,75x15,75 in
Rotating speed
40 Rpm
Capacity
500 Kg

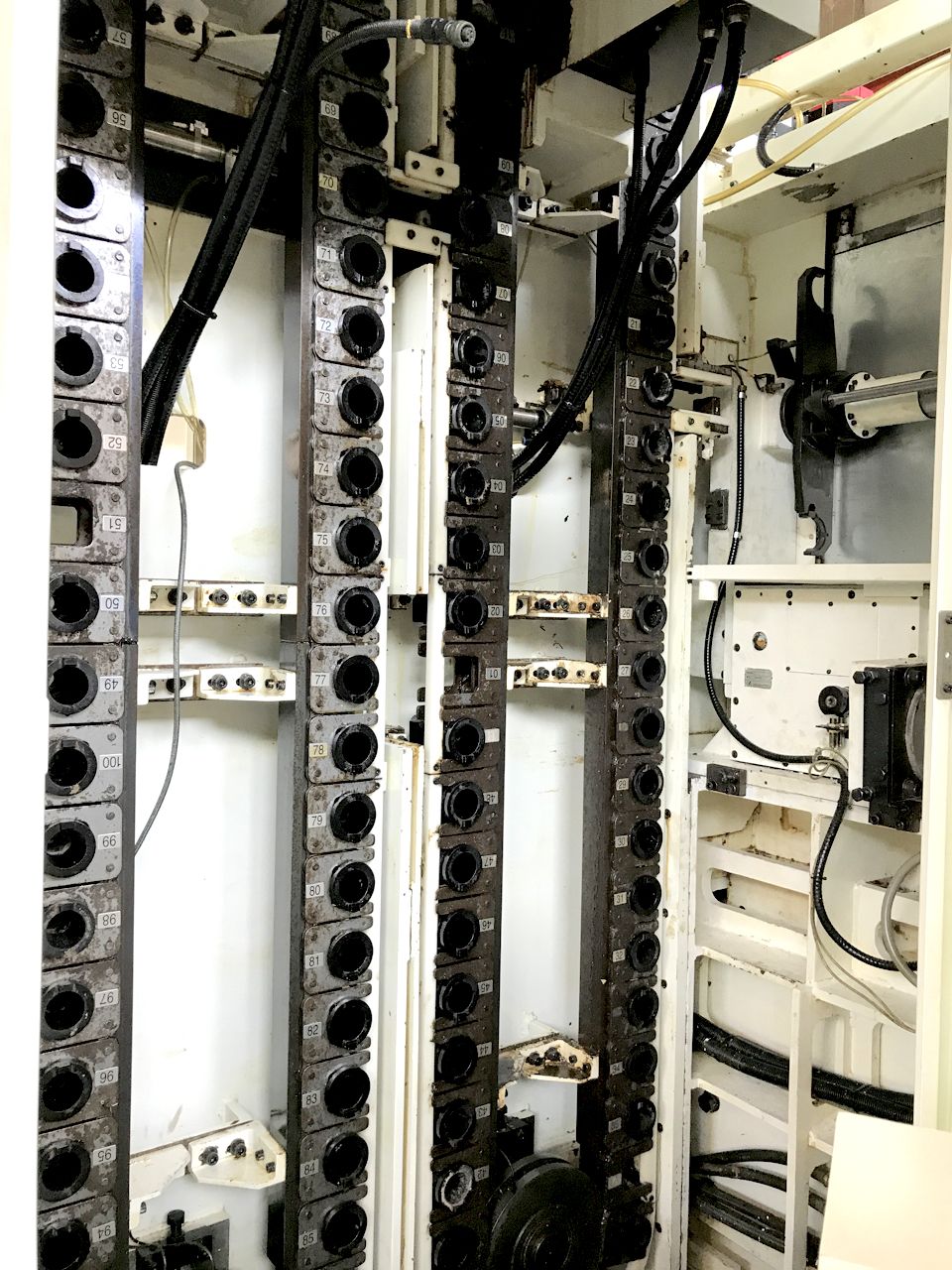

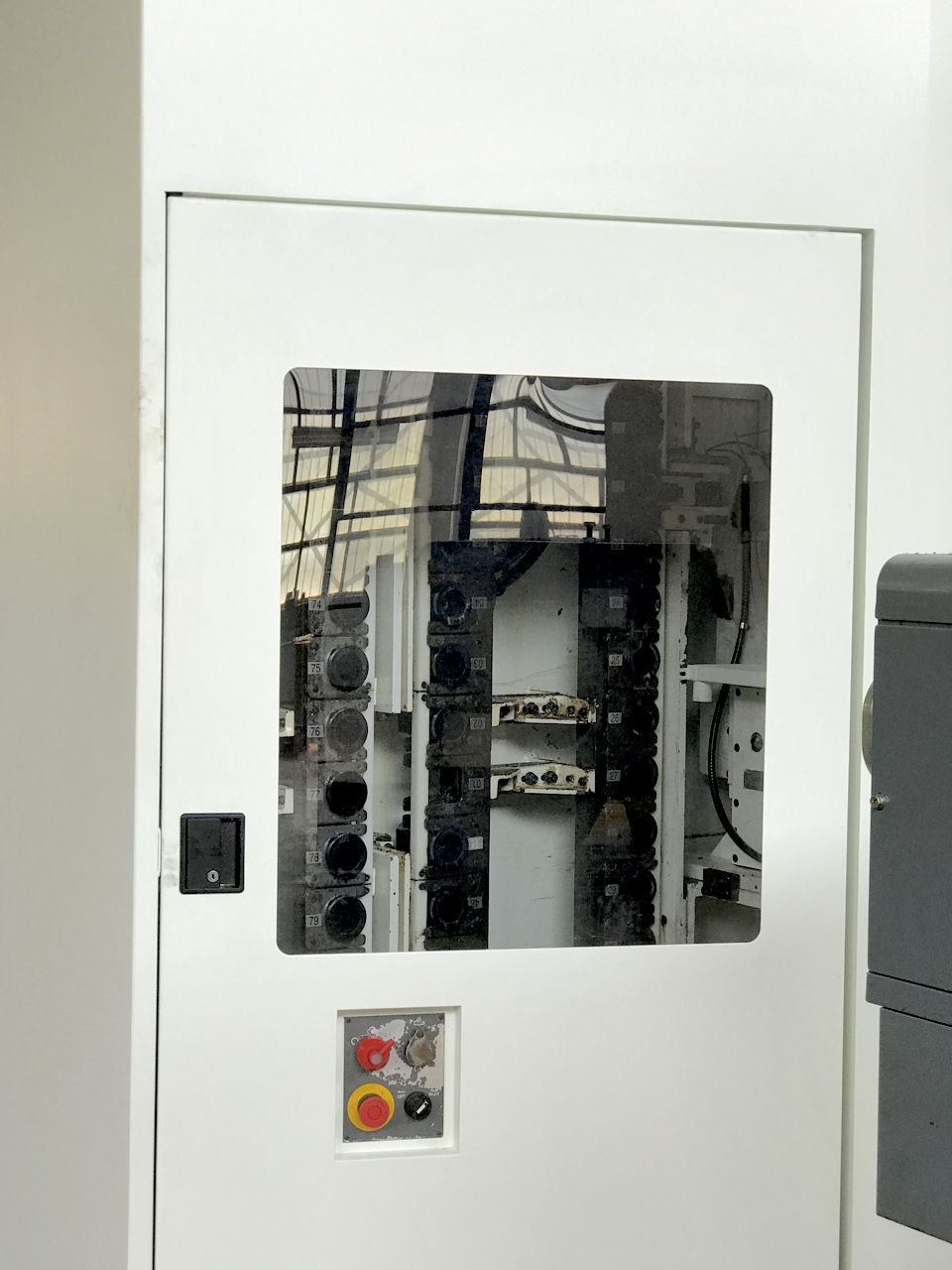

ATC
Positions
50
Max tool diameter
95 mm3,74 in
Max diam with free adiacent space
150 mm5,91 in
Max tool lenght
360 mm14,17 in
Max tool weight
10 Kg
Tool taper
BT40
Tool changing time
1 sec.
EXTRA
Machine total weight
16000 Kg
Floor space
4600x2450x3300 mm181,10x96,46x129,92 in
Tooling included
tastatore meccanico, evacuatore truciolo laterale, refrigerante 18 bar attraverso il mandrino, predisposizione sistema FMS FASTEMS, luce di servizio
High Pressure
18 Bar
Tool presetter
meccanico
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
integrale
Availability
Pronta
Available in stock
Si
Available under power
no
Relevant updates made on the machine
Manutenzione ordinaria, macchina mai usata sopra i 6000 Rpm
