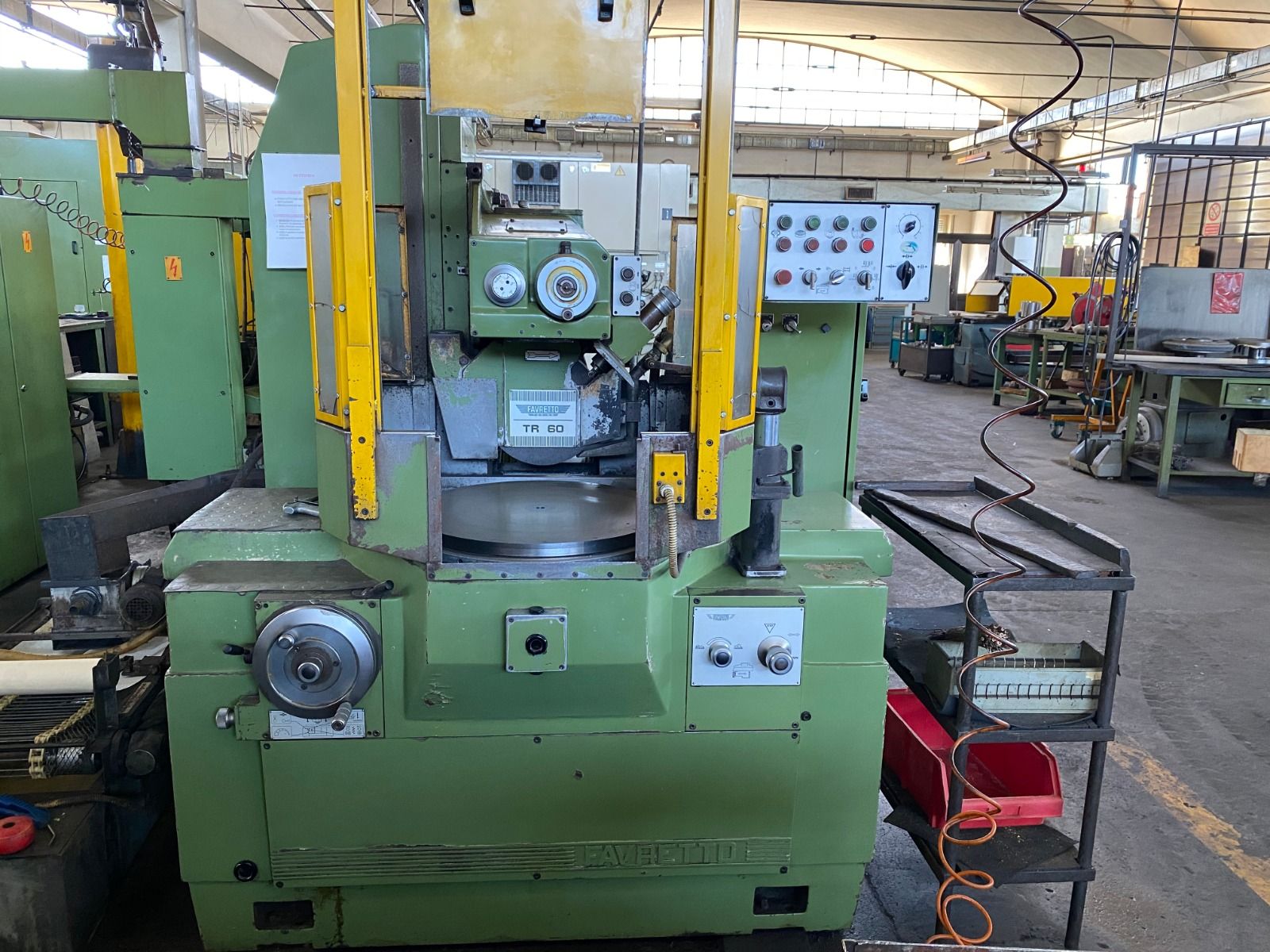

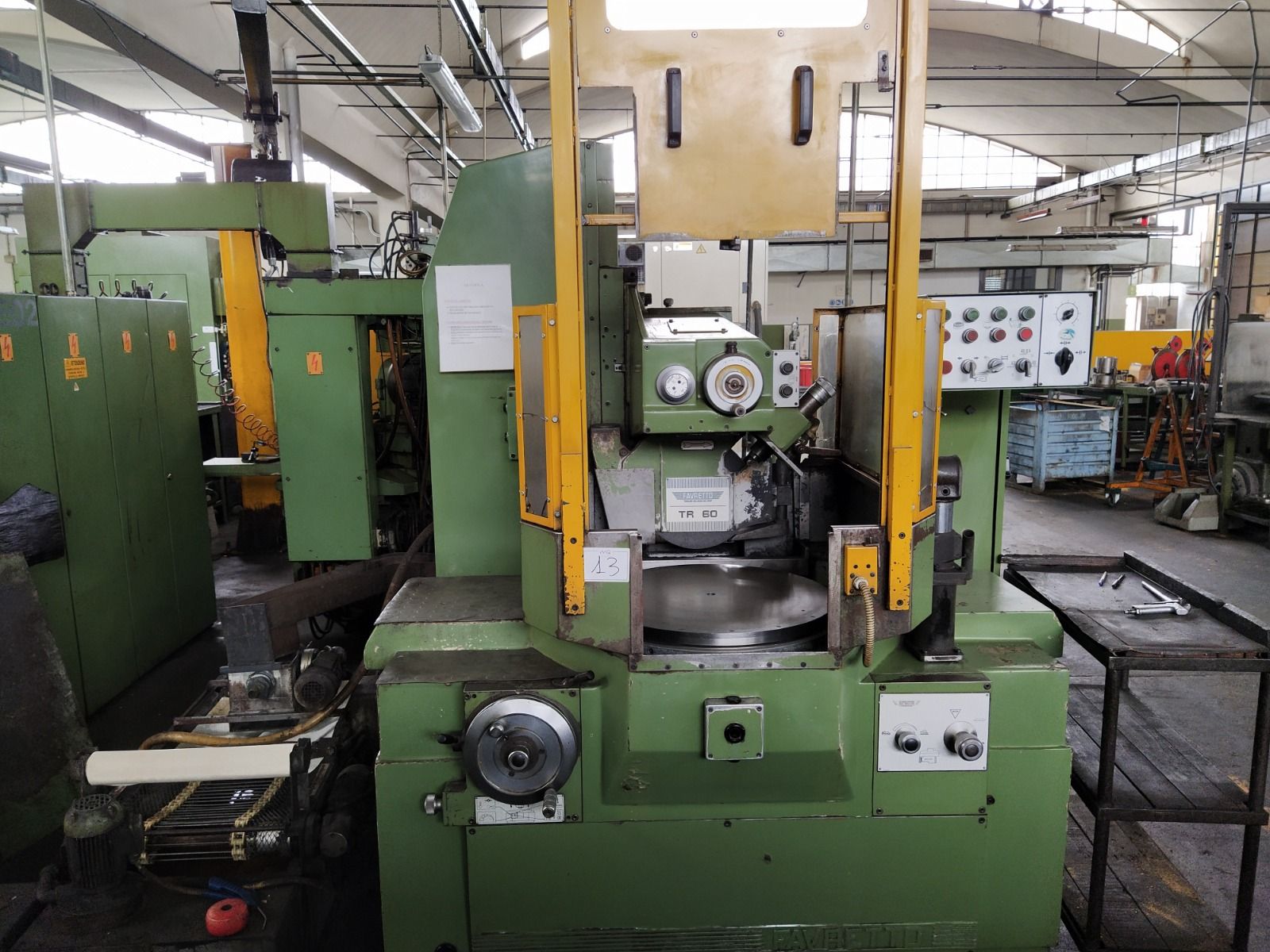

Category
Grinding Machine
Type
Tangential with turntable
Made
Model
TR 60
Capacity
ø650x350 mmø25,59x13,78 in

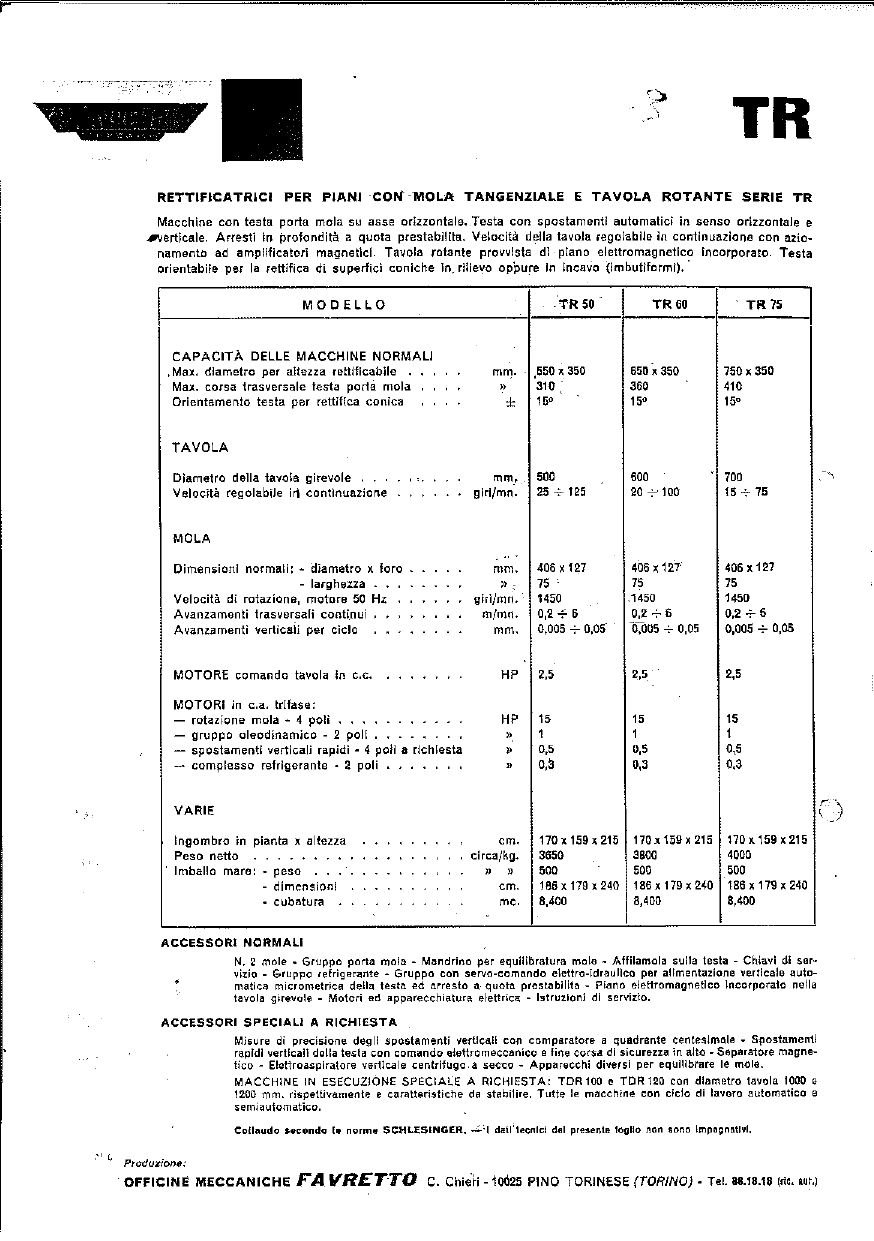

Technical specifications
Metric
Imperial
WORKING CAPACITY
Vertical (Z)
350 mm13,78 in
Cross RAM (Y)
360 mm14,17 in
Ram tilt (A)
15 °

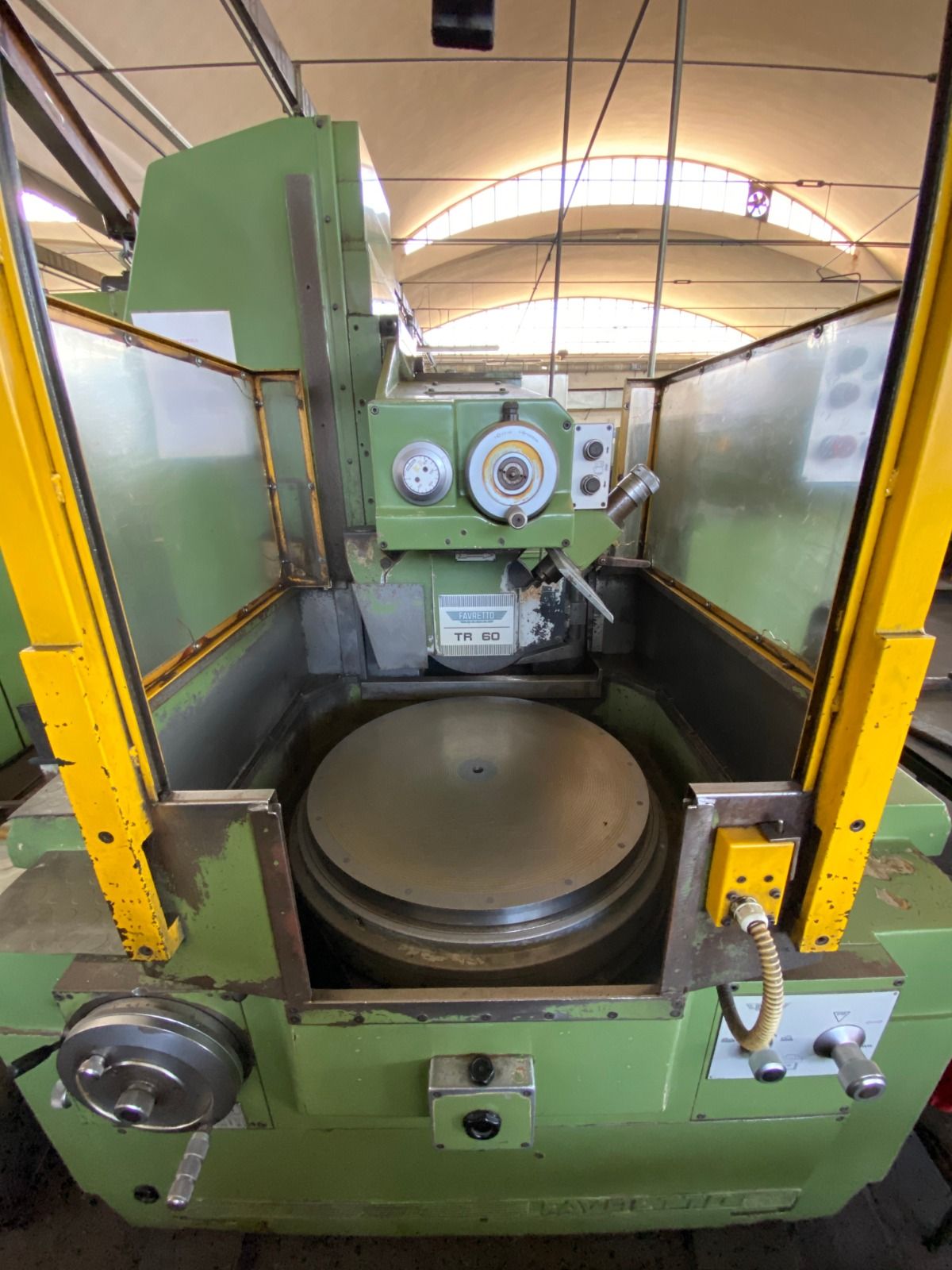

TABLE
Diameter
ø650 mmø25,59 in
Rotating speed
20-100 Rpm

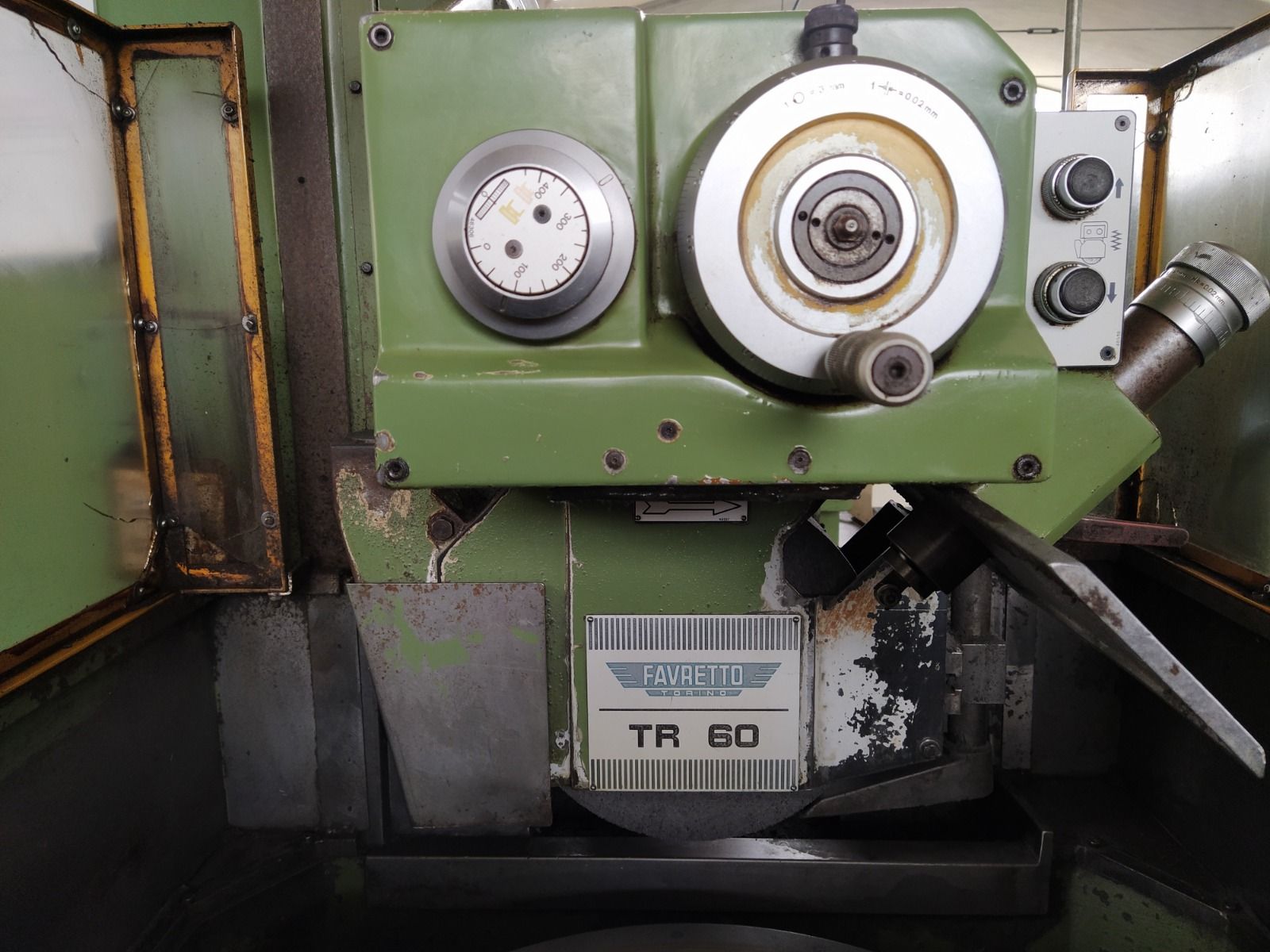

WHEEL
Hole diameter
127 mm5,00 in
Wheel band thickness
75 mm2,95 in
Max wheel diameter
406 mm15,98 in
MAGNETIC TABLE
Available upon request
Yes
Surface
650 mm25,59 in
EXTRA
Rotating speed
1450 Rpm
Spindle power
15 HP
Working feeds (Y)
0,2-6 m/min7,87-236,22 ipm
Working feeds (Z)
0,005-0,05 mm0,00-0,00 in
Floor space
1700x1590x2150 mm66,93x62,60x84,65 in
Machine weight
3800 Kg
Notes

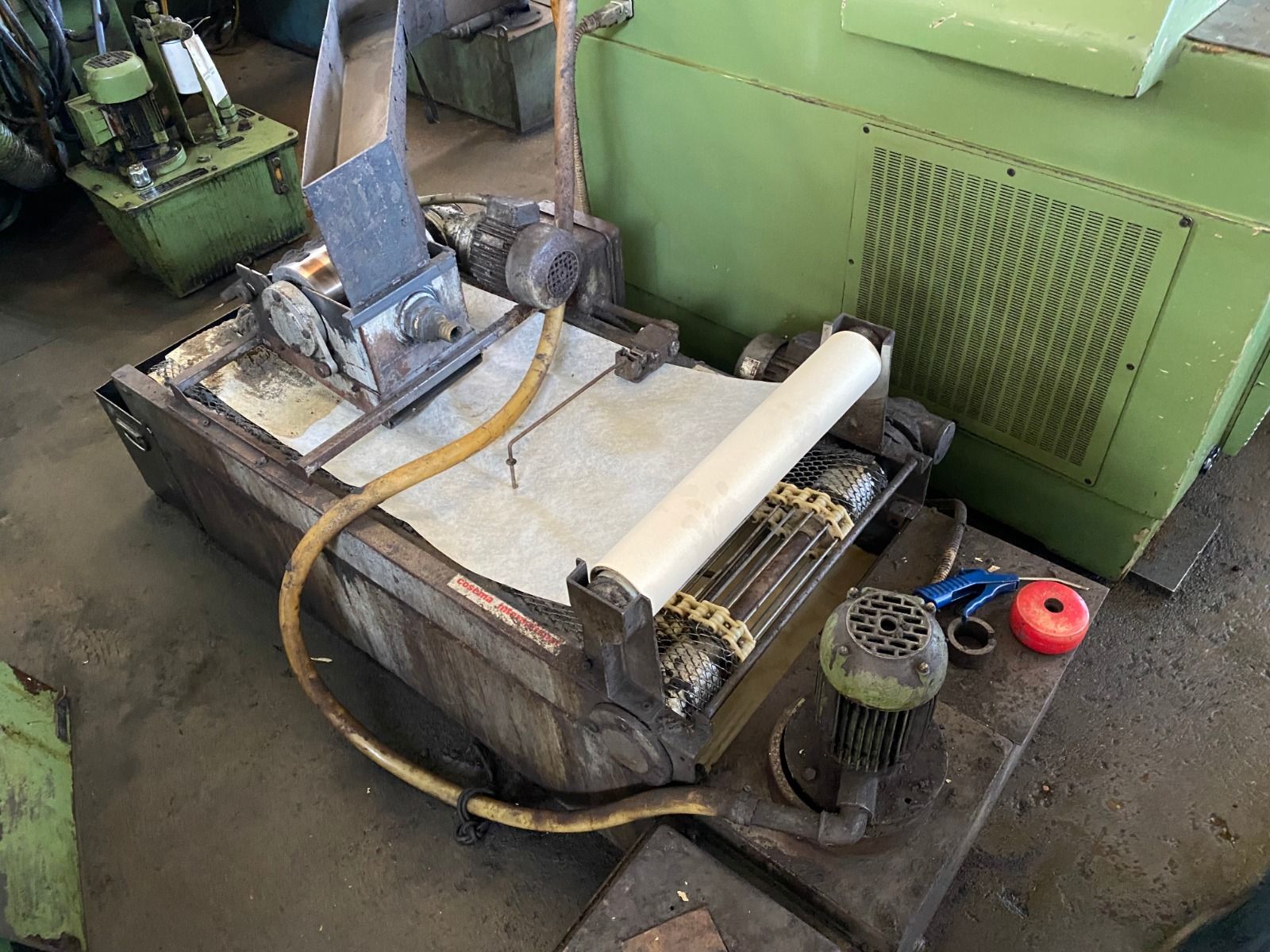

Vasca con filtro
