Category
Grinding Machine
Type
portal
Made
Model
LINEA PLATINUM 30.14 CN
Capacity
3600x1400x700 mm141,73x55,12x27,56 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3800 mm149,61 in
Vertical (Z)
700 mm27,56 in
Max grinding lenght
3600 mm141,73 in
Max grinding width
1400 mm55,12 in
Max grinding thickness
700 mm27,56 in
Spindle nose axis - table distance
950 mm37,40 in
Cross RAM (Y)
1300 mm51,18 in
TABLE
Surface
3200x1000 mm125,98x39,37 in
Stroke
3800 mm149,61 in
Cross speed
1-40m/min
Capacity
3000 Kg
MAGNETIC TABLE
Surface
3400x1200x110 mm133,86x47,24x4,33 in
FEEDS
Cross
0-3000 mm/min0,0000-118,1100 ipm
CNC
CNC
ECS 2401/3 ROSA SYSTEM IV
WHEEL SPINDLE
Spindle power
37 Kw
Rotating speed
960 Rpm
Notes
inverter per regolazione continua mandrino mola
WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
600 mm23,62 in
Hole diameter
305 mm12,01 in
EXTRA
Total power supply
55 Kw
Machine total weight
31000 Kg
Floor space
11000x4200x3700 mm433,07x165,35x145,67 in
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Available under power
si
Automatic dresser
Yes
Tooling included
bilanciatore mola, diamantatore automatico, carenatura completa, set piani magnetici per tot 3200x1200mm, vasca filtro a carta con separatore magnetico

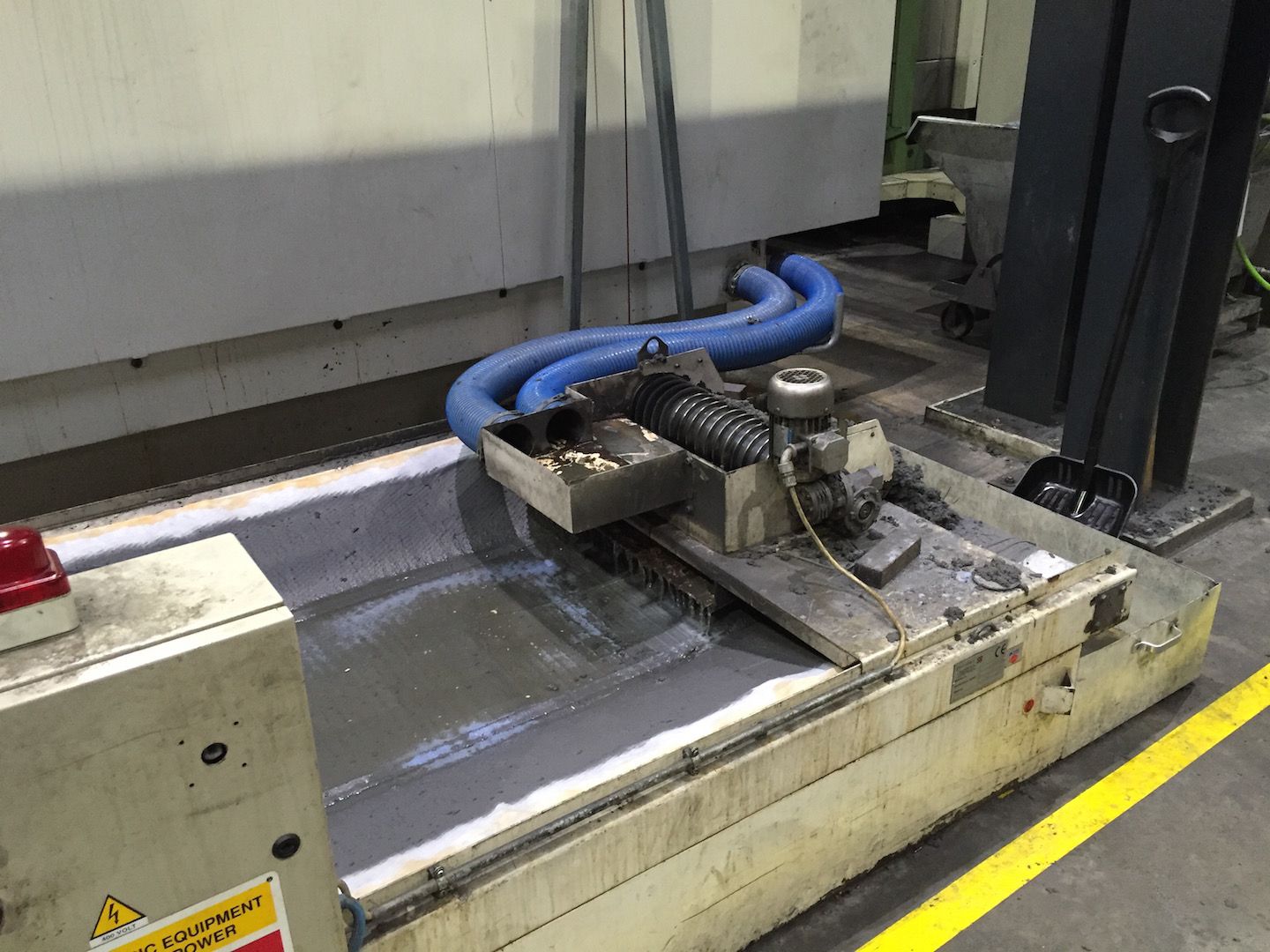

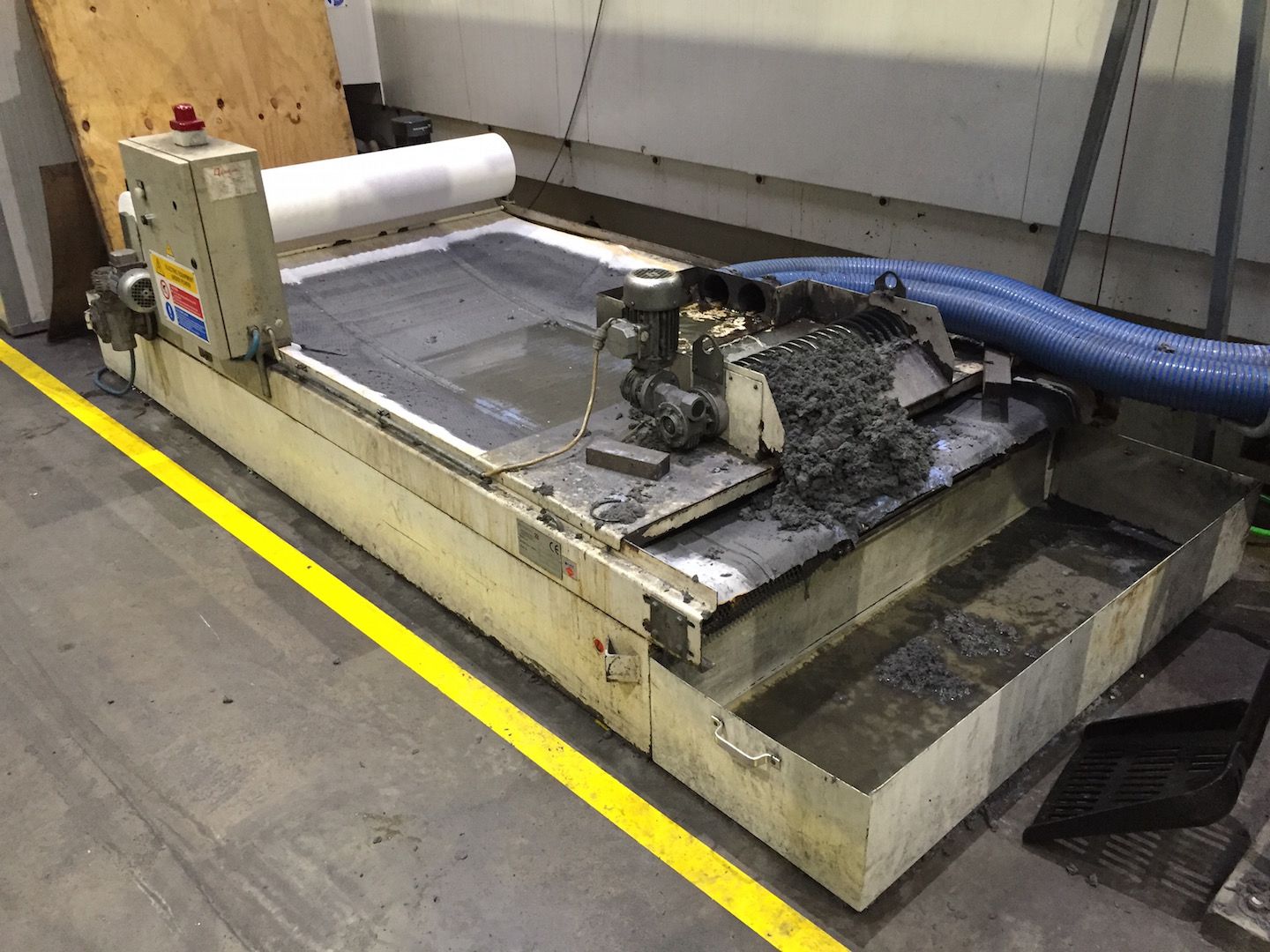

Filtration unit
vasca filtro a carta con separatore magnetico
Housing
integrale
Relevant updates made on the machine
manutenzione ordinaria, sostituzione coscinetti viti asse Z
