Category
Grinding Machine
Type
Internal
Made
Model
5A
Capacity
ø5-200x250 mmø0,20-7,87x9,84 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres height
180 mm7,09 in
Max grinding dept
250 mm9,84 in
Max grinding diameter
5-200 mm0,20-7,87 in
Max distance workhead - wheel
550 mm21,65 in
WHEELHEAD
Wheel speed
3600-40000 Rpm
TABLE
Cross speed
0-10.000 mm/min0,0000-0,3937 ipm

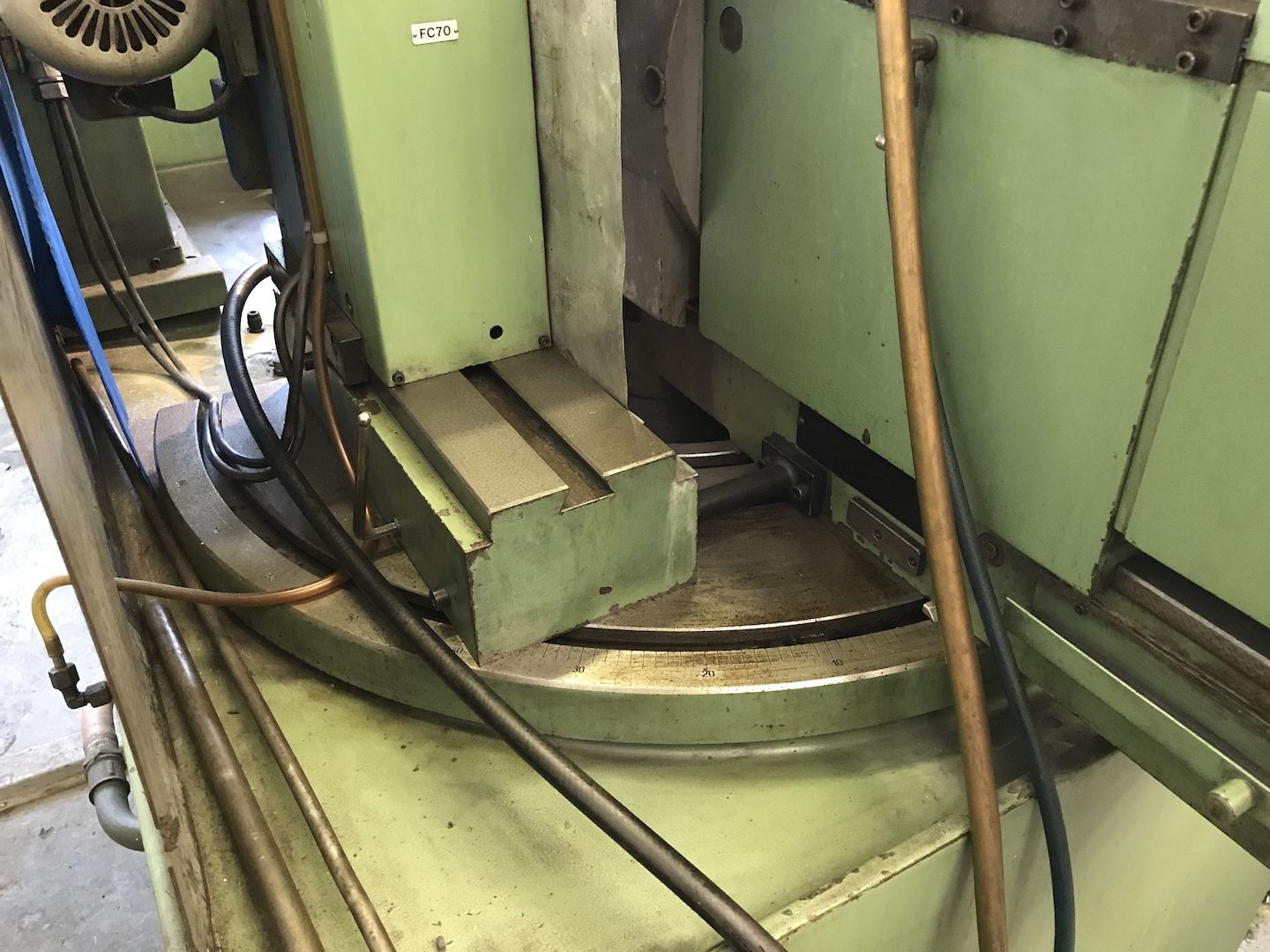

WORKPIECE HEAD
Tilt
0-90 °
Rotating speed
125-1000 Rpm
EXTRA
Machine total weight
2250 Kg
Floor space
3200x1270x1650 mm125,98x50,00x64,96 in
Tooling included

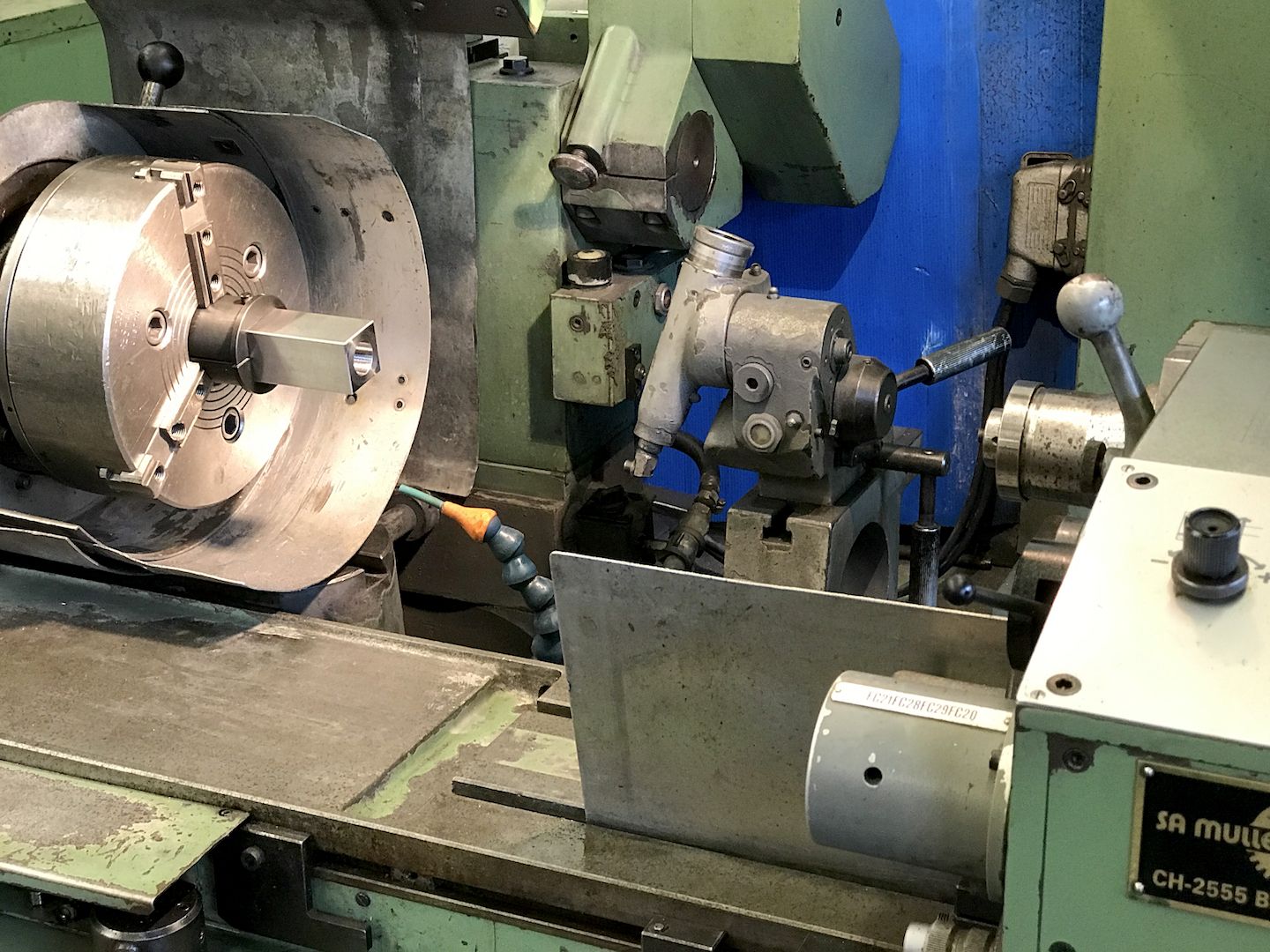

mandrino 3 griffe, cartuccia mandrino 12000rpm, sfacciatore con diamante, diamantatore idraulico mola, filtro refrigerante a carta
Automatic dresser
Yes

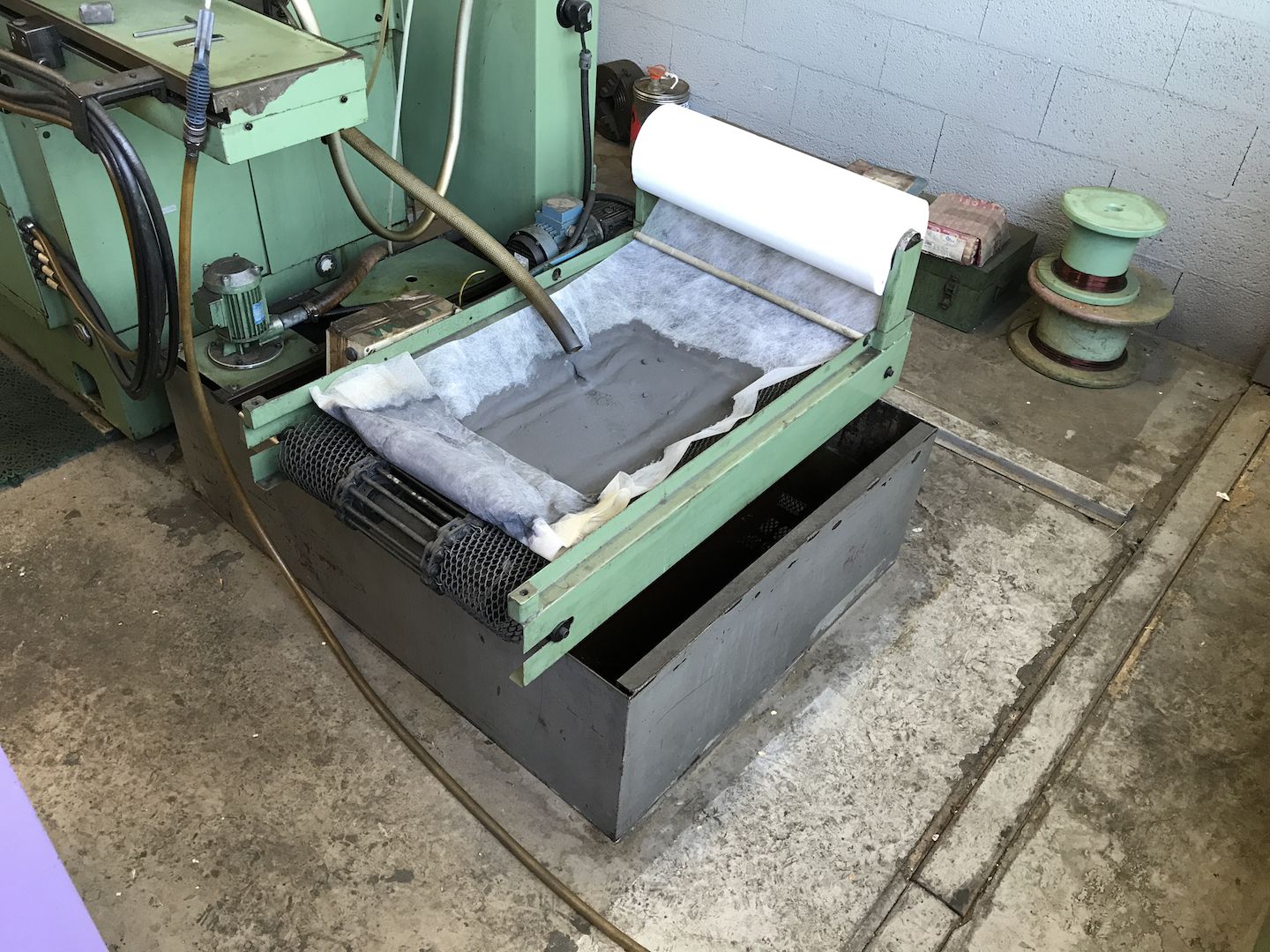

Filtration unit
filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available under power
si
