Category
Grinding Machine
Type
Internal
Made
Model
200
Capacity
4-100 x 230 mm0,16-3,94 x 9,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres height
130 mm5,12 in
Max distance workhead - wheel
740 mm29,13 in
Cross (X)
100 mm3,94 in
Max grinding dept
230 mm9,06 in
Max grinding diameter
100 mm3,94 in
Max workpiece diameter
230 mm9,06 in
Longitudinal (Z)
150 mm5,91 in

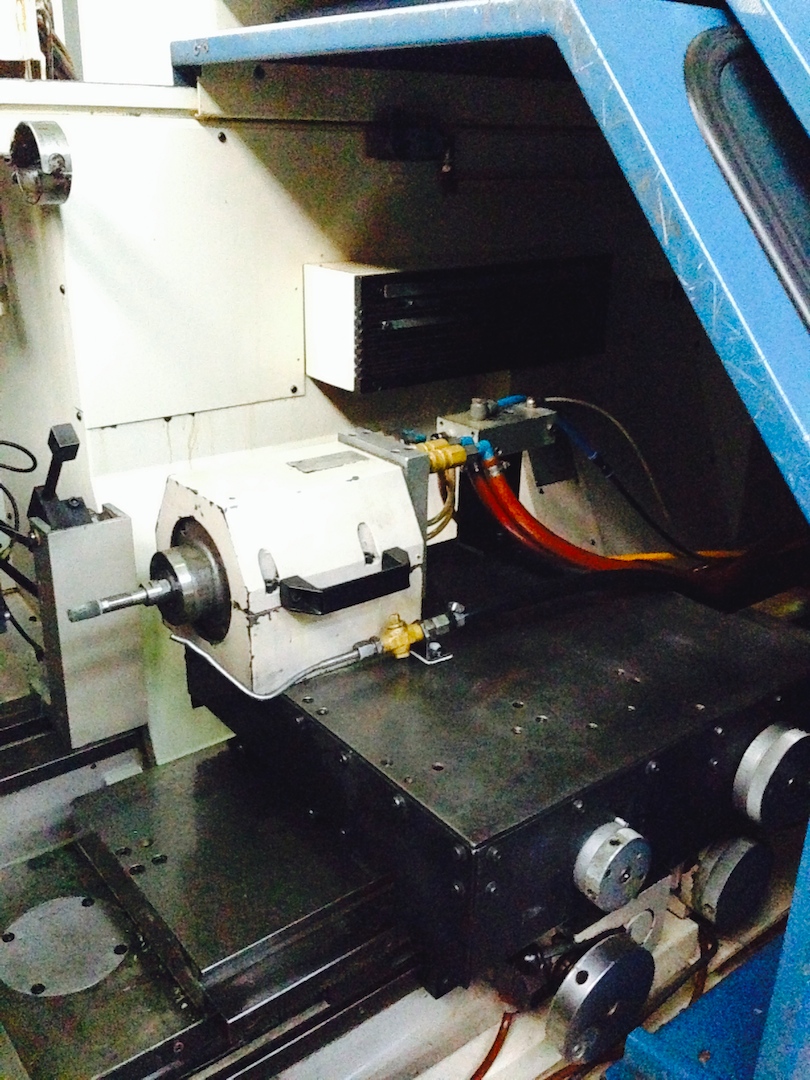

WHEELHEAD
Spindle power
6-15 Kw
Wheel speed
63.000 Rpm
Notes
orientabile -30/+90°
TABLE
Cross speed
0-20.000 mm/min0,0000-0,7874 ipm

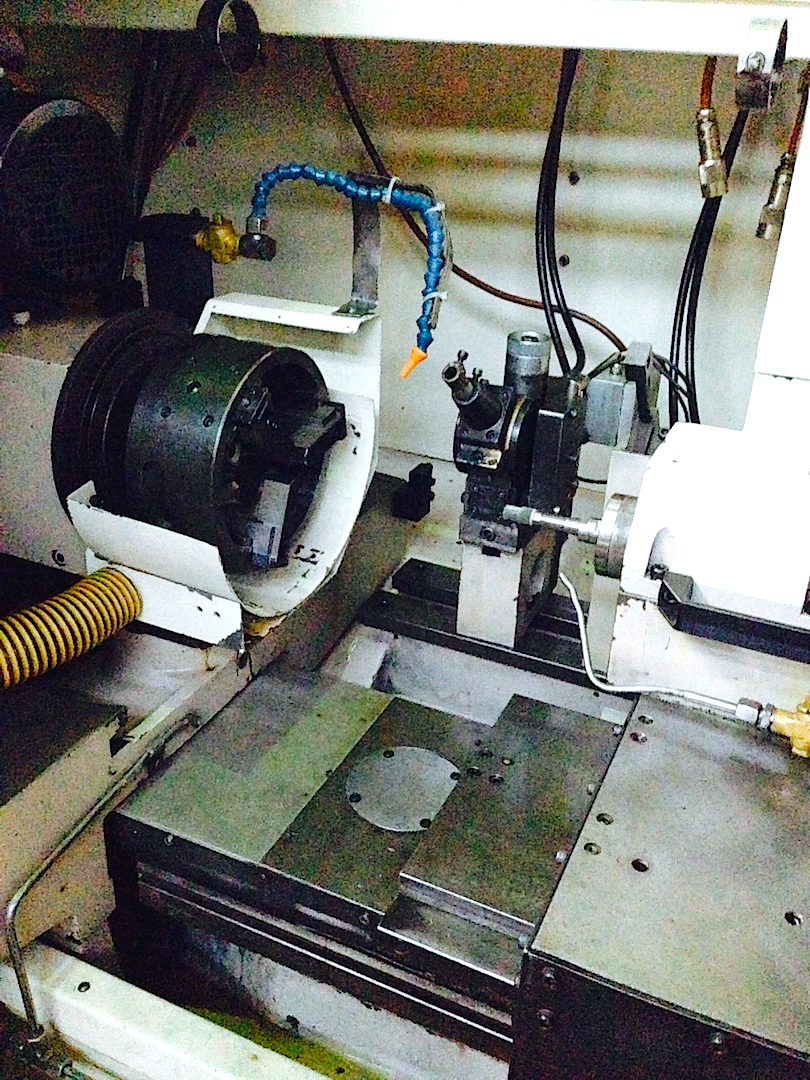

WORKPIECE HEAD
Rotating speed
150-1500 Rpm
Tilt
+45/-30 °
WHEELHEAD
Internal spindle power
6-15 Kw
Internal spindle speed
63000 Rpm
Air cut
si
EXTRA
Total power supply
15 Kw
Machine total weight
3200 Kg

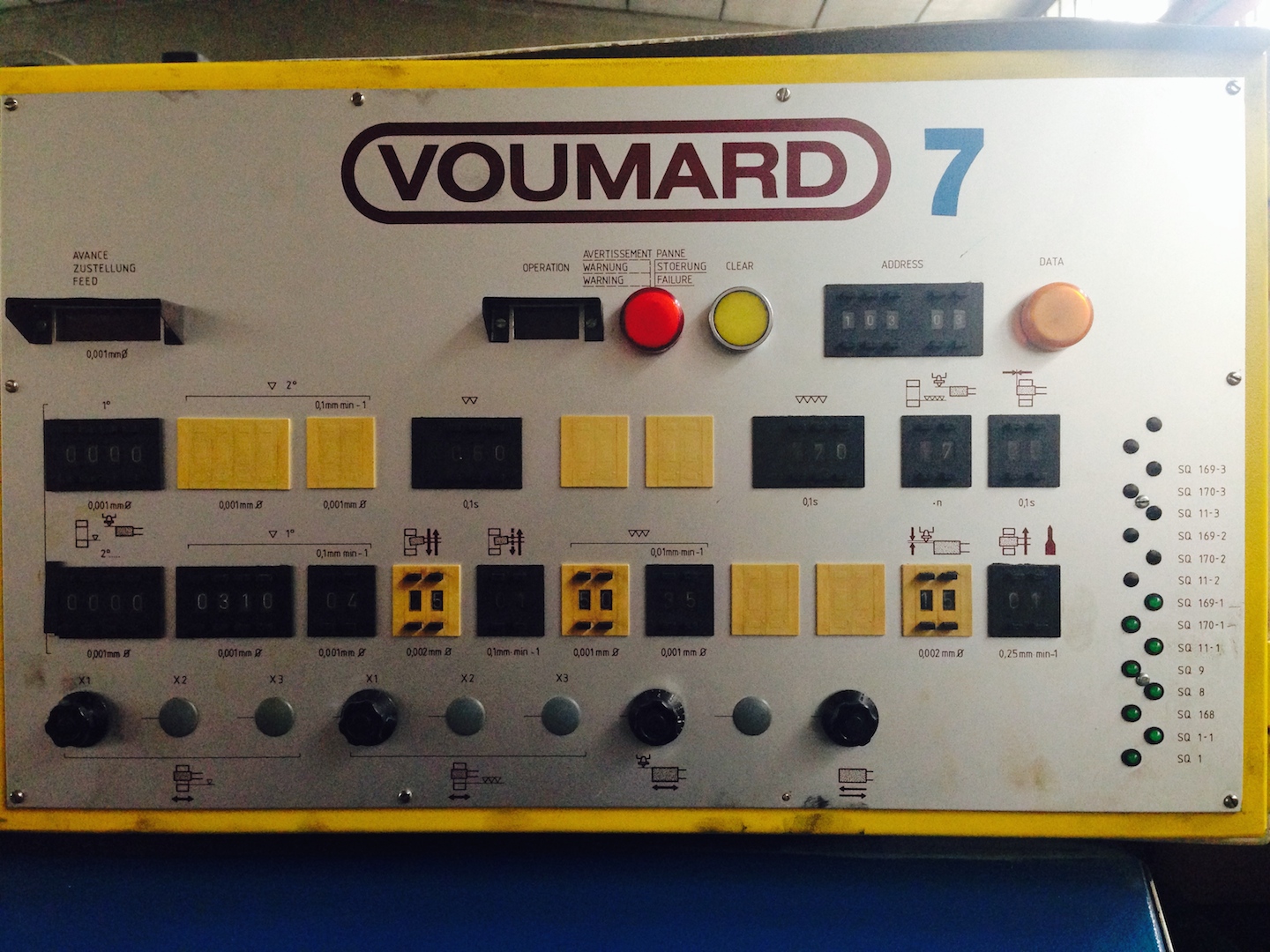

Digital read out (DRO)
si

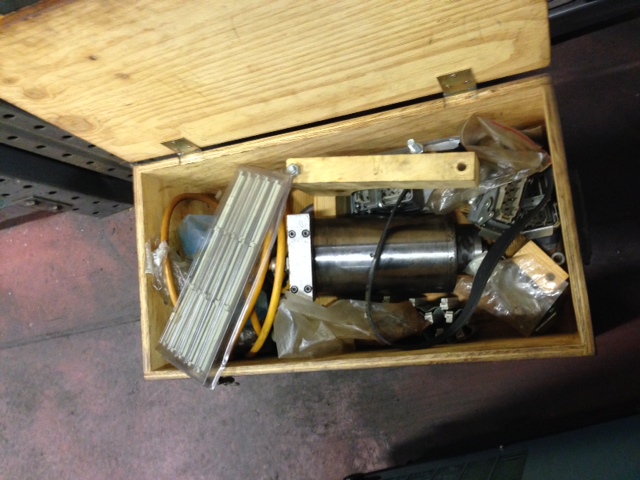

Tooling included
vasca filtro, aspiratore, elettromandrino 63000Rpm
Manual dresser
Yes

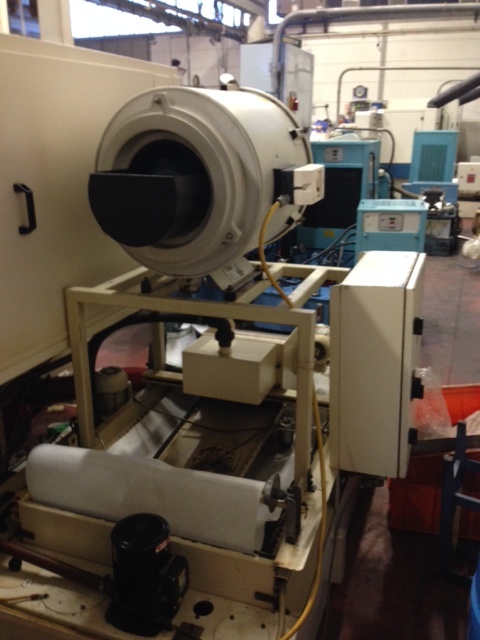

Filtration unit
vasca filtro a carta
Mist extractor
cosema
Housing
integrale con apertura automatica porta
Maintenance & Use books
Yes

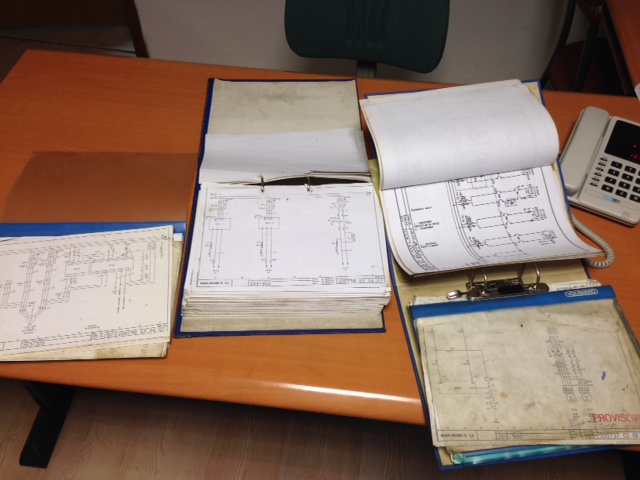

Electrical drawings
Yes
CE Certification
Yes
Availability
pronta
Available in stock
si
