Category
Grinding Machine
Type
ID/OD
Made
Model

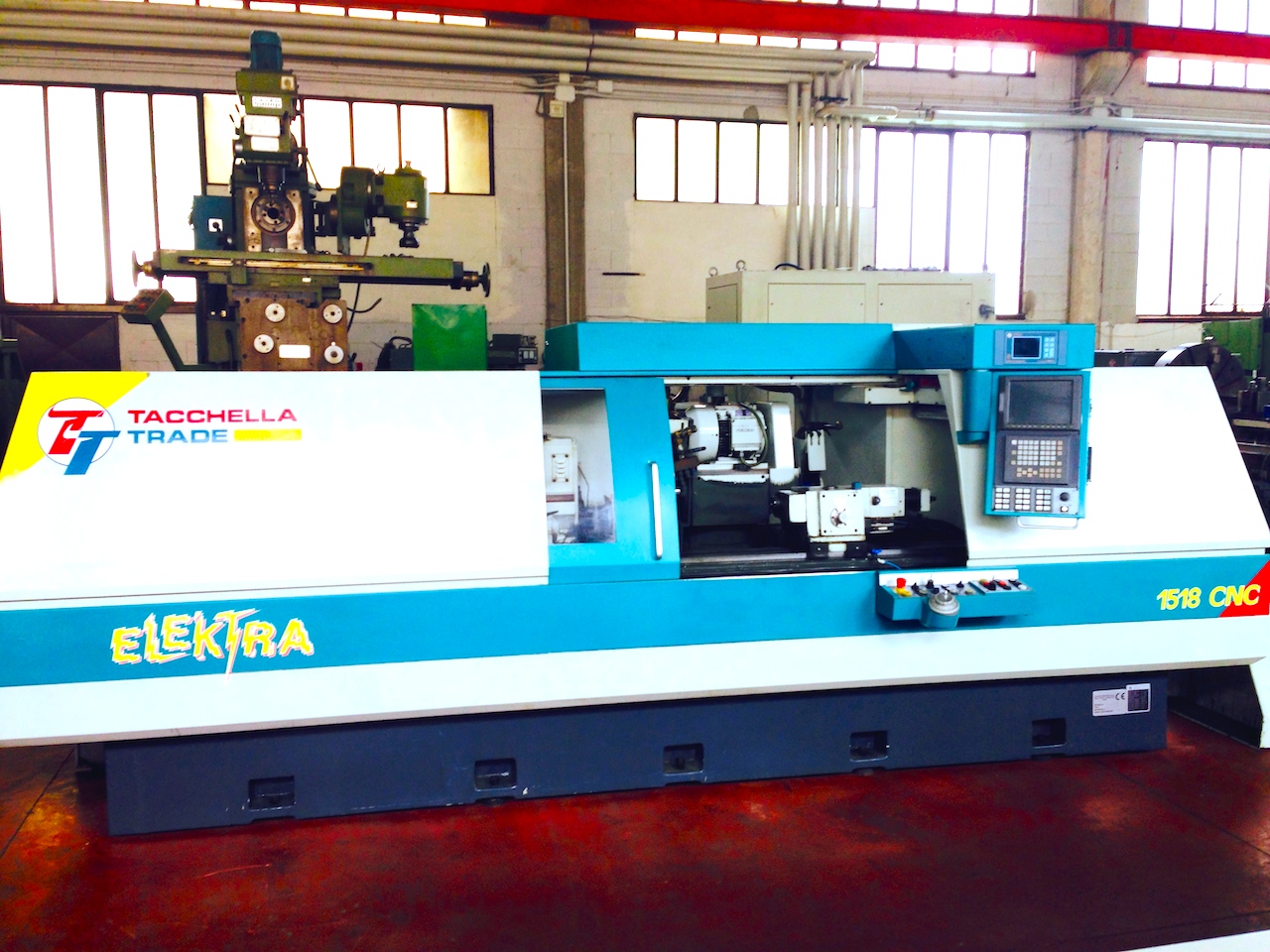

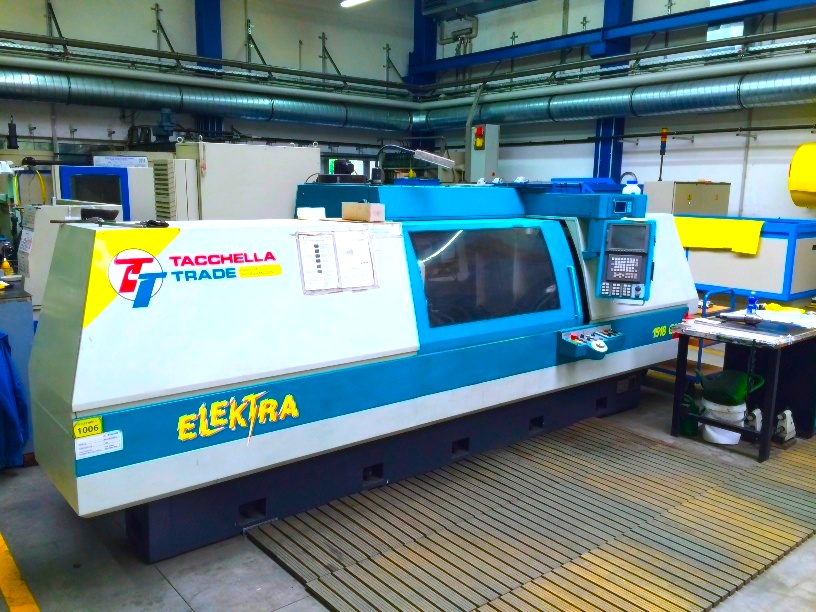

Elektra 1518 CNC
Capacity
355x1500 mm13,98x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
180 mm7,09 in
Longitudinal (Z)
1680 mm66,14 in
Cross (X)
350 mm13,78 in
Max grinding lenght
1500 mm59,06 in
Max grinding diameter
350 mm13,78 in

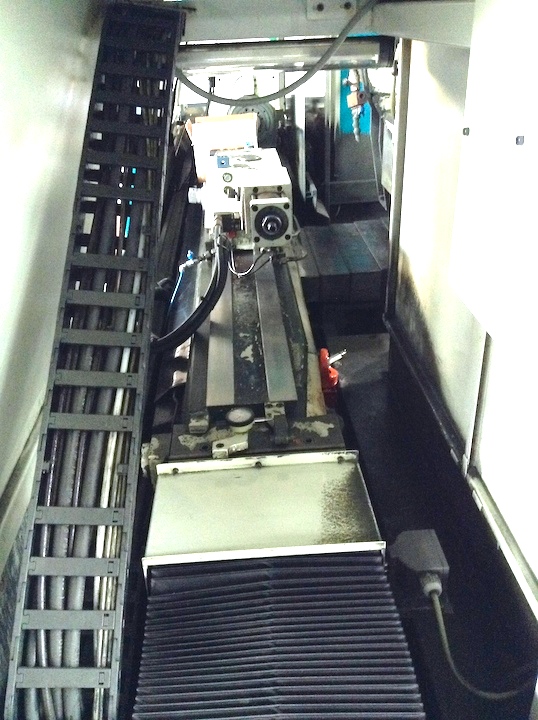

TABLE
Stroke
1680 mm66,14 in
Cross speed
10000 mm/min393,7000 ipm
Max workpiece weight
250 Kg
Tilt
0/+7 °
CNC
Measuring system
Trasduttore rotante
CNC
FANUC 180
WHEELHEAD
External spindle power
7,5 Kw
Accuracy (B axis)
2,5 °
RIGHT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
440 mm17,32 in
Hole diameter
127 mm5,00 in
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
10-800 Rpm
Tilt
0/+15 °
Taper
MK5
TAILSTOCK
Quill stroke
35 mm1,38 in
Taper
MK4
EXTRA
Total power supply
15 Kw
Machine total weight
6500 Kg

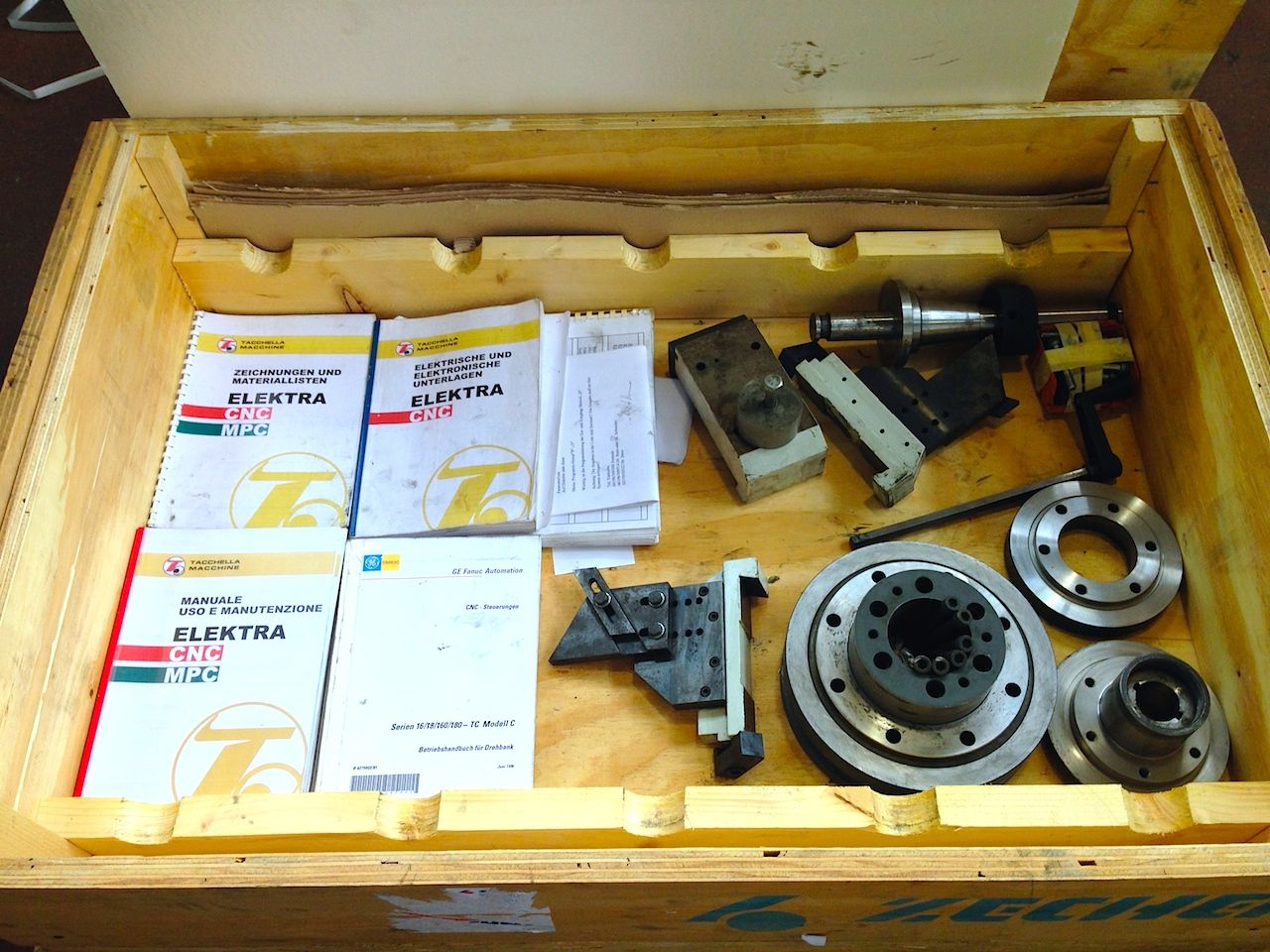

Tooling included
flange, supporti pezzo
Wheel balancer
Yes
Manual dresser
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
integrale
Availability
pronta
Available in stock
si
Available under power
previo appuntamento
Floor space
4845x2195x1800 mm190,75x86,42x70,87 in
