Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
120 mm4,72 in
Longitudinal (Z)
600 mm23,62 in
Cross (X)
250 mm9,84 in
Max grinding lenght
600 mm23,62 in
Max grinding diameter
240 mm9,45 in
Max internal diameter
10-270 mm0,39-10,63 in
Max internal depth
440 mm17,32 in

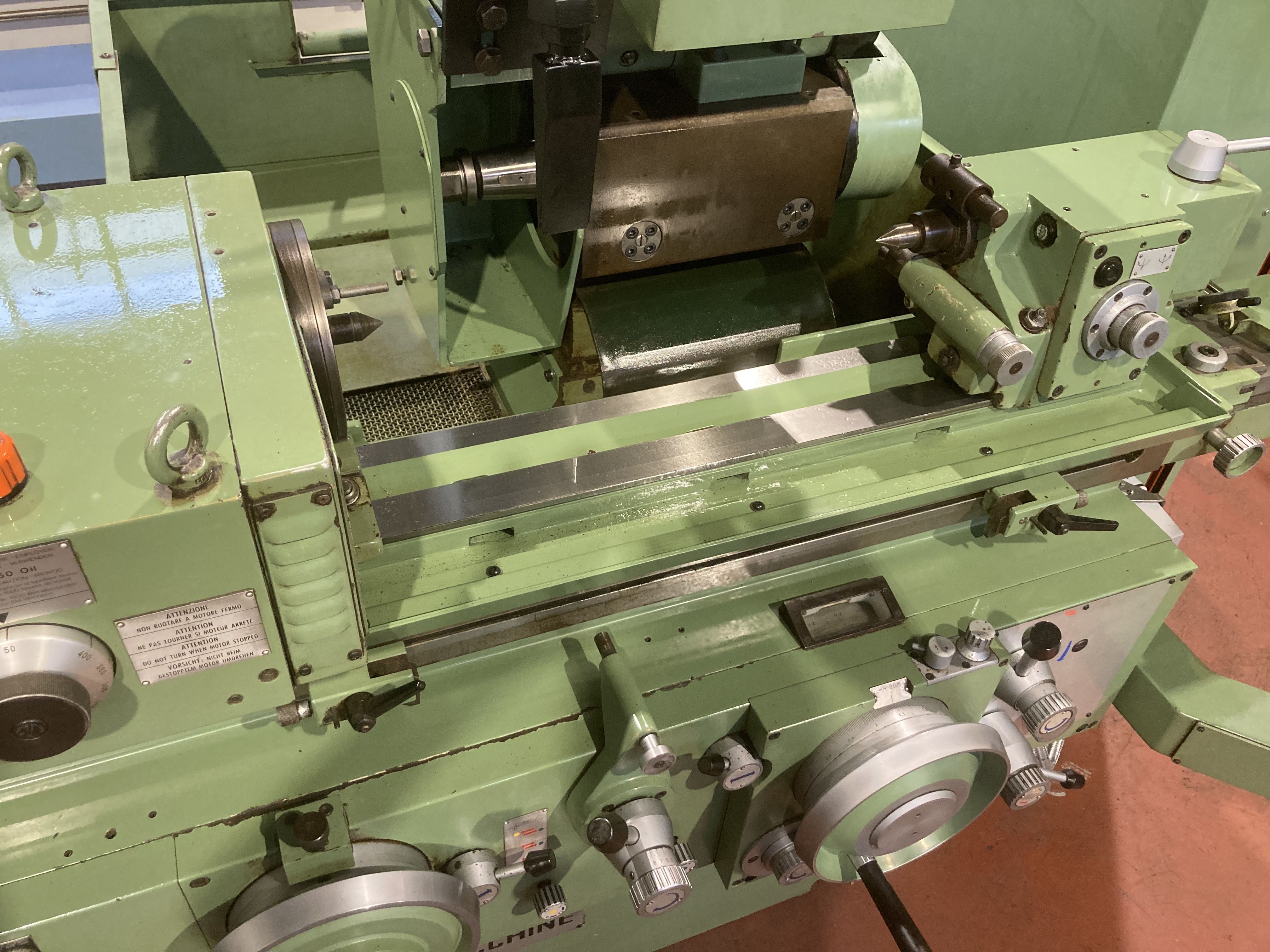

TABLE
Stroke
4-600 mm0,16-23,62 in
Cross speed
100-7000 mm/min3,9370-275,5900 ipm
Max workpiece weight
100 Kg
Tilt
10 °
WHEELHEAD
External spindle power
4 Kw
External spindle speed
1640-1900 Rpm
Internal spindle power
1,1 Kw
LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
355 mm13,98 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
22-580 Rpm
Tilt
90 °
Taper
MK3
TAILSTOCK
Quill diameter
20 mm0,79 in
Quill stroke
20 mm0,79 in
Taper
MK3
EXTRA
Total power supply
6,45 Kw
Machine total weight
2400 Kg
Floor space
2660x1850x1750 mm104,72x72,83x68,90 in

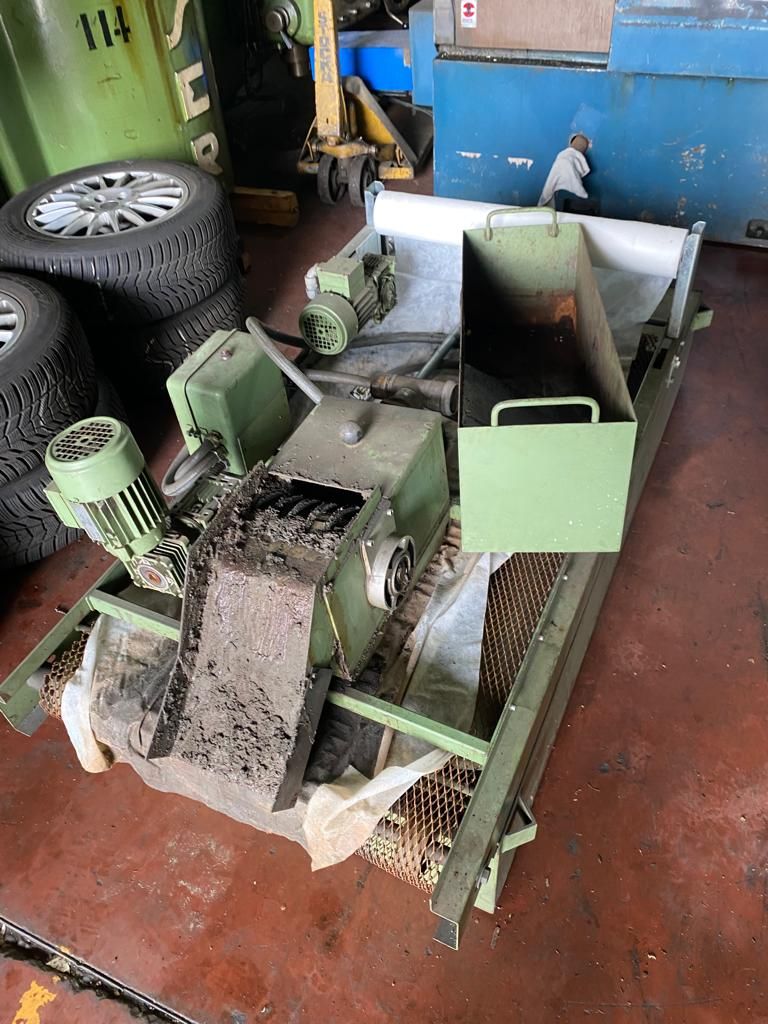

Filtration unit
Vasca Filtro Carta
Maintenance & Use books
Yes

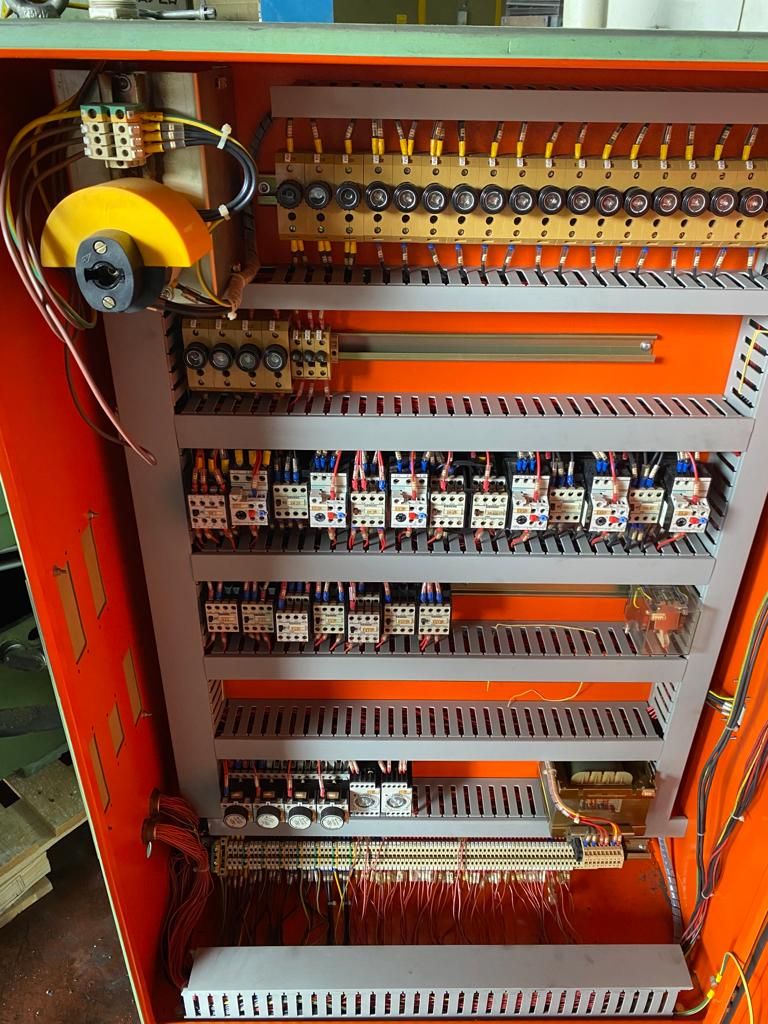

Electrical drawings
Yes
Availability
Pronta
Available in stock
Si
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
