Category
Grinding Machine
Type
ID/OD
Made

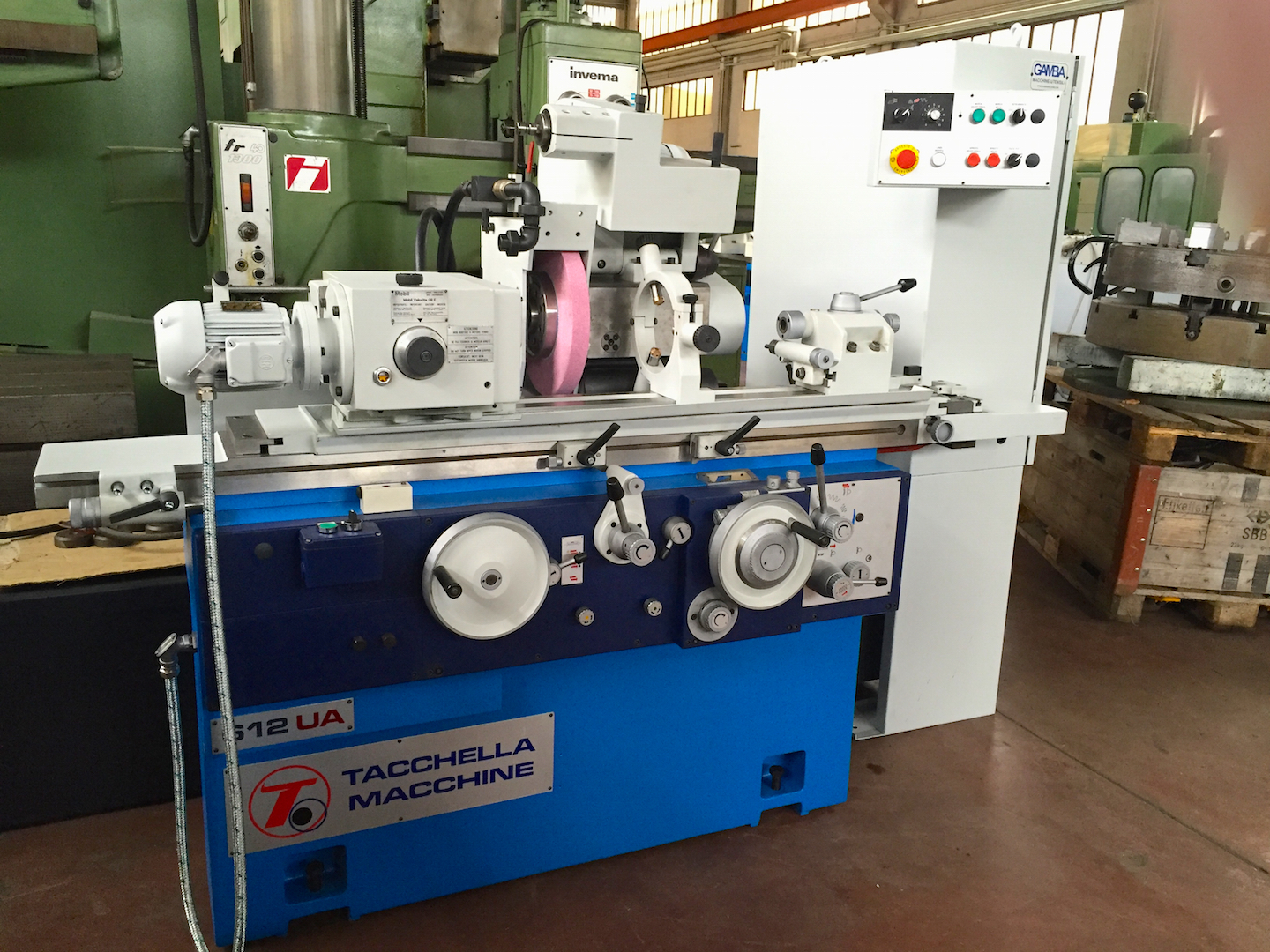

Model
612 UA
Capacity
200x600 mm7,87x23,62 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres distance
600 mm23,62 in
Centres height
120 mm4,72 in
Longitudinal (Z)
600 mm23,62 in
Cross (X)
250 mm9,84 in
Max grinding lenght
600 mm23,62 in
Max grinding diameter
200 mm7,87 in
Max internal diameter
10-120 mm0,39-4,72 in
Max internal depth
440 mm17,32 in
TABLE
Stroke
4-600 mm0,16-23,62 in
Cross speed
100-7000 mm/min3,9370-275,5900 ipm
Max workpiece weight
100 Kg
Tilt
10 °

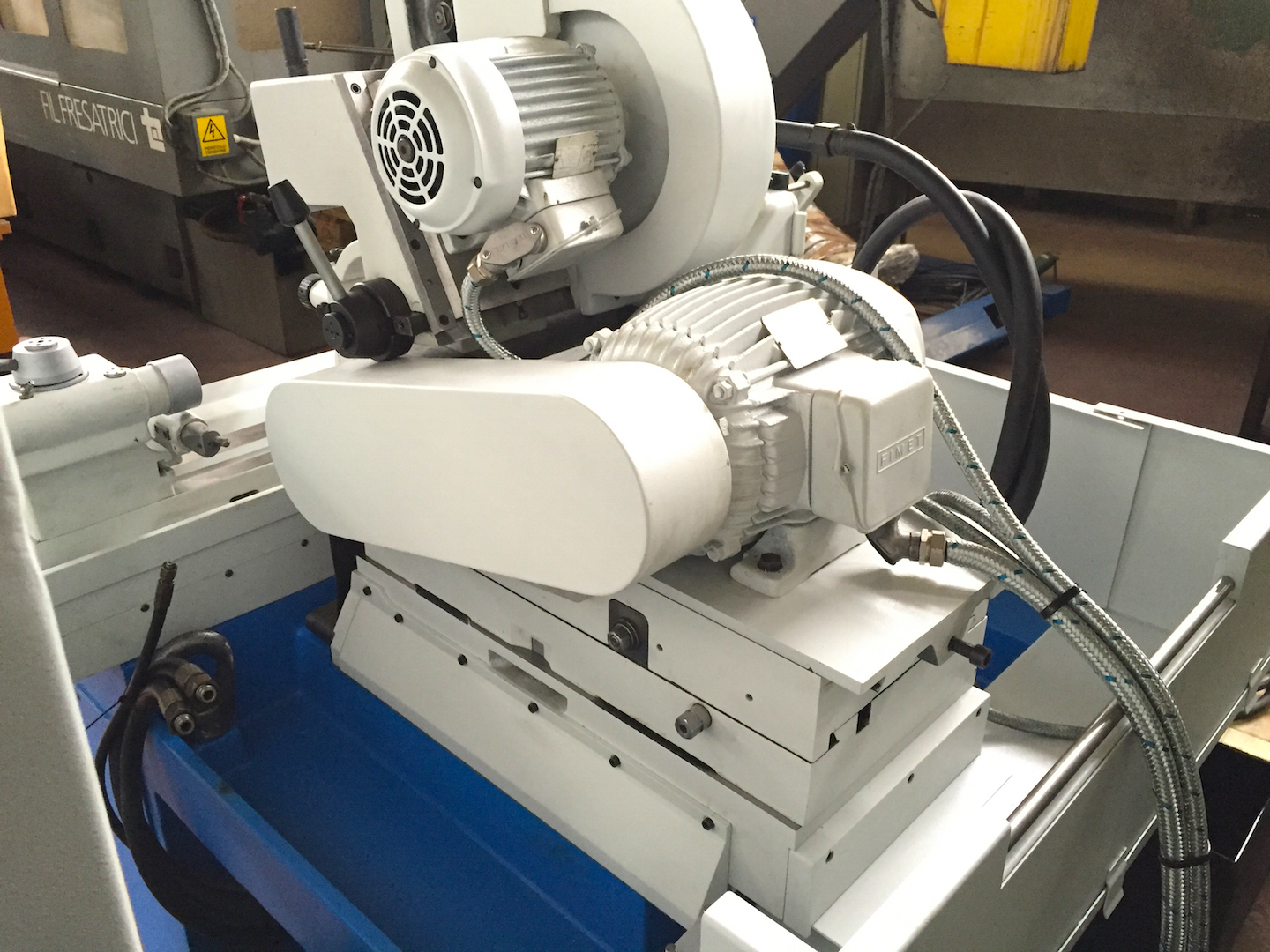

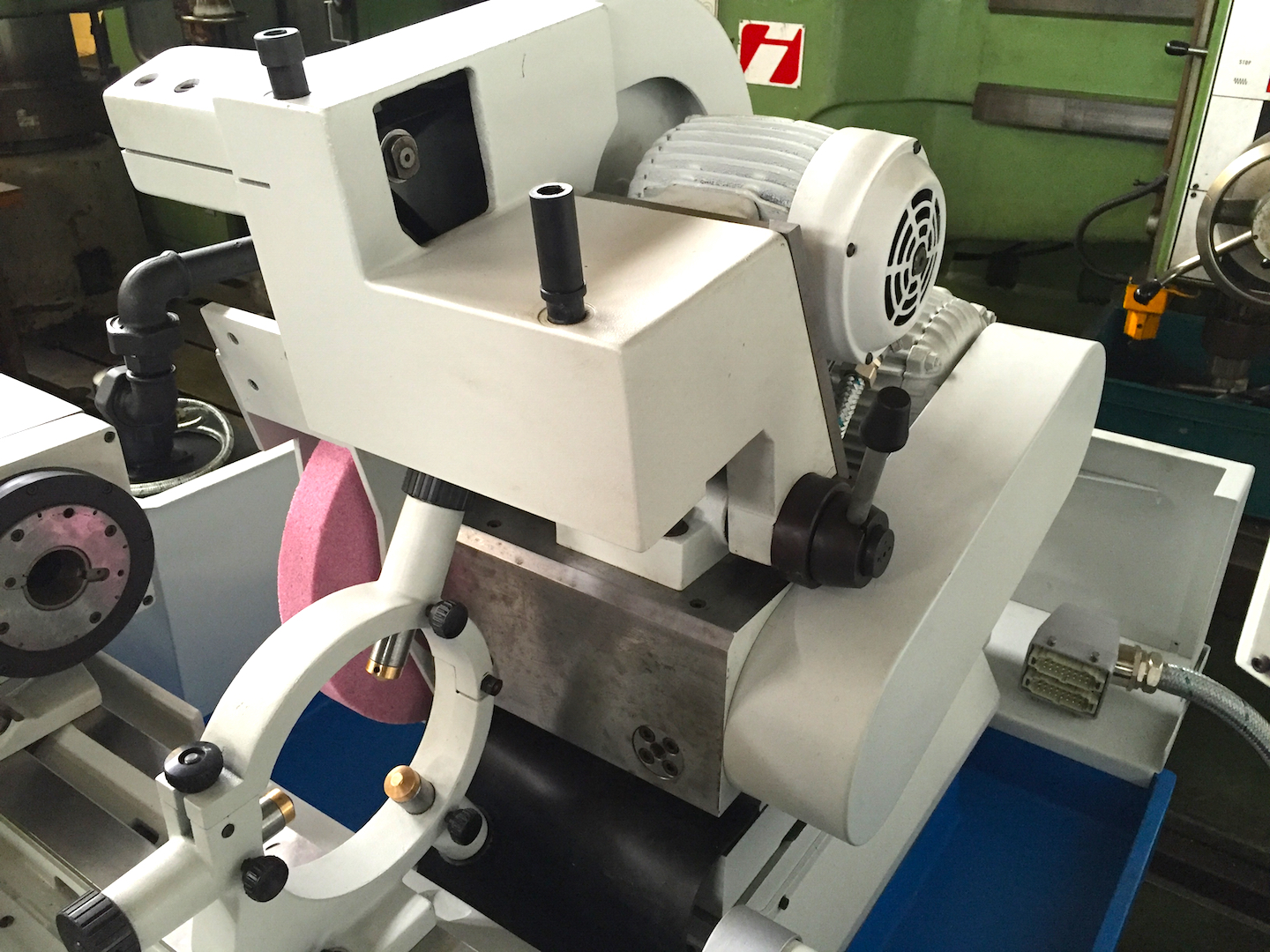

WHEELHEAD
External spindle power
4 Kw
External spindle speed
1640-1900 Rpm
Internal spindle power
1,1 Kw
LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
355 mm13,98 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
22-580 Rpm
Tilt
90 °
Taper
MK3
TAILSTOCK
Quill diameter
20 mm0,79 in
Quill stroke
20 mm0,79 in
Taper
MK3
EXTRA
Total power supply
6,45 Kw
Machine total weight
2400 Kg
Floor space
2660x1850x1750 mm104,72x72,83x68,90 in
Filtration unit
vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Available under power
si previo appuntamento
Tooling included

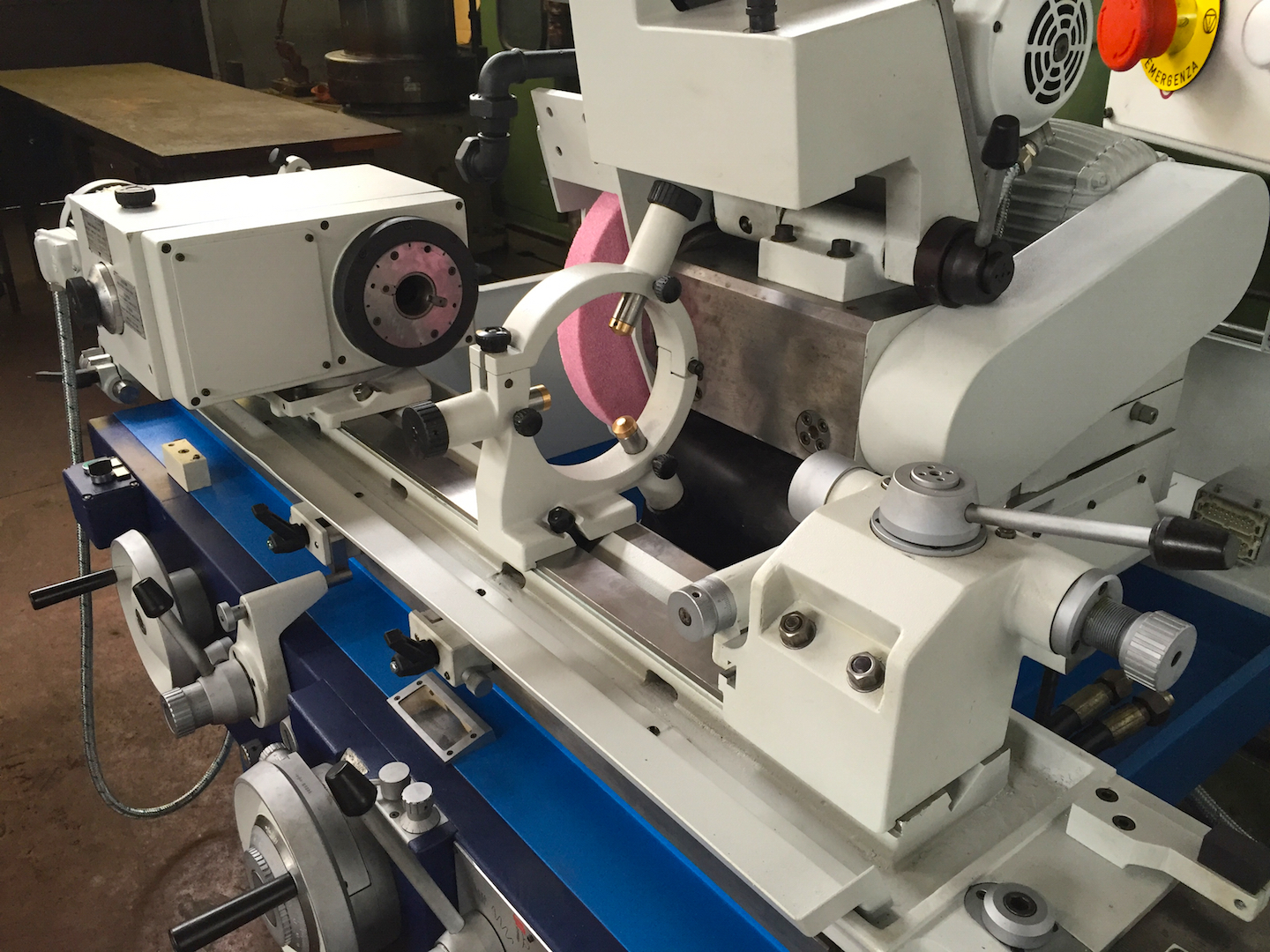

apparecchio per interni, testa porta pezzo con regolzione progressiva velocità
