Category

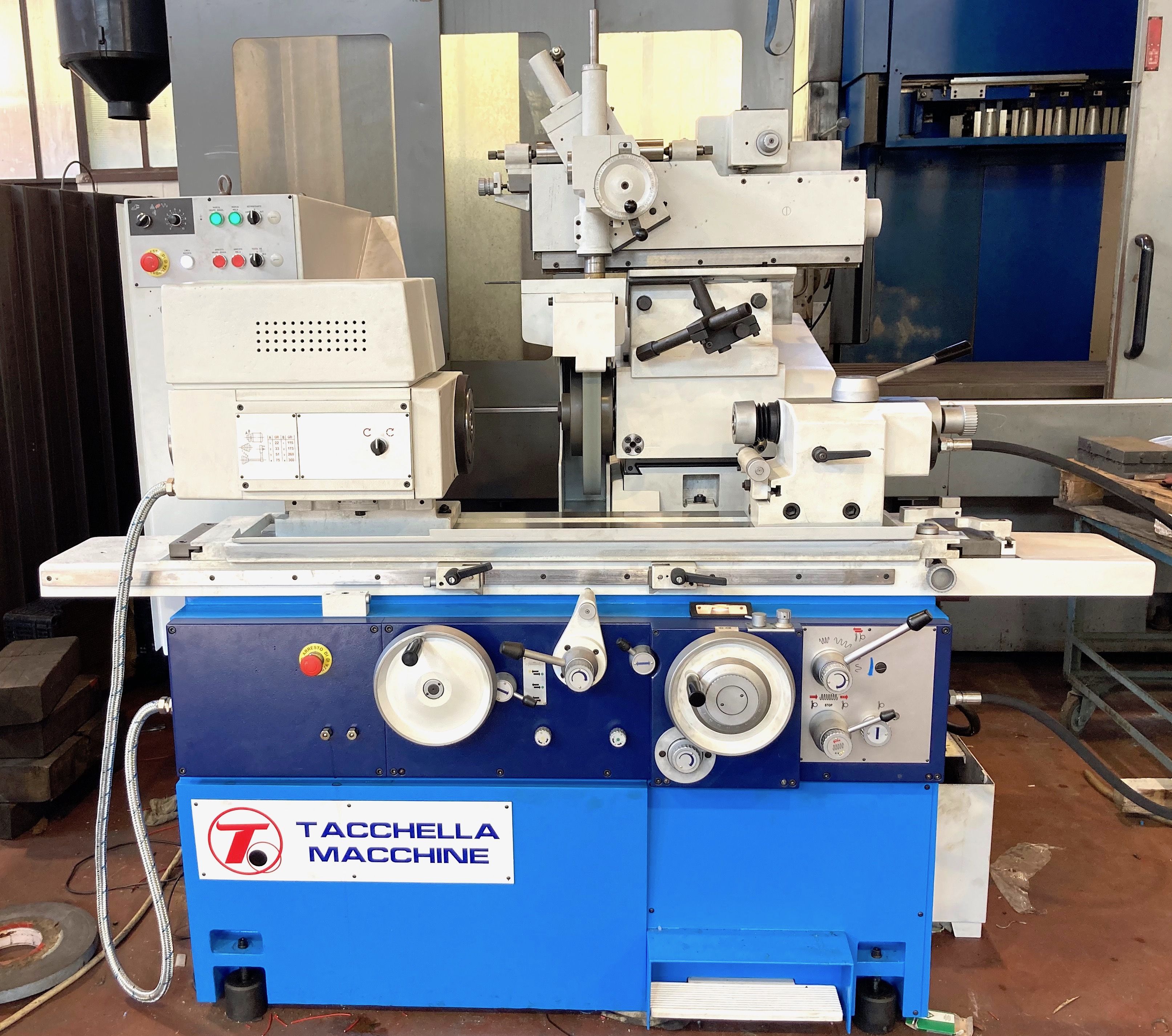

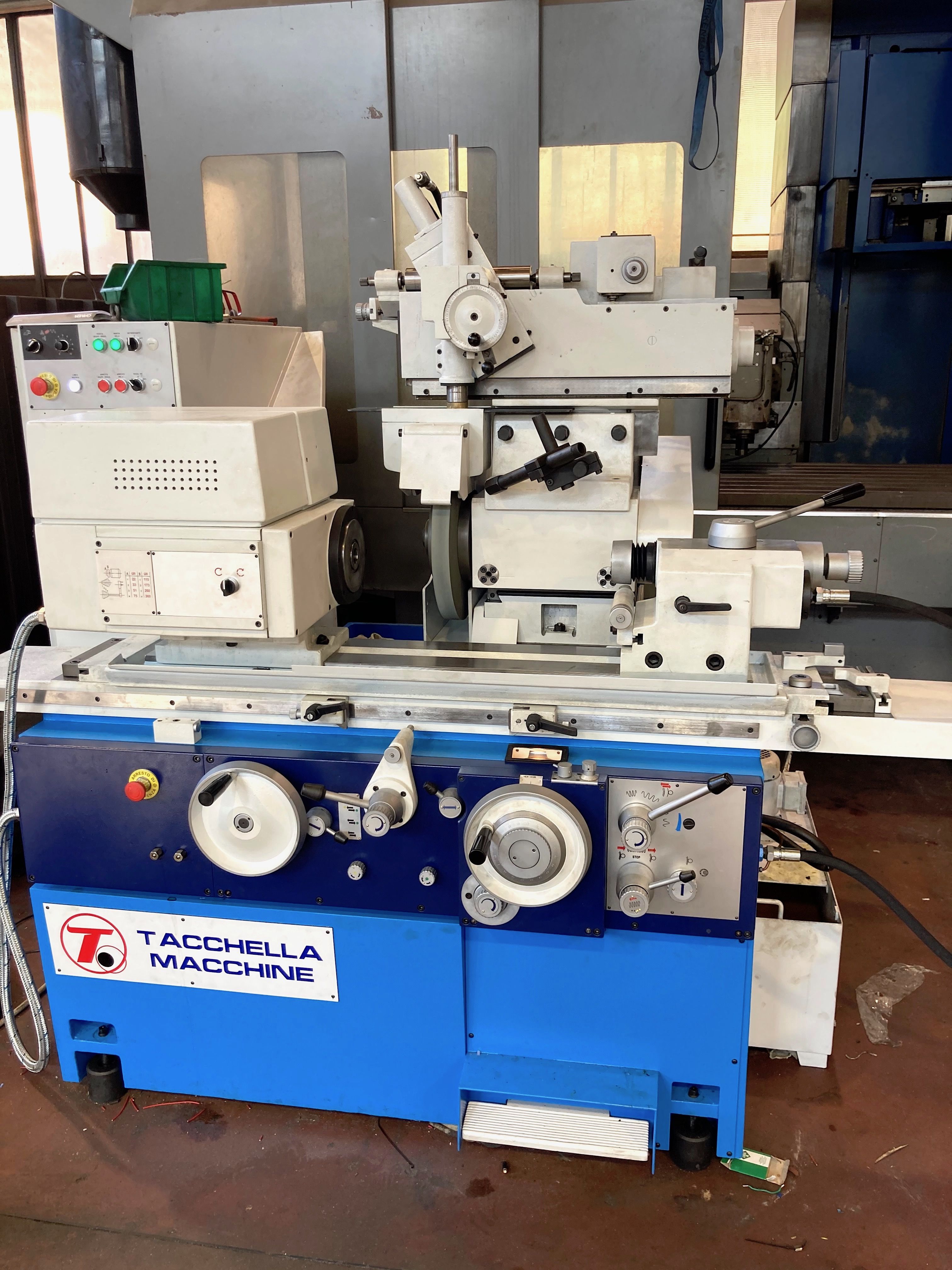

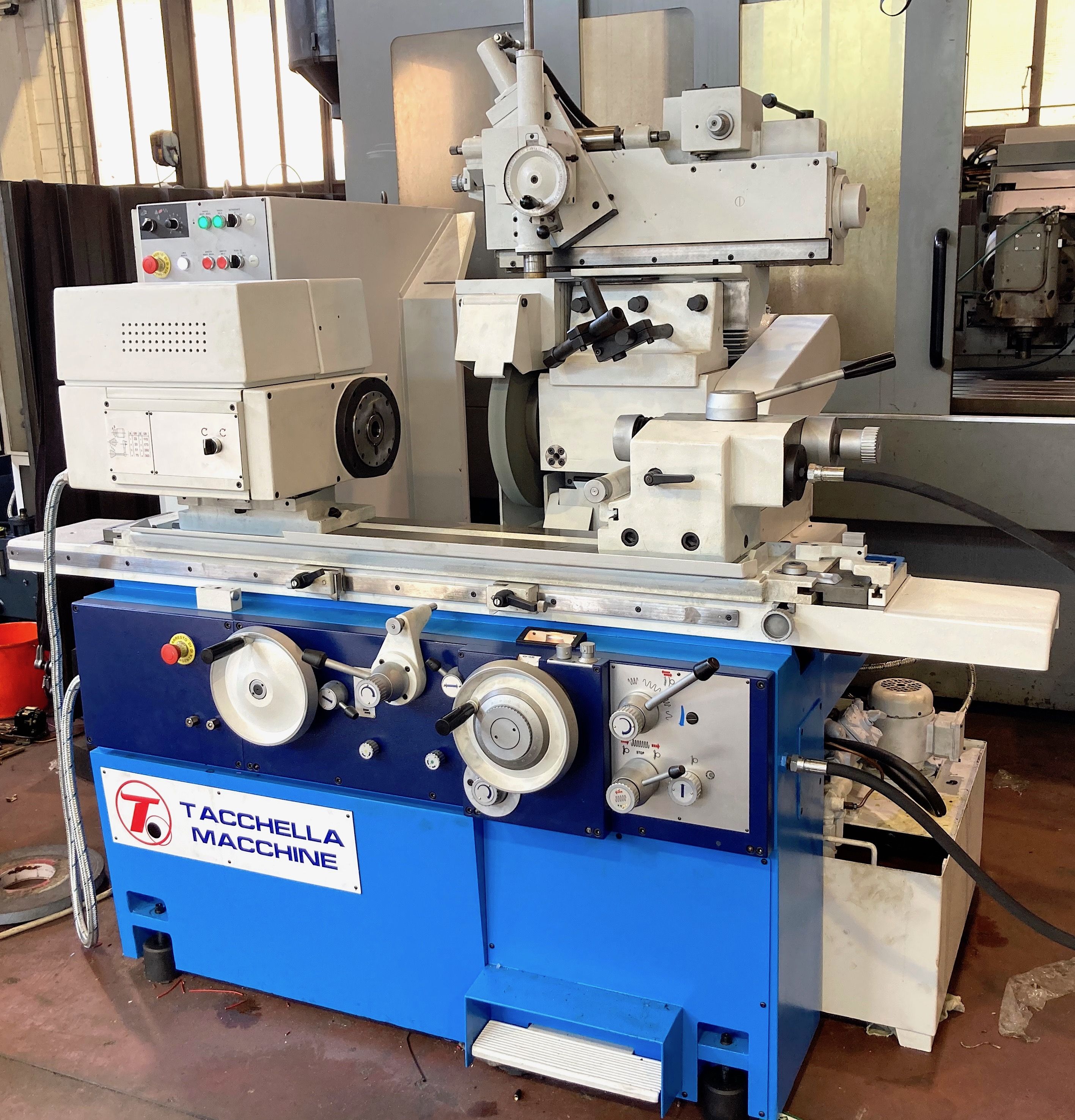

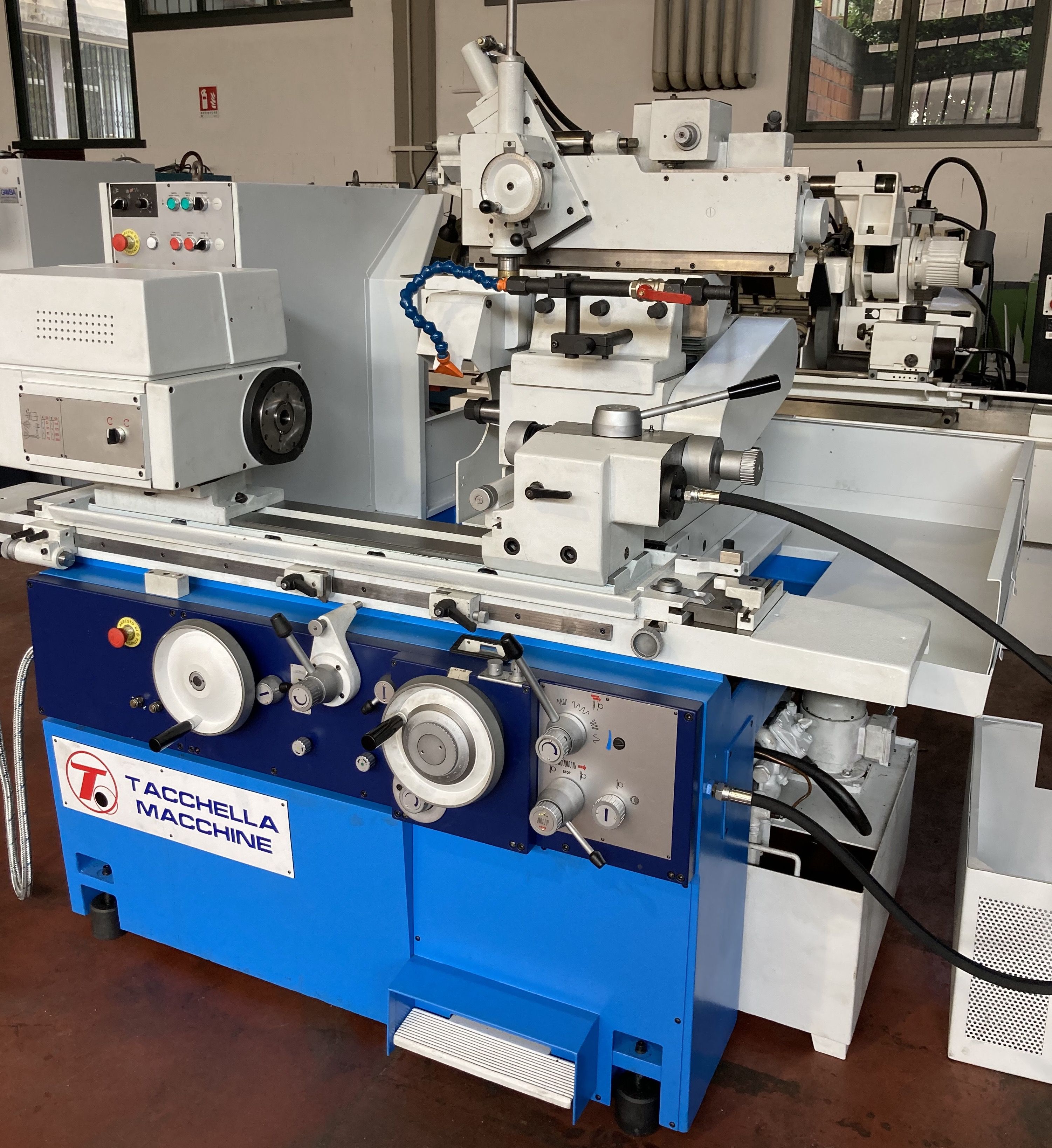

Grinding Machine
Type
ID/OD
Made
Model
518 UA
Capacity
500x180 mm19,69x7,09 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
500 mm19,69 in
Centres height
180 mm7,09 in
Max grinding lenght
500 mm19,69 in
Max grinding diameter
360 mm14,17 in
CNC
Measuring system
MARPOSS
TABLE
Cross speed
100/7000 mm/min3,9370/275,5900 ipm
Tilt
10 °
FEEDS
Cross
0,01/1,8 mm/min0,0004/0,0709 ipm

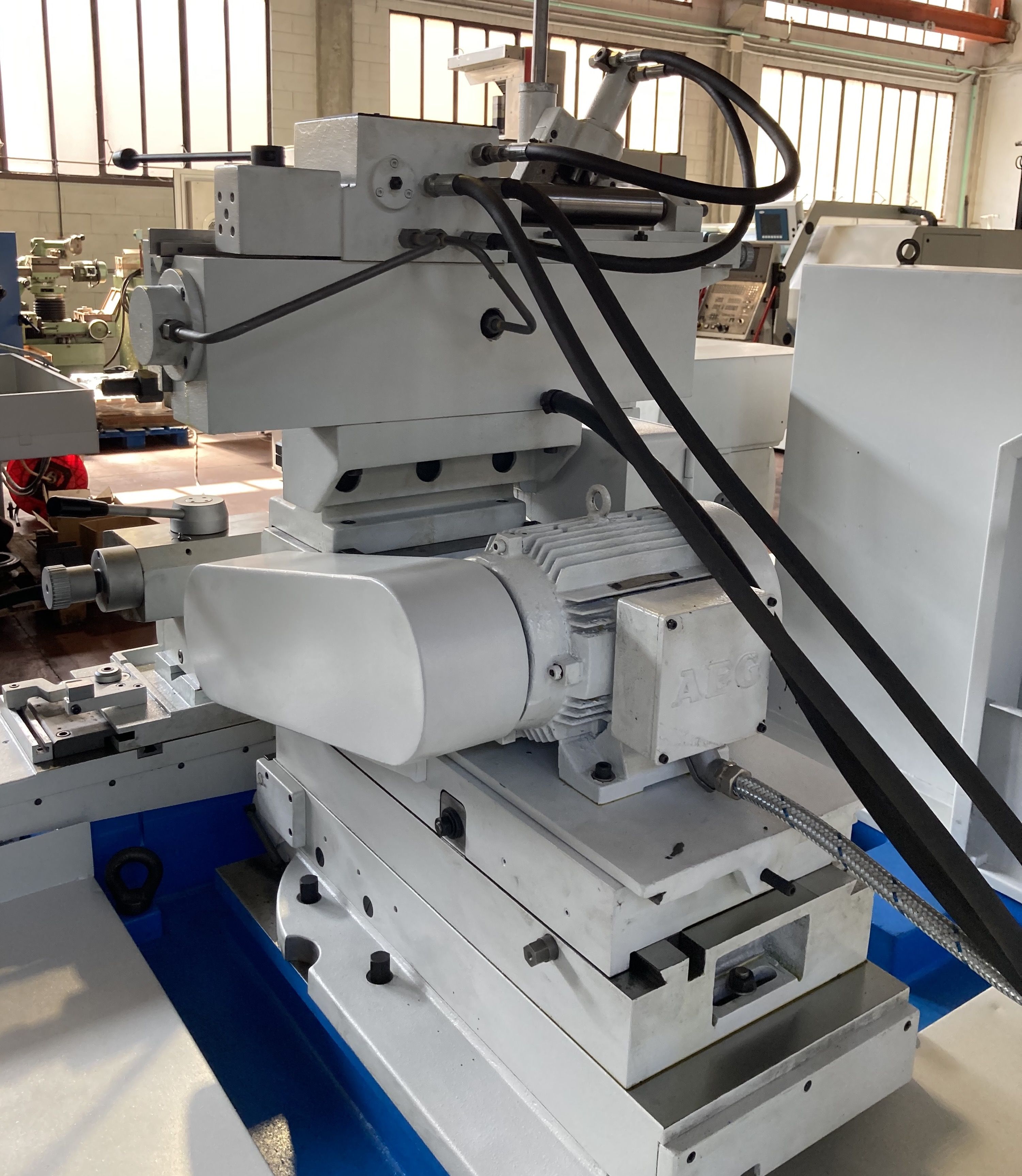

WHEELHEAD
External spindle power
7,5 Kw
External spindle speed
1275/1450 Rpm
RIGHT WHEEL
Wheel band thickness
50/70 mm1,97/2,76 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Spindle power
0,75 Kw
Rotating speed
20/355 Rpm
Tilt
90 °
Taper
CM4
EXTRA
Available in stock
SI
Electrical drawings
Yes
Maintenance & Use books
Yes
Total power supply
7,5 Kw
Machine total weight
3200 Kg
Floor space
3000X2000 mm118,11X78,74 in
Tooling included
COPIATORE MOLA
Diametral probe
Yes
